Home theater speaker system

HKTS 5

Owner’s Manual

HKTS 5

Introduction, Description and Features, and

Included Items

Introduction

Thank you for purchasing the harman kardon

HKTS 5 speaker system, with which

you’re about to begin many years of listening enjoyment. The HKTS 5 has been custom

designed to provide all the excitement and power of the cinema experience in your own

living room.

While sophisticated electronics and state-of-the-art speaker components are hard at

work within the HKTS 5, hookup and operation are simple. Color-keyed cables and

connections and simple controls make the HKTS 5 easy to use.

To obtain maximum enjoyment from your new home theater speaker system, we urge you

to take a few minutes to read through this manual. It will help ensure that the connections

you make to your receiver (or preamp/processor), ampliﬁer and other devices are correct.

In addition, a few minutes spent learning the functions of the various controls will enable

you to take advantage of all the power and reﬁnement the HKTS 5 is able to deliver.

If you have any questions about this product, its installation or its operation, please

contact your dealer, the best local source of information.

Description and Features

The HKTS 5 is a complete six-piece home theater speaker system that includes:

• An 8-inch (200mm), 60-watt powered subwoofer

• Four identical, two-way, satellite speakers for the front left, front right, surround

left and surround right speaker positions

• A dedicated, voice-matched, dual-driver center speaker

• Shelf stands and wall-mount brackets for the satellite speakers and a wall-

mount bracket for the center speaker

• All of the cables you need to connect all of the speakers to your receiver or

preamp/processor and ampliﬁer

The speaker cables all use a color-coding system to conform to the Consumer Electronics

Association (CEA

) standard. This color-coding system minimizes confusion when

connecting the speakers, especially when the HKTS 5 system is used with a harman

kardon receiver.

Shelf stands and wall-mount brackets are included for the satellite and center speakers,

and shelf stands are included for the satellite speakers. Optional HTFS 2 ﬂoor stands are

available separately from your harman kardon dealer.

harman kardon engineers invented the high-ﬁdelity receiver ﬁfty years ago. With state-

of-the-art features and time-honored circuit designs, the HKTS 5 is a perfect complement

to a harman kardon receiver or any home theater system.

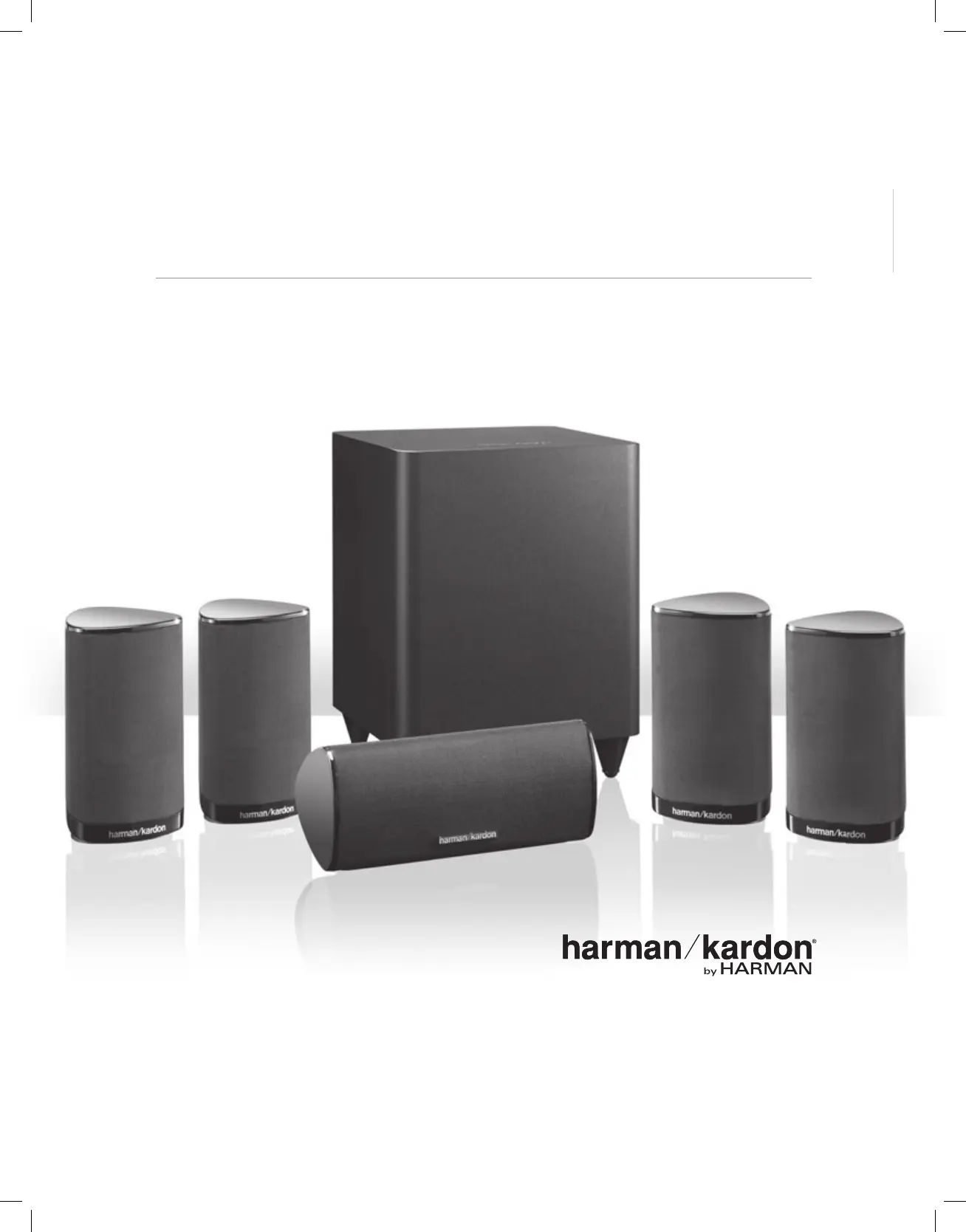

Included Items

One HKTS 160SUB subwoofer

One center-channel speaker

Four satellite speakers: a front left speaker, a front right speaker and two rear surround-

sound speakers (shown with included shelf stands attached).

Four wall-mount brackets for satellite speakers

One wall-mount bracket for center-channel speaker

One LFE (low-frequency effects) for connection to the subwoofer (LFE cable has purple

connectors)

Three six-meter (19.7-foot) speaker cables for connection to front satellites (red and

white) and to center speaker (green)

Two 12-meter (39.4-foot) speaker cables for connection from receiver to rear surround-

sound satellites (gray and blue)

Produktspecifikationer

Varumärke:	Harman Kardon
Kategori:	högtalare
Modell:	HKTS 5
Strömförbrukning (max):	85 W
Certifiering:	CE
Rekommenderad användning:	Universal
Ljudutgångskanaler:	5.1 kanaler
Subwoofertyp:	Aktiv subwoofer
Subwooferns mått (BxDxH):	267 x 267 x 353 mm
Mitthögtalarens mått (BxDxH):	241 x 92 x 102 mm
Typ av satellithögtalare:	2-vägs
Produktens färg:	Svart
bruksanvisning:	Ja
Monteringssats:	Ja
Uteffekt (RMS):	80 W
AC-inspänning:	220-240 V
Kabel inkluderad:	RCA
Subwoofer RMS-effekt:	60 W
Subwooferns frekvensomfång:	50 - 150 hz
Subwooferns högtalarelement, diameter (imperial):	8 "
Anslutningsteknologi:	Kabel
Växelström Frekvens:	50 - 60 hz
Strömkälla:	AC
Typ av centerhögtalare:	2-vägs
Antal satellithögtalare:	4
Strömförbrukning i vänteläge:	0.5 W
Bluetooth:	Nej
Basnivåkontroll:	Ja
Signal/brusförhållande (SNR):	86 dB
Satellithögtalarens RMS-effekt:	80 W
Impedans för satellit-högtalare:	8 Ω
Satellithögtalarens mått (BxDxH):	100 x 92 x 167 mm
Centrumhögtalare, styrka:	80 W
Satellithögtalarens vikt:	700 g
Subwoofer vikt:	7700 g
Faskontroll:	Ja
Satellithögtalarens disktanthögtalare, diameter:	1 "
Centrumhögtalare, vikt:	1100 g
Antal bashögtalare för satellithögtalare:	1
Förstärkare uteffekt:	60 W
Känslighet för mitthögtalare:	86 dB
Satellithögtalarens mellandrivenhet, diameter:	3 "
Frekvensområde för satellithögtalare:	45 - 20000 hz
Mitthögtalarens disktanthögtalare, diameter:	4 "
Centrumhögtalarimpedans:	8 Ω
Diskantmängd för satellithögtalare:	1
Känslighet för satellithögtalare:	86 dB
Mitthögtalarens mellandrivenhet, diameter:	3 "
Antal diskanter för centerhögtalare:	1
Antal centrala bashögtalare:	2
