SB 10

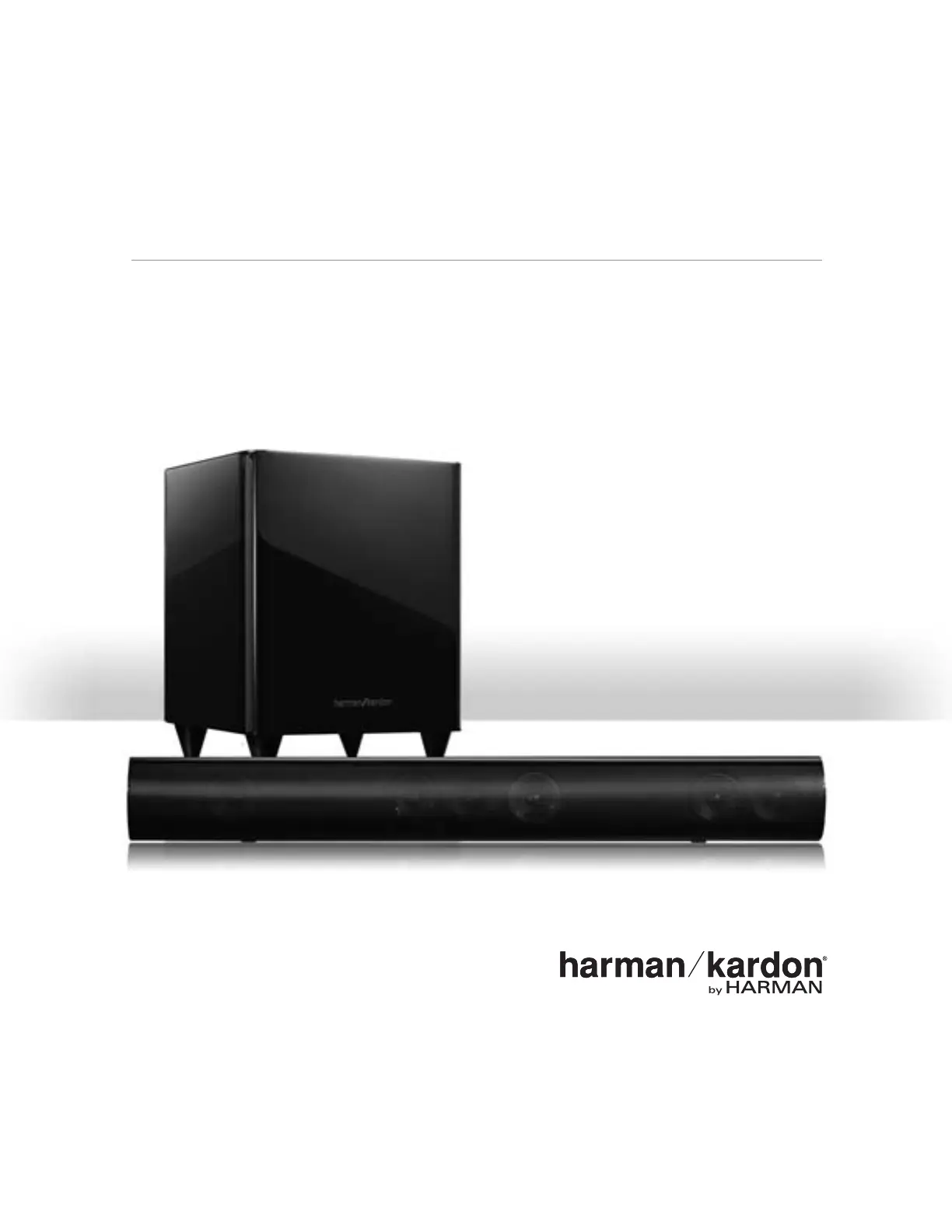

Soundbar speaker system

Owners Manual

0252CSK - HK SB10 120V+230V OM EN.indd 1 05/10/10 14:07:32

Federal Communications Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation.

This equipment generates, uses and can radiate radio-frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one of the following

measures:

Reorient or relocate the receiving antenna. •

Increase the separation between the equipment and receiver. •

Connect the equipment into an outlet on a circuit different from that to which the receiver is •

connected.

Consult the dealer or an experienced radio/TV technician for help. •

FCC Caution:

To assure continued compliance, any changes or modifications not expressly approved by

the party responsible for compliance could void the user’s authority to operate this equipment.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

SB 10

Important Safety Instructions

Read these instructions.1.

Keep these instructions.2.

Heed all warnings.3.

Follow all instructions.4.

Do not use this apparatus near water.5.

Clean only with a dry cloth.6.

Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.7.

Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.8.

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding 9.

prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles and the point where they exit from the apparatus.10.

Only use attachments/accessories specified by the manufacturer.11.

Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the apparatus. 12.

When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Unplug this apparatus during lightning storms or when unused for long periods of time.13.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects 14.

have fallen into the apparatus, or the apparatus has been exposed to rain or moisture, does not operate normally or has been dropped.

Do not expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the apparatus.15.

To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from the AC receptacle.16.

The mains plug of the power supply cord shall remain readily operable.17.

Do not expose batteries to excessive heat such as sunshine, fire or the like.18.

Important Safety Instructions

CAUTION

SEE MARKING ON BACK OF PRODUCT.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

THE LIGHTNING FLASH WITH AN ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE,

IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED “DANGEROUS VOLTAGE”

WITHIN THE PRODUCT’S ENCLOSURE THAT MAYBE OF SUFFICIENT MAGNITUDE TO CONSTITUTEA

RISK OF ELECTRIC SHOCK TO PERSONS.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS

TO RAIN OR MOISTURE.

THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO

THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE

LITERATURE ACCOMPANYING THE PRODUCT.

0252CSK - HK SB10 120V+230V OM EN.indd 2 05/10/10 14:07:33

SB 10

ENGLISH

Table of Contents

INTRODUCTION 4

DESCRIPTION AND FEATURES 4

INCLUDED ITEMS 5

SUBWOOFER REARPANEL CONTROLS AND CONNECTIONS 6

SPEAKER PLACEMENT 7

Placing the Soundbar on a Table 7

Wall-Mounting the Soundbar 7

Placing the Subwoofer 7

CONNECTIONS 8

Soundbar Connections 8

Subwoofer Connections 8

OPERATION 10

Turning the Subwoofer On and Off 10

Subwoofer Adjustments: Volume 10

Subwoofer Adjustments: Phase 10

Subwoofer Adjustments: Bass Boost 10

TROUBLESHOOTING 11

SPECIFICATIONS 12

0252CSK - HK SB10 120V+230V OM EN.indd 3 05/10/10 14:07:33

Produktspecifikationer

Varumärke:	Harman Kardon
Kategori:	högtalare
Modell:	SB 10
FM-radio:	Nej
Rekommenderad användning:	Hemmabio
Impedans:	8 Ω
Ljudutgångskanaler:	3.1 kanaler
Subwoofertyp:	Aktiv subwoofer
Subwooferns mått (BxDxH):	267 x 267 x 353 mm
Produktens färg:	Svart
bruksanvisning:	Ja
Uteffekt (RMS):	420 W
Strömförbrukning (vanlig):	200 W
AC-inspänning:	100-240 V
Kabel inkluderad:	RCA
Subwoofer RMS-effekt:	200 W
Subwooferns frekvensomfång:	45 - 200 hz
Frekvensområde:	45 - 20000 hz
Mottagartyp:	Inbyggd
Apple-kompatibel dockningsmöjlighet:	Stöds inte
Växelström Frekvens:	50 - 60 hz
Subwoofer ingår:	Ja
Strömkälla:	AC
Strömförbrukning i vänteläge:	1 W
Basnivåkontroll:	Ja
Signal/brusförhållande (SNR):	84 dB
Mottagare medföljer:	Ja
Subwoofer vikt:	9000 g
Övergångsfrekvens:	2200 hz
Dockningskontakttyp:	Stöds inte
Soundbar-vikt:	3670 g
Soundbarmått (BxDxH):	920 x 89 x 110 mm
