FIGURE 1

THIS ALSO APPLIES

TO PBA6/PBA6C

APPLY 1 DOT OF

LOCTITE 222MS

(WHERE SHOWN)

FLANGED

PUSH BUTTON

ASSEMBLY

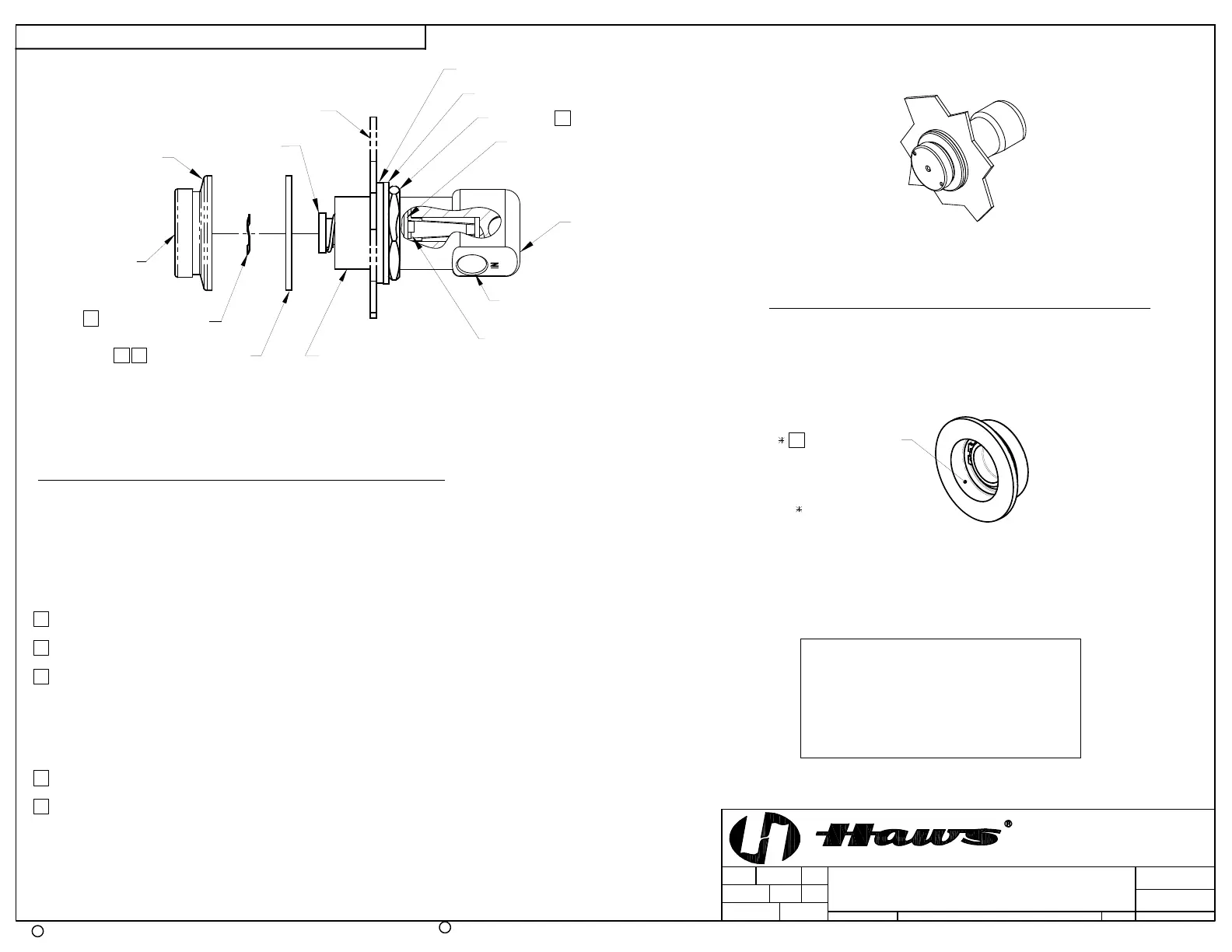

*** MODEL VRK5874 & VRK5874HF- VALVE REPAIR KITS INCLUDE THESE ITEMS

*** WAVE WASHER

(FRONT OF FOUNTAIN)

RUBBER WASHER

FIBER WASHER

LOCK NUT

CARTRIDGE ***

2X 1/4" IPS CONNECTION

(FITTINGS NOT SUPPLIED)

VALVE SHOWN MOVED

FORWARD ABOUT 1" (STEP 3).

INSTALLATION INSTRUCTIONS FOR 5874PBF.

ASSEMBLED 5874PBF

LARGE RING NUT

(FLUSH MOUNT APPLICATION ONLY)

1) FOLLOW INSTRUCTIONS CAREFULLY ON O&M MANUAL (PAGE 2 OF 6) WHEN REMOVING

OLD VALVE. NOTE: SEE PARTS BREAKDOWN (PAGE 4 OF 6) FOR ADDITIONAL NOTES.

2) VERIFY THAT LOCK NUT, FIBER, AND RUBBER WASHERS ARE POSITIONED SLIGHTLY

PAST MIDWAY OF THREADS ON NEW VALVE BODY.

3) INSERT VALVE INTO BRACKET FROM INSIDE AND PUSH FORWARD ABOUT 1".

4 THREAD LARGE RING NUT ONTO VALVE BODY, APPROXIMATELY 1" INTO VALVE.

5 PLACE WAVE WASHER INSIDE OF FLANGED PUSH BUTTON ASSEMBLY (MUST BE IN PLACE).

6 APPLY ONE (1) DOT OF LOCTITE 222MS, ON THE FEMALE THREADS OF BUTTON ASSEMBLY

LEAVING THE FIRST AND LAST THREADS FREE. (FIGURE 1). CAUTION: EXCESS LOCTITE CAN

CAUSE THREADS TO LOCK VERY TIGHTLY, MAKING REPAIRS DIFFICULT.

**7) THREAD FLANGED PUSH BUTTON ASSEMBLY ON VALVE UNTIL WAVE WASHER MAKES SLIGHT

CONTACT WITH STEM OF CARTRIDGE. CAUTION: DO NOT HAND-TIGHTEN.

8 UNTHREAD RING NUT FORWARD UNTIL IT STOPS FLUSH WITH PUSH BUTTON ASSEMBLY.

9 PUSH VALVE BACK TOWARD THE INSIDE OF BRACKET AND TIGHTEN LOCKNUT (SEE

ILLUSTRATION ABOVE).

10) TIGHTEN PUSH BUTTON ASSEMBLY USING UNIVERSAL SPANNER WRENCH PROVIDED.

** OVERTIGHTENING WILL PRE-ACTUATE VALVE AND CAUSE WEEPAGE, WHILE NOT ENOUGH

CONTACT BETWEEN WAVE WASHER AND STEM CAN CAUSE A LOW FLOW CONDITION.

NOTE!

THIS VALVE IS PRESSURE COMPENSATING.

BE SURE TO REMOVE ANY EXISTING FLOW

CONTROL DEVICES. (MAY BE PRESENT IN

FITTING OR SPUD).

SEE SHEET 2 OF 2 FOR 5874PB RECESSED MOUNT INSTRUCTIONS.

5

(DO NOT REMOVE GASKET

THAT COMES WITH CARTRIDGE)

FRONT ADJUST

SCREW ACCESS

GASKET W/SCREEN ***

6

4

8

9

VALVE BODY SHOWN FOR

REF. (STYLE MAY VARY)

CARTRIDGE

APPROVED:

DRAWN:

PART NUMBER

SCALE:

SHEETOF

REVISION

DRAWING TYPE:SIZE: A

BY:ECN NO.

DATE:

DATE:

ECN:

REVISED PER

CHK'D.:

Haws Corporation - All Rights Reserved.

HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.

C

R

MODEL(S)

1455 KLEPPE LANE

SPARKS, NEVADA 89431

(775) 359-4712 FAX (775) 359-7424

E-MAIL: [email protected]

WEBSITE: WWW.HAWSCO.COM

THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS

MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.

LM

06/08/16

10

0002077650.D

5874PB/5874PBF/VRK5874/VRK5874HF/

PBA6/PBA6C/PBA7/PBA7C

NA

12

FV

03/02/21
