Sida 1/2

Heatit Controls AB l Läkarvägen 4, 454 31 BRASTAD, SWEDEN

Phone: +47 61 18 77 77 l post@heatit.com – www.heatit.com

DISPOSAL GUIDELINES

Do not dispose of electrical appliances as unsorted municipal waste,

use separate collection facilities. To prevent possible harm to the

environment or human health from uncontrolled waste disposal,

recycle it responsibly to promote the sustainable reuse of material

resources. To return your used device, please use the return and

collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

We develop and design our products according in accordance with our strict quality

requirements (ISO 9001) and environmental requirements (ISO 14001). All electrical

installations must be carried out by an authorized electrical installer. The product

must be installed in accordance with our installers manual and national building

codes. Any wrongful installation, misuse, damage of the product, is not covered

under warranty. Updated documentation is available at www.heatit.com and/or

documents.heatit.com. Heatit Controls AB can not be held liable for any type of

errors or omittances in our product information. Product speciﬁcations may change

without further notice.

and supports Amazon Alexa and Google Home

(Amazon Alexa and Google Home is pending).

The installer can conﬁgure and set up the

system via Bluetooth. After the system is set

up, the installer can transfer the property to the

customer. The customer can then transfer their

devices to their Wi-Fi network.

Heatit WiFi Panel Heater has active power

metering and it gives you real time information

about your power consumption.

Heatit WiFi panels are supplied both as a

traditional convector and as a skirting panel

heater. Heatit WiFi Panel Heaters come in outputs

varying between 400W and 1500W in both white

and black color schemes. Heatit WiFi List only in

1000W.

SAFETY ADVISE.

READ THIS NOTICE CAREFULLY

BEFORE OPERATING THE

APPLIANCE.

This appliance can be used by children aged from

8 years and above and persons with reduced

physical, sensory or mental capabilities or lack

of experience and knowledge if they have been

given supervision or instruction concerning use

of the appliance in a safe way and understand the

hazards involved. Children shall not play with the

appliance. Cleaning and user maintenance shall

not be made by children without supervision.

Children of less than 3 years should be

kept away unless continuously supervised.

Children aged from 3 years and less than 8 years

shall only switch on/o the appliance provided

that it has been placed or installed in its intended

normal operating position and they have been

given supervision or instruction concerning use

of the appliance in a safe way and understand

the hazards involved. Children aged from 3

years and less than 8 years shall not plug in,

regulate and clean the appliance or perform user

maintenance.

INTRODUCTION

Heatit WiFi Panel Heater/List is an electrical

radiator. The convector can be controlled using

the “MyHeatit” App via Wi-Fi, Bluetooth (BLE),

by the buttons on the top, or through the open

API over Wi-Fi. The convector has a user friendly

interface.

Heatit WiFi Panel Heater has 2 modes;

Comfort and Eco.

Heatit WiFi Panel Heater has a modern, slim

design and is aesthetically pleasing. It is easy to

install and mount on the wall with the supplied

bracket.

The output power can be adjusted from the

menu or from the App. It has child lock and open

window detection. The device has an open API

Quick Guide

HEATIT

WIFI

PANEL HEATER/LIST

Applies for Article no. Doc. version Doc. date

54 304 74, 54 304 75

54 304 76, 54 304 77

54 304 78, 54 304 69,

54 304 79*, 54 304 81,

54 304 83, 54 304 85,

54 304 87, 54 304 88,

54 304 89

Ver-C 13.01.2025

PRODUCT

DOCUMENTS

WARNING / CAUTION

• Some parts of this product can

become very hot and cause burns.

Particular attention has to be given

where children and vulnerable

people are present.

• If the supply cord is damaged,

it must be replaced by the

manufacturer, its service agent or

similarly qualiﬁed persons in order

to avoid a hazard.

• In order to avoid a hazard due

to inadvertent resetting of the

thermal cutout, this appliance

must not be supplied through an

external switching device, such as

a timer, or connected to a circuit

that is regularly switched on and

o by the utility.

• In order to avoid overheating, do

not cover the panel heater.

• The heater must not be located

immediately below a socket-

outlet.

• Do not use this heater in the

immediate surroundings of a bath,

a shower or a swimming pool.

• Fixed heaters are to be installed so

that switches and other controls

cannot be touched by a person in

the bath or shower.

Warning: this product shall be installed in

the volume 2 only according the national

wiring rules.

Note: The drawing is for reference only.

We suggest that you contact a professional

electrician for assistance.

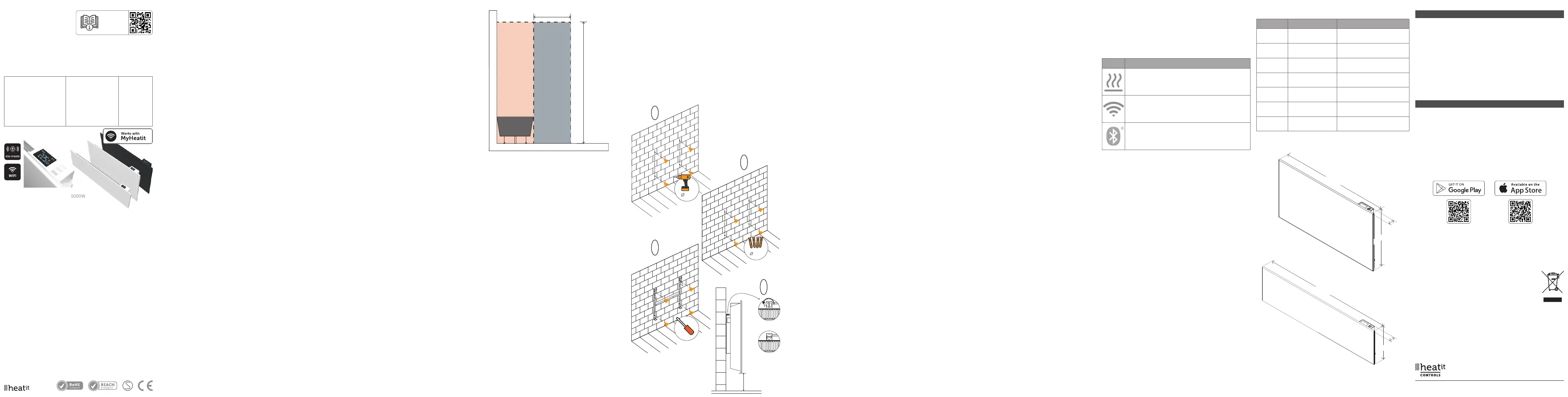

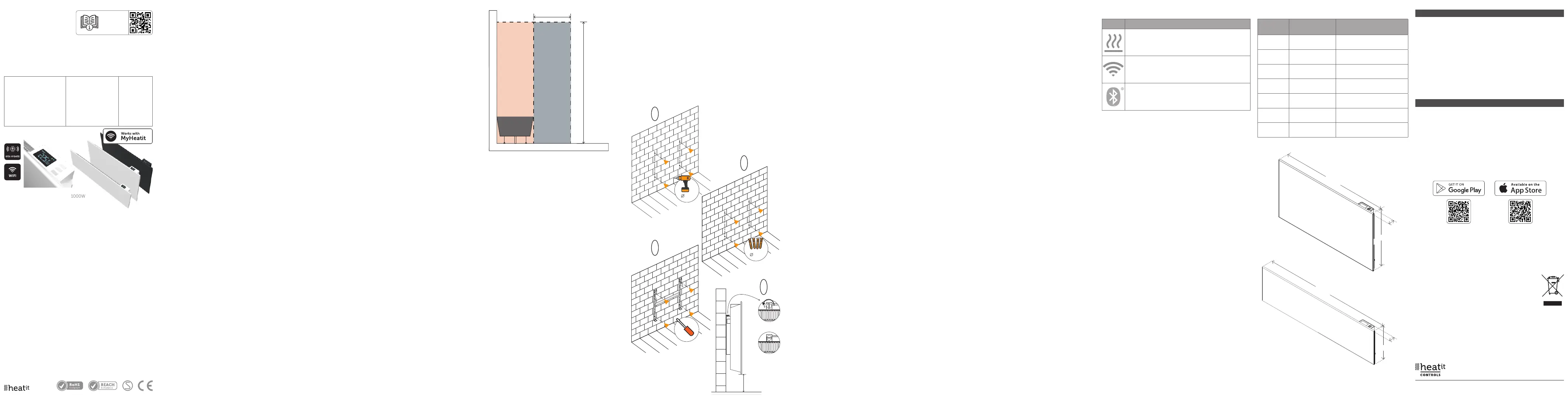

INSTALLATION

Make sure that the distance from walls and

objects is respected.

1. Put the mounting bracket on the wall as a

guide ruler (please make sure the holes are

parallel and level), use a marker to mark the

hole positions.

2. Drill holes in the wall with Ø8mm drill bit and

insert the plastic wall plug if necessary.

3. Fasten the mounting bracket on the wall with

the screws, make sure the mounting bracket

is in the correct orientation.

4. Gently insert the bottom of the heater body

to the mounting bracket ﬁrst and then push

the heater body such that it hooks onto the

whole mounting bracket. Turn the locking

screws 90°C to secure the panel to the top

of the bracket.

5. Installing the panel heater with a longer

distance from the ﬂoor (more than 100mm)

will improve the convection.

WARNING

• Ensure that the distance from the

heater to the ﬂoor, walls, and other

objects is maintained, keeping at

least 100mm of clearance.

• When drilling holes, always check

to ensure there is no wiring, pipe-

work, etc. in the area to be drilled.

• Before plugging in the unit make

sure the radiator is properly

attached to the wall.

TECHNICAL DATA

Protocol Wi-Fi 2.4GHz/BLE

Rated voltage 230VAC 50Hz

Rated output From 400W to 1500W

Temperature From 5°C to 40°C

Storage temperature -30°C to 70°C

Cord lead 130 cm Black - White

IP Code IP24

Approvals CE, Semko

MAINTENANCE

Refer to the Chapter ”Cleaning and Maintenance”.

Indoor use only.

Org. doc. 01.09.2024

ART. NO. RATED OUTPUT SIZE A - B - C

54 304 74

54 304 81

400W 440mm x 350mm x 55mm

54 304 75

54 304 83

600W 500mm x 425mm x 55mm

54 304 76

54 304 85

800W 630mm x 425mm x 55mm

54 304 77

54 304 87

1000W 800mm x 425mm x 55mm

54 304 78

54 304 88

1200W 1000mm x 425mm x 55mm

54 304 69 1500W 1000mm x 425mm x 55mm

54 304 79

54 304 89

List 1000W 970mm x 255mm x 55mm

0.6m

Floor

Gulv

2.25m

Volume 0

Sone 0

Volume 1

Sone 1

Volume 2

Sone 2

Heatit WiFi Panel Heater

Heatit WiFi List

GET THE MYHEATIT APP HERE

ADD/REMOVE

Please read this before installation

Upon connecting the device to power, it will

automatically enter add mode for a duration of

60 minutes. During this time the device can be

added to the App without starting add mode

locally on the device (skip to step 4 in Method 1

or 2).

To remove a device, ﬁnd the device in the

“MyHeatit” App and choose “Delete this device”.

If the App is unavailable perform a “Factory reset”

Method 1: Wi-Fi and Bluetooth

Add mode is indicated on the device by rotating

LED segments in the display. It indicates this

for 90 seconds until a timeout occurs, or until

the device has been added to the network. Add

mode may also be cancelled by performing the

same procedure as for starting add mode.

1. Hold the Center button for 5 seconds.

The display will show “OFF”.

2. Press the Down button once to see “CON” in

the display.

3. Start the conﬁguration mode on the device by

holding the Center button for approximately 2

seconds.

4. In the ”MyHeatit” App, choose “Add Device”.

Choose Wi-Fi or Bluetooth, and search for

your device and select it.

When a device is added to Bluetooth it is not

accessible from the internet. You need to be

within Bluetooth range of the device to control it.

The device is now ready for use with default

settings.

NB! When the device is removed from the

“MyHeatit” App, the parameters are reset.

If inclusion fails, please perform a “Factory reset”.

Method 2: QR Code

1. Hold the Center button for 5 seconds.

The display will show “OFF”.

2. Press the Down button once to see “CON” in

the display.

3. Start the conﬁguration mode on the device by

holding the Center button for approximately 2

seconds.

4. In the ”MyHeatit” App, Choose “Add Wi-Fi

device” or “Add Bluetooth device”.

5. Press the QR Code button in the bottom right

and scan the QR Code on the device.

FACTORY RESET

Enter the menu by holding the Center button for

about 5 seconds, navigate in the menu with the

Down button till you see ”FACT”. Press the Center

button until you see “-- --” blinking in the display,

then hold for about 5 seconds to perform a reset.

You may also initiate a reset by holding the down

and Center buttons for 60 seconds.

When either of these procedures has been

performed, the device will perform a complete

factory reset. The device will display “RES” for 5

seconds while performing a factory reset. When

“RES” is no longer displayed, the device has been

reset.

ERROR CODES

If you encounter an error code try turning o the

power to the panel heater, either by using the

main switch or unplugging the cord, to reset the

device. If the issue persists, it is recommended

to contact an electrician or support for further

assistance.

Err Adding fail

See Chapter “Add/Remove”.

Err1 Internal error
