Connection instruction:

1). Connect VGA input with VGA source device and connect audio cable

with audio in interface of the sender (TX).

2). Connect VGA output with VGA display device and connect audio cable

with audio out interface.

3). Power on the device (power led lights) and it works.

Note:

1） When the wireless signal transmits through wall, glass or other

obstacles, it will cause signal loss. Suggest installing this device in

good environment with few obstacles.

2） The external environment wireless signal interfere the transmission,

such as micro waver, wireless mouse and keyboard etc.

Specification

VGA RGBHV signal signal

Support resolution

1920x1080@60Hz 1680x1050@60Hz 1440x900@60Hz；；；

1360x768@60Hz 1280x1024@60Hz 1280x960@60Hz；；；

1280x720@60Hz 1024x768@60Hz 800x600@60Hz ；；

Transmit distance

200m

Working temperature

0℃ 60℃～

Power supply

DC5V/3A *2PCS

Power consumption

TX: 9W; RX: 6.5W

Product dimension

Weight

Color

195.5(W) x 138.5(D) x 32(H)mm *2PCS

Items

Black

TX: 575g RX:575g

Enclosure material

Metal

Transport protocol HDbitT

•Connection

•FAQ

Q: TV display“waiting for connection”on the bottom right corner?

A: Please check if the power supply of TX (sender) and RX(receiver) is well

connected and the power indicator led lights on.

Q: TV display“Please check the TX input signal”?

A: 1) please check if there is an VGA signal input of sender TX

2) Try to connect the signal source directly to display device to see if there

is signal output from source device or change the signal source, VGA

cables and try again.

Q: Display not fluent and stable?

A: 1) Please move the position of sender (TX) and receiver (RX) and make sure

the device is within the required scope of the signal.

2) Press“reset” button on the RX/RX panel, reset and reconnect.

3) Remove other wireless signal disturbance and reduce the obstacles on

the way.

•Specification

The product name and brand name may be registered trademark of related

manufacturers.TM and ® may be omitted on the user manual. The pictures

on the user manual are just for reference,and there may be some slight

difference with the real products.

We reserve the rights to make changes without further notice to a product

or system described herein to improve reliability, function or design.

Disclaimer

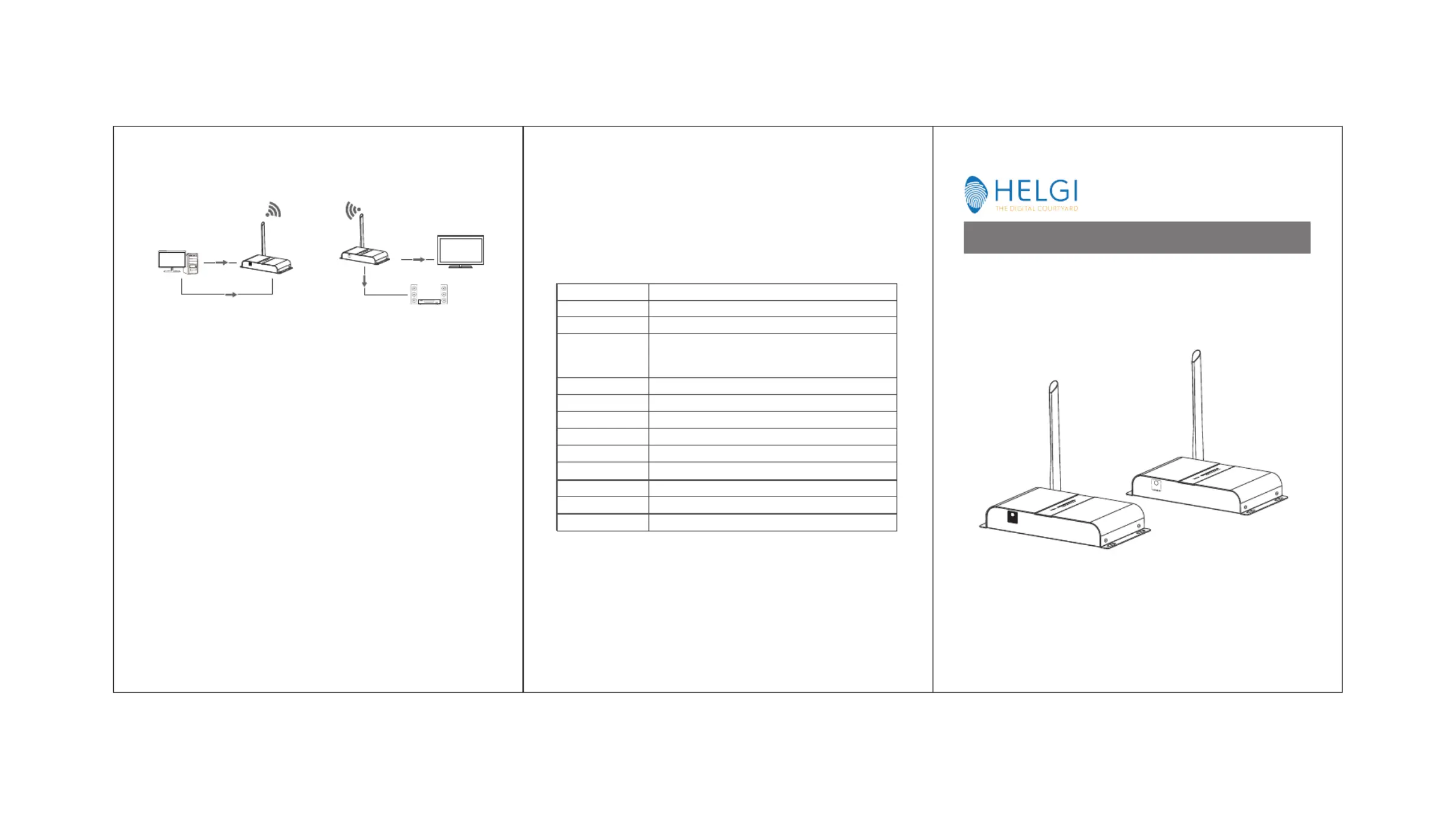

VGA Wireless Extender 200M

User manual

VGA IN

VGA OUT

HDMI EXTENDER TX

SENDER

HDMI EXTENDER RX

RECEIVER

Audio IN

Audio OUT

Audio

3.5mm audio jack

Produktspecifikationer

Varumärke:	HELGI
Kategori:	AV extender
Modell:	HLG0388VGA
Bredd:	195.5 mm
Djup:	138.5 mm
Höjd:	32 mm
LED-indikatorer:	Ja
Wi-Fi:	Ja
Videolägen som stöds:	720p, 768p, 960p, 1024p, 1080p
Maximal upplösning:	1920 x 1080 pixlar
Material:	Metall
Grafikupplösningar som stöds:	800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 960,1360 x 768 (WXGA),1440 x 900 (WXGA+),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080)
Modell:	Sändare och mottagare för AV-utrustning
Uteffekt:	3 A
Videoingång:	1
Driftspänning:	5 V
Sändarens vikt:	575 g
3,5 mm in:	Ja
Produktens färg:	Svart
bruksanvisning:	Ja
Temperatur vid drift:	0 - 60 ° C
Video ut:	1
Anslutningsteknologi:	Kabel & Trådlös
Likströmsingång:	Ja
AC-adapter inkluderad:	Ja
Antenner mängd:	1
Max uppdateringsfrekvens:	60 hz
Maximal överföringshastighet avstånd:	200 m
Kvalitet på VGA (D-Sub) porten:	2
Mottagarvikt:	575 g
3,5 mm-utgång:	Ja
Inbyggd antenn:	Ja
