Product Manual
PortableTM

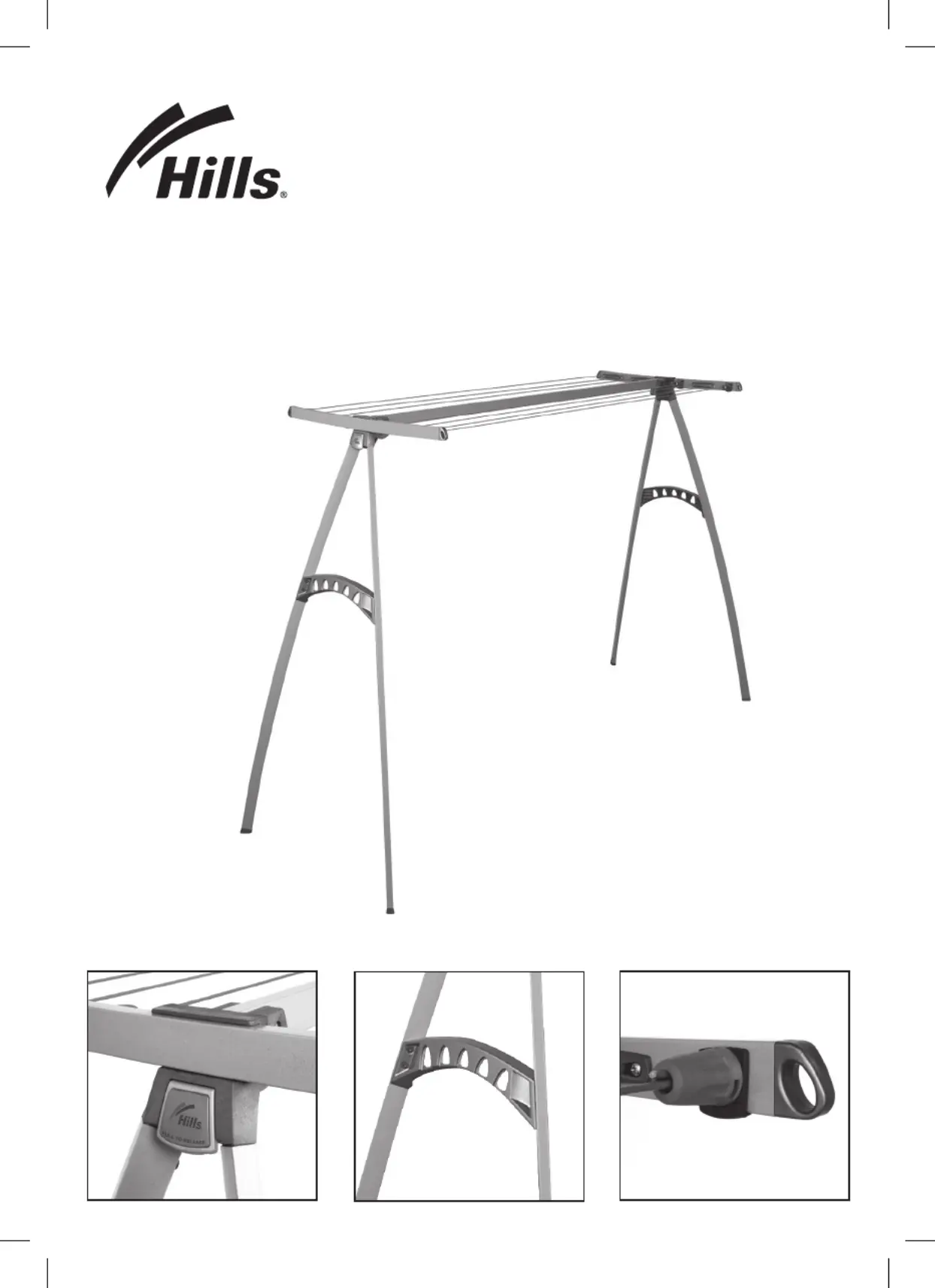

Indoor Outdoor Clotheslines
TO SUIT MODELS:
Portable
TM 170
Portable 120TM
2
Congratulations
Congratulations on the purchase of your
Portable Clothesline, which will bring
you many years of trouble free and efficient
drying, both indoors and outdoors.
It is important that you read this product
manual thoroughly before assembly and
use. In this way you will benefit from all of
the design features and enjoy safe use
of the product.
Thank you for choosing Hills.
Warning
• Caution: Do not push or pull your portable
clothesline across the floor as this could
lead to breakage of the legs.
• Tomovetheclotheslineliftitcompletely
from the floor (it may require two persons
toavoidinjurytoyourselfordamage
to the product).
• Donotallowchildrenorpetstoswingon
the Portable Clothesline or items of laundry.
• Ensurewhenopeningandclosingyour
Portable Clothesline that your hands are
positionedwheretheywillprovidesupport
andwillnotbecaughtinmovingparts.
• Donotuseforanypurposeotherthanto
hang and dry washing.
• DonotuseyourPortableClotheslineif
parts are worn or damaged.
• Patentsandregistereddesignsapply
to this product.
Introduction

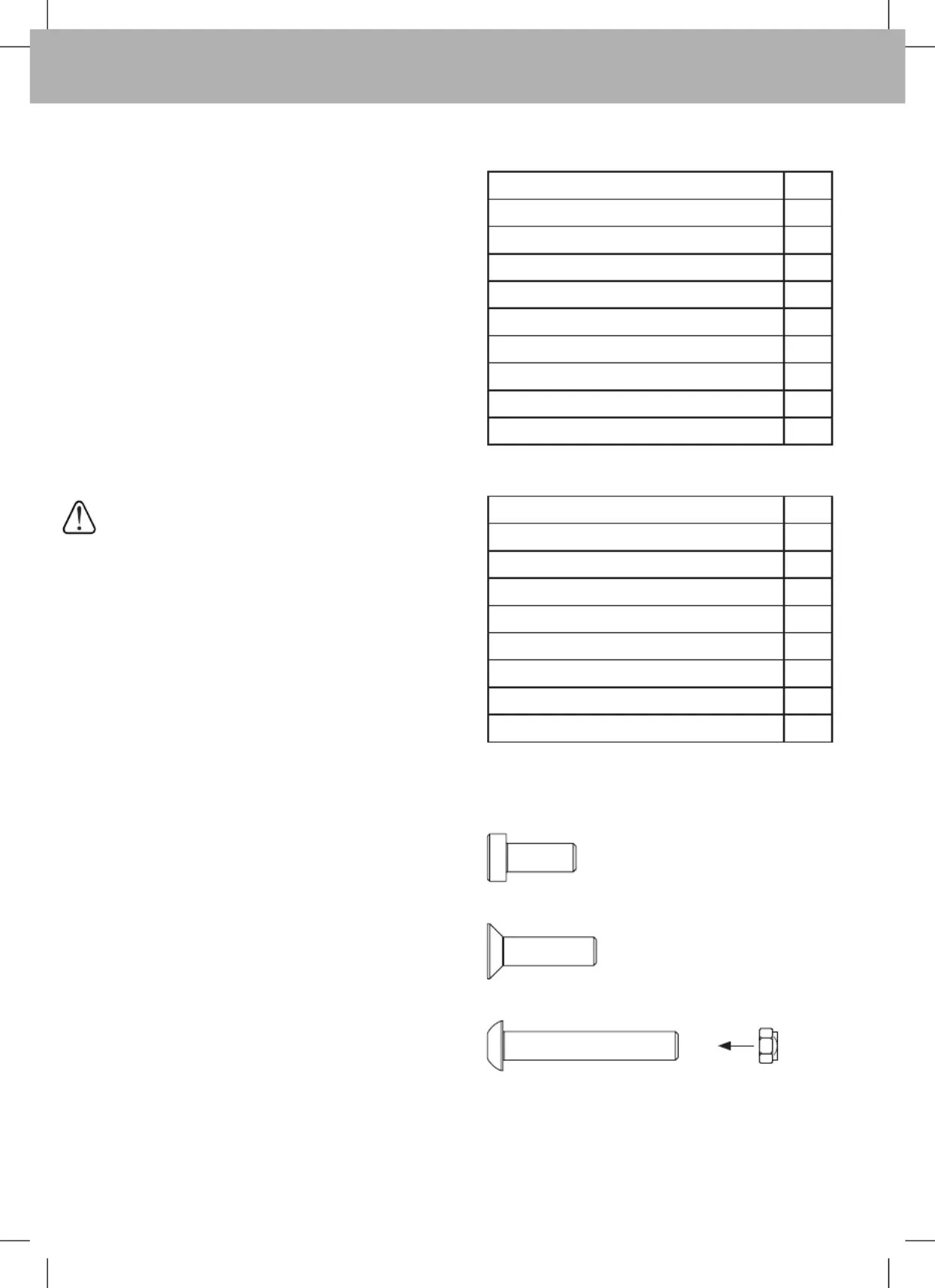

Fastener Descriptions
Part name Qty.
Spreader and hinge assembly 1
Arm assembly 2
Leg assembly - LH 2
Leg assembly - RH 2
Leg brace 2
Hanging bracket 1
Door adaptor 1
Line 2
Accessory pack 1
Carton Contents
Accessory Pack Contents
Part name Qty.
Covercap 4
Covercaptool 1
M6 x 12 low profile screw 4
M6 x 16 countersunk screw 8
M6 x 30 button head screw 4
M6 Nyloc nut 4
Door adaptor screw 1
Hex key – 4mm 1
M6 x 12 low profile screw
M6 x 16 countersunk screw
M6 x 30 button
head screw
M6 nyloc nut
(Always ensure
nyloc nut is
screwed on
as shown)
3
Assembly
The Hills Portable Clothesline is quick and easy to assemble. Just follow the steps below
which are suitable for both the 170 (10 line) and 120 (8 line) models.
NOTE: all diagrams in this manual show the Portable Clothesline 120.

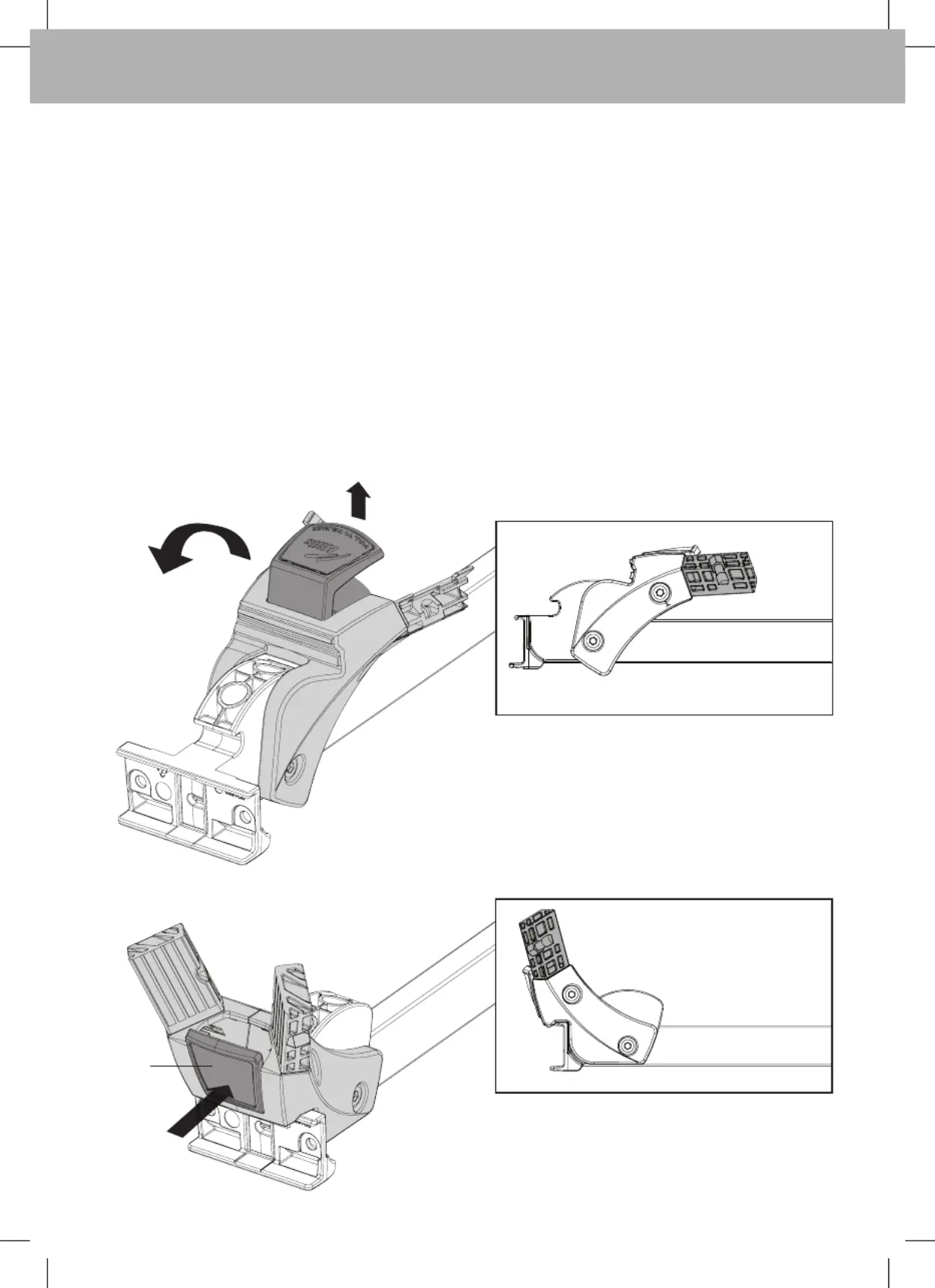

Step 1 – Rotate the Hinges into the open position.
1.1 Place the spreader and hinge assembly on a flat surface.
1.2 Pull the latch out firmly.
1.3 Whilst holding the latch out, rotate the hinge to the ‘open’ position until
the latch ‘clicks’ into place.
1.4 Repeat at other end.
Latch
‘clicks’
into place
Pull out latch
Rotate hinge
Closed Position
Open Position
