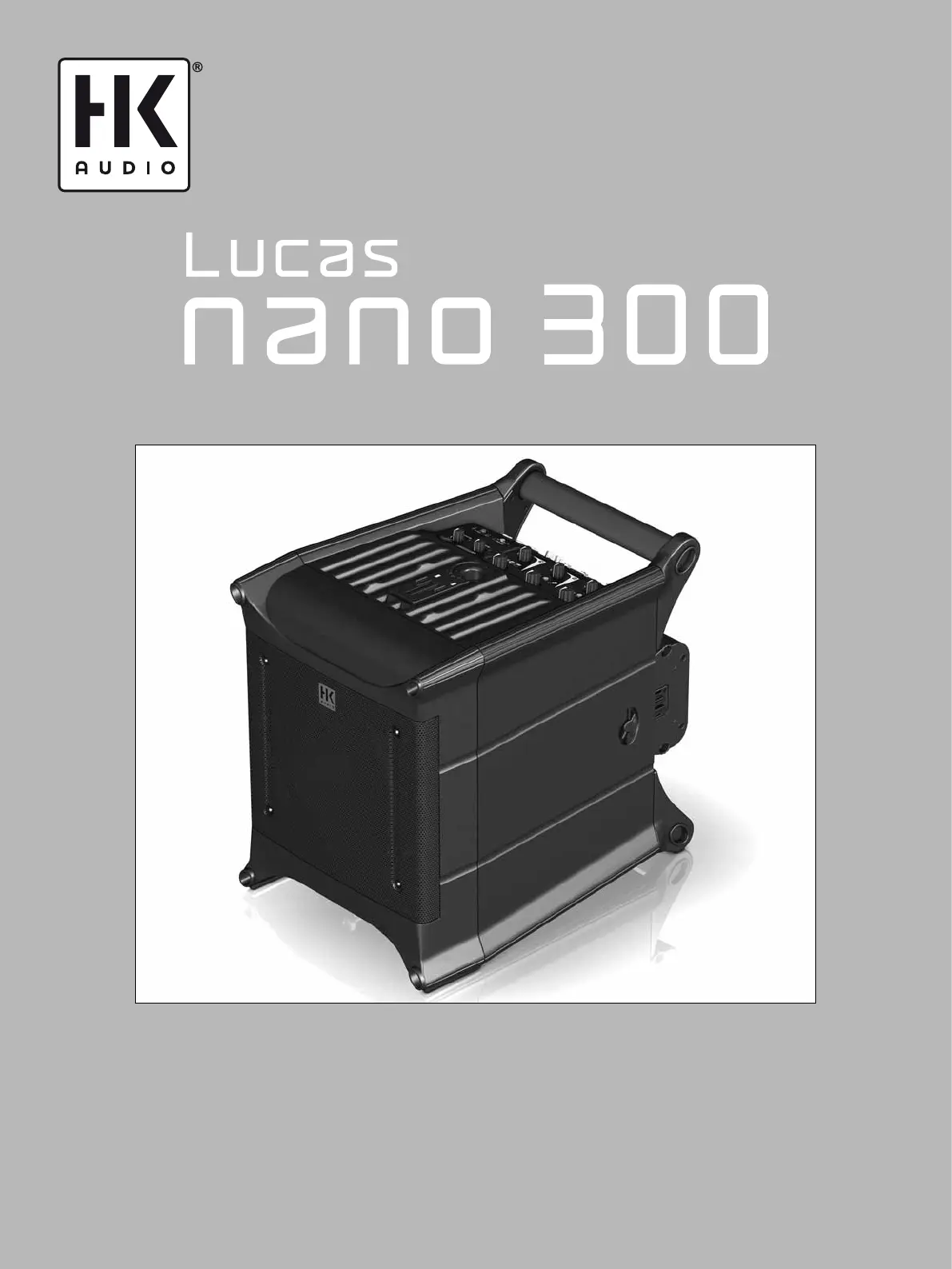

Sida 1/44

Manual 1.0

• English p. 2

• Deutsch S. 8

• Français p. 14

• Italiano p. 20

• Español p. 26

• にほんご P. 32

Version 2.2 01/2011

Important Safety Instructions! Read before

connecting!

This product has been built by the manufacturer in accordance

with IEC 60065 and left the factory in safe working order. To

maintain this condition and ensure non-risk operation, the user

must follow the advice and warning comments found in the

operating instructions. If this product shall be used in vehicles,

ships or aircraft or at altitudes exceeding 2000 m above sea

level, take care of the relevant safety regulations which may

exceed the IEC 60065 requirements.

WARNING: To prevent the risk of fire and shock hazard, do not

expose this appliance to moisture or rain. Do not open case – no

user serviceable parts inside. Refer service to qualified service

personnel.

This symbol, wherever it appears, alerts you to the

presence of uninsulated dangerous voltage inside the enclosure –

voltage that may be sufficient to constitute a risk of shock.

This symbol, wherever it appears, alerts you to the

presence of externally accessible hazardous voltage. External

wiring connected to any terminal marked with this symbol must

be a “ready made cable” complying with the manufacturers

recommendations, or must be a wiring installed by instructed

persons only.

This symbol, wherever it appears, alerts you to important

operating and maintenance instructions in the accompanying

literature. Read the manual.

This symbol, wherever it appears, tells you: Take care!

Hot surface! To prevent burns you must not touch.

• Read these instructions.

• Keep these instructions.

• Follow all warnings and instructions marked on the product and

in this manual.

• Do not use this product near water. Do not place the product

near water, baths, wash basins, kitchen sinks, wet areas,

swimming pools or damp rooms.

• Do not place objects containing liquid on the product – vases,

glasses, bottles etc.

• Clean only with dry cloth.

• Do not remove any covers or sections of the housing.

• The set operating voltage of the product must match the local

mains supply voltage. If you are not sure of the type of power

available consult your dealer or local power company.

• To reduce the risk of electrical shock, the grounding of this

product must be maintained. Use only the power supply cord

provided with this product, and maintain the function of the

center (grounding) pin of the mains connection at any time. Do

not defeat the safety purpose of the polarized or grounding-

type plug.

• Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the point

where they exit from the device! Power supply cords should

always be handled carefully. Periodically check cords for cuts

or sign of stress, especially at the plug and the point where the

cord exits the device.

• Never use a damaged power cord.

• Unplug this product during lightning storms or when unused for

long periods of time.

• This product can be fully disconnected from mains only by

pulling the mains plug at the unit or the wall socket. The

product must be placed in such a way at any time, that

disconnecting from mains is easily possible.

• Fuses: Replace with IEC127 (5x20mm) type and rated fuse for

best performance only! It is prohibited to use “patched fuses”

or to short the fuse-holder. Replacing any kind of fuses must

only be carried out by qualified service personal.

• Refer all servicing to qualified service personnel. Servicing is

required when the unit has been damaged in any way, such as:

- When the power cord or plug is damaged or frayed.

- If liquid has been spilled or objects have fallen into the product.

- If the product has been exposed to rain or moisture.

- If the product does not operate normally when the operating

instructions are followed.

- If the product has been dropped or the cabinet has been

damaged.

• Do not connect external speakers to this product with an

impedance lower than the rated impedance given on the

product or in this manual. Use only cables with sufficient cross

section according to the local safety regulations.

• Keep away from direct sunlight.

• Do not install near heat sources such as radiators, heat

registers, stoves or other devices that produce heat.

• Do not block any ventilation openings. Install in accordance

with manufacturer’s instructions. This product must not be

placed in a built-in installation such as a rack unless proper

ventilation is provided.

• Always allow a cold device to warm up to ambient temperature,

when being moved into a room. Condensation can form inside it

and damage the product, when being used without warming up.

• Do not place naked flame sources, such as lighted candles on

the product.

• The device must be positioned at least 20 cm/8“ away from

walls.

• Use only with the cart, stand, tripod, bracket or table specified

by the manufacturer or sold with the product. When a cart is

used, use caution when moving the cart/product combination to

avoid injury from tip-over.

• Use only accessories recommended by the manufacturer, this

applies for all kind of accessories, for example protective

covers, transport bags, stands, wall or ceiling mounting

equipment. In case of attaching any kind of accessories to the

product, always follow the instructions for use, provided by the

manufacturer. Never use fixing points on the product other than

specified by the manufacturer.

• This appliance is NOT suitable to be used by any person or

persons (including children) with limited physical, sensorical or

mental ability, or by persons with insufficient experience and/

or knowledge to operate such an appliance. Children under

4 years of age must be kept away from this appliance at all

times.

• Never push objects of any kind into this product through

cabinet slots as they may touch dangerous voltage points or

short out parts that could result in risk of fire or electric shock.

• This product is capable of delivering sound pressure levels

in excess of 90 dB, which may cause permanent hearing

damage! Exposure to extremely high noise levels may cause a

permanent hearing loss. Wear hearing protection if continously

exposed to such high levels.

• The manufacturer only guarantees the safety, reliability and

efficiency of this product if:

- Assembly, extension, re-adjustment, modifications or repairs

are carried out by the manufacturer or by persons authorized

to do so.

- The electrical installation of the relevant area complies with the

requirements of IEC (ANSI) specifications.

- The unit is used in accordance with the operating instructions.

- The unit is regularly checked and tested for electrical safety by

a competent technician.

General Notes on Safety for Loudspeaker

Systems

Mounting systems may only be used for those loudspeaker

systems authorized by the manufacturer and only with the

mounting accessories specified by the manufacturer in the

installation instructions. Read and heed the manufacturer’s

installation instructions. The indicated load-bearing capacity

cannot be guaranteed and the manufacturer will not be liable for

damages in the event of improper installation or the use of

unauthorized mounting accessories.

The system’s load-bearing capacity cannot be guaranteed and

the manufacturer will not be liable for damages in the event

that loudspeakers, mounting accessories, and connecting and

attaching components are modified in any way.

Components affecting safety may only be repaired by the

manufacturer or authorized agents, otherwise the operating

permit will be voided.

Installation may be performed qualified personnel only, and

then only at pick-points with sufficient load-carrying capacity and

in compliance with local building regulations. Use only the

mounting hardware specified by the manufacturer in the

installation instructions (screws, anchors, etc.). Take all the

precautions necessary to ensure bolted connections and other

threaded locking devices will not loosen.

Fixed and portable installations (in this case, speakers and

mounting accessories) must be secured by two independent

safeties to prevent them from falling. Safeties must be able to

catch accessories or parts that are loose or may become loose.

Ensure compliance with the given national regulations when

using connecting, attaching, and rigging devices. Factor potential

dynamic forces (jerk) into the equation when determining the

proper size and load-bearing capacity of safeties.

Be sure to observe speaker stands’ maximum load-bearing

capacity. Note that for reasons of design and construction, most

speaker stands are approved to bear centric loads only; that is,

the speakers’ mass has to be precisely centered and balanced.

Ensure speaker stands are set up stably and securely. Take

appropriate added measures to secure speaker stands, for

example when:

- the floor or ground surface does not provide a stable, secure

base.

- they are extended to heights that impede stability.

- high wind pressure may be expected.

- there is the risk that they may be knocked over by people.

Special measures may become necessary as precautions against

unsafe audience behavior. Do not set up speaker stands in

evacuation routes and emergency exits. Ensure corridors are

wide enough and put proper barriers and markings in place

when setting speaker stands up in passageways. Mounting and

dismounting are especially hazardous tasks. Use aids suitable

for this purpose. Observe the given national regulations when

doing so.

Wear proper protection (in particular, a helmet, gloves, and

safety shoes) and use only suitable means of ascent (ladders,

scaffolds, etc.) during installation. Compliance with this

requirement is the sole responsibility of the company performing

the installation.

After installation, inspect the system comprised of the

mounting fixtures and loudspeakers to ensure it is properly

secured.

The operator of loudspeaker systems (fixed or portable) must

regularly inspect or task a third party to regularly inspect all

system components in accordance with the given country’s

regulations and have possible defects repaired immediately.

We also strongly recommend maintaining a logbook or the like to

document all inspections.

When deploying speakers outdoors, be sure to take into account

the stability and load-bearing capacity of platforms and surfaces;

loads and forces exerted by wind, snow, and ice; as well as

thermal influences. Also be sure to provide sufficient safety

margins for the rigging points used for flown systems. Observe

the given national regulations when doing so.

Professional loudspeaker systems can produce harmful

volume levels. Even prolonged exposure to seemingly harmless

levels (starting at about 95 dBA SPL) can cause permanent

hearing damage! Therefore we recommend that everyone who is

exposed to high volume levels produced by loudspeaker systems

wears professional hearing protection (earplugs or earmuffs).

Manufacturer: Stamer Musikanlagen GmbH, Magdeburger Str. 8,

66606 St. Wendel, Germany

Lucas Nano 300 1.0

Congratulations and thank you for choosing an HK AUDIO

product!

It’s all in the name: LUCAS NANO 300 takes our successful LUCAS

systems another step up the evolutionary ladder. Comprised of two

satellites and an ultra compact subwoofer, it comes with all the power

electronics on board. Packed with unprecedented audio design

technologies and featuring a newly developed triple-channel Class-D

power amp engineered to save space, LUCAS NANO 300 delivers

stunning sound in a package that leaves a very small footprint. The

high-performance electronic circuitry, carefully fine-tuned to match

the speakers, delivers 230 watts of power output and protects against

overloads. Paired with an intuitive three-channel mixer, this circuitry

makes the system remarkably easy to handle.

There’s no need to fuss with a lot of tweaking and tuning: Simply set

up the components, connect the power and signal cables, adjust the

volume and you’re good to go. LUCAS NANO 300, like all our powered

systems, is an end-to-end sound reinforcement solution encompassing

a subwoofer, satellites, and painstakingly tuned electronics.

To help you achieve the best possible audio results, our engineers

developed new technologies and unique features specifically for this

system. And that’s what makes LUCAS NANO 300 stand out from the

crowd of lesser active cabinets.

We hope you enjoy your LUCAS NANO 300 as much as we

enjoyed developing it!

Applications and Advantages

• Anyone can easily carry the entire system.

• Setting up for any application takes just a few moments. You don’t

need any outboard gear to run this system.

• The many applications options are practically begging to be used.

Whatever your gig may be - musician, DJ, entertainer, presenter

– you will enjoy the benefits of easy handling and effective sound

reinforcement.

• Take it with you on small stages for music performances or speeches,

use it for presentations in conference rooms or have fun rehearsing

at home in the den, the living room or the garage. But know this:

Wherever you take your LUCAS NANO 300, it will fill the room with

extraordinary sound and powerful, dynamic and balanced audio

performance.

• The integrated three-channel mixer offers lots of helpful, intuitive

controls that let you make the most of all the application options. It

will serve you well as a PA for small stages, a sound system for parties

and as a keyboard, e-drums or guitar monitor when you’re practicing.

• LUCAS NANO 300 offers several setups for use as a stereo and a

monaural system. And the innovative Link function lets you double up

with two LUCAS NANO 300 systems.

• Español• English • Deutsch • Français • Italiano • にほんご

Produktspecifikationer

Varumärke:	HK Audio
Kategori:	högtalare
Modell:	Lucas Nano 300

Behöver du hjälp?

Om du behöver hjälp med HK Audio Lucas Nano 300 ställ en fråga nedan och andra användare kommer att svara dig

Ditt namn*

Din e-post*

Skriv din fråga här

högtalare HK Audio Manualer

HK Audio LINEAR 3 112 FA Bruksanvisning

1 Februari 2025

HK Audio DFP Bruksanvisning

12 Januari 2025

HK Audio L5-112X Bruksanvisning

23 December 2024

HK Audio Linear 7 112 FA Bruksanvisning

17 December 2024

HK Audio LINEAR 3 112 XA Bruksanvisning

17 December 2024

HK Audio PR:O 118 SUB D2 Bruksanvisning

4 Oktober 2024

HK Audio LINEAR 9 118 Sub BA Bruksanvisning

23 September 2024

HK Audio LINEAR SUB 1200 A Bruksanvisning

16 September 2024

HK Audio LINEAR SUB 1500 A Bruksanvisning

16 September 2024

HK Audio LINEAR 9 112 XA Bruksanvisning

5 September 2024

högtalare Manualer

Nyaste högtalare Manualer

LD Systems STINGER G3 TMB Bruksanvisning

8 April 2025

JBL Conceal C83 Bruksanvisning

8 April 2025

JBL Control 426LP Bruksanvisning

8 April 2025

Crestron SAROS ICE4T Bruksanvisning

7 April 2025

Crestron SAROS ICI6T Bruksanvisning

7 April 2025

Crestron SAROS IC8T Bruksanvisning

7 April 2025

Focal K2 Power M FRAK Bruksanvisning

5 April 2025

Streetz CM730 Bruksanvisning

3 April 2025

Match UP C42BMW-FRT.3 Bruksanvisning

3 April 2025

Turbosound PQ12-SB Bruksanvisning

3 April 2025
