PROLINE G2 MOduLaR ENcLOsuRE sOLutIONs Frames and Frame accessories
nVent.com/HOFFMANSUBJECT TO CHANGE WITHOUT NOTICEMOduLaR ENcLOsuRE sOLutIONs1
Spec-01187 G
FRaMEs
aPPLIcatION

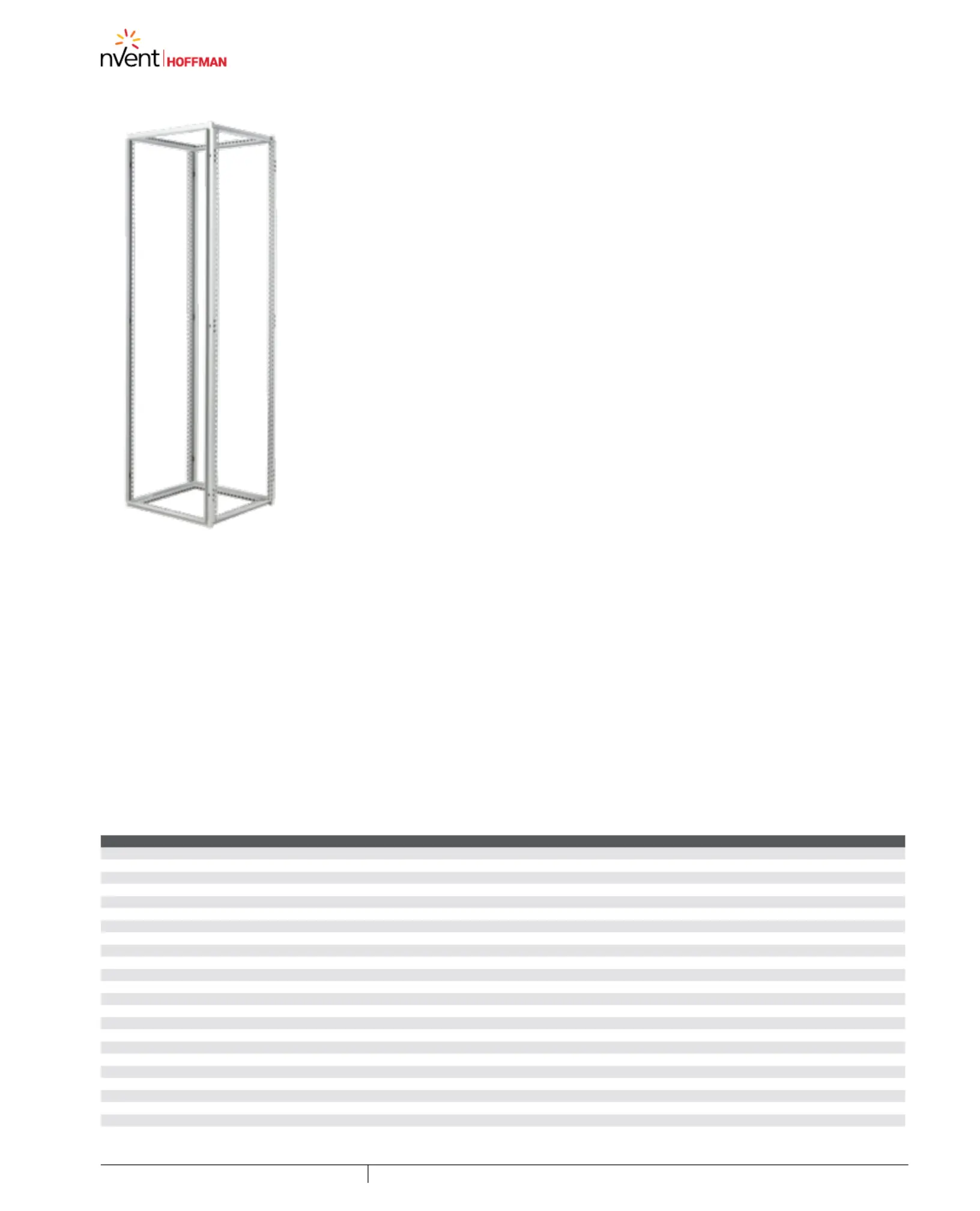

The ProLine G2 frame is the foundational design element that
protects the components inside this modular enclosure. The
frame was designed to withstand heavier load requirements and
to maintain a solid square structure - a solid foundation for the
electrical enclosure.
FEatuREs
•
Superior performance under load: 12 gauge (2.5 mm) roll-formed
steelframewithweldedcorners,hybridframeprole
•
Wide range of standard options: 114 frame sizes; EMC protected
and disconnect options, custom sizes on request
•
Easy to assemble and use: 25 mm hole pattern on horizontal
and vertical frame members, wide door opening, removable rear
centerpost for frames greater than 1200 mm wide
sPEcIFIcatIONs
• Welded corners with steel corner blocks
• 12 gauge (2.5 mm), roll-formed steel frame sections
• Hybridframeprole
• Flangetroughcollarondoorandsideopeningsdeectdustand
debris away from the enclosure interior
• Integral frame channels support the full weight of the mounting
subpanel
• Frames greater than 1200 mm wide have a removable rear
centerpost, and cross-members in the center top and center
bottom; no front center post facilitates component installation
• Accommodates 25-mm DIN standard; rectangular frame holes
designed for BV-M6 fastener or metric cage nut fasteners; round
frame holes accommodate M5 self-tapping screws and allow
numerous grounding locations using M5 thread-forming screws
• Uniform internal frame width to simplify component installation;
universal frame member used for both horizontal and vertical
frame sections to simplify component installation
• Simple means for joining frames to create multiple-bay
enclosures
• Provisions for mounting subpanel, rack mounting and grid/rail
system mounting
• Longer lead times required for EMC items
FINIsH
• Polyester powder paint; RAL 7035 textured light gray standard
• Custom colors available
• EMC-protected frames: plated (not painted) to provide corrosion
resistance while maintaining a metal-to-metal contact with the
metalbergasketusedinProLineG2EMCIndustrialPackages
LOad RatING
• 3500 lb (1587kg), safety factor 1.5; frame size: 2000x600x800
mm (load ratings vary by frame size)
accEssORIEs
• Solid Doors (Single or Overlapping Double)
• Solid Top
• Gland Plate
• Side Cover
• Frame Joining Kits
• Grid Strap Network (Rail System)
• Lifting Eyes
• Fastener Packages
• Full Subpanel (Rear or Side)
• Partial Subpanel and Side-Mount Panel
• Panel Support Bracket
• 19-Inch Rack Angles
• Center Upright
Bulletin: P40
Standard Product
Catalog Number
AxBxC mm AxBxC in. H x W x D (mm) Maximum Subpanel Size (mm) Maximum Subpanel Size (in.) Maximum Rack Mount Units
Description
P2F664 599 x 599 x 394 23.59 x 23.57 x 15.52 600 x 600 x 400 506x528 19.9x20.8 8 Painted
P2F666 599 x 599 x 594 23.59 x 23.57 x 23.39 600 x 600 x 600 506x528 19.9x20.8 8 Painted
P2F688 599 x 799 x 794 23.59 x 31.45 x 31.26 600 x 800 x 800 506x728 19.9x28.7 8 Painted
P2F864 799 x 599 x 394 31.46 x 23.57 x 15.52 800 x 600 x 400 706x528 27.8x20.8 13 Painted
P2F866 799 x 599 x 594 31.46 x 23.57 x 23.39 800 x 600 x 600 706x528 27.8x20.8 13 Painted
P2F888 799 x 799 x 794 31.46 x 31.45 x 31.26 800 x 800 x 800 706x728 27.8x28.7 13 Painted
P2F1064 999 x 599 x 394 39.34 x 23.57 x 15.52 1000 x 600 x 400 906x528 35.7x20.8 18 Painted
P2F1065 999 x 599 x 494 39.34 x 23.57 x 19.45 1000 x 600 x 500 906x528 35.7x20.8 18 Painted
P2F1066 999 x 599 x 594 39.34 x 23.57 x 23.39 1000 x 600 x 600 906x528 35.7x20.8 18 Painted
P2F1085 999 x 799 x 494 39.34 x 31.45 x 19.45 1000 x 800 x 500 906x728 35.7x28.7 18 Painted
P2F1086 999 x 799 x 594 39.34 x 31.45 x 23.39 1000 x 800 x 600 906x728 35.7x28.7 18 Painted
P2F1088 999 x 799 x 794 39.34 x 31.45 x 31.26 1000 x 800 x 800 906x728 35.7x28.7 18 Painted
P2F10125 999 x 1199 x 494 39.34 x 47.20 x 19.45 1000 x 1200 x 500 906x1128 35.7x44.4 18 Painted
P2F1264 1199 x 599 x 394 47.21 x 23.57 x 15.52 1200 x 600 x 400 1106x528 43.5x20.8 23 Painted
P2F1265 1199 x 599 x 494 47.21 x 23.57 x 19.45 1200 x 600 x 500 1106x528 43.5x20.8 23 Painted
P2F1266 1199 x 599 x 594 47.21 x 23.57 x 23.39 1200 x 600 x 600 1106x528 43.5x20.8 23 Painted
P2F1285 1199 x 799 x 494 47.21 x 31.45 x 19.45 1200 x 800 x 500 1106x728 43.5x28.7 23 Painted
P2F1286 1199 x 799 x 594 47.21 x 31.45 x 23.39 1200 x 800 x 600 1106x728 43.5x28.7 23 Painted
P2F1288 1199 x 799 x 794 47.21 x 31.45 x 31.26 1200 x 800 x 800 1106x728 43.5x28.7 23 Painted
P2F12125 1199 x 1199 x 494 47.21 x 47.20 x 19.45 1200 x 1200 x 500 1106x1128 43.5x44.4 23 Painted
P2F1465 1399 x 599 x 494 55.09 x 23.57 x 19.45 1400 x 600 x 500 1306x528 51.4x20.8 28 Painted
P2F1466 1399 x 599 x 594 55.09 x 23.57 x 23.39 1400 x 600 x 600 1306x528 51.4x20.8 28 Painted
P2F1466HF 1399 x 599 x 594 55.09 x 23.57 x 23.39 1400 x 600 x 600 1306x528 51.4x20.8 28 EMC
