PROLINE G2 ExtERNaL COmPONENts Doors

nVent.com/HOFFMANSUBJECT TO CHANGE WITHOUT NOTICEmOduLaR ENCLOsuRE sOLutIONs1

Spec-01119 H

sOLId dOORs (sINGLE OR OvERLaPPING dOubLE)

aPPLICatION

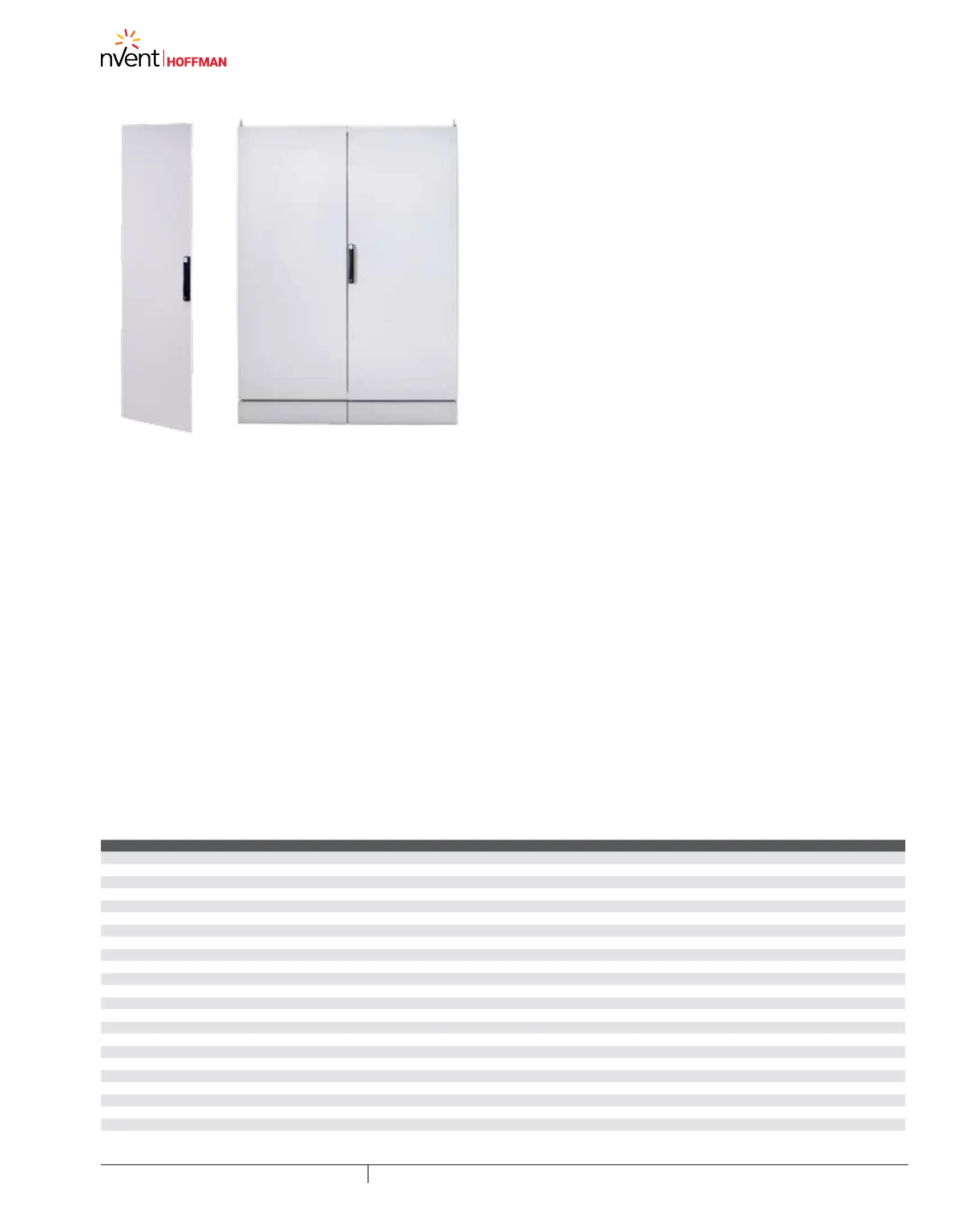

ProLine G2 Solid Doors (Single or Overlapping Double) feature a

solid swing and a high load capacity. The Smooth Glide latching

system is made from quality components and incorporates an

innovative timed latch action, ensuring a solid door seal with a low

closure force. Sold individually.

FEatuREs

•

Smooth Glide latching system – for a smooth, reliable and

repeatable door close over enclosure lifetime

•

Low-proleSwingHandlewithkeylock;otheroptionsavailable

•

Seamlesspolyurethanegasket(ULComponentRecognized)

provides a watertight, dust-tight seal against moisture and

contaminants

sPECIFICatIONs

•

Single doors available for frames up to 1000 mm wide

•

Overlapping double doors available for frames 800 mm wide and

greater

•

Door bar system on all doors

•

Timed latch engagement to ensure top and bottom of door catch

reliably

•

Durable,double-angedlatchrodandthreeDelrin

®

rollers to

prevent metal-on-metal grinding

•3-point latch system for doors 1000 mm or greater in height

•Keylockhandlestandard;otheroptionsavailable

•Singledoorscanbehingedonleftorright(defaultleft);

overlapping double doors can have the primary door as the left or

right door (default right)

•14 gauge (1.75 mm) mild steel

•

140-degree hinging standard (180-degree hinge option available)

•Door can be reversed without removing the side covers

•Canbeusedonfrontorrearofenclosure;canbeusedonthe

sides of enclosure with side door adapter (not included)

•Two grounding studs

•All mounting hardware included

•Sold individually

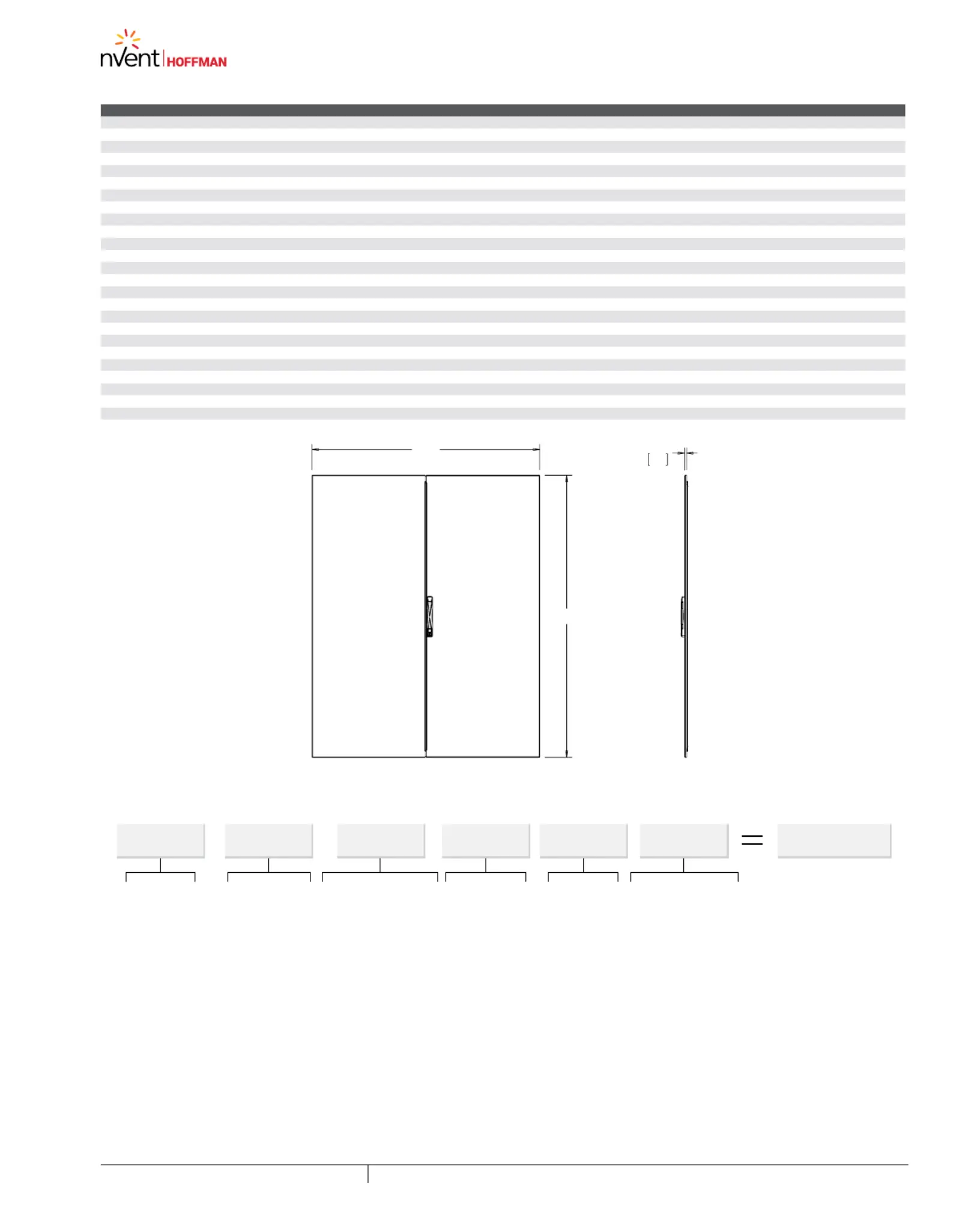

Overlapping Double Doors – Additional Specications

•Primary door with Smooth Glide latching system

•Secondary door has two latch points with a center lever to ensure

secure door closure

EMC Doors – Additional Specications:

•Plated to provide corrosion resistance while maintaining a metal-

to-metalcontactwiththemetalbergasket

•Metalizednon-wovenfabricEMI/RFImaterialcoveringUL94HP

ratedurethanefoamgasket

•Plating exposed in interior and paint over plated exterior

•LongerleadtimesrequiredforEMCitems

FINIsH

•Polyesterpowderpaint;RAL7035texturedlightgraystandard

•Customcolorsavailable

LOad RatING

•

250/113kg,safetyfactor1.5;framesize:2000x600x800mm(load

ratingsvarybyframesize)

aCCEssORIEs

•ProLine Grounding Kit

•Door Stop Kit

•180-Degree Hinge Kit

•Side Door Adapter

•Flush Swing Handles

•L Handle

•FlushBezels

•Small Flush Swing Handle

•SteelDataPocket

•ThermoplasticDataPocket

•Door Bar Grid Straps

•DoorSupportRollerKit

Bulletin: P40

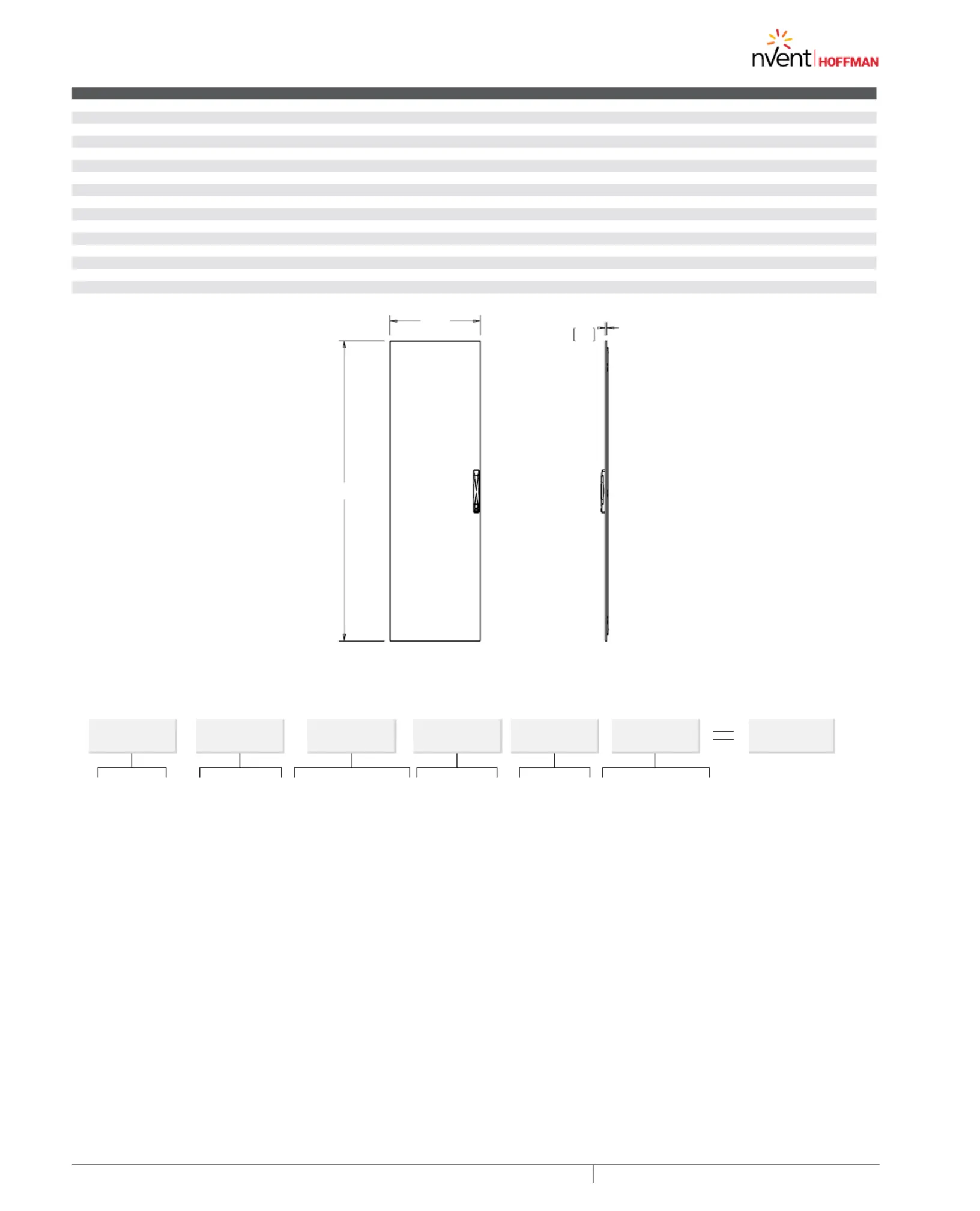

Standard Product Single Door

Catalog Number

H (mm)H (in.)W (mm)W (in.)Fits Frame HxW (mm)

Description

P2D6458323.039815.7600x400Painted

P2D6658323.059823.5600x600Painted

P2D6858323.079831.4600x800Painted

P2D8678330.859823.5800x600Painted

P2D8878330.879831.4800x800Painted

P2D10598338.749819.61000x500Painted

P2D10698338.759823.51000x600Painted

P2D10898338.779831.41000x800Painted

P2D125118346.649819.61200x500Painted

P2D126118346.659823.51200x600Painted

P2D128118346.679831.41200x800Painted

P2D145138354.449819.61400x500Painted

P2D146138354.459823.51400x600Painted

P2D146HF138354.459823.51400x600EMC

P2D164158362.339815.71600x400Painted

P2D165158362.349819.61600x500Painted

P2D166158362.359823.51600x600Painted

P2D168158362.379831.41600x800Painted

P2D184178370.239815.71800x400Painted

P2D185178370.249819.61800x500Painted

P2D186178370.259823.51800x600Painted

P2D186HF178370.259823.51800x600EMC

P2D187178370.269827.51800x700Painted
