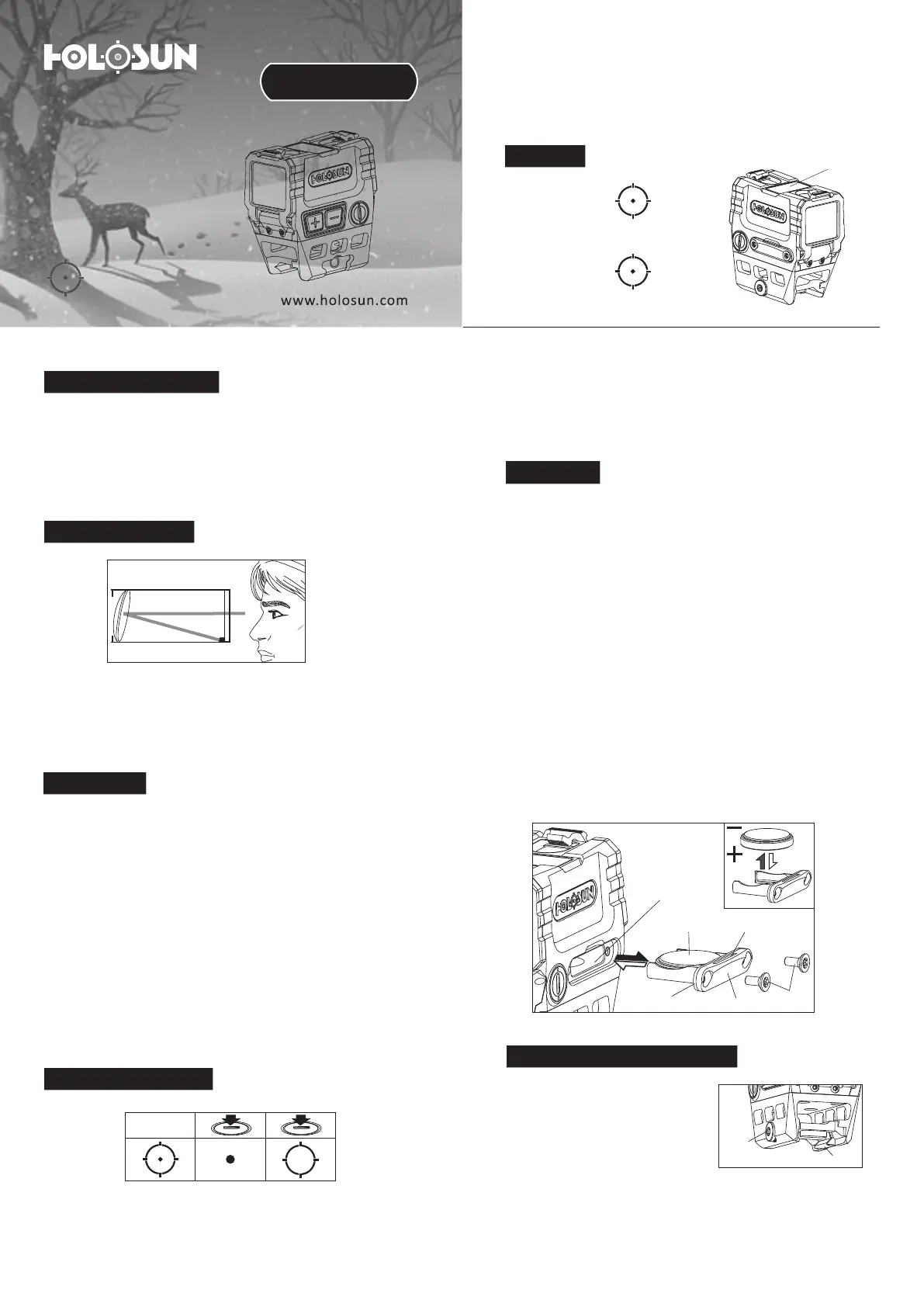

Fig 1 AEMS Reflex Sight

Model

Important Notices

Features

3S

3S

Default

Fig 3

Thank you for purchasing the AEMS Reflex Sight from HOLOSUN.

The AEMS is an advanced enclosed micro sight with a circle dot

reticle housed in a 7075 Aluminum body. It features a motion sensor

and dual power sources including both solar and battery power.

Before operation, please read the User Manual carefully.

Silicon

Solar cell

1. Advanced LED technology: Up to 20,000 hours battery life using

the Circle-Dot or 50,000 hours using the dot only

2. Advanced Super Solar Technology: Now allows for use in low light

conditions

3. Parallax free with unlimited eye relief

4. Multi Reticle System : 2MOA Dot only, 65MOA Circle-only, or

Circle-Dot options

5. Shake Awake sensor

6. 10 Daylight & 2 Night Vision compatible brightness settings

7. Enclosed design with clear front and rear lens covers

8. Rechargeable internal battery

9. Window Size: 0.87” x 1.1” (inches)

10. Solid 7075 aluminum Body

11.1.63” Center Dot Height (Lower 1/3 Co-witness)

12. Waterproof: IPX8

1. Ensure the firearm is unloaded and cleared by removing all

ammunition and magazines from firearm and verifying an empty

chamber before installation or battery replacement.DO NOT

ATTEMPT TO INSTALL THIS SIGHT KIT ON A LOADED FIREARM.

2. Please keep the packaging should you need to make a warranty

claim.

Objective Lens

A canted objective lens is part of the design of reflex/reflective

optical sights. In order to create a proper reflection of the

reticle/dot the objective lens must be perpendicular to the LED.

Because the LED is mounted off to one side, the objective lens will be

canted in that direction.

Fig2

Battery

at 100 yards(170cm at 100m).

The default reticle is a 2 MOA dot with 65 MOA circle. Holding the "-"

button for 3 seconds will cycle the reticle between Circle-Dot, Dot

only, and Circle only.

The reticle for this sight is a central 2MOA dot inside a 65MOA circle

with four positioning points.

The diameter of the circle reticle represents approximately 5' 5" at

Installation onto Firearm

1.The AEMS is compatible with any

firearm with a Picatinny mounting

rail. If your firearm does not have a

Picatinny rail, contact a qualified

gunsmith.

User Manual

AEMS

Multi Reticle

1. One high quality CR2032 Lithium battery is included with your

purchase.

2. A high quality battery can power the Circle-Dot for up to 20,000

hours, or on the 2MOA dot only or for up to 50,000 hours at a mid

setting.

Caution: Do not use a rechargeable battery.

3.Battery Replacement(Fig4):

a. Remove the battery :

I. Remove the battery tray screws.

ii. Use the included tool as a lever in the top battery tray slot to

remove the battery tray and battery.

b. Battery installation :

I. Insert the battery into the battery tray with the POSITIVE side

facing DOWN.

ii. Insert and press the tray into the battery compartment.

iii. Tighten the battery tray screw.

Caution:

The loss or damage of the seal ring may cause moisture to enter into

the compartment which could damage the product.

Fig 4

Screw

Battery tray

Seal ring

Battery

Slot

Battery

compartment

Clamp

screw head

Clamp

Fig 5

2. Using the included T10 Torx tool, loosen the cross bolt and then

attach the sight into the Picatinny rail in an appropriate position.

Apply forward pressure towards the muzzle and tighten the clamp

screw to 20 inch/lbs using non-permanent thread lock.(Fig5)

Multi Reticle System

Advanced Enclosed

Micro Sight

AEMS-211301

AEMS-221301

RED

Circle Dot

Green

Circle Dot
