7820 Solaris
Bar
Code Scanner
User’s Guide
Disclaimer
Honeywell International Inc. (“HII”) reserves the right to make changes in
specifications and other information contained in this document without prior
notice, and the reader should in all cases consult HII to determine whether any
such changes have been made. The information in this publication does not
represent a commitment on the part of HII.
HII shall not be liable for technical or editorial errors or omissions contained
herein: nor for incidental or consequential damages resulting from the furnishing,
performance, or use of this manual.
This document contains propriety information that is protected by copyright.
All rights reserved. No part of this document may be photocopied, reproduced, or
translated into another language without the prior written consent of HII.
© 2007 - 2013 Honeywell International Inc. All rights reserved.
Web Address: www.honeywellaidc.com
Trademarks
MetroSelect and MetroSet are trademarks or registered trademarks of Metrologic
Instruments, Inc. in the United States and/or other countries.
Microsoft, Windows 95, and Windows are registered trademarks of Microsoft
Corporation.
IBM is a trademark of International Business Machines Corporation.
Checkpoint is a registered trademark of Checkpoint Systems, Inc.
Sensormatic is a registered trademark of Sensormatic Electronics Corporation.
Other product names mentioned in this manual may be trademarks or
registered trademarks of their respective companies and are the property of their
respective owners.
Patents
For patent information, please refer to www.honeywellaidc.com/patents.
ii
T C ABLE OF ONTENTS
INTRODUCTION
Product Overview ............................................................................................. 1
Applications and Protocols ................................................................................ 2
Scanner and Accessories ................................................................................. 3
Basic Kit Components ................................................................................... 3
Optional Accessories ..................................................................................... 3
7820 Scanner Design Specifications ................................................................ 7
BASE MODEL CHARACTERISTICS
7820 Scanner ................................................................................................... 9
Components .................................................................................................. 9
Dimensions ................................................................................................. 10
Connector Panel .......................................................................................... 10
Caution and Serial Number Label ............................................................... 11
Dust Label ................................................................................................... 12
INSTALLATION
Cable Installation (Interface Specific) ............................................................. 13
Keyboard Wedge ......................................................................................... 13
USB ............................................................................................................. 14
RS232 ......................................................................................................... 15
RS485 ......................................................................................................... 16
Cable Installation (Secondary Honeywell Scanner) ........................................ 17
EAS Deactivation ............................................................................................ 20
Flex Stand Installation, PN 46-00868 ............................................................. 21
Wall Mount Stand Installation, PN 46-00869 .................................................. 24
S OCANNER PERATION
Scan Zone ...................................................................................................... 28
Depth of Field by Minimum Bar Code Element Width ..................................... 29
Indicator Descriptions ..................................................................................... 33
Audible ........................................................................................................ 33
Visual .......................................................................................................... 34
Failure Modes.............................................................................................. 35
Diagnostic Indicator Display ........................................................................ 36
iii
T C ABLE OF ONTENTS
Power Save Modes ......................................................................................... 37
Touch Button Panel ........................................................................................ 38
MAINTENANCE
Replaceable Protective Outer Window ........................................................... 39
Daily Maintenance .......................................................................................... 39
Cable Removal ............................................................................................... 40
T GROUBLESHOOTING UIDE
Troubleshooting Symptom / Solution Chart .................................................... 41
C MONFIGURATION ODES ............................................................................ 46
UPGRADING THE FIRMWARE ....................................................................... 47
SCANNER AND C TABLE ERMINATIONS
Scanner Pinout Connection ............................................................................ 48
Cable Connector Configurations (Host End) ................................................... 50
REGULATORY COMPLIANCE
Safety ............................................................................................................. 52
EMC ................................................................................................................ 53
Class A Devices .......................................................................................... 53
Class B Devices .......................................................................................... 54
C SUSTOMER UPPORT ................................................................................ 55
Technical Assistance ...................................................................................... 55
Product Service and Repair ............................................................................ 55
L WIMITED ARRANTY .................................................................................. 56
INDEX ....................................................................................................... 57
1
I NTRODUCTION
P ORODUCT VERVIEW
The 7820 Solaris vertical mini-slot scanner increases productivity with an
unmatched feature set that aggressively scans high-density codes and fits easily
into any existing enclosure found in small item, high-volume retail environments.
Every scanner comes standard with an integrated RF EAS antenna, Checkpoint
®
and Sensormatic interlock and the ability to be remotely configured or Flash
upgraded. These features, in combination with multiple on-board interfaces and a
diagnostic display, make the 7820 ideal for retailers seeking a lower total cost of
ownership on their next scanner investment. Firmware updates are easily loaded
into Flash memory.
The 7820 bar code scanner is equipped with a multitude of standard features
including:
• Automatic Scanning Operation
• EAS Deactivation Antenna
• Supports Multiple Interfaces (USB, KBW, RS232, RS485)
• Custom Parsing Bar Code Data
• OPOS and JPOS System Compatible
• RS232 Auxiliary Port for Adding Peripherals (Scanners or Scales)
• User Replaceable Cables
• Coplanar Scanner Surface
• Sunrise 2005 Compliant
• Single-Digit Diagnostic Indicator
• Remote Management Capabilities
2
I NTRODUCTION
A PPPLICATIONS AND ROTOCOLS
The model number on each scanner includes the scanner number and factory-
default communications protocol.
S C P ( )CANNER OMMUNICATION ROTOCOL S
7820 RS232, Keyboard Wedge, USB, Auxiliary, RS485
The 7820 bar code scanner with Built-in PC Keyboard Wedge Interface is
designed to be used for keyboard emulation only. Many RS232 configurable
functions available in other Honeywell scanners are also available as keyboard
wedge functions.
The following are the most important selectable options specific to the keyboard
wedge.
Keyboard Type
• AT (includes IBM® PS2 models 50, 55, 60, 80)
• IBM PS2 (includes models 30, 70, 8556)
Keyboard Country Type
• • • *USA Italian Swiss
• • • Belgium Japanese Swedish/Finnish
• French
• German
• Hungarian
• Russian Cyrillic
• Slovenian
• Spanish
• Turkish
• United Kingdom
3
I NTRODUCTION
S A CANNER AND CCESSORIES
B K C ASIC IT OMPONENTS
Part # Description
MS7820 Bar Code Scanner
00-02407 MetroSelect
® Configuration Guide
00-02283 7820 Bar Code Scanner User’s Guide
57-57312-3 7820 EAS Cable - Checkpoint (External)
57-57313-3 7820 EAS Cable - Sensormatic (External)
Guides also available for download at www.honeywellaidc.com.
OPTIONAL ACCESSORIES
Part # Description
7820 Scanner Interface Cables
5S-5Sxxx
xxx
xxx
xxxxxx-3* Straight, VLink Cable with short strain relief
5S-5Sxxx
xxx
xxx
xxxxxx-N-3* Straight, Direct Cable with short strain relief
5S-5S002-3 Keyboard Wedge VLink Cable with Adapter Cable
5S-5S006-N-3 RS485 (IBM) Direct Cable
5S-5S213-N-3 USB Direct 12V (Type A Plus Power) Cable
5S-5S235-3 USB 12VLink Cable (Type A)
57-57170-3 RS232 Scanner AUX 12VLink Cable
57-57500-N-3 RS232 Scale AUX Cable (Mettler-Toledo Viva)
57-57501-N-3 AUX Cable (MT Viva Scale Handheld Scanner)
xxx
xxx
xxx
xxxxxx* Specifies connection to the host.
Contact a customer service representative for additional information. See page
55 for contact information.
4
I NTRODUCTION
S A CANNER AND CCESSORIES
OPTIONAL ACCESSORIES
Part # Description
AC to DC Power Transformer – Regulated 12V@ 1.25A output
46-00862 Power Supply, United States / Japan
46-00863 Power Supply, Continental Europe
46-00864 Power Supply, United Kingdom
46-00865 Power Supply, China
46-00866 Power Supply, Australia
Part # Description
7800 External Window Option
46-00867 7800 Replaceable Protective Outer Window
** For 7800 Replacement Protective Outer Window removal / installation instructions see
page 39 of this manual.
Other items may be ordered for the specific protocol being used. To order additional
items, contact the dealer, distributor, or customer service. See page 55 for contact
information.
5
I NTRODUCTION
S A CANNER AND CCESSORIES
OPTIONAL ACCESSORIES
Part # Description
46-00868 7820 Flex Stand Kit
Flex Stand, Kit Components
1. Tall Flex Pole Cover ...................................................................... Qty. 1
2. Tall Flex Pole ................................................................................. Qty. 1
3. Stand Base .................................................................................... Qty. 1
4. Plastic Stand Base Cover .............................................................. Qty. 1
5. M4 x 0.7 x 10-10N Flat Head Screw ............................................ Qty. 2
6. #8 x 1.00" Wood Screw ................................................................. Qty. 4
7. ¼" Lock Washer ........................................................................... Qty. 2
6
I NTRODUCTION
S A CANNER AND CCESSORIES
OPTIONAL ACCESSORIES
Part # Description
46-00869 7820 Wall Mount Stand Kit

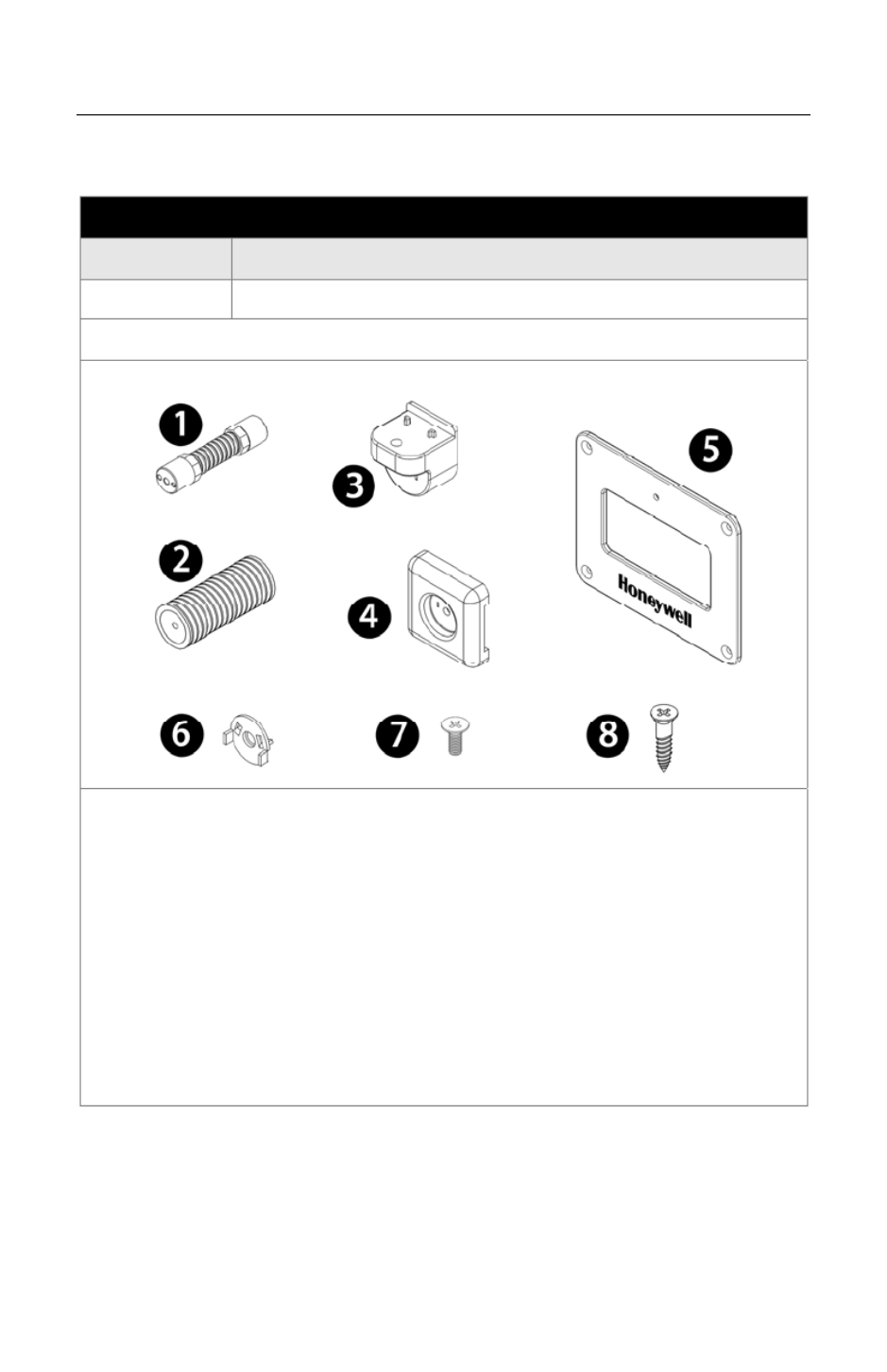

Wall Mount Stand, Kit Components
1. Short Flex Pole .............................................................................. Qty. 1
2. Short Flex Pole Cover ................................................................... Qty. 1
3. Plastic Housing .............................................................................. Qty. 1
4. Plastic Stand Base Cover .............................................................. Qty. 1
5. Wall Mounting Bracket ................................................................... Qty. 1
6. ¼" Lock Washer ............................................................................ Qty. 2
7. M4 x 0.7 x 10-10N Flat Head Screw ............................................ Qty. 3
8. #8 x 1.00" Wood Screw ................................................................ Qty. 4
Other items may be ordered for the specific protocol being used. To order additional items,
contact the dealer, distributor, or customer service. See page 55 for contact information.
7
I NTRODUCTION
7820 SCANNER DESIGN SPECIFICATIONS
OPERATIONAL
Light Source: Visible Laser Diode (VLD) @ 650 nm
Laser Power: 0.900 mW (peak)
Embedded Laser: Max Optical Power: 10 mW
Wavelength: 650 nm
Depth of Field: 0 mm to 255.0 mm (0"- 10.0") for
0.33 mm (13 mil) bar code
Width of Scan Field: 38 mm (1.5") @ 15 mm (0.6");
135 mm (5.3") @ 191 mm (7.5")
Scan Speed: 1800 scans/second
Scan Pattern: 5 fields of 4 parallel lines (omnidirectional)
Scan Lines: 20
Min Bar Width: 0.127 mm (5.0 mil)
Decode Capability: Auto-discriminates all standard bar codes; for
other symbologies contact a customer service, see
page 55 .
System Interfaces: Keyboard Wedge, RS232, USB, RS485
Print Contrast: 35% minimum reflectance difference
No. Characters Read: up to 80 data characters (Maximum number will vary
based on symbology and density)
Roll, Pitch, Yaw: 360°, 60°, 60°
Beeper Operation: 7 tones or no beep
Indicators (LED): Blue = laser on, ready to scan, and good read.
MECHANICAL
Dimensions: 152 mm (6.0") H, 92 mm (3.6") D,
152 mm (6.0") W
Footprint of Stand 152 mm (6.0") x 64 mm (2.5")
Weight: 0.706 Kg (1.56 lbs)
Termination: Two: 10-pin modular RJ45 jacks
One: 6-pin modular RJ45 jack
Cable: Standard 2.1m (7') straight; for other cables contact a
customer service representative, see page 55.
8
I NTRODUCTION
7820 SCANNER DESIGN SPECIFICATIONS
E LECTRICAL
Input Voltage: 12VDC ± 0.25V
Power: 4.8 W
Operating Current: 320 mA
DC Transformers: Class II; 12VDC @ 1.25A
For Regulatory Compliance information, see pages 52 - 54.
E NVIRONMENTAL
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 60°C (-40°F to 140°F)
Humidity: 5% to 95% relative humidity, non-condensing
Light Levels: Up to 4842 LUX (450 foot candles)
Contaminants: Sealed to resist airborne particulate contaminants
Ventilation: None required
9
B M C ASE ODEL HARACTERISTICS
7820 SCANNER
Components
Figure 1. 7820 Bar Code Scanner Parts
Scratch Resistant Output Window
(Laser Aperture)
Power Save Button
Volume Button
Blue Indicator LED
Speaker
Tone Button
Cable Connection Area
10
B M C ASE ODEL HARACTERISTICS
7820 SCANNER
Dimensions
Figure 2. 7820 Bar Code Scanner Dimensions
Connector Panel
Figure 3. 7820 Connector Panel Layout
11
B M C ASE ODEL HARACTERISTICS
7820 SCANNER
Caution and Serial Number Labels
Figure 4. 7820 Label Location (Top) & Sample Label (Below)
Caution
To maintain compliance with applicable standards, all circuits connected to the
scanner must meet the requirements for SELV (Safety E ow Vxtra L oltage) according
to EN/IEC 60950-1.
To maintain compliance with standard CSA C22.2 No. 60950-1/UL 60950-1 and norm
EN/IEC 60950-1, the power source should meet applicable performance requirements
for a limited power source.
12
B M C ASE ODEL HARACTERISTICS
7820 SCANNER
Dust Labels
The EAS and AUX Connectors are covered by dust labels, shown below. Peel
off the label to access the connector needed. Keep the dust label on the
connector not in use.
Figure 5. 7820 Label Location (Top) & Label (Below)
13
Figure 6.
Keyboard Wedge Interfaces
³999998
Recall Defaults
I NSTALLATION
C I SABLE NSTALLATION (INTERFACE PECIFIC)
Keyboard Wedge
1. Turn off the host system.
2. Disconnect the keyboard from the host.
3. Connect the keyed VLink cable to the
10-pin Multi-Interface jack. It is the only
circular keyed jack located on the bottom
of the 7820 (see figure 6).
4. Connect the “Y” end of the
VLink cable to the keyboard
and the keyboard port on the host.
If necessary, use the male/female
adapter cable supplied with the scanner
for proper connections.
Before continuing, verify the
VLink cable is connected to the
appropriate interface jack on the scanner.
An incorrect cable connection can cause
communication problems or potential
damage to the scanner.
5. Connect the external power supply
to the power jack on the scanner.
6. Check the AC input requirements
of the power supply to make sure
the voltage matches the AC outlet.
7. Connect AC power to the transformer.
The outlet should be near the equipment
and easily accessible.
8. Scan the Recall Defaults bar code
to configure the 7820 for
Keyboard Wedge communication.
9. Turn on the host system.
10. Snap on the cable cover.
See SELV Power caution statement located on page 11 of this manual.
14
Figure 7. USB, Interface
³999998
Recall Defaults
I NSTALLATION
C I SABLE NSTALLATION (INTERFACE PECIFIC)
USB
1. Connect the keyed VLink cable to
the 10-pin Multi-Interface jack. It
is the only circular keyed jack
located on the bottom of the 7820
(see figure 7).
2. Connect the other end of the USB
cable to the host.
Before continuing, verify the USB
cable is connected to the
appropriate interface jack on the
scanner. An incorrect cable
connection can cause
communication problems or
potential damage to the scanner.
3. Scan the Recall Defaults bar
code to configure the 7820 for
USB communication.
4. Turn on the host system.
5. Snap on the cable cover.
For additional communication
options for USB interfaces refer to the
MetroSelect Configuration Guide
(PN 00-02407).
See SELV Power caution statement located on page 11 of this manual.
Plugging the scanner into
the USB port of the PC
does not guarantee that
scanned information will
appear at the PC. A
software driver and correct
configuration setting may
also be required for proper
communication depending
on settings.
15
Figure 8. RS232 Interface
³999998
Recall Defaults
I NSTALLATION
C I SABLE NSTALLATION (INTERFACE PECIFIC)
RS232
1. Turn off the host system.
2. Connect the keyed VLink cable to
the 10-pin Multi-Interface jack. It is
the only circular keyed jack located
on the bottom of the 7820 (see
figure 8).
3. Connect the other end of the VLink
cable to the host.
Before continuing, verify the VLink
cable is connected to the
appropriate interface jack on the
scanner. An incorrect cable
connection can cause
communication problems or
potential damage to the scanner.
4. Connect the external power supply
to the power jack on the scanner.
5. Check the AC input requirements of
the power supply to make sure the
voltage matches the AC outlet.
6. Connect AC power to the
transformer. The outlet should be
near the equipment and easily
accessible.
7. Scan the Recall Defaults bar code
to configure the 7820 for
RS232 communication.
8. Turn on the host system.
9. Snap on the cable cover.
See SELV Power caution statement located on page 11 of this manual.
16
Figure 9. RS485 Interface
³999998
Recall Defaults
I NSTALLATION
C I SABLE NSTALLATION (INTERFACE PECIFIC)
RS485
1. Turn off the host system.
2. Connect the keyed cable to the 10-pin
Multi-Interface jack. It is the only
circular keyed jack located on the
bottom of the 7820 (see figure 9).
3. Connect the other end of the cable to
the host.
Before continuing, verify the cable is
connected to the proper communication
jack on the scanner. Incorrect cable
connection can cause communication
problems or potential damage to the
scanner.
4. Turn on the host system.
5. Scan the Recall Defaults bar code
to configure the 7820 for
RS232/IBM communication.
6. Snap on the cable cover
For additional communication
options for IBM interfaces refer to the
MetroSelect Configuration Guide
(PN 00-02407).
See SELV Power caution statement located on page 11 of this manual.
Plugging the scanner into the
serial port of the PC does not
guarantee that scanned
information will appear at the
PC. A software driver and
correct configuration setting
are also required for proper
communication to occur.
17
I NSTALLATION
C I H SABLE NSTALLATION (SECONDARY ONEYWELL CANNER)
1. Turn off the host system.
2. Connect the round end of the VLink RS232 AUX cable
[PN 57-57170-3] to the RS232 jack of the auxiliary scanner (see figure 10 on
page 19).
3. Connect the other end of the VLink RS232 AUX cable into the Auxiliary
(AUX) jack, which is located directly next to the circular keyed Multi-Interface
jack. The Auxiliary (AUX) jack has a square opening.
The following Honeywell scanners can be used in the Auxiliary (AUX) input
of the 7820: the MS9520, MS9540, MS7120, MS7220 or another 7820.
Important: The 7820 aux port requires the signals: transmit, receive,
RTS & CTS from the auxiliary scanner.
4. Connect the 7820/Host VLink* cable to the circular keyed Multi-Interface jack
located on the bottom of the 7820.
5. Connect the other end of the 7820/Host VLink cable to the Host.
6. Connect the external power supply to the power jack on the VLink cable.
7. Check the AC input requirements of the power supply to make sure the
voltage matches the AC outlet.
8. Snap on the cable cover.
9. Connect AC power to the transformer. The outlet should be near the
equipment and easily accessible.
10. Configure the 7820 for the appropriate interface configuration settings.*
* The 7820/host cable connection is interface dependent. Refer to the
installation steps provided for the type of interface (RS232, RS485, etc.)
required for your application.
See SELV Power caution statement located on page 11 of this manual.
18
I NSTALLATION
C I H S )ABLE NSTALLATION (SECONDARY ONEYWELL CANNER
11. Scan the following bar code to configure the auxiliary port on the 7820 to
accept a Honeywell scanner as the secondary scanner.
The following bar codes do not apply when using an MS6720 as a
secondary scanner. If the secondary scanner is not a Honeywell
scanner, refer to the Auxiliary Port Control section of the MetroSelect
Configuration Guide.
³999977
Aux Port Defaults
The auxiliary input port’s data format must match the main output
format of the secondary scanner.
12. Scan the following bar codes, in order, to configure the secondary scanner to
match the auxiliary port’s data format.
1s
t
Enable AUX Output
2nd
Secondary Scanner Data
Format
³124817
³437520
3rd
Enable Comm Timeouts
4th (Optional)
Turn OFF Secondary
Scanner’s Beeper
³ 1 1 8 4 1 2
³ 3 1 8 5 0 5
13. Turn on the host system.
19
I NSTALLATION
C I H S )ABLE NSTALLATION (SECONDARY ONEYWELL CANNER
Figure 10. Connector Orientation (Top)
Auxiliary Scanner Setup (Bottom)
See SELV Power caution statement located on page 11 of this manual.
20
I NSTALLATION
EAS DEACTIVATION
SW1 and SW2 are the switch banks inside the Checkpoint device that set the
deactivation range. Honeywell recommends end users program the 7820 bar
code scanner to the , so that the unit doesShort Range* not scan out beyond the
deactivation range.
Unit # Checkpoint Recommended
Switch Bank Settings
7820 Depth of Field
Recommended Settings
7820 SW1 - 2, 3, 4, 5, 6 set to ON &
SW2 - 2, 3, 4, 5, 6 set to ON
Short Range*
³ 118711
* Note: Minimum element width changes to 6.8 mil when in this mode.
Figure 11. EAS Deactivation Antenna
Contact Checkpoint Systems directly for additional EAS support.
21
I NSTALLATION
F S I ,LEX TAND NSTALLATION PN 46-00868
1. Drill four #39 pilot holes in the counter top for the stand base plate.
Figure 12. Base Plate Hole Pattern
2. Attach the flex pole assembly and secure the base plate to the counter.
Slide the flex cover over the flex pole assembly. Once the flex pole has been
assembled, mount the stand base plate to the counter and install the flex
cover over the flex pole assembly.
Figure 13. Pole Assembly Figure 14. Cover Assembly
22
I NSTALLATION
F S ILEX TAND NSTALLATION
3. Remove the scanner’s back plate from the rear side of the unit. Apply
pressure to the points shown in Figure 15 until the back plate unlatches from
the scanner.
Figure 15. Cable Cover Removal
4. Slide the bottom mounting plate off the scanner.
Figure 16. Mounting Plate Removal
23
I NSTALLATION
F S ILEX TAND NSTALLATION
5. Attach the scanner mounting plate to the flex pole.
Figure 17. Secure mounting plate to flex pole.
6. Slide the scanner onto the mounting plate until the plate is fully seated into
the scanner.
Figure 18. Slide mounting plate into scanner.
7. Before installing the scanner’s cable
cover, refer to pages 13-20 for instructions
on the proper cable connections.
8. Re-Install the scanner’s back plate to lock-
in the bottom mounting plate.
Figure 19. Install back plate
24
I NSTALLATION
W M S I ,ALL OUNT TAND NSTALLATION PN 46-00869
1. Locate the area on the wall where the scanner will be mounted and drill four
#39 pilot holes in the wall for the stand base plate.
Figure 20. Base Plate Hole Pattern
2. Attach the flex pole assembly to the Wall Mount plate. Slide the flex cover
over the flex pole assembly.
Figure 21. Pole Assembly
25
I NSTALLATION
W M S IALL OUNT TAND NSTALLATION
3. Remove the scanner’s back plate from the rear side of the unit. Apply
pressure to the points shown in Figure 22 until the back plate unlatches from
the scanner.
Figure 22. Cable Cover Removal
4. Slide the bottom mounting plate off the scanner.
Figure 23. Mounting Plate Removal
26
I NSTALLATION
W M S I ALL OUNT TAND NSTALLATION
5. Secure the wall mounting plate to the wall location designated in Step 1 and
assemble the remaining parts as shown in Figure 24.
Figure 24. Scanner Mounting Plate Assembly
6. Slide the scanner onto the mounting plate until the plate is fully seated into
the scanner.
Figure 25. Slide mounting plate into scanner.
27
I NSTALLATION
W M S I ALL OUNT TAND NSTALLATION
7. Before installing the scanner’s cable
cover, refer to pages 13-20 for instructions
on the proper cable connections.
8. Re-Install the scanner’s back plate to lock-
in the bottom mounting plate.
Figure 26. Install back plate
28
S O CANNER PERATION
S ZCAN ONE (BASED ON 100% UPC BAR CODES)
Figure 27. Scan Area Top View (top) Side View (Bottom)
Specifications are subject to change without notice.
29
S O CANNER PERATION
D F M B C E WEPTH OF IELD BY INIMUM AR ODE LEMENT IDTH
(B ) ASED ON 100% UPC BAR CODES
Figure 28. Depth of Field Top View
Long Range Mode
Minimum Bar Code Element Width
Long Range Mode
A B C D E
mm .132 .190 .264 .330 .660
mils 5.2 7.5 10.4 13.0 26.0
Specifications are subject to change without notice.
30
S O CANNER PERATION
D F M B C E WEPTH OF IELD BY INIMUM AR ODE LEMENT IDTH
(BASED ON AR 100% UPC B CODES)
Figure 29. Depth of Field Side View
Long Range Mode
Minimum Bar Code Element Width
Long Range Mode
A B C D E
mm .132 .190 .264 .330 .660
mils 5.2 7.5 10.4 13.0 26.0
Specifications are subject to change without notice.
31
S O CANNER PERATION
D F M B C E WEPTH OF IELD BY INIMUM AR ODE LEMENT IDTH
(B ) ASED ON 100% UPC BAR CODES
Figure 30. Depth of Field Top View
Short Range Mode
Minimum Bar Code Element Width
Short Range Mode
A B C
mm .190 .264 .330
mils 7.5 10.4 13.0
Specifications are subject to change without notice.
32
S O CANNER PERATION
D F M B C E WEPTH OF IELD BY INIMUM AR ODE LEMENT IDTH
(B ) ASED ON 100% UPC BAR CODES
Figure 31. Depth of Field Side View
Short Range Mode
Minimum Bar Code Element Width
Short Range Mode
A B C
mm .190 .264 .330
mils 7.5 10.4 13.0
Specifications are subject to change without notice.
33
S O CANNER PERATION
I D NDICATOR ESCRIPTIONS
Audible
When the 7820 scanner is in operation, it provides audible feedback. These
sounds indicate the status of the scanner. Eight settings are available for the
tone of the beep (normal, 6 alternate tones and no tone). To change the tone,
use the Tone Button or refer to the MetroSelect Configuration Guide.
One Beep
When the scanner first receives power, the blue LED will turn on
and the scanner will beep once. The blue LED will remain on for
the duration of the beep. The scanner is now ready to scan.
When the scanner successfully reads a bar code, the blue LED will
flash and the scanner will beep once (if configured to do so). If the
scanner does not beep once and the blue LED does not flash, then
the bar code has not been successfully read.
Two Beeps
The scanners programmed interface setting does not match the
actual connected interface cable. This audible indicator will be
heard during power up, or when a bar code is scanned.
Razzberry Tone
This is a failure indicator. Refer to failure modes on page 35.
Three Beeps - during operation
When placing the scanner in program mode, the blue LED will flash
while the scanner simultaneously beeps three times. The blue LED
will continue to flash until the unit exits program mode. Upon exiting
program mode, the scanner will beep three times and the LED will
stop flashing.
When configured, three beeps can also indicate a communications
timeout during normal scanning mode.
The scanner will beep three times in an ascending tone, with each
beep higher in pitch than the previous. This tells the user that the
single configuration bar code has configured the successfully
scanner.
Three beeps will also occur during a manual adjustment of the
beeper tone. The scanner will emit three evenly pitched/spaced
tones with the blue indicator LED blinking in unison.
Three Beeps - on power up
This is a failure indicator. Refer to failure modes on page 35.
34
S O CANNER PERATION
I D NDICATOR ESCRIPTIONS
Visual
There is a blue LED on the top of the 7820 as well as
three illuminated buttons on the front. When the
scanner is on, the flashing or constant illumination of
the LED indicates the status of the current scan and
the scanner.
Figure 32. LED
No Blue LED
The LEDs will not be illuminated if the scanner is not receiving
power from the host or transformer.
or
The unit is in Power Save Mode. During Power Save Mode, the
laser will be off and the blue LED will not illuminate.
Steady Blue LED
When the laser is active, the blue LED is illuminated. The blue
LED will remain illuminated until the laser is deactivated.
Steady Blue LED to OFF
After a successful scan, the scanner transmits the data to the
host device. Some communication modes require that the host
inform the scanner when data is ready to be received. If the
host is not ready to accept the information, the scanner’s blue
LED will remain off until the data can be transmitted.
Single Blue LED Flash
When the scanner successfully reads a bar code, the blue LED
will flash and the scanner will beep once. If the blue LED does
not flash or the scanner does not beep once, then the bar code
has not been successfully read.
The blue LED will also flash once while the EAS is in
deactivation mode.
Flashing Blue LED
This indicates the scanner is in program mode. A flashing blue
LED with razzberry tone indicates that an invalid bar code has
been scanned during this mode.
35
S O CANNER PERATION
I D NDICATOR ESCRIPTIONS
Failure Modes
Figure 33. LED
Flashing BLUE LED and One Razzberry Tone
This indicates the scanner has experienced a laser subsystem
failure. Return the unit for repair at an authorized service
center.
Flashing Blue LED and Two Razzberry Tones
This indicates the scanner has experienced a motor failure.
Return the unit for repair at an authorized service center.
Continuous Razzberry Tone with LED off
If, upon power up, the scanner emits a continuous razzberry
tone, then the scanner has an electronic failure. Return the unit
for repair at an authorized service center.
Three Beeps - on power up
The scanner beeps three times on power up indicates the
nonvolatile memory, that holds the scanner configuration, has
failed. Return the unit for repair at an authorized service
center.
Produktspecifikationer
| Varumärke: | Honeywell |
| Kategori: | Streckkodsläsare |
| Modell: | Solaris 7820 |
Behöver du hjälp?
Om du behöver hjälp med Honeywell Solaris 7820 ställ en fråga nedan och andra användare kommer att svara dig
Streckkodsläsare Honeywell Manualer
25 Februari 2025
30 December 2025
30 December 2025
11 Oktober 2024
6 Oktober 2024
3 Oktober 2024
17 September 2024
17 September 2024
17 September 2024
13 September 2024
Streckkodsläsare Manualer
- Streckkodsläsare Casio
- Streckkodsläsare Baracoda
- Streckkodsläsare Qian
- Streckkodsläsare Psion
- Streckkodsläsare Adesso
- Streckkodsläsare Wasp
- Streckkodsläsare Newland
- Streckkodsläsare Palm
- Streckkodsläsare Cypress
- Streckkodsläsare GoDEX
- Streckkodsläsare Olympia
- Streckkodsläsare Code
- Streckkodsläsare Intermec
- Streckkodsläsare EC Line
- Streckkodsläsare ZBA
Nyaste Streckkodsläsare Manualer
2 April 2025
2 April 2025
1 April 2025
27 Februari 2025
27 Februari 2025
27 Februari 2025
23 Februari 2025
21 Februari 2025
21 Februari 2025
21 Februari 2025
