ASSEMBLY INSTRUCTION
Item#: 1595-75310C-WH Upholstered Splatback Side Chair

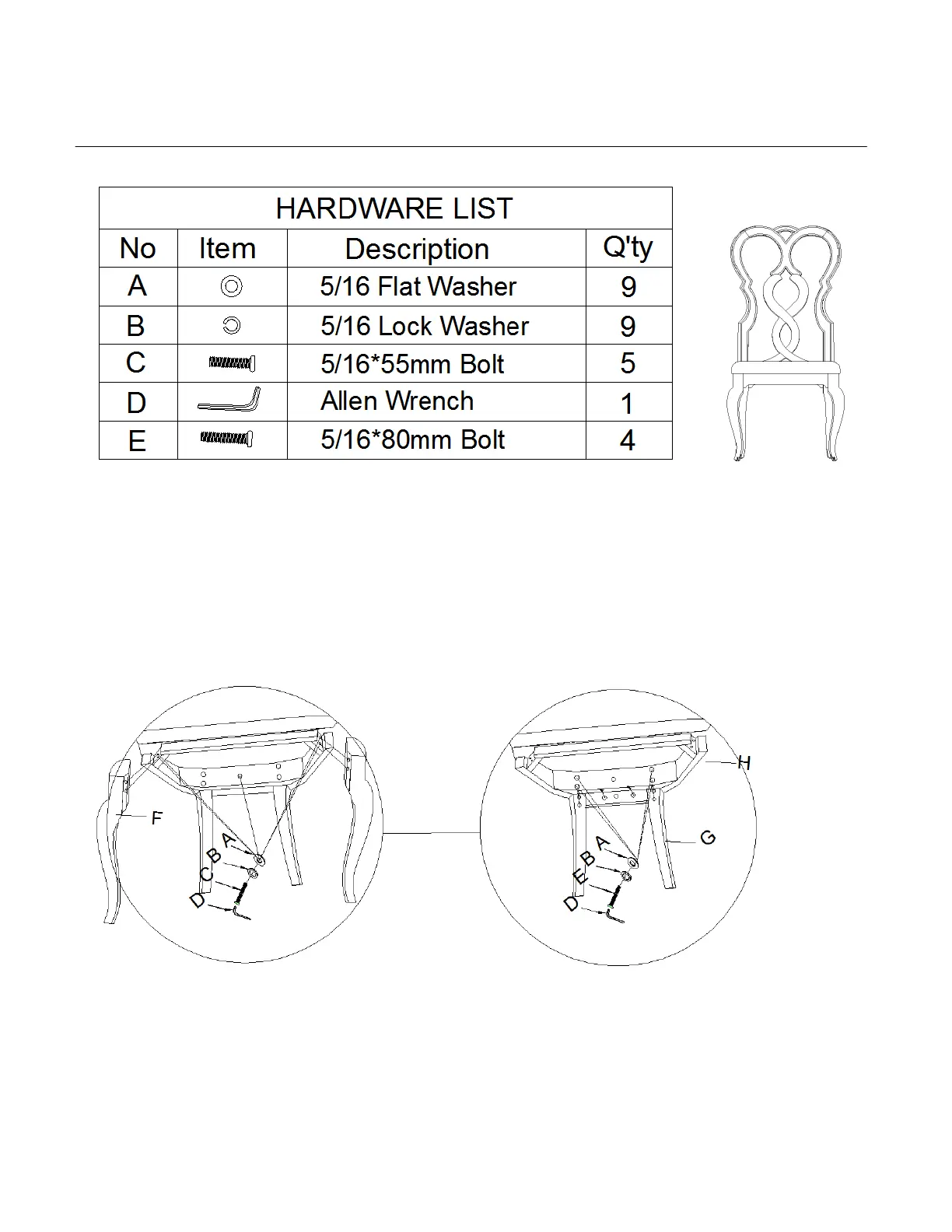

** Please make sureyou have all parts indicated below prior to assembly.
Assembly Steps:
There are two K/D chairs in one box. Please follow numbers on one chair andletters on the other during
assembly.
1.Place chair back (G) on a clean surface.
2.Tighten seat frame (H) to the chair back (G) by using bolt (C), lock washer (B) and flat washer (A)
at the center location (see diagram 1). Then, tighten seat frame (H) to chairback (G) by using bolts
(E), lock washers (B) and flat washers (A) at corner blocks. (See diagram 2)
3.Install front legs (F) onto seat frame (H) using bolts (C), lock washers (B) and flat washers (A).
Tighten all bolts(C)by hand. (See diagram 1).
4.After all bolts are attachedand hand tightened, turn the chair upright.
5.Level the chair following “chair leveling instruction” as below.
6.Make sure the chair is level and then tighten all bolts completelyby using allen wrench(D).
DIAGRAM 2
DIAGRAM 1
