ASSEMBLY INSTRUCTION
Item#:5750-75400-LTWD Upholstered Arm Chair
** Please make sureyou have all partsindicated belowprior to assembly.
Assembly Steps:
1.Place chair back on a clean surface.
2.Attached seat frame (L) to chair back (J) by using bolt (A), lock washer (B) , flat washer (C) at the
center locationand tighten by Allen Wrench(D). Then, tightenseat frame (L) to chair back (J) by
using bolts (E), lock washers (B), flat washers (C) and secured by usingallen wrench (D) at corner.
(See diagram 1)
3.Attached front legs (I) to seat frame (L) by using bolts (E), lock washers (B) ,flat washers (C) and
tighten by allen wrench (D).(See diagram 1)
4.After all bolts are attached and hand tightened, turn the chair upright.
5.Attached front leg(I) to chair back(M)byusingbolts (H), lock washers (B)and flat washers (G).
Tighten all bolts by allen wrench(D). Insert wood plugs (F) into bolts (H).
6.Make sure the chair is level and then tighten all bolts completelybyusing allen wrench (D).

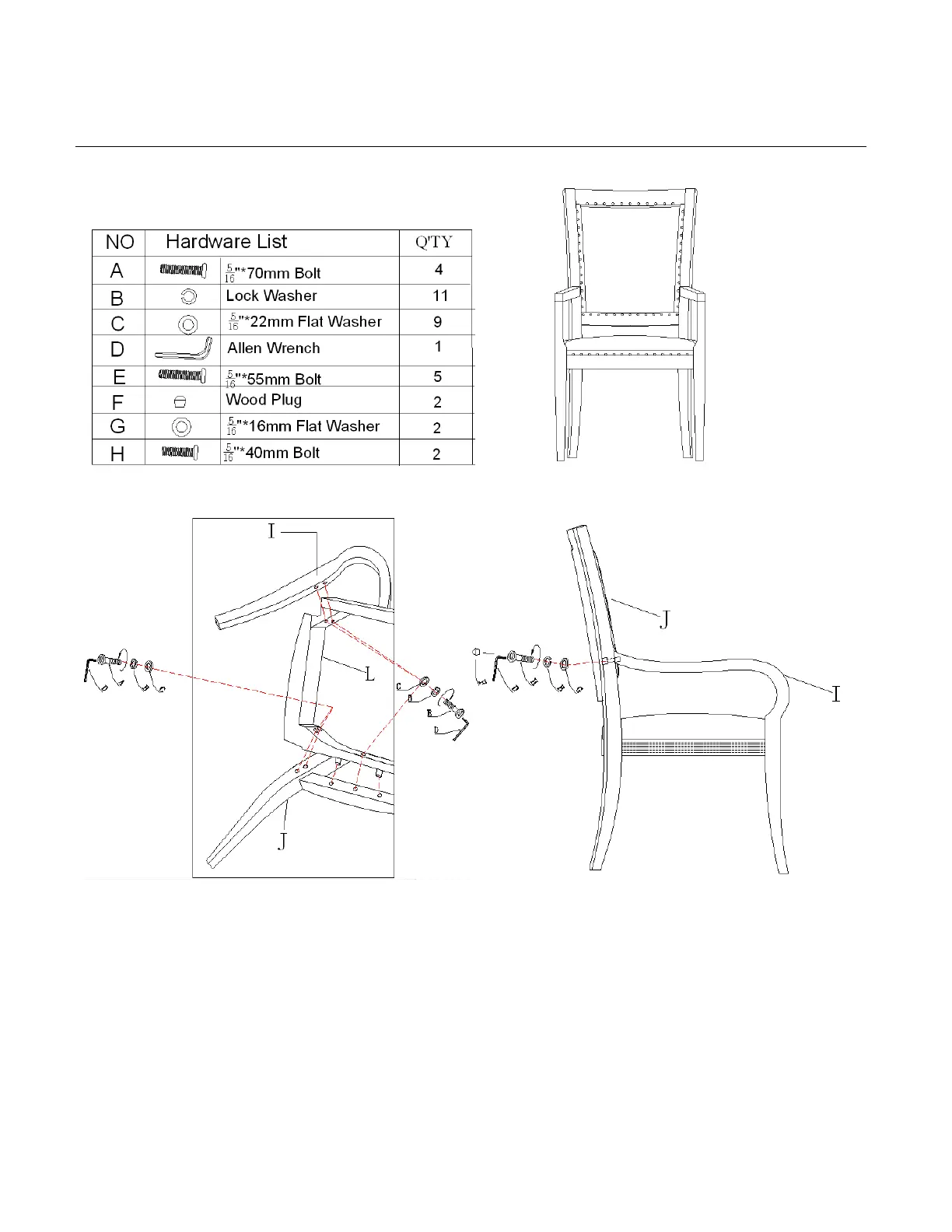

Diagram 1
Diagram 2
