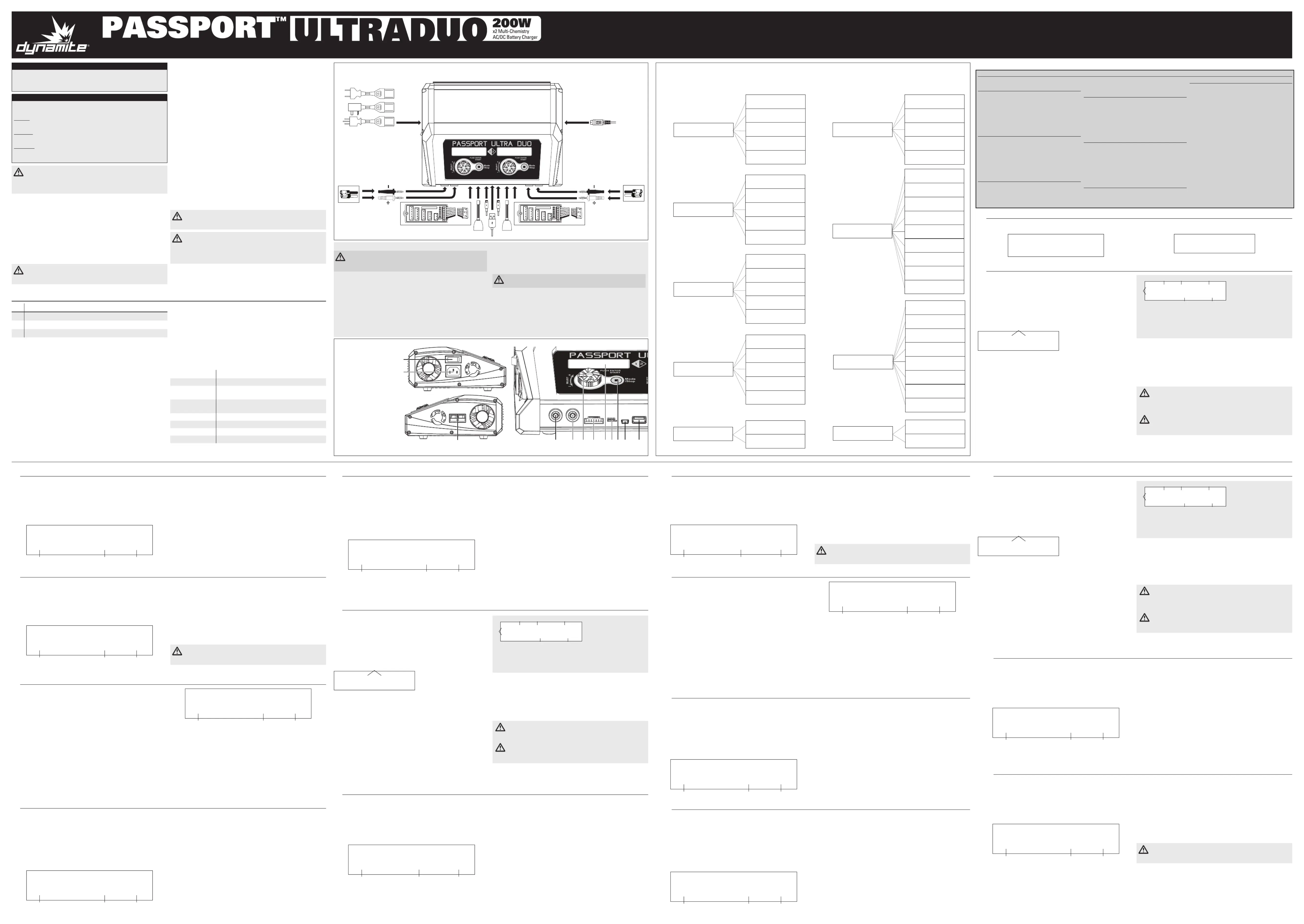

A.
L.
J.
K.
B. C. I. D. F.E.H. G.
NOTICE
All instructions, warranties and other collateral documents are subject to change
at the sole discretion of Horizon Hobby, Inc. For up-to-date product literature, visit
horizonhobby.com and click on the support tab for this product.
The following terms are used throughout the product literature to indicate various
levels of potential harm when operating this product:
NOTICE: Procedures, which if not properly followed, create a possibility of physical
property damage AND a little or no possibility of injury.
CAUTION: Procedures, which if not properly followed, create the probability of
physical property damage AND a possibility of serious injury.
WARNING: Procedures, which if not properly followed, create the probability of
property damage, collateral damage, and serious injury OR create a high probability
of superficial injury.
WARNING: Read the ENTIRE instruction manual to become familiar with the
features of the product before operating. Failure to operate the product
correctly can result in damage to the product, personal property and cause
serious injury.
This is a sophisticated hobby product. It must be operated with caution and common
sense and requires some basic mechanical ability. Failure to operate this Product
in a safe and responsible manner could result in injury or damage to the product or
other property. This product is not intended for use by children without direct adult
supervision. Do not attempt disassembly, use with incompatible components or
augment product in any way without the approval of Horizon Hobby, Inc. This manual
contains instructions for safety, operation and maintenance. It is essential to read and
follow all the instructions and warnings in the manual, prior to assembly, setup or use,
in order to operate correctly and avoid damage or serious injury.
Age Recommendation: Not for children under 14 years. This is not a toy.
SAFETY PRECAUTIONS AND WARNINGS
WARNING: Failure to exercise caution while using this product and comply
with the following warnings could result in product malfunction, electrical
issues, excessive heat, FIRE, and ultimately injury and property damage.
• Neverleavethepowersupply,chargerandbatteryunattendedduringuse.
• Neverattempttochargedead,damagedorwetbatterypacks.
• Neverattempttochargeabatterypackcontainingdifferenttypesofbatteries.
• Neverallowchildrenunder14yearsofagetochargebatterypacks.
• Neverchargebatteriesinextremelyhotorcoldplacesorplaceindirectsunlight.
• Neverchargeabatteryifthecablehasbeenpinchedorshorted.
• Neverconnectthechargerifthepowercablehasbeenpinchedorshorted.
• Neverconnectthechargertoanautomobile12Vbatterywhilethevehicle
is running.
• Neverattempttodismantlethechargeroruseadamagedcharger.
• NeverattachyourchargertobothanACandaDCpowersourceatthesametime.
• Neverconnecttheinputjack(DCinput)toACpower.
• Alwaysuseonlyrechargeablebatteriesdesignedforusewiththistypeofcharger.
• Alwaysinspectthebatterybeforecharging.
• Alwayskeepthebatteryawayfromanymaterialthatcouldbeaffectedbyheat.
• Alwaysmonitorthechargingareaandhaveareextinguisheravailableatalltimes.
• Alwaysendthechargingprocessifthebatterybecomeshottothetouchorstarts
tochangeform(swell)duringthechargeprocess.
• Alwaysconnectthechargecabletothechargerrst,thenconnectthebatteryto
avoid short circuit between the charge leads. Reverse the sequence when
disconnecting.
• Alwaysconnectthepositiveredleads(+)andnegativeblackleads(–)correctly.
• Alwaysdisconnectthebatteryaftercharging,andletthechargercoolbetween
charges.
• Alwayschargeinawell-ventilatedarea.
• AlwaysterminateallprocessesandcontactHorizonHobbyiftheproduct
malfunctions.
WARNING: Never leave charger unattended, exceed maximum charge rate,
charge with non-approved batteries or charge batteries in the wrong mode.
Failure to comply may result in excessive heat, fire and serious injury.
CAUTION: Always ensure the battery you are charging meets the
specifications of this charger and that the charger settings are correct. Not
doing so can result in excessive heat and other related product malfunctions,
which can lead to user injury or property damage. Please contact Horizon
Hobby or an authorized retailer with compatibility questions.
InstructIon Manual
|
BedIenungsanleItung
|
Manuel d’utIlIsatIon
|
Manuale dI IstruzIonI (dYn4300)
Included Items
JST_XHBalanceadapter(2)
BananaplugtoEC3
™
batteryconnector(2)
ACpowercord(oneregion-US,EU,AUorUK)
OPTIONAL ACCESSORIES
DYN4012-DCPowerCord
DYN5031-InsulatedChargeAdapter,BananatoEC3Device
DYN5032-BalancingAdapterBoard
DYN5033-TemperatureSensor:DYN4103,DYN4300
Minimum computer requirements for use of included software: Microsoft
®
Windows XP
®
, Windows 7
®
orWindowsVista
®
operatingsystem,Compactdisk(CD)
readercapableofreadingamini-CDandUSB2.0port.
FEATURES
• Twochargingportstochargetwobatteriesatonce.Batteriescanbedifferent
capacities and cell counts
• 1AUSBchargeportcompatiblewithiPhone
®
, iPod
®
or similar products
• 100–240VAC(50/60Hz)or11–18VDCinputvoltage
• Li-Ion/Li-Po/Li-Febatterycellcountof1to6seriescells
• Ni-Cd/Ni-MHbatterycellcountof1to15cells
• Pbbatteryvoltageof2to20V
• Built-in50Wdischarger
• Built-inbalancecircuit
• Short-circuit,over-current,reversepolarity,lowinputvoltageand
over-temperature protection
• StorageandFastChargemodes
• Userbatterydata,storeandloadupto10batteryproles
• (2)2x16backlit,blueLCD
• Insulated,colorcoded,bananajack,poweroutputterminals(Red=Positive(+),
Black=CommonorNegative(–))
• Internalcoolingfanswithgrillcovers
• Operatingtemperaturerangeof0°Cto+50°C
• MeetsIP33CW,IK07environmentalspecs
• Ruggedindustrialplasticcase
SPECIFICATIONS
ACInputVoltage 100–240VAC(50/60Hz)
DCInputVoltage 11–18VDC
ChargeCurrent 0.10to10.0Aperchannel(in0.1Aincrements/200W
maximumperchannel/400WTotal)
DischargeCurrent 0.10to5.0Aperchannel(in0.1Aincrements/25W
maximumperchannel/50WTotal)
Operating temperature 0°Cto+50°C
BalanceCurrentDrain 300mApercell
TrickleChargeCurrent 50to200mA
ChargingMode Peak(Ni-Cd/Ni-MH),CC/CV(Li-Po/Li-Ion/Li-Fe/Pb)
GETTING STARTED
CAUTION:NeverconnecttheACandDCinputcordstoanactivepower
source at the same time. This will void the warranty, cause product
damage and possibly injure the user.
When Using an External DC Power Source:
1.ConnecttheDCpowercordtothechargerDCpowerinputport.
2.ConnecttheDCalligatorclipstotheDCpowersource.
3.PowerONthechargerwiththepowerswitch.
4.WhenthechargerispoweredON,amessagewillappearontheLCDscreen.
NOTICE: Always connect cable polarities correctly.
NOTICE: Alwaysconsult12VbatterycollateralmaterialsorHorizonHobbybefore
usingwithsourcesotherthanastandardACwalloutlet.
When Using an External AC Power Source:
1.ConnecttheACpowercordtothechargerACpowerinputport.
2.ConnecttheACpowercordtotheACpowersource.
3.PowerONthechargerwiththepowerswitch.
4.WhenthechargerispoweredON,amessagewillappearontheLCDscreen.
CAUTION: Always power ON the charger before connecting a battery, or
damage to the charger and the battery can result.
1.Connectthechargertothepowersource.
2.PowerONthecharger.
3.Makeprogramselectionsinthechargerforbatterycharging.
4.Connectthechargeradapterstothecharger.
5.Connectthebatterytothechargeradapters(connectmaincharging
connectorsbeforeconnectingcell-balancingconnectors,whereused).
6.Startbatterycharging.
A. PowerOutputRed(+)
B. PowerOutputBlack(–)
C. BalanceCircuitAdapter
BoardConnector
D. TemperatureProbeConnection
E. Mode/StopKey
F. USBCommunicationsPort
G. 1AUSBChargePort
H. Jog Dial
I. LCDScreen
J. ACPowerInputPort
K. Power Switch
L. DCPowerInput/
APPConnectors
PROGRAM SELECT
LiFe BATT
LiFe BALANCE
2.0A 19.8V(6S)
LiFe CHARGE
2.0A 19.8V(6S)
LiFe DISCHARGE
2.0A 19.8V(6S)
LiFe FAST CHG
2.0A 19.8V(6S)
LiFe STORAGE
2.0A 19.8V(6S)
PROGRAM SELECT
LiIo BATT
LiIo FAST CHG
2.0A 21.6V(6S)
LiIo BALANCE
2.0A 21.6V(6S)
LiIo CHARGE
2.0A 21.6V(6S)
LiIo STORAGE
2.0A 21.6V(6S)
LiIo DISCHARGE
2.0A 21.6V(6S)
PROGRAM SELECT
LiPo BATT
LiPo FAST CHG
2.0A 22.2V(6S)
LiPo BALANCE
2.0A 22.2V(6S)
LiPo CHARGE
2.0A 22.2V(6S)
LiPo STORAGE
2.0A 22.2V(6S)
LiPo DISCHARGE
2.0A 22.2V(6S)
PROGRAM SELECT
NiMH BATT
NiMH DISCHARGE
0.1A CUT:1.0V
NiMH CHARGE
CURRENT 2.0A
NiMH Auto CHARGE
CURRENT 2.0A
NiMH RE-PEAK
2
NiMH CYCLE
DCHG>CHG 1
PROGRAM SELECT
NiCd BATT
NiCd CHARGE
CURRENT 2.0A
NiCd DISCHARGE
0.1A CUT: 1.0V
NiCd RE-PEAK
2
NiCd CYCLE
DCHG>CHG 1
NiCd Auto CHARGE
CURRENT 2.0A
PROGRAM SELECT
Pb BATT
Pb CHARGE
2.0A 2.0V (1P)
Pb DISCHARGE
2.0A 2.0V (1P)
PROGRAM SELECT
BATT MEMORY
[BATT MEMORY 1]
ENTER SET ->
BATT TYPE
LiPo
TVC=YOUR RISK!
4.20V
DSCH VOLTAGE
3.0V/CELL
DSCH CURRENT
1.0A
CHARGE CURRENT
2.2A
BATT VOLTS
7.4V(2S)
SAVE PROGRAM
ENTER
TEMPERATURE
CUT-OFF 50C
PROGRAM SELECT
SYSTEM SET->
LOAD FACTORY SET
ENTER
Rest Time
CHG>DCHG 10min
VERSION
1.00
Key Beep ON
Buzzer ON
Ext. Temp 0C
Int. Temp 32C
Input Power Low
Cut-Off 11.0V
Capacity Cut-Off
ON 5000mAh
SAFETY TIMER
ON 120min
PROGRAM SELECT
LI BATT METER
0.00 0.00 0.00 V
0.00 0.00 0.00 V
MAIN 00.00V
H0.000V L0.000V
PROGRAMMING QUICK GUIDE
Press the to get to the 9 main menus from any submenu screen.Mode key (G)
Press the to get to the submenus for adjusting operating parameters, to save value changes or to start chosen battery charging actions.Jog Dial (H)
Rotate the to change between submenu screens or to change screen values.Jog Dial (H)
JST_XH ADAPTER
2S 3S 4S 6S5S
JST_XH ADAPTER
2S 3S 4S 6S5S
Not to scale.
Not all wiring shown.
Not all connectors shown.
OPERATING YOUR CHARGER
1
SELF TEST AND PROGRAM SELECT SCREENS
Press the until you reach the 9 main menus, then rotate the to Mode key Jog Dial
locatethePROGRAMSELECTLiFeBATTscreen.Pressthe toselectLiFe.Jog Dial
Rotate the Jog Dialtogotooneofthecontrolscreens(BALANCE,CHARGE,FAST
CHG,STORAGEorDISCHARGE)todowhatyourbatteryneeds.
Correctlyconnectyourlithiumbatterytothecharger(chargingconnectorrstand
balancingconnectorsecond).PresstheJog Dial and adjust charging parameters
as needed. Press and hold the Jog Dial(approximately3seconds)untilthescreen
changestostartthebatterycheck/chargesequence.
R: 3SER S:3SER
CONFIRM (ENTER)
A
When the charge cycle starts, the
charger compares the battery to the
charger settings. The screen will show
the battery and your settings
information.IftheinformationafterR:(charger)andS:(settings)(A) does not match,
press the and change the lithium battery charging parameters as Mode key
needed. If the R: information matches S:, press the to confirm. After Jog Dial
conrmation,chargingstartsandinformationwillshowontheLCDscreen
(informationmayvary).
LI 3S 2.0A 12.59V
BAL 022:43 01082
F E
B C D
A
A. ALi-Febatterypackis
balance charging
B. Batterypackhas3cellsin
series
C. Chargingrateis2.0A(2000mAh)
D. Voltagebeingappliedtothebatteryiscurrently12.59V
E. Presentchargelevelofthebatteryis1082mAh
F. Timeelapsedsincethechargeprocessstartedis22:43(22minutesand43
seconds)
During charging, the can be rotated counterclockwise to show several Jog Dial
parametermessagesontheLCDscreen,including:EndVoltage,InputPowerVolt-
age,External&InternalTemperature,TemperatureCutoff,SafetyTimerStatusand
CapacityCutoff.
Rotate the clockwise to show the charge voltages for each cell. Press the Jog Dial
Jog DialatanytimetoreturntotheChargeMonitorscreen.Thechargersignals
whenthecharging(ordischarging)processiscomplete(ifBuzzerissettoON).
CAUTION:TheLi-FeprogrammenusaretobeusedONLYforthe
charginganddischargingofLi-Febatterypacks.Thechargingofother
battery types using these programs will result in damage to the battery or
charger.
CAUTION:Usingachargeratethatisnotcompatiblewiththebattery
capacities may result in damage or malfunction of the charger or
batteries.
3
LI-FE BALANCE CHARGING
When the charger is powered ON, there is a series of self tests and the screen will
show the charger brand name and model number.
DYNAMITE
DYN4300
After the self tests, the charger will show another screen. The information on this
screen will vary but will look similar to this:
LiPo BALANCE
2.0A 7.4V(2S)
From any screen, press the to go back to the main menu.Mode key
2
LI-FE BATTERIES
Press the until you reach the 9 main menus, then rotate the to Mode key Jog Dial
locatethePROGRAMSELECTLiFeBATTscreen.PresstheJog Dial to go into this
menu.
Rotate the -Jog DialtogototheLiFeBALANCEscreenandsetchargingparam
eters. The charging amperage (A)canbesetbetween0.1and10.0A.Voltage(B) is
dependentonthenumberofcellsinseries.Forexample,withLi-Febatteriesthese
valuescanbefrom3.3V(for1Sbatteries)to19.8V(for6Sbatteries).
LiFe BALANCE
5.5A 19.8V(6S)
A B C
To select values other than the existing parameters:
• PresstheJog Dial (A) so the charge current value flashes
• Rotatethe toINCREASEORDECREASEthechargecurrentvalueJog Dial
• PresstheJog Dial (B) to save the value and the voltage value flashes
• Rotatethe toINCREASEORDECREASEthevoltage(and#ofcellsinJog Dial
series (C))
• PresstheJog Dial to save the voltage value
If no parameters are flashing, you can rotate the to select another program Jog Dial
suchasCHARGE,FASTCHG,STORAGEorDISCHARGE.
To start charging, press and hold the Jog Dialfor3seconds.
4
LI-FE CHARGING
Press the until you reach the 9 main menus, then rotate the to Mode key Jog Dial
locatethePROGRAMSELECTLiFeBATTscreen.PresstheJog Dial to go into this
menu.
Rotate the Jog DialtogototheLiFeCHARGEscreenandsetchargingparameters.
The charging amperage (A)canbesetbetween0.1and10.0A.Voltage(B) is
dependentonthenumberofcellsinseries.Forexample,withLi-Febatteriesthese
valuescanbefrom3.3V(for1Sbatteries)to19.8V(for6Sbatteries).
LiFe CHARGE
4.6A 19.8V(6S)
A B C
To select values other than the existing parameters:
• PresstheJog Dial (A) so the charge current value flashes
• Rotatethe toINCREASEORDECREASEthechargecurrentvalueJog Dial
• PresstheJog Dial (B) to save the value and the voltage value flashes
• Rotatethe toINCREASEORDECREASEthevoltage(and#ofcellsinJog Dial
series (C))
• PresstheJog Dial to save the voltage value
If no parameters are flashing, you can rotate the to select another program Jog Dial
suchasBALANCE,FASTCHG,STORAGEorDISCHARGE.
To start charging, press and hold the Jog Dialfor3seconds.
CAUTION: If at any time during the charge process the battery pack becomes
hot or begins to puff, disconnect the battery immediately and discontinue the
charge process as batteries can cause fire, collateral damage and injuries.
5
LI-FE FAST CHARGING
Press the until you reach the 9 main menus, then rotate the to Mode key Jog Dial
locatethePROGRAMSELECTLiFeBATTscreen.PresstheJog Dial to go into this
menu.
Rotate the Jog DialtogototheLiFeFASTCHGscreenandsetchargingparam-
eters. The charging amperage (A)canbesetbetween0.1and10.0A.Voltage(B) is
dependentonthenumberofcellsinseries.Forexample,withLi-Febatteriesthese
valuescanbefrom3.3V(for1Sbatteries)to19.8V(for6Sbatteries).
Neartheendofastandardchargingcycle,thechargerswitchesfromConstantCur-
rent(CC)modetoConstantVoltage(CV)modetoslowly“topoff”thecurrentinthe
battery as close as possible to the maximum capacity.
InFastCharge,theCVmodeiseliminatedinordertogreatlyshortenthecharging
time; however, the final capacity of the battery will be less than what you would get
using the standard charge method.
LiFe FAST CHG
0.1A 19.8V(6S)
A B C
To select values other than the existing parameters:
• PresstheJog Dial (A) so the charge current value flashes
• Rotatethe toINCREASEORDECREASEthechargecurrentvalueJog Dial
• PresstheJog Dial (B) to save the value and the voltage value flashes
• Rotatethe toINCREASEORDECREASEthevoltage(and#ofcellsinJog Dial
series (C))
• PresstheJog Dial to save the voltage value
If no parameters are flashing, you can rotate the to select another program Jog Dial
suchasCHARGE,BALANCE,STORAGEorDISCHARGE.
To start charging, press and hold the Jog Dialfor3seconds.
6
LI-FE STORAGE CHARGING
Press the until you reach the 9 main menus, then rotate the to Mode key Jog Dial
locatethePROGRAMSELECTLiFeBATTscreen.PresstheJog Dial to go into this
menu.
Rotate the -Jog DialtogototheLiFeSTORAGEscreenandsetchargingparam
eters. The charging amperage (A)canbesetbetween0.1and10.0A.Voltage(B) is
dependentonthenumberofcellsinseries.Forexample,withLi-Febatteriesthese
valuescanbefrom3.3V(for1Sbatteries)to19.8V(for6Sbatteries).
Ifyoudon’tplanonusingyourbatteryforalongtime,itisbesttocharge(or
discharge)thebatterytoitsoptimalstoragevoltageandcapacity.
LiFe STORAGE
2.5A 19.8V(6S)
A B C
To select values other than the existing parameters:
• PresstheJog Dial (A) so the charge current value flashes
• Rotatethe toINCREASEORDECREASEthechargecurrentvalueJog Dial
• PresstheJog Dial (B) to save the value and the voltage value flashes
• Rotatethe toINCREASEORDECREASEthevoltage(and#ofcellsinJog Dial
series (C))
• PresstheJog Dial to save the voltage value
If no parameters are flashing, you can rotate the to select another program Jog Dial
suchasCHARGE,BALANCE,FASTCHGorDISCHARGE.
To start charging, press and hold the Jog Dialfor3seconds.
7
LI-FE DISCHARGING
Press the until you reach the 9 main menus, then rotate the to Mode key Jog Dial
locatethePROGRAMSELECTLiFeBATTscreen.PresstheJog Dial to go into this
menu.
Rotate the -Jog DialtogototheLiFeDISCHARGEscreenandsetdischargingpa
rameters. The discharging amperage (A)canbesetbetween0.1and5.0A.Voltage
(B)isdependentonthenumberofcellsinseries.Forexample,withLi-Febatteries
thesevaluescanbefrom3.3V(for1Sbatteries)to19.8V(for6Sbatteries).
A battery’s capacity can be verified by discharging it to its minimum voltage level
and measuring the current as the battery is discharged.
LiFe DISCHARGE
2.0A 19.8V(6S)
A B C
To select values other than the existing parameters:
• PresstheJog Dial (A) so the discharge current value flashes
• Rotatethe toINCREASEORDECREASEthedischargecurrentvalueJog Dial
• PresstheJog Dial (B) to save the value and the voltage value flashes
• Rotatethe toINCREASEORDECREASEthevoltage(and#ofcellsinJog Dial
series (C))
• PresstheJog Dial to save the voltage value
If no parameters are flashing, you can rotate the to select another program Jog Dial
suchasCHARGE,BALANCE,FASTCHGorSTORAGE.
To start discharging, press and hold the Jog Dialfor3seconds.
8
LI-IO BATTERIES
Press the until you reach the 9 main menus, then rotate the to Mode key Jog Dial
locatethePROGRAMSELECTLiIoBATTscreen.Pressthe toselectLiIo.Jog Dial
Rotate the Jog Dialtogotooneofthecontrolscreens(BALANCE,CHARGE,FAST
CHG,STORAGEorDISCHARGE)todowhatyourbatteryneeds.
Correctlyconnectyourlithiumbatterytothecharger(chargingconnectorrstand
balancingconnectorsecond).PresstheJog Dial and adjust the charging param-
eters as needed. Press and hold the Jog Dial(approximately3seconds)untilthe
screenchangestostartthebatterycheck/chargesequence.
R: 3SER S:3SER
CONFIRM (ENTER)
A
When the charge cycle starts, the
charger compares the battery to
charger settings. The screen will show
the battery and your settings
information.IftheinformationafterR:(charger)andS:(settings)(A) does not match,
press the and change the lithium battery charging parameters as Mode key
needed. If the R: information matches S:, press the to confirm. Jog Dial
Afterconrmation,chargingstartsandinformationwillshowontheLCDscreen
(informationmayvary).
LI 3S 2.0A 12.59V
BAL 022:43 01082
F E
B C D
A
A. ALi-Iobatterypackisbalance
charging
B. Batterypackhas3cellsin
series
C. Chargingrateis2.0A(2000mAh)
D. Voltagebeingappliedtothebatteryiscurrently12.59V
E. Presentchargelevelofthebatteryis1082mAh
F. Timeelapsedsincethechargeprocessstartedis22:43
During charging, the can be rotated counterclockwise to show several Jog Dial
parametermessagesontheLCDscreen,including:EndVoltage,InputPowerVolt-
age,External&InternalTemperature,TemperatureCutoff,SafetyTimerStatusand
CapacityCutoff.
Rotate the clockwise to show the charge voltages for each cell. Press the Jog Dial
Jog DialatanytimetoreturntotheChargeMonitorscreen.Thechargersignals
whenthecharging(ordischarging)processiscomplete(ifBuzzerissettoON).
CAUTION:TheLi-IoprogrammenusaretobeusedONLYforthecharging
anddischargingofLi-Iobatterypacks.Thechargingofotherbatterytypes
using these programs will result in damage to the battery or charger.
CAUTION:Usingachargeratethatisnotcompatiblewiththebattery
capacities may result in damage or malfunction of the charger or
batteries.
9
LI-IO BALANCE CHARGING
Press the until you reach the 9 main menus, then rotate the to Mode key Jog Dial
locatethePROGRAMSELECTLiIoBATTscreen.PresstheJog Dial to go into this
menu.
Rotate the Jog DialtogototheLiIoBALANCEscreenandsetchargingparameters.
The charging amperage (A)canbesetbetween0.1and10.0A.Voltage(B) is
dependentonthenumberofcellsinseries.Forexample,withLi-Iobatteriesthese
valuescanbefrom3.6V(for1Sbatteries)to21.6V(for6Sbatteries).
LiIo BALANCE
5.5A 21.6V(6S)
A B C
To select values other than the existing parameters:
• PresstheJog Dial (A) so the charge current value flashes
• Rotatethe toINCREASEORDECREASEthechargecurrentvalueJog Dial
• PresstheJog Dial (B) to save the value and the voltage value flashes
• Rotatethe toINCREASEORDECREASEthevoltage(and#ofcellsinJog Dial
series (C))
• PresstheJog Dial to save the voltage value
If no parameters are flashing, you can rotate the to select another program Jog Dial
suchasCHARGE,FASTCHG,STORAGEorDISCHARGE.
To start charging, press and hold the Jog Dialfor3seconds.
10
LI-IO CHARGING
Press the until you reach the 9 main menus, then rotate the to Mode key Jog Dial
locatethePROGRAMSELECTLiIoBATTscreen.PresstheJog Dial to go into this
menu.
Rotate the Jog DialtogototheLiIoCHARGEscreenandsetchargingparameters.
The charging amperage (A)canbesetbetween0.1and10.0A.Voltage(B) is
dependentonthenumberofcellsinseries.Forexample,withLi-Iobatteriesthese
valuescanbefrom3.6V(for1Sbatteries)to21.6V(for6Sbatteries).
LiIo CHARGE
4.6A 21.6V(6S)
A B C
To select values other than the existing parameters:
• PresstheJog Dial (A) so the charge current value flashes
• Rotatethe toINCREASEORDECREASEthechargecurrentvalueJog Dial
• PresstheJog Dial (B) to save the value and the voltage value flashes
• Rotatethe toINCREASEORDECREASEthevoltage(and#ofcellsinJog Dial
series (C))
• PresstheJog Dial to save the voltage value
If no parameters are flashing, you can rotate the to select another program Jog Dial
suchasBALANCE,FASTCHG,STORAGEorDISCHARGE.
To start charging, press and hold the Jog Dialfor3seconds.
CAUTION: If at any time during the charge process the battery pack becomes
hot or begins to puff, disconnect the battery immediately and discontinue the
charge process as batteries can cause fire, collateral damage and injuries.
11
LI-IO FAST CHARGING
Press the until you reach the 9 main menus, then rotate the to Mode key Jog Dial
locatethePROGRAMSELECTLiIoBATTscreen.PresstheJog Dial to go into this
menu.
Rotate the Jog DialtogototheLiIoFASTCHGscreenandsetchargingparam-
eters. The charging amperage (A)canbesetbetween0.1and10.0A.Voltage(B) is
dependentonthenumberofcellsinseries.Forexample,withLi-Iobatteriesthese
valuescanbefrom3.6V(for1Sbatteries)to21.6V(for6Sbatteries).
Neartheendofastandardchargingcycle,thechargerswitchesfromConstantCur-
rent(CC)modetoConstantVoltage(CV)modetoslowly“topoff”thecurrentinthe
battery as close as possible to the maximum capacity.
InFastCharge,theCVmodeiseliminatedinordertogreatlyshortenthecharging
time; however, the final capacity of the battery will be less than what you would get
using the standard charge method.
LiIo FAST CHG
5.0A 21.6V(6S)
A B C
To select values other than the existing parameters:
• PresstheJog Dial (A) so the charge current value flashes
• Rotatethe toINCREASEORDECREASEthechargecurrentvalueJog Dial
• PresstheJog Dial (B) to save the value and the voltage value flashes
• Rotatethe toINCREASEORDECREASEthevoltage(and#ofcellsinJog Dial
series (C))
• PresstheJog Dial to save the voltage value
If no parameters are flashing, you can rotate the to select another program Jog Dial
suchasCHARGE,BALANCE,STORAGEorDISCHARGE.
To start charging, press and hold the Jog Dialfor3seconds.
12
LI-IO STORAGE CHARGING
Press the until you reach the 9 main menus, then rotate the to Mode key Jog Dial
locatethePROGRAMSELECTLiIoBATTscreen.PresstheJog Dial to go into this
menu.
Rotate the Jog DialtogototheLiIoSTORAGEscreenandsetchargingparameters.
The charging amperage (A)canbesetbetween0.1and10.0A.Voltage(B) is
dependentonthenumberofcellsinseries.Forexample,withLi-Iobatteriesthese
valuescanbefrom3.6V(for1Sbatteries)to21.6V(for6Sbatteries).
Ifyoudon’tplanonusingyourbatteryforalongtime,itisbesttocharge(or
discharge)thebatterytoitsoptimalstoragevoltageandcapacity.
LiIo STORAGE
2.5A 21.6V(6S)
A B C
To select values other than the existing parameters:
• PresstheJog Dial (A) so the charge current value flashes
• Rotatethe toINCREASEORDECREASEthechargecurrentvalueJog Dial
• PresstheJog Dial (B) to save the value and the voltage value flashes
• Rotatethe toINCREASEORDECREASEthevoltage(and#ofcellsinJog Dial
series (C))
• PresstheJog Dial to save the voltage value
If no parameters are flashing, you can rotate the to select another program Jog Dial
suchasCHARGE,BALANCE,FASTCHGorDISCHARGE.
To start charging, press and hold the Jog Dialfor3seconds.
1 SELFTESTANDPROGRAMSELECTSCREENS
LI-FE
2 LI-FEBATTERIES
3 LI-FEBALANCECHARGING
4 LI-FECHARGING
5 LI-FEFASTCHARGING
6 LI-FESTORAGECHARGING
7 LI-FEDISCHARGE
LI-IO
8 LI-IOBATTERIES
9 LI-IOBALANCECHARGING
10 LI-IOCHARGING
11 LI-IOFASTCHARGING
12 LI-IOSTORAGECHARGING
13 LI-IODISCHARGE
LI-PO
14 LI-POBATTERIES
15 LI-POBALANCECHARGING
16 LI-POCHARGING
17 LI-POFASTCHARGING
18 LI-POSTORAGECHARGING
19 LI-PODISCHARGE
NI-MH
20 NI-MH BATTERIES
21 NI-MHCHARGING
22 NI-MHAUTOCHARGING
23 NI-MHDISCHARGE
24 NI-MHRE-PEAKCHARGING
25 NI-MHCYCLECHARGING
NI-CD
26 NI-CDBATTERIES
27 NI-CDCHARGING
28 NI-CDAUTOCHARGING
29 NI-CDDISCHARGE
30 NI-CDRE-PEAKCHARGING
31 NI-CDCYCLECHARGING
PB
32 PB BATTERIES
33 PBCHARGING
34 PBDISCHARGE
PROGRAMMING AND OPERATIONS
35 BATTERY MEMORY
36 SYSTEM SET
a REST TIME
b SAFETY TIMER
c CAPACITYCUTOFF
d KEYBEEP/BUZZER
e INPUTPOWERLOWCUTOFF
f EXTERNALANDINTERNALTEMPERATURES
g RESETFACTORYSETTINGS
h VERSION
37 LIBATTERYVOLTAGECHECKEROPERATION-
USINGTHEBALANCEADAPTERPORT
38 USBACCESSORYCHARGEROPERATION
(COMPATIBLEWITH DEVICES)iPhone iPod AND
39 TROUBLESHOOTINGGUIDE
Press the until you reach the 9 main menus, then rotate the to Mode key Jog Dial
locatethePROGRAMSELECTLiIoBATTscreen.PresstheJog Dial to go into this
menu.
Rotate the Jog DialtogototheLiIoDISCHARGEscreenandsetdischargingparam-
eters. The discharging amperage (A)canbesetbetween0.1and5.0A.Voltage(B)
isdependentonthenumberofcellsinseries.Forexample,withLi-Iobatteriesthese
valuescanbefrom3.6V(for1Sbatteries)to21.6V(for6Sbatteries).
A battery’s capacity can be verified by discharging it to its minimum voltage level
and measuring the current as the battery is discharged.
LiIo DISCHARGE
2.0A 21.6V(6S)
A B C
To select values other than the existing parameters:
• PresstheJog Dial (A) so the discharge current value flashes
• Rotatethe toINCREASEORDECREASEthedischargecurrentvalueJog Dial
• PresstheJog Dial (B) to save the value and the voltage value flashes
• Rotatethe toINCREASEORDECREASEthevoltage(and#ofcellsinJog Dial
series (C))
• PresstheJog Dial to save the voltage value
If no parameters are flashing, you can rotate the to select another program Jog Dial
suchasCHARGE,BALANCE,FASTCHGorSTORAGE.
To start discharging, press and hold the Jog Dialfor3seconds.
13
LI-IO DISCHARGING
14
LI-PO BATTERIES
Press the until you reach the 9 main menus, then rotate the to Mode key Jog Dial
locatethePROGRAMSELECTLiPoBATTscreen.Pressthe toselectLiPo.Jog Dial
Rotate the Jog Dialtogotooneofthecontrolscreens(BALANCE,CHARGE,FAST
CHG,STORAGEorDISCHARGE)todowhatyourbatteryneeds.
Correctlyconnectyourlithiumbatterytothecharger(chargingconnectorrstand
balancingconnectorsecond).PresstheJog Dial and adjust the charging param-
eters as needed. Press and hold the Jog Dial(approximately3seconds)untilthe
screenchangestostartthebatterycheck/chargesequence.
R: 3SER S:3SER
CONFIRM (ENTER)
A
When the charge cycle starts, the
charger compares the battery to the
charger settings. The screen will show
the battery and your settings
information.IftheinformationafterR:(charger)andS:(settings)(A) does not match,
press the and change the lithium battery charging parameters as Mode key
needed. If the R: information matches S:, press the to confirm. Jog Dial
Afterconrmation,chargingstartsandinformationwillshowontheLCDscreen
(informationmayvary).
LI 3S 2.0A 12.59V
BAL 022:43 01082
F E
B C D
A
A. ALi-Pobatterypackis
balance charging
B. Batterypackhas3cellsin
series
C. Chargingrateis2.0A(2000mAh)
D. Voltagebeingappliedtothebatteryiscurrently12.59V
E. Presentchargelevelofthebatteryis1082mAh
F. Timeelapsedsincethechargeprocessstartedis22:43
During charging, the can be rotated counterclockwise to show several Jog Dial
parametermessagesontheLCDscreen,including:EndVoltage,InputPowerVolt-
age,External&InternalTemperature,TemperatureCutoff,SafetyTimerStatusand
CapacityCutoff.
Rotate the clockwise to show the charge voltages for each cell. Press the Jog Dial
Jog DialatanytimetoreturntotheChargeMonitorscreen.Thechargersignals
whenthecharging(ordischarging)processiscomplete(ifBuzzerissettoON).
CAUTION:TheLi-PoprogrammenusaretobeusedONLYforthe
charginganddischargingofLi-Pobatterypacks.Thechargingofother
battery types using these programs will result in damage to the battery or
charger.
CAUTION:Usingachargeratethatisnotcompatiblewiththebattery
capacities may result in damage or malfunction of the charger or
batteries.
15
LI-PO BALANCE CHARGING
Press the until you reach the 9 main menus, then rotate the to Mode key Jog Dial
locatethePROGRAMSELECTLiPoBATTscreen.PresstheJog Dial to go into this
menu.
Rotate the -Jog DialtogototheLiPoBALANCEscreenandsetchargingparam
eters. The charging amperage (A)canbesetbetween0.1and10.0A.Voltage(B) is
dependentonthenumberofcellsinseries.Forexample,withLi-Pobatteriesthese
valuescanbefrom3.7V(for1Sbatteries)to22.2V(for6Sbatteries).
LiPo BALANCE
5.5A 22.2V(6S)
A B C
To select values other than the existing parameters:
• PresstheJog Dial (A) so the charge current value flashes
• Rotatethe toINCREASEORDECREASEthechargecurrentvalueJog Dial
• PresstheJog Dial (B) to save the value and the voltage value flashes
• Rotatethe toINCREASEORDECREASEthevoltage(and#ofcellsinJog Dial
series (C))
• PresstheJog Dial to save the voltage value
If no parameters are flashing, you can rotate the to select another program Jog Dial
suchasCHARGE,FASTCHG,STORAGEorDISCHARGE.
To start charging, press and hold the Jog Dialfor3seconds.
TABLE OF CONTENTS
16
LI-PO CHARGING
Press the until you reach the 9 main menus, then rotate the to Mode key Jog Dial
locatethePROGRAMSELECTLiPoBATTscreen.PresstheJog Dial to go into this
menu.
Rotate the Jog DialtogototheLiPoCHARGEscreenandsetchargingparameters.
The charging amperage (A)canbesetbetween0.1and10.0A.Voltage(B) is
dependentonthenumberofcellsinseries.Forexample,withLi-Pobatteriesthese
valuescanbefrom3.7V(for1Sbatteries)to22.2V(for6Sbatteries).
LiPo CHARGE
4.6A 22.2V(6S)
A B C
To select values other than the existing parameters:
• PresstheJog Dial (A) so the charge current value flashes
• Rotatethe toINCREASEORDECREASEthechargecurrentvalueJog Dial
• PresstheJog Dial (B) to save the value and the voltage value flashes
• Rotatethe toINCREASEORDECREASEthevoltage(and#ofcellsinJog Dial
series (C))
• PresstheJog Dial to save the voltage value
If no parameters are flashing, you can rotate the to select another program Jog Dial
suchasBALANCE,FASTCHG,STORAGEorDISCHARGE.
To start charging, press and hold the Jog Dialfor3seconds.
CAUTION: If at any time during the charge process the battery pack becomes
hot or begins to puff, disconnect the battery immediately and discontinue the
charge process as batteries can cause fire, collateral damage and injuries.
LITHIUM BATTERIES (Li-Fe)
LITHIUM BATTERIES (Li-Po)
Pb BATTERIES
Ni-Cd BATTERIES
Ni-MH BATTERIES
LITHIUM BATTERIES (Li-Ion)
BATTERY MEMORY
LITHIUM BATTERY METER
SYSTEM SET
20
NI-MH BATTERIES
27
NI-CD CHARGING
17
LI-PO FAST CHARGING
Press the until you reach the 9 main menus, then rotate the to Mode key Jog Dial
locatethePROGRAMSELECTLiPoBATTscreen.PresstheJog Dial to go into this
menu.
Rotate the Jog DialtogototheLiPoFASTCHGscreenandsetchargingparam-
eters. The charging amperage (A)canbesetbetween0.1and10.0A.Voltage(B) is
dependentonthenumberofcellsinseries.Forexample,withLi-Pobatteriesthese
valuescanbefrom3.7V(for1Sbatteries)to22.2V(for6Sbatteries).
Neartheendofastandardchargingcycle,thechargerswitchesfromConstantCur-
rent(CC)modetoConstantVoltage(CV)modetoslowly“topoff”thecurrentinthe
battery as close as possible to the maximum capacity.
InFastCharge,theCVmodeiseliminatedinordertogreatlyshortenthecharging
time; however, the final capacity of the battery will be less than what you would get
using the standard charge method.
LiPo FAST CHG
4.0A 7.4V(2S)
A B C
To select values other than the existing parameters:
• PresstheJog Dial (A) so the charge current value flashes
• Rotatethe toINCREASEORDECREASEthechargecurrentvalueJog Dial
• PresstheJog Dial (B) to save the value and the voltage value flashes
• Rotatethe toINCREASEORDECREASEthevoltage(and#ofcellsinJog Dial
series (C))
• PresstheJog Dial again to save the voltage value
If no parameters are flashing, you can rotate the to select another program Jog Dial
suchasCHARGE,BALANCE,STORAGEorDISCHARGE.
To start charging, press and hold the Jog Dialfor3seconds.
18
LI-PO STORAGE CHARGING
Press the until you reach the 9 main menus, then rotate the to Mode key Jog Dial
locatethePROGRAMSELECTLiPoBATTscreen.PresstheJog Dial to go into this
menu.
Rotate the -Jog DialtogototheLiPoSTORAGEscreenandsetchargingparam
eters. The charging amperage (A)canbesetbetween0.1and10.0A.Voltage(B) is
dependentonthenumberofcellsinseries.Forexample,withLi-Pobatteriesthese
valuescanbefrom3.7V(for1Sbatteries)to22.2V(for6Sbatteries).
Ifyoudon’tplanonusingyourbatteryforalongtime,itisbesttocharge(or
discharge)thebatterytoitsoptimalstoragevoltageandcapacity.
LiPo STORAGE
2.5A 11.1V(3S)
A B C
To select values other than the existing parameters:
• PresstheJog Dial (A) so the charge current value flashes
• Rotatethe toINCREASEORDECREASEthechargecurrentvalueJog Dial
• PresstheJog Dial (B) to save the value and the voltage value flashes
• Rotatethe toINCREASEORDECREASEthevoltage(and#ofcellsinJog Dial
series (C))
• PresstheJog Dial to save the voltage value
If no parameters are flashing, you can rotate the to select another program Jog Dial
suchasCHARGE,BALANCE,FASTCHGorDISCHARGE.
To start charging, press and hold the Jog Dialfor3seconds.
19
LI-PO DISCHARGING
Press the until you reach the 9 main menus, then rotate the to Mode key Jog Dial
locatethePROGRAMSELECTLiPoBATTscreen.PresstheJog Dial to go into this
menu.
Rotate the -Jog DialtogototheLiPoDISCHARGEscreenandsetdischargingpa
rameters. The discharging amperage (A)canbesetbetween0.1and5.0A.Voltage
(B)isdependentonthenumberofcellsinseries.Forexample,withLi-Pobatteries
thesevaluescanbefrom3.7V(for1Sbatteries)to22.2V(for6Sbatteries).
A battery’s capacity can be verified by discharging it to its minimum voltage level
and measuring the current as the battery is discharged.
LiPo DISCHARGE
2.0A 22.2V(6S)
A B C
To select values other than the existing parameters:
• PressJog Dial (A) so the discharge current value flashes
• Rotatethe toINCREASEORDECREASEthedischargecurrentvalueJog Dial
• PresstheJog Dial (B) to save the value and the voltage value flashes
• Rotatethe toINCREASEORDECREASEthevoltage(and#ofcellsinJog Dial
series (C))
• PressJog Dial to save the voltage value
If no parameters are flashing, you can rotate the to select another program Jog Dial
suchasCHARGE,BALANCE,FASTCHGorSTORAGE.
To start discharging, press and hold the Jog Dialfor3seconds.
Press the until you reach the 9 main menus, then rotate the Mode key Jog Dial
tolocatethePROGRAMSELECTNiMHBATTscreen.PresstheJog Dial to select
NiMH.
Rotate the Jog Dialtogotooneofthecontrolscreens(CHARGE,AutoCHARGE,
DISCHARGE,RE-PEAKorCYCLE)todowhatyourbatteryneeds.
CorrectlyconnectyourNi-MHbatterytothecharger.PresstheJog Dial and adjust
the charging parameters as needed. Press and hold the Jog Dial(approximately3
seconds)untilthescreenchangestostartthebatterycheck/chargesequence.
Afterconrmation,chargingstartsandinformationwillshowontheLCDscreen
(informationmayvary).
NiMH 2.0A 7.59V
CHG 022:43
01082
E D
B C
A
A. A Ni-MH battery pack is
charging
B. Chargingrateis2.0A
(2000mAh)
C. Voltagebeingappliedtothebatteryiscurrently7.59V
D. Presentchargelevelofthebatteryis1082mAh
E. Timeelapsedsincethechargeprocessstartedis22:43
During charging, the can be rotated counterclockwise to show several Jog Dial
parametermessagesontheLCDscreen,including:Ni-MHSensitivity,InputPower
Voltage,External&InternalTemperature,TemperatureCutoff,SafetyTimerStatus
andCapacityCutoff.Thechargersignalswhenthecharging(ordischarging)process
iscomplete(ifBuzzerissettoON).
CAUTION:TheNi-MHprogrammenusaretobeusedONLYforthe
charging and discharging of Ni-MH battery packs. The charging of other
battery types using these programs will result in damage to the battery or
charger.
CAUTION:Usingachargeratethatisnotcompatiblewiththebattery
capacities may result in damage or malfunction of the charger or
batteries.
21
NI-MH CHARGING
Press the until you reach the 9 main menus, then rotate the Mode key Jog Dial
tolocatethePROGRAMSELECTNiMHBATTscreen.PresstheJog Dial to go into
this menu.
Rotate the -Jog DialtogototheNiMHCHARGEscreenandsetchargingparam
eters. The charging amperage (A)canbesetbetween0.1and10.0A.
NiMH CHARGE
CURRENT 1.0A
A
To select a value other than the existing parameter:
• PresstheJog Dial (A) so the charge current value flashes
• Rotatethe toINCREASEORDECREASEthechargecurrentvalueJog Dial
• PresstheJog Dial to save the value
If no parameters are flashing, you can rotate the to select another program Jog Dial
suchasAutoCHARGE,DISCHARGE,RE-PEAKorCYCLE.
To start charging, press and hold the Jog Dialfor3seconds.
22
NI-MH AUTO CHARGING
Press the until you reach the 9 main menus, then rotate the Mode key Jog Dial
tolocatethePROGRAMSELECTNiMHBATTscreen.PresstheJog Dial to go into
this menu.
Rotate the Jog DialtogototheNiMHAutoCHARGEscreenandsetcharging
parameters. The charging amperage (A)canbesetbetween0.1and10.0A.
NiMH Auto CHARGE
CURRENT 1.0A
A
To select a value other than the existing parameter:
• PresstheJog Dial (A) so the charge current value flashes
• Rotatethe toINCREASEORDECREASEthechargecurrentvalueJog Dial
• PresstheJog Dial to save the value
If no parameters are flashing, you can rotate the to select another program Jog Dial
suchasCHARGE,DISCHARGE,RE-PEAKorCYCLE.
To start charging, press and hold the Jog Dialfor3seconds.
23
NI-MH DISCHARGING
Press the until you reach the 9 main menus, then rotate the Mode key Jog Dial
tolocatethePROGRAMSELECTNiMHBATTscreen.PresstheJog Dial to go into
this menu.
Rotate the Jog DialtogototheNiMHDISCHARGEscreenandsetdischarging
parameters. The discharging amperage (A)canbesetbetween0.1and5.0A.
A battery’s capacity can be verified by discharging it to its minimum voltage level
and measuring the current as the battery is discharged. The discharge level can be
setfrom0.1to25.2V.
NiMH DISCHARGE
0.1A CUT: 1.0V
A B
To select a value other than the existing parameter:
• PresstheJog Dial (A) so the discharge current value flashes
• Rotatethe toINCREASEORDECREASEthedischargecurrentvalueJog Dial
• PresstheJog Dial (B) to save the value and the cutoff voltage value flashes
• Rotatethe toINCREASEORDECREASEthecutoffvoltageJog Dial
• PresstheJog Dial to save the voltage value
If no parameters are flashing, you can rotate the to select another program Jog Dial
suchasCHARGE,AutoCHARGE,RE-PEAKorCYCLE.
To start discharging, press and hold the Jog Dialfor3seconds
24
NI-MH RE-PEAK CHARGING
Press the until you reach the 9 main menus, then rotate the Mode key Jog Dial
tolocatethePROGRAMSELECTNiMHBATTscreen.PresstheJog Dial to go into
this menu.
Rotate the Jog DialtogototheNiMHRE-PEAKscreenandsetre-peakparameters
toavalueofbetween1and3.
NiMH RE-PEAK
1
To select a value other than the existing parameter:
• PresstheJog Dial (A) so the re-peak value flashes
• Rotatethe toINCREASEORDECREASEthevalueJog Dial
• PresstheJog Dial to save the value
If no parameters are flashing, you can rotate the to select another program Jog Dial
suchasCHARGE,AutoCHARGE,DISCHARGEorCYCLE.
Press the to go to the next menu.Jog Dial
25
NI-MH CYCLE CHARGING
Press the until you reach the 9 main menus, then rotate the Mode key Jog Dial
tolocatethePROGRAMSELECTNiMHBATTscreen.PresstheJog Dial to go into
this menu.
Rotate the Jog DialtogototheNiMHCYCLEscreenandsetcharge/discharge
cycle count parameters.
Thebatterycanbeputthroughaseriesofcharge/dischargecyclesusingthis
program.CyclingNi-MHbatteriescanincreasecapacityandrejuvenateneglected
batteries. Discharge capacity and average battery voltage help you compare batter-
ies for the best run time and power.
NiMH CYCLE
CHG>DCHG 5
A B
To select values other than the existing parameter:
• PresstheJog Dial (A) so the cycle type flashes
• Rotatethe tosetthecycletypeasCHG>DCHGorDCHG>CHGJog Dial
• PresstheJog Dial (B) to save your choice and the number of cycles flashes
• Rotatethe tosetthecyclecountbetween1to5Jog Dial
• PresstheJog Dial to save the cycle count value
If no parameters are flashing, you can rotate the to select another program Jog Dial
suchasCHARGE,AutoCHARGE,DISCHARGEorRE-PEAK.
To start cycling, press and hold the Jog Dialfor3seconds.
26
NI-CD BATTERIES
Press the until you reach the 9 main menus, then rotate the to Mode key Jog Dial
locatethePROGRAMSELECTNiCdBATTscreen.Pressthe toselectNiCd.Jog Dial
Rotate the Jog Dialtogotooneofthecontrolscreens(CHARGE,AutoCHARGE,
DISCHARGE,RE-PEAKorCYCLE)todowhatyourbatteryneeds.
CorrectlyconnectyourNi-Cdbatterytothecharger.PresstheJog Dial and adjust
the charging parameters as needed. Press and hold the Jog Dial(approximately3
seconds)untilthescreenchangestostartthebatterycheck/chargesequence.
Afterconrmation,chargingstartsandinformationwillshowontheLCDscreen
(informationmayvary).
NiCd 2.0A 7.59V
CHG 022:43
01082
E D
B C
A
A. ANi-Cdbatterypackis
charging
B. Chargingrateis2.0A
(2000mAh)
C. Voltagebeingappliedtothebatteryiscurrently7.59V
D. Presentchargelevelofthebatteryis1082mAh
E. Timeelapsedsincethechargeprocessstartedis22:43
During charging, the can be rotated counterclockwise to show several Jog Dial
parametermessagesontheLCDscreen,including:Ni-CdSensitivity,InputPower
Voltage,External&InternalTemperature,TemperatureCutoff,SafetyTimerStatus
andCapacityCutoff.Thechargersignalswhenthecharging(ordischarging)process
iscomplete(ifBuzzerissettoON).
CAUTION:TheNi-CdprogrammenusaretobeusedONLYforthe
charginganddischargingofNi-Cdbatterypacks.Thechargingofother
battery types using these programs will result in damage to the battery or
charger.
CAUTION:Usingachargeratethatisnotcompatiblewiththebattery
capacities may result in damage or malfunction of the charger or
batteries.
Press the until you reach the 9 main menus, then rotate the to Mode key Jog Dial
locatethePROGRAMSELECTNiCdBATTscreen.PresstheJog Dial to go into this
menu.
Rotate the Jog DialtogototheNiCdCHARGEscreenandsetchargingparameters.
The charging amperage (A)canbesetbetween0.1and10.0A.
NiCd CHARGE
CURRENT 1.0A
A
To select a value other than the existing parameter:
• PresstheJog Dial (A) so the charge current value flashes
• Rotatethe toINCREASEORDECREASEthechargecurrentvalueJog Dial
• PresstheJog Dial to save the value
If no parameters are flashing, you can rotate the to select another program Jog Dial
suchasAutoCHARGE,DISCHARGE,RE-PEAKorCYCLE.
To start charging, press and hold the Jog Dialfor3seconds.
28
NI-CD AUTO CHARGING
Press the until you reach the 9 main menus, then rotate the Mode key Jog Dial
tolocatethePROGRAMSELECTNiCdBATTscreen.PresstheJog Dial to go into
this menu.
Rotate the Jog DialtogototheNiCdAutoCHARGEscreenandsetcharging
parameters. The charging amperage (A)canbesetbetween0.1and10.0A.
NiCd Auto CHARGE
CURRENT 1.0A
A
To select a value other than the existing parameter:
• PresstheJog Dial (A) so the charge current value flashes
• Rotatethe toINCREASEORDECREASEthechargecurrentvalueJog Dial
• PresstheJog Dial to save the value
If no parameters are flashing, you can rotate the to select another program Jog Dial
suchasCHARGE,DISCHARGE,RE-PEAKorCYCLE.
To start charging, press and hold the Jog Dialfor3seconds.
29
NI-CD DISCHARGING
Press the until you reach the 9 main menus, then rotate the Mode key Jog Dial
tolocatethePROGRAMSELECTNiCdBATTscreen.PresstheJog Dial to go into
this menu.
Rotate the Jog DialtogototheNiCdDISCHARGEscreenandsetdischarging
parameters. The discharging amperage (A)canbesetbetween0.1and5.0A.
A battery’s capacity can be verified by discharging it to its minimum voltage level
and measuring the current as the battery is discharged. The discharge level can be
setfrom0.1to25.2V.
NiCd DISCHARGE
0.1A CUT: 1.0V
A B
To select a value other than the existing parameter:
• PresstheJog Dial (A) so the discharge current value flashes
• Rotatethe toINCREASEORDECREASEthedischargecurrentvalueJog Dial
• PresstheJog Dial (B) to save the value and the cutoff voltage value flashes
• Rotatethe toINCREASEORDECREASEthecutoffvoltageJog Dial
• PresstheJog Dial to save the voltage value
If no parameters are flashing, you can rotate the to select another program Jog Dial
suchasCHARGE,AutoCHARGE,RE-PEAKorCYCLE.
To start discharging, press and hold the Jog Dialfor3seconds
30
NI-CD RE-PEAK CHARGING
Press the until you reach the 9 main menus, then rotate the Mode key Jog Dial
tolocatethePROGRAMSELECTNiCdBATTscreen.PresstheJog Dial to go into
this menu.
Rotate the Jog DialtogototheNiCdRE-PEAKscreenandsetre-peakparameters
toavalueofbetween1and3.
NiCd RE-PEAK
1
To select a value other than the existing parameter:
• PresstheJog Dial (A) so the re-peak value flashes
• Rotatethe toINCREASEORDECREASEthevalueJog Dial
• PresstheJog Dial to save the value
If no parameters are flashing, you can rotate the to select another program Jog Dial
suchasCHARGE,AutoCHARGE,DISCHARGEorCYCLE.
Press the to go to the next menu.Jog Dial
31
NI-CD CYCLE CHARGING
Press the until you reach the 9 main menus, then rotate the Mode key Jog Dial
tolocatethePROGRAMSELECTNiCdBATTscreen.PresstheJog Dial to go into
this menu.
Rotate the Jog DialtogototheNiCdCYCLEscreenandsetcharge/dischargecycle
count parameters.
Thebatterycanbeputthroughaseriesofcharge/dischargecyclesusingthis
program.CyclingNi-Cdbatteriescanincreasecapacityandrejuvenateneglected
batteries. Discharge capacity and average battery voltage help you compare batter-
ies for the best run time and power.
NiCd CYCLE
CHG>DCHG 5
A B
To select values other than the existing parameter:
• PresstheJog Dial (A) so the cycle type flashes
• Rotatethe tosetthecycletypeasCHG>DCHGorDCHG>CHGJog Dial
• PresstheJog Dial (B) to save your choice and the number of cycles flashes
• Rotatethe tosetthecyclecountbetween1to5Jog Dial
• PresstheJog Dial to save the cycle count value
If no parameters are flashing, you can rotate the to select another program Jog Dial
suchasCHARGE,AutoCHARGE,DISCHARGEorRE-PEAK.
To start cycling, press and hold the Jog Dialfor3seconds.
32
PB BATTERIES
Press the until you reach the 9 main menus, then rotate the to Mode key Jog Dial
locatethePROGRAMSELECTPbBATTscreen.PresstheJog Dial to select Pb.
Rotate the Jog Dialtogotooneofthecontrolscreens(CHARGEorDISCHARGE)to
do what your battery needs.
ThenatureofaLeadAcidorSealedLeadAcidbatteryisverydifferentfromthatof
Lithium,Ni-MHorNi-Cdbatteries.TheoutputcurrentofaPbbatteryislowerthan
other batteries relative to their capacities. Furthermore, lead acid batteries can’t be
chargedatalevelgreaterthan1/10theircapacity.
Forexample,a5000mAhleadacidbatterycan’tbechargedatarategreaterthan
0.5A.Formoredetailsonthechargeanddischargecapabilitiesofyourbattery,
please refer to the charging data supplied by the battery manufacturer.
CorrectlyconnectyourPbbatterytothecharger.PresstheJog Dial and adjust
the charging parameters as needed. Press and hold the Jog Dial(approximately3
seconds)untilthescreenchangestostartthebatterycheck/chargesequence.
Afterconrmation,chargingstartsandinformationwillshowontheLCDscreen
(informationmayvary).
Pb-6 0.4A 12.39V
CHG 022:43
01082
F E
B C D
A
A.ALeadAcidbatterypackis
charging
B.Batterypackhas6cellsin
series
C.Chargingatarateof0.4A(400mAh)
D. Voltagebeingappliedtothebatteryiscurrently12.39V
E.Presentchargelevelofthebatteryis1082mAh
F. Timeelapsedsincethechargeprocessstartedis22:43
During charging, the can be rotated counterclockwise to show several Jog Dial
parametermessagesontheLCDscreen,including:EndVoltage,CapacityCutoff,
SafetyTimerStatus,TemperatureCutoffandInputPowerVoltage.Thechargersig-
nalswhenthecharging(ordischarging)processiscomplete(ifBuzzerissettoON).
CAUTION:ThePbprogrammenusaretobeusedONLYforthecharging
and discharging of Pb battery packs. The charging of other battery types
using these programs will result in damage to the battery or charger.
CAUTION:Usingachargeratethatisnotcompatiblewiththebattery
capacities may result in damage or malfunction of the charger or
batteries.
33
PB CHARGING
Press the until you reach the 9 main menus, then rotate the Mode key Jog Dial
tolocatethePROGRAMSELECTPbBATTscreen.PresstheJog Dial to go into this
menu.
Rotate the Jog DialtogotothePbCHARGEscreenandsetchargingparameters.
The charging amperage (A)canbesetbetween0.1and10.0A.
Pb CHARGE
0.1A 2.0V (1P)
A B
To select values other than the existing parameters:
• PresstheJog Dial (A) so the charge current value flashes
• Rotatethe toINCREASEORDECREASEthechargecurrentvalueJog Dial
• PresstheJog Dial to save the charge current value and the battery voltage
value flashes(B)
• Rotatethe toINCREASEORDECREASEthebatteryvoltage/cellcountJog Dial
value(Pbbatteriesare2.0Vpercell,fora6cellbatterythiswouldbe2.0Vx6
cell=12.0V)
• PresstheJog Dial to save the voltage
If no parameters are flashing, you can rotate the to select another program Jog Dial
suchasDISCHARGE.
To start charging, press and hold the Jog Dialfor3seconds.
34
PB DISCHARGING
Press the until you reach the 9 main menus, then rotate the Mode key Jog Dial
tolocatethePROGRAMSELECTPbBATTscreen.PresstheJog Dial to go into this
menu.
Rotate the -Jog DialtogotothePbDISCHARGEscreenandsetdischargingparam
eters. The discharging amperage (A)canbesetbetween0.1and5.0A.
A battery’s capacity can be verified by discharging it to its minimum voltage level
and measuring the current as the battery is discharged. The discharge level can be
setfrom2to20V.
Pb DISCHARGE
0.1A 2.0V (1P)
A B
To select values other than the existing parameters:
• PresstheJog Dial (A) so the discharge current value flashes
• Rotatethe toINCREASEORDECREASEthedischargecurrentvalueJog Dial
• PresstheJog Dial (B) to save the value and the cutoff voltage value flashes
• Rotatethe toINCREASEORDECREASEthecutoffvoltageJog Dial
• PresstheJog Dial to save the voltage value
If no parameters are flashing, you can rotate the to select another program Jog Dial
suchasCHARGE.
To start discharging, press and hold the Jog Dialfor3seconds
35
BATTERY MEMORY
Press the until you reach the 9 main menus, then rotate the to Mode key Jog Dial
locatethePROGRAMSELECTBATTMEMORYscreen.PresstheJog Dial to select
BATT MEMORY.
Usethismenutocreateabatteryprole.Toreducethetimerequiredtoinitiatea
charging or discharging cycle on a battery you regularly use, this charger has been
designedwiththecapabilityofstoringupto10batteryprolesthatcanbequickly
accessed and run at a later time.
• Rotatethe toidentifyabatteryprole,1through10Jog Dial
• Pressthe toselectbatteryprole1Jog Dial
• PresstheJog Dial so battery type flashes
• RotatetheJog Dial to select a battery type
• PresstheJog Dial to save the battery type
Follow this process using the to select, change, then save each parameter Jog Dial
(batteryvoltage,chargecurrent,dischargecurrent,dischargevoltage,TerminalVolt-
ageControl(TVC)andtemperaturecutoff).Thensavethebatteryprole.
• Rotatethe toselectSAVEPROGRAMJog Dial
• PresstheJog Dial to save the program
• Repeatthisprocesstoenteradditionalbatteryproles
• PresstheMode key until you reach the 9 main menus
CAUTION:IncreasingtheTVCvaluebeyondthedefaultsettingsmayresultina
shorterbatterylifeand/ordamagetothebattery.DonotchangetheTVCvalue
unlessyoufullyunderstandtheeffectsTVCwillhaveonyourbattery.
ToChargeorDischargeabatteryusingthesavedprole:
Press the until you reach the 9 main menus, then rotate the to Mode key Jog Dial
locatethePROGRAMSELECTBATTMEMORYscreen.PresstheJog Dial to select
BATT MEMORY.
• Rotatethe toidentifythebatteryprole,1through10.Jog Dial
• Pressandholdthe for3secondsJog Dial
• RotatetheJog Dial to choose the type of charge function you wish to perform
• Pressandholdthe for3secondstostartJog Dial
36
SYSTEM SET
Press the until you reach the 9 main menus, then rotate the to select Mode key Jog Dial Jog DialtolocatethePROGRAMSELECTSYSTEMSETscreen.Pressthe
SYSTEM SET.
Usethismenutosetthe“behindthescenes”operatingparametersforthischargersuchas;RestTime,SafetyTimer,CapacityCutoff,KeyBeep/Buzzer,InputPowerLow
Cutoff,ExternalandInternalTemperatures,LoadFactorySettingsandVersion.
37
LI BATTERY VOLTAGE CHECKER OPERATION - USING THE BALANCE ADAPTER PORT
ThePassportUltraDuochargerhasthecapabilitytoreadanddisplaytheindividual
cellvoltagesofaLi-Po,Li-FeorLi-Iobattery.Thisvoltagecheckingfunctioncan
only be used when the charger is powered ON and not charging a battery.
Tousethevoltagechecker,connectthebalanceportconnectorofyourLi-Po,Li-Fe
orLi-IobatterytothebalanceadapterboardconnectedtotheBalanceCircuit
AdapterBoardConnector(C).
Press the until you reach the 9 main menus, then rotate the to Mode key Jog Dial
locatethePROGRAMSELECTLIBATTMETERscreen.PresstheJog Dial to select
LIBATTMETER.
In a few moments, the charger will begin to display the cell voltages of the battery in
the following format:
3.70 3.70 0.00 V
0.00 0.00 0.00 V
Thisexampleisfora2Sbattery,soonlythevoltagesforthesetwocellsaredis-
played. The data is presented in this format:
1–1 1–2 1–3 V
1–4 1-5 1–6 V
At this point, you can rotate the to see a display of the overall battery Jog Dial
voltage as well as the individual high- and low-cell voltage values.
MAIN 08.20V
H4.104V L4098V
You may exit this menu at any time by pressing the to return to the main Mode key
menus.
38
USB ACCESSORY CHARGER OPERATION (COMPATIBLE WITH iPhone AND iPod DEVICES)
ThePassportUltraDuochargerhasthecapabilitytochargeyouriPhone,iPodorUSBcompatibledevicewiththe1AUSBchargeport(E).Tousethechargingfunction,
simplyconnectacompatiblechargingdeviceorcordintothechargeportwhilethechargerispoweredON.TheinternalUSBchargeportwillprovideupto1Acurrentat
5VDC.
a
REST TIME
UsethismenutosettheResttimeduringeachstepinacycle.WhenaNi-MHor
Ni-CDbatteryiscycled(charged,dischargedandchargedagain)itwillgethot,
therefore it is necessary to set a rest time interval during each step of the pro-
cess to make sure the battery and charger are completely cooled before moving
ontothenextpartofthecycle.Defaulttimeis10minutes,butthiscanbeset
between1and60minutes.Toselectavalueotherthanthedefaultparameter:
•PresstheJog Dial to select Rest Time
•PresstheJog Dial so the Rest Time value flashes
•RotatetheJog Dial to select Rest Time in Minutes
•PresstheJog Dial to save the Rest Time value
•RotatetheJog Dial to select SAFETY TIMER
b
SAFETY TIMER
Usethismenutosetatimelimitforchargingabattery.Whenachargecycle
is started, a clock inside the charger will begin recording the elapsed charge
time. If the SAFETY TIMER function has been turned ON, the charger will stop
the charging process once this time limit has been reached to avoid damage
causedbyover-chargingthebattery.Thistimevaluecanbesetbetween1and
720minutes.
To select values other than the default parameters:
•Pressthe sotheON/OFFvalueashesJog Dial
•RotatetheJog Dial to select ON or OFF
•PresstheJog Dial to save the value
•RotatetheJog Dial to select the value for time
•PresstheJog Dial to save the value
•Rotatethe toselectCapacityCutoffJog Dial
c
CAPACITY CUTOFF
Usethismenutosetacapacitylimitatwhichthechargerwillstopcharginga
battery. When a charge cycle starts, the charger records the battery capacity.
WhentheCapacityCutofffunctionissetatON,thechargerwillstopchargingat
thecapacitylimittopreventbatterydamage.Capacitycanbeadjustedbetween
100and50,000mAh.
•Pressthe sotheON/OFFvalueashesJog Dial
•RotatetheJog Dial to select ON or OFF
•PresstheJog Dial to save the value
•Rotatethe toselecttheCapacityCutoffvalueJog Dial
•PresstheJog Dial to save the value
•Rotatethe toselectKeyBeep/BuzzerJog Dial
d
KEY BEEP/BUZZER
UsethismenutosetthekeybeepandchargeralarmbuzzeratONorOFFas
needed. We recommend that you keep the alarm ON so the alarm will sound when
charging is complete or if there is cause for alarm during charging.
To select values other than the default parameters:
• Pressthe sotheKeyBeepON/OFFvalueashesJog Dial
• RotatetheJog Dial to select ON or OFF
• PresstheJog Dial to save the value
• Pressthe sotheBuzzerON/OFFvalueashesJog Dial
• RotatetheJog Dial to select ON or OFF
• PresstheJog Dial to save the value
• Rotatethe toselectInputPowerLowCutoff Jog Dial
e
INPUT POWER LOW CUTOFF
Usethismenutosettheinputvoltagelimitsoanalarmwillsoundifthevoltage
goes below the cutoff value. The voltage alarm value can be set anywhere from
10.0to11.0V.
To select a value other than the default parameter:
• PresstheJog Dial so the voltage value flashes
• RotatetheJog Dial to select the voltage value
• PresstheJog Dial to save the value
• Rotatethe Jog Dial to select External and Internal Temperatures
f
EXTERNAL AND INTERNAL TEMPERATURES
By selecting the External and Internal Temperatures Screen you can view the
currenttemperaturesofboththebattery(external)andthecharger(internal).
Theoptionaltemperaturesensor(DYN5033)isrequiredforexternaltemperature
measurement.
g
RESET FACTORY SETTINGS
• PresstheJog Dial to reset the charger to factory settings
• Pressthe toselectVERSION Jog Dial
h
VERSION
ByselectingtheVersionScreenyoucanviewtheversion(revisionnumber)ofthe
software on your charger.
39
TROUBLESHOOTING GUIDE
LCDScreenWarningandErrormessagesshownbelow.
Duringchargeroperation,circuitsmonitorbatteryandchargerfunctions.Ifthefollowingmessagesshowonthecharger’sLCDscreen,maketherecommendedresponses.
If the message continues after you respond as recommended, contact your nearest Horizon Hobby customer service center for assistance.
REVERSEPOLARITY Make sure each connection polarity is correct between the power source and the charger, then between the charger and the battery
CONNECTIONBREAK Make sure the power connections are correct for charging
SHORT ERR Make sure there are no short circuits between the poles of the battery or the battery and the charger. Replace damaged wires.
INPUTVOLERR
Input voltage to the charger fell below the default or adjusted input voltage setting. Make sure the power source for the charger provides correct
input voltage.
VOLSELECTERR
Incorrectsettingforcellinseriescount(packvoltage)ofalithiumbattery.Makechargersettingsmatchthebatterypacklabelcellinseriescount
specifications or replace the battery.
BREAKDOWN Chargerelectronicsrequirerepair.
BATTERYCHECKLOWVOLTAGE Battery voltage is lower than the value setting in the charger. Adjust settings, then make sure the battery is not damaged or replace the battery.
BATTERYCHECKHIGHVOLTAGE Battery voltage is higher than the value setting in the charger. Adjust settings, then make sure the battery is not damaged or replace the battery.
Battery Type Li-Po Li-Io Li-Fe Ni-CdNi-MH Pb
Standardvoltage(Voltspercell) 3.70 3.60 3.30 1.20 1.20 2.00
Max.voltage(Voltspercell) 4.20 4.10 3.60 1.60 1.60 2.45
Min.voltage(Voltspercell) 3.00 3.00 2.00 1.00 0.85 1.75
You may exit this menu at any time by pressing the to return to the main menus.Mode key
©2013HorizonHobbyInc.
Dynamite,Passport,EC3andtheHorizonHobbylogoaretrademarksorregisteredtrademarksofHorizonHobby,Inc.
iPhoneandiPodaretrademarksofApple,Inc.,registeredintheU.S.andothercountries.
Microsoft
®
, Windows XP
®
andWindowsVista
®
areregisteredtrademarksoftheMicrosoftCorporation.
Created10/12 Documentsheet1/432772.1

Produktspecifikationer

Varumärke: Horizon
Kategori: batteri laddare
Modell: DYN4300
Modell: Batteriladdare för inomhusbruk
Uteffekt: 10 A
Spänning: 100-240 V
Antal batterier: 2
Produktens färg: Svart
Ingångsfrekvens: 50/60 hz
Bildstorlek (H x B): - mm
Kompatibelt batteri teknik: Lithium Polymer (LiPo), Nickel-Cadmium (NiCd), Nickel-Metal Hydride (NiMH)

Behöver du hjälp?

Om du behöver hjälp med Horizon DYN4300 ställ en fråga nedan och andra användare kommer att svara dig


batteri laddare Horizon Manualer

Horizon

Horizon DYN4300 Bruksanvisning

28 Augusti 2025

batteri laddare Manualer

Nyaste batteri laddare Manualer

Oricom

Oricom TPS10 Bruksanvisning

28 Augusti 2025
Vemer

Vemer Power USB Bruksanvisning

27 Augusti 2025
Greenworks

Greenworks G60B2 Bruksanvisning

25 Augusti 2025
Trotec

Trotec PBCS 6A Bruksanvisning

25 Augusti 2025
Sungrow

Sungrow IDC480E-C Bruksanvisning

25 Augusti 2025
Clas Ohlson

Clas Ohlson V-3399AAA Bruksanvisning

24 Augusti 2025
Oukitel

Oukitel BP2000E Pro Bruksanvisning

24 Augusti 2025
Sungrow

Sungrow IDC480E Bruksanvisning

24 Augusti 2025
Oukitel

Oukitel BP2000 Bruksanvisning

22 Augusti 2025
Oukitel

Oukitel P1201E Bruksanvisning

21 Augusti 2025
