KM-2100S_J3
3 PHASE STACKABLE ICE CUBER
KM-2100S_J3
03/31/17
Item # 13369
Item #:
Project:
Qty:
AIA#:
618 Hwy, 74 S., Peachtree City, GA 30269 | TEL 800-438-6087 | FAX 800-345-1325 | www.hoshizakiamerica.com
© HOSHIZAKI AMERICA, INC.
1
1/2
”
1/2
”
1
1/8
”
KM Cube Dimensions*
* approximate size in inches, image not to scale
Features
• Up to 2115 lbs. of ice production per 24 hours
• Stackable for 4230 lbs. per 24 hours ice production
in the same floor space
• Durable stainless steel exterior
• Protected by H-Guard Plus
Antimicrobial Agent
• EverCheck
TM
alert system
• R-404A Refrigerant
Water-Cooled 3 Phase
Shown on optional bin: B-900
KM-2100SWJ3
Individual crescent cube
Stainless steel evaporator
CycleSaver
TM
design
TM
TM
Remote Air-Cooled 3 Phase
KM-2100SRJ3
Available on Bins:
Warranty:
B-1500SS
B-1650SS
• Ambient Temp Range 45 - 100°F
• Water Temp Range 45 - 90°F
• Water Pressure 10 - 113 PSIG
• Voltage Range 187 - 253V
Operating Limits
• Icemaker Water Supply Line: Minimum 3/8” Nominal ID
Copper Water Tubing or Equivalent
• Icemaker Drain Line: Minimum 3/4” Nominal ID Hard
Pipe or Equivalent
Water-Cooled Model (Lines Must Be Independent of Icemaker)
• Condenser Water Supply Line: Minimum 3/8” Nominal ID
Copper Water Tubing or Equivalent
• Condenser Drain/Return Line: Minimum 3/8” Nominal ID Hard
Pipe (open drain system) or Copper Water Tubing (closed loop
system) or Equivalent
Plumbing
• Panels easily removed and all components
accessible for service.
• Allow 6” (15 cm) clearance at rear, sides, and top
for proper air circulation and ease of maintenance/
service.
Service
48" x 27
3/8
" x 36
7/16
"
W x D x H
Hoshizaki reserves the right to change specifications without notice.
B-800
B-900
Valid in United States, Canada, Puerto Rico and U.S. Territories.
Contact factory for warranty in other countries.
Top kit may be required.
See Bin Spec Sheets.
Printed in the U.S.A.
Air / Water Temp
Lbs. per 24 hours
Condenser
Model
70°/ 50°F 90°/ 70°F
ICE PRODUCTION
Per Cycle
Lbs. Cubes
Potable
Gal. per 100 lbs.
Condenser
Gal. per 100 lbs.
Max. Fuse Size
or HACR
Circuit Breaker
Heat
Rejection
BTU/hr.
Shipping
Weight
Voltage
ENERGY
STAR
®
WATER USAGE
90°/ 70°F 90°/ 70°F
ELECTRICAL
90°/ 70°F
kWh Used
per 100 lbs.
2115
1964
KM-2100SWJ3
KM-2100SRJ3
Water-Cooled
2085
1865
46.9
46.9
2160
2160
3.16
4.16
19.3
19.0
106
N/A
20A
20A
Remote Air-Cooled
31,500
30,800
440 lbs.
440 lbs.
208-230V/60/3
208-230V/60/3
10.5A
12.5A
Amperage
3 Phase
B-1150SS
B-1300SS
618 Hwy, 74 S., Peachtree City, GA 30269 | TEL 800-438-6087 | FAX 800-345-1325 | www.hoshizakiamerica.com
© HOSHIZAKI AMERICA, INC.

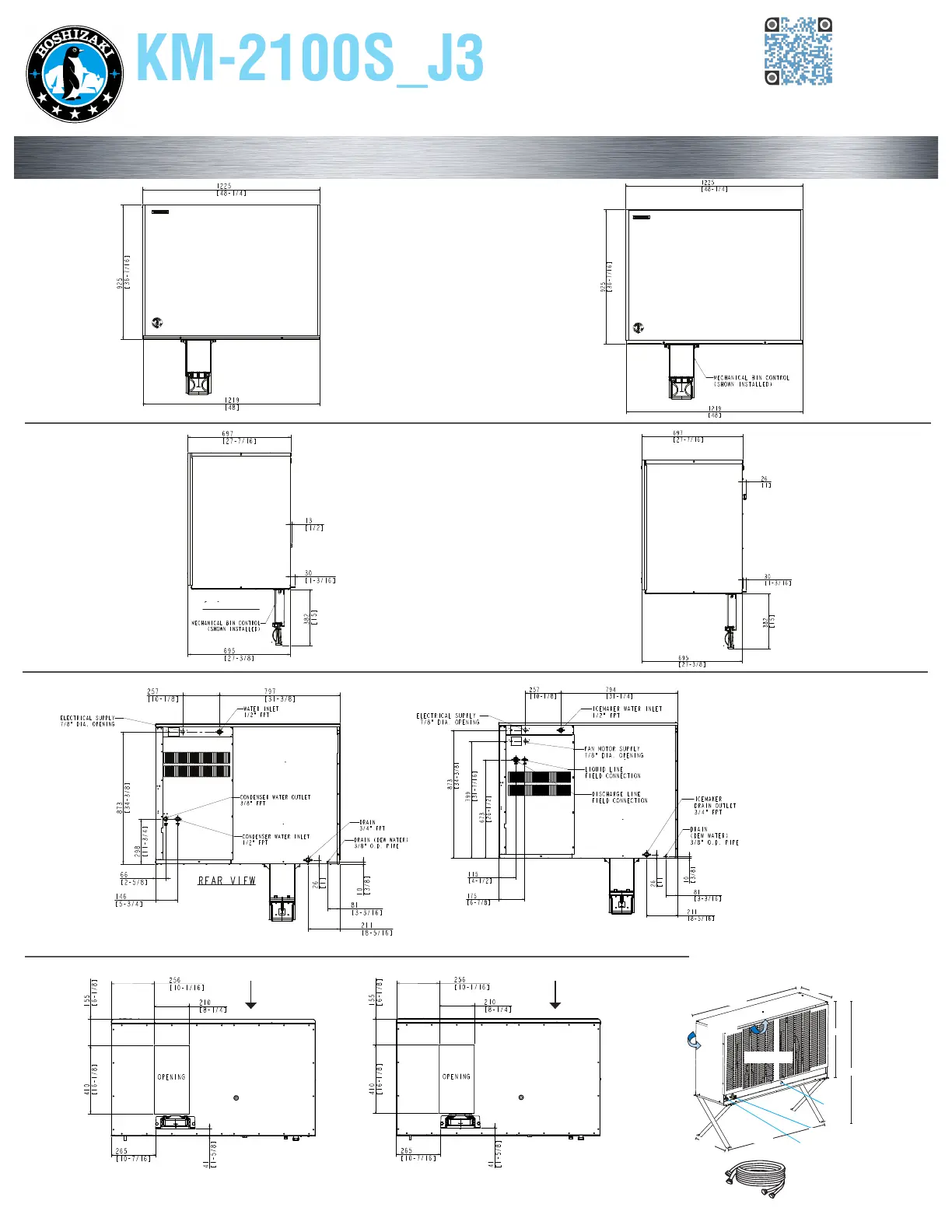

WATER-COOLED REMOTE AIR-COOLED
REMOTE AIR-COOLED
BOTTOM VIEW
WATER-COOLED
REMOTE AIR-COOLED
REAR VIEW SIDE VIEW FRONT VIEW
WATER-COOLED
REMOTE AIR-COOLED
WATER-COOLED
KM-2100S_J3
3 PHASE STACKABLE ICE CUBER
KM-2100S_J3
03/31/17
Item # 13369
Printed in the U.S.A.
(W x D x H) 46
3/8
X 14
1/16
X 40
1/2
URC-22F Remote Condenser (Sold Separately)
Voltage supply for the URC Remote
Condenser is supplied from the
Ice Maker. No additional circuit
is required.
Pre-Charged Tubing Kits
(Sold Separately)
20' R404-20610
35' R404-35610
55’ R404-55610
Front Front
46
3/8
14 1/16
40
1/2
25
15/16
17 1/4
45 5/8
3/8 Liquid
Refrigerant Line
Electrical
Conduit
Access
5/8 Discharge Line
Air Flow
URC-22F
For Use with KM-2100SRJ3
