Operating Instructions

Contents

Installation, 2-3

Positioning

Electrical connection

Description of the appliance, 4

Control panel

Start-up and use, 5-8

Switching on the hob

Switching on the cooking zones

Booster function

Switching off the cooking zones

Programming the cooking duration

Timer

Control panel lock

Switching off the hob

Demo mode

Practical advice on using the appliance

Safety devices

Practical cooking advice

Precautions and tips, 9

General safety

Disposal

Care and maintenance, 10

Switching the appliance off

Cleaning the appliance

Disassembling the hob

Technical description of the models, 11

After Sales Service, 14

Guarantee, 15

Key Contacts, 16

CEO 647 Z

HOB

English,1

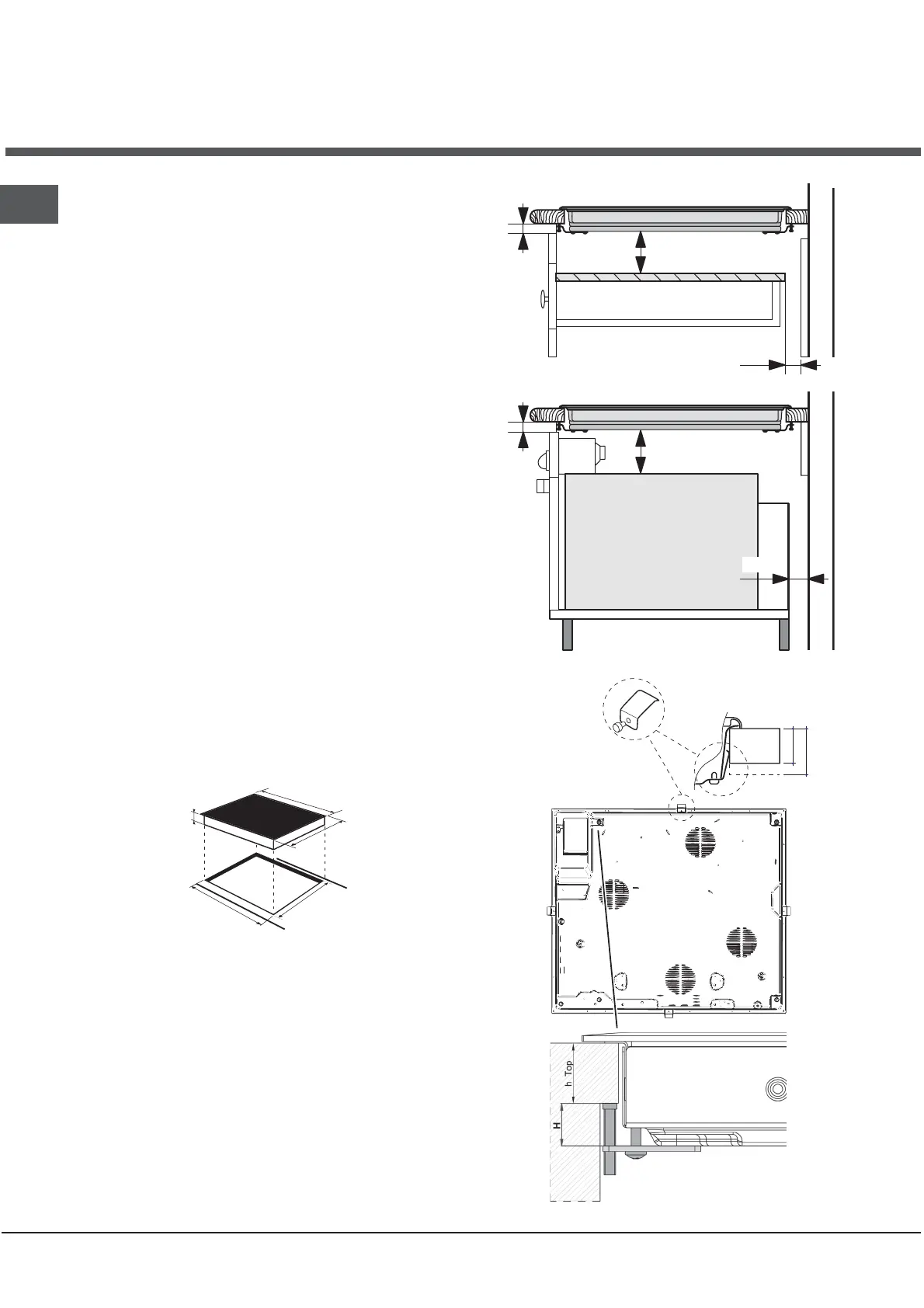

Installation

 Before operating your new appliance please read this

instruction booklet carefully. It contains important

information concerning the safe operation, installation

and maintenance of the appliance.

 Please keep these operating instructions for future

reference. Pass them on to any new owners of the

appliance.

Positioning

 Keep all packaging material out of the reach of

children. It may present a choking or suffocation

hazard (see Precautions and tips).

 The appliance must be installed by a qualified

professional in accordance with the instructions

provided. Incorrect installation may cause harm to

people and animals or may damage property.

Built-in appliance

Use a suitable cabinet to ensure that the appliance

functions properly.

 The supporting surface must be heat-resistant up to

a temperature of approximately 100°C.

 If the appliance is to be installed above an oven, the

oven must be equipped with a forced ventilation

cooling system.

 Avoid installing the hob above a dishwasher: if this

cannot be avoided, place a waterproof separation

device between the two appliances.

 Depending on the hob you want to install, the

cabinet must have the following dimensions (see

figure):

60 +

/- 1

490 +/- 1

590

520

Ventilation

To allow adequate ventilation and to avoid overheating of

the surrounding surfaces the hob should be positioned as

follows:

At a minimum distance of 40 mm from the back

panel.

So that a minimum distance of 20 mm is maintained

between the installation cavity and the cabinet

underneath.

 Kitchen cabinets adjacent to the appliance and taller

than the top of the hob must be at least 600 mm

from the edge of

the hob.

FRONT SIDE

OF HOB

SUPPORTING

SURFACE

UNDERSIDE

OF HOB

5 mm

min. 20 mm

min. 40 mm

COMPARTMENT

5 mm

min. 40 mm

FAN-ASSISTED

OVEN

Fixing

The appliance must be installed on a perfectly level

supporting surface.

Any deformities caused by improper fixing could affect

the features and operation of the hob.

The thickness of the supporting surface

should be

taken into account when choosing

the length of the

screws for the fixing hooks:

 30 mm thick: 23 mm screws

 40 mm thick: 13 mm screws

Fix the hob as follows:

1. Use short flat-bottomed screws to fix the 4

alignment springs in the holes provided at the central

point of each side of the hob.

2. Place

the hob in the cavity, make sure it is in a

central position and push down on the whole perimeter

until the hob is stuck to the supporting surface.

3. For hobs with raised sides: After inserting the hob

into its cavity, insert the 4 fixing hooks (each has its

own pin) into the

lower edges of the hob, using the

long pointed screws to fix them in place, until the

glass is stuck to the supporting surface.

 The screws for the alignment springs must remain

accessible.

 In order to adhere to safety standards, the appliance

must not come into contact with electrical parts once it

has been installed.

 All parts which ensure the safe operation of the

appliance must not be removable without the aid of a

tool.

Electrical connection

 The electrical connection for the hob and for any built-

in oven must be carried out separately, both for safety

purposes and to make extracting the oven easier.

Single-phase connection

The hob is equipped with a pre-connected electricity

supply cable, which is designed for single-phase

connection. Connect the wires in accordance with the

instructions given in the following table and diagrams:

Voltage and

mains frequency

Electrical cable Wire connection

220-240V 1+N ~

50 Hz

: yellow/green;

N: the two blue wires

together

L: brown and black

together

Other types of connection

If the mains supply corresponds with one of the

following:

Voltage and mains frequency

 400V - 2+N ~ 50 Hz

 220-240V 3 ~ 50 Hz

 400V 3 - N ~ 50 Hz

 400V - 2+2N ~ 50 Hz

Separate the wires and connect them in accordance

with the instructions given in the following table and

diagrams:

Voltage and

mains frequency

Electrical cable Wire connection

400V - 2+N ~

50 Hz

220-240V 3 ~

50Hz

400V 3-N~ 50Hz

: yellow/green;

N: the two blue wires together

L1: black

L2: brown

400V - 2+2N ~

50 Hz

: yellow/green;

N1: blue

N2: blue

L1: black

L2: brown

Connecting the electricity supply cable to the mains

If the appliance is being connected directly to the

electricity mains an omnipolar switch must be installed

with a minimum opening of 3 mm between contacts.

 The installer must ensure that the correct electrical

connection has been made and that it is fully

compliant with safety regulations.

Before connecting the appliance to the power supply,

make sure that:

 The appliance is earthed and the plug is compliant

with the law.

 The socket can withstand the maximum power of the

appliance, which is indicated on the data plate

located on the appliance itself.

 The voltage falls within the range of values indicated

on the data plate.

 The socket is compatible with the plug of the

appliance. If the socket is incompatible with the

plug, ask an authorised technician to replace it. Do

not use extension cords or multiple sockets.

 Once the appliance has been installed, the power

supply cable and the electrical socket must be easily

accessible.

 The cable must not be bent or compressed.

 The cable must be checked regularly and replaced

by authorised technicians only.

 The manufacturer declines any liability should

these safety measures not be observed.

 Do not remove or replace the power supply cable for

any reason. Its removal or replacement will void the

warranty and the CE marking. INDESIT does not

assume liability for accidents or damage arising from

replacement/removal of the original power supply

cable. Replacement can only be accepted when

carried out by personnel authorised by INDESIT and

using an original spare part.
