Operating Instructions
Contents
Installation, 2-4
Positioning
Electrical connection
D escription of t eh appliance, 5-6
Control panel
Extendable cooking zones
S tart-up an use,d 7-9
Switching on the hob
Switching on the cooking zones
Switching off the cooking zones
Power function
Heating elements
Control panel lock
Switching off the hob
Practical advice on using the appliance
Safety devices
Practical cooking advice
P recautions an tips,d 10
General safety
Disposal
Care an aintenance, d m 11
Switching the appliance off
Cleaning the appliance
Disassembling the hob
T hec nical escription d of the o 2 m dels, 1
After Sales Service, 14
Guarantee, 15
Key Contacts, 16
C 4RA 6 1 D C
H BO
GB
GB
E h 1nglis ,
2
GB
Installation
Before operating your new appliance please read
this instruction booklet carefully. It contains
important information concerning the safe operation,
installation and maintenance of the appliance.
Please keep these operating instructions for future
reference. Pass them on to any new owners of the
appliance.
Positioning
Keep all packaging material out of the reach of
children. It may present a choking or suffocation
hazard (see Precautions and tips).
The appliance must be installed by a qualified
professional in accordance with the instructions
provided. Incorrect installation may cause harm to
people and animals or may damage property.
Built-in appliance
Use a suitable cabinet to ensure that the appliance
functions properly.
The supporting surface must be heat-resistant up
to a temperature of approximately 100°C.
If the appliance is to be installed above an oven,
the oven must be equipped with a forced
ventilation cooling system.
Avoid installing the hob above a dishwasher: if
this cannot be avoided, place a waterproof
separation device between the two appliances.

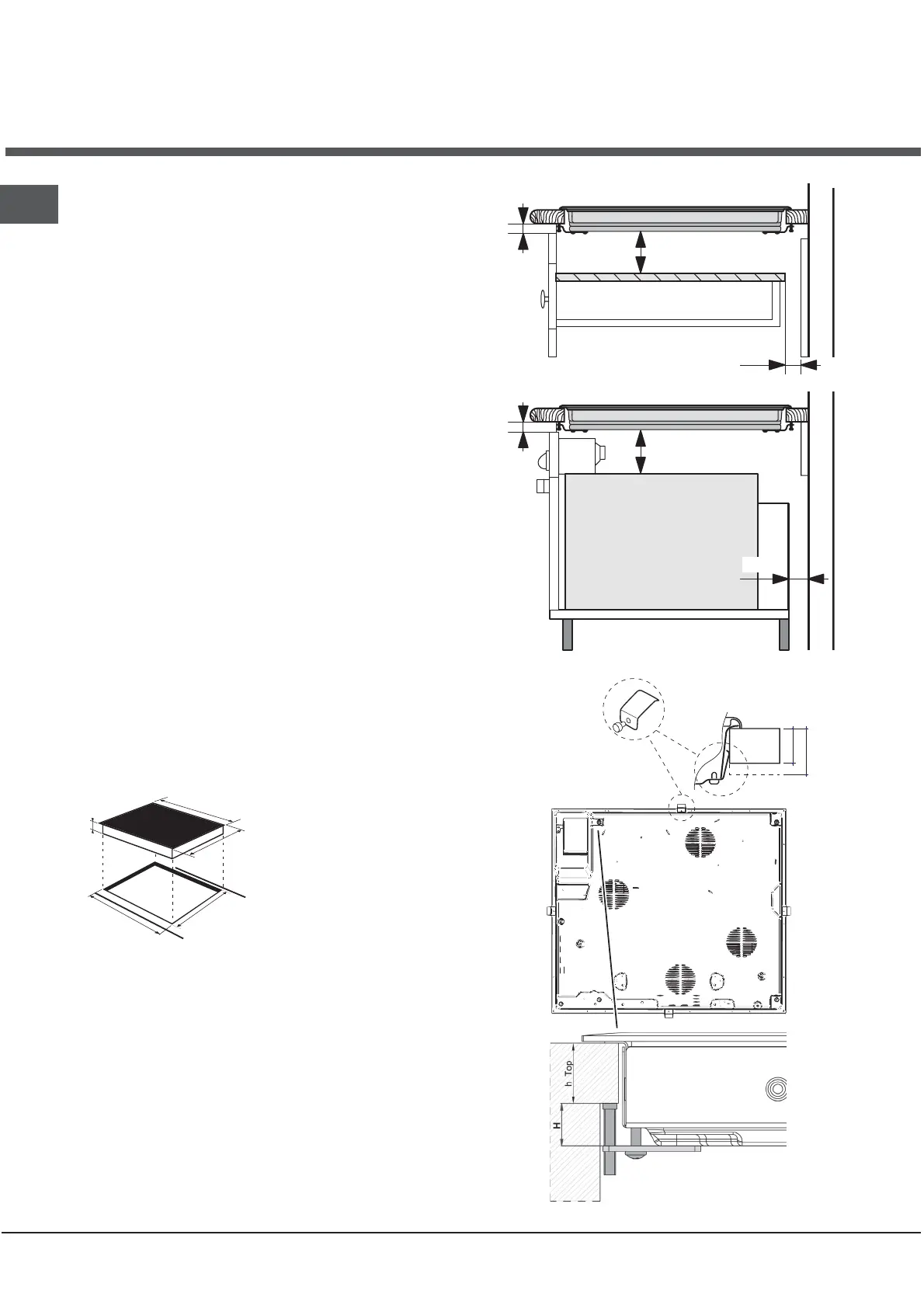

Depending on the hob you want to install, the
cabinet must have the following dimensions (see
figure):
Ventilation
To and avoid overheating allow adequate ventilation to
of the surrounding surfaces the hob should be positioned
as follows:
 At a minimum distance of 40 mm from the back
panel.
 So that a minimum distance of 20 mm is
maintained between the installation cavity and the
cabinet underneath.
Kitchen cabinets ad acent to the appliance and j
taller than the top of the hob must be at least 600
mm edge of from the the hob.
FRONT SIDE
OF HOB
SUPPORT I NG
SURFACE
30
40
UNDERSIDE
OF HOB
5 mm
min. 20 mm
min. 20 mm
min. 40 mm
COMPARTMENT
5 mm
min. 40 mm
FAN-ASSISTED
OVEN
560 +/- 1
490 +/- 1
48
590
520
3
GB
F xi ing
The appliance must be installed on perfectly level a
supporting surface.
Any deformities caused by improper fixing could
affect the features and operation of the hob.
The thickness of the supporting surface should be
taken into account when choosing the length of the
screws for the fixing hooks:
0 1 .3 mm thick: 7 5 mm screws
 04 mm thick: 7.5 mm screws
F ix the hob as follows:
1. Use short flat-bottomed screws to fix the 4
alignment springs in the holes provided at the
central point of each side of the hob.
2. a Place the hob in the cavity, make sure it is in
central position and push down on whole the
perimeter hob stuck supporting until the is to the
surface.
3. For hobs raised sides: hob with After inserting the
into its cavity, insert the 4 fixing hooks (each has its
own pin) into the lower edges of the hob, using the
long pointed screws them place, to fix in until the
glass is stuck to the supporting surface.
The screws for the alignment springs must remain
accessible.
In order to adhere to safety standards, the
appliance must not come into contact with electrical
parts once it has been installed.
All parts which ensure the safe operation of the
appliance must not be removable without the aid of
a tool.
Electrical conn tionec
The electrical connection for the hob and for any
built-in oven must be carried out separately, both for
safety purposes and to make extracting the oven
easier.
Te minalr board
On the lower part of the
appliance there is a
connection box for the
different types of electricity
supply (the picture is only an
indication and is not an exact
representation of the
purchased model).

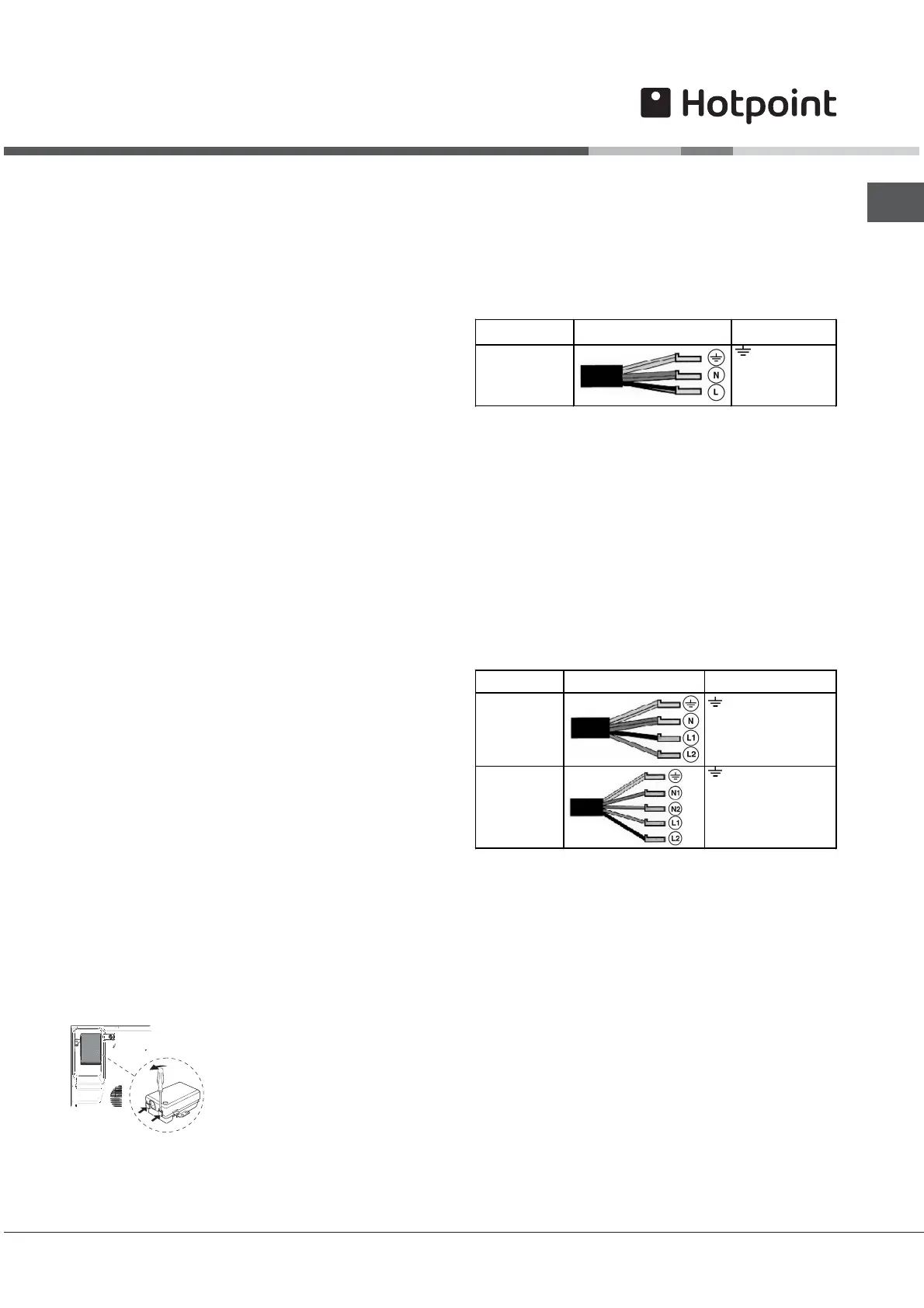

Single-phase connection
The hob is equipped with a pre-connected electricity
supply cable, which is designed for single-phase
connection. Connect the wires in accordance with
the instructions given in the following table and
diagrams:
Voltage and
mains frequency Electrical cable Wire connection
230-240V 1+N ~
220-240V 1+N ~
50/60 Hz
: yellow/green;
N: the two blue wires
together
L: brown and black
together
Othe types of connectionr
If the mains supply corresponds with one of the
following:
Voltage and mains frequency
00V - +N ~ 0/ 0 Hz4 2 5 6
0- 0V 22 24 3 ~ 50/ 0 Hz6
0- 0V 23 24 3 ~ 50/ 0 Hz6
00V - N ~ 0/ 0 Hz4 2 2+5 6
Separate the wires and connect them in accordance
with the instructions given in the following table and
diagrams:
Voltage and
mains frequency Electrical cable Wire connection
400V - 2+N ~
50/60 Hz
230-240V 3 ~
220-240V 3 ~
50/60Hz
: yellow/green;
N: the two blue wires together
L1: black
L2: brown
400V - 2+2N ~
50/60 Hz
: yellow/green;
N1: blue
N2: blue
L1: black
L2: brown
If the mains supply corresponds with one of the
following:
Voltage and mains frequency
00V 4 3 - N ~ 50/ 0 Hz6
proceed as follows:
The cable provided is not suitable for the following
types of installation.
1. Use a suitable supply cable, H0 RR- or higher,5 F
with the right dimensions (cable cross section: 25
mm).
2. To open the terminal board, use a screwdriver as
a lever under the side tabs of the cover (see
Terminal board picture).
3. Loosen the cable clamp screw and the terminal
board screws in accordance with the type of
UNDERSIDE OF HOB
