Operating Instructions

Contents

Installation, 2-4

Positioning

Electrical connection

Description of the appliance, 5-6

Control panel

Extendable cooking zones

Start-up and use, 7-10

Switching on the hob

Switching on the cooking zones

Switching off the cooking zones

Power function

Heating elements

Programming the cooking duration

Timer

Control panel lock

Switching off the hob

Demo mode

Practical advice on using the appliance

Safety devices

Practical cooking advice

Precautions and tips, 11

General safety

Disposal

Care and maintenance, 12

Switching the appliance off

Cleaning the appliance

Disassembling the hob

Technical description of the models, 13

After Sales Service, 14

Guarantee, 15

Key Contacts, 16

CRO 642 D B

CRO 742 DO B

HOB

English,1

Installation

 Before operating your new appliance please read

this instruction booklet carefully. It contains

important information concerning the safe operation,

installation and maintenance of the appliance.

 Please keep these operating instructions for future

reference. Pass them on to any new owners of the

appliance.

Positioning

 Keep all packaging material out of the reach of

children. It may present a choking or suffocation

hazard (see Precautions and tips).

 The appliance must be installed by a qualified

professional in accordance with the instructions

provided. Incorrect installation may cause harm to

people and animals or may damage property.

Built-in appliance

Use a suitable cabinet to ensure that the appliance

functions properly.

 The supporting surface must be heat-resistant up

to a temperature of approximately 100°C.

 If the appliance is to be installed above an oven,

the oven must be equipped with a forced

ventilation cooling system.

 Avoid installing the hob above a dishwasher: if

this cannot be avoided, place a waterproof

separation device between the two appliances.

 Depending on the hob you want to install, the

cabinet must have the following dimensions (see

figure):

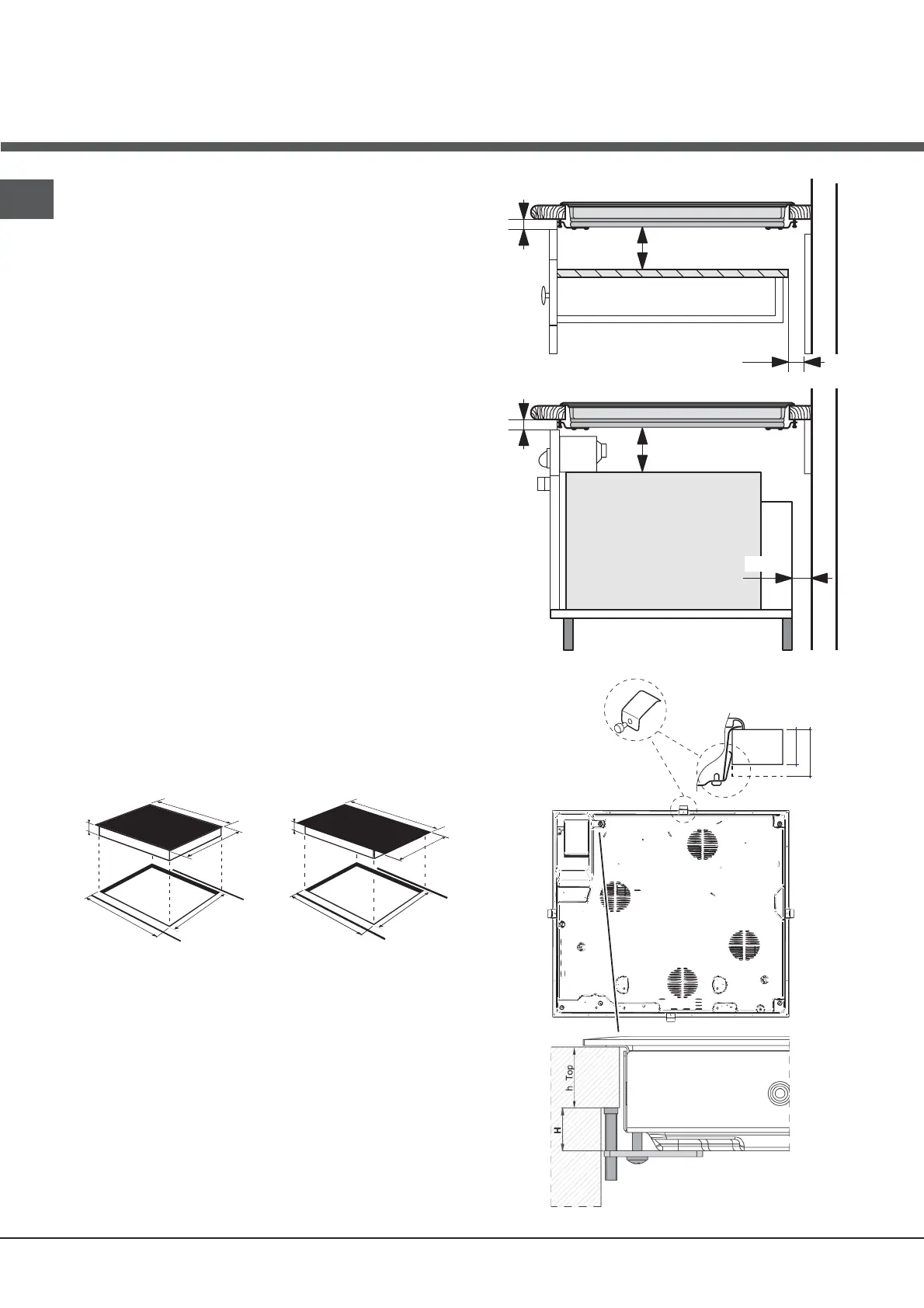

Ventilation

To allow adequate ventilation and to avoid overheating

of the surrounding surfaces the hob should be positioned

as follows:

At a minimum distance of 40 mm from the back

panel.

So that a minimum distance of 20 mm is

maintained between the installation cavity and the

cabinet underneath.

 Kitchen cabinets adjacent to the appliance and

taller than the top of the hob must be at least 600

mm from the edge of

the hob.

FRONT SIDE

OF HOB

SUPPORTING

SURFACE

UNDERSIDE

OF HOB

5 mm

min. 20 mm

min. 40 mm

COMPARTMENT

5 mm

min. 40 mm

FAN-ASSISTED

OVEN

560 +/- 1

490 +/- 1

590

520

560 +/- 1

490 +/- 1

Fixing

The appliance must be installed on a perfectly level

supporting surface.

Any deformities caused by improper fixing could

affect the features and operation of the hob.

The thickness of the supporting surface

should be

taken into account when choosing

the length of the

screws for the fixing hooks:

 30 mm thick: 17.5 mm screws

 40 mm thick: 7.5 mm screws

Fix the hob as follows:

1. Use short flat-bottomed screws to fix the 4

alignment springs in the holes provided at the

central point of each side of the hob.

. Place the hob in the cavity, make sure it is in a

central position and push down on the whole

perimeter until the hob is stuck to the supporting

surface.

3. For hobs with raised sides: After inserting the hob

into its cavity, insert the 4 fixing hooks (each has its

own pin) into

the lower edges of the hob, using the

long pointed screws to fix them in place, until the

glass is stuck to the supporting surface.

 The screws for the alignment springs must remain

accessible.

 In order to adhere to safety standards, the

appliance must not come into contact with electrical

parts once it has been installed.

 All parts which ensure the safe operation of the

appliance must not be removable without the aid of

a tool.

Electrical connection

 The electrical connection for the hob and for any

built-in oven must be carried out separately, both for

safety purposes and to make extracting the oven

easier.

Terminal board

On the lower part of the

appliance there is a

connection box for the

different types of electricity

supply (the picture is only an

indication and is not an exact

representation of the

purchased model).

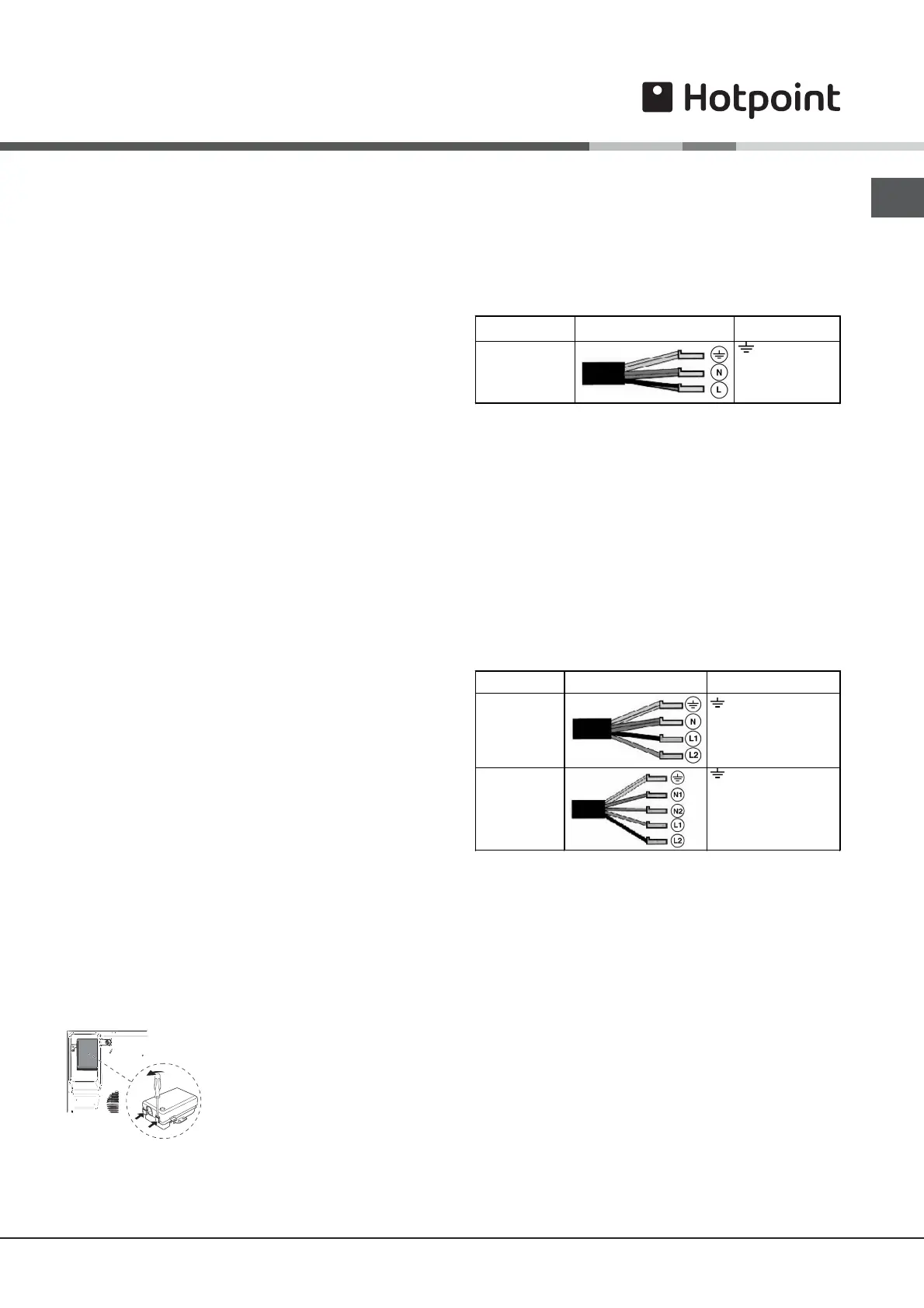

Single-phase connection

The hob is equipped with a pre-connected electricity

supply cable, which is designed for single-phase

connection. Connect the wires in accordance with

the instructions given in the following table and

diagrams:

Voltage and

mains frequency

Electrical cable Wire connection

230-240V 1+N ~

220-240V 1+N ~

50/60 Hz

: yellow/green;

N: the two blue wires

together

L: brown and black

together

Other types of connection

If the mains supply corresponds with one of the

following:

Voltage and mains frequency

 400V - 2+N ~ 50/60 Hz

 220-240V 3 ~ 50/60 Hz

 230-240V 3 ~ 50/60 Hz

 400V - 2+2N ~ 50/60 Hz

Separate the wires and connect them in accordance

with the instructions given in the following table and

diagrams:

Voltage and

mains frequency

Electrical cable Wire connection

400V - 2+N ~

50/60 Hz

230-240V 3 ~

220-240V 3 ~

50/60Hz

: yellow/green;

N: the two blue wires together

L1: black

L2: brown

400V - 2+2N ~

50/60 Hz

: yellow/green;

N1: blue

N2: blue

L1: black

L2: brown

If the mains supply corresponds with one of the

following:

Voltage and mains frequency

 400V 3 - N ~ 50/60 Hz

proceed as follows:

 The cable provided is not suitable for the following

types of installation.

1. Use a suitable supply cable, H05RR-F or higher,

with the right dimensions (cable cross section: 25

mm).

2. To open the terminal board, use a screwdriver as

a lever under the side tabs of the cover (see

Terminal board picture).

3. Loosen the cable clamp screw and the terminal

board screws in accordance with the type of

UNDERSIDE OF HOB
