Quick guide

THANK YOU FOR BUYING AN HOTPOINT PRODUCT

In order to receive a more complete assistance, please

Before using the appliance carefully read the Safety

Instruction.

PRODUCT DESCRIPTION

FIRST TIME USE

AIR VENT (FOR THE SUCTION VERSIONS)

Connect the hood and discharge holes on the walls with a diameter

equivalent to the air outlet (connection ange).

Using the tubes and discharge holes on walls with smaller dimensions

will cause a diminution of the suction performance and a drastic

increase in noise.

Any responsibility in the matter is therefore declined.

!Use a duct of the minimum indispensible length.

!Use a duct with as few elbows as possible (maximum elbow angle: 90°).

!Avoid drastic changes in the duct cross-section.

!The company declines any responsibility whenever these regulations

are not respected.

FILTERING OR DUCTING?

!Your cooker hood is ready to be used in suction version.

To use the hood in ltering version the special ACCESSORY KIT must be

installed.

Check if the ACCESSORY KIT is furnished or must be bought separately.

Note: If furnished, in certain cases, the additional activated carbon ltering

system may be installed on the hood. Information about the conversion of

the hood from suction version to ltering version is present in the Manual

“Safety Instructions & Installation”.

DUCTING VERSION

In this case the fumes are conveyed outside of the building by means

of a special pipe connected with the connection ring located on top of

the hood.

Attention! The exhausting pipe is not supplied and must be purchased

apart. Diameter of the exhausting pipe must be equal to that of the

connection ring.

Attention! If the hood is supplied with active charcoal lter, then it

must be removed.

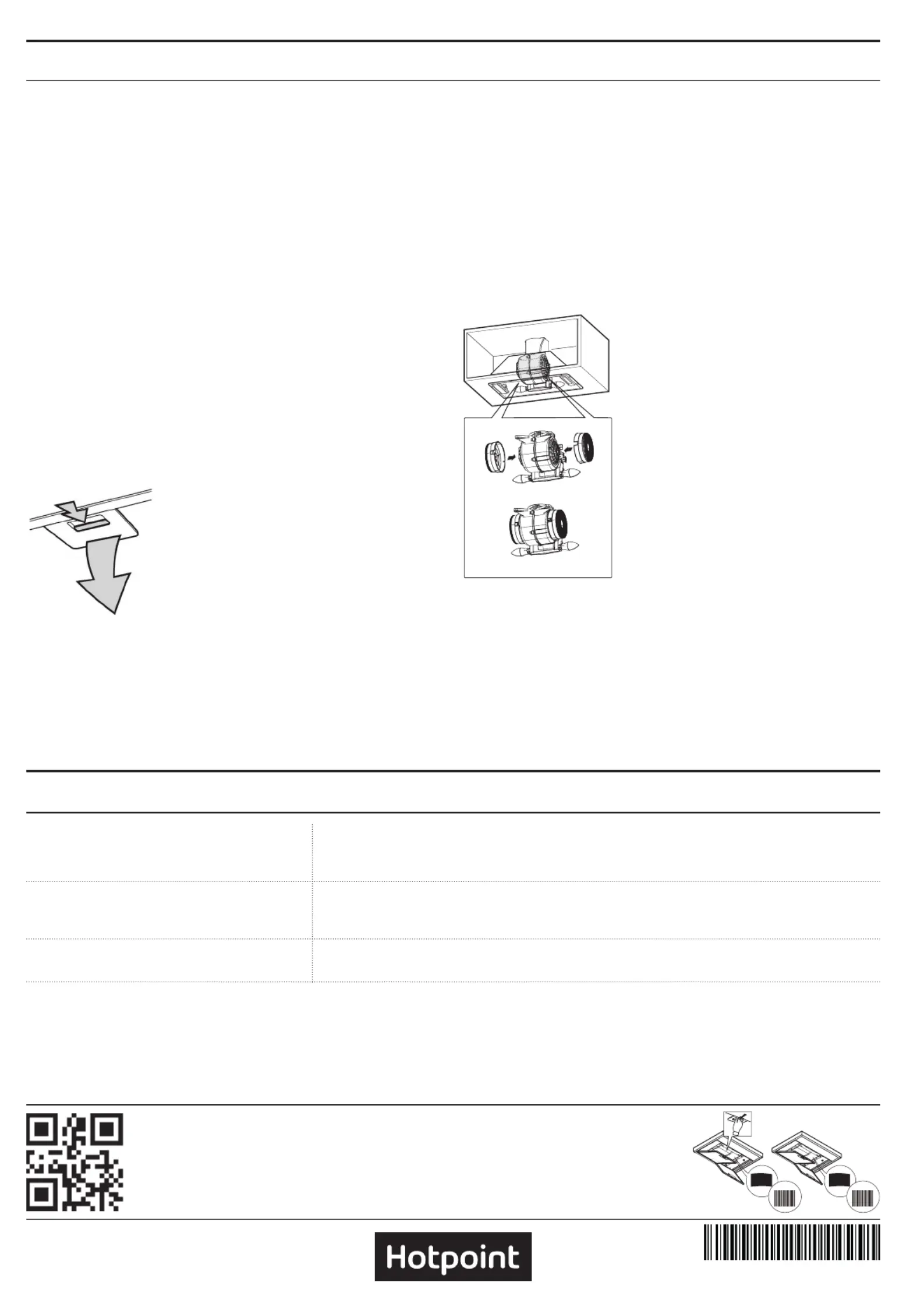

FILTER VERSION

The aspirated air will be degreased and deodorised before being fed

back into the room.

In order to use the hood in this version, you have to install a system of

additional ltering based on activated charcoal.

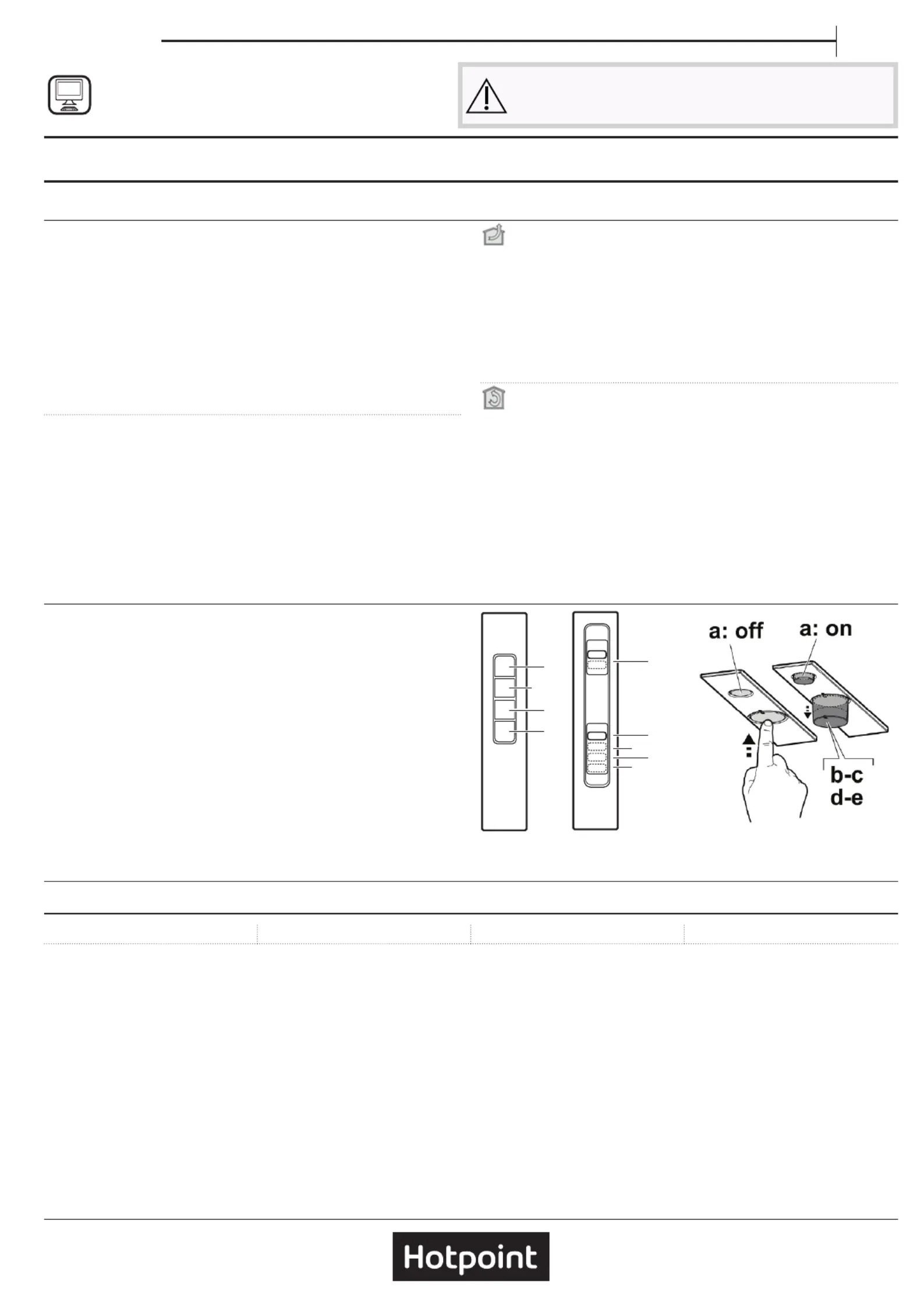

CONTROL PANEL

The hood is tted with a control panel with aspiration speed selection

control and a light switch to control cooking area lights.

a. ON/OFF lighting

b. OFF motors

c. - d. - e. Minimum suction power (c.), medium (d.), maximum (e.).





































TECHNICAL DATA

Height (cm) Width (cm) Depht (cm) Ø of exaust tube (cm)

17.2 49.3 - 69.3 25.7 12.5

* Available only on certain models

Produktspecifikationer

Varumärke:	Hotpoint
Kategori:	Fläktkåpa
Modell:	PCT 64 F L SS
Inbyggd display:	Nej
Vikt:	4800 g
Bredd:	534.3 mm
Djup:	300 mm
Årlig energiförbrukning:	50 kWh
Sladdlängd:	1.5 m
Motoreffekt:	75 W
Antal motorer:	1
Ljudnivå (låg hastighet):	45 dB
Antal lampor:	1 lampor
Tvättbart filter:	Ja
Antal filter:	1 styck
Antal hastigheter:	3
Höjd utan skorsten:	177 mm
Modell:	Inbyggd under
Produktens färg:	Rostfritt stål
Kontrolltyp:	Slider
Löstagbart filter:	Ja
Fettfilter typ:	Gjuten aluminium
AC-inspänning:	220 - 240 V
Lamptyp:	LED
Material, hölje:	Metall
Växelström Frekvens:	50 - 60 hz
Energieffektivitetsskalning:	A+++ till D
Ström:	0.3 A
Ljudnivå Lc IEC:	54 dB
Lampor:	6 W
Ansluten effekt:	81 W
Typ av fläkt:	Frånluft/recirkulerande
Maximal flödeskapacitet:	224 m³/h
Intensiv hastighet:	Nej
Evakueringsanslutning diameter:	120 mm
Maximal återcirkulerande ström:	145 m³/h
Energiklass, flödesdynamik:	E
Energiklass, belysning:	D
Energiklass, fettfiltrering:	E
Exhaust plats:	Övre
Anti-lukt filter:	Ja
Ljudnivå (hög hastighet):	54 dB
