HP Mini 2102, HP Mini 210, and
Compaq Mini 210
Maintenance and Service Guide
© Copyright 2009 Hewlett-Packard
Development Company, L.P.
Intel is a trademark of Intel Corporation in
the U.S. and other countries. Microsoft,
Windows, and Windows Vista are U.S.
registered trademarks of Microsoft
Corporation.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
First Edition: December 2009
Document Part Number: 595074-001
iv Safety warning notice
Table of contents
1 Product description ........................................................................................................................................ 1
2 External component identification ................................................................................................................ 5
Identifying the hardware ....................................................................................................................... 5
Top components ................................................................................................................................... 6
TouchPad ............................................................................................................................ 6
Lights ................................................................................................................................... 7

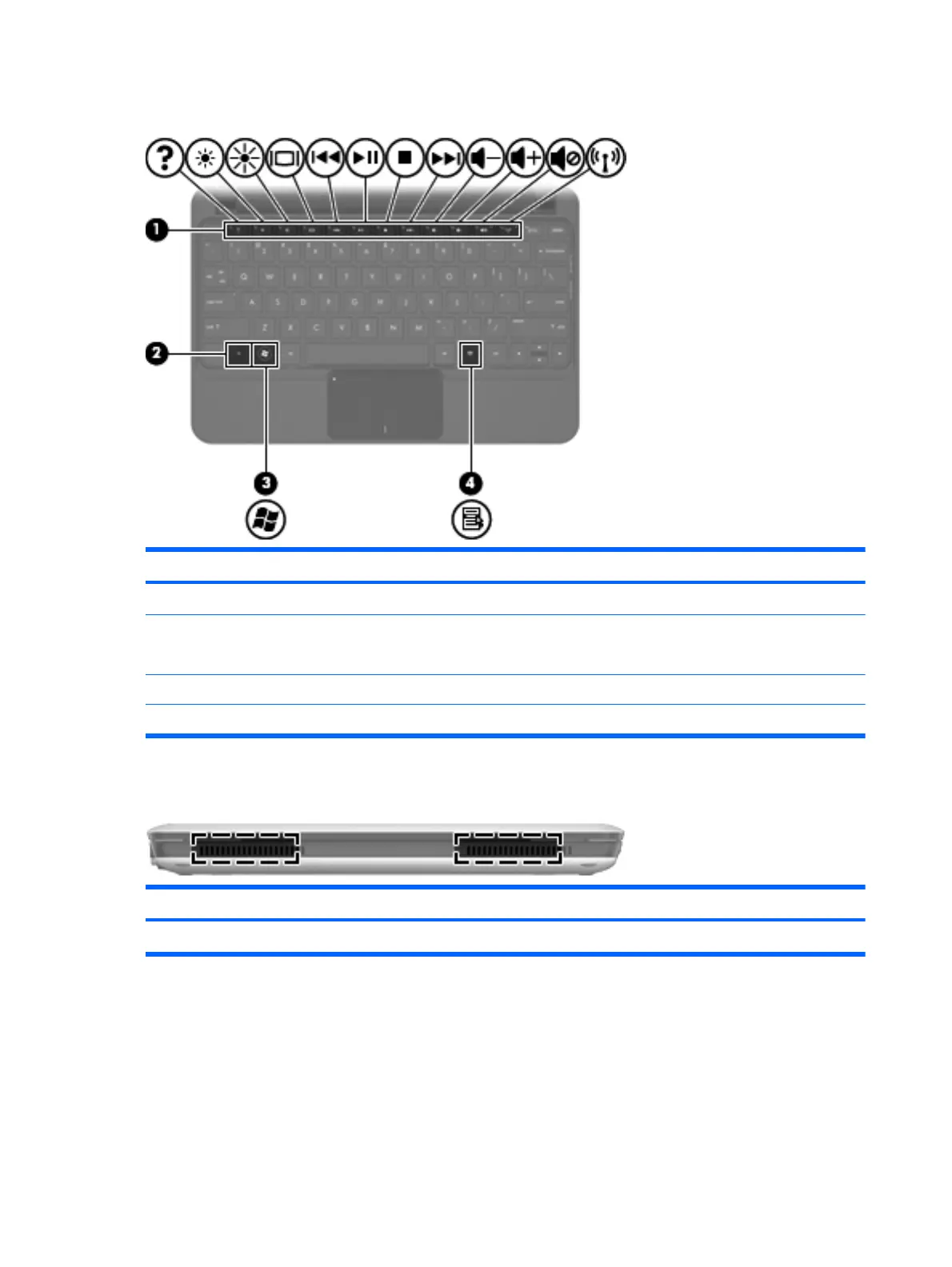

Keys ..................................................................................................................................... 8
Front components ................................................................................................................................ 8

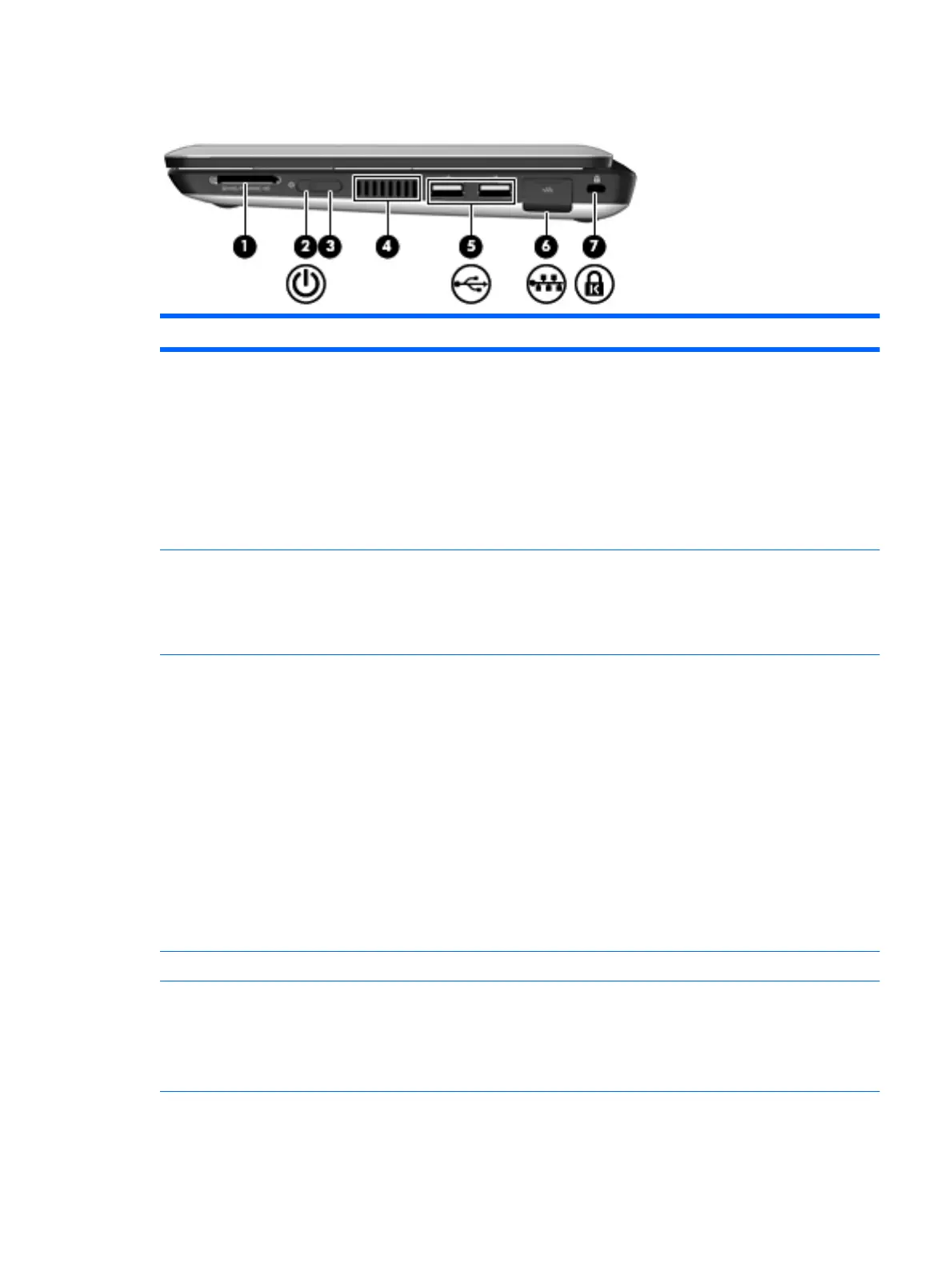

Right-side components ......................................................................................................................... 9

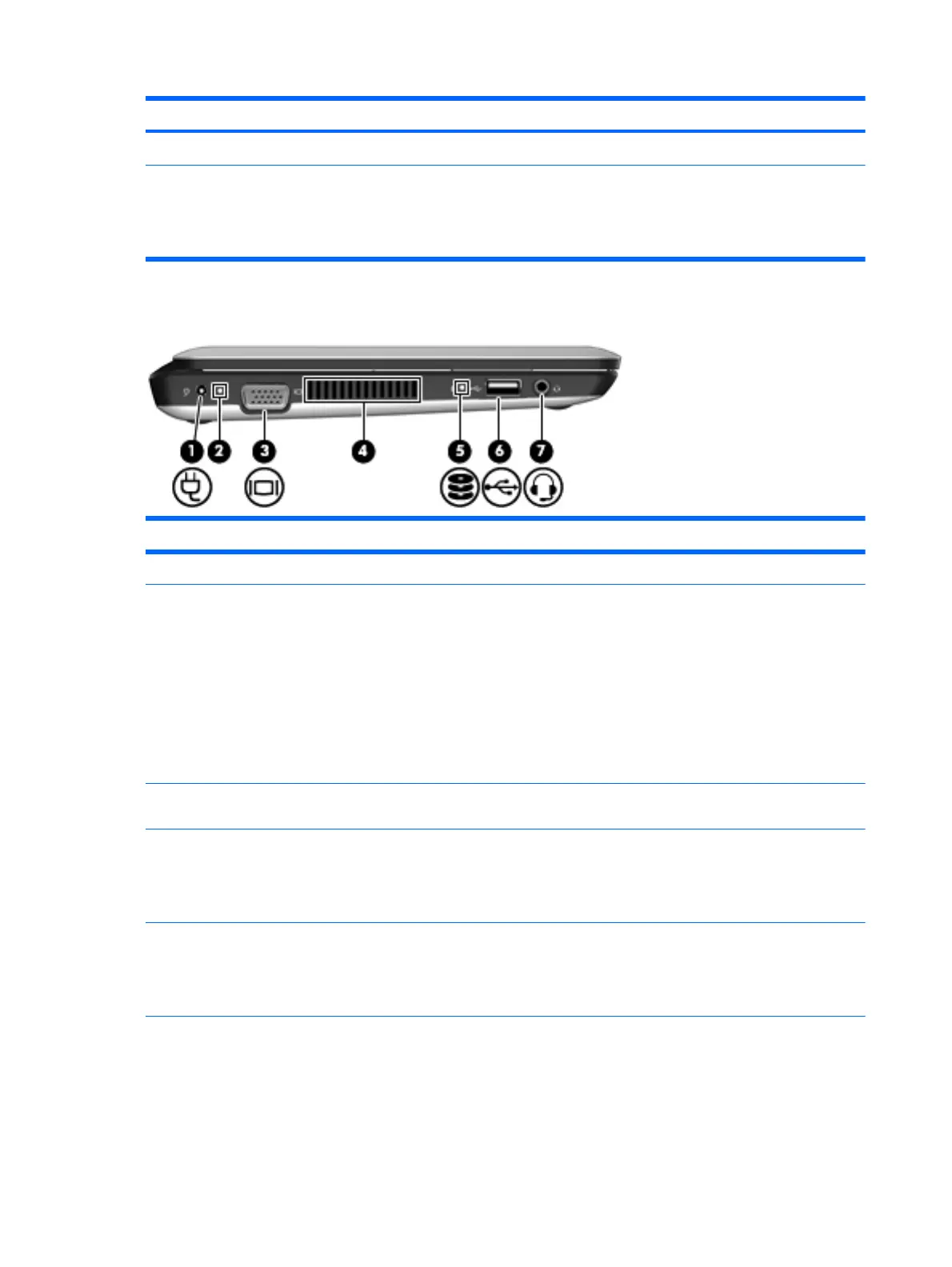

Left-side components ......................................................................................................................... 10
Display components ........................................................................................................................... 11
Bottom components ........................................................................................................................... 12

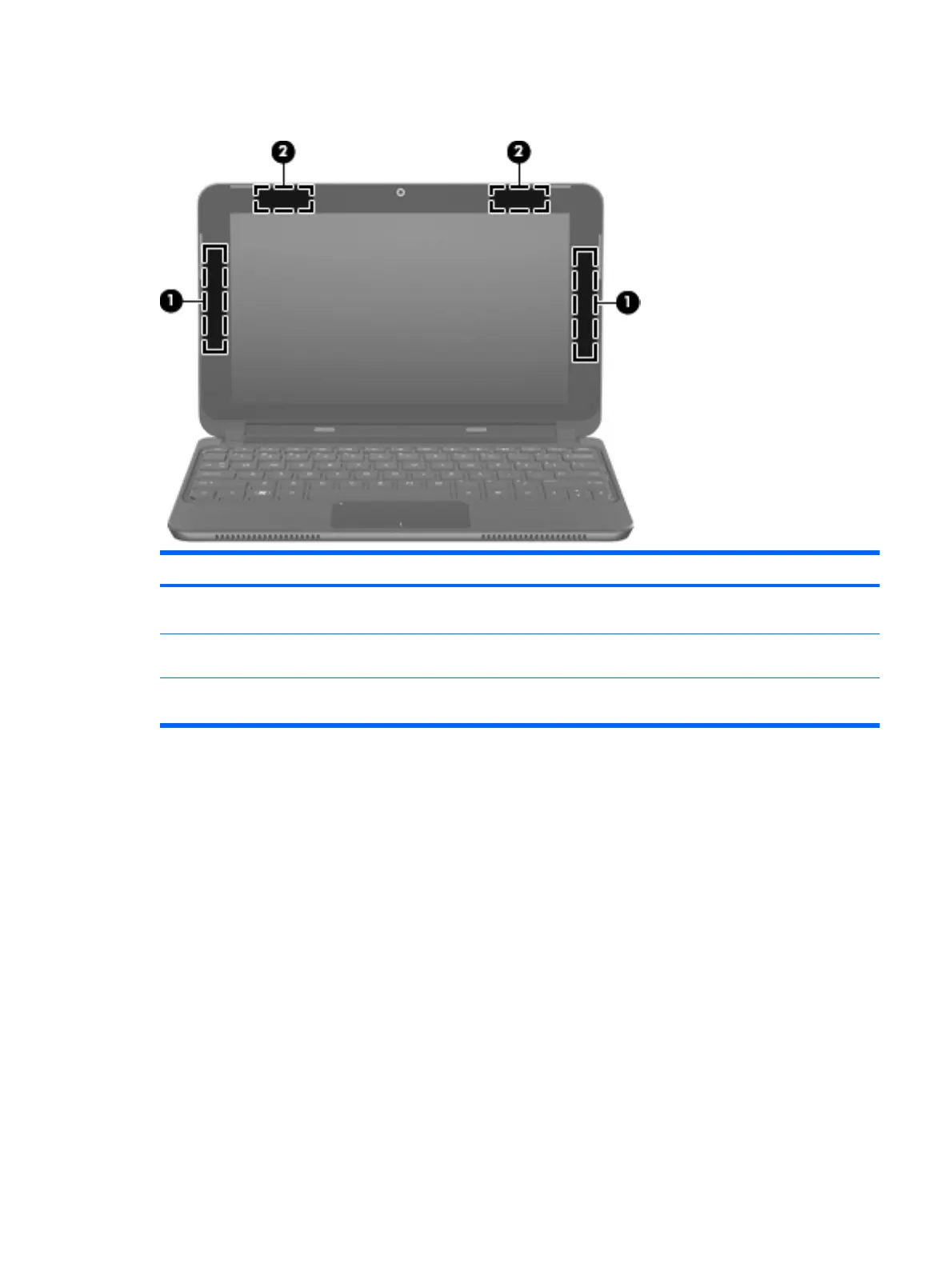

Wireless antennas .............................................................................................................................. 13
3 Illustrated parts catalog ............................................................................................................................... 14
Service tag ......................................................................................................................................... 14
Computer major components ............................................................................................................. 15
Display assembly components ........................................................................................................... 21
Mass storage devices ......................................................................................................................... 23
Miscellaneous parts ............................................................................................................................ 24
Sequential part number listing ............................................................................................................ 25
4 Removal and replacement procedures ....................................................................................................... 31
Preliminary replacement requirements ............................................................................................... 31
Tools required .................................................................................................................... 31
Service considerations ....................................................................................................... 31
Plastic parts ....................................................................................................... 31
Cables and connectors ..................................................................................... 32
Drive handling ................................................................................................... 32
Grounding guidelines ......................................................................................................... 33
Electrostatic discharge damage ........................................................................ 33
Packaging and transporting guidelines ............................................. 34
v
Workstation guidelines ..................................................................... 34
Equipment guidelines ....................................................................... 35
Component replacement procedures ................................................................................................. 36
Service tag ......................................................................................................................... 36
Computer feet .................................................................................................................... 37
Battery ............................................................................................................................... 38
SIM .................................................................................................................................... 39
Service cover ..................................................................................................................... 40
Hard drive .......................................................................................................................... 41
WWAN module .................................................................................................................. 43
WLAN module .................................................................................................................... 45
Memory module ................................................................................................................. 47
RTC battery ....................................................................................................................... 48
Keyboard ........................................................................................................................... 49
Top cover ........................................................................................................................... 52
Speakers ............................................................................................................................ 55
TouchPad .......................................................................................................................... 56
Display assembly ............................................................................................................... 58
System board ..................................................................................................................... 61
Fan/heat sink assembly ..................................................................................................... 63
Power connector cable ...................................................................................................... 65
5 Setup Utility ................................................................................................................................................... 67
Starting Setup Utility ........................................................................................................................... 67
Using Setup Utility .............................................................................................................................. 67
Changing the language of Setup Utility ............................................................................. 67
Navigating and selecting in Setup Utility ............................................................................ 68
Displaying system information ............................................................................................................ 68
Restoring default settings in Setup Utility ........................................................................................... 68
Exiting Setup Utility ............................................................................................................................ 69
Setup Utility Menus ............................................................................................................................ 69
Main Menu ......................................................................................................................... 69
Security Menu .................................................................................................................... 69
System Configuration Menu .............................................................................................. 70
Diagnostics Menu .............................................................................................................. 70
6 Backup and recovery (Windows only) ........................................................................................................ 71
Windows 7 .......................................................................................................................................... 71
Backing up and recovering using Roxio BackOnTrack ...................................................... 71
Creating a copy of the hard drive ...................................................................... 72
Performing a recovery ....................................................................................... 72
Using the Disaster Recovery utility ................................................................... 72
Downloading and extracting the Disaster Recovery utility ................ 73
vi
Restoring your hard drive image ...................................................... 73
Using the Instant Restore utility ......................................................................................... 74
Using the Instant Restore utility when the operating system is functioning ...... 74
Using the Instant Restore utility when the operating system is not
functioning ......................................................................................................... 74
Using Windows Backup and Restore ................................................................................ 74
Using system restore points .............................................................................................. 75
When to create restore points ........................................................................... 75
Creating a system restore point ........................................................................ 75
Restoring to a previous date and time .............................................................. 75
Backing up and recovering using HP Recovery Manager ................................................. 76
Backing up your information .............................................................................. 76
Creating a set of recovery discs ........................................................................ 77
Performing a recovery ....................................................................................................... 78
Recovering using the recovery discs ................................................................ 78
Recovering using the partition on the hard drive (select models only) .............. 78
Windows XP ....................................................................................................................................... 79
Backing up your information .............................................................................................. 79
Creating a copy of the hard drive ...................................................................... 80
Performing a recovery ....................................................................................... 80
Using the Disaster Recovery Utility ................................................................... 81
Downloading and extracting the Disaster Recovery utility ................ 81
Restoring your hard drive image ...................................................... 81
Using the Instant Restore utility ........................................................................ 82
Using the Instant Restore utility when the operating system is
functioning ........................................................................................ 82
Using the Instant Restore utility when the operating system is not
functioning ........................................................................................ 82
7 Connector pin assignments ......................................................................................................................... 83
Audio-in (microphone) ........................................................................................................................ 83
Audio-out (headphone) ....................................................................................................................... 83
External monitor ................................................................................................................................. 84
RJ-45 (network) .................................................................................................................................. 85
Universal Serial Bus ........................................................................................................................... 85
8 Power cord set requirements ...................................................................................................................... 86
Requirements for all countries ............................................................................................................ 86
Requirements for specific countries and regions ............................................................................... 87
9 Recycling ....................................................................................................................................................... 88
Battery ................................................................................................................................................ 88
Display ................................................................................................................................................ 88
vii
1 Product description
Category Description HP Mini 2102 and
HP Mini 210
Compaq Mini
210
Product Name HP Mini 2102 √
HP Mini 210 √
Compaq Mini 210 √
Processor Intel® Atom™ N450 1.66-GHz processor, 512-KB level
2 cache, 667-MHz front-side bus (FSB)
√√
Chipset Intel NM10 Express √√
Graphics Intel Graphics Media Accelerator 3150 universal memory
architecture (UMA) graphics subsystem with Broadcom
Crystal HD Enhanced Video Accelerator hardware decoder
card
√√
Panels All display assemblies include 1 webcam, 1 microphone,
1 speaker box, and 2 wireless local-area network (WLAN)
antenna transceivers/cables; wireless wide-area network
(WWAN) is optional
√√
Wide aspect 16:9 ratio panels, typical brightness: 200nits √√
10.1-inch high-definition (HD), AntiGlare, flush glass
(1024 × 600) LED
√√
10.1-inch standard-definition (SD), WSVGA, AntiGlare
(1024 × 600) LED
√√
Memory One customer-accessible/upgradable memory module slot √√
PC2-4200, 667-MHz, DDR2 √√
Supports the following configurations:
●
2048-MB total system memory (2048 × 1)
NOTE: Supported on computers with Windows® XP
and Windows 7.
●
1024-MB total system memory (1024× 1)
NOTE: Supported only on computers with Windows
7.
√√
1
Category Description HP Mini 2102 and
HP Mini 210
Compaq Mini
210
Hard drives Supports the following 9.5-mm (0.37-in) × 6.35-cm (2.50-
inch), parallel SATA, 7200-rpm hard drives:
●
320-GB
NOTE: Supported only on computers with Windows
7.
●
250-GB
NOTE: Supported only on computers with Windows
7.
●
160-GB
NOTE: Supported on computers with Windows 7
and Windows XP.
√√
Optical drive Supports external USB optical drives only √√
Diskette drive Supports external USB diskette drives only √√
Audio/Visual HD audio √√
Supports BEATS audio driver √√
Integrated 1.5-w speakers (2) √√
Fixed integrated, digital microphone √√
Fixed Integrated VGA webcam, 640 × 480 resolution, up to
30 frames per second
√√
Modem Supports external USB modems only √√
Ethernet Integrated Realtek RTL8703EL 10/100 network interface
card (NIC)
√√
Wireless Integrated WLAN by way of:
● Atheros 9285G 802.11b/g/n 1×1 WiFi Adapter module
●
Broadcom 4312G 802.11b/g WiFi Adapter module
●
Broadcom 4312G 802.11b/g WiFi and 2070 Bluetooth
2.1+EDR Combo Adapter module
√√
2 WLAN antennas built into display assembly √√
Integrated WWAN by way of HP un2400 Mobile Broadband
Module (optional)
√√
2 Chapter 1 Product description
2 External component identification
Identifying the hardware
Components included with the computer may vary by region and model. The illustrations in this
chapter identify the standard features on most computer models.
To see a list of hardware installed in the computer, follow these steps:
1. Select Start > My Computer.
2. In the left pane of the System Tasks window, select View system information.
3. Select Hardware tab > Device Manager.
You can also add hardware or modify computer configurations using Device Manager.
Identifying the hardware 5
Top components
TouchPad
Item Component Description
(1) TouchPad on/off button Turns the TouchPad on and off. Quickly double-tap the
button to turn the TouchPad on and off.
(2) TouchPad Moves the pointer and selects or activates items on the
screen.
(3) Left TouchPad button* Functions like the left button on an external mouse.
(4) Right TouchPad button* Functions like the right button on an external mouse.
*This table describes factory settings. To view or change pointing device preferences, select Start > Control Panel >
Printers and Other Hardware > Mouse.
6 Chapter 2 External component identification
Keys
Item Component Description
(1) Action keys Execute frequently used system functions.
(2) fn key Executes frequently used system functions when
pressed in combination with a function key or the esc
key.
(3) Windows logo key Displays the Windows Start menu.
(4) Windows applications key Displays a shortcut menu for items beneath the pointer.
Front components
Component Description
Speakers (2) Produce sound.
8 Chapter 2 External component identification
Right-side components
item Component Description
(1) Digital Media Slot Supports the following optional digital card formats:
●
Memory Stick (MS)
●
MS/Pro
● MultiMediaCard (MMC)
● Secure Digital High Capacity (SDHC) Memory
Card (standard and large size)
● xD-Picture
(2) Power light
●
White: The computer is on.
● Blinking white: The computer is in the Standby
state.
●
Off: The computer is off or in Hibernation.
(3) Power switch ● When the computer is off, slide the switch to turn
on the computer.
● When the computer is on, briefly slide the switch to
initiate Hibernation.
●
When the computer is in Standby, briefly slide the
switch to exit Standby.
●
When the computer is in Hibernation, briefly slide
the switch to exit Hibernation. If the computer has
stopped responding and Windows shutdown
procedures are ineffective, slide and hold the
power switch for at least 5 seconds to turn off the
computer. To learn more about your power
settings, select Start > Control Panel >
Performance and Maintenance > Power
Options.
(4) Vent Enables airflow to cool internal components.
(5) USB ports (2) Connect optional USB devices.
NOTE: The computer fan starts up automatically to
cool internal components and prevent overheating. It is
normal for the internal fan to cycle on and off during
routine operation.
Right-side components 9
item Component Description
(6) RJ-45 (network) jack and cover Connects a network cable.
(7) Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a
deterrent, but it may not prevent the computer from
being mishandled or stolen.
Left-side components
item Component Description
(1) Power connector Connects an AC adapter.
(2) Battery light
●
Off: The computer is running on battery power.
● Blinking white: The battery has reached a low
battery level, a critical battery level, or there is a
battery error. When the battery reaches a critical
battery level, the battery light begins blinking
rapidly.
●
Amber: A battery is charging.
●
White: The computer is connected to external
power and the battery is fully charged.
(3) External monitor port Connects an optional external display, such as a
monitor or projector, to the computer.
(4) Vent Enables airflow to cool internal components. NOTE: The
computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for
the internal fan to cycle on and off during routine
operation.
(5) Drive light
●
Blinking: The hard drive is being accessed.
● Amber (select models only): HP ProtectSmart Hard
Drive Protection has temporarily parked the hard
drive.
10 Chapter 2 External component identification
item Component Description
(6) USB port Connects an optional USB device.
(7) Audio-out (headphone) jack/Audio-in (microphone) jack Produces sound when connected to optional powered
stereo speakers, headphones, earbuds, a headset, or
television audio. Also connects an optional headset
microphone.
NOTE: When an audio component is connected to the
jack, the computer speakers are disabled. The audio
component cable must have a 4-conductor connector.
Display components
item Component Description
(1) Internal display switch Initiates Standby if the display is closed while the power
is on.
NOTE: The display switch is not visible from the
outside of the computer.
(2) Webcam light On: The webcam is in use.
(3) Webcam Records video and captures still photographs.
NOTE: To capture videos, you need to install
additional webcam software.
(4) Internal microphone Records sound.
Display components 11
Bottom components
item Component Description
(1) Battery release latches (2) Release the battery from the battery bay.
(2) Battery bay Holds the battery.
12 Chapter 2 External component identification
Wireless antennas
item Component Description
(1) WWAN antennas (2)* (select models only) Send and receive wireless signals to communicate with
wireless wide-area networks (WWANs),
(2) WLAN antennas (2)* Send and receive wireless signals to communicate with
wireless local-area networks (WLANs).
*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately
around the antennas free from obstructions.
To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental
Notices that applies to your country or region. To access these notices, select Start > Help and
Support > User Guides.
Wireless antennas 13
3 Illustrated parts catalog
Service tag
When ordering parts or requesting information, provide the computer serial number and model
description provided on the service tag:
NOTE: The computer battery must be removed to access the service tag.
(1) Product name: This is the product name affixed to the front of the device.
(2) Serial number (s/n): This is an alphanumeric identifier that is unique to each product.
(3) Model description: This is the alphanumeric identifier used to locate documents, drivers, and
support for the device.
(4) Warranty period: This number describes the duration of the warranty period for the device.
(5) Part number/Product number (p/n): This number provides specific information about the product's
hardware components. The part number helps a service technician to determine what components
and parts are needed.
14 Chapter 3 Illustrated parts catalog
Computer major components
Item Description Spare part number
(1) 10.1-in display assembly (includes display panel cable, 2 WLAN transceivers and cables, 2 WWAN transceivers
and cables, and webcam/microphone module and cable):
For use only with HP 2102 and Mini 210 computer models:
● HD, AntiGlare, flush glass display assembly in black 589648-001
● HD, AntiGlare, flush glass display assembly in blue 589646-001
●
HD, AntiGlare, flush glass display assembly in red 589644-001
Computer major components 15
Item Description Spare part number
●
For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda,
Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain,
Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia,
Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei,
Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde,
the Central African Republic, Chad, Chile, the People's Republic of China, Colombia,
Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark,
Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador,
Equatorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana,
Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada,
Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras,
Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica,
Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho,
Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi,
Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania,
Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco,
Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands,
New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama,
Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal,
the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino,
Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles,
Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia,
South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey,
Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates,
the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen,
Zaire, Zambia, and Zimbabwe
518436-002
Broadcom 4312G 802.11b/g WiFi Adapter module:
● For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands,
and the United States
504593-003
● For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda,
Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain,
Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia,
Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei,
Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde,
the Central African Republic, Chad, Chile, the People's Republic of China, Colombia,
Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark,
Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador,
Equatorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana,
Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada,
Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras,
Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica,
Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho,
Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi,
Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania,
Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco,
Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands,
New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama,
Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal,
the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino,
Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles,
Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia,
South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey,
Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates,
the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen,
Zaire, Zambia, and Zimbabwe
504593-004
Computer major components 19
Item Description Spare part number
Broadcom 4312G 802.11b/g WiFi and 2070 Bluetooth 2.1+EDR Combo Adapter 575920-001
(13) HP un2400 Mobile Broadband WWAN module 531993-001
(14) Hard drive (includes cable adapter, 4 rubber isolators, and hard drive bracket)
Hard drive:
● 320-GB, 7200-rpm 590819-001
●
250-GB, 7200-rpm 589670-001
● 160-GB, 7200-rpm 589667-001
Hard Drive Hardware Kit (not illustrated, includes cable adapter, 4 rubber isolators, and
hard drive bracket)
589673-001
(15) Battery
6-cell, 62-WHr (includes 2 release latches and 2 rubber feet) 590544-001
3-cell, 28-WHr (includes 2 release latches) 590543-001
(16) Service cover 589679-001
20 Chapter 3 Illustrated parts catalog
Display assembly components
NOTE: Display assembly subcomponents are available only for standard display assemblies. Flush
glass display assemblies are available only as hinge-up assemblies.
Item Description Spare part number
(1) Display bezel (includes WLAN antenna transceivers and cables and WWAN antenna transceivers and cables):
For use only with HP Mini 2102 and 210 computer models 589656-001
For use only with Compaq Mini 210 computer models 589655-001
(2) Display panel:
10.1-in, HD, AntiGlare display panel 589653-001
10.1-in, WSVGA, AntiGlare display panel 589652-001
(3) Display Hinge Kit (includes left and right display hinges) 589657-001
(4) Webcam/microphone module 589654-001
(5) Display panel cable (includes webcam/microphone module cable) 589664-001
Display assembly components 21
Item Description Spare part number
(6) Display enclosure (includes WLAN antenna transceivers and cables and WWAN antenna transceivers and
cables):
For use only with HP computer models in black 589661-001
For use only with HP computer models in blue 589660-001
For use only with HP computer models in red 589659-001
For use only with HP computer models in silver 589658-001
For use only with Compaq computer models 589662-001
Display Screw Kit (not illustrated) 589663-001
22 Chapter 3 Illustrated parts catalog
Mass storage devices
NOTE: Each hard drive spare part kit includes a cable adapter, bracket, and 4 isolators.
Item Description Spare part number
(1) Hard drive:
320-GB, 7200-RPM 590819-001
250-GB, 7200-RPM 589670-001
160-GB, 7200-RPM 589667-001
Hard Drive Hardware Kit (not illustrated) 589673-001
(3) External optical drive:
Blu-ray ROM DVD±R/RW SuperMulti Double-Layer Drive with LightScribe 584384-001
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe 584383-001
Mass storage devices 23
Miscellaneous parts
Description Spare part number
40-W UMA AC adapter 584540-001
Power cord:
For use in Argentina 490371-D01
For use in Austalia 490371-011
For use in Brazil 490371-201
For use in Denmark 490371-081
For use in Europe 490371-021
For use in Israel 490371-BB1
For use in Italy 490371-061
For use in Japan 490371-291
For use in Norway 490371-091
For use in the People's Republic of China 490371-AA1
For use in Singapore and the United Kingdom 490371-031
For use in South Africa 490371-AR1
For use in South Korea 490371-AD1
For use in Switzerland 490371-111
For use in Taiwan 490371-AB1
Rubber Kit (includes 4 rubber feet and RJ-45 cover) 589680-001
Screw Kit 606695-001
24 Chapter 3 Illustrated parts catalog
Sequential part number listing
Spare part number Description
449729-001 RTC battery
490371-001 Power cord for use in North America
490371-011 Power cord for use in Australia
490371-021 Power cord for use in Europe, the Middle East, and Africa
490371-031 Power cord for use in Singapore and the United Kingdom
490371-061 Power cord for use in Italy
490371-081 Power cord for use in Denmark
490371-111 Power cord for use in Switzerland
490371-201 Power cord for use in Brazil
490371-291 Power cord for use in Japan
490371-AA1 Power cord for use in the People's Republic of China
490371-AB1 Power cord for use in Taiwan
490371-AD1 Power cord for use in South Korea
490371-AR1 Power cord for use in South Africa
490371-BB1 Power cord for use in Israel
490371-D01 Power cord for use in Argentia
490371-D61 Power cord for use in India
504593-003 Broadcom 4312G 802.11b/g WiFi Adapter module for use in Canada, the Cayman Islands, Guam,
Puerto Rico, the U.S. Virgin Islands, and the United States
504593-004 Broadcom 4312G 802.11b/g WiFi Adapter module for use in Afghanistan, Albania, Algeria,
Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan,
the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda,
Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei,
Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad,
Chile, the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia,
Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor,
Ecuador, Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France,
French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada,
Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary,
Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati,
Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg,
Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands,
Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco,
Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand,
Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea,
Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia,
Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia,
the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia,
South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan,
Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda,
Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu,
Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
Sequential part number listing 25
Spare part number Description
518436-001 Atheros 9285G 802.11b/g/n 1×1 WiFi Adapter module for use in Canada, the Cayman Islands,
Guam, Puerto Rico, the U.S. Virgin Islands, and the United States
518436-002 Atheros 9285G 802.11b/g/n 1×1 WiFi Adapter module for use in Afghanistan, Albania, Algeria,
Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan,
the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda,
Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei,
Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad,
Chile, the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia,
Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor,
Ecuador, Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France,
French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada,
Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary,
Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati,
Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg,
Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands,
Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco,
Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand,
Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea,
Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia,
Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia,
the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia,
South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan,
Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda,
Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu,
Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
531993-001 HP un2400 Mobile Broadband WWAN module
575920-001 Broadcom 4312G 802.11b/g WiFi and 2070 Bluetooth 2.1+EDR Combo Adapter
584383-001 DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe
584384-001 Blu-ray ROM DVD±R/RW SuperMulti Double-Layer Drive with LightScribe
584540-001 40-W AC adapter
589638-001 System board with Digital Media Card Reader (includes Intel Atom N450 1.66-GHz processor with
512-KB level 2 cache, 667-MHz FSB and replacement thermal material):
589639-001 System board without Digital Media Card Reader (includes Intel Atom N450 1.66-GHz processor
with 512-KB level 2 cache, 667-MHz FSB and replacement thermal material):
589640-001 10.1-in WSVGA, AntiGlare, standard display assembly in silver for use only with Compaq Mini 210
computer models (includes display panel cable, 2 WLAN transceivers and cables, 2 WWAN
transceivers and cables, and webcam/microphone module and cable)
589641-001 10.1-in WSVGA, AntiGlare, flush glass display assembly in silver for use only with HP Mini 2102
and 210 computer models (includes display panel cable, 2 WLAN transceivers and cables, 2
WWAN transceivers and cables, and webcam/microphone module and cable)
589642-001 10.1-in HD, AntiGlare, flush glass display assembly in silver for use only with HP Mini 2102 and
210 computer models (includes display panel cable, 2 WLAN transceivers and cables, 2 WWAN
transceivers and cables, and webcam/microphone module and cable)
589643-001 10.1-in WSVGA, AntiGlare, flush glass display assembly in red for use only with HP Mini 2102 and
210 computer models (includes display panel cable, 2 WLAN transceivers and cables, 2 WWAN
transceivers and cables, and webcam/microphone module and cable)
589644-001 10.1-in HD, AntiGlare, flush glass display assembly in red for use only with HP Mini 2102 and 210
computer models (includes display panel cable, 2 WLAN transceivers and cables, 2 WWAN
transceivers and cables, and webcam/microphone module and cable)
26 Chapter 3 Illustrated parts catalog
Spare part number Description
589645-001 10.1-in WSVGA, AntiGlare, flush glass display assembly in blue for use only with HP Mini 2102
and 210 computer models (includes display panel cable, 2 WLAN transceivers and cables, 2
WWAN transceivers and cables, and webcam/microphone module and cable)
589646-001 10.1-in HD, AntiGlare, flush glass display assembly in blue for use only with HP Mini 2102 and 210
computer models (includes display panel cable, 2 WLAN transceivers and cables, 2 WWAN
transceivers and cables, and webcam/microphone module and cable)
589647-001 10.1-in WSVGA, AntiGlare, flush glass display assembly in black for use only with HP Mini 2102
and 210 computer models (includes display panel cable, 2 WLAN transceivers and cables, 2
WWAN transceivers and cables, and webcam/microphone module and cable)
589648-001 10.1-in HD, AntiGlare, flush glass display assembly in black for use only with HP Mini 2102 and
210 computer models (includes display panel cable, 2 WLAN transceivers and cables, 2 WWAN
transceivers and cables, and webcam/microphone module and cable)
589649-001 10.1-in WSVGA, AntiGlare, standard display assembly in black for use only with HP Mini 2102 and
210 computer models (includes display panel cable, 2 WLAN transceivers and cables, 2 WWAN
transceivers and cables, and webcam/microphone module and cable)
589650-001 10.1-in HD, AntiGlare, standard display assembly in black for use only with HP Mini 2102 and 210
computer models (includes display panel cable, 2 WLAN transceivers and cables, 2 WWAN
transceivers and cables, and webcam/microphone module and cable)
589651-001 10.1-in WSVGA, AntiGlare, standard display assembly in silver for use only with HP Mini 2102 and
210 computer models (includes display panel cable, 2 WLAN transceivers and cables, 2 WWAN
transceivers and cables, and webcam/microphone module and cable)
589652-001 10.1-in, WSVGA, AntiGlare display panel
589653-001 10.1-in, HD, AntiGlare display panel
589654-001 Webcam/microphone module
589655-001 Display bezel for use only with Compaq Mini 210 computer models (includes WLAN antenna
transceivers and cables and WWAN antenna transceivers and cables)
589656-001 Display bezel for use only with HP Mini 2102 and 210 computer models (includes WLAN antenna
transceivers and cables and WWAN antenna transceivers and cables)
589657-001 Display Hinge Kit (includes left and right display hinges)
589658-001 Display enclosure for use only with HP Mini 2102 and 210 computer models in silver (includes
WLAN antenna transceivers and cables and WWAN antenna transceivers and cables)
589659-001 Display enclosure for use only with HP Mini 2102 and 210 computer models in red (includes
WLAN antenna transceivers and cables and WWAN antenna transceivers and cables)
589660-001 Display enclosure for use only with HP Mini 2102 and 210 computer models in blue (includes
WLAN antenna transceivers and cables and WWAN antenna transceivers and cables)
589661-001 Display enclosure for use only with HP Mini 2102 and 210 computer models in black (includes
WLAN antenna transceivers and cables and WWAN antenna transceivers and cables)
589662-001 Display enclosure for use only with Compaq Mini 210 computer models (includes WLAN antenna
transceivers and cables and WWAN antenna transceivers and cables)
589663-001 Display Screw Kit
589664-001 Display panel cable (includes webcam/microphone module cable)
589665-001 1024-MB memory module (667-MHz, DDR2):
589666-001 2048-MB memory module (667-MHz, DDR2):
589667-001 160-GB, 7200-rpm hard drive (includes cable adapter, 4 rubber isolators, and hard drive bracket)
Sequential part number listing 27
Spare part number Description
589670-001 250-GB, 7200-rpm hard drive (includes cable adapter, 4 rubber isolators, and hard drive bracket)
589673-001 Hard Drive Hardware Kit (not illustrated, includes cable adapter, 4 rubber isolators, and hard drive
bracket)
589676-001 Top cover, black
589677-001 TouchPad for use only with black top cover (includes cable and bracket )
589678-001 Base enclosure (includes 4 rubber feet and power connector bracket)
589679-001 Service cover
589680-001 Rubber Kit (includes 4 rubber feet and RJ-45 cover)
589681-001 Fan/heat sink assembly (includes replacement thermal material)
589682-001 Power connector cable
589683-001 TouchPad for use only with silver top cover (includes cable and bracket )
589684-001 TouchPad for use only with red top cover (includes cable and bracket )
589685-001 TouchPad for use only with blue top cover (includes cable and bracket )
589686-001 Top cover, silver
589687-001 Top cover, red
589688-001 Top cover, blue
590526-001 Keyboard with painted finish for use only in the United States (includes cable)
590526-031 Keyboard with painted finish for use only in the United Kingdom (includes cable)
590526-041 Keyboard with painted finish for use only in Germany (includes cable)
590526-051 Keyboard with painted finish for use only in France (includes cable)
590526-061 Keyboard with painted finish for use only in Italy (includes cable)
590526-071 Keyboard with painted finish for use only in Spain (includes cable)
590526-121 Keyboard with painted finish for use only in French Canada (includes cable)
590526-131 Keyboard with painted finish for use only in Portugal (includes cable)
590526-141 Keyboard with painted finish for use only in Turkey (includes cable)
590526-161 Keyboard with painted finish for use only in Latin America (includes cable)
590526-171 Keyboard with painted finish for use only in Saudi Arabia (includes cable)
590526-201 Keyboard with painted finish for use only in Brazil (includes cable)
590526-211 Keyboard with painted finish for use only in Hungary (includes cable)
590526-221 Keyboard with painted finish for use only in the Czech Republic (includes cable)
590526-251 Keyboard with painted finish for use only in Russia (includes cable)
590526-281 Keyboard with painted finish for use only in Thailand (includes cable)
590526-291 Keyboard with painted finish for use only in Japan (includes cable)
590526-A41 Keyboard with painted finish for use only in Belgium (includes cable)
28 Chapter 3 Illustrated parts catalog
Spare part number Description
590526-AB1 Keyboard with painted finish for use only in Taiwan (includes cable)
590526-AD1 Keyboard with painted finish for use only in South Korea (includes cable)
590526-B31 Keyboard with painted finish for use only in the Netherlands (includes cable)
590526-BA1 Keyboard with painted finish for use only in Slovenia (includes cable)
590526-BB1 Keyboard with painted finish for use only in Israel (includes cable)
590526-BG1 Keyboard with painted finish for use only in Switzerland (includes cable)
590526-DH1 Keyboard with painted finish for use only in Denmark, Finland, and Norway (includes cable)
590526-DJ1 Keyboard with painted finish for use only in Greece (includes cable)
590527-001 Keyboard with textured finish for use only in the United States (includes cable)
590527-031 Keyboard with textured finish for use only in the United Kingdom (includes cable)
590527-041 Keyboard with textured finish for use only in Germany (includes cable)
590527-051 Keyboard with textured finish for use only in France (includes cable)
590527-061 Keyboard with textured finish for use only in Italy (includes cable)
590527-071 Keyboard with textured finish for use only in Spain (includes cable)
590527-121 Keyboard with textured finish for use only in French Canada (includes cable)
590527-131 Keyboard with textured finish for use only in Portugal (includes cable)
590527-141 Keyboard with textured finish for use only in Turkey (includes cable)
590527-161 Keyboard with textured finish for use only in Latin America (includes cable)
590527-171 Keyboard with textured finish for use only in Saudi Arabia (includes cable)
590527-201 Keyboard with textured finish for use only in Brazil (includes cable)
590527-211 Keyboard with textured finish for use only in Hungary (includes cable)
590527-221 Keyboard with textured finish for use only in the Czech Republic (includes cable)
590527-251 Keyboard with textured finish for use only in Russia (includes cable)
590527-281 Keyboard with textured finish for use only in Thailand (includes cable)
590527-291 Keyboard with textured finish for use only in Japan (includes cable)
590527-A41 Keyboard with textured finish for use only in Belgium (includes cable)
590527-AB1 Keyboard with textured finish for use only in Taiwan (includes cable)
590527-AD1 Keyboard with textured finish for use only in South Korea (includes cable)
590527-B31 Keyboard with textured finish for use only in the Netherlands (includes cable)
590527-BA1 Keyboard with textured finish for use only in Slovenia (includes cable)
590527-BB1 Keyboard with textured finish for use only in Israel (includes cable)
590527-BG1 Keyboard with textured finish for use only in Switzerland (includes cable)
590527-DH1 Keyboard with textured finish for use only in Denmark, Finland, and Norway (includes cable)
590526-DJ1 Keyboard with textured finish for use only in Greece (includes cable)
Sequential part number listing 29
Cables and connectors
CAUTION: When servicing the device, be sure that cables are placed in their proper locations
during the reassembly process. Improper cable placement can damage the device.
Cables must be handled with extreme care to avoid damage. Apply only the tension required to
unseat or seat the cables during removal and insertion. Handle cables by the connector whenever
possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in
such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex
cables with extreme care; these cables tear easily.
Drive handling
CAUTION: Drives are fragile components that must be handled with care. To prevent damage to
the device, damage to a drive, or loss of information, observe these precautions:
Before removing or inserting a hard drive, shut down the device. If you are unsure whether the device
is off or in Hibernation, turn the device on, and then shut it down through the operating system.
Before handling a drive, be sure that you are discharged of static electricity. While handling a drive,
avoid touching the connector.
Handle drives on surfaces covered with at least one inch of shock-proof foam.
Avoid dropping drives from any height onto any surface.
After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.
Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.
Avoid exposing a drive to temperature extremes or liquids.
If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective
packaging and label the package “FRAGILE.”
32 Chapter 4 Removal and replacement procedures
Grounding guidelines
Electrostatic discharge damage
Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure
determine the degree of sensitivity. Networks built into many integrated circuits provide some
protection, but in many cases, ESD contains enough power to alter device parameters or melt
silicon junctions.
A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or
microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.
An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a
normal cycle. Or the device may function normally for a while, then degrade in the internal layers,
reducing its life expectancy.
CAUTION: To prevent damage to the device when you are removing or installing internal
components, observe these precautions:
Keep components in their electrostatic-safe containers until you are ready to install them.
Use nonmagnetic tools.
Before touching an electronic component, discharge static electricity by using the guidelines
described in this section.
Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
If you remove a component, place it in an electrostatic-safe container.
The following table shows how humidity affects the electrostatic voltage levels generated by different
activities.
CAUTION: A product can be degraded by as little as 700 V.
Typical electrostatic voltage levels
Relative humidity
Event 10% 40% 55%
Walking across carpet 35,000 V 15,000 V 7,500 V
Walking across vinyl floor 12,000 V 5,000 V 3,000 V
Motions of bench worker 6,000 V 800 V 400 V
Removing DIPS from plastic tube 2,000 V 700 V 400 V
Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V
Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V
Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V
Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V
Preliminary replacement requirements 33
Equipment guidelines
Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.
● When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible
straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper
ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug
connectors, use alligator clips to connect a wrist strap.
●
When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps)
can be used at standing workstations and are compatible with most types of shoes or boots. On
conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one
megohm resistance between the operator and ground. To be effective, the conductive strips
must be worn in contact with the skin.
The following grounding equipment is recommended to prevent electrostatic damage:
●
Antistatic tape
●
Antistatic smocks, aprons, and sleeve protectors
●
Conductive bins and other assembly or soldering aids
●
Nonconductive foam
● Conductive tabletop workstations with ground cords of one megohm resistance
● Static-dissipative tables or floor mats with hard ties to the ground
●
Field service kits
●
Static awareness labels
●
Material-handling packages
●
Nonconductive plastic bags, tubes, or boxes
● Metal tote boxes
● Electrostatic voltage levels and protective materials
The following table lists the shielding protection provided by antistatic bags and floor mats.
Material Use Voltage protection level
Antistatic plastic Bags 1,500 V
Carbon-loaded plastic Floor mats 7,500 V
Metallized laminate Floor mats 5,000 V
Preliminary replacement requirements 35
Produktspecifikationer
| Varumärke: | HP |
| Kategori: | Laptop |
| Modell: | Mini 210-1013eg |
Behöver du hjälp?
Om du behöver hjälp med HP Mini 210-1013eg ställ en fråga nedan och andra användare kommer att svara dig
Laptop HP Manualer
5 April 2025
5 Mars 2025
2 Februari 2025
2 Februari 2025
2 Februari 2025
2 Februari 2025
2 Februari 2025
2 Februari 2025
2 Februari 2025
7 Januari 2025
Laptop Manualer
- General Dynamics Itronix
- ADATA
- Microsoft
- Zebra
- Kogan
- Emachines
- Ibm
- Samsung
- Peaq
- Nec
- Schneider
- SPC
- Viewsonic
- Naxa
- Dell
Nyaste Laptop Manualer
3 April 2025
2 April 2025
28 Mars 2025
28 Mars 2025
26 Mars 2025
13 Mars 2025
7 Mars 2025
1 Mars 2025
26 Februari 2025
23 Februari 2025
