HP Pavilion dv6 Entertainment PC
Maintenance and Service Guide
© Copyright 2010 Hewlett-Packard
Development Company, L.P.
ATI Mobility Radeon is a registered
trademark of Advanced Micro Devices, Inc.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-
Packard Company under license. Intel,
Celeron, Core, and Pentium are trademarks
of Intel Corporation in the U.S. and
other countries. Microsoft, Windows, and
Windows Vista are U.S. registered
trademarks of Microsoft Corporation.
SD Logo is a trademark of its proprietor.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
First Edition: July 2010
Document Part Number: 597854-001
B November 2010 ●Updated commodities in the following location: Product description
on page 1.
●Added newly supported processors to spare parts listings in the following
locations: Computer major components on page 18, Sequential part number
listing 35 98on page , and Processor on page .
●Added newly supported Thermal Pad Kit to spare parts listings in the following
locations: Miscellaneous parts on page 34 and Sequential part number listing
on page 35.
●Added newly supported system boards to spare parts listings in the following
locations: Computer major components on page 18, Sequential part number
listing 35on page , and System board on page 91.
●Added newly supported display assemblies and removed obsolete display
assemblies from spare parts listings in the following locations: Computer major
components on page 18 35, Sequential part number listing on page , and
BrightView display assembly on page 77.
●Added newly supported hard drives and removed obsolete hard drives from
spare parts listings in the following locations: Computer major components
on page on page Sequential part number18, Mass storage devices 32,
listing 35 55on page , and Hard drive on page .
●Added newly supported optical drives to spare parts listings in the following
locations: Computer major components on page 18, Sequential part number
listing 35on page , and Optical drive on page 63.
●Added newly supported keyboards to spare parts listings in the following
locations: Computer major components on page 18 and Sequential part
number listing on page 35.
●Added newly supported top covers to spare parts listings in the following
locations: Computer major components on page 18, Sequential part number
listing 35 67on page , and Top cover on page .
●Added newly supported fan/heat sink assembly to spare parts listings in the
following locations: Computer major components on page 18, Sequential
part number listing on page 35, and Fan/heat sink assembly on page 95.
●Updated miscellaneous parts to spare parts listings in the following locations:
Miscellaneous parts on page 34 and Sequential part number listing
on page 35.
●Updated optical disc specifications in the following location: Blu-ray Writer
with DVD±R/RW SuperMulti DL Drive on page 110.
iv MSG revision history
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a
hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to
contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer
and the AC adapter comply with the user-accessible surface temperature limits defined by the
International Standard for Safety of Information Technology Equipment (IEC 60950).
v
vi Safety warning notice
Table of contents
1 Product description ........................................................................................................... 1
2 External component identification ..................................................................................... 6
Top components ....................................................................................................................... 6

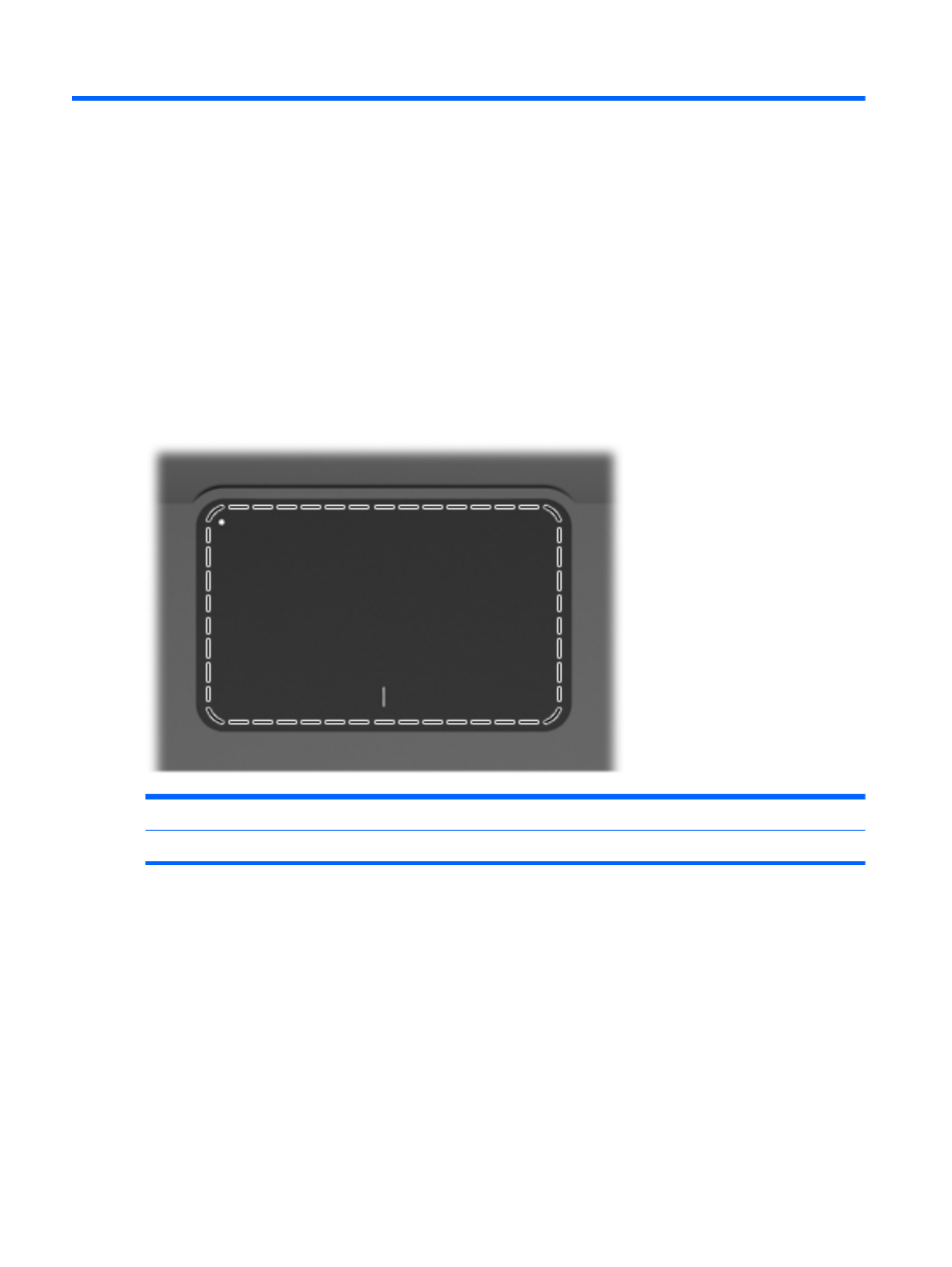

TouchPad ................................................................................................................. 6
TouchPad buttons ...................................................................................................... 7
Lights ....................................................................................................................... 8

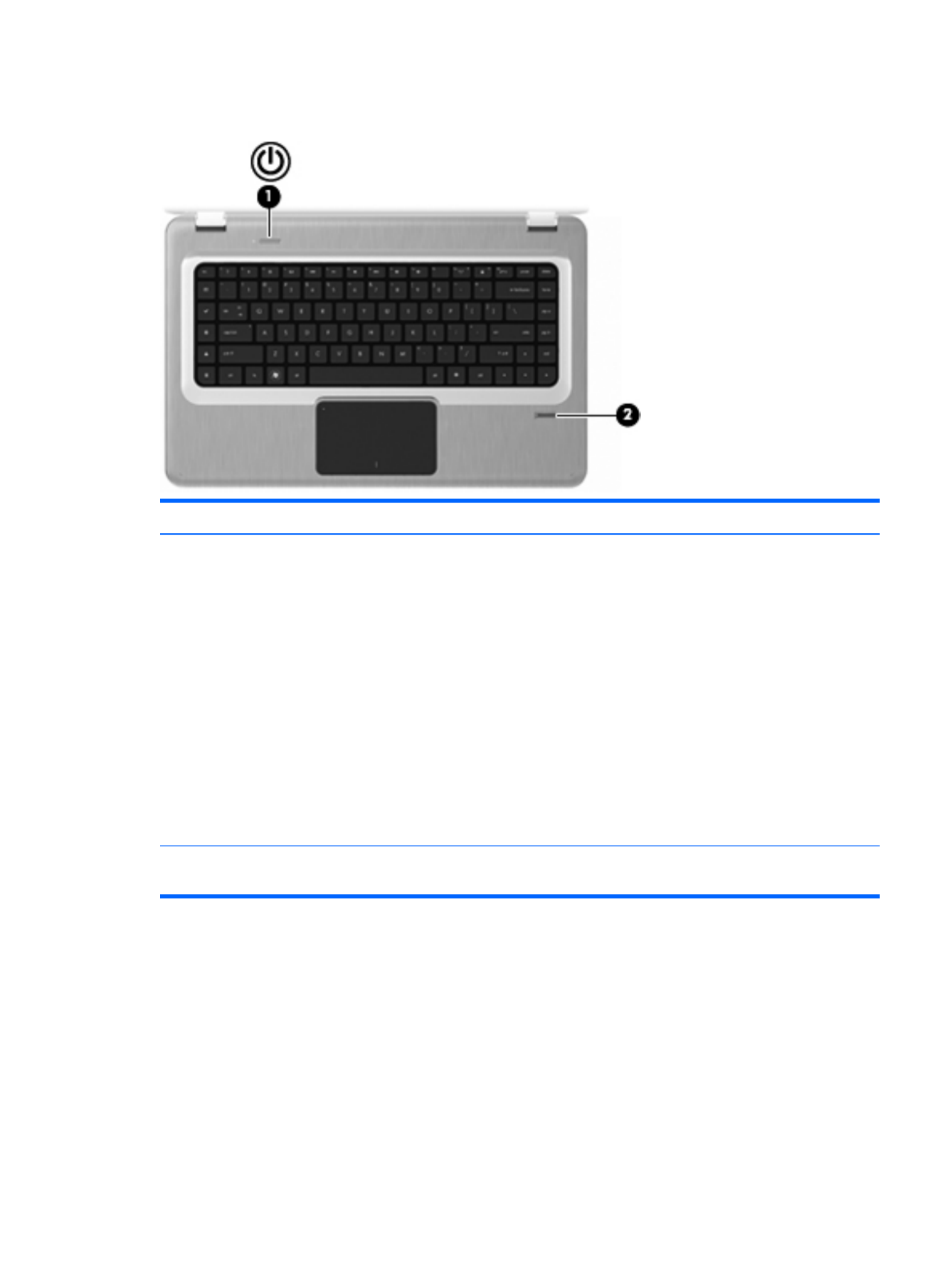

Buttons and Fingerprint Reader (select models only) ....................................................... 9

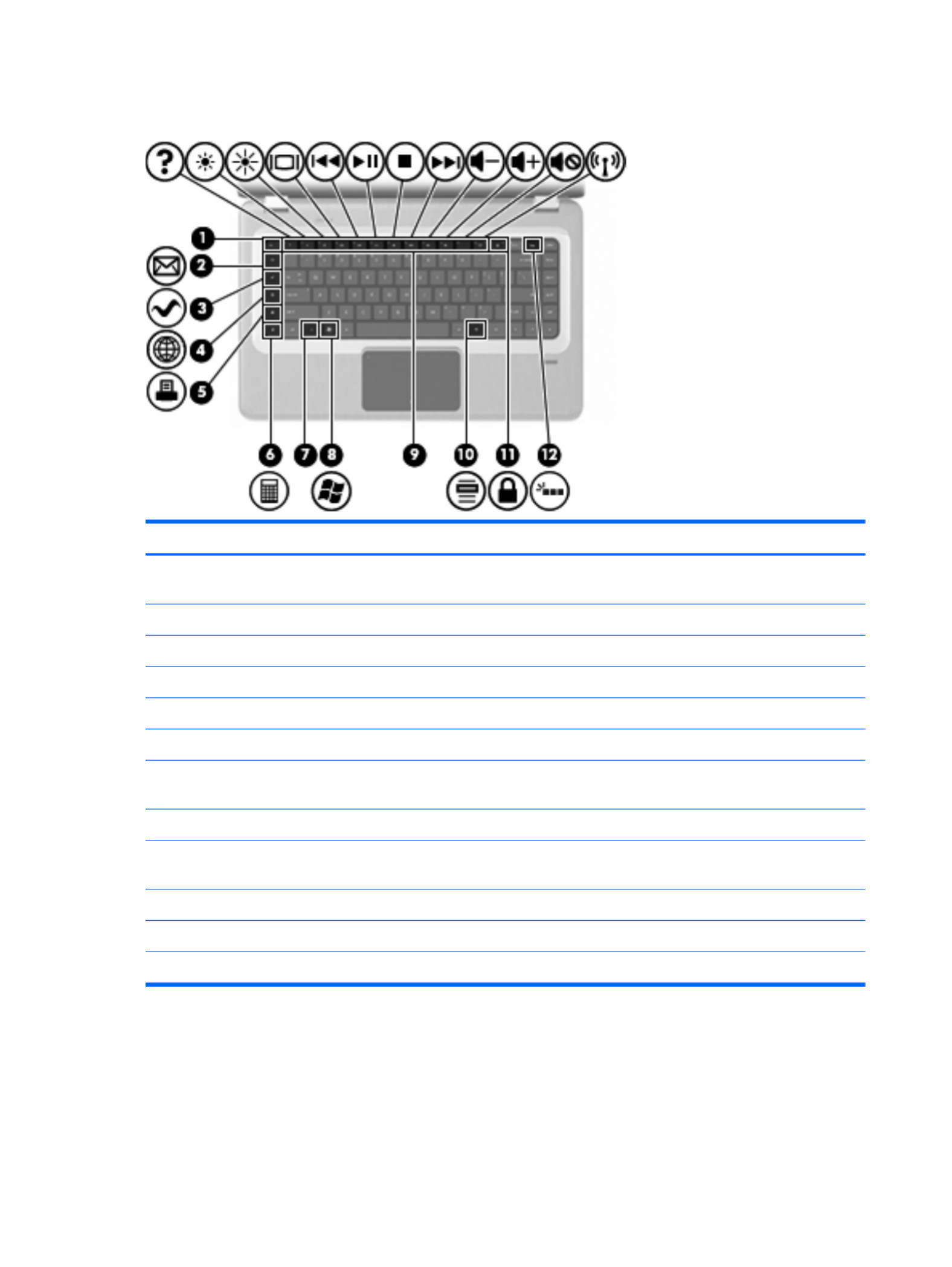

Keys ...................................................................................................................... 10

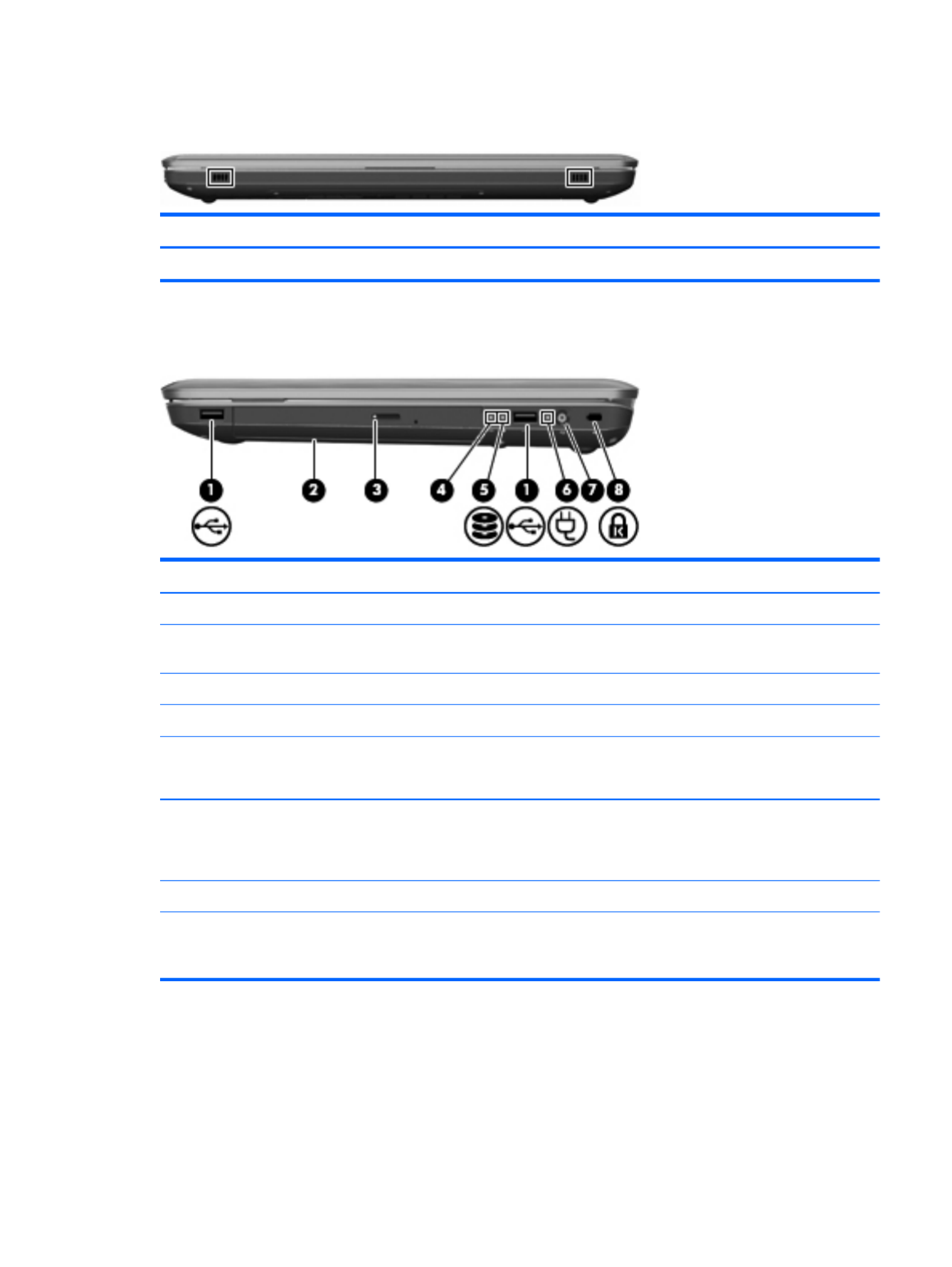

Front components ................................................................................................................... 11
Right-side components ............................................................................................................ 11

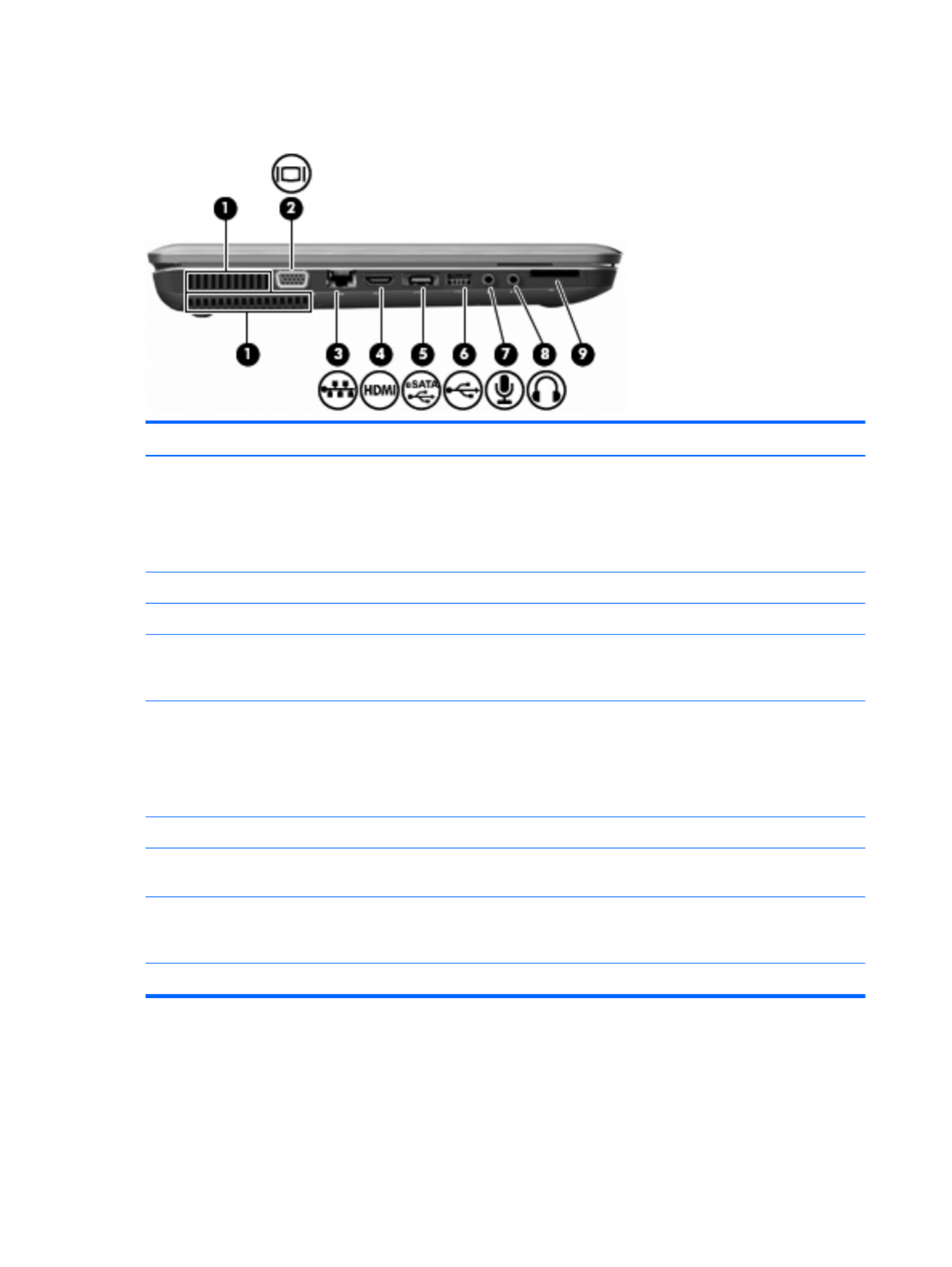

Left-side components ............................................................................................................... 12

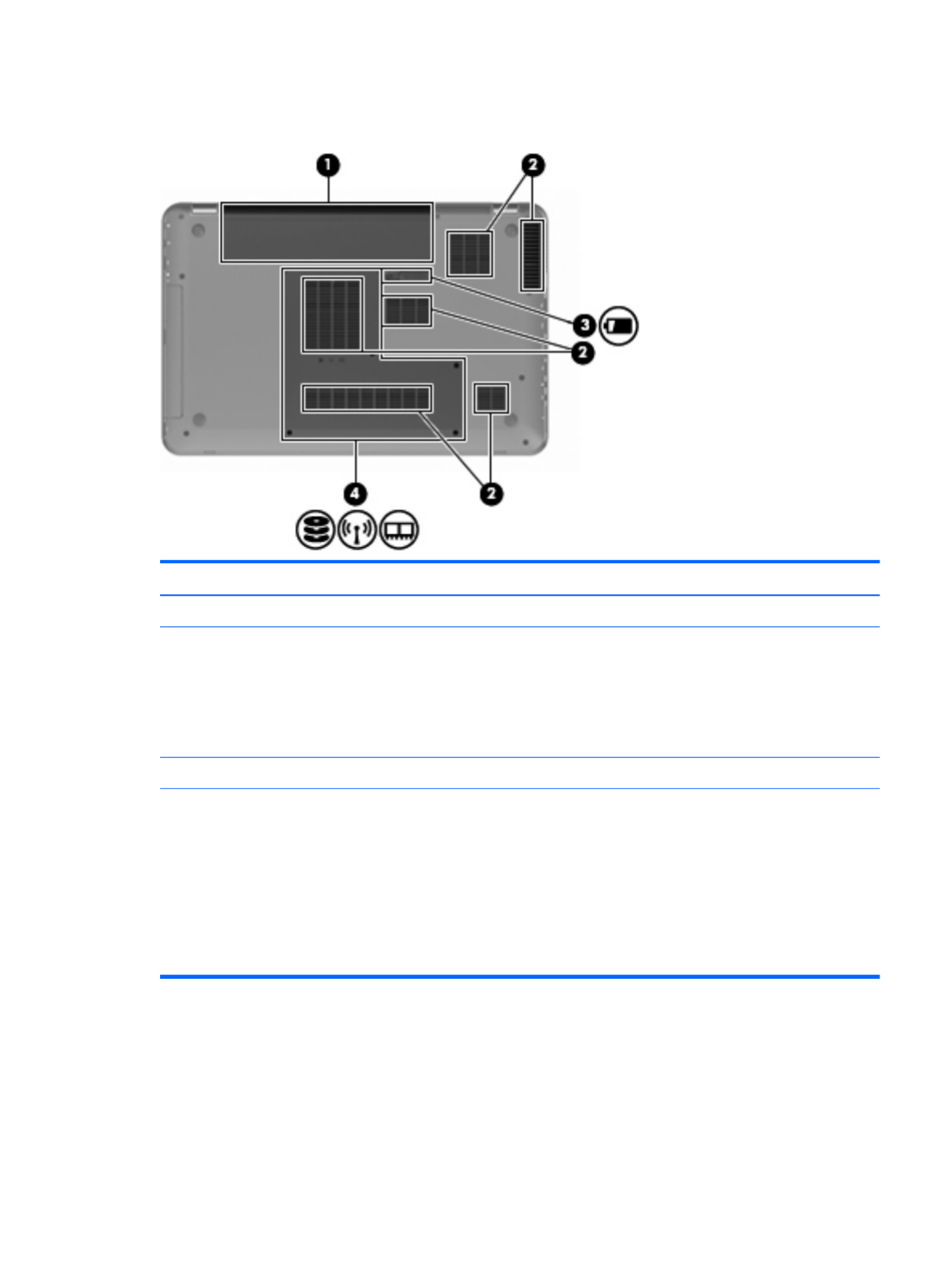

Bottom components ................................................................................................................ 13

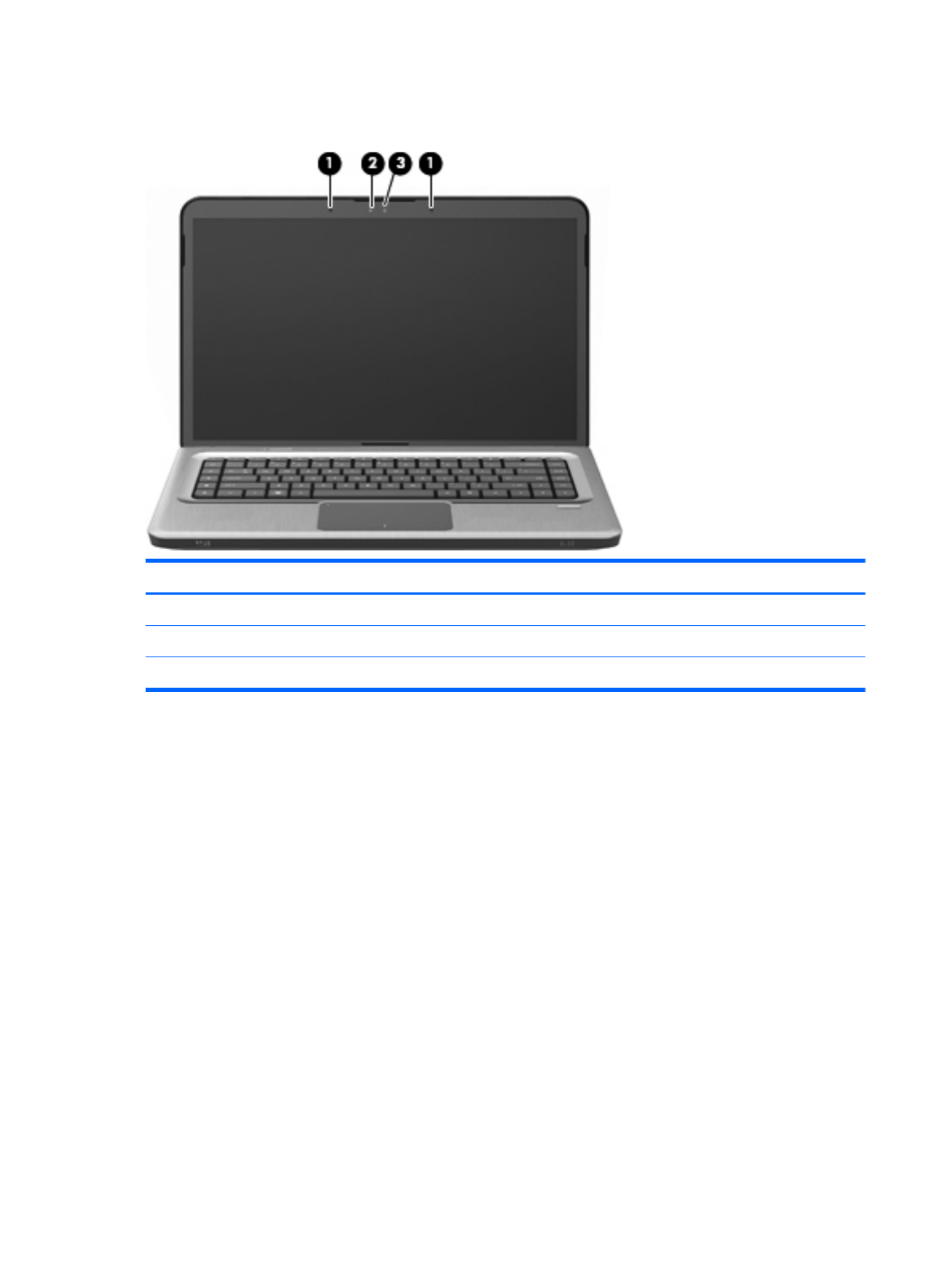

Display components ............................................................................................................... 14
Wireless antennas .................................................................................................................. 15
3 Illustrated parts catalog .................................................................................................. 16

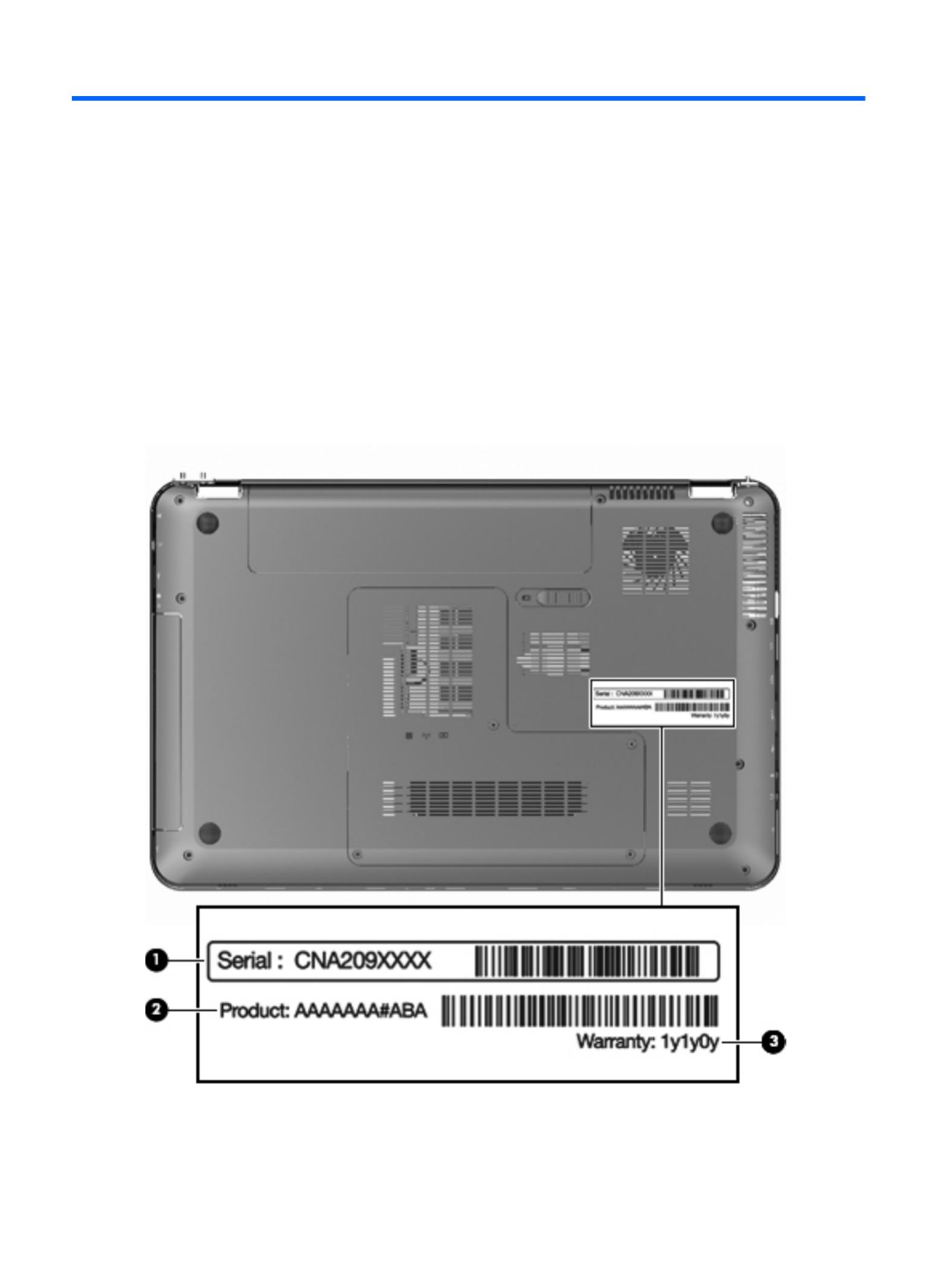

Service tag ............................................................................................................................ 16

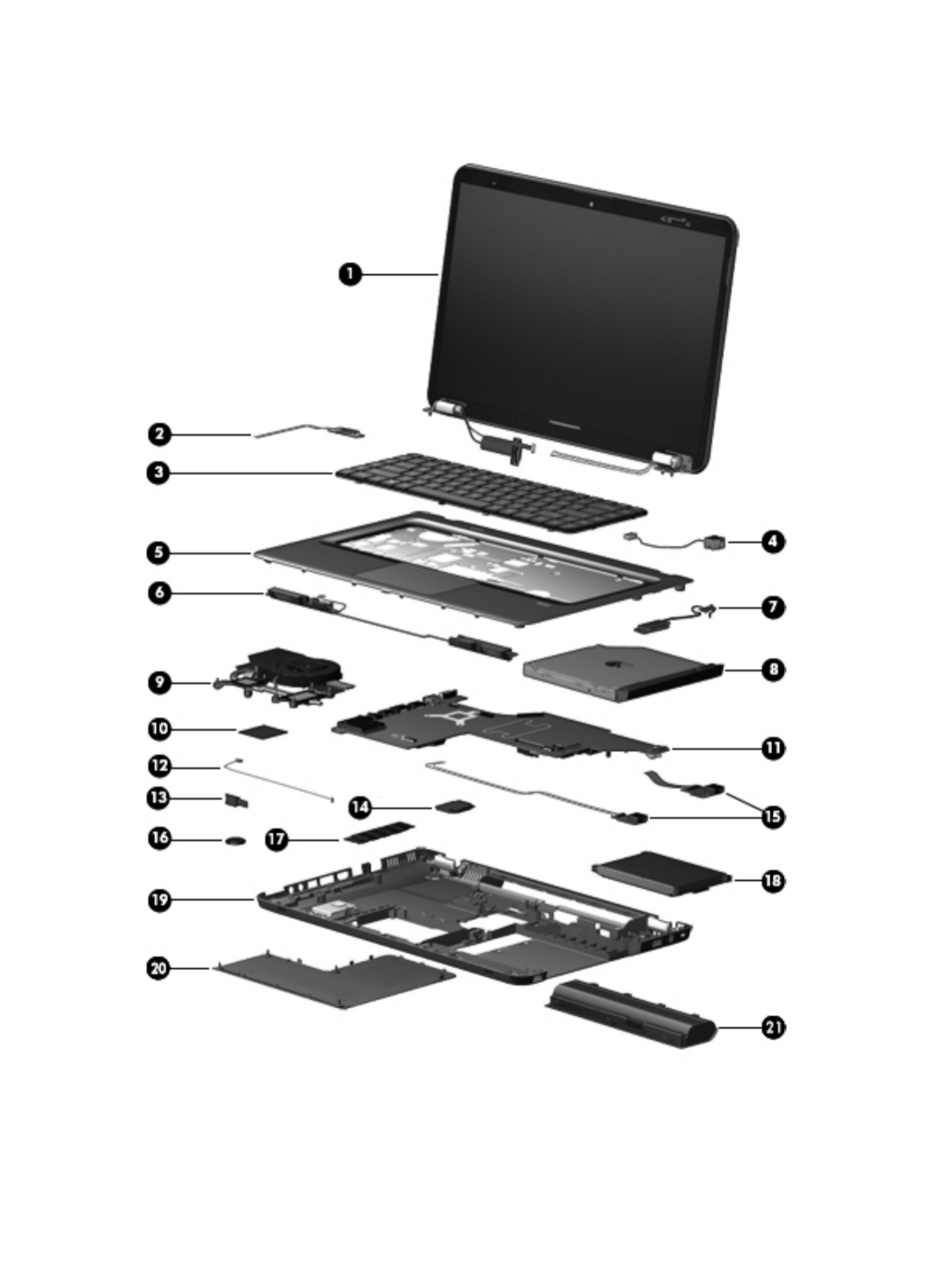

Computer major components ................................................................................................... 18

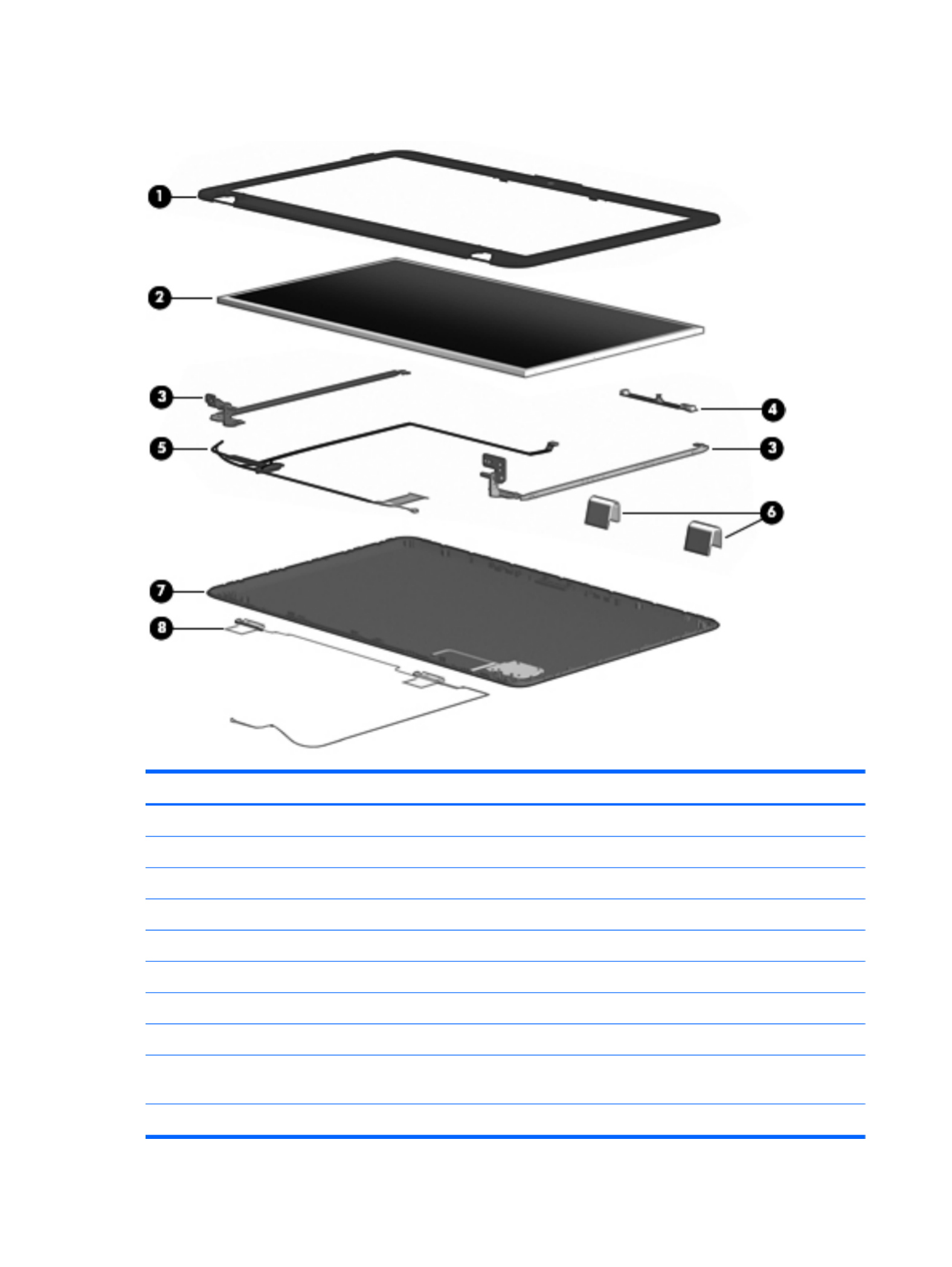

Display assembly components ................................................................................................. 28
Touchscreen display assembly spare parts .................................................................. 29
BrightView display assembly spare parts .................................................................... 30

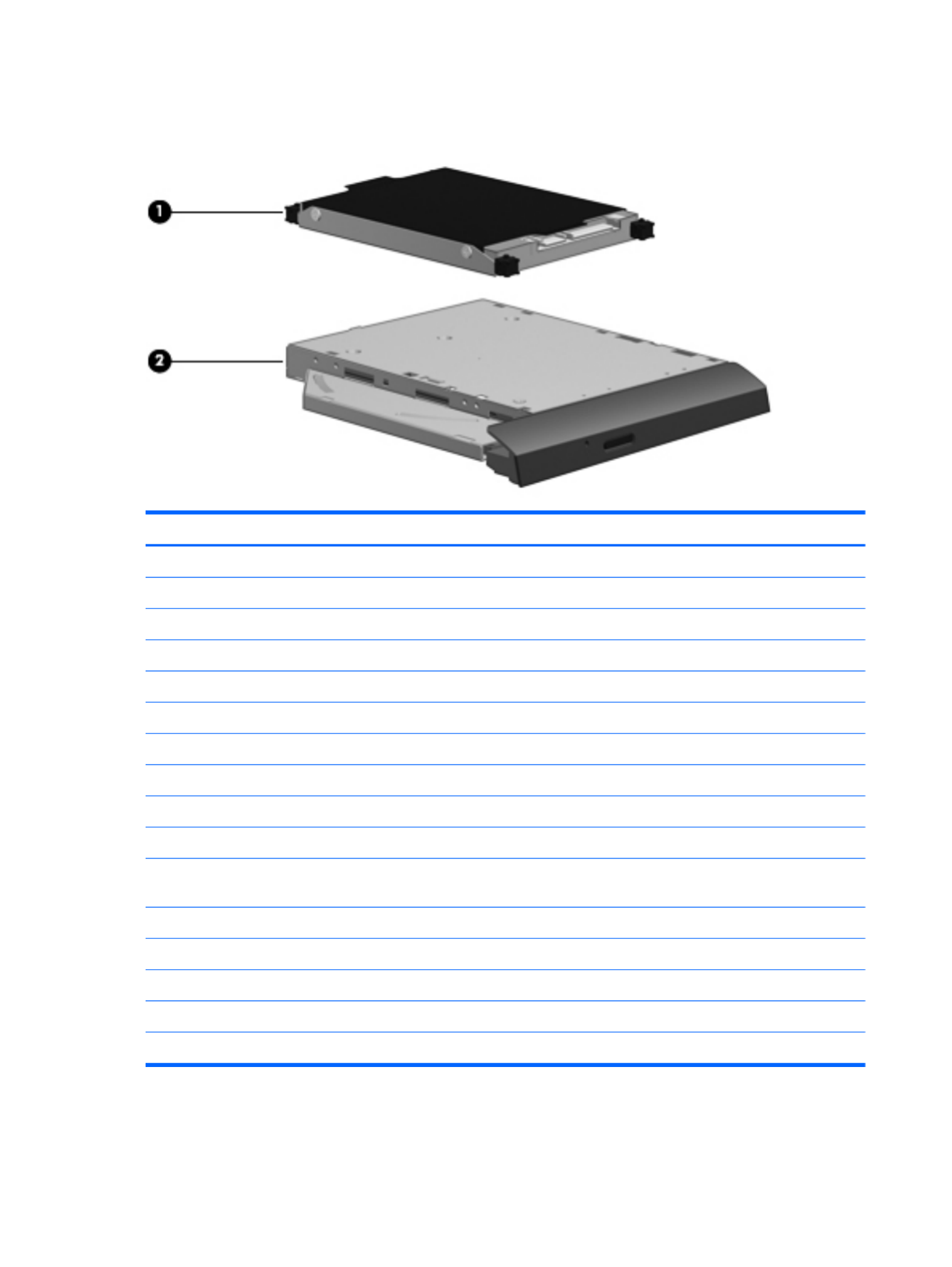

Mass storage devices ............................................................................................................. 32
Plastics Kit ............................................................................................................................. 33
Miscellaneous parts ................................................................................................................ 34
Sequential part number listing .................................................................................................. 35
4 Removal and replacement procedures ............................................................................ 45
Preliminary replacement requirements ....................................................................................... 45
Tools required ......................................................................................................... 45
Service considerations ............................................................................................. 45
vii
Plastic parts ............................................................................................. 45
Cables and connectors ............................................................................. 46
Drive handling ......................................................................................... 46
Grounding guidelines .............................................................................................. 47
Electrostatic discharge damage .................................................................. 47
Packaging and transporting guidelines ........................................ 48
Workstation guidelines .............................................................. 48
Equipment guidelines ................................................................. 49
Component replacement procedures ........................................................................................ 50
Service tag ............................................................................................................. 50

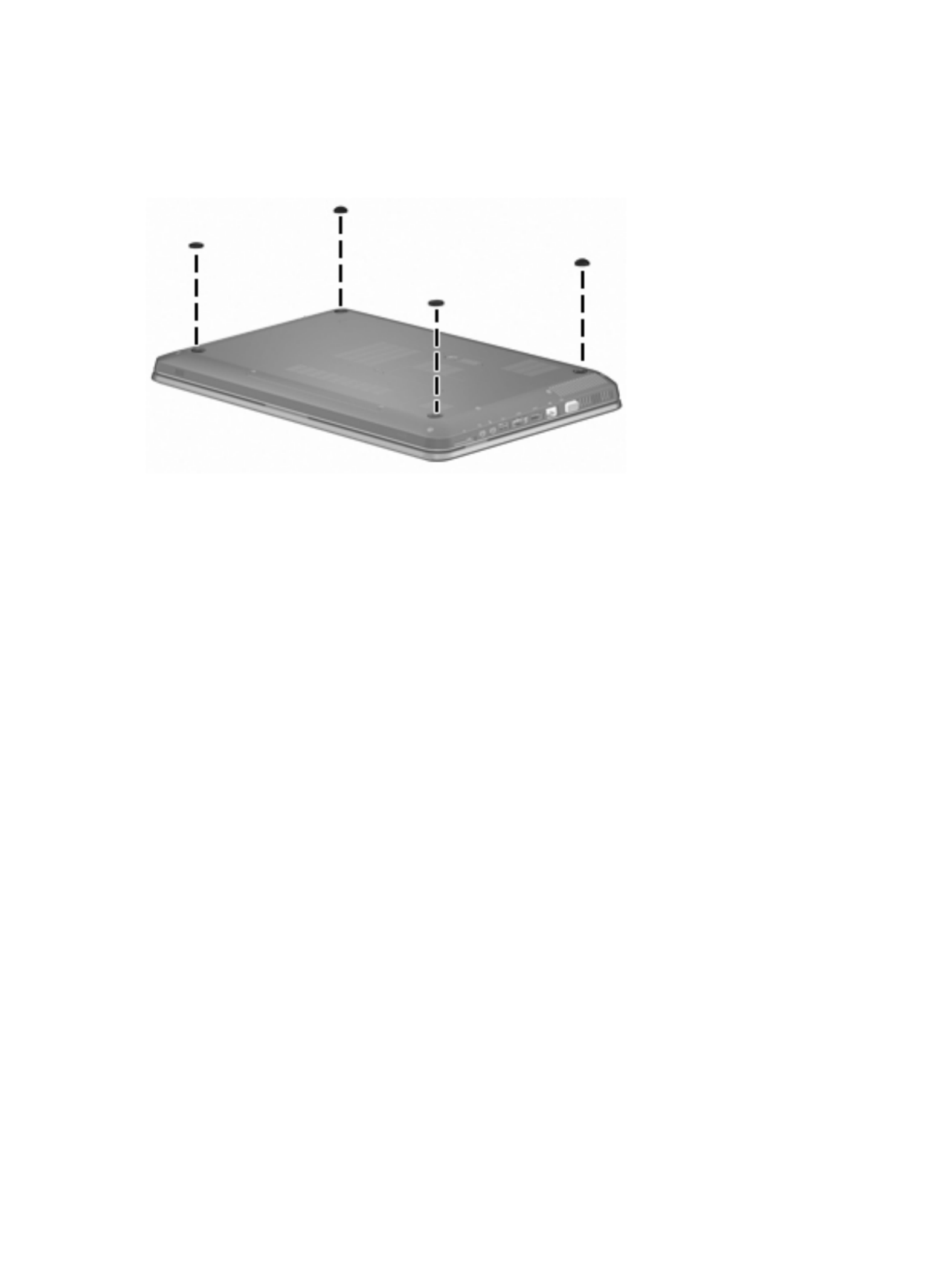

Computer feet ......................................................................................................... 52
Battery ................................................................................................................... 53

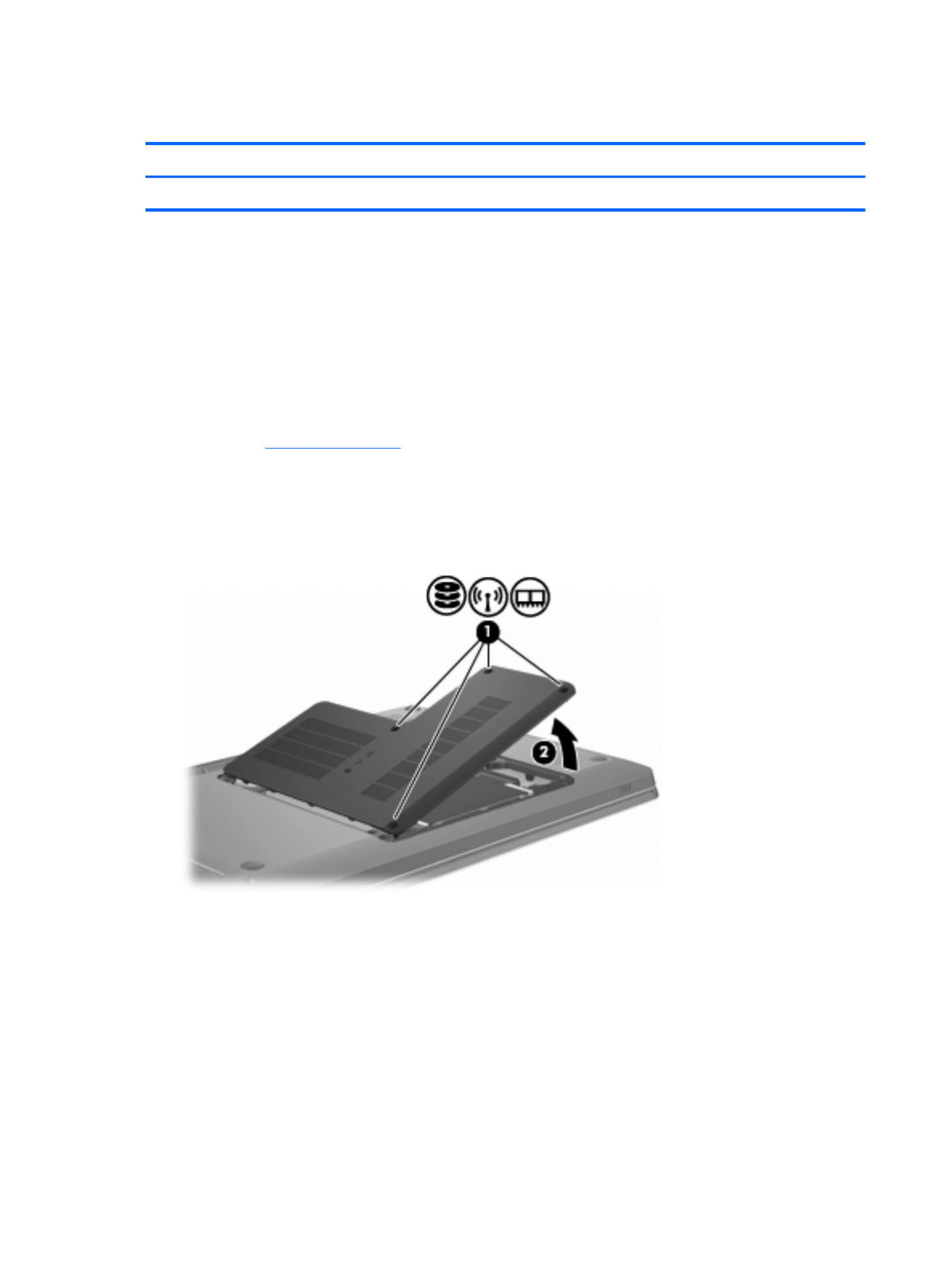

Hard drive cover ..................................................................................................... 54

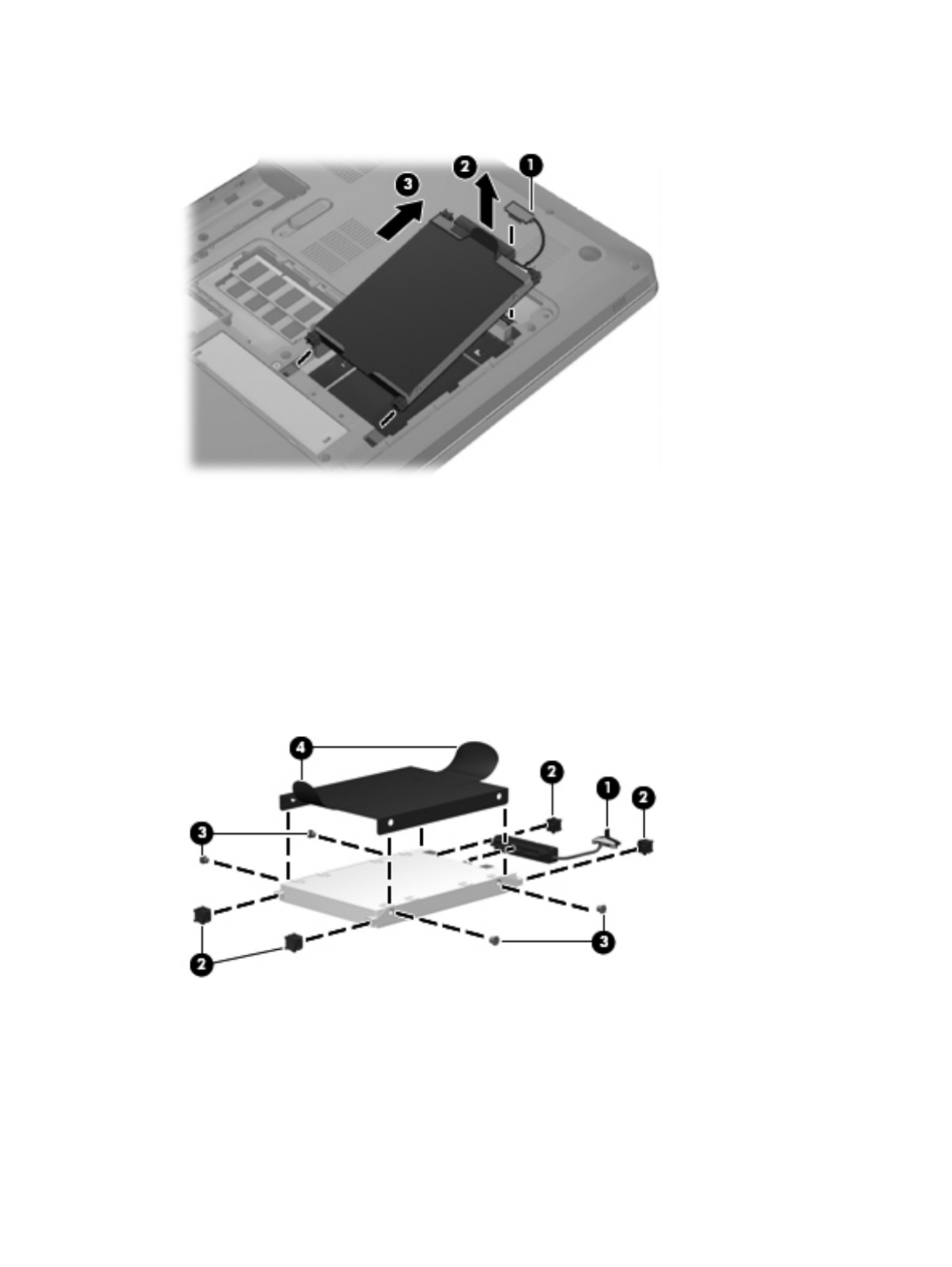

Hard drive ............................................................................................................. 55

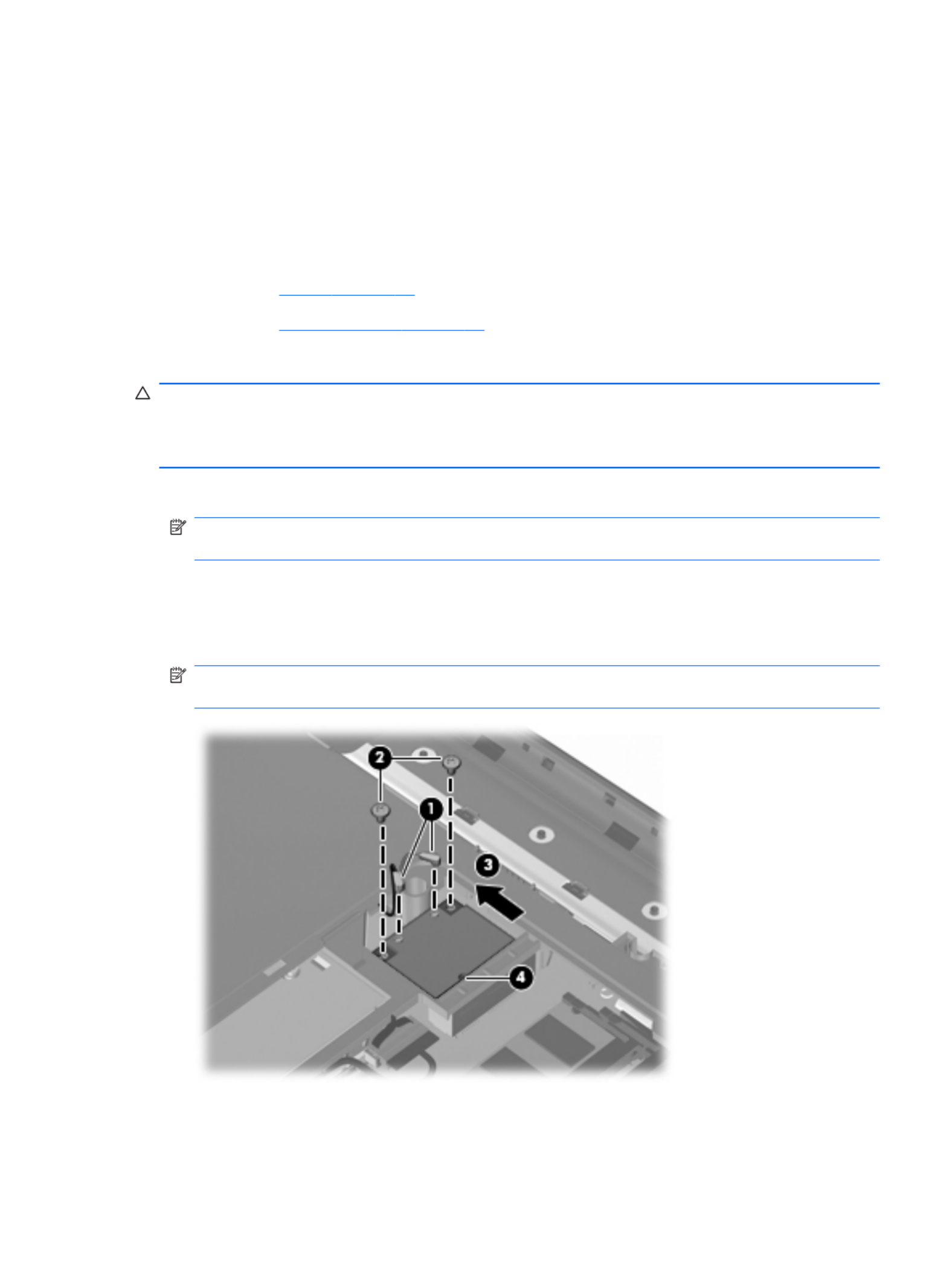

WLAN module ........................................................................................................ 57

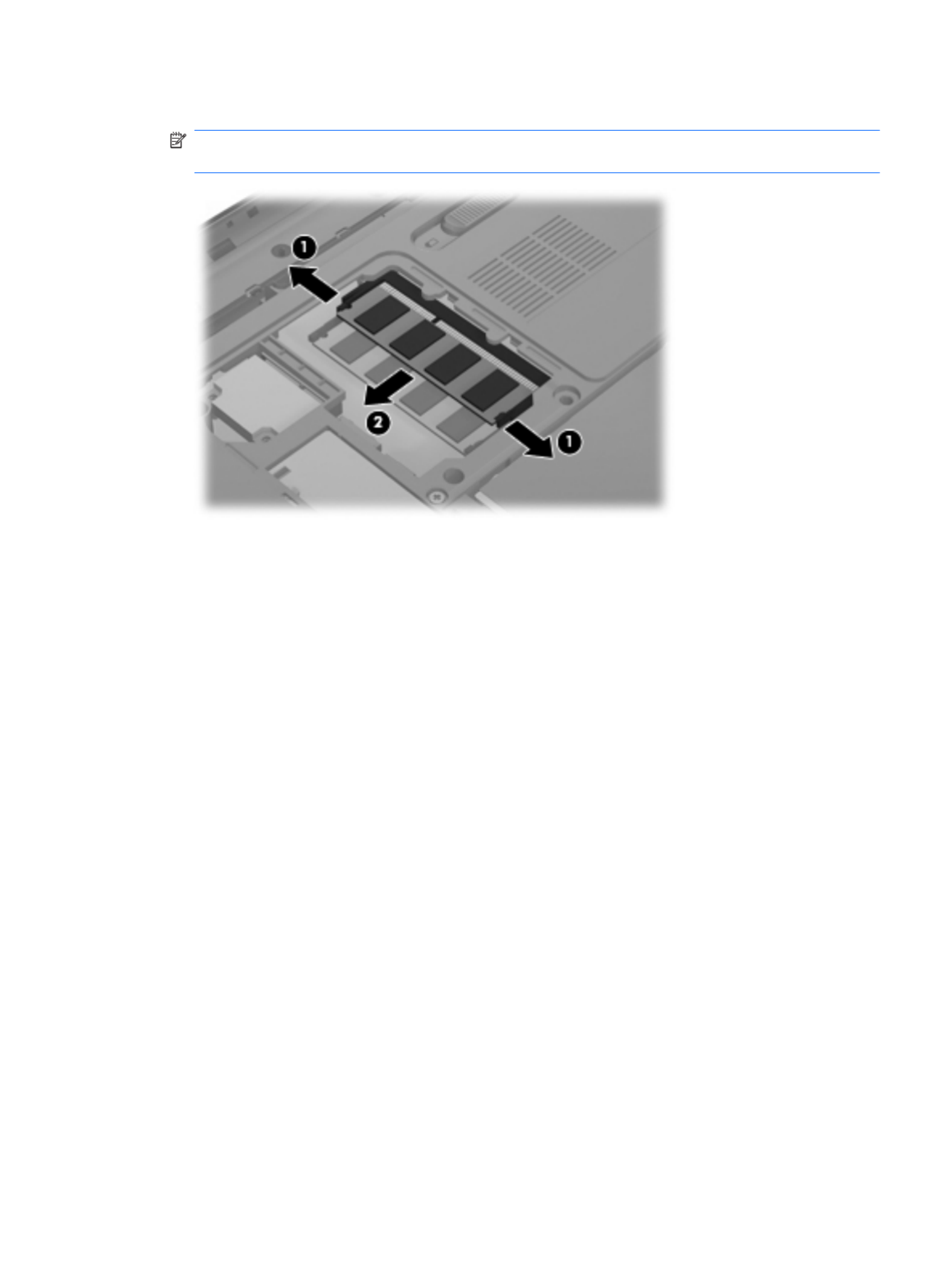

Memory module ...................................................................................................... 60

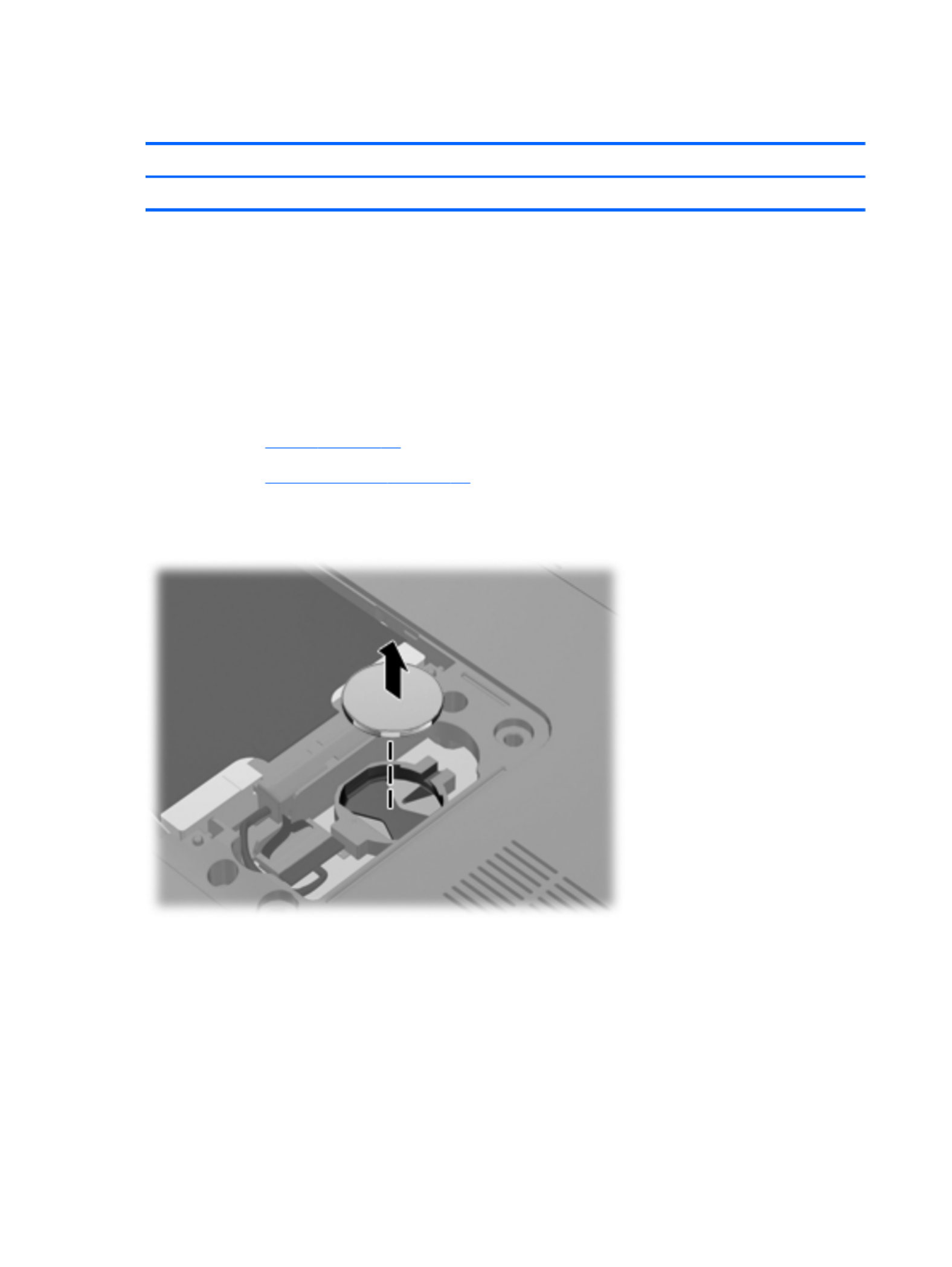

RTC battery ............................................................................................................ 62
Optical drive .......................................................................................................... 63
Keyboard ............................................................................................................... 65
Top cover ............................................................................................................... 67
Power button board ................................................................................................. 70
Touchscreen display assembly .................................................................................. 72

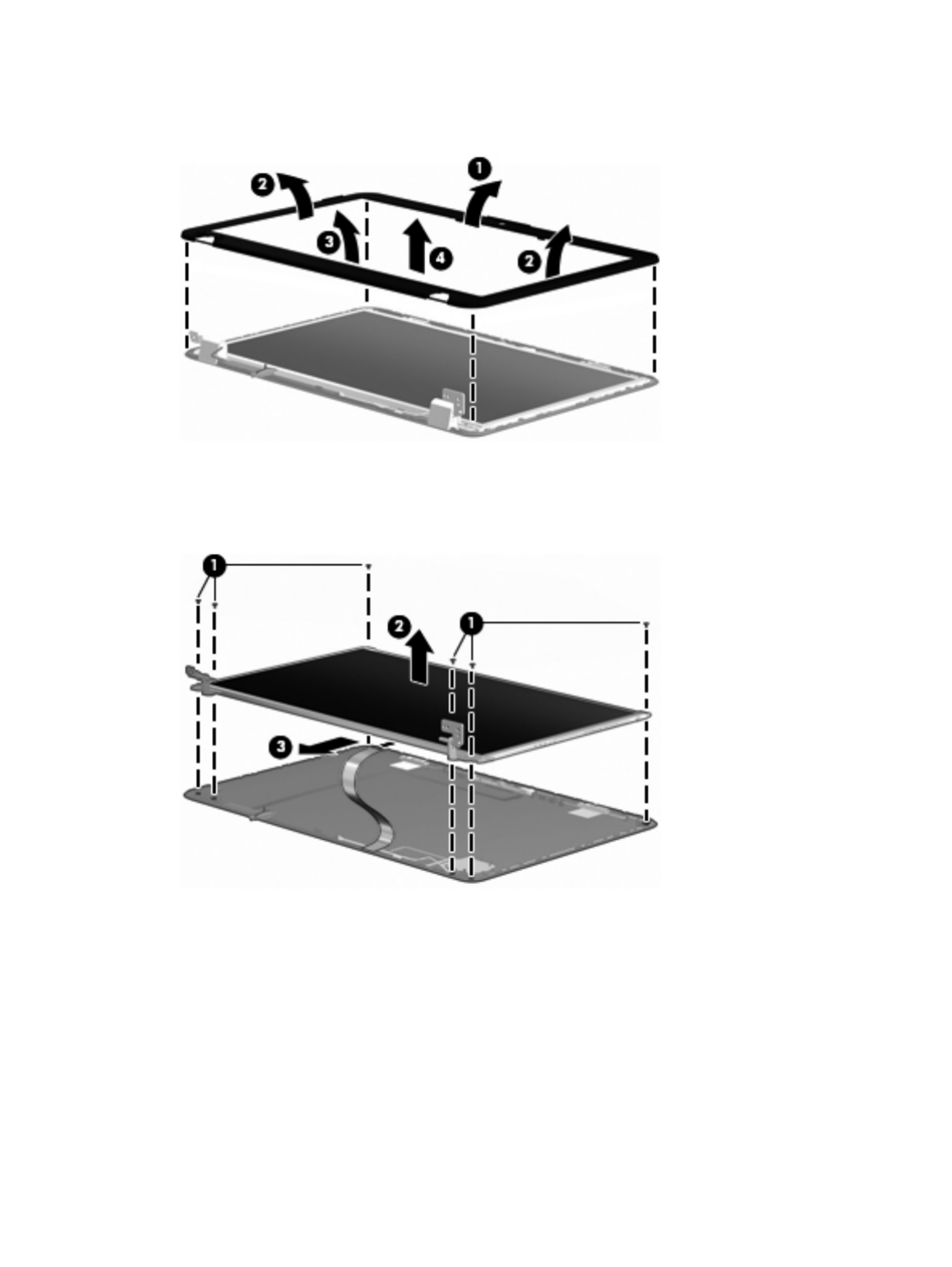

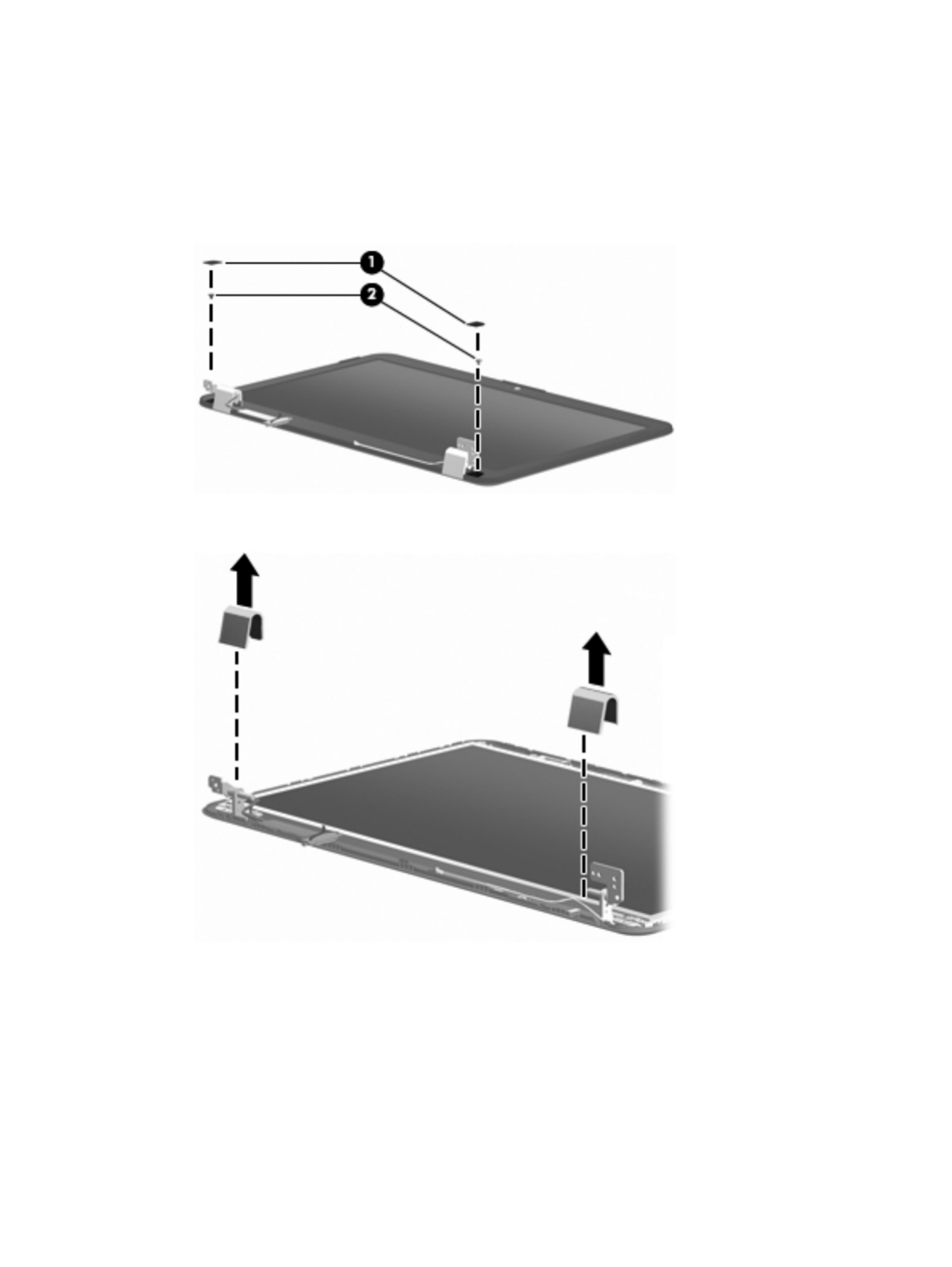

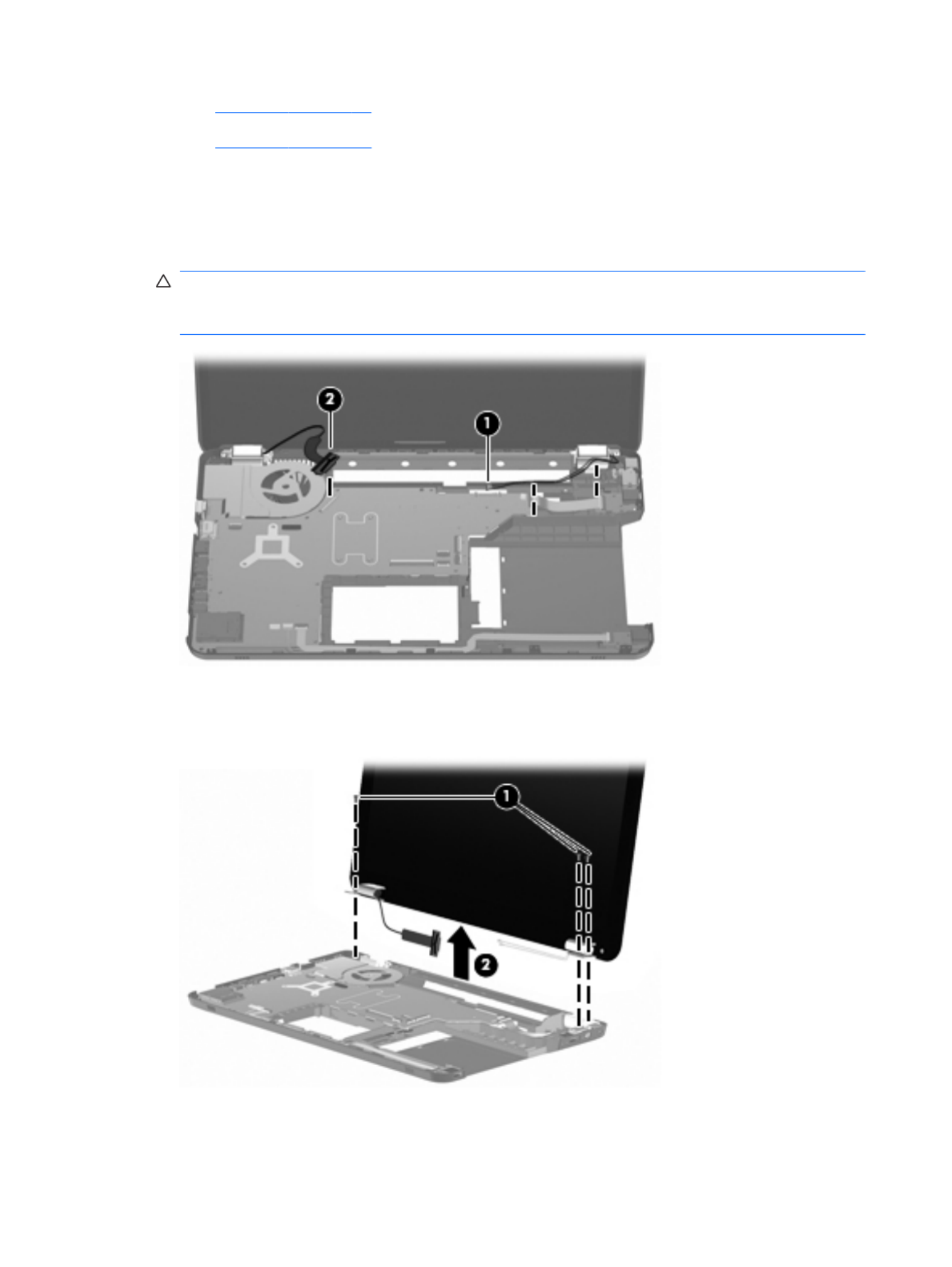

BrightView display assembly .................................................................................... 77
Webcam/microphone module .................................................................................. 82
Bluetooth module .................................................................................................... 83

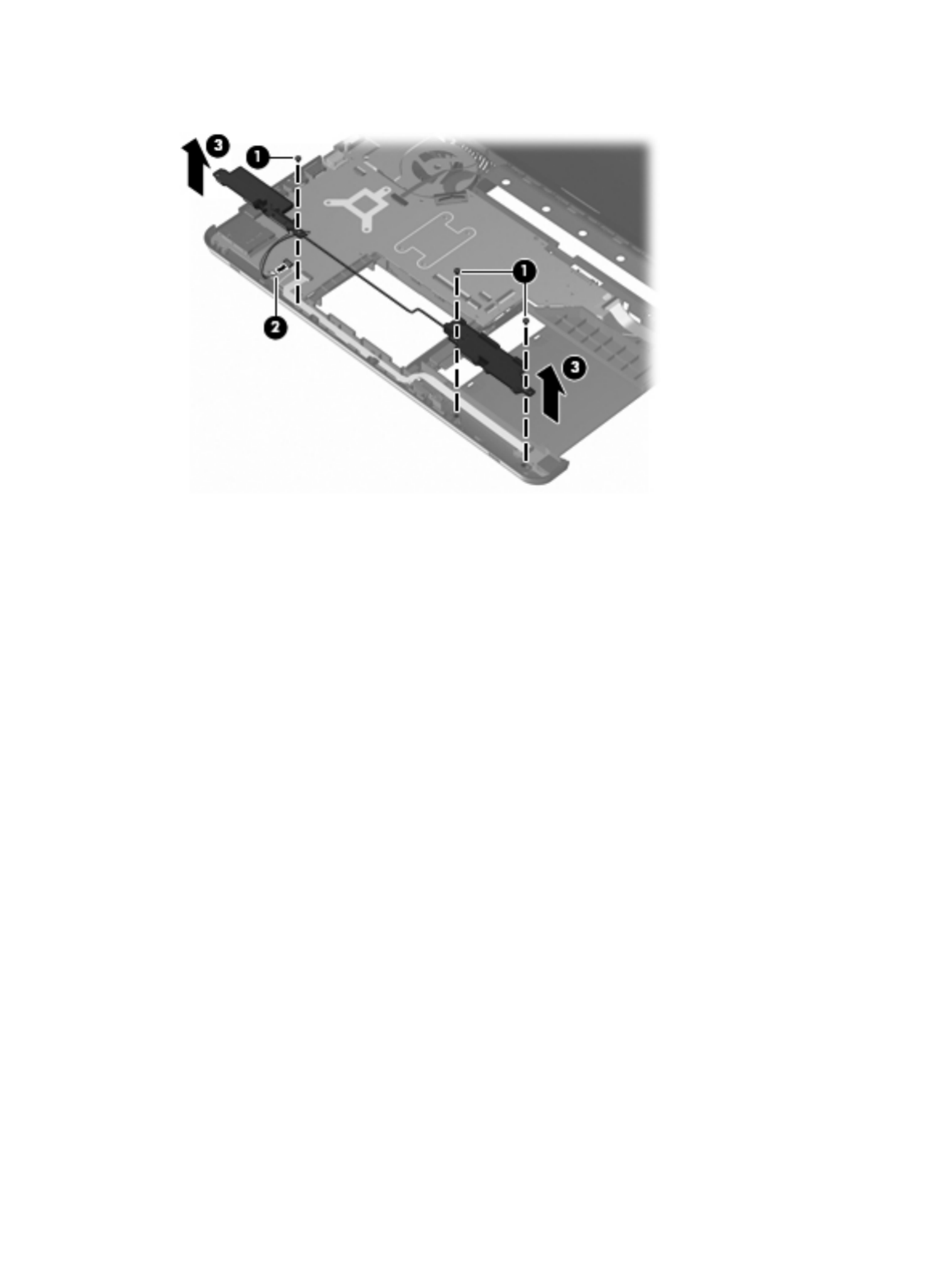

Speaker assembly ................................................................................................... 85
USB board ............................................................................................................. 87
Power connector ..................................................................................................... 89
System board ......................................................................................................... 91
Fan/heat sink assembly ........................................................................................... 95
Processor ............................................................................................................... 98
5 Setup Utility (BIOS) ....................................................................................................... 100
Starting Setup Utility ............................................................................................................. 100
Using Setup Utility ................................................................................................................ 100
Changing the language of Setup Utility .................................................................... 100
Navigating and selecting in Setup Utility .................................................................. 101
Displaying system information ................................................................................. 101
Restoring default settings in Setup Utility ................................................................... 102
Exiting Setup Utility ............................................................................................... 102
Setup Utility menus ............................................................................................................... 103
viii
RJ-11 (modem) ..................................................................................................................... 133
Universal Serial Bus .............................................................................................................. 133
9 Power cord set requirements ........................................................................................ 134
Requirements for all countries or regions ................................................................................. 134
Requirements for specific countries or regions .......................................................................... 135
10 Recycling .................................................................................................................... 136
Battery ................................................................................................................................ 136
Display ............................................................................................................................... 136
Index ............................................................................................................................... 140
x
1 Product description
Category Description
Product Name HP Pavilion dv6 Entertainment PC
Processors Intel® Core™ 2 Quad Intel Core i7 Processors
Intel Core i7-840QM processor with 1.86 GHz, SC turbo up to 3.2 GHz, Quad 45 W
Intel Core i7-820QM processor with 1.73 GHz, SC turbo up to 3.06GHz, Quad 45 W
Intel Core i7-740QM processor with 1.73 GHz, SC turbo up to 2.93 GHz, Quad 45 W
Intel Core i7-720QM processor with 1.6 GHz, SC turbo up to 2.8 GHz, Quad 45 W
Intel Core 2 Duo Intel Core i5 Processors
Intel Core i5-580M processor with 2.66 GHz, SC turbo up to 3.33 GHz, Dual 35 W
Intel Core i5-560M processor with 2.66 GHz, SC turbo up to 3.33 GHz, Dual 35 W
Intel Core i5-540M processor with 2.53 GHz, SC turbo up to 3.06 GHz, Dual 35 W
Intel Core i5-520M processor with 2.4 GHz, SC turbo up to 2.93 GHz, Dual 35 W
Intel Core i5-480M processor with 2.66 GHz, SC turbo up to 2.93 GHz, Dual 35 W
Intel Core i5-460M processor with 2.53 GHz, SC turbo up to 2.8 GHz, Dual 35 W
Intel Core i5-450M processor with 2.4 GHz, SC turbo up to 2.66 GHz, Dual 35 W
Intel Core i5-430M processor with 2.26 GHz, SC turbo up to 2.53 GHz, Dual 35 W
Intel Core i3 Processors
Intel Core i3-390M processor with 2.66 GHz, Dual 35 W
Intel Core i3-380M processor with 2.53 GHz, Dual 35 W
Intel Core i3-370M processor with 2.4 GHz, Dual 35 W
Intel Core i3-350M processor with 2.26 GHz, Dual 35 W
Intel Pentium P6 Processors
Intel Pentium P6300 processor with 2.26 GHz
Intel Pentium P6200 processor with 2.13 GHz
Intel Pentium P6100 processor with 2.00 GHz
Intel Pentium P6000 processor with 1.86 GHz
1
Category Description
Chipset Intel HM55 Express Chipset
Graphics Intel HD graphics
Switchable discrete graphics
ATI Capilano Pro (ATI Mobility Radeon™ HD 6550) graphics with 1024-MB of dedicated
video memory (64MB x 16 DDR3 @ 800 MHz x 8 pcs) and 128-MB of sideport video
memory
ATI Robson XT (ATI Mobility Radeon HD 63 of dedicated video70) graphics with 512-MB
memory (64MB x 16 DDR3 @ 800 MHz x 4 pcs) and 128-MB of sideport video memory
ATI Madison Pro (ATI Mobility Radeon HD 5650) graphics with 1024-MB of dedicated
video memory (64MB x 16 DDR3 @ 800 MHz x 8 pcs) and 128-MB of sideport video
memory
ATI Park XT (ATI Mobility Radeon HD 5470) graphics with 512-MB of dedicated video
memory (64MB x 16 DDR3 @ 800 MHz x 4 pcs) and 128-MB of sideport video memory
Supports Blu-ray and/or HD-DVD playback with HD Decode, DX11 support
and HDMI support
Panels 39.6-cm (15.6-inch) SVA HD LED BrightView (1366x768) (5.5 mm max)
39.6-cm (15.6-inch) HD+ LED Touchscreen
Supports lighted logo on top bezel
Memory Two customer-accessible/upgradeable SODIMM slots
DDR3 PC3-10600 1333-MHz memory
Supports dual channel
DDR3/1333-MHz and DDR3/1066-MHz (only computer models equipped with the Intel
Core i7-840QM 1.86 GHz processor, the Intel Core i7-820QM 1.73GHz processor, the
Intel Core i7-740QM 1.73 GHz processor, and the Intel Core i7-720QM 1.6 GHz
processor run at DDR3/1333-MHz; all other computer models run at DDR3/1066-MHz)
Supports up to 8 GB system memory in the following configurations:
1024-MB total system memory (1024 MB x 1)
2048-MB total system memory (1024 MB x 2, dual-channel)
2048-MB total system memory (2048 MB x 1)
3072-MB total system memory (1024 MB x 1 + 2048 MB x 1)
4096-MB total system memory (2048 MB x 2, dual-channel)
6144-MB total system memory (2048 MB x 1 + 4096 MB x 1)
8192-MB total system memory (4096 MB x 2, dual-channel)
Hard drives Supports 6.35-cm (2.5-in) hard drives (HD), 12.7-mm (.50-in), and 9.5-mm (.37-in)
thicknesses
Supports one hard drive
Supports solid state drives (SSD)
2 Chapter 1 Product description
Category Description
Supports Accelerometer Hard Drive Protection
Single hard drive configurations:
160-GB SSD
250 GB (7200 rpm, 9.5 mm)
320 GB (7200 rpm, 9.5 mm)
500 GB (7200 rpm, 9.5 mm)
640 GB (5400 rpm and 7200 rpm, 9.5 mm)
750 GB (5400 rpm and 7200 rpm, 9.5 mm)
1 TB (5400 rpm, 12.7 mm)
Optical drives 12.7-mm tray load
Serial ATA (SATA)

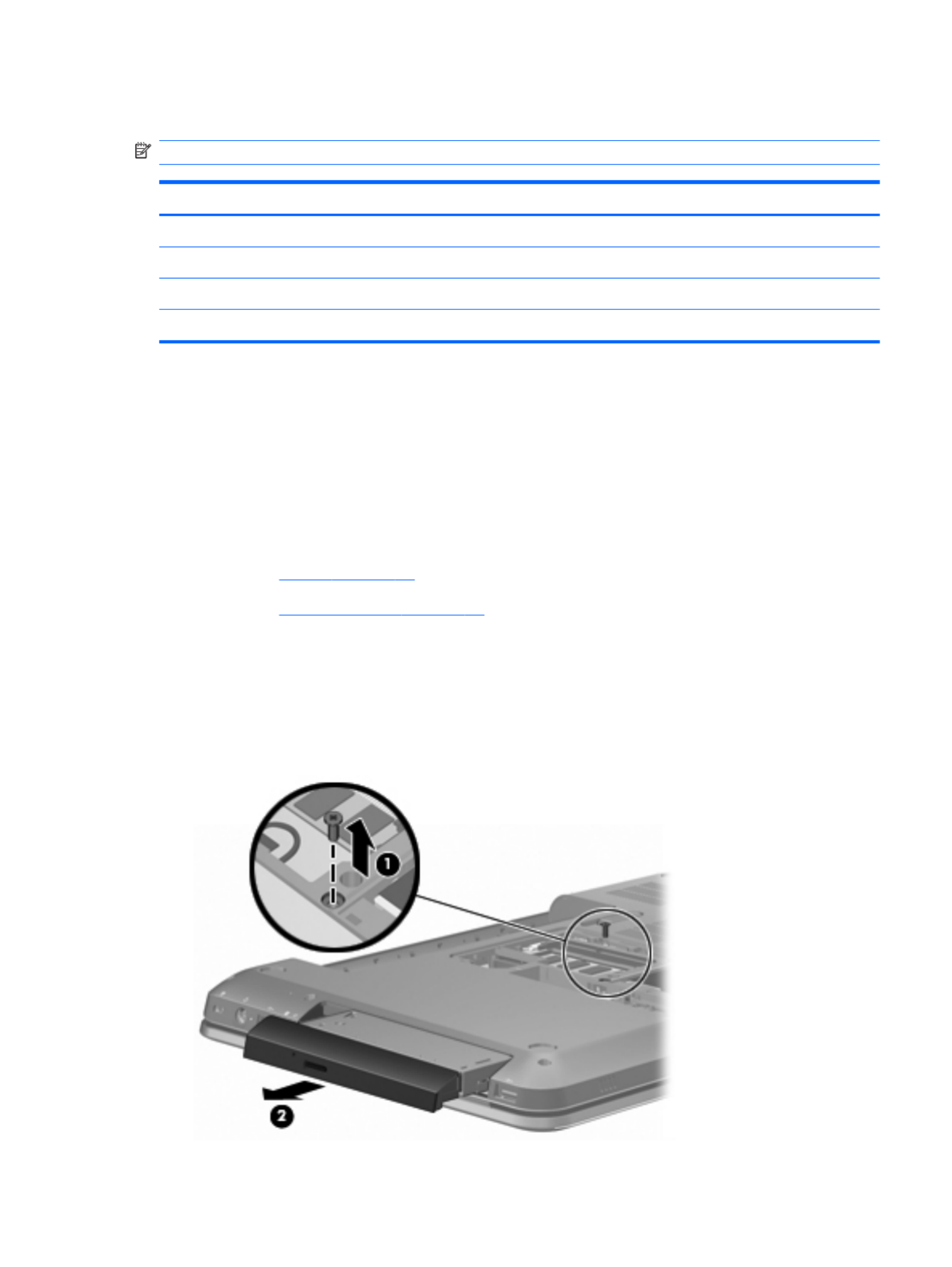

Fixed (removal of one screw required)
Supports the following optical drives:
LightScribe DVD±R/RW SuperMulti DL Drive
DVD±R/RW SuperMulti DL Drive
Blu-ray ROM with LightScribe DVD±R/RW SuperMulti DL Drive
Blu-ray ROM with DVD±R/RW SuperMulti DL Drive
Blu-ray Writer with DVD±R/RW SuperMulti DL Drive
Webcam Low-light VGA camera
Fixed (no tilt)
Activity LED
640 × 480 by 24 frames per second
Microphone 2 omnidirectional microphones, dual-array with appropriate software (supports beam
forming, echo cancellation, and noise suppression)
Audio HD Audio
Dolby advance audio
Integrated subwoofer
Supports Microsoft® Premium Requirements
Pavilion-branded Altec Lansing speakers
Ethernet Integrated 10/100/1000 network interface card (NIC)
Wireless Integrated wireless local area network (WLAN) options by way of wireless
module:
Atheros AR9285 802.11b/g/n 1x1 WLAN module
3
Category Description
Clickpad
Multitouch gestures enabled as default
Taps enabled as default
Power requirements 6-cell, 55-Wh, 2.55-Ah Li-ion battery
6-cell, 62-Wh, 2.8-Ah Li-ion battery
9-cell, 93-Wh, 2.8-Ah Li-ion battery
65-W AC adapter
90-W AC adapter
120-W AC adapter
65-W slim travel adapter (smart-pin)
Security Security cable slot
Fingerprint reader with Digital Persona software support (select models only)
Operating system Preinstalled:
Windows® 7 Professional (32 and 64 bit)
Windows 7 Home Premium (32 and 64 bit)
Windows 7 Home Basic (32 and 64 bit)
FreeDOS
Serviceability AC adapter
Battery (system)
Hard drive
Memory module
Optical drive
Mini Card components
5
2 External component identification
Top components
TouchPad
Component Function
TouchPad Moves the pointer and selects or activates items on the screen.
To view or change the pointing device preferences:
1. Select Start .> Devices and Printers
2. Right-click the device representing the computer.
3. Select Mouse settings.
6 Chapter 2 External component identification
Buttons and Fingerprint Reader (select models only)
Item Description Function
(1) Power button Press the Power button to:
●Turn on the computer.
●Initiate Sleep.
●Exit Sleep.
●Exit Hibernation.
If the computer has stopped responding and Windows
shutdown procedures are ineffective, press and hold the
Power button for at least five seconds to shut down the
computer.
For more information about the power settings, select
Start > Control Panel > System and Security >
Power Options.
(2) Fingerprint Reader (select models only) Allows a fingerprint logon to Windows, instead of a
password logon.
For information about changing the factory settings, see Help and Support.
Top components 9
Keys
Item Description Function
(1) esc esc key Press the and fn keys at the same time to display
system information.
(2) E-mail key Opens a new e-mail in the default e-mail client.
(3) Media Application key Launches the MediaSmart application.
(4) Web Browser key Launches the default web browser.
(5) Print key Sends the currently-active document to the default printer.
(6) Calculator key Launches the Calculator application.
(7) fn fn key Press the key at the same time as a function key or the
esc key to execute frequently used system functions.
(8) Windows Logo key Displays the Windows Start menu.
(9) Function keys Press a function key and the fn key at the same time to
execute frequently used system functions.
(10) Windows Application key Displays a shortcut menu for items beneath the pointer.
(11) QuickLock key Initiates QuickLock.
(12) Backlight key Turns the backlit keyboard on or off.
10 Chapter 2 External component identification
Front components
Description Function
Speakers Produce sound.
Right-side components
Item Description Function
(1) USB ports (2) Connect optional USB devices.
(2) Optical drive Reads optical discs and, on select models, writes to
optical discs.
(3) Optical Drive light Flashing—Accessing the optical drive.
(4) Hibernate light White—The computer is in Hibernate.
(5) Hard Disk Drive light ●White—The hard disk drive is active.
●Amber—The hard disk drive is parked.
(6) AC Adapter light ●On—The computer is connected to external power.
●Off—The computer is not connected to external
power.
(7) Power connector Connects an AC adapter.
(8) Security cable slot Connects an optional security cable. The security cable is
designed to act as a deterrent, but might not prevent the
computer from being mishandled or stolen.
Front components 11
Left-side components
Item Description Function
(1) Vents (2) Enable airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.
(2) External Monitor port Connects an external VGA monitor or projector.
(3) RJ-45 (network) jack Connects a network cable.
(4) HDMI port Connects an optional video or audio device, such as a
high-definition television, or any compatible digital or
audio component.
(5) eSATA/USB port (select models only) Connects an optional high-performance eSATA
component, such as an eSATA external hard drive, or
connects an optional USB device.
NOTE: Depending on the computer model, the
computer might include only a USB port.
(6) USB port Connects an optional USB device.
(7) Audio-in (microphone) jack Connects an optional computer headset microphone,
stereo array microphone, monaural microphone.
(8) Audio-out (headphone) jack Produces sound when connected to optional powered
stereo speakers, headphones, ear buds, a headset, or
television audio.
(9) SD card reader Reads SD cards that are inserted into the reader.
12 Chapter 2 External component identification
Bottom components
Item Description Function
(1) Battery bay Holds the battery.
(2) Vents (6) Enable airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.
(3) Battery Release latch Releases the battery from the battery bay.
(4) Primary Hard Drive bay Holds the primary hard drive, the memory module slots,
and the WLAN module (select models only).
CAUTION: To prevent an unresponsive system, replace
the wireless module with a wireless module authorized for
use by the governmental agency that regulates wireless
devices in your country or region. If you replace the
module and then receive a warning message, remove the
module to restore computer functionality, and then contact
technical support through Help and Support.
Bottom components 13
Display components
Item Description Function
(1) Internal microphones (2) Record sound.
(2) Webcam light On—The webcam is in use.
(3) Webcam Records video and captures still photographs.
14 Chapter 2 External component identification
3 Illustrated parts catalog
Service tag
When ordering parts or requesting information, provide the computer serial number and model
description provided on the service tag.
16 Chapter 3 Illustrated parts catalog
Item Description Function
(1) Serial number (s/n) This is an alphanumeric identifier that is unique to
each product.
(2) Part number/Product number (p/n) This number provides specific information about the
product's hardware components. The part number
helps a service technician to determine what
components and parts are needed.
(3) Warranty period This number describes the duration of the warranty
period for the computer.
Service tag 17
Computer major components
18 Chapter 3 Illustrated parts catalog
Item Description Spare part number
(1) 39.6-cm (15.6-in), high definition (HD) display assembly with low light VGA webcam and two
microphones (includes wireless antenna transceivers and cables) for use in:
BrightView, black computer models 603647-001
BrightView, white computer models 603648-001
BrightView, red computer models 603649-001
BrightView, chrome computer models 603650-001
BrightView, midnight blue computer models 615932-001
BrightView, black computer models with WiMAX 629279-001
BrightView, etched computer models with WiMAX 629280-001
BrightView, Rossignol Special Edition AT (Attraxion) computer models 635372-001
BrightView, Rossignol Special Edition KP (Koopman) computer models 635373-001
BrightView, etched computer models 595131-001
Touchscreen computer models 631019-001
NOTE: For more information about display assembly spare part numbers, see
Display assembly components
on page 28.
(2) Power button board (includes cable) 603682-001
(3) Keyboard—Dura-coat, island-style keyboard (includes keyboard cable) for use in:
Adriatic Region 597635-BA1
Belgium 597635-A41
Brazil 597635-201
Czech Republic 597635-221
Czech Republic Rossignol Special Edition AT (Attraxion) 635376-221
France 597635-051
France Rossignol Special Edition AT (Attraxion) 635376-051
French Canada 597635-121
Germany 597635-041
Germany Rossignol Special Edition AT (Attraxion) 635376-041
Greece 597635-DJ1
Hungary 597635-211
Israel 597635-BB1
International use 597635-B31
International use Rossignol Special Edition AT (Attraxion) 635376-B31
Italy 597635-061
Computer major components 19
Item Description Spare part number
Discrete graphics memory and a 35 W processor 603691-001
(10) Processor (includes replacement thermal material)
Intel Core i7-840QM processor with 1.86 GHz, SC turbo up to 3.2GHz, Quad 45 W 612260-001
Intel Core i7-820QM processor with 1.73 GHz, SC turbo up to 3.06GHz, Quad 45
W
583053-001
Intel Core i7-740QM processor with 1.73 GHz, SC turbo up to 2.93 GHz, Quad 45
W
612259-001
Intel Core i7-720QM processor with 1.6 GHz, SC turbo up to 2.8 GHz, Quad 45 W 586170-001
Intel Core i5-580M processor with 2.66 GHz, SC turbo up to 3.33 GHz, Dual 35 W 625825-001
Intel Core i5-560M processor with 2.66 GHz, SC turbo up to 3.33 GHz, Dual 35 W 625824-001
Intel Core i5-540M processor with 2.53 GHz, SC turbo up to 3.06 GHz, Dual 35 W 594188-001
Intel Core i5-520M processor with 2.4 GHz, SC turbo up to 2.93 GHz, Dual 35 W 594187-001
Intel Core i5-480M processor with 2.66 GHz, SC turbo up to 2.93 GHz, Dual 35 W 634693-001
Intel Core i5-460M processor with 2.53 GHz, SC turbo up to 2.8 GHz, Dual 35 W 626039-001
Intel Core i5-450M processor with 2.4 GHz, SC turbo up to 2.66 GHz, Dual 35 W 613585-001
Intel Core i5-430M processor with 2.26 GHz, SC turbo up to 2.53 GHz, Dual 35 W 597624-001
Intel Core i3-390M processor with 2.66 GHz, Dual 35 W 634692-001
Intel Core i3-380M processor with 2.53 GHz, Dual 35 W 625823-001
Intel Core i3-370M processor with 2.4 GHz, Dual 35 W 613584-001
Intel Core i3-350M processor with 2.26 GHz, Dual 35 W 597623-001
Intel Pentium P6300 processor with 2.26 GHz 635500-001
Intel Pentium P6200 processor with 2.13 GHz 625831-001
Intel Pentium P6100 processor with 2.00 GHz 613587-001
Intel Pentium P6000 processor with 1.86 GHz 613586-001
(11) System board (includes replacement thermal material) for use with:
ATI Mobility Radeon HD 6550 graphics, 1024-MB dedicated memory, and a dual-
core processor
631044-001
ATI Mobility Radeon HD 6370 graphics, 512-MB dedicated memory, and a dual-core
processor
631042-001
ATI Mobility Radeon HD 5650 graphics, 1024-MB dedicated memory, and a quad-
core processor with WiMAX (Worldwide Interoperability for Microwave Access)
630278-001
ATI Mobility Radeon HD 5650 graphics, 1024-MB dedicated memory, and a quad-
core processor
615278-001
ATI Mobility Radeon HD 5650 graphics, 1024-MB dedicated memory, and a dual-
core processor with WiMAX
630279-001
22 Chapter 3 Illustrated parts catalog
Item Description Spare part number
ATI Mobility Radeon HD 5650 graphics, 1024-MB dedicated memory, and a dual-
core processor
615279-001
ATI Mobility Radeon HD 5470 graphics, 512-MB dedicated memory, and a dual-core
processor with WiMAX
630280-001
ATI Mobility Radeon HD 5470 graphics, 512-MB dedicated memory, and a dual-core
processor
615280-001
Intel HM55 UMA graphics and shared memory with Intel Core i3-370M processors 637212-001
Intel HM55 UMA graphics and shared memory with Intel Core i3-350M processors 633383-001
Intel HM55 UMA graphics and shared memory with WiMAX 630281-001
Intel HM55 UMA graphics and shared memory 615281-001
(12) Bluetooth module cable 603645-001
(13) Bluetooth module 537921-001
(14) WLAN module (Bluetooth supported)
Intel® Centrino® Advanced–N + WiMAX 6250 WLAN module for use in the United
States
619997-001
Atheros AR9285 802.11b/g/n 1x1 WLAN module for use with computer models in
all countries and regions
605560-005
Ralink RT3090BC4 802.11b/g/n 1x1 WiFi and Bluetooth 2.1+EDR Combo Adapter
for use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda,
Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, Bahamas, Bahrain,
Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and
Herzegovina, Botswana, Brazil, British Virgin Islands, Brunei, Bulgaria, Burkina Faso,
Burundi, Cambodia, Cameroon, Canada, Cape Verde, the Cayman Islands, Central
African Republic, Chad, Chile, the People's Republic of China, Colombia, Comoros,
Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti,
Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial
Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon,
Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe,
Guam, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong,
Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, Ivory Coast, Jamaica, Japan,
Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon,
Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar,
Malawi, Malaysia, Maldives, Mali, Malta, the Marshall Islands, Martinique,
Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro,
Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the
Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan,
Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland,
Portugal, Puerto Rico, the Republic of Moldova, Romania, Russia, Rwanda, Samoa,
San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia and Montenegro,
Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands,
Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St.
Vincent and Grenadines, Suriname, Swaziland, Sweden, Switzerland, Syria, Taiwan,
Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey,
Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United
Kingdom, Uruguay, the US Virgin Islands, the United States, Uzbekistan, Vanuatu,
Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
602992-001
Computer major components 23
Item Description Spare part number
Broadcom 4313 802.11b/g/n 1x1 WiFi and 2070 Bluetooth 2.1+EDR Combo
Adapter for use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and
Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, Bahamas,
Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan,
Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei,
Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Canada, Cape Verde, the
Cayman Islands, Central African Republic, Chad, Chile, the People's Republic of
China, Colombia, Comoros, Congo, Costa Rica, Croatia, Cyprus, Czech Republic,
Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El
Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French
Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada,
Guadeloupe, Guam, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras,
Hong Kong, Hungary, Iceland, India, Indonesia, Iraq, Ireland, Israel, Italy, Ivory
Coast, Jamaica, Japan, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan,
Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg,
Macedonia, Madagascar, Malawi, Malaysia, Maldives, Mali, Malta, Marshall
Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia,
Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles,
the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman,
Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, Philippines, Poland,
Portugal, Puerto Rico, Qatar, the Republic of Moldova, Romania, Russia, Rwanda,
Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia and
Montenegro, Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, Solomon
Islands, Somalia, South Africa, South Korea, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey,
Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United
Kingdom, the United States, Uruguay, the US Virgin Islands, Uzbekistan, Vanuatu,
Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
600370-001
24 Chapter 3 Illustrated parts catalog
Item Description Spare part number
Broadcom 43225 802.11b/g/n WLAN module for use in Afghanistan, Albania,
Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba,
Australia, Austria, Azerbaijan, Bahamas, Bahrain, Bangladesh, Barbados, Belarus,
Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina,
Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi,
Cambodia, Cameroon, Canada, Cape Verde, Cayman Islands, Central African
Republic, Chad, Chile, the People's Republic of China, Colombia, Comoros, Congo,
Costa Rica, Croatia, Cyprus, Czech Republic, Denmark, Djibouti, Dominica, the
Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea,
Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia,
Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guam,
Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary,
Iceland, India, Indonesia, Iraq, Ireland, Israel, Italy, Ivory Coast, Jamaica, Japan,
Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon,
Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar,
Malawi, Malaysia, Maldives, Mali, Malta, Marshall Islands, Martinique, Mauritania,
Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco,
Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New
Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama,
Papua New Guinea, Paraguay, Peru, Philippines, Poland, Portugal, Puerto Rico,
Qatar, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao
Tome and Principe, Saudi Arabia, Senegal, Serbia and Montenegro, Seychelles,
Sierra Leone, Singapore, Slovakia, Slovenia, Solomon Islands, Somalia, South Africa,
South Korea, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines,
Suriname, Swaziland, Sweden, Switzerland, Syria, Taiwan, Tajikistan, Tanzania,
Thailand, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu,
Uganda, Ukraine, the United Arab Emirates, the United Kingdom, the United States,
Uruguay, the US Virgin Islands, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen,
Zaire, Zambia, and Zimbabwe
593837-001
Broadcom 4313 802.11b/g/n 1x1 WLAN module for use with computer models in
all countries and regions
593836-001
Intel Centrino Wireless-N 1000 802.11b/g/n 1x2 for use with computer models in all
countries and regions except Russia
593530-001
Broadcom 43224 802.11a/b/g/n 2x2 WLAN module for use only with computer
models in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands,
and the United States
582564-001
Computer major components 25
Item Description Spare part number
Broadcom 43224 802.11a/b/g/n 2x2 WLAN module for use only with computer
models in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda,
Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, Bahamas, Bahrain,
Barbados, Belgium, Belize, Benin, Bermuda, Bhutan, Bosnia and Herzegovina,
Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi,
Cambodia, Cameroon, Cape Verde, Central African Republic, Chad, Chile,
the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia,
Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic,
Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland,
France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar,
Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti,
Honduras, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Italy,
the Ivory Coast, Jamaica, Japan, Jordan, Kazakhstan, Kenya, Kiribati, Korea-South,
Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania,
Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, Maldives, Marshall
Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco,
Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands,
New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama,
Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal,
the Republic of Moldova, Romania, Rwanda, Samoa, San Marino,
Sao Tome and Principe, Saudi Arabia, Senegal, Serbia and Montenegro,
the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands,
Somalia, South Africa, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Thailand, Timor (East), Togo, Tonga, Trinidad and Tobago,
Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, the United Arab Emirates,
the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen,
Zaire, Zambia, and Zimbabwe
582564-002
(15) USB board (includes cable) 603683-001
(16) RTC battery 599516-001
(17) Memory module (DDR3 PC3-10600 1333-MHz)
4096-MB 599092-001
2048-MB 598856-001
1024-MB 598859-001
(18) Hard drive (includes left and right bracket rails, connector cable, Mylar cover with tab, and four rubber isolators)
250 GB, 7200 rpm 603667-001
320 GB, 7200 rpm 603668-001
500 GB, 7200 rpm 634921-001
640 GB, 5400 rpm 603785-001
640 GB, 7200 rpm 621046-001
750 GB, 5400 rpm 603787-001
750 GB, 7200 rpm 633252-001
1 TB, 5400 rpm 603788-001
160-GB solid state drive (SSD) 603673-001
26 Chapter 3 Illustrated parts catalog
Item Description Spare part number
Hard Drive Hardware Kit (includes left and right bracket rails, connector cable,
Mylar cover with tab, and four rubber isolators) (not illustrated)
603676-001
(19) Base enclosure (includes four rubber feet) 603689-001
Rubber feet (includes four base enclosure rubber feet) (not illustrated) 603696-001
(20) Plastics Kit (includes hard drive bay cover)
NOTE: For more information, see Plastics Kit on page 33.
603679-001
(21) Battery
6-cell, 55-Whr, 2.55-Ah Li-ion battery for use with all computer models 593554-001
6-cell, 62-Whr, 2.8-Ah Li-ion battery for use with all computer models 593562-001
9-cell, 93-Whr, 2.8-Ah Li-ion battery for use with all computer models 593550-001
Computer major components 27
Touchscreen display assembly spare parts
Item Description Spare part number
(1) Etched display enclosure (includes wireless antenna transceivers and cables and
logo LED board and cable)
603663-001
(2) Wireless antenna transceivers and cables Included with the display
enclosure
(3) Display Cable Kit 603665-001
(4) Webcam/microphone module (includes cable) 603660-001
(5) Display Hinge Kit (includes left and right hinges) 603664-001
(6) Touchscreen display panel Included with the display
assembly
(7) Display hinge covers (includes left and right covers) 603666-001
Display Rubber Kit (includes display bezel rubber screw covers) (not illustrated) 603659-001
Display Screw Kit (not illustrated) 603658-001
Display assembly components 29
BrightView display assembly spare parts
Item Description Spare part number
(1) Display bezel 603651-001
Display bezel (Rossignol Special Edition AT (Attraxion)) 638394-001
(2) BrightView display panel 595130-001
(3) Display Hinge Kit (includes left and right hinges) 603656-001
(4) Webcam/microphone module (includes cable) 603660-001
(5) Display Cable Kit 603657-001
Display Cable Kit with WiMAX 629284-001
(6) Display hinge covers 603661-001
(7) Display enclosure (includes wireless antenna transceivers and cables and logo LED
board and cable)
Midnight blue 615933-001
30 Chapter 3 Illustrated parts catalog
Item Description Spare part number
Black with WiMAX 629282-001
Black 603652-001
White 603653-001
Red 603654-001
Chrome 603655-001
Etched with WiMAX 629283-001
Etched 604804-001
Rossignol Special Edition AT (Attraxion) 635374-001
Rossignol Special Edition KP (Koopman) 635375-001
(8) Wireless antenna transceivers and cables Included with the display
enclosure
Display Rubber Kit (includes display bezel rubber screw covers) (not illustrated) 603659-001
Display Screw Kit (not illustrated) 603658-001
Rossignol Special Edition AT (Attraxion) Miscellaneous Display Kit (not illustrated) 638395-001
Display assembly components 31
Mass storage devices
Item Description Spare part number
(1) Hard drive (includes left and right bracket rails, connector cable, Mylar cover with tab, and four rubber isolators)
250 GB, 7200 rpm 603667-001
320 GB, 7200 rpm 603668-001
500 GB, 7200 rpm 634921-001
640 GB, 5400 rpm 603785-001
640 GB, 7200 rpm 621046-001
750 GB, 5400 rpm 603787-001
750 GB, 7200 rpm 633252-001
1 TB, 5400 rpm 603788-001
160-GB solid state drive (SSD) 603673-001
Hard Drive Hardware Kit (includes left and right bracket rails, connector cable,
Mylar cover with tab, and four rubber isolators) (not illustrated)
603676-001
(2) Optical drive (includes bezel and bracket)
LightScribe DVD±R/RW SuperMulti DL Drive 603677-001
Blu-ray ROM with LightScribe DVD±R/RW SuperMulti DL Drive 603678-001
Blu-ray ROM with DVD±R/RW SuperMulti DL Drive 614333-001
Blu-ray Writer with DVD±R/RW SuperMulti DL Drive 614332-001
32 Chapter 3 Illustrated parts catalog
Plastics Kit
Description Spare part number

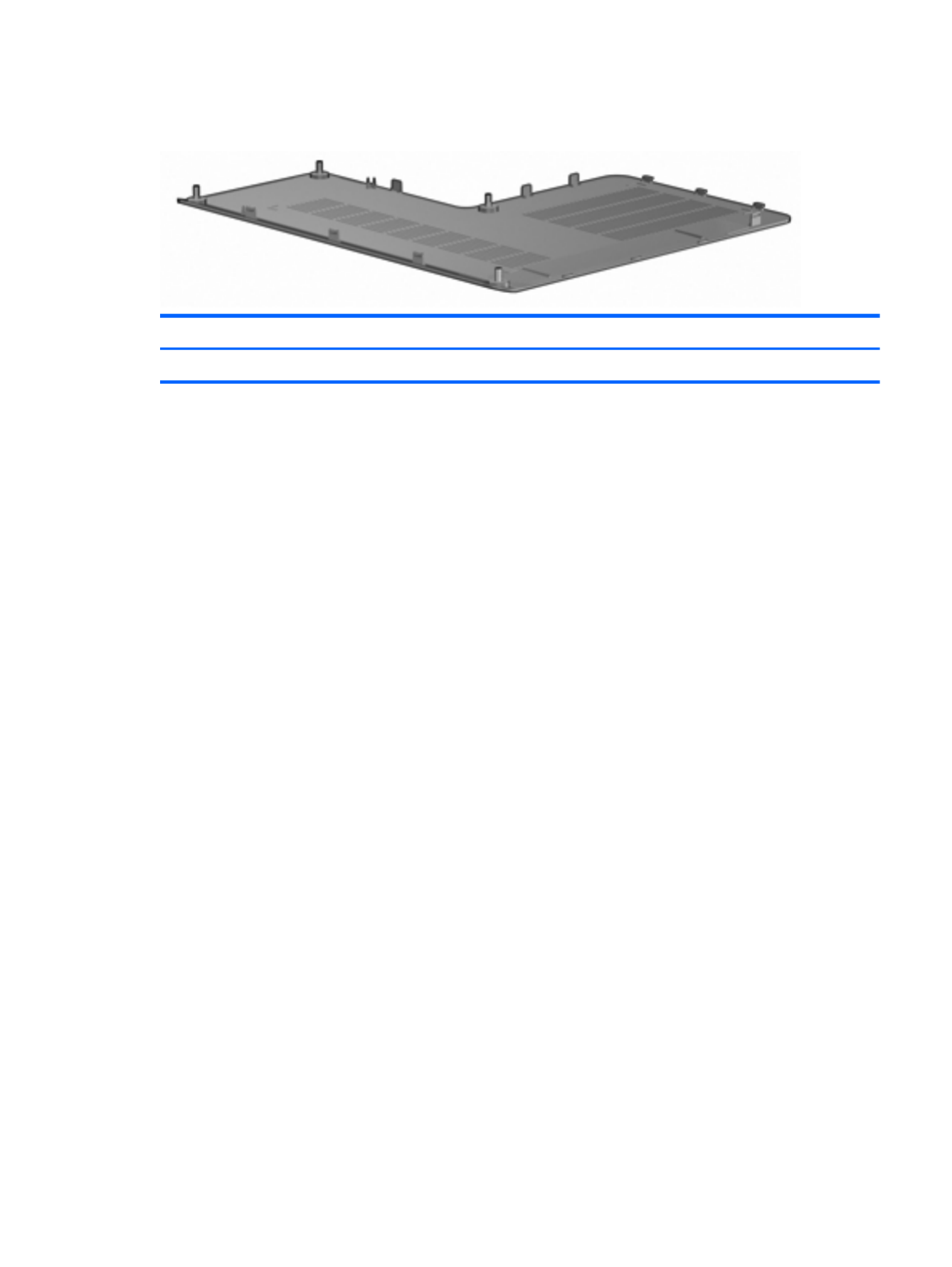

Hard drive bay cover (includes four captive screws) 603679-001
Plastics Kit 33
Miscellaneous parts
Description Spare part number
AC adapters
65-W AC smart adapter 613152-001
90-W AC smart adapter PFC 613153-001
65-W AC smart adapter PFC 613161-001
90-W AC smart adapter PFC 613160-001
120-W AC smart adapter PFC 613154-001
Power cords, Black for use in:
Argentina 490371-D01
Australia and New Zealand 490371-011
Belgium, Europe, Finland, France, Germany, Greece, the Netherlands, Norway, Portugal, Spain,
and Sweden
490371-021
Thailand 490371-201
Brazil 490371-202
Canada, French Canada, Latin America, and the United States 490371-001
Denmark 490371-081
India 490371-D61
Israel 490371-BB1
Italy 490371-061
Japan 490371-291
The People's Republic of China 490371-AA1
South Africa 490371-AR1
South Korea 490371-AD1
Switzerland 490371-111
Taiwan 490371-AB1
The United Kingdom and Hong Kong 490371-031
DVB-T TV tuner (select models only) 581222-001
DVB-T TV tuner antenna (select models only) 581223-001
Remote control (full-function with teletext) (select models only) 465541-004
Screw Kit 603681-001
Phillips PM2.5×3.0 screw
Phillips PM2.5×5.0 captive screw
34 Chapter 3 Illustrated parts catalog
Description Spare part number
Phillips PM2.5×6.5 screw
Thermal Pad Kit 634434-001
Notebook Sleeve (Rossignol Special Edition AT (Attraxion)) 636174-001
Notebook Sleeve (Rossignol Special Edition KP (Koopman)) 636175-001
Cable housing 603697-001
Sequential part number listing
Spare part
number
Description
465541-004 Remote control (full-function with teletext)
490371-001 Power cord for use in Canada, French Canada, Latin America, and the United States
490371-011 Power cord for use in Australia and New Zealand
490371-021 Power cord for use in Belgium, Europe, Finland, France, Germany, Greece, the Netherlands, Norway,
Portugal, Spain, and Sweden
490371-031 Power cord for use in the United Kingdom and Hong Kong
490371-061 Power cord for use in Italy
490371-081 Power cord for use in Denmark
490371-111 Power cord for use in Switzerland
490371-201 Power cord for use in Thailand
490371-202 Power cord for use in Brazil
490371-291 Power cord for use in Japan
490371-AA1 Power cord for use in the People's Republic of China
490371-AB1 Power cord for use in Taiwan
490371-AD1 Power cord for use in South Korea
490371-AR1 Power cord for use in South Africa
490371-BB1 Power cord for use in Israel
490371-D01 Power cord for use in Argentina
490371-D61 Power cord for use in India
537921-001 Bluetooth module
581222-001 DVB-T TV tuner (select models only)
581223-001 DVB-T TV tuner antenna (select models only)
Sequential part number listing 35
Spare part
number
Description
582564-001 Broadcom 43224 802.11a/b/g/n 2x2 WLAN module for use only with computer models in Canada,
the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands, and the United States
582564-002 Broadcom 43224 802.11a/b/g/n 2x2 WLAN module for use only with computer models in
Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba,
Australia, Austria, Azerbaijan, Bahamas, Bahrain, Barbados, Belgium, Belize, Benin, Bermuda, Bhutan,
Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso,
Burundi, Cambodia, Cameroon, Cape Verde, Central African Republic, Chad, Chile,
the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus,
the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, Ecuador, Egypt, El Salvador,
Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia,
Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-
Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Italy,
the Ivory Coast, Jamaica, Japan, Jordan, Kazakhstan, Kenya, Kiribati, Korea-South, Kuwait, Kyrgyzstan,
Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar,
Malawi, Malaysia, Maldives, Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia,
Monaco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand,
Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay, Peru,
the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Rwanda, Samoa, San Marino,
Sao Tome and Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone,
Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, Spain, Sri Lanka,
St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden,
Switzerland, Taiwan, Tajikistan, Tanzania, Thailand, Timor (East), Togo, Tonga, Trinidad and Tobago,
Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, the United Arab Emirates, the United Kingdom, Uruguay,
Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
583053-001 Intel Core i7-820QM processor with 1.73 GHz, SC turbo up to 3.06GHz, Quad 45 W
586170-001 Intel Core i7-720QM processor with 1.6 GHz, SC turbo up to 2.8 GHz, Quad 45 W
593530-001 Intel Centrino Wireless-N 1000 802.11b/g/n 1x2 WLAN module
593550-001 9-cell, 93-Whr, 2.8-Ah Li-ion battery for use with all computer models
593554-001 6-cell, 55-Whr, 2.55-Ah Li-ion battery for use with all computer models
593562-001 6-cell, 62-Whr, 2.8-Ah Li-ion battery for use with all computer models
593836-001 Broadcom 4313 802.11b/g/n 1x1 WLAN module
36 Chapter 3 Illustrated parts catalog
Spare part
number
Description
597630-201 Backlit keyboard for use in Brazil
597630-211 Backlit keyboard for use in Hungary
597630-221 Backlit keyboard for use in the Czech Republic
597630-251 Backlit keyboard for use in Russia
597630-A41 Backlit keyboard for use in Belgium
597630-B31 Backlit keyboard for International use
597630-BA1 Backlit keyboard for use in the Adriatic Region
597630-BB1 Backlit keyboard for use in Israel
597630-BG1 Backlit keyboard for use in Switzerland
597630-DH1 Backlit keyboard for use in Norway
597630-DJ1 Backlit keyboard for use in Greece
597635-001 Keyboard for use in the United States
597635-031 Keyboard for use in the United Kingdom
597635-041 Keyboard for use in Germany
597635-051 Keyboard for use in France
597635-061 Keyboard for use in Italy
597635-071 Keyboard for use in Spain
597635-121 Keyboard for use in French Canada
597635-131 Keyboard for use in Portugal
597635-141 Keyboard for use in Turkey
597635-161 Keyboard for use in Latin America
597635-171 Keyboard for use in Saudi Arabia
597635-201 Keyboard for use in Brazil
597635-211 Keyboard for use in Hungary
597635-221 Keyboard for use in the Czech Republic
597635-251 Keyboard for use in Russia
597635-281 Keyboard for use in Thailand
597635-291 Keyboard for use in Japan
597635-A41 Keyboard for use in Belgium
597635-AB1 Keyboard for use in Taiwan
597635-AD1 Keyboard for use in Korea
597635-B31 Keyboard for international use
38 Chapter 3 Illustrated parts catalog
Spare part
number
Description
597635-BA1 Keyboard for use in the Adriatic Region
597635-BB1 Keyboard for use in Israel
597635-BG1 Keyboard for use in Switzerland
597635-DH1 Keyboard for use in Norway
597635-DJ1 Keyboard for use in Greece
598856-001 2048-MB memory module (DDR3 PC3-10600 1333-MHz)
598859-001 1024-MB memory module (DDR3 PC3-10600 1333-MHz)
599092-001 4096-MB memory module (DDR3 PC3-10600 1333-MHz)
599516-001 RTC battery
600370-001 Broadcom 4313 802.11b/g/n 1x1 WiFi and 2070 Bluetooth 2.1+EDR Combo Adapter for use in
Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba,
Australia, Austria, Azerbaijan, Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize,
Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands,
Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Canada, Cape Verde, the Cayman
Islands, Central African Republic, Chad, Chile, the People's Republic of China, Colombia, Comoros,
Congo, Costa Rica, Croatia, Cyprus, Czech Republic, Denmark, Djibouti, Dominica, the Dominican
Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji,
Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece,
Grenada, Guadeloupe, Guam, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong
Kong, Hungary, Iceland, India, Indonesia, Iraq, Ireland, Israel, Italy, Ivory Coast, Jamaica, Japan,
Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia,
Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, Maldives, Mali,
Malta, Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia,
Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands,
New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New
Guinea, Paraguay, Peru, Philippines, Poland, Portugal, Puerto Rico, Qatar, the Republic of Moldova,
Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia
and Montenegro, Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, Solomon Islands, Somalia,
South Africa, South Korea, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines,
Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tonga,
Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab
Emirates, the United Kingdom, the United States, Uruguay, the US Virgin Islands, Uzbekistan, Vanuatu,
Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
Sequential part number listing 39
Spare part
number
Description
602992-001 Ralink RT3090BC4 802.11b/g/n 1x1 WiFi and Bluetooth 2.1+EDR Combo Adapter for use in
Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba,
Australia, Austria, Azerbaijan, Bahamas, Bahrain, Barbados, Belarus, Belgium, Belize, Benin, Bermuda,
Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cambodia, Cameroon, Canada, Cape Verde, the Cayman Islands, Central
African Republic, Chad, Chile, the People's Republic of China, Colombia, Comoros, Congo, Costa Rica,
Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor,
Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French
Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe,
Guam, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland,
India, Indonesia, Ireland, Israel, Italy, Ivory Coast, Jamaica, Japan, Jordan, Kazakhstan, Kenya, Kiribati,
Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg,
Macedonia, Madagascar, Malawi, Malaysia, Maldives, Mali, Malta, the Marshall Islands, Martinique,
Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique,
Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger,
Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the
Philippines, Poland, Portugal, Puerto Rico, the Republic of Moldova, Romania, Russia, Rwanda, Samoa,
San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia and Montenegro, Seychelles, Sierra
Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain,
Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and Grenadines, Suriname, Swaziland, Sweden,
Switzerland, Syria, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad and Tobago, Tunisia,
Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom,
Uruguay, the US Virgin Islands, the United States, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen,
Zaire, Zambia, and Zimbabwe
603645-001 Bluetooth module cable and rubber kit
603647-001 39.6-cm (15.6-inch) HD BrightView display assembly with low light VGA webcam and two microphones,
Black (includes wireless antenna transceivers and cables)
603648-001 39.6-cm (15.6-inch) HD BrightView display assembly with low light VGA webcam and two microphones,
White (includes wireless antenna transceivers and cables)
603649-001 39.6-cm (15.6-inch) HD BrightView display assembly with low light VGA webcam and two microphones,
Red (includes wireless antenna transceivers and cables)
603650-001 39.6-cm (15.6-inch) HD BrightView display assembly with low light VGA webcam and two microphones,
Chrome (includes wireless antenna transceivers and cables)
603651-001 BrightView display bezel
603652-001 Black display enclosure (includes wireless antenna transceivers and cables and LED board and cable)
603653-001 White display enclosure (includes wireless antenna transceivers and cables and LED board and cable)
603654-001 Red display enclosure (includes wireless antenna transceivers and cables and LED board and cable)
603655-001 Chrome display enclosure (includes wireless antenna transceivers and cables and LED board and cable)
603656-001 BrightView Display Hinge Kit (includes left and right hinges)
603657-001 BrightView Display Cable Kit (includes display panel cable)
603658-001 Display Screw Kit
603659-001 Display Rubber Kit (includes display bezel rubber screw covers)
603660-001 Webcam/microphone module (includes cable)
40 Chapter 3 Illustrated parts catalog
Spare part
number
Description
603661-001 BrightView display hinge covers
603663-001 Touchscreen display enclosure (includes wireless antenna transceivers and cables LED board and cable)
603664-001 Touchscreen Display Hinge Kit
603665-001 Touchscreen Display Cable Kit
603666-001 Touchscreen display hinge covers
603667-001 250-GB, 7200 RPM hard disk drive (includes left and right bracket rails, connector cable, Mylar cover
with tab, and four rubber isolators)
603668-001 320-GB. 7200 RPM hard disk drive (includes left and right bracket rails, connector cable, Mylar cover
with tab, and four rubber isolators)
603673-001 160-GB solid state drive (SSD) (includes left and right bracket rails, connector cable, Mylar cover with
tab, and four rubber isolators)
603676-001 Hard Drive Hardware Kit (includes left and right bracket rails, connector cable, Mylar cover with tab,
and four rubber isolators)
603677-001 LightScribe DVD±R/RW SuperMulti DL Drive
603678-001 Blu-ray ROM with LightScribe DVD±R/RW SuperMulti DL Drive
603679-001 Plastics Kit
603680-001 Optical drive cable
603681-001 Screw Kit
603682-001 Power button board (includes cable)
603683-001 USB board (includes cable)
603684-001 Top cover for use only with etched computer models equipped with a fingerprint reader
603685-001 Top cover for use only with black computer models not equipped with a fingerprint reader
603686-001 Top cover for use only with white computer models not equipped with a fingerprint reader
603687-001 Top cover for use only with red computer models not equipped with a fingerprint reader
603688-001 Top cover for use only with chrome computer models not equipped with a fingerprint reader
603689-001 Base enclosure (includes rubber feet)
603690-001 Fan/heat sink assembly for use only with computer models equipped with UMA graphics memory
603691-001 Fan/heat sink assembly for use only with computer models equipped with discrete graphics memory and
a 35 W processor
603692-001 Power connector and cable
603694-001 Speaker assembly
603696-001 Rubber feet
603697-001 Cable housing
Sequential part number listing 41
Spare part
number
Description
603785-001 640-GB, 5400 RPM hard disk drive (includes left and right bracket rails, connector cable, Mylar cover
with tab, and four rubber isolators)
603787-001 750-GB, 5400 RPM hard disk drive (includes left and right bracket rails, connector cable, Mylar cover
with tab, and four rubber isolators)
604787-001 Fan/heat sink assembly for use only with computer models equipped with discrete graphics memory and
a 45 W processor
603788-001 1-TB, 5400 RPM hard disk drive (includes left and right bracket rails, connector cable, Mylar cover with
tab, and four rubber isolators)
604804-001 Etched display enclosure (includes wireless antenna transceivers and LED board and cable)
605560-005 Atheros AR9285 802.11b/g/n 1x1 WLAN module for use with computer models in all countries and
regions
612259-001 Intel Core i7-740QM processor with 1.73 GHz, SC turbo up to 2.93 GHz, Quad 45 W
612260-001 Intel Core i7-840QM processor with 1.86 GHz, SC turbo up to 3.2 GHz, Quad 45 W
613152-001 65-W AC smart adapter
613153-001 90-W AC smart adapter, PFC
613154-001 120-W AC smart adapter, PFC
613160-001 90-W AC smart adapter PFC
613161-001 65–W AC smart adapter PFC
613584-001 Intel Core i3-370M processor with 2.4 GHz, Dual 35 W
613585-001 Intel Core i5-450M processor with 2.4 GHz, SC turbo up to 2.66 GHz, Dual 35 W
613586-001 Intel Pentium P6000 processor with 1.86 GHz
613587-001 Intel Pentium P6100 processor with 2.00 GHz
614332-001 Blu-ray Writer with DVD±R/RW SuperMulti DL Drive
614333-001 Blu-ray ROM with DVD±R/RW SuperMulti DL Drive
615278-001 System board for use with computer models equipped with ATI Mobility Radeon HD5650 graphics,
1024-MB dedicated memory, and a quad-core processor
615279-001 System board for use with computer models equipped with ATI Mobility Radeon HD 5650 graphics,
1024-MB dedicated memory, and a dual-core processor
615280-001 System board for use with computer models equipped with ATI Mobility Radeon HD 5470 graphics,
512-MB dedicated memory, and a dual-core processor
615281-001 System board for use with computer models equipped with Intel HM55 UMA graphics and shared
memory
615932-001 39.6-cm (15.6-inch) HD BrightView display assembly with low light VGA webcam and two microphones
(Midnight blue)
615933-001 Midnight blue display enclosure (includes wireless antenna transceivers and cables and LED board and
cable)
42 Chapter 3 Illustrated parts catalog
Spare part
number
Description
615934-001 Top cover for use only with midnight blue computer models not equipped with a fingerprint reader
619997-001 Intel® Centrino® Advanced–N + WiMAX 6250 WLAN module for use in the United States
621046-001 640-GB, 7200 RPM hard disk drive (includes left and right bracket rails, connector cable, Mylar cover
with tab, and four rubber isolators)
625823-001 Intel Core i3-380M processor with 2.53 GHz, Dual 35 W
625824-001 Intel Core i5-560M processor with 2.66 GHz, SC turbo up to 3.33 GHz, Dual 35 W
625825-001 Intel Core i5-580M processor with 2.66 GHz, SC turbo up to 3.33 GHz, Dual 35 W
625831-001 Intel Pentium P6200 processor with 2.13 GHz
626039-001 Intel Core i5-460M processor with 2.53 GHz, SC turbo up to 2.8 GHz, Dual 35 W
629279-001 39.6-cm (15.6-inch) HD BrightView display assembly with low light VGA webcam and two microphones
(Black) with WiMAX
629280-001 39.6-cm (15.6-inch) HD BrightView display assembly with low light VGA webcam and two microphones
(Etched) with WiMAX
629282-001 Black display enclosure (includes wireless antenna transceivers and cables and LED board and cable)
with WiMAX
629283-001 Etched display enclosure (includes wireless antenna transceivers and cables and LED board and cable)
with WiMAX
629284-001 BrightView Display Cable Kit with WiMAX (includes display panel cable)
630278-001 System board for use with computer models equipped with ATI Mobility Radeon HD 5650 graphics,
1024-MB dedicated memory, and a quad-core processor with WiMAX
630279-001 System board for use with computer models equipped with ATI Mobility Radeon HD 5650 graphics,
1024-MB dedicated memory, and a dual-core processor with WiMAX
630280-001 System board for use with computer models equipped with ATI Mobility Radeon HD 5470 graphics,
512-MB dedicated memory, and a dual-core processor with WiMAX
630281-001 System board for use with computer models equipped with Intel HM55 UMA graphics and shared
memory with WiMAX
631019-001 39.6-cm (15.6-inch) HD Touchscreen display assembly with low light VGA webcam and two
microphones (Etched)
631042-001 System board for use with computer models equipped with ATI Mobility Radeon HD 6370 graphics,
512-MB dedicated memory, and a dual-core processor
631044-001 System board for use with computer models equipped with ATI Mobility Radeon HD 6550 graphics,
1024-MB dedicated memory, and a dual-core processor
633252-001 750-GB, 7200 RPM hard disk drive (includes left and right bracket rails, connector cable, Mylar cover
with tab, and four rubber isolators)
633383-001 System board for use with computer models equipped with Intel HM55 UMA graphics and shared
memory with Intel Core i3-350M processors
633384-001 Fan/heat sink assembly for use only with computer models equipped with UMA graphics memory and a
processor
Sequential part number listing 43
Spare part
number
Description
634434-001 Thermal Pad Kit
634692-001 Intel Core i3-390M processor with 2.66 GHz, Dual 35 W
634693-001 Intel Core i5-480M processor with 2.66 GHz, SC turbo up to 2.93 GHz, Dual 35 W
634921-001 500-GB, 7200 RPM hard disk drive (includes left and right bracket rails, connector cable, Mylar cover
with tab, and four rubber isolators)
635372-001 39.6-cm (15.6-inch) HD BrightView display assembly with low light VGA webcam and two microphones
(Rossignol Special Edition AT (Attraxion))
635373-001 39.6-cm (15.6-inch) HD BrightView display assembly with low light VGA webcam and two microphones
(Rossignol Special Edition KP (Koopman))
635374-001 Rossignol Special Edition AT (Attraxion) display enclosure (includes wireless antenna transceivers and
cables and LED board and cable)
635375-001 Rossignol Special Edition KP (Koopman) display enclosure (includes wireless antenna transceivers and
cables and LED board and cable)
635376-031 Keyboard for use in the United Kingdom (Rossignol Special Edition AT (Attraxion))
635376-041 Keyboard for use in Germany (Rossignol Special Edition AT (Attraxion))
635376-051 Keyboard for use in France (Rossignol Special Edition AT (Attraxion))
635376-061 Keyboard for use in Italy (Rossignol Special Edition AT (Attraxion))
635376-071 Keyboard for use in Spain (Rossignol Special Edition AT (Attraxion))
635376-221 Keyboard for use in the Czech Republic (Rossignol Special Edition AT (Attraxion))
635376-B31 Keyboard for international use (Rossignol Special Edition AT (Attraxion))
635376-BG1 Keyboard for use in Switzerland (Rossignol Special Edition AT (Attraxion))
635376-DH1 Keyboard for use in Norway (Rossignol Special Edition AT (Attraxion))
635378-001 Top cover for use only with Rossignol Special Edition AT (Attraxion) computer models not equipped with
a fingerprint reader
635379-001 For use only with Rossignol Special Edition KP (Koopman) computer models not equipped with a
fingerprint reader
635500-001 Intel Pentium P6300 processor with 2.26 GHz
636174-001 Notebook Sleeve (Rossignol Special Edition AT (Attraxion))
636175-001 Notebook Sleeve (Rossignol Special Edition KP (Koopman))
637212-001 System board for use with computer models equipped with Intel HM55 UMA graphics and shared
memory with Intel Core i3-370M processors
638394-001 BrightView display bezel (Rossignol Special Edition AT (Attraxion))
638395-001 Rossignol Special Edition AT (Attraxion) Miscellaneous Display Kit
44 Chapter 3 Illustrated parts catalog
Grounding guidelines
Electrostatic discharge damage
Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure
determine the degree of sensitivity. Networks built into many integrated circuits provide some
protection, but in many cases, ESD contains enough power to alter device parameters or melt
silicon junctions.
A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or
microcircuitry. Even if the spark is neither felt nor heard, damage might have occurred.
An electronic device exposed to ESD might not be affected at all and can work perfectly throughout a
normal cycle. Or the device might function normally for a while, then degrade in the internal layers,
reducing its life expectancy.
CAUTION: To prevent damage to the computer when you are removing or installing internal
components, observe these precautions:
Keep components in their electrostatic-safe containers until you are ready to install them.
Use nonmagnetic tools.
Before touching an electronic component, discharge static electricity by using the guidelines described
in this section.
Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
If you remove a component, place it in an electrostatic-safe container.
The following table shows how humidity affects the electrostatic voltage levels generated by different
activities.
CAUTION: A product can be degraded by as little as 700 V.
Typical electrostatic voltage levels
Relative humidity
Event 10% 40% 55%
Walking across carpet 35,000 V 15,000 V 7,500 V
Walking across vinyl floor 12,000 V 5,000 V 3,000 V
Motions of bench worker 6,000 V 800 V 400 V
Removing DIPS from plastic tube 2,000 V 700 V 400 V
Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V
Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V
Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V
Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V
Preliminary replacement requirements 47
Item Description Function
(2) Part number/Product
number (p/n)
Provides specific information about the product's hardware components. The part
number helps a service technician to determine what components and parts are
needed.
(3) Warranty period Describes the duration of the warranty period for the computer.
Component replacement procedures 51
Computer feet
The computer feet are adhesive-backed rubber pads (spare part numbers 603696-001). There are four
rubber feet that attach to the base enclosure.
52 Chapter 4 Removal and replacement procedures
Hard drive cover
Description Spare part number
Hard drive cover (included in the Plastics Kit) 603679-001
Before removing the hard drive cover:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first disconnecting the power cord from the AC outlet
and then disconnecting the AC adapter from the computer.
4. Remove the Battery on page 53.
To remove the hard drive cover:
1. Loosen the four captive screws (1) that secure the hard drive cover to the computer.
2. Lift the hard drive cover (2) away from the computer.
Reverse this procedure to install the hard drive cover.
54 Chapter 4 Removal and replacement procedures
Hard drive
NOTE: The hard drive spare part kit includes left and right bracket rails, a connector cable, Mylar
cover with tab, and four rubber isolators.
Description Spare part number
250 GB, 7200 rpm 603667-001
320 GB, 7200 rpm 603668-001
500 GB, 7200 rpm 634921-001
640 GB, 5400 rpm 603785-001
640 GB, 7200 rpm 621046-001
750 GB, 5400 rpm 603787-001
750 GB, 7200 rpm 633252-001
1 TB, 5400 rpm 603788-001
160–GB solid state drive (SSD) 603673-001
Hard Drive Hardware Kit (includes left and right bracket rails, connector cable, Mylar cover
with tab, and four rubber isolators)
603676-001
Before removing the hard drive:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first disconnecting the power cord from the AC outlet
and then disconnecting the AC adapter from the computer.
4. Remove the Battery on page 53.
5. Remove the Hard drive cover on page 54.
To remove the hard drive:
1. Position the computer with the front toward you.
2. Disconnect the hard drive cable (1) from the system board.
Component replacement procedures 55
3. Use the Mylar tab to lift the hard drive up (2), and then slide it to the right (3) to release it from the
hard drive bay.
4. Remove the hard drive from the hard drive bay.
5. To replace the hard drive bracket or any of the hard drive bracket components, remove the
following:
●Hard drive connector cable (1)
●Four rubber isolators (2)
●Four screws (3) that secure the hard drive bracket rails and Mylar cover to the hard drive
●Left and right hard drive bracket rails with mylar cover tabs (4)
Reverse this procedure to reassemble and install the hard drive.
56 Chapter 4 Removal and replacement procedures
WLAN module
Description Spare part number
Intel® Centrino® Advanced–N + WiMAX 6250 WLAN module for use in the United States 619997-001
Atheros AR9285 802.11b/g/n 1x1 WLAN module for use with computer models in all countries
and regions
605560-005
Ralink RT3090BC4 802.11b/g/n 1x1 WiFi and Bluetooth 2.1+EDR Combo Adapter for use in
Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia,
Aruba, Australia, Austria, Azerbaijan, Bahamas, Bahrain, Barbados, Belarus, Belgium, Belize,
Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, British Virgin
Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Canada, Cape Verde,
the Cayman Islands, Central African Republic, 's Republic of China,Chad, Chile, the People
Colombia, Comoros, Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark,
Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial
Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia,
Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guam, Guatemala,
Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India,
Indonesia, Ireland, Israel, Italy, Ivory Coast, Jamaica, Japan, Jordan, Kazakhstan, Kenya, Kiribati,
Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg,
Macedonia, Madagascar, Malawi, Malaysia, Maldives, Mali, Malta, the Marshall Islands,
Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro,
Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New
Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New
Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, Puerto Rico, the Republic of Moldova,
Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal,
Serbia and Montenegro, Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon
Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St.
Vincent and Grenadines, Suriname, Swaziland, Sweden, Switzerland, Syria, Taiwan, Tajikistan,
Tanzania, Thailand, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu,
Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, the US Virgin Islands,
the United States, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and
Zimbabwe
602992-001
Broadcom 4313 802.11b/g/n 1x1 WiFi and 2070 Bluetooth 2.1+EDR Combo Adapter 600370-001
Component replacement procedures 57
Description Spare part number
Broadcom 43225 802.11b/g/n WLAN module for use in Afghanistan, Albania, Algeria,
Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria,
Azerbaijan, Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin,
Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands,
Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Canada, Cape Verde, Cayman
Islands, Central African Republic, Chad, Chile, the People's Republic of China, Colombia,
Comoros, Congo, Costa Rica, Croatia, Cyprus, Czech Republic, Denmark, Djibouti, Dominica,
the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea,
Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany,
Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guam, Guatemala, Guinea, Guinea-Bissa,
Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Indonesia, Iraq, Ireland, Israel,
Italy, Ivory Coast, Jamaica, Japan, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan,
Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia,
Madagascar, Malawi, Malaysia, Maldives, Mali, Malta, Marshall Islands, Martinique,
Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco,
Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand,
Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea,
Paraguay, Peru, Philippines, Poland, Portugal, Puerto Rico, Qatar, the Republic of Moldova,
Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal,
Serbia and Montenegro, Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, Solomon
Islands, Somalia, South Africa, South Korea, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent
and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Syria, Taiwan, Tajikistan,
Tanzania, Thailand, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu,
Uganda, Ukraine, the United Arab Emirates, the United Kingdom, the United States, Uruguay, the
US Virgin Islands, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and
Zimbabwe
593837-001
Broadcom 4313 802.11b/g/n 1x1 WLAN module 593836-001
Intel Centrino Wireless-N 1000 802.11b/g/n 1x2 593530-001
Broadcom 43224 802.11a/b/g/n 2x2 WLAN module for use only with computer models in
Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands, and the United States
582564-001
Broadcom 43224 802.11a/b/g/n 2x2 WLAN module for use only with computer models in
Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia,
Aruba, Australia, Austria, Azerbaijan, Bahamas, Bahrain, Barbados, Belgium, Belize, Benin,
Bermuda, Bhutan, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei,
Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, Central African Republic,
Chad, Chile, the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica,
Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic,
Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France,
French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada,
Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong,
Hungary, Iceland, India, Indonesia, Ireland, Italy, the Ivory Coast, Jamaica, Japan, Jordan,
Kazakhstan, Kenya, Kiribati, Korea-South, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho,
Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia,
Maldives, Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco,
Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand,
Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay,
Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Rwanda, Samoa,
San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia and Montenegro,
the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia,
South Africa, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines,
Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Thailand, Timor (East),
Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda,
the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela,
Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
582564-002
58 Chapter 4 Removal and replacement procedures
Before removing the WLAN module:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first disconnecting the power cord from the AC outlet
and then disconnecting the AC adapter from the computer.
4. Remove the Battery on page 53.
5. Remove the Hard drive cover on page 54.
To remove the WLAN module:
CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless
module authorized for use in the computer by the governmental agency that regulates wireless devices
in your country or region. If you replace the module and then receive a warning message, remove the
module to restore computer functionality, and then contact technical support through Help and Support.
1. Disconnect the WLAN antenna cables (1) from the WLAN module.
NOTE: The black WLAN antenna cable is connected to the WLAN module “Main” terminal. The
white WLAN antenna cable is connected to the WLAN module “Aux” terminal.
2. Remove the two screws (2) that secure the WLAN module to the computer. The edge of the module
opposite the slot rises away from the computer.
3. Remove the WLAN module (3) by pulling it away from the slot at an angle.
NOTE: WLAN modules are designed with a notch (4) to prevent incorrect insertion into the
WLAN module slot.
Reverse this procedure to install a WLAN module.
Component replacement procedures 59
3. Remove the module (2) by pulling it away from the slot at an angle.
NOTE: Memory modules are designed with a notch to prevent incorrect insertion into the
memory module slot.
Reverse this procedure to install a memory module.
Component replacement procedures 61
RTC battery
Description Spare part number
RTC battery 599516-001
Before removing the RTC battery:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first disconnecting the power cord from the AC outlet
and then disconnecting the AC adapter from the computer.
4. Remove the Battery on page 53.
5. Remove the Hard drive cover on page 54.
To remove the RTC battery, use a no the RTC battery from the socket onn-conductive pointed tool to pry
the system board.
Reverse this procedure to install the RTC battery. Be sure that the RTC battery is installed with the “+”
sign facing up.
62 Chapter 4 Removal and replacement procedures
Optical drive
NOTE: The optical drive spare part kit includes an optical drive bezel and bracket.
Description Spare part number
LightScribe DVD±R/RW SuperMulti DL Drive 603677-001
Blu-ray ROM with LightScribe DVD±R/RW SuperMulti DL Drive 603678-001
Blu-ray ROM with DVD±R/RW SuperMulti DL Drive 614333-001
Blu-ray Writer with DVD±R/RW SuperMulti DL Drive 614332-001
Before removing the optical drive:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first disconnecting the power cord from the AC outlet
and then disconnecting the AC adapter from the computer.
4. Remove the Battery on page 53.
5. Remove the Hard drive cover on page 54.
To remove the optical drive:
1. Position the computer with the front toward you.
2. Remove the screw (1) that secures the optical drive to the computer.
3. Remove the optical drive (2).
Component replacement procedures 63
Reverse this procedure to install the optical drive.
64 Chapter 4 Removal and replacement procedures
Keyboard
For a list of keyboards available for your country or region and their spare part number, see Computer
major components on page 18.
Before removing the keyboard:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first disconnecting the power cord from the AC outlet
and then disconnecting the AC adapter from the computer.
4. Remove the following components:
a. Battery on page 53
b. Hard drive cover on page 54
c. Hard drive on page 55
d. Optical drive on page 63
To remove the keyboard:

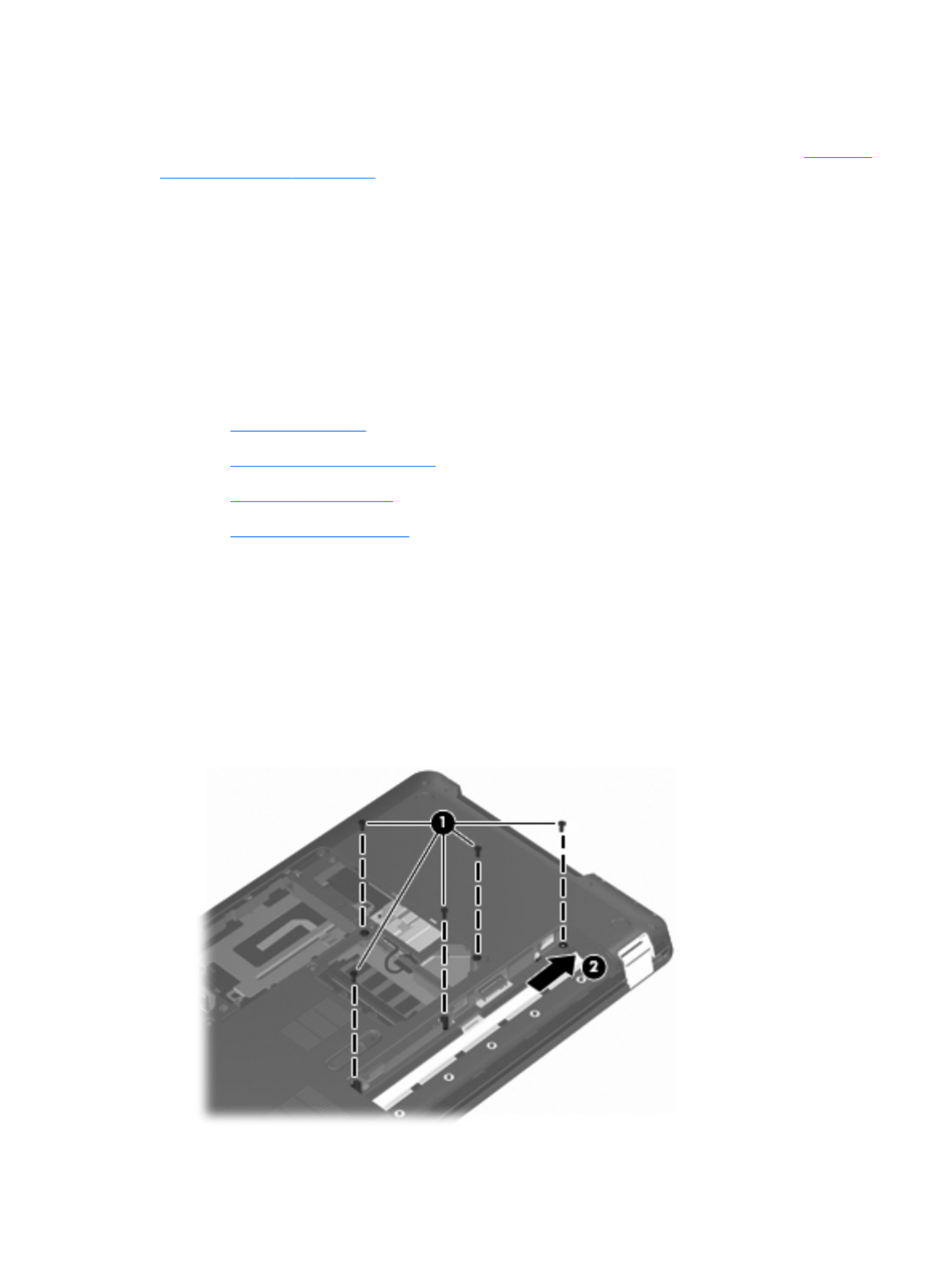

1. Position the computer upside down with the front toward you.
2. Remove the following screws (1):
●Two screws that are under the hard drive cover
●Three screws that are inside the battery bay
3. Slide the keyboard release switch (2) in the battery bay to the right.
Component replacement procedures 65
Top cover
NOTE: The top cover spare part kit includes the TouchPad.
Description Spare part number
For use only with etched computer models equipped with a fingerprint reader 603684-001
For use only with black computer models not equipped with a fingerprint reader 603685-001
For use only with white computer models not equipped with a fingerprint reader 603686-001
For use only with red computer models not equipped with a fingerprint reader 603687-001
For use only with chrome computer models not equipped with a fingerprint reader 603688-001
For use only with midnight blue computer models not equipped with a fingerprint reader 615934-001
For use only with Rossignol Special Edition AT (Attraxion) computer models not equipped with a
fingerprint reader
635378-001
For use only with Rossignol Special Edition KP (Koopman) computer models not equipped with a
fingerprint reader
635379-001
Before removing the top cover:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first disconnecting the power cord from the AC outlet
and then disconnecting the AC adapter from the computer.
4. Remove the following components:
a. Battery on page 53
b. Hard drive cover on page 54
c. Hard drive on page 55
d. Optical drive on page 63
e. Keyboard on page 65
To remove the top cover:
1. Turn the computer upside down, with the front toward you.
2. Remove the following screws from the bottom of the computer:
●Three screws from the left side
●Four screws from the right side
●One screw from the rear
Component replacement procedures 67

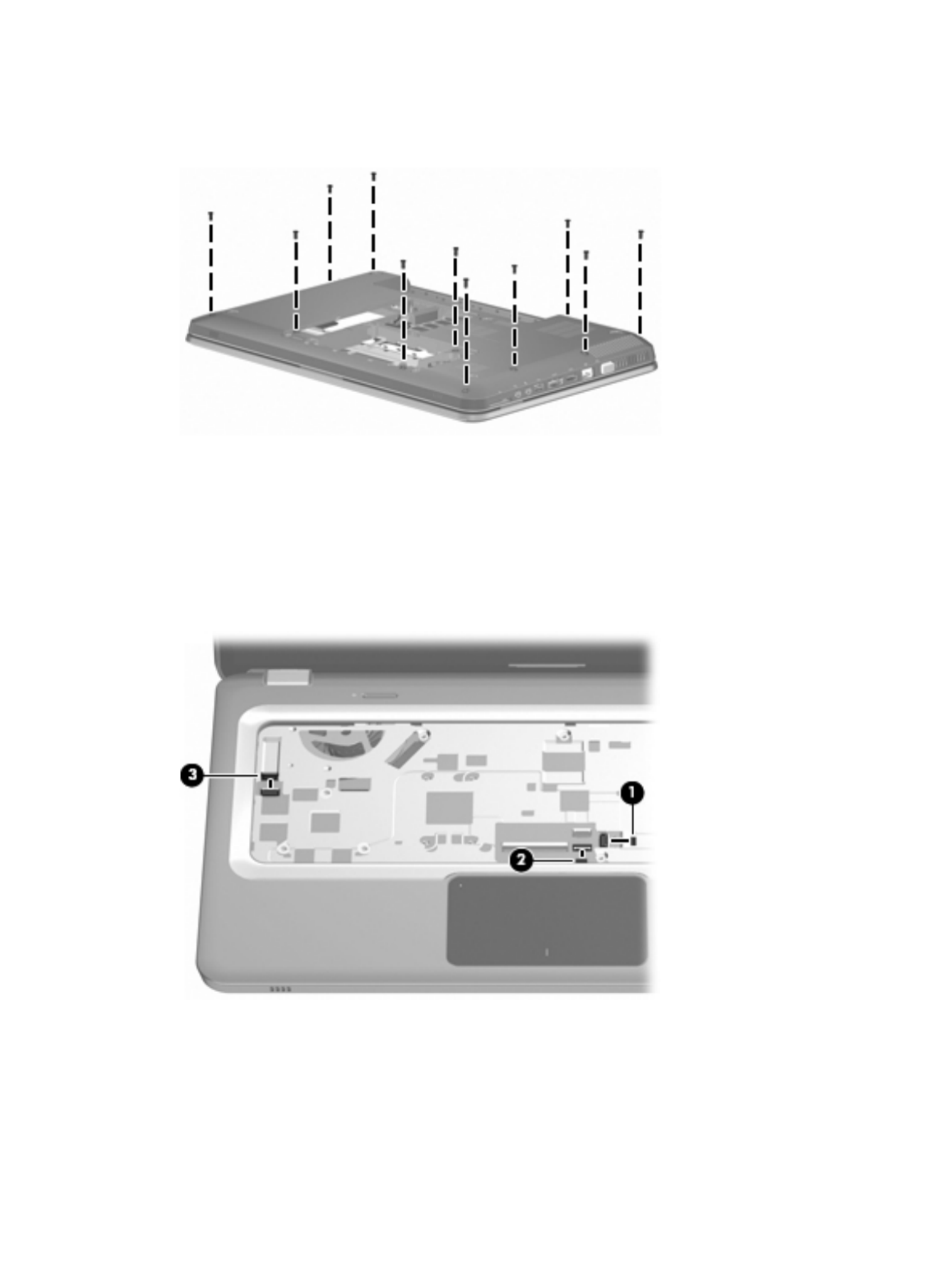

●Two screws from the front
●One screw from near the RTC battery
3. Turn the computer right-side up, with the front toward you.
4. Disconnect the following cables from the system board:
●Fingerprint reader board cable (1)
●TouchPad cable (2)
●Power button cable (3)
68 Chapter 4 Removal and replacement procedures

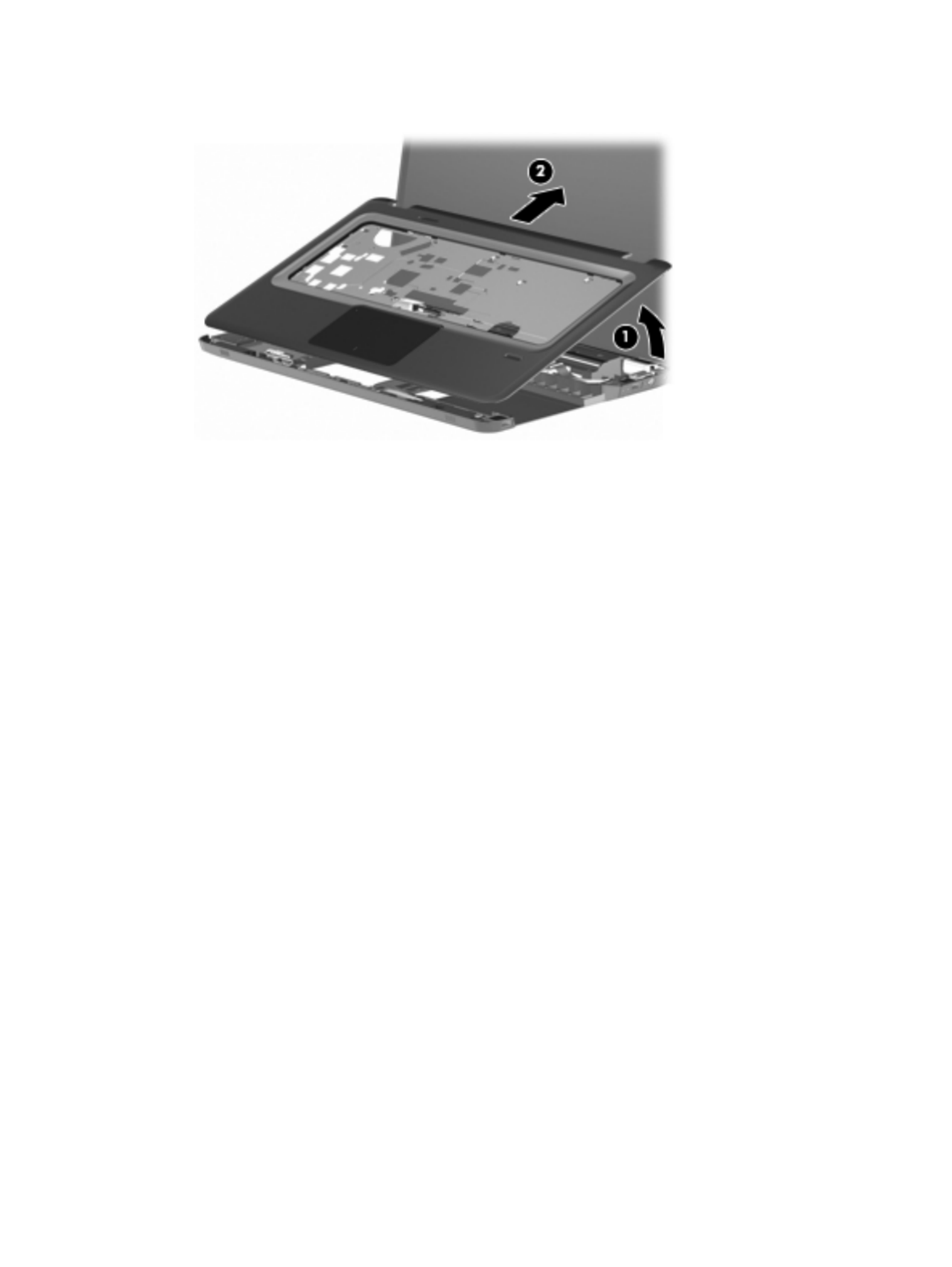

5. Lift (1) and then remove the top cover (2).
Reverse this procedure to install the top cover.
Component replacement procedures 69
Touchscreen display assembly
NOTE: The display assembly includes a webcam, two microphones, and two wireless antenna
transceivers and cables.
Description Spare part number
39.6-cm (15.6-inch) HD Touchscreen display assembly with low light VGA webcam and two
microphones (Etched)
631019-001
Before removing the display assembly:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first disconnecting the power cord from the AC outlet
and then disconnecting the AC adapter from the computer.
4. Remove the following components:
a. Battery on page 53
b. Hard drive cover on page 54
c. Hard drive on page 55
d. WLAN module on page 57
e. Optical drive on page 63
f. Keyboard on page 65
g. Top cover on page 67
To remove the Touchscreen display assembly:
1. Remove the WLAN cables (1) from under the system board.
2. Disconnect the display panel cable (2) from the system board.
72 Chapter 4 Removal and replacement procedures

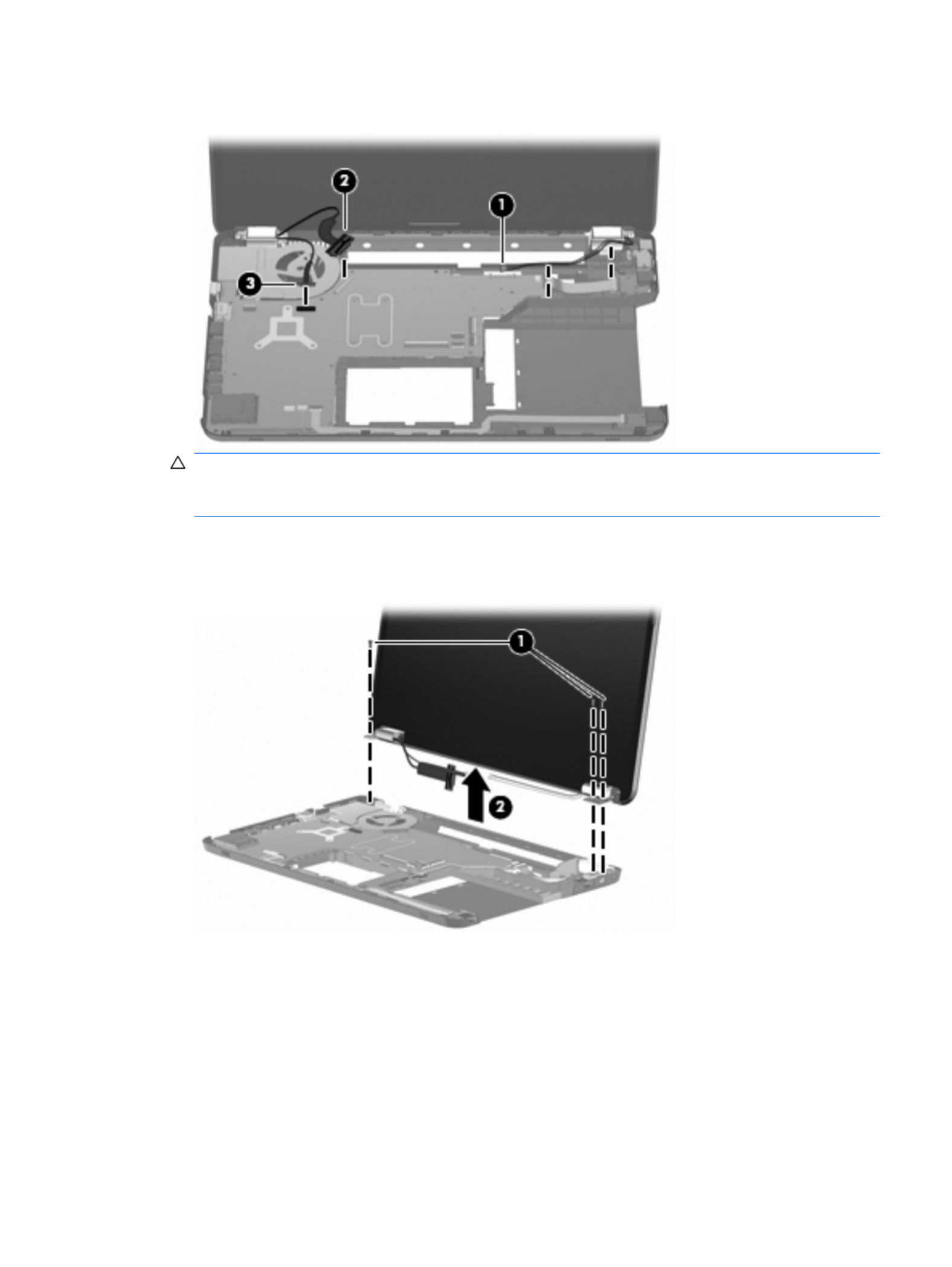

3. Disconnect the touchscreen cable (3) from the system board.
CAUTION: Support the display assembly when removing the following screws. Failure to
support the display assembly might result in damage to the display assembly and other computer
components.
4. Remove the three screws (1) that secure the display assembly to the computer.
5. Remove the Touchscreen display assembly (2).
6. To replace the display enclosure or any of the display assembly internal components, remove the
following:
●Two rubber screw covers on the display bezel bottom edge (1). The display rubber screw
covers are included in the Display Rubber Kit, spare part number 603659-001.
●Two screws (2).
Component replacement procedures 73

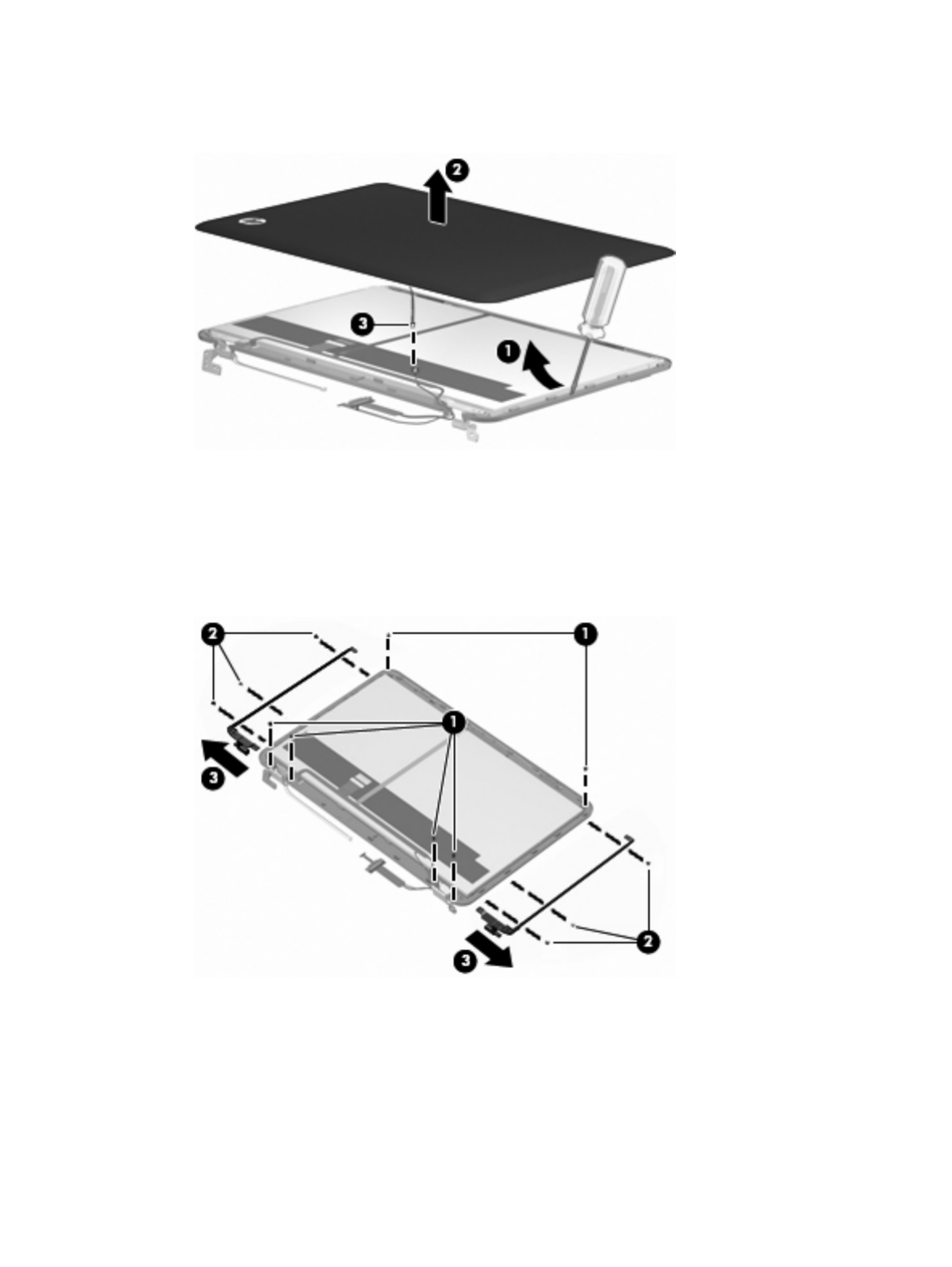

11. Remove the display enclosure. The Touchscreen display enclosure spare part number is
603663-001.
12. To replace the display hinges, remove the six screws (1) that secure the display hinges to the top
of the display panel.
13. Remove the three screws (2) on the side of each display hinge.
14. Remove the display hinge (3). Th the Display Hinge e display hinge is available in Kit, spare part
number 603664-001.
Component replacement procedures 75

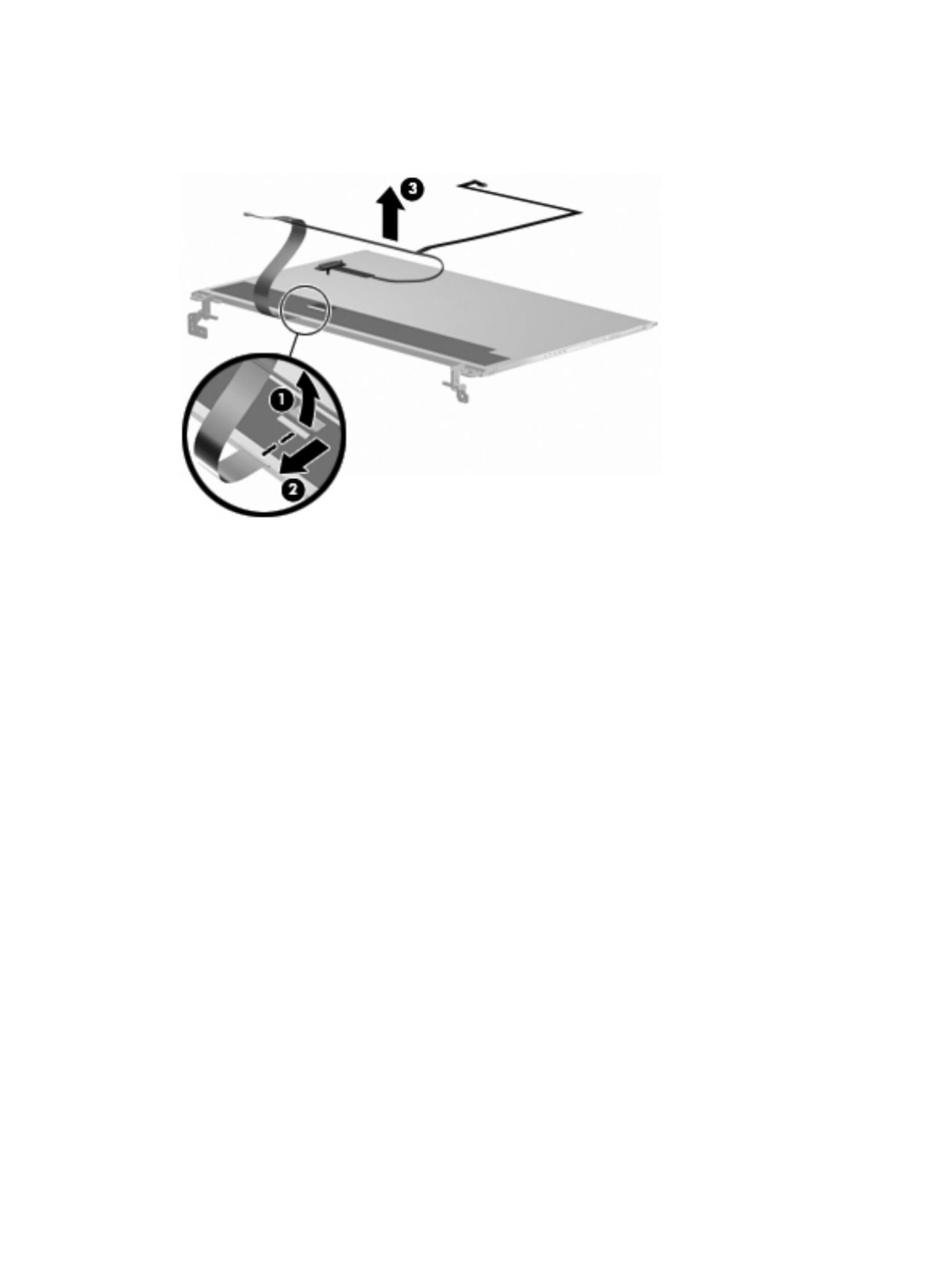

15. To remove the display panel cable, remove the adhesive plastic strip (1) from the display panel
cable, and then disconnect the cable (2). Lift and remove the cable (3). The Touchscreen Display
Cable Kit is spare part number 603655-001.
Reverse this procedure to reassemble and install the display assembly.
76 Chapter 4 Removal and replacement procedures
BrightView display assembly
NOTE: The display assembly includes two wireless antenna transceivers and cables.
Description Spare part number
39.6-cm (15.6-inch) HD BrightView display assembly with low light VGA webcam and two
microphones (Black)
603647-001
39.6-cm (15.6-inch) HD BrightView display assembly with low light VGA webcam and two
microphones (White)
603648-001
39.6-cm (15.6-inch) HD BrightView display assembly with low light VGA webcam and two
microphones (Red)
603649-001
39.6-cm (15.6-inch) HD BrightView display assembly with low light VGA webcam and two
microphones (Chrome)
603650-001
39.6-cm (15.6-inch) HD BrightView display assembly with low light VGA webcam and two
microphones (Midnight blue)
615932-001
39.6-cm (15.6-inch) HD BrightView display assembly with low light VGA webcam and two
microphones (Black) with WiMAX
629279-001
39.6-cm (15.6-inch) HD BrightView display assembly with low light VGA webcam and two
microphones (Etched) with WiMAX
629280-001
39.6-cm (15.6-inch) HD BrightView display assembly with low light VGA webcam and two
microphones (Rossignol Special Edition AT (Attraxion))
635372-001
39.6-cm (15.6-inch) HD BrightView display assembly with low light VGA webcam and two
microphones (Rossignol Special Edition KP (Koopman))
635373-001
39.6-cm (15.6-inch) HD BrightView display assembly with low light VGA webcam and two
microphones (Etched)
595131-001
Before removing the BrightView display assembly:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first disconnecting the power cord from the AC outlet
and then disconnecting the AC adapter from the computer.
4. Remove the following components:
a. Battery on page 53
b. Hard drive cover on page 54
c. Hard drive on page 55
d. WLAN module on page 57
e. Optical drive on page 63
Component replacement procedures 77
f. Keyboard on page 65
g. Top cover on page 67
To remove the BrightView display assembly:
1. Remove the WLAN cables (1) from under the system board.
2. Disconnect the display panel cable (2) from the system board.
CAUTION: Support the display assembly when removing the following screws. Failure to
support the display assembly might result in damage to the display assembly and other computer
components.
3. Remove the three screws (1) that secure the display assembly to the computer.
4. Remove the BrightView display assembly (2).
78 Chapter 4 Removal and replacement procedures
5. To replace the display bezel or any of the display assembly internal components, remove the
following:
●Two rubber screw covers on the display bezel bottom edge (1).
●Two screws (2). The display rubber screw covers are included in the Display Rubber Kit,
spare part number 603659-001.
6. Remove the hinge covers by popping off the cover from each hinge.
7. Flex the inside edges of the top edge (1), the left and right sides (2), and the bottom edge (3) of
the display bezel until the bezel disengages from the display enclosure.
Component replacement procedures 79
8. Remove the display bezel (4). The display bezel is available using spare part number
603651-001 or 638394-001 (Rossignol Special Edition AT (Attraxion)).
9. To replace the display panel, remove the six screws (1) from the display hinges.
10. Separate the display panel from the display enclosure (2), and then disconnect the display LED
cable (3) from the display panel cable. The display panel spare part number is 559130-001.
11. To replace the display hinges, remove the three screws (1) that secure each display hinge to the
display panel.
80 Chapter 4 Removal and replacement procedures

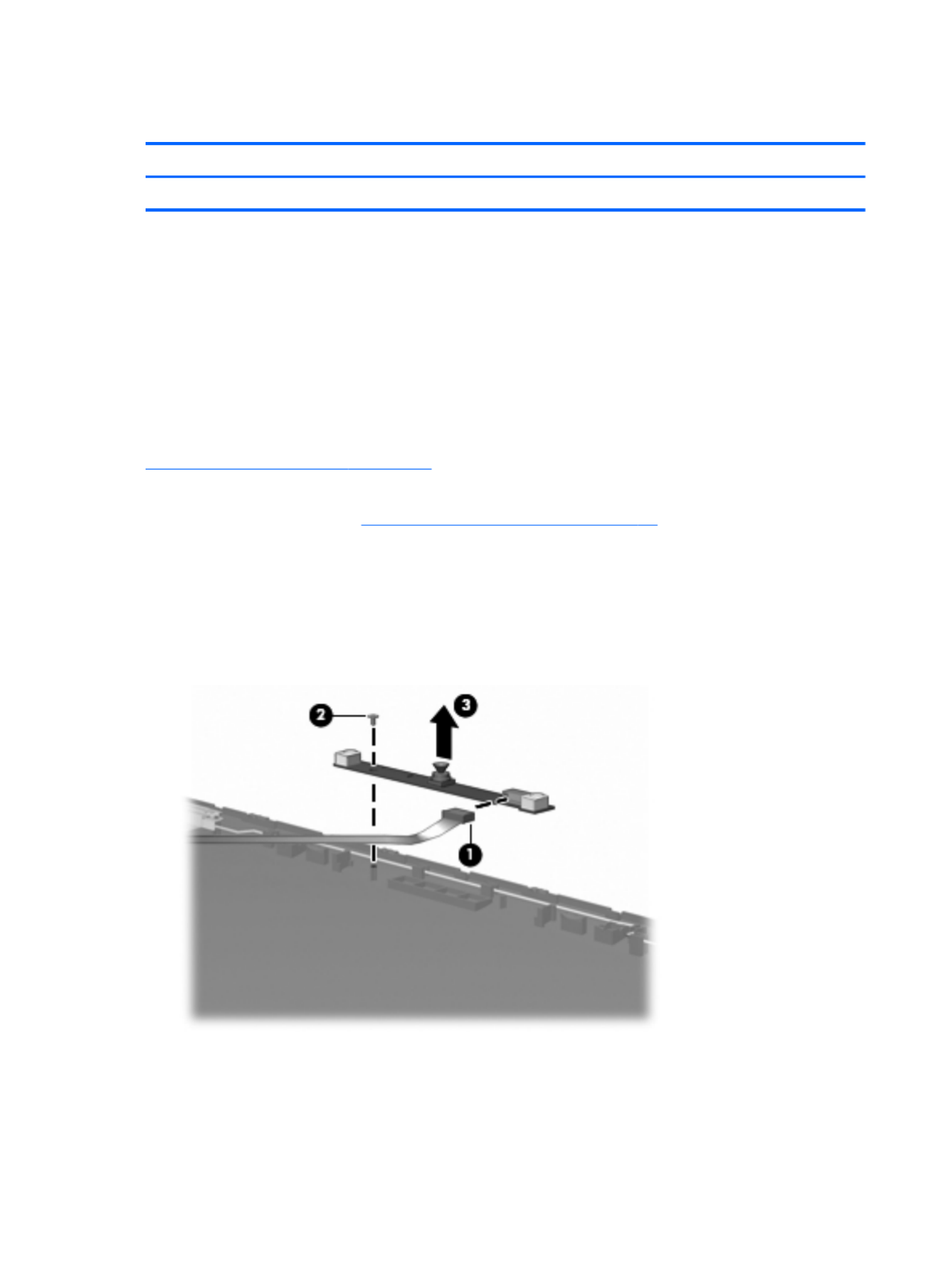

Webcam/microphone module
Description Spare part number
Webcam/microphone module (includes cable) 603660-001
Before removing the webcam/microphone module:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first disconnecting the power cord from the AC outlet
and then disconnecting the AC adapter from the computer.
To access the BrightView webcam/microphone module, remove the display bezel. For instructions, see
BrightView display assembly on page 77.
To access the Touchscreen webcam/microphone module, remove the display panel from the display
enclosure. For instructions, see Touchscreen display assembly on page 72.
To replace the webcam/microphone module:
1. Disconnect the webcam/microphone module cable (1) from the webcam/microphone module.
2. Remove the screw securing the webcam/microphone module to the display enclosure (2).
3. Release the webcam/microphone module from the display enclosure (3).
Reverse this procedure to install the webcam/microphone module.
82 Chapter 4 Removal and replacement procedures
Bluetooth module
NOTE: The Bluetooth module spare part kit does not include a Bluetooth module cable. The Bluetooth
module cable spare part number is 603645-001.
Description Spare part number
Bluetooth module 537921-001
Before removing the Bluetooth module:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first disconnecting the power cord from the AC outlet
and then disconnecting the AC adapter from the computer.
4. Remove the following components:
a. Battery on page 53
b. Hard drive cover on page 54
c. Hard drive on page 55
d. Optical drive on page 63
e. Keyboard on page 65
f. Top cover on page 67
g. Touchscreen display assembly on page 72 77 or BrightView display assembly on page
To remove the Bluetooth module:
1. Disconnect the Bluetooth module cable (1) from the system board.
Component replacement procedures 83

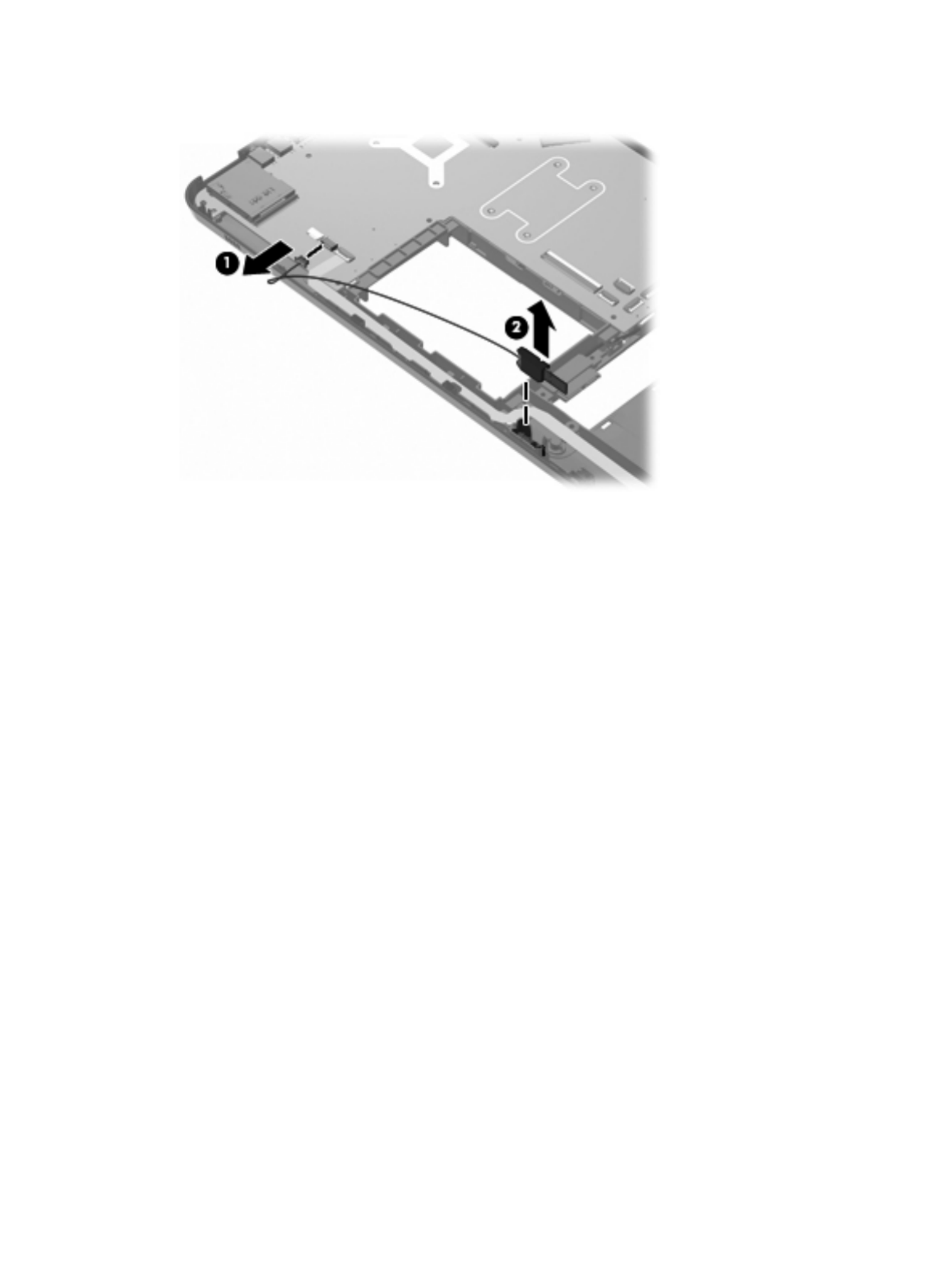

2. Slide the Bluetooth module out of the slot and remove the module (2) from the computer.
Reverse this procedure to install the Bluetooth module.
84 Chapter 4 Removal and replacement procedures
Speaker assembly
Description Spare part number
Speaker assembly 603694-001
Before removing the speaker assembly:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first disconnecting the power cord from the AC outlet
and then disconnecting the AC adapter from the computer.
4. Remove the following components:
a. Battery on page 53
b. Hard drive cover on page 54
c. Hard drive on page 55
d. Optical drive on page 63
e. Keyboard on page 65
f. Top cover on page 67
g. Touchscreen display assembly on page 72 77 or BrightView display assembly on page
To remove the speaker assembly:
1. Remove the three screws (1) securing the speaker assembly to the base enclosure.
2. Disconnect the speaker assembly cable (2) from the system board.
Component replacement procedures 85
3. Remove the speaker assembly (3).
Reverse this procedure to install the speaker assembly.
86 Chapter 4 Removal and replacement procedures
Produktspecifikationer
| Varumärke: | HP |
| Kategori: | Laptop |
| Modell: | Pavilion dv6-3010er |
| Typ av operation: | Draaiknop |
| Färg på produkten: | Grijs |
| Vikt: | 121000 g |
| Bredd: | 900 mm |
| Djup: | 1000 mm |
| Höjd: | 900 mm |
| Uppvärmningsfunktion: | Nee |
| Grill: | Ja |
| Antal funktioner: | 5 |
| Barnlås: | Ja |
| Energie-efficiëntieklasse: | A |
| Förpackningens vikt: | 132700 g |
| Förpackningens bredd: | 1060 mm |
| Djuppackning: | 670 mm |
| Förpackningshöjd: | 1015 mm |
| Belysning inuti: | Ja |
| Ångkokning: | Nee |
| Rotisserie: | Nee |
| Avfrostningsfunktion: | Ja |
| Typ av lampa: | Halogeen |
| Brännare/kokzonseffekt 2: | 2300 W |
| Brännare/kokzonseffekt 3: | 2300 W |
| Brännare/kokzonseffekt 1: | 1300 W |
| Typ av häll: | Zoneloze inductiekookplaat |
| Ugnens strömkälla: | Electrisch |
| Antal ugnar: | 3 |
| Antal elektroniska kokzoner: | 5 zone(s) |
| Typ av rengöring: | Katalytisch (volledig) |
| Nuvarande: | 43 A |
| Antal glasdörrpaneler: | 3 |
| Energiförbrukning (konventionell): | 1.13 kWu |
| Energiförbrukning (tvungen konvektion): | 0.77 kWu |
| Ugn med nettokapacitet: | 61 l |
| Över- och undervärme: | Ja |
| Självrengörande: | Nee |
| Undervärmning: | Nee |
| Övervärme: | Nee |
| Tryckbara knappar: | Nee |
| Kylskåpsdörr: | Ja |
| Dörrkylningsfläkt: | Ja |
| Avtagbart dörrglas: | Ja |
| Boost funktion: | Ja |
| Ugn med bruttokapacitet: | 70 l |
| Brofunktion: | Nee |
| Kärntemperaturmätare: | Nee |
| Inkluderar nätsladd: | Ja |
| Brännare/kokzonseffekt 4: | 1300 W |
| Strömkälla brännare/kokzon 1: | Electrisch |
| Strömkälla brännare/kokzon 2: | Electrisch |
| Strömkälla brännare/kokzon 3: | Electrisch |
| Strömkälla för brännare/kokzon 4: | Electrisch |
| Långsam matlagning: | Nee |
| Eco läge: | Ja |
| Ugn 2 nettokapacitet: | 84 l |
| Ugn 2 storlekar: | Groot |
| Ugn 2 strömkälla: | Electrisch |
| Ugn 2 grill: | Nee |
| Invändig beläggning: | Emaille |
| Över tid: | Ja |
| Typ produkt: | Range-fornuis |
| Material för ugnsdörr: | Glas |
| Topp, botten & varmluft: | Ja |
| Täckplatta: | Nee |
| Enkel rengöring (ugn): | Ja |
| Bakplåt: | Nee |
| Strömkälla för brännare/kokzon 5: | Electrisch |
| Brännare/kokzonseffekt 5: | 2300 W |
| Undervärme & fläkt: | Ja |
| Invändig beläggning ovanpå: | Emaille |
| Ugn 2 antal glasdörrspaneler: | 2 |
| Ugn 2 antal hyllor: | 4 schappen |
| Ugn 2 inre ljus: | Ja |
| Ugn 2 övervärme: | Nee |
| Ugn 2 över- och undervärme: | Nee |
| Ugn 2 topp, botten & varmluft: | Ja |
| Ugn 2 undervärme: | Nee |
| Ugn 2 bottenvärme & fläkt: | Nee |
| Ugn 2 grundvärme & varmluft: | Nee |
| Ugn 2 ångkokning: | Nee |
| Ugn 2 avfrostningsfunktion: | Nee |
| Ugn 2 material lucka: | Glas |
| Ugn 2 dörröppning: | Opening aan zijkant |
| Ugn 2 helgrill: | Nee |
| Ugn 2 energieffektivitetsklass: | B |
| Teppanyaki: | Nee |
| Enkel rengöring (häll): | Ja |
| Ugn 3 storlek: | Klein |
| Ugn 3 strömkälla: | Electrisch |
| Ugn 3 nettokapacitet: | 36 l |
| Ugn 3 grill: | Ja |
| Ugn 3 material lucka: | Glas |
| Ugn 3 teleskopiska hyllor: | Nee |
| Ugn 3 inre ljus: | Ja |
| Ugn 3 avfrostningsfunktion: | Nee |
| Ugn 3 avtagbara dörrglas: | Nee |
| Ugn 3 konventionell matlagning: | Nee |
| Ugn 3 varmluftsmatlagning: | Nee |
| Ugn 3 grundvärme & varmluft: | Nee |
| Ugn 3 undervärme: | Nee |
| Ugn 3 topp, botten & varmluft: | Nee |
| Ugn 3 övervärme: | Nee |
| Teleskopiska hyllor: | Ja |
| Ugn 2 långsam tillagning: | Nee |
| Ugn 2 varmluftsgrillfunktion: | Nee |
| Ugn 3 antal funktioner: | 1 |
| Ugn 3 varmluftsgrillfunktion: | Nee |
| Ugn 3 Antal glasdörrar: | 3 |
| Ugn 3 långsam tillagning: | Nee |
| Wokring: | Nee |
| Ugn 2 värmefunktion: | Nee |
| Ugn 2 grillspett: | Nee |
| Ugn 2 håller varm funktion: | Nee |
| Halvera grillen: | Nee |
| Öppen dörr grillning: | Ja |
| Ugn 2 katalytiska foder på sidoväggar: | Nee |
| Ugn 3 håller varm funktion: | Nee |
| Ugn 2 avtagbara dörrglas: | Ja |
| Ugn 3 katalytiska foder på sidoväggar: | Nee |
| Ugn 2 halva grillen: | Nee |
Behöver du hjälp?
Om du behöver hjälp med HP Pavilion dv6-3010er ställ en fråga nedan och andra användare kommer att svara dig
Laptop HP Manualer
5 April 2025
5 Mars 2025
2 Februari 2025
2 Februari 2025
2 Februari 2025
2 Februari 2025
2 Februari 2025
2 Februari 2025
2 Februari 2025
7 Januari 2025
Laptop Manualer
- Hercules
- Panasonic
- Packard Bell
- Razer
- Alienware
- Tripp Lite
- Lexibook
- Medion
- Naxa
- Schneider
- XPG
- Dell
- Apple
- Jay-tech
- General Dynamics Itronix
Nyaste Laptop Manualer
3 April 2025
2 April 2025
28 Mars 2025
28 Mars 2025
26 Mars 2025
13 Mars 2025
7 Mars 2025
1 Mars 2025
26 Februari 2025
23 Februari 2025
