QuickSpecs
HP Slate
21
Pro All-in-One Desktop PC
Overview
c04123100 — Worldwide — Version 8— July 17, 2014
Page 1
HP Slate
21
Pro All-in-One Desktop PC

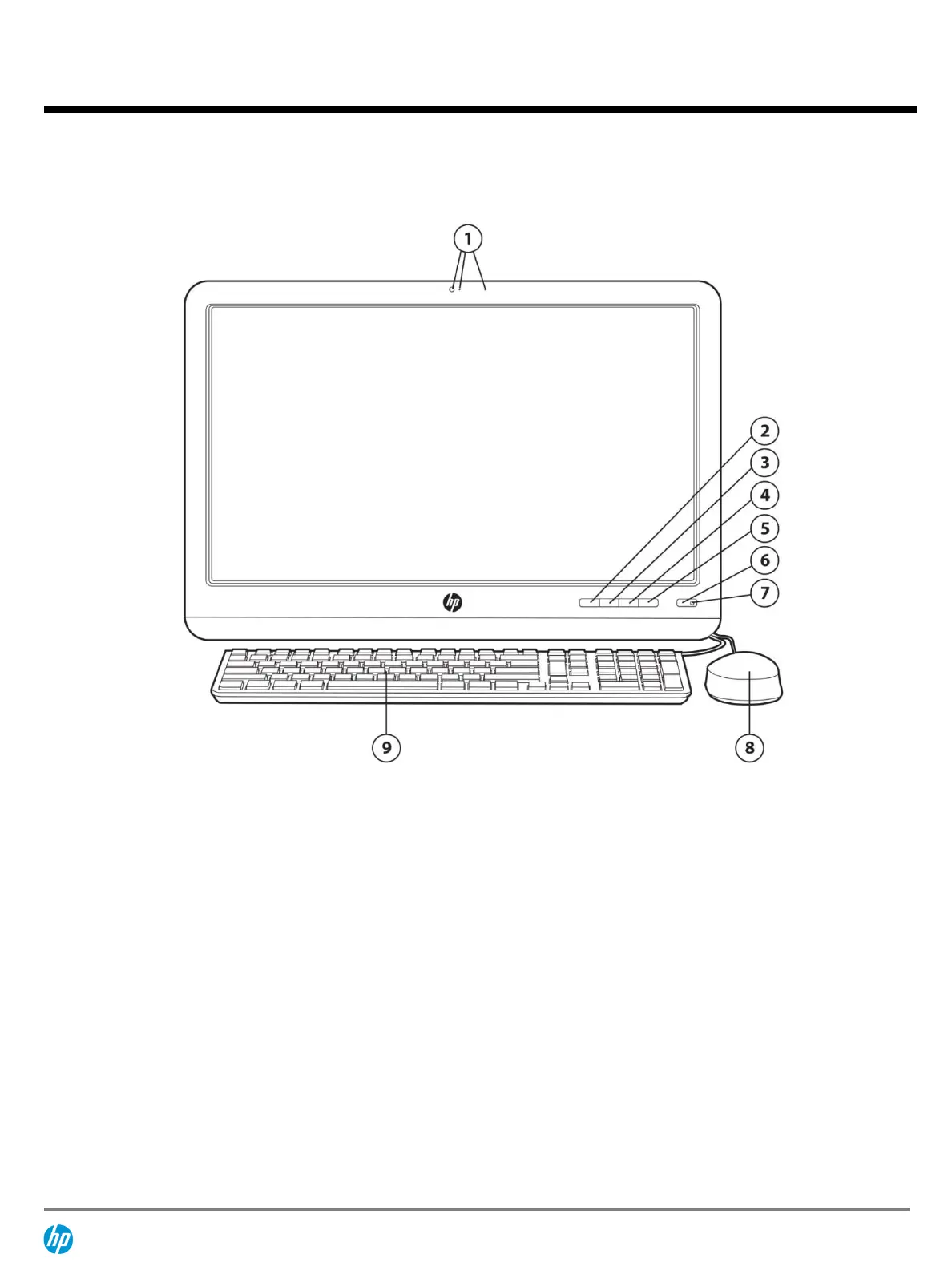

Component
Function
1.
Integrated 720p webcam with dual microphones
Records video and captures still photographs; microphones
record sound
2.
Settings/Menu button
Settings: Opens the Settings in Slate mode
Menu: Opens the OSD in HDMI mode
3.
Volume up/Minus button
Volume up: Increases volume in Slate and HDMI modes
Minus: If the OSD menu is active in HDMI mode, press to navigate
backward through the OSD menu and decrease adjustment levels
4.
Volume down/Plus button
Volume down: Decreases volume in Slate and HDMI modes
Plus: If the OSD menu is active in HDMI mode, press to navigate
forward through the OSD menu and increase adjustment levels
5.
Source/OK button
Source: Switches between Slate and HDMI modes
OK: If the OSD menu is active in HDMI mode, press to select the
highlighted menu item
6.
Power button
Turns the all-in-one on and off
7.
Power LED
Indicates the current power state of the unit
8.
USB mouse (included in select regions only)
Wired mouse connects to USB port on rear panel
9.
USB keyboard (included in select regions only)
Wired keyboard connects to USB port on rear panel
QuickSpecs
HP Slate
21
Pro All-in-One Desktop PC
Overview
c04123100 — Worldwide — Version 8— July 17, 2014
Page 2

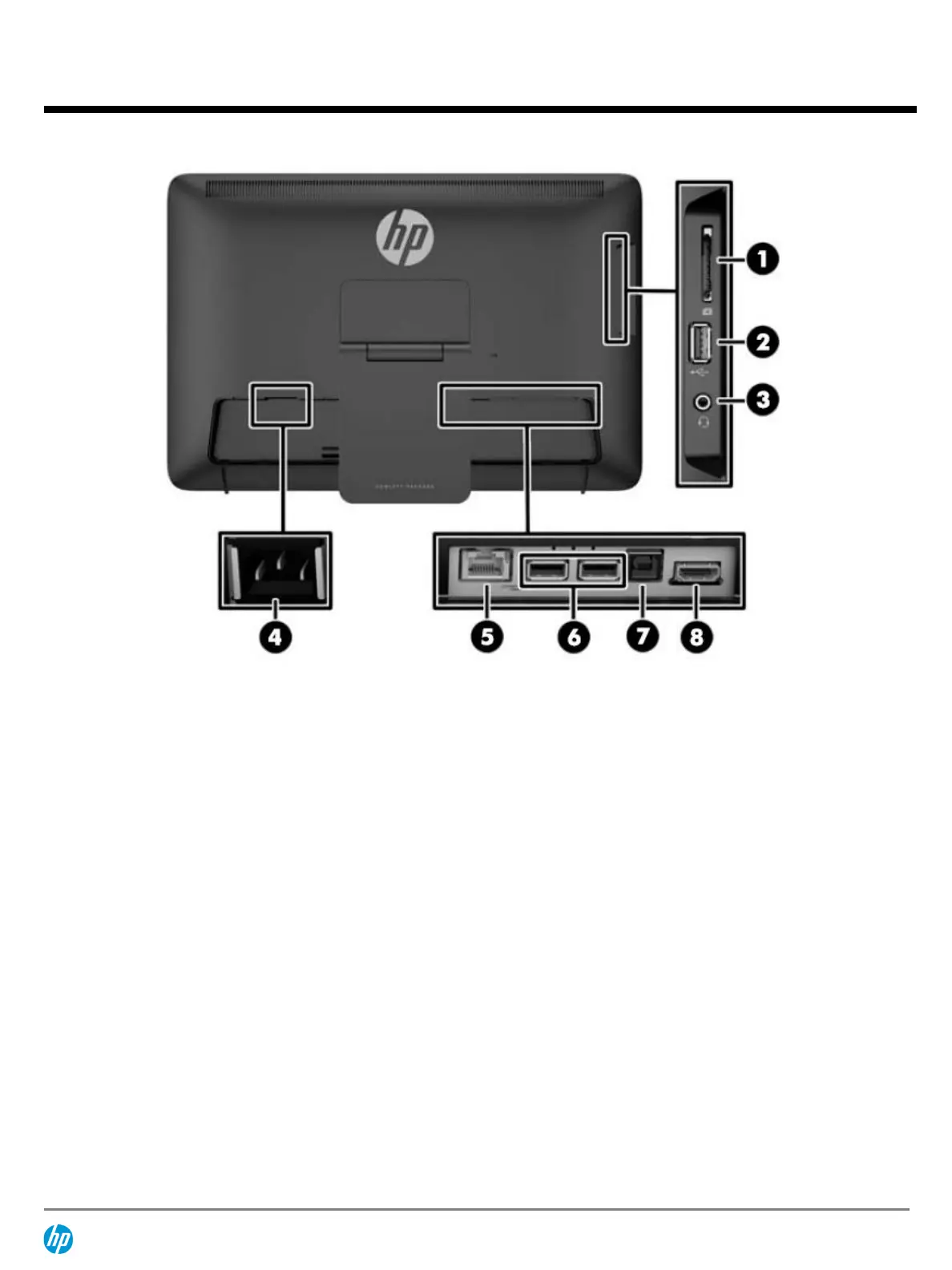

Component
Function
1.
SD card reader
Reads data from and writes data to Secure Digital (SD) memory cards
2.
USB 2.0 connector
Connects external USB devices to the all-in-one
3.
Audio-out (headphone) jack
Produces sound when connected to optional powered stereo speakers, headphones,
earbuds, or a headset
4.
Power connector
Connects the power cord to the all-in-one
5.
Ethernet connector
Connects an Ethernet cable to the all-in-one
6.
USB 2.0 connectors
Connect external USB devices to the all-in-one
7.
USB upstream connector
Connects a USB cable between a PC and the all-in-one (required for touch
functionality in HDMI mode when connected to a PC)
8.
HDMI connector
Connects an HDMI device, such as a PC, camera, or DVD player
QuickSpecs
HP Slate
21
Pro All-in-One Desktop PC
Overview
c04123100 — Worldwide — Version 8— July 17, 2014
Page 3
Models
HP Slate21 Pro All-in-One 200k: F7U54AA - with Keyboard and mouse*
HP Slate21 Pro All-in-One 200s: G0W16AA - without Keyboard and mouse**
* Not available in EMEA
** Available in EMEA only
At A Glance
Android 4.3, Jelly Bean operating system
21.5" diagonal IPS full HD widescreen LED-backlit touch-enabled (1920 x 1080)
Integrated All-in-One form factor
NVIDIA® Tegra® 4 Quad-Core processor
NVIDIA® graphics
2 GB of DDR3 memory
16GB of eMMC Flash storage
1
HD Webcam with built-in microphone
Integrated 10/100 Ethernet
Wireless connectivity - 802.11a/b/g/n wireless
Bluetooth 4.0
HDMI input
USB keyboard and mouse (included in select regions only)
Integrated speakers
SD card reader
1
12.4GB is available for user. Total flash storage used for OS, preinstalled apps, recovery is up to 3.6GB.
