Operating Instructions

Network Camera

Model No. WV-U2500 Series

WV-U1500 Series

WV-U2100 Series

WV-U1100 Series

WV-U1142A

WV-U2142LA

WV-U1542LA WV-U2542LA

The model number is abbreviated in some descriptions in this manual.

This manual covers the models: WV-U2500 Series (WV-U2542LA, WV-U2540LA,

WV-U2532LA, WV-U2530LA),WV-U1500 Series (WV-U1542LA, WV-U1532LA),

WV-U2100 Series (WV-U2142LA, WV-U2140LA, WV-U2132LA,

WV-U2130LA),WV-U1100 Series (WV-U1142A, WV-U1132A, WV-U1130A).

Preface

About the user manuals

There are 3 sets of operating instructions as follows.

• Operating Instructions (this document): Explains how to perform the settings and how to operate this

camera.

• Basic Information: Provides information about “Precautions for use” and “Detail specifications”.

• Installation Guide: Provides information about “Precautions”, “Precautions for installation” and the

installation method.

The screens used in these operating instructions show the case of WV-U2132LA. Depending on the model

used, the screens shown in the explanations may differ to the actual camera screens.

Note

• “Control No.:C****” used in this document should to be used to search for information on our support

website below.

https://i-pro.com/global/en/surveillance/training_support/support

• The captured screens are used based on the guideline by Microsoft Corporation.

• Operations using Internet Explorer 11 is described in this document.

• Covered by one or more claims of the HEVC patents listed at patentlist.accessadvance.com.

• The default settings of some of the stream-related settings vary as follows depending on the language

setting of the browser selected at the time of administrator registration.

Setting items

Language of the browser

Languages other than

Japanese

Transmission priority VBR Frame rate

Image quality 3 Normal

Stream(1)

-Max bit rate (per client)

WV-U1142A/

WV-U2142LA/

WV-U2140LA/

WV-U1542LA/

WV-U2542LA/

WV-U2540LA

10240kbps *

WV-U1132A/ WV-U1130A/

WV-U2132LA/

WV-U2130LA/

WV-U1532LA/

WV-U2532LA/

WV-U2530LA

6144kbps *

WV-U1142A/

WV-U2142LA/

WV-U2140LA/

WV-U1542LA/

WV-U2542LA/

WV-U2540LA

6144kbps *

WV-U1132A/ WV-U1130A/

WV-U2132LA/

WV-U2130LA/

WV-U1532LA/

WV-U2532LA/

WV-U2530LA

3072kbps *

Stream(2)

-Max bit rate (per client)

1536kbps * 768kbps *

Stream(3)

-Max bit rate (per client)

768kbps * 384kbps *

2 Operating Instructions

Preface

About notations

The following notations are used when describing the functions limited for specified models.

The functions without the notations are supported by all models.

Notation Model Notation Model

U114x

WV-U1142A

U113x

WV-U1132A/WV-U1130A

U214x

WV-U2142LA/

WV-U2140LA

U213x

WV-U2132LA/

WV-U2130LA

U154x

WV-U1542LA

U153x

WV-U1532LA

U254x

WV-U2542LA/

WV-U2540LA

U253x

WV-U2532LA/

WV-U2530LA

Abbreviations

The following abbreviations are used in these operating instructions.

Microsoft Windows 10 is described as Windows 10.

Microsoft Windows 8.1 is described as Windows 8.1.

Internet Explorer 11 is described as Internet Explorer.

microSDXC/microSDHC/microSD memory card is described as SD card or SD memory card.

Universal Plug and Play is described as UPnP™ or UPnP.

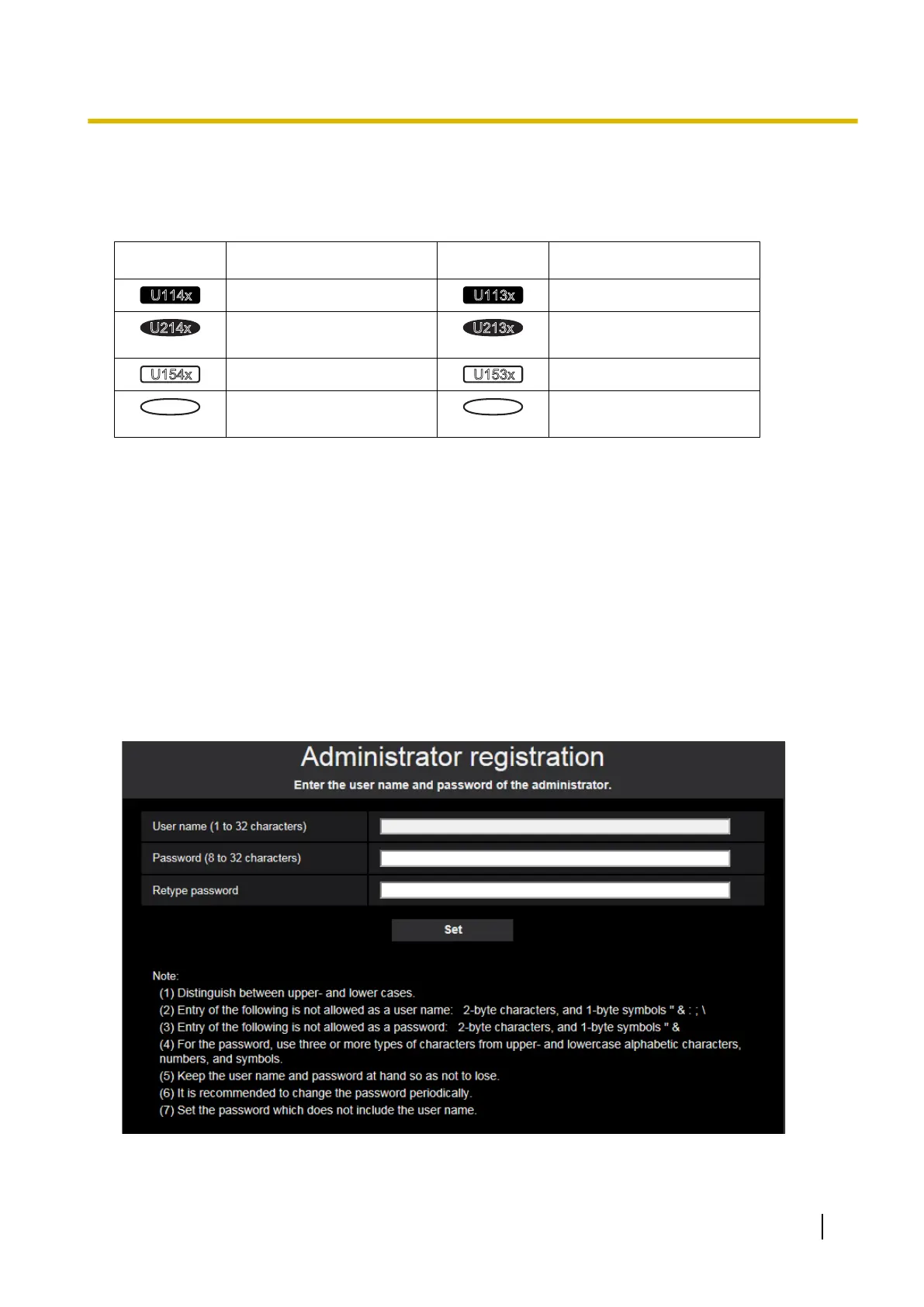

For administrator registration

At the time of first access to the camera (or at the time of initialization), the registration screen will be displayed.

Operating Instructions 3

Preface

Produktspecifikationer

Varumärke:	I-PRO
Kategori:	övervakningskamera
Modell:	WV-U2542LA
Vikt:	1000 g
Bredd:	154 mm
Djup:	154 mm
Höjd:	103 mm
Videoformat som stöds:	H.264, H.265
Maximal upplösning:	2688 x 1520 pixlar
Antal kameror:	1
Certifiering:	UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1\nFCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035
Optisk sensorstorlek:	1/2.7 "
Bildsensortyp:	CMOS
Digital zoom:	4 x
Optisk zoom:	2.5 x
vitbalans:	ATW, AWC
Modell:	IP-säkerhetskamera
Antal språk:	9
Observationsavstånd (vidvinkel):	17.2 m
Observationsavstånd (tele):	52 m
Igenkänningsavstånd (vidvinkel):	8.6 m
Igenkänningsavstånd (tele):	26 m
Identifieringsavstånd (vidvinkel):	4.3 m
Identifieringsavstånd (tele):	13 m
Highlight Compensation (HLC):	Ja
Dynamiskt omfång:	102 dB
Typ av minneskort:	Memory Stick (MS), MicroSDHC, MicroSDXC
Produktens färg:	Black, White
Inbyggd kortläsare:	Ja
Slutartid:	1/10000 - 16/30 s
Formfaktor:	Kupol-formad
Typ av ethernet-gränssnitt:	Snabb Ethernet
Antal LAN (RJ-45) anslutningar:	1
Strömförbrukning (vanlig):	7.2 W
Temperatur vid drift:	-30 - 50 ° C
Intervall för relativ operativ luftfuktighet:	10 - 100 %
Internationellt skydd (IP) kod:	IP66
Placeringar som kan användas:	Utomhus
Anslutningsteknologi:	Kabel
Dag / nattläge:	Ja
Monteringssätt:	Tak
Brännviddsintervall:	2.9 – 7.3 mm
Mörkerseende:	Ja
Totalt megapixel:	4 MP
Bildfrekvens:	30 fps
Bakgrundsbelysningskompensation (BLC):	Ja
Nätverksansluten (Ethernet):	Ja
Strömkälla av typen:	PoE
Högsta minneskortskapacitet:	512 GB
Strömförbrukning:	150 mA
Larm ingång / utgång:	Ja
IK klass:	IK10
Detekteringsavstånd (bred):	43 m
Detekteringsavstånd (tele):	130 m
