Sida 1/20
MANUAL
EN - INSTRUCTION MANUAL - P. 2
FR - MANUEL D'UTILISATION - P. 5
DE - BEDIENUNGSANLEITUNG - S. 8
NL - HANDLEIDING - P. 11
ES - MANUAL DE USO - P. 14
IT - MANUALE DI ISTRUZIONI - P. 17
PT - MANUAL DE INSTRUÇÕES - P. 20
RO - MANUAL DE UTILIZARE - P. 23
SLO - NAVODILA ZA UPORABO - S. 26
SE - BRUKSANVISNING - SID. 29
PL - INSTRUKCJA OBSŁUGI - S. 32
TR - KULLANIM KILAVUZU - S. 35
Ref.: DJ21USB-BT
Code: 15-2044
STEREO MIXER
WITH BLUETOOTH & USB
TABLE DE MIXAGE USB STEREO
AVEC BLUETOOTH
MANUAL - DJ21USB-BT
2
©Copyright LOTRONIC 2024
USB STEREO MIXER WITH BLUETOOTH
OPERATING INSTRUCTIONS
Congratulations to the purchase of your mixer.
FEATURES
• BLUETOOTH
• 3x Stereo Channels
• 2x Phono, 3x Line, 1x USB and 2x Mic Inputs
• Talkover
• Headphone monitor
• Master output level meter
• Load and play MP3’s into the USB stick with led display
EXPLANATION OF SIGNS
Accordance with the requirements of UK standards
The product is for indoor use only
This marking indicates that this product should not be disposed with other household wastes throughout
the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,
please use the return and collection systems or contact the retailer where the product was purchased. They can
take this product for environmental safe recycling.
IMPORTANT SAFETY INSTRUCTIONS AND WARNINGS
• Please read the manual carefully and keep it for future reference.
• The unit shall be connected to a power supply only of the type described.
• To reduce the risk of re or electrical shock, do not expose this unit to rain or moisture.
• Unplug the unit from the wall socket when it is not to be used for a long period of time.
• Adequate care shall be taken so that foreign objects do not fall, or liquids are not spilled into the enclosure
through openings.
• Do not remove the cover or back, as there are no user-serviceable parts inside.
• The apparatus shall not be exposed to dripping or splashing and that no objects lled with liquids, such as
vases, shall be placed on the apparatus.
• Do not place on the apparatus as naked ame source, such as lighted candles.
• Do not use the unit in a tropical climate. Only for use in moderate climates.
• A minimum distance of 0.5m around the unit must be kept ensuring sucient ventilation.
• All safety instructions and warnings must be adhered to. They are part of the manual and must be kept with
the manual.
• Any warranty claims are rendered invalid if damage occurs due to non-observance of these operating instruc-
tions. We assume no liability for any consequent damage.
• We assume no liability for personal injury or damage to property caused by incorrect handling or disrespect of
the safety instructions. Any warranty claims expire in such cases.
• Unauthorized conversions and/or modications of the appliance are not permitted for safety and licensing
reasons (CE).
• The appliance is approved for operation in dry, closed rooms only. Do not operate the device nearby water,
such as in bathrooms or nearby swimming pools.
• The appliance may not be exposed to extreme temperatures (< +5°C / > +35°C) in operation.
• The appliance may not be subject to strong vibrations or heavy mechanical strain.
• DISCONNECT DEVICE: The power outlet must be installed near the equipment and be easily accessible.
EN
Code: 15-2044
3
https://ibizashop.eu/

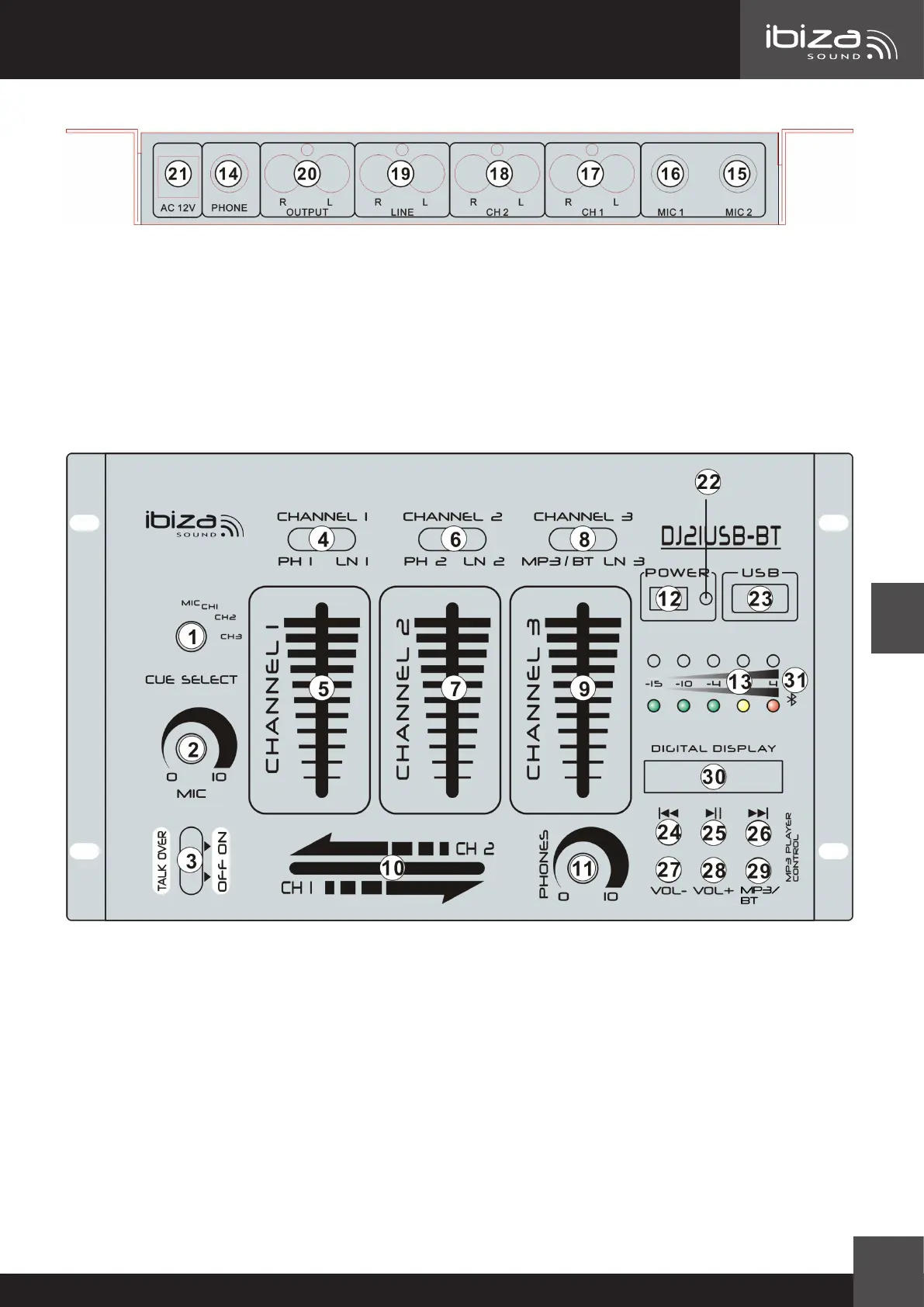

CONNECTIONS
• Before using this unit, make sure that the AC Adaptor (21) is correct voltage.
• The unit is supplied with AMP output jacks. The AMP (20) jacks are unbalanced and used to connect to your
amplier.
• The MIC L (15) and MIC R (16) input accepts a 1/4” connector.
• On the rear panel are two stereo PHONO/LINE (17) & (18) inputs and 1 stereo LINE (19) input. The PHONO/
LINE (4) enables you to set the (17) input to phono or Line. The PHONO/LINE (6) enables you to set the (18)
input to phono or Line. The USB/LINE (8) enables you to set the input to USB or Line (19). Headphones can be
plugged into the rear panel mounted HEADPHONE (14) jack.
OPERATION
1. POWER ON: Once you have made all the equipment connections to your mixer, press the POWER (12). The
power will turn on and the POWER LED (22) will glow RED.
2. CHANNEL 1: SWITCH (4) allows you to select the PHONO 1/LINE 1 (17) jack to input phono or line level. The
CHANNEL SLIDE (5) controls the input level of this channel.
3. CHANNEL 2: SWITCH (6) allows you to select the PHONO 2/LINE 2 (18) jack to input phono or line level. The
CHANNEL SLIDE (7) controls the input level of this channel.
4. CHANNEL 3: SWITCH (8) allows you to select the MP3/BT OR LINE 3 (19) jack to input mp3 or line level. The
CHANNEL SLIDE (9) controls the input level of this channel.
5. CROSSFADER: The CROSSFADER (10) allows you to the Mixing CH1/CH2 source into another.
6. TALKOVER (3): The purpose of the talkover section is to allow the program playing to be muted so that the
mic can be heard above the music. When you press the SWITCH, the talkover will be on and the volume of
all sources except the Mic inputs are lowered by 12 dB. The Micro (2) allows you to control the level of MIC1/
MIC2.
7. Connect your headphones to the headphones socket and select the desired channel (channel 1-3 or MIC) for
monitoring with the Cue switch (1). With this knob PHONE (11), you can adjust the headphones volume
8. DISPLAY: The DISPLAY (13) indicates either the MASTER output left and right levels.
EN
