INSTRUCTION MANUAL

This device complies with Part 15 of

the FCC Rules. Operation is subject to

the condition that this device does not

cause harmful interference.

iF4TR

UHF TRUNKED RADIO

Count on us!

6-9-16 Kamihigashi, Hirano-ku, Osaka 547-0002 Japan

A-5632D-1US

Printed in Japan

©1999 Icom Inc.

4

SPECIFICATIONS AND OPTIONS

4-1 Specifications

• GENERAL

Frequency coverage (MHz): 400–430, 450–490, 480–512

Mode: 16K0F3E (25 kHz)

11K0F3E (12.5 kHz)

Usable temperature range: –30˚C to +60˚C; –22°F to +140°F

Dimensions (proj not incl.): 57(W)×140(H)×37 (D) mm

; 2

1

⁄4(W)×5

1

⁄2(H)×1

15

⁄32(D) in

Weight (with BP-196): 390 g; 13.8 oz

• TRANSMITTER

Output power : 4 W

• RECEIVER

Sensitivity

(12 dB SINAD): 0.3 µV

Intermodulation rejection ratio

: 75 dB typ.

Spurious response rejection: 70 dB typ.

Adjacent channel selectivity: 70 dB typ. (25 kHz)

65 dB typ. (12.5 kHz)

Audio output power: 500 mW (at 5% distortion with an 8Ω

load)

4-2 Options

•HM-46/HM-54/HM-75ASPEAKER-MICROPHONES

Combination speaker-microphone that provides convenient opera-

tion while hanging the transceiver from your belt clip.

•BC-119 DESKTOPCHARGER+ AD-81 CHARGER ADAPTER

Used for rapid charging of battery packs. Charging time: 1.5 to 2

hours. An AC adapter is supplied with the chargers (depending on

version).

•BC-121 MULTI-CHARGER+ AD-81 CHARGER ADAPTER

+ BC-124 AC ADAPTER

Rapidly charges of up to 6 battery packs (six AD-81’s are required)

at once. Charging time: 1.5 to 2 hours.

•BC-133 DESKTOPCHARGER

Regularly charges battery pack with/without transceiver. The AC

adapter, BC-122, is additionally required. Charging time: approx. 15

hours

•BC-110A/D/V WALLCHARGER

Used for charging via a domestic AC wall socket.

•CP-12LCIGARETTE LIGHTER CABLE

Used for charging via a vehicle’s cigarette lighter socket (12 V).

•OPC-254LDC POWER CABLE

Used for charging with an external power supply.

•BP-194 BATTERYCASE

Takes eight (8) AA(R6) size batteries. External DC-jack on the

transceiver can be used to charge the Ni-Cd battery cells.

•SP-13 EARPHONE

Provides clear audio in noisy environments.

All stated specifications are subject to change without notice or

obligation.

IMPORTANT

READ ALLINSTRUCTIONScarefully and completely before

using the transceiver.

SAVE THIS INSTRUCTION MANUAL. This manual contains

important safety and operating instructions for the IC-F4TR.

EXPLICITDEFINITIONS

NEVERallow the antenna to come close to, or touch,

exposed body parts, especially the face or eyes while trans-

mitting.

NEVERdisassemble the transceiver. incorrect reassemble

may result in a fire hazard or electric shock.

NEVERoperate the transceiver near unshielded electrical

blasting caps or in an explosive area.

AVOIDthe use of chemical agents such as benzene or alco-

hol when cleaning—use a water-dampened cloth only.

For U.S.A. only

CAUTION:changes or modifications to this transceiver, not

expressly approved by icom inc., could void your authority to

operate this transceiver under fcc regulations.

TABLE OF CONTENTS

IMPORTANT

EXPLICITDEFINITIONS

TABLE OF CONTENTS

SUPPLIED ACCESSORIES

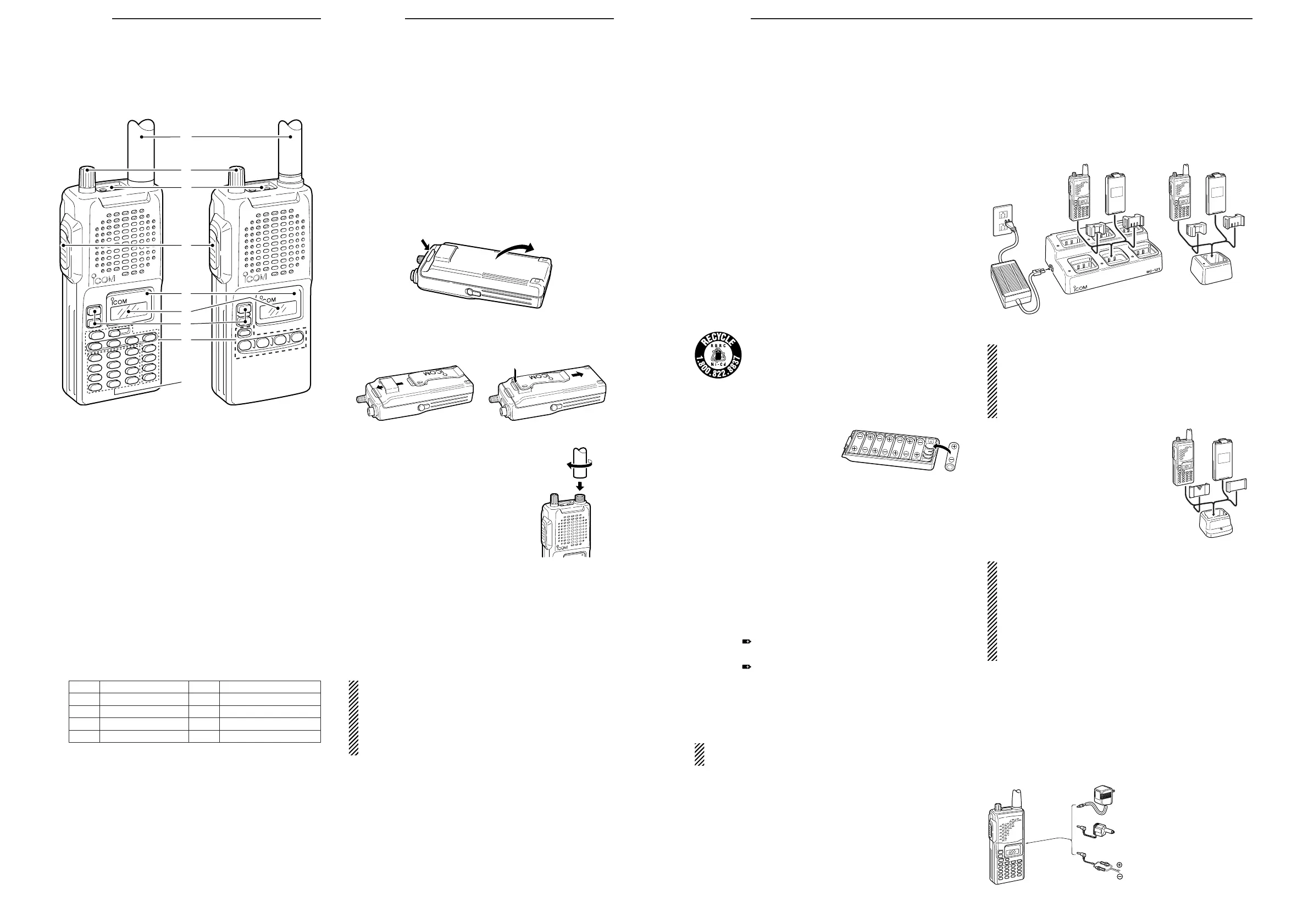

1 PANELDESCRIPTION

2 GETTING STARTED

2-1 Accessory attachment . . . . . . . . . . . . . . . . . . . .2-1

2-2 Turning POWER ON . . . . . . . . . . . . . . . . . . . . .2-2

3 BATTERYPACKS AND BATTERYCASE

3-1 Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1

3-2 Battery case . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2

3-3 Battery charging . . . . . . . . . . . . . . . . . . . . . . . . .3-3

4 SPECIFICATIONS AND OPTIONS

4-1 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1

4-2 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2

SUPPLIED ACCESSORIES

qBattery pack (comes attached to the transceiver)

wFlexible antenna

eBelt clip

r1922 A-REAR SHEET
