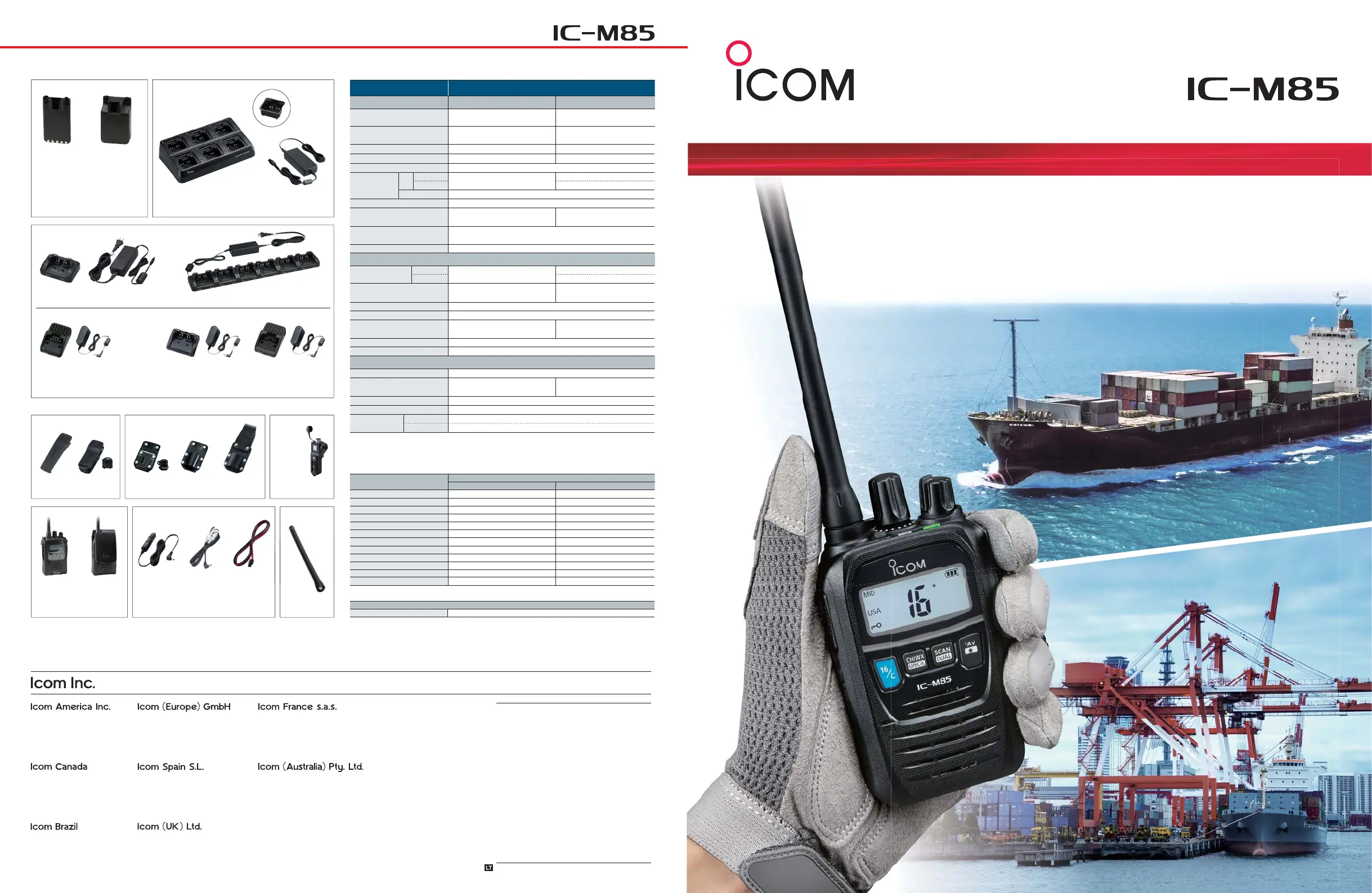

1-1-32, Kamiminami, Hirano-Ku, Osaka 547-0003, Japan Phone: +81 (06) 6793 5302 Fax: +81 (06) 6793 0013

Count on us!

www.icom.co.jp/world

Printed in Japan

12421 Willows Road NE,

Kirkland, WA 98034, U.S.A.

Phone: +1

(

425

)

454-8155

Fax: +1

(

425

)

454-1509

E-mail: sales@icomamerica.com

URL: http://www.icomamerica.com

Unit 1 / 103 Garden Road,

Clayton, VIC 3168 Australia

Phone: +61 (03) 9549 7500

Fax: +61 (03) 9549 7505

E-mail: sales@icom.net.au

URL: http://www.icom.net.au

Blacksole House, Altira Park,

Herne Bay, Kent, CT6 6GZ, U.K.

Phone: +44 (0) 1227 741741

Fax: +44 (0) 1227 741742

E-mail: info@icomuk.co.uk

URL: http://www.icomuk.co.uk

Zac de la Plaine,

1 Rue Brindejonc des Moulinais, BP 45804,

31505 Toulouse Cedex 5, France

Phone: +33 (5) 61 36 03 03

Fax: +33 (5) 61 36 03 00

E-mail: icom@icom-france.com

URL: http://www.icom-france.com

Ctra. Rubi, No. 88 "Edificio Can Castanyer"

Bajos A 08174, Sant Cugat del Valles,

Barcelona, Spain

Phone: +34

(

)

590 26 70

Fax: +34

(

)

589 04 46

E-mail: icom@icomspain.com

URL: http://www.icomspain.com

Glenwood Centre #150-6165

Highway 17A, Delta, B.C.,

V4K 5B8, Canada

Phone: +1

(

604

)

952-4266

Fax: +1

(

604

)

952-0090

E-mail: info@icomcanada.com

URL: http://www.icomcanada.com

Your local distributor/dealer:

Rua Itororó, 444 Padre Eustáquio

Belo Horizonte MG,

CEP: 30720-450, Brazil

Phone: +55

(

)

3582 8847

Fax: +55

(

)

3582 8987

E-mail: sales@icombrazil.com

Communication Equipment

Auf der Krautweide 24

65812 Bad Soden am Taunus, Germany

Phone: +49 (6196) 76685-0

Fax: +49 (6196) 76685-50

E-mail: info@icomeurope.com

URL: http://www.icomeurope.com

A Marine and Land Mobile Radio

Combined in One

VHF MARINE TRANSCEIVER

Alligator type.

Intermodulation

BC-214 BC-157S

AD-132N

CONNECTABLE TYPE CHARGER

INTELLIGENT CHARGER DESKTOP CHARGERS

BATTERY PACK AND CASE

BP-291

Battery case

LR6

(

)

× 5

IP54 Water

resistance

Charges up to six BP-290 batteries in 2.8 hours (approx.).

AD-132N is supplied with BC-214, depending on version.

MULTI-CHARGER

Connects up to six BC-226 units.Charges the BP-290 in 2.7 hours. (approx.)

Charges the BP-290

in 2.7 hours. (approx.)

Charges the BP-290

in 2.5 hours. (approx.)

Shows the charging information

with LED lighting. Charges

the BP-290 in 2.5 hours. (approx.)

BC-228BC-226

BC-123S

*BC-227 BC-123S*BC-219NBC-123S*BC-225

OPTIONS

BP-290

Rechargeable

Li-ion battery

with intelligent

reporting.

1910 mAh

(

min.

)

2010 mAh

(

typ.

)

IP67 Waterproof

Swivel type.

BELT HANGERS ACC ADAPTORBELT CLIPS

MB-136MBB-3

CARRYING CASES CIGARETTE LIGHTER CABLE &

POWER SUPPLY CABLES

Hard type.

Charging is possible

while the case is attached.

Hard type.

LC-187 LC-188

For use with

the BC-219N

or BC-227.

CP-23L

For use with

the BC-219N,

BC-225 or

BC-227.

OPC-515L

For use with

the BC-214.

OPC-656

Swivel type.

MB-96N

Fixed type.

MB-96F

Long type.

MB-96FL

14-pin multi-connector to

6-pin Hirose connector

AD-118

ANTENNA

FA-SC58V

SPECIFICATIONS

IC-M85

Marine channels Land mobile channels

Frequency coverage Tx

156.025–157.425 MHz

156.050–163.275 MHz

136.000–174.000 MHz

Usable channel groups,

Number of channels

USA, INT, CAN, WX channels

100 land mobile channels

16K0G3E 16K0F3E/11K0F3E

USA

EXP

USA

EXP

Type of emissions

25 kHz/12.5 kHz

0.9 A (at 2 W)

1.5 A (at 5 W)

Channel spacing 25 kHz

7.2 V DC

nominal

Current

drain

(approximate)

Rx Max. audio

1.5 A (at 5 W)

0.45 A

Antenna impedance

50 Ω

–20 °C to +60 °C;

–4 °F to +140 °F

–30 °C to +60 °C;

–22 °F to +140 °F

Dimensions

(W×H×D)

(Projections not included)

56 × 92 × 29 mm; 2.2 × 3.6 × 1.1 in (With BP-290)

Weight (approximate)

246 g; 8.7 oz

(with BP-290, FA-SC58V and MBB-3)

TRANSMITTER

Output power

(at 7.2 V DC)

5/3/1 W

2/1 W

5/3/1 W

Max. frequency deviation ±5.0 kHz

±5.0 kHz (Wide)

±2.5 kHz (Narrow)

±5.0 ppm

–70 dBc typical

FM hum and noise

40 dB

(Wide)

34 dB (Narrow)

10% (at 60% deviation)

60–100% of maximum deviation

RECEIVER

0.25 μV typical

70 dB typical

(Wide)

55 dB typical (Narrow)

70 dB typical

Audio output

power

Internal SP

700 mW typical

(at 10% distortion with 12 Ω load)

External SP

700 mW typical

(at 10% distortion with 8 Ω load)

Measurements made in accordance with TIA/EIA-603.

All stated specifications are subject to change without notice or obligation.

Applicable U.S. Military Specifications & IP Rating

Standard

MIL 810 G

Method Procedure

Low Pressure

500.5

I, II

High Temperature

501. 5

I, II

Low Temperature

502.5

I, II

Temperature Shock

503.5

I–C

Solar Radiation

505.5

Rain Blowing/Drip

506.5

I, III

Humidity

507.5 II

Salt Fog

509.5 –

Dust Blowing

510.5

Immersion

512.5

Vibration

514.6

Shock

516.6

I, IV

Also meets equivalent MIL-STD-810-C, -D, -E and -F.

Ingress Protection Standard

Dust & Water

IP67 (Dust-tight and waterproof protection)

Operating temperature range

Adjacent channel selectivity

GENERAL

SOFTWARE

• RS-BC225 : Intelligent charger software for Windows

PC. For use with BC-225.

* SE for Europe plug. SUK for UK plug. SV for Australia plug.

Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand and/or other countries. AQUAQUAKE

is a trademark of Icom Incorporated. Windows is either a registered trademark or a trademark of Microsoft Corporation in the United States and/or other countries. All other trademarks are the properties of their respective holders.

Power supply requirement

Frequency stability

Spurious emissions

Audio harmonic distortion

Modulation limiting

Sensitivity

(at 12 dB SINAD)

Spurious response

VHF MARINE TRANSCEIVER

Produktspecifikationer

Varumärke:	Icom
Kategori:	Radio
Modell:	IC-M85
Vikt:	246 g
Bredd:	56 mm
Djup:	29 mm
Höjd:	92 mm
Laddare:	Ja
Vattentät upp till:	1 m
Antennanslutning:	FA-SC58V
Sändningseffekt:	700 mW
Batterityp:	BP-290
Armband:	Ja
Antal antennanslutningar:	1
Antal kanaler (totalt):	100 kanaler
Antal batterier:	1
Produktens färg:	Svart
Batterinivåindikator:	Ja
Temperatur vid drift:	-20 - 60 ° C
Batterier medföljer:	Ja
Arbetsfrekvens:	136.000 – 174.000 MHz
Indikator för låg batterinivå:	Ja
Uppladdningsbara:	Ja
Ändamål:	MURS (Multi-Use Radio Service)
Antal batterier medföljer:	1 styck
Bälteshållare:	Ja
Laddningsstation medföljer:	Ja
