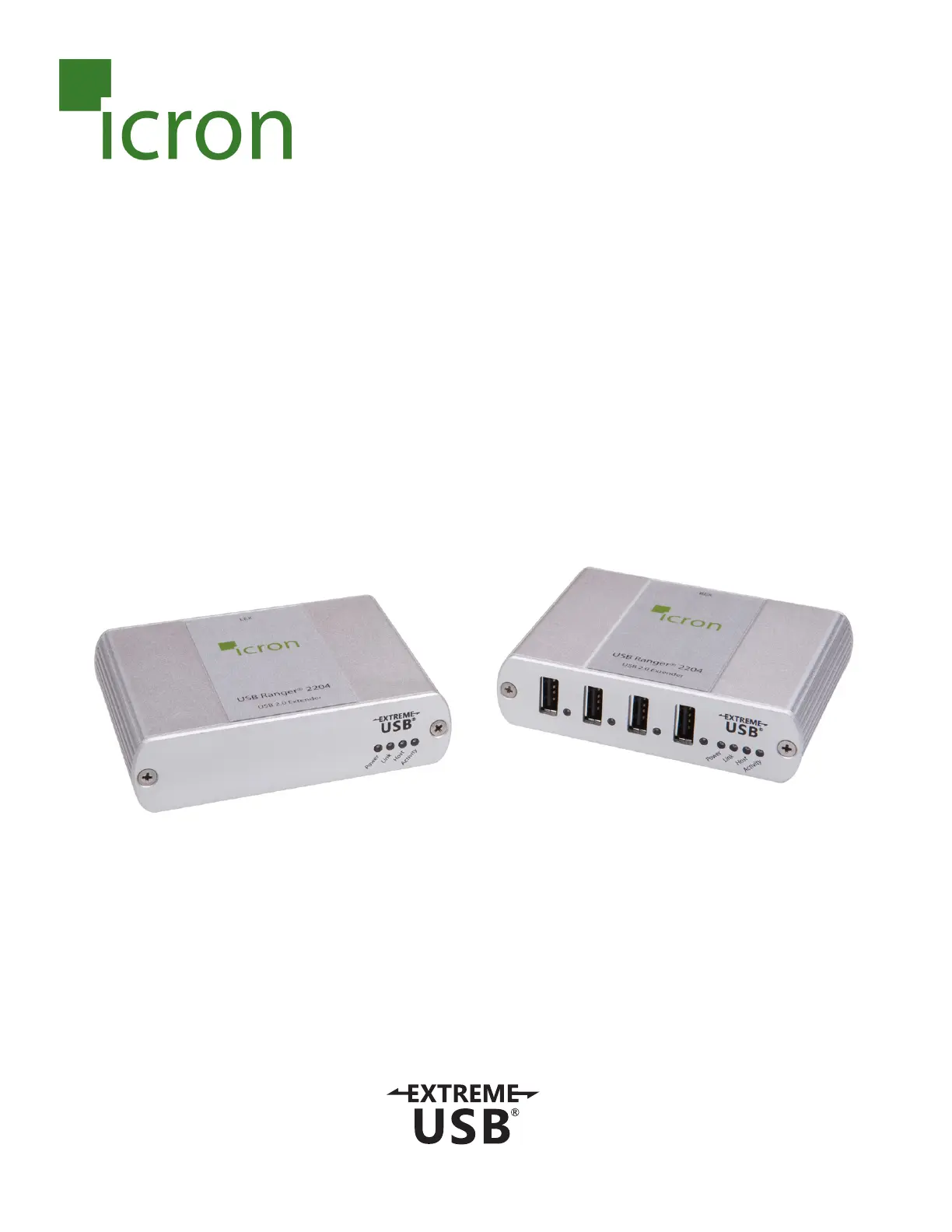

USB 2.0 Ranger

2204

4-port USB 2.0 100m Cat 5e Extender System

User Guide

Thank you for purchasing the USB 2.0 Ranger® 2204.

Please read this guide thoroughly.

This document applies to Part Numbers: 00-00256, 00-00257, 00-00258, and 00-00259.

FCC Radio Frequency Interference Statement Warning

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received

including interference that may cause undesired operation.

CE Statement

We, Icron Technologies Corporation, declare under our sole responsibility that the USB 2.0 Ranger® 2204, to

which this declaration relates, is in conformity with European Standard EN 55022, EN 55024, EN 61000-3-2,

and EN 61000-3-3.

IC Statement

This Class B digital apparatus complies with Canadian ICES-003.

Technologies Corporation logo, and the Icron Technologies Corporation products referred to herein are

either the trademarks or the registered trademarks of Icron Technologies Corporation. All other trademarks

are property of their respective owners. Icron Technologies Corporation assumes no responsibility for errors

that may appear in this manual. Information contained herein is subject to change without notice.

Document #90-00627-A03

Contents

Introduction ................................................................................................... 3

USB 2.0 Ranger 2204 Product Contents .....................................................................................

Requirements ................................................................................................................................

About the USB 2.0 Ranger 2204...................................................................................................

LEX Unit Description ....................................................................................................................

REX Unit Description......................................................................................................................

Installation Guide .......................................................................................... 6

Installing the LEX Unit ..................................................................................................................

Installing the REX Unit ..................................................................................................................

Connecting the LEX Unit to the REX Unit ...................................................................................

Checking the Installation .............................................................................................................

Connecting a USB Device ............................................................................................................

Compatibility ................................................................................................................................

Troubleshooting ............................................................................................ 8

Specifications ................................................................................................. 11

Warranty Information ................................................................................... 12

Obtaining Warranty Service ......................................................................... 13

Contacting Technical Support ...................................................................... 13

Technical Glossary ......................................................................................... 14

Produktspecifikationer

Varumärke:	Icron
Kategori:	Wifi-repeater
Modell:	USB Ranger 2204
Bredd:	100 mm
Djup:	76 mm
Höjd:	26 mm
Certifiering:	FCC B, IC, CE
Modell:	Nätverkssändare och -mottagare
Uteffekt:	3 A
Kabeltyper som stöds:	Cat5, Cat6
Produktens färg:	Silver
Vikt inkl. förpackning:	900 g
Antal LAN (RJ-45) anslutningar:	1
Produktstorlek (BxDxH):	100 x 76 x 26 mm
Temperatur vid drift:	0 - 50 ° C
Extern strömadapter:	Ja
Utgångsspänning:	5 V
AC-inspänning:	100-240 V
Faktisk dataöverföringshastighet:	480 Mbit/s
Maximal överföringshastighet avstånd:	100 m
