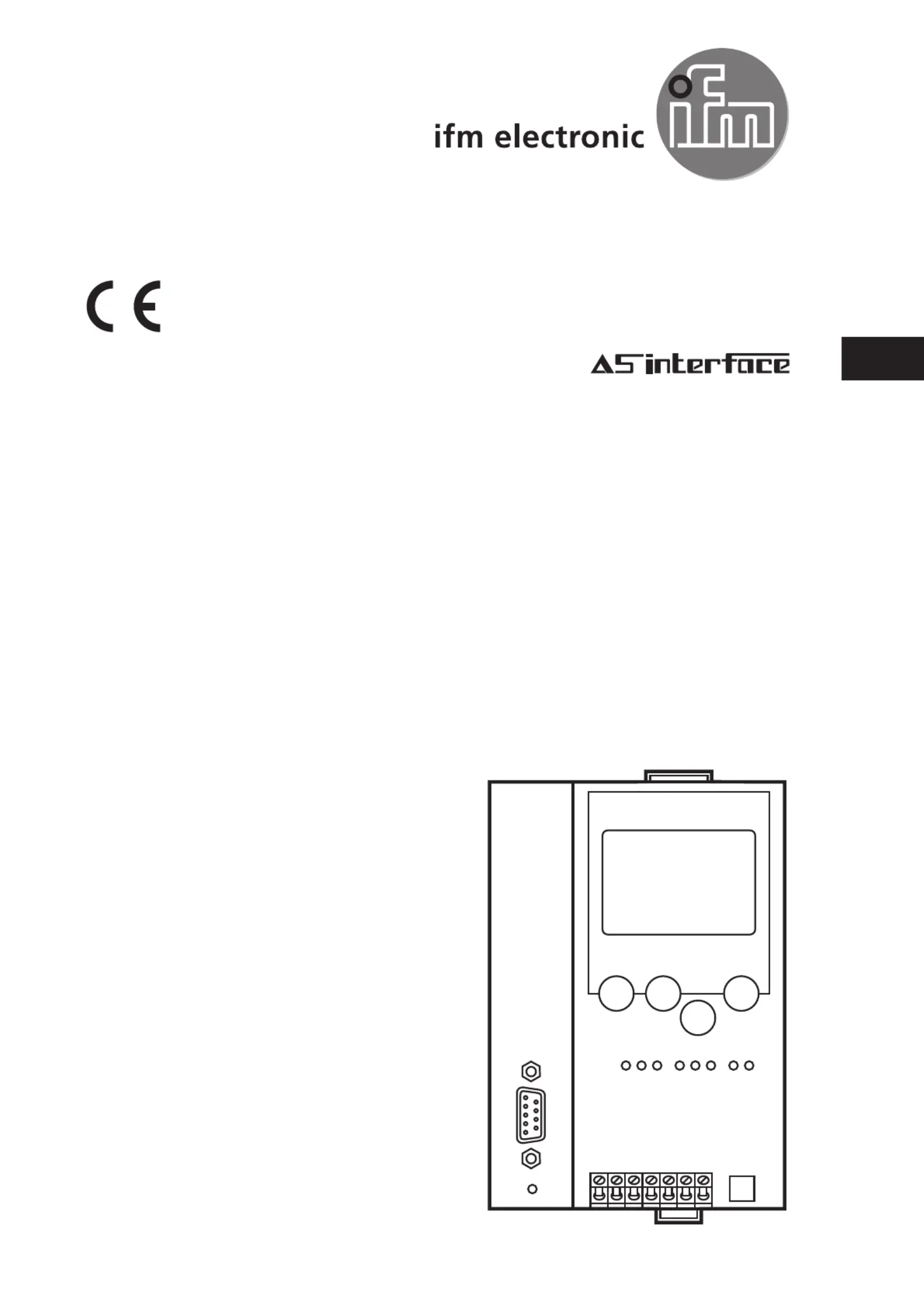

Installation instructions
AS-i CONTROLLERe
AC1305/AC1306
7390412 / 00 03 / 2005
UK
UK
UK
UK
UK
2
Contents
Functions and features .................................................................... 3
Programming interface RS232C...................................................... 3
Profibus DP interface ....................................................................... 3
Installation ....................................................................................... 3
Electrical connection........................................................................ 4
Operating and display elements ...................................................... 4
LED indicators and pin connection .................................................. 5
Contrast setting ............................................................................... 6
Operation ......................................................................................... 6
Menu overview ................................................................................ 7
Menu navigation .............................................................................. 8
3
UK
Functions and features
The controller e integrates one or two AS-i masters (AC1305/AC1306, both
in accordance with the AS-i version 2.1), a mini controller and a Profibus DP
interface (optional).
It controls the exchange of data to the sensor / actuator level,
processes the peripheral data in the integrated processor (signal
preprocessing),
works as stand-alone controller with exchange of data to the PC (visualisation),
communicates with the higher control level (in the gateway mode).
Programming interface RS232C
Baud rate 4800 to 115,200 baud
Max. distance between controller e and host: 20 m
Potential separation from the controller e power supply
Programming cable E70320 for connection to host required
Profibus DP interface
Baud rate 9600 baud to 12 Mbaud
Max. distance between controller e and host: depending on the baud rate
Potential separation from the controller e power supply
Up to 31 controllers connected in parallel per segment
Pin connection: pin 3: signal B, pin 8: signal A
Installation
Fix the controllere onto a 35 mm rail. The protection rating of the unit is IP 20,
therefore it should be mounted in a protected location (e.g. control cabinet).
Ensure a condensation-free environment. Avoid excessive dust,
vibration and shock. The air circulation through the vents must not be
impeded.
Avoid installation in direct vicinity of frequency inverters.
