Operating instructions
Electronic pressure sensor
PI100x
11496478 / 0004 / 2023
GB
PI100x Electronic pressure sensor
2
Contents
1 Preliminary note . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 Symbols used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3 Intended use................................................................ 6
3.1 Application area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4 Function ................................................................... 7
4.1 IO-Link ............................................................... 7
4.2 IO-Link properties of the sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4.2.1 Description IO-Link interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4.2.2 Internal unit temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.2.3 Counter overpressure events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.2.4 Optical localisation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.2.5 Event logging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.2.6 Operating hours counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.2.7 Switching cycles counters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.3 Defined state in case of a fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.4 Operating modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.4.1 2-wire operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.4.2 3-wire operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.5 Switching function (only for 3-wire operation) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.6 Analogue output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.7 Customer-specific calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5 Installation.................................................................. 12
5.1 Ventilation diaphragm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.1.1 Function ventilation diaphragm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.1.2 Orientation filter cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.1.3 Replace filter cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.2 Use in hygienic areas according to 3-A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6 Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
7 Operating and display elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
8 Menu...................................................................... 17
8.1 Menu structure: Main menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
8.2 Explanation of the main menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
8.3 Menu structure: Level 2 (extended functions) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
8.4 Explanation of menu level 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
8.5 Menu structure: level 3 (simulation). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
8.6 Explanation of menu level 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
9 Parameter setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
9.1 Parameter setting in general . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
9.2 Configure display (optional). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
9.3 Set output signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
9.3.1 Setting of the output function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
9.3.2 Set switching limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
9.3.3 Define switching limits for the window function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
9.3.4 Scale analogue value for OUT2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
9.4 User settings (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
9.4.1 Zero point calibration and adjustment of final value of the measuring range . . . . . . . 25
9.4.2 Define incorrect behaviour of the outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
9.4.3 Set delay time for the switching outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
9.4.4 Set output logic for the switching outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
9.4.5 Set damping for the switching signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
9.4.6 Set damping for the analogue signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
9.5 Service functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
9.5.1 Read min/max values for the system pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
9.5.2 Reset sensor / parameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
9.6 Simulation function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Electronic pressure sensor PI100x
3
9.6.1 Open menu level 3 (simulation). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
9.7 Simulation............................................................. 27
9.7.1 Set simulation value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
9.7.2 Set simulation value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
9.7.3 Switch simulation on / off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
9.7.4 Read overload processes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
10 Operation .................................................................. 29
10.1 Read set parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
10.2 Change the display in the Run mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
11 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
11.1 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
12 Disposal, repair and return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
13 Factory setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
PI100x Electronic pressure sensor
4
1 Preliminary note
You will find instructions, technical data, approvals and further information using the QR code on the
unit / packaging or at .www.ifm.com
1.1 Symbols used
Requirement
Instructions
Reaction, result
[...] Designation of keys, buttons or indications
Cross-reference
Important note
Non-compliance may result in malfunction or interference.
Information
Supplementary note
Electronic pressure sensor PI100x
5
2 Safety instructions
• The unit described is a subcomponent for integration into a system.
– The system architect is responsible for the safety of the system.
– The system architect undertakes to perform a risk assessment and to create documentation in
accordance with legal and normative requirements to be provided to the operator and user of
the system. This documentation must contain all necessary information and safety instructions
for the operator, the user and, if applicable, for any service personnel authorised by the
architect of the system.
• Read this document before setting up the product and keep it during the entire service life.
• The product must be suitable for the corresponding applications and environmental conditions
without any restrictions.
• Only use the product for its intended purpose ( Intended use).Ò
• Only use the product for permissible media ( Technical data).Ò
• If the operating instructions or the technical data are not adhered to, personal injury and/or damage
to property may occur.
• The manufacturer assumes no liability or warranty for any consequences caused by tampering with
the product or incorrect use by the operator.
• Installation, electrical connection, set-up, operation and maintenance of the product must be
carried out by qualified personnel authorised by the machine operator.
• Protect units and cables against damage.
PI100x Electronic pressure sensor
6
3 Intended use
The device measures and monitors the system pressure or the hydrostatic level and the temperature
in systems.
3.1 Application area
Type of pressure: relative pressure
Information on pressure rating and bursting pressure Data sheetÒ
Avoid static and dynamic overpressure exceeding the indicated pressure rating by taking
appropriate measures. The indicated bursting pressure must not be exceeded. Even if the
bursting pressure is exceeded only for a short time, the unit may be destroyed. ATTENTION:
Risk of injury!
Not suitable for systems that have to meet the criteria of E9.2 / 63-04 of the 3-A standard.
The units are vacuum resistant. Adhere to the specifications in the data sheet!
Electronic pressure sensor PI100x
7
4 Function
Measuring cell:
• The system pressure is measured by a ceramic capacitive measuring system.
• The sealing of the ceramic measuring cell is free of elastomers and thus maintenance-free.
• The medium temperature is recorded on the back of the ceramic measuring cell: Accuracy
calculation formula Data sheet.Ò
Signal transmission:
• The unit can be operated in SIO mode (standard input-output ) or in IO-Link mode. The basic
operation mode is SIO. When connected to an IO-Link master, the unit automatically switches to
IO-Link mode. An additional manual switching is not required.
SIO-Mode:
• Analogue signal measured pressure value 4-20 mA (pin 2).
• Switching information (pin 4).
IO-Link mode:
• Measured pressure value
• Measured temperature value
• Exceeding and falling below the limits of the measuring range
• Device status
• Switching information
• Parameter setting
• Device diagnostics (events)
4.1 IO-Link
IO-Link is an internationally standardised IO technology (IEC 61131-9) for communicating with
sensors and actuators.
Further information about IO-Link at: www.io-link.com
IO-Link offers the following advantages:
• Noise-immune transmission of several process values.
• Parameter setting during operation as well as point-to-point at the desk.
• Device diagnostics (events)
• Data storage: Automatic new parameter setting in case of replacement.
• Detection of connected units.
• Freely definable parameters to identify the units in the plant.
Information and documentation on the IO-Link interface at: www.io-link.ifm
4.2 IO-Link properties of the sensor
4.2.1 Description IO-Link interface
A description of the IO-Link interface can be found at www.io-link.ifm
PI100x Electronic pressure sensor
8
The sensor provides the internal unit temperature as a readable parameter for diagnostic purposes.
4.2.2 Internal unit temperature
The internal temperature of the sensor can be read via the IO-Link channel. Measuring range:
-25...155°C (-13...311°F), resolution 1°C (1.8°F), precision +/- 5°C (9°F). Information on measuring
range and accuracy Data sheet.Ò
4.2.3 Counter overpressure events
The unit has a counter for overpressure events. The value above which a pressure is considered to be
overpressure can be set.
• HIPC = Counter overpressure events.
HIPC counts how often the limit HIPS has been exceeded.
The limit must be exceeded for at least 0.5 ms.
• HIPS = Threshold overpressure.
The [HIPC] can be reset with the reset command [Reset_HIPC] and the [Back-to-Box]. See: Reset
sensor / parameter ( 26)Ò/
In case of an interruption of the supply voltage, a maximum of the events of the last 10 minutes
can be lost, as these are summed up in the background and have not yet been permanently
transferred to the memory.
4.2.4 Optical localisation
The sensor can be localised in the plant via the commands [Blinken_An] / [Blinken_Aus]. When the
command is used, the switching status LEDs flash and [IO-L] is displayed.
4.2.5 Event logging
With IO-Link, the sensor has two logging mechanisms:
• Event History (Parameter [Event_History])
• Event Counter (Parameter [Event_Counter])
The last 20 events that occurred are recorded in the event history. As long as no event has occurred,
the value [noEvent] or [0] appears in this list.
The event counter (limited to 232 events) can be used to read how often a specific event has occurred
at the sensor.
The event counter and the event history can be reset using the IO-Link commands
[RESET_EVENT_HISTROY], [RESET_EVENT_COUTER] and [Back-to-Box ].
See: Reset sensor / parameter ( 26)Ò/
4.2.6 Operating hours counter
In the parameter [operating_hours], the hours are counted during which the sensor was active (cannot
be reset).
4.2.7 Switching cycles counters
The sensor counts the switching cycles at output 1 and output 2 in the [OUT_Counter] parameter and
stores this value every full 60 minutes.
A reset is possible with [Reset_to_zero] or the [Back to Box] reset.
See: Reset sensor / parameter ( 26)Ò/
Electronic pressure sensor PI100x
9
4.3 Defined state in case of a fault
If a fault is detected, the analogue output passes into a defined state ( = 21.5mA).
In case of a fault indication ( = 21.5mA)
uRead parameters via IO-Link or contact the manufacturer.
4.4 Operating modes
The operating mode is defined by the wiring ( Electrical connection) and automatically recognised byÒ
the unit.
4.4.1 2-wire operation
OUT2 (pin 2) Analogue signal proportional to pressure 4…20 mA or 20...4 mA
4.4.2 3-wire operation
OUT1 (pin 4) 2 possibilities (automatic changeover)
• switching signal for pressure limit
• Communication via IO-Link
OUT2 (pin 2) 3 possibilities (manual changeover in the menu)
• switching signal for pressure limit
• Analogue signal proportional to pressure 4...20 mA
• Analogue signal proportional to pressure 20...4 mA
4.5 Switching function (only for 3-wire operation)
OUTx changes its switching status if it is above or below the set switching limits (SPx, rPx). The
following switching functions can be selected:
• Hysteresis function / normally open: [OUx] = [Hno] ( Figure hysteresis function).Ò
• Hysteresis function / normally closed: [OUx] = [Hnc] ( Figure hysteresis function).Ò
First the set point (SPx) is set, then the reset point (rPx) with the requested difference.
• Window function / normally open: [OUx] = [Fno] ( Figure window function).Ò
• Window function / normally closed: [OUx] = [Fnc]( Figure window function)Ò
• The width of the window can be set by means of the difference between SPx and rPx. SPx = upper
value, rPx = lower value.

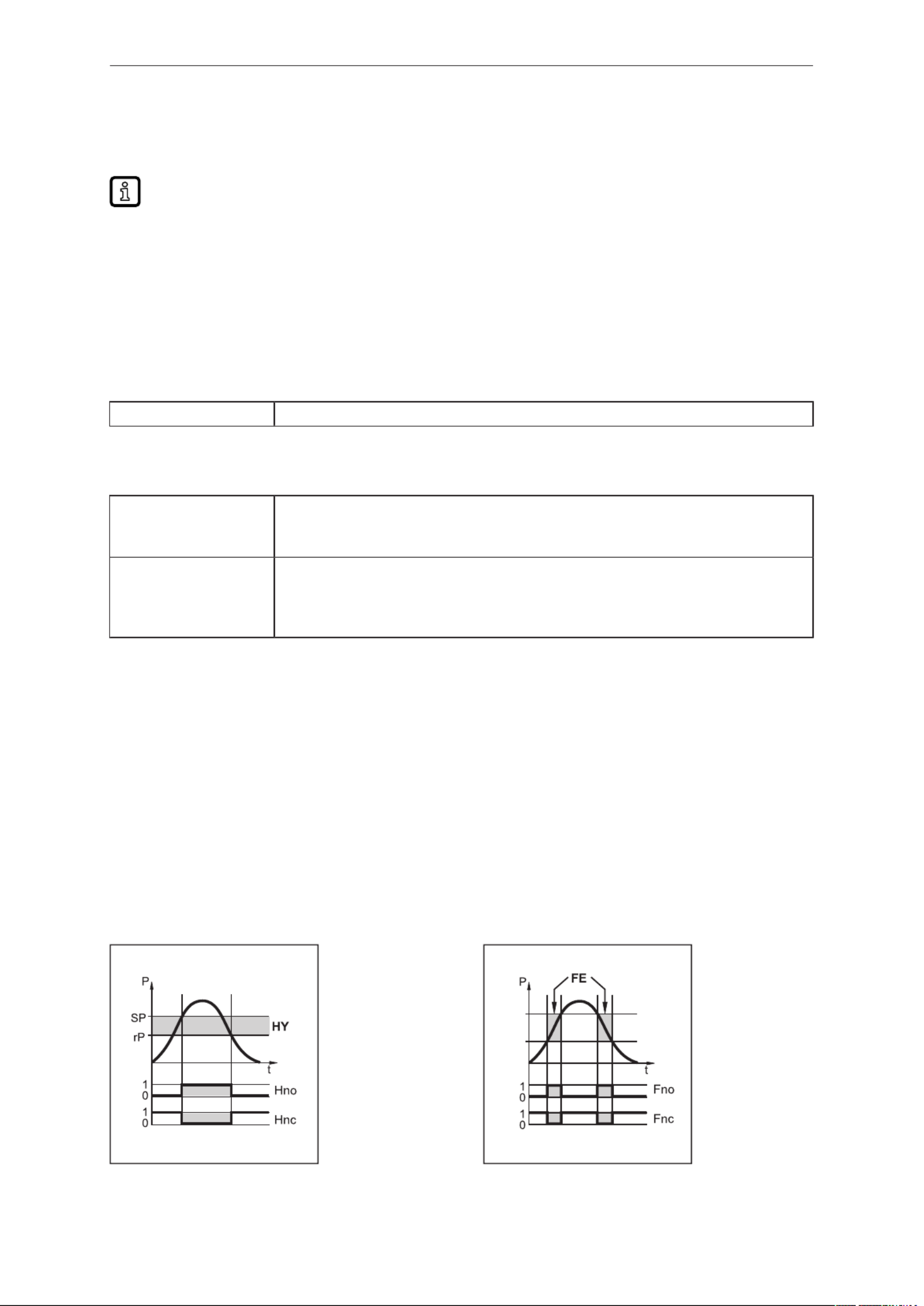

Fig.1: Hysteresis function
SP
rP
Fig.2: Window function
PI100x Electronic pressure sensor
10
P = System pressure
HY = Hysteresis
FE = Window
4.6 Analogue output
The device provides an analogue signal proportional to the pressure. Within the measuring range the
analogue signal is between 4...20 mA. The measuring range is scalable:
• [ASP2] defines at which measured value the output signal is 4 mA.
• [AEP2] defines at which measured value the output signal is 20 mA.
Minimum distance between [ ASP2] and [ AEP2 ] = 20 % of the final value of the measuring
range.
If the measured value is outside the measuring range or in the event of an internal error, the current
signal indicated in the following figure is provided. The analogue signal in case of an error is
adjustable:
• [FOU] = On defines that the analogue signal goes to the maximum value (21.5 mA) in case of an
error.

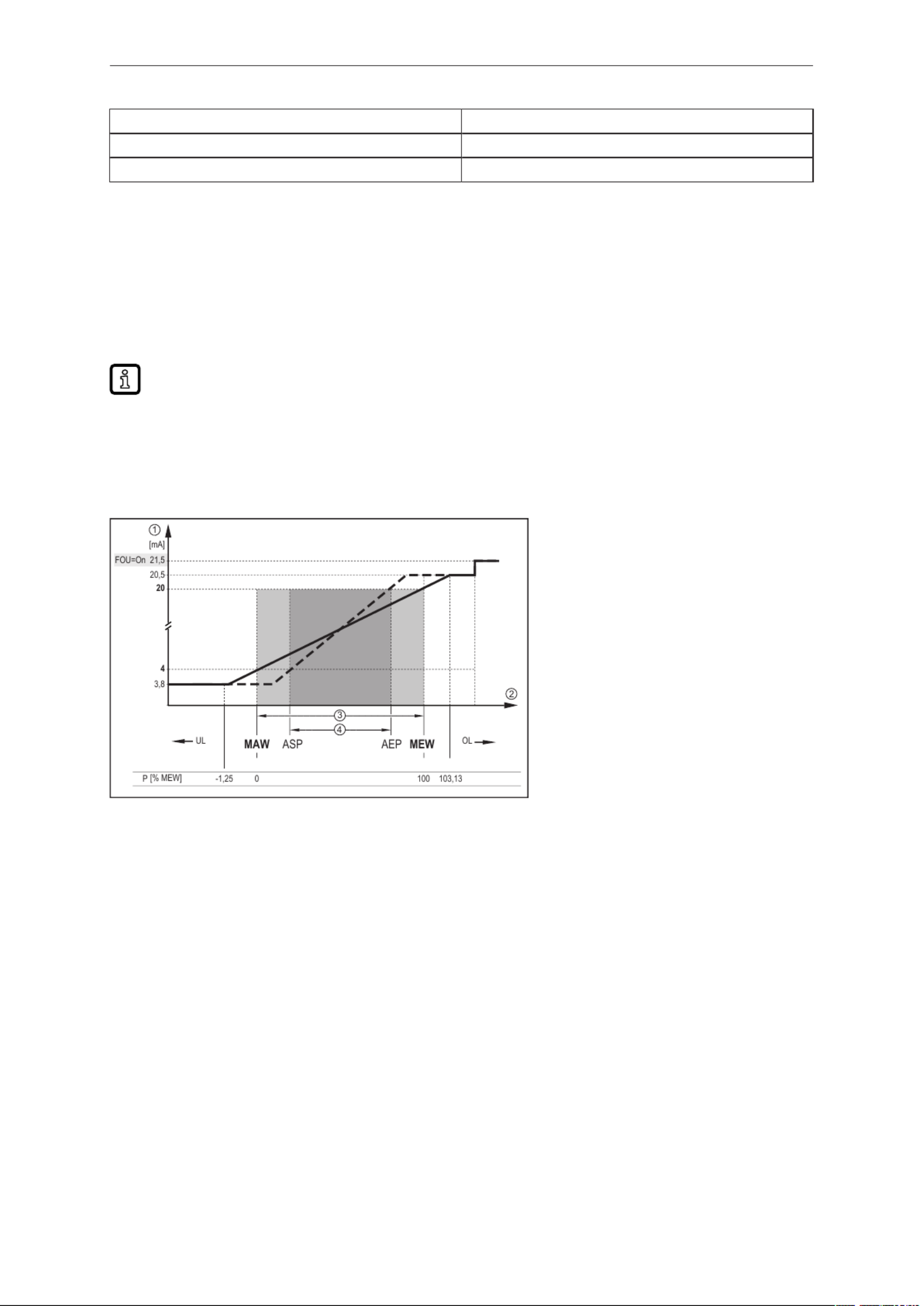

Fig.3: Output characteristics of the analogue output to Namur
1: Analogue signal
2: Measured value (in configured unit)
3: Measuring range (factory setting)
4: Scaled measuring range
P: Pressure
MAW: Initial value of the measuring range with non-scaled measuring range.
MEW: Final value of the measuring range with non-scaled measuring range
ASP: Analogue start point with scaled measuring range
AEP: Analogue end point with scaled measuring range
UL: Below the display range
OL: Above the display range
FOU: Output behaviour in case of an error
4.7 Customer-specific calibration
The customer-specific calibration changes the curve of measured values compared to the real
measured values (zero-point calibration and correction of gradient). Keep the following order:
uCarry out zero calibration [coF] in the range -5%....+5% of final value of the measuring range
(VMR).
Electronic pressure sensor PI100x
13
5.1 Ventilation diaphragm
5.1.1 Function ventilation diaphragm
The ventilation diaphragm enables the relative pressure measurement since barometric and
temperature-dependent pressure fluctuations between the measuring cell and the environment are
compensated for.
The ventilation diaphragm is protected against damage by a screwed filter cover with circumferential
ports.
For a correct functioning of the ventilation diaphragm please take the following into account:
uRemove soiling and cleaning agents immediately using plenty of lime-deficient splash water.
If the sensor is in a cooling stage:
uAvoid contact of the ventilation diaphragm with liquids to avoid negative pressure in the
measuring system (resulting in a slightly falsified measured value) and additional strain on
the diaphragm.
5.1.2 Orientation filter cover
Select the installation situation so that the filter cover is horizontal and the condensate can drain off
due to gravity.
3
1
2

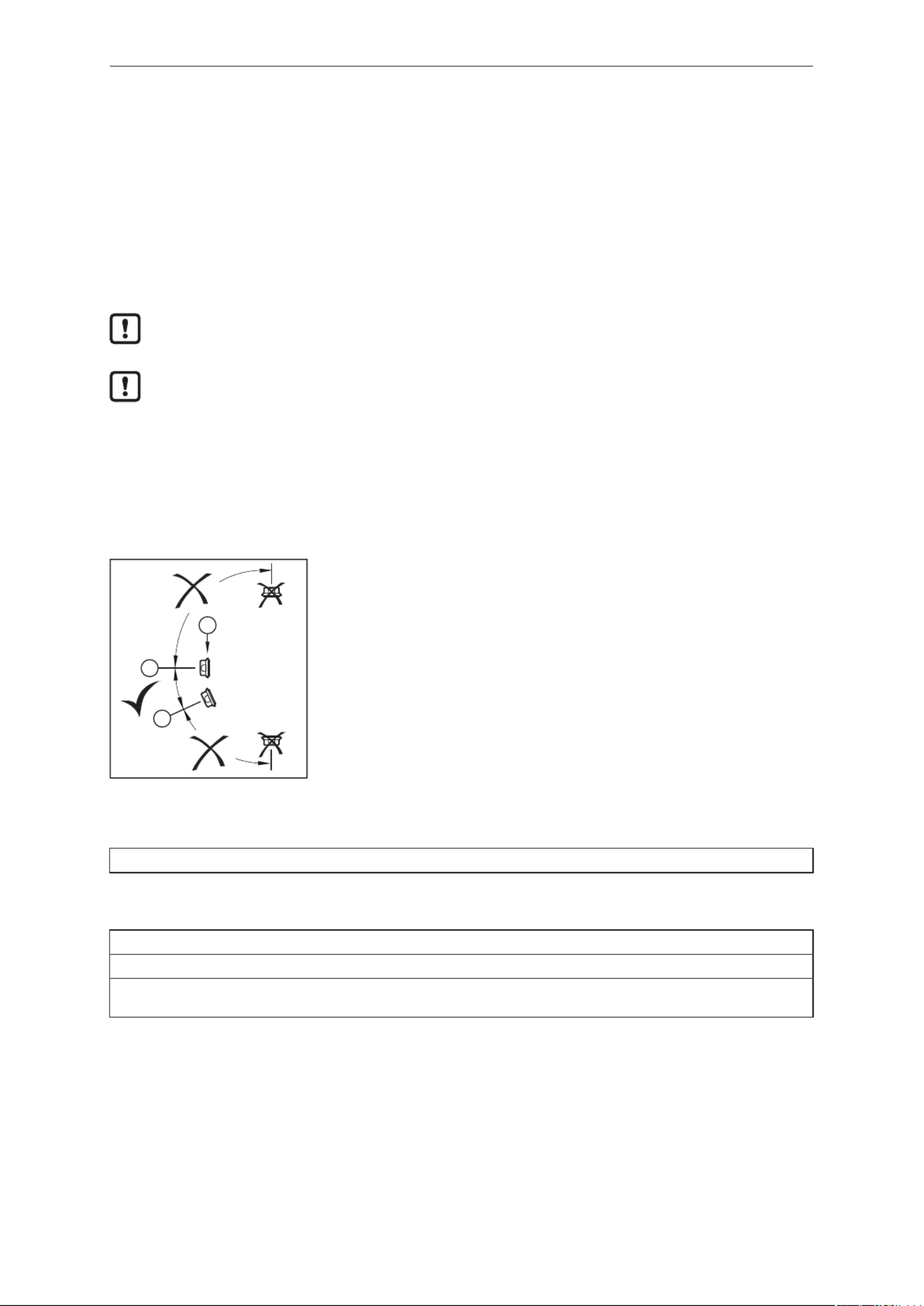

uIdeal orientation (1):
The filter cover is in a horizontal position.
wThe ventilation diaphragm (2) in the filter cover is in a vertical
position.
uMaximum inclination of the filter cover: 30° (3)
5.1.3 Replace filter cover
(1) Exchange of the filter cover incl. ventilation diaphragm (E30483).

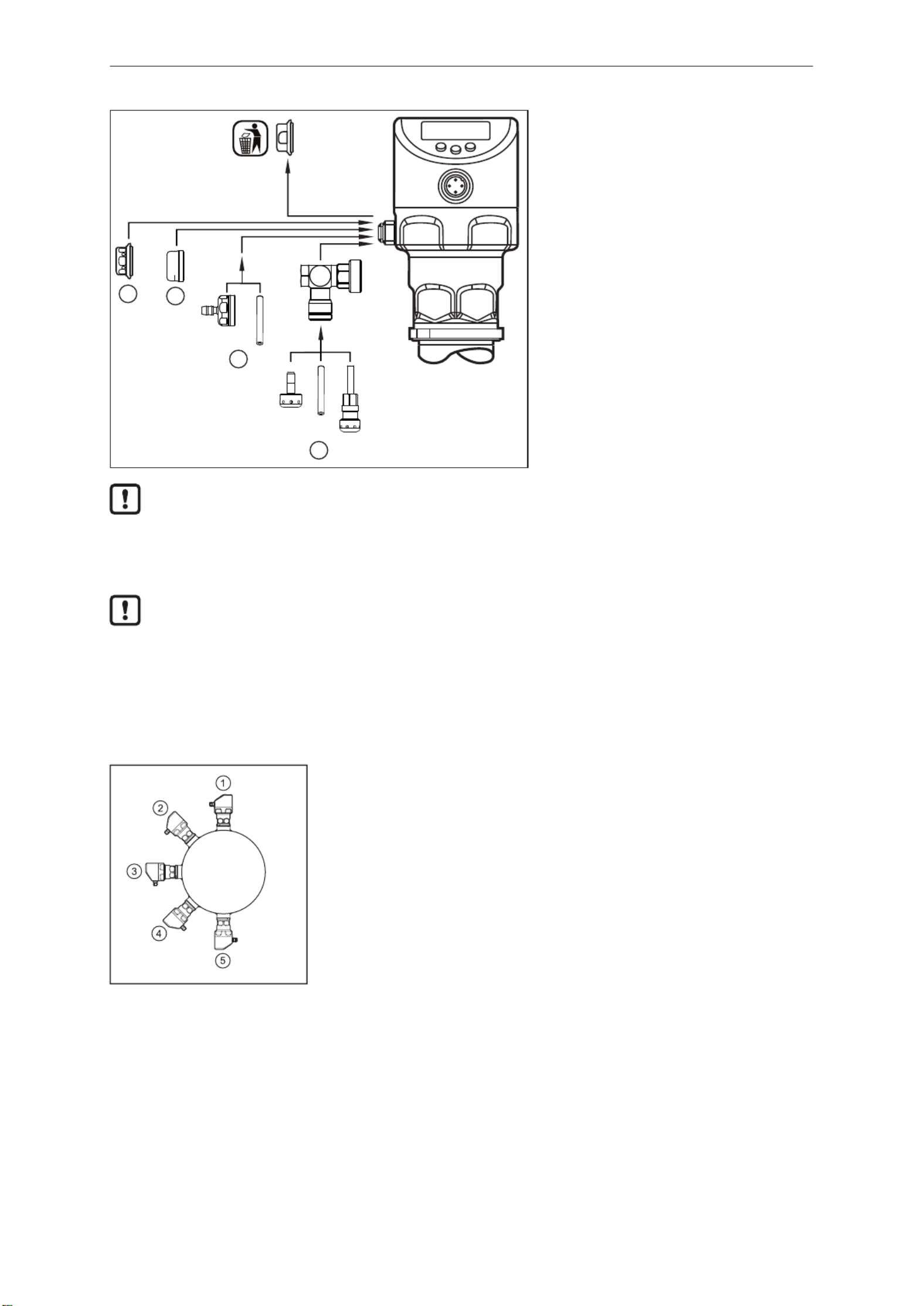

In difficult environmental conditions or an installation situation that does not correspond to the ideal
alignment (1), the following accessories can be used to protect the ventilation diaphragm:
(2) Replace the filter cover with a closed version (E30148)*.
(3) Replace the filter cover with a version with a tube fitting and a vent tube that ends in a protected and dry area (E30139).
(4) Set of accessories (E30467) with integrated replacement diaphragm (ventilation diaphragm). Recommended for chemically
demanding applications in external cleaning. Function: ( Installation instructions E30467).Ò
PI100x Electronic pressure sensor
14
2
3
4
1
uAvoid soiling and moisture during the exchange.
uClean the thread carefully and without residues.
uDo not damage the adhesive surface for the diaphragm on the sensor.
u ÒObserve the orientation of the filter cover ( Installation instructions E30139 / E30467).
*When using the closed filter cover, there is no more pressure compensation of the measuring
cell. This results in measurement deviations caused by:
• Fluctuations of the atmospheric pressure.
• Fluctuations in the internal pressure of the unit with temperature changes.
5.2 Use in hygienic areas according to 3-A
The following applies to units with 3-A certification:
uOnly use adapters with A-3 certification for the process
connection.
uDo not install the unit at the lowest point of the pipe or tank
(position 5) so that the medium can run off the area of the
measuring element.
PI100x Electronic pressure sensor
16
7 Operating and display elements
321
9 10
4 5 6 7 8
1211

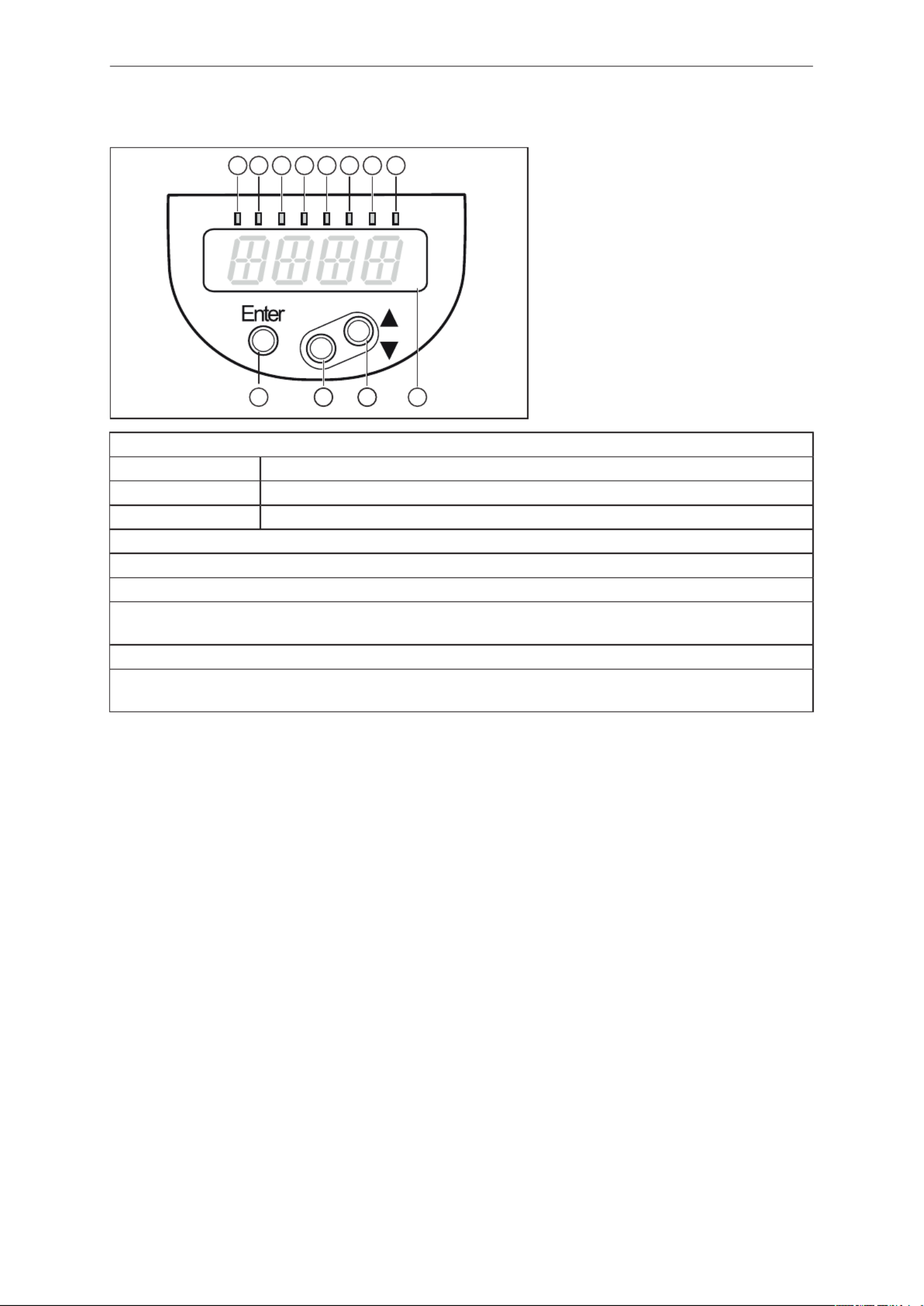

1 to 8: Indicator LEDs
LED 1 - 6 Unit of measurement of the process value pressure (assignment is device-specific).
LED 7 Switching status OUT2 (on if output 2 is switched).
LED 8 Switching status OUT1 (on if output 1 is switched).
9: (Enter) button
Selection of the parameters and acknowledgement of the parameter values
10 to 11: Arrow keys up [▲] and down [▼]
Setting of the parameter values (scrolling by holding pressed, incrementally by pressing once).
Cancellation of input or return to menu: Press [▲] + [▼] simultaneously.
12: Alphanumeric display, 4 digits
Display: Currently measured system pressure
Display: Parameters and parameter values
PI100x Electronic pressure sensor
18

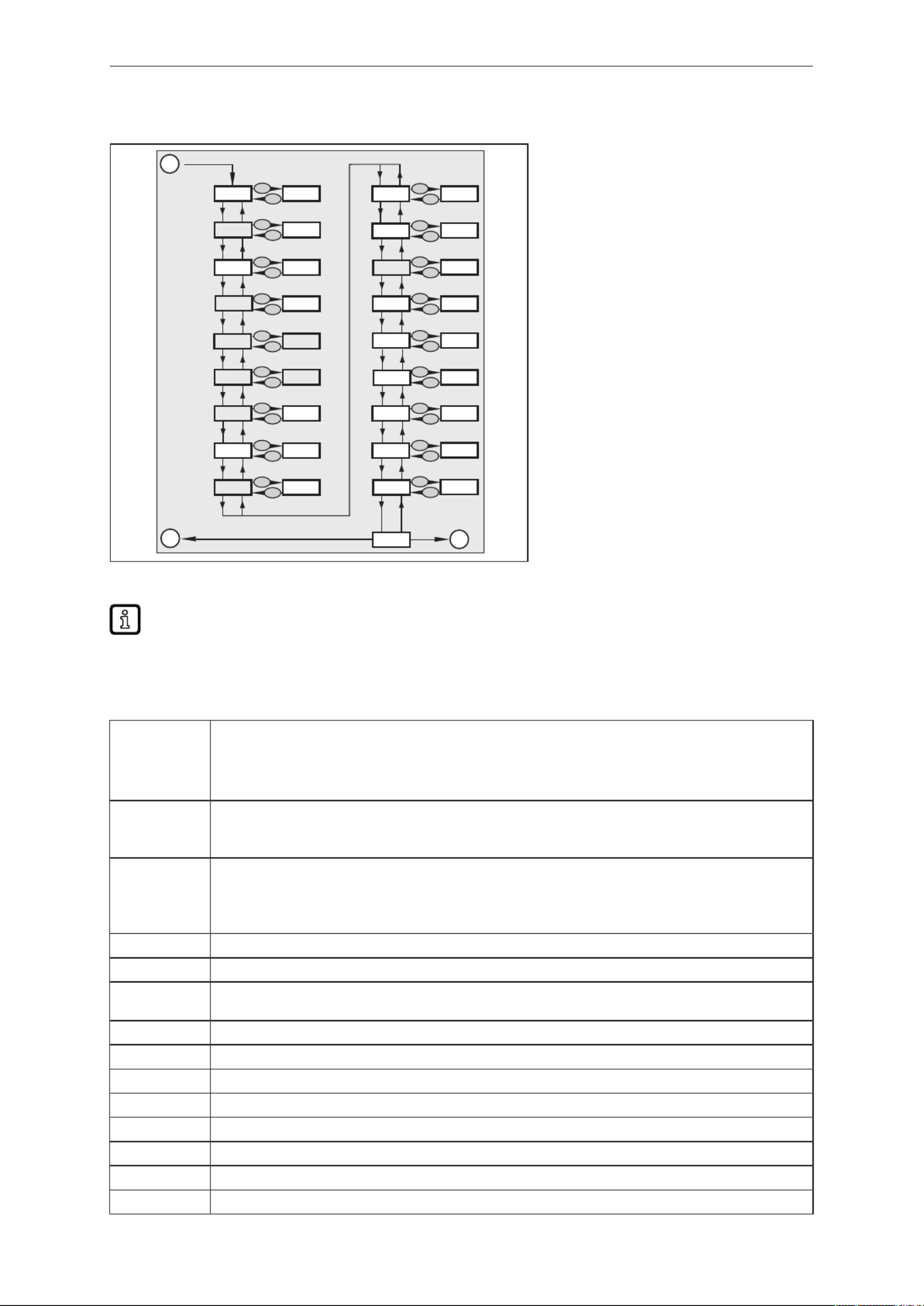

8.3 Menu structure: Level 2 (extended functions)
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
1
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
12
rES
ou1
ou2
dS1
dr1
dS2
dr2
uni.P
P-n
Hi.P
Lo.P
FOU1
FOU2
dAP
dAA
coF
CGA
diS
SIM
APPL
Hno
I
0.0
0.0
0.0
0.0
bAr
PnP
900
0.00
On
On
0.06
0.03
0.00
d2
0
1: Change to the main menu, 2: Change to menu level 3 (simulation).
Menu items highlighted in grey are not active in 2-wire operation.
8.4 Explanation of menu level 2
rES Restore the factory settings.
• [APPL] = Application reset
• [btb] = Back to Box
See: Reset sensor / parameter ( 26)Ò/
ou1* Output function for OUT1:
• Switching signal for the pressure limits: hysteresis function [H ..] or window function [F ..], either normally
open [. no] or normally closed [. nc], output off [Off].
ou2 Output function for OUT2:
• Switching signal for the pressure limits: hysteresis function [H ..] or window function [F ..], either normally
open [. no] or normally closed [. nc], output off [Off].
• Analogue signal for the current system pressure: 4...20mA [I].
dS1 / dS2* Switch-on delay for OUT1 / OUT2.
dr1 / dr2* Switch-off delay for OUT1 / OUT2.
uni.P Standard unit of measurement for system pressure (display):
[bAr] / [mbar] / [MPA] / [kPA] / [PSI] / [inHG] / [iH2O] / [mmWS].
P-n* Output logic: pnp / npn.
Hi.P Maximum value memory for system pressure.
Lo.P Minimum value memory for system pressure.
FOU1* Behaviour of output 1 in case of an internal fault.
FOU2 Behaviour of output 2 in case of an internal fault.
dAP Damping of the switch point / process data flow (IO-Link communication) and display (Τ63**).
dAA Damping of the analogue output. Requirement: Setting OUT2 is [I] (Τ63**).
coF Zero-point calibration between: -5%...+5% of VMR.
Electronic pressure sensor PI100x
21
SP1

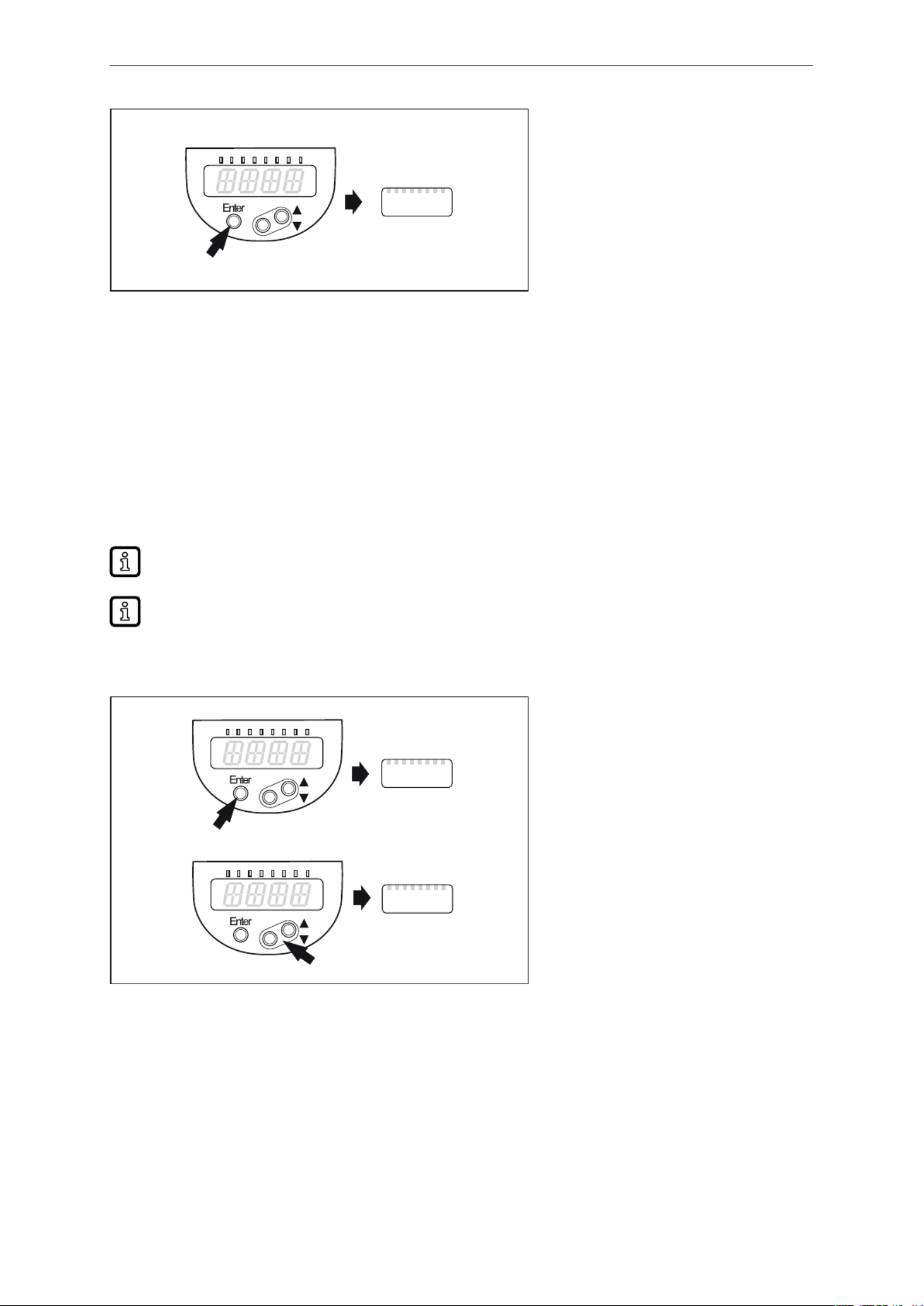

uBriefly press [Enter].
wThe parameter is displayed again. The new setting value is saved.
Setting of other parameters:
uPress [▲] or [▼] until the required parameter is displayed.
Finishing the parameter setting:
uPress [▲] or [▼] several times until the current measured value is displayed or wait for 30 s.
wThe sensor returns to the process value display.
If [C.Loc] is displayed when you try to change a parameter value, a parameter setting process is
active via the IO-Link communication (temporary locking).
If [S.Loc] is displayed, the sensor is permanently locked via software. This locking can only be
removed with a parameter setting software.
Change from menu level 1 to menu level 2
SP1
EF
uPress [Enter] to get to the menu.
uPress [▲] or [▼] until [EF] is displayed.
PI100x Electronic pressure sensor
22
rES
uPress [Enter].
wThe first parameter of the submenu is displayed (here: [rES]).
wContinue with [▼].

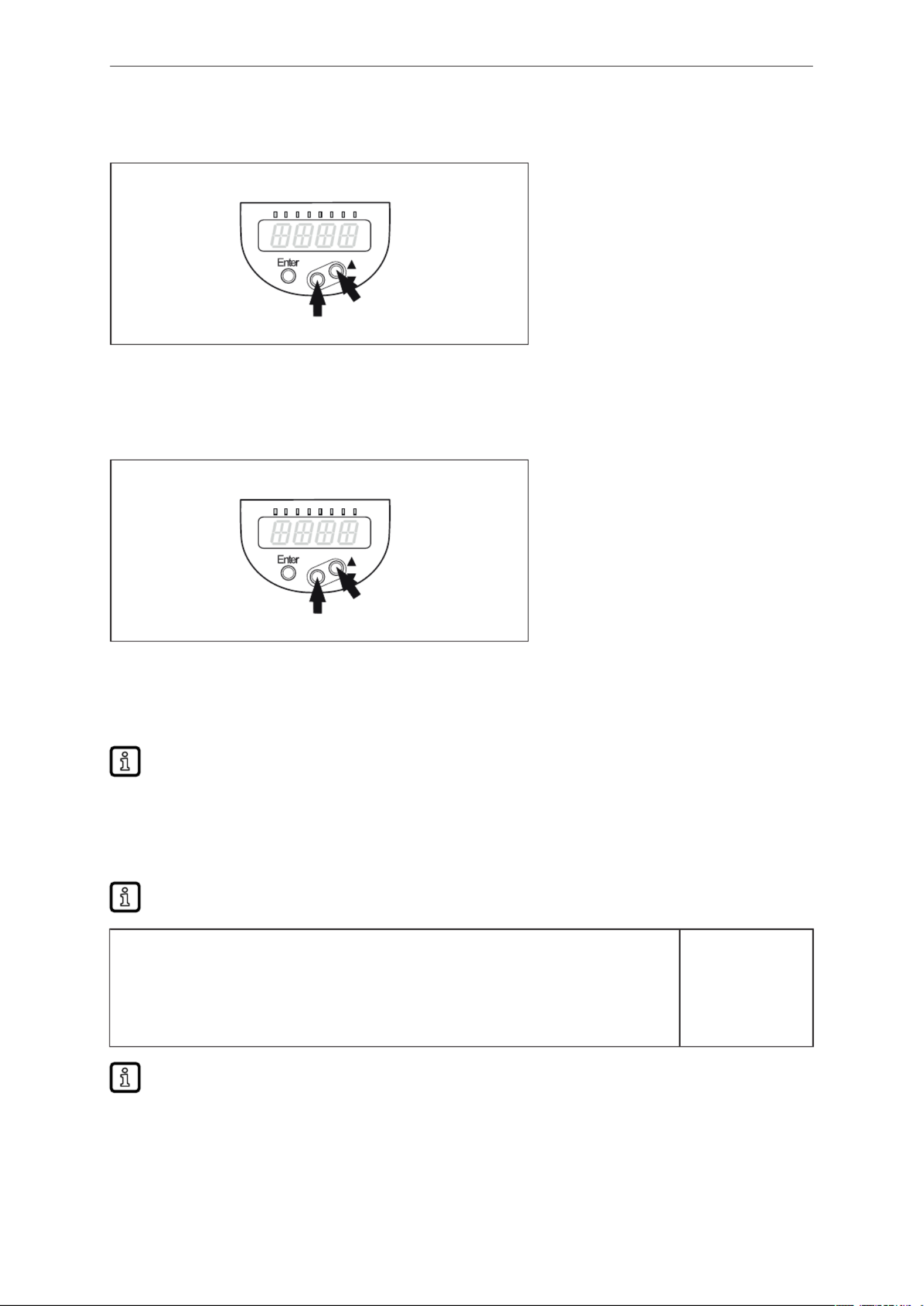

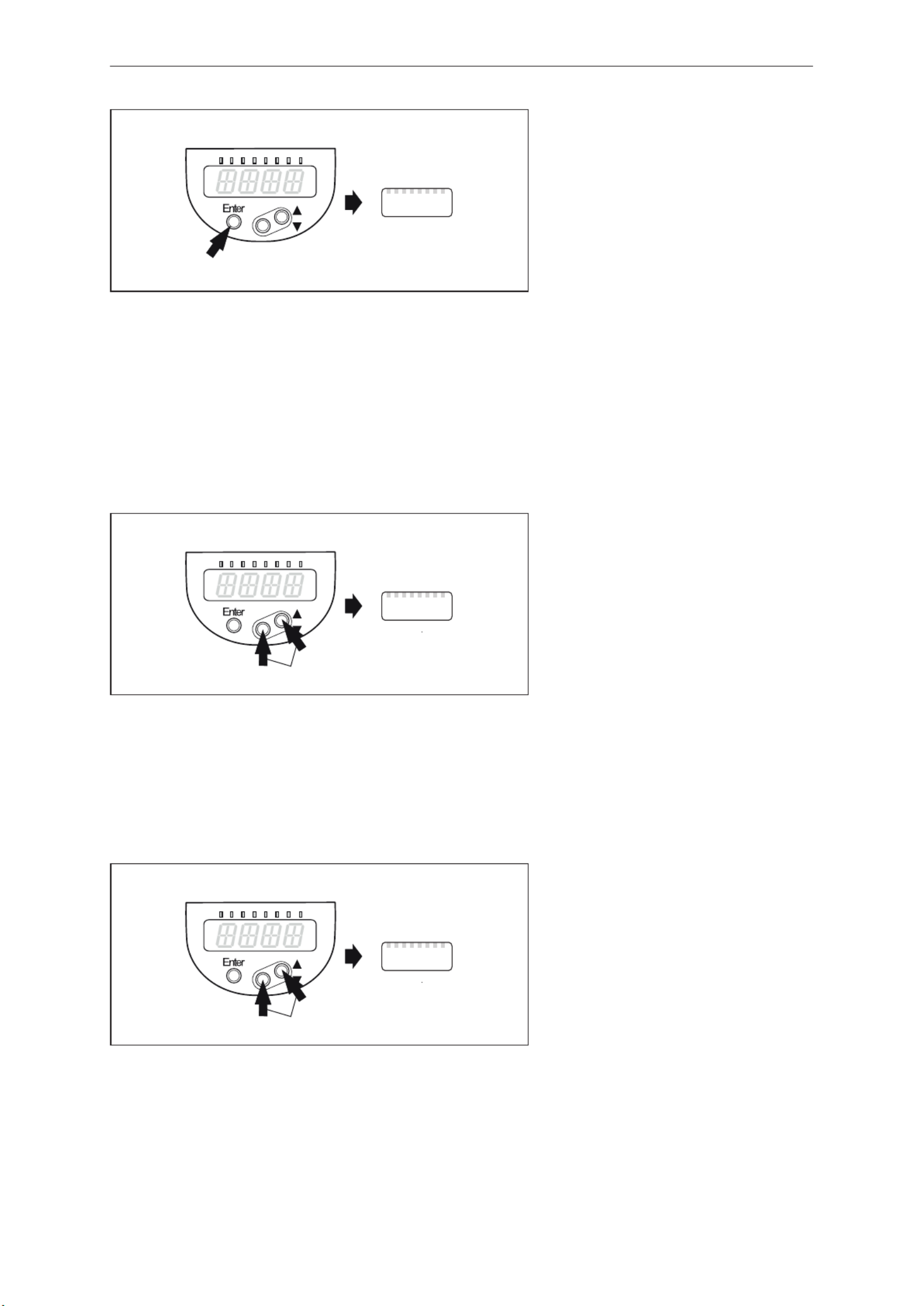

Lock / unlock
The unit can be locked electronically to prevent unintentional settings.
Locking:
Loc
10 s
uMake sure that the unit is in normal operating mode.
uPress [▲] + [▼] simultaneously for 10s.
w[Loc] is displayed.
[Loc] is briefly displayed if you try to change parameter values.
Unlocking:
uLoc
10 s
uPress [▲] + [▼] simultaneously for 10s.
w[uLoc] is displayed.
Timeout:
If no button is pressed for 30 s during parameter setting, the unit returns to the operating mode with
unchanged values.
Electronic pressure sensor PI100x
23
Exit parameter without applying the settings:
uPress [▲] + [▼] simultaneously.
wReturn to the menu level.
To exit the menu level:
uPress [▲] + [▼] simultaneously.
wMenu level 2 changes to level 1
or
level 1 changes to the display.
In 2-wire mode, those menu items that refer to switching functions are not active ( MenuÒ
structure); in addition, for some menu items, those parameter values that refer to switching
functions cannot be selected.
9.2 Configure display (optional)
If the unit of measurement [uni.P] has to be changed, this needs to be done before setting other
parameters to avoid internal rounding deviations due to unit conversion.
uSelect [uni.P] and set the unit of measurement:
• [bAr], [mbAr], [MPA], [kPA].
• [psi] (depends on the device).
• [InHO] (depends on the device).
• [mWS] (depends on the device).
• [mmWS] (depends on the device).
[uni.P]
Selectable units of measurement → data sheet.
Uni.P only affects the sensor display. The IO-Link process value remains unaffected.
Produktspecifikationer
| Varumärke: | IFM |
| Kategori: | Inte kategoriserad |
| Modell: | PI1009 |
Behöver du hjälp?
Om du behöver hjälp med IFM PI1009 ställ en fråga nedan och andra användare kommer att svara dig
Inte kategoriserad IFM Manualer
8 April 2025
8 April 2025
8 April 2025
2 April 2025
2 April 2025
1 April 2025
1 April 2025
1 April 2025
31 Mars 2025
12 Mars 2025
Inte kategoriserad Manualer
- Hyundai
- Duro
- Stanley
- Sonicware
- KWC
- Garden Feelings
- ASI
- Elbro
- Ditek
- Blue Sky
- RGBlink
- Synamodec
- Cisco
- Brabantia
- Velux
Nyaste Inte kategoriserad Manualer
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
