GB TABLE OF CONTENTS
INSTALLATION
PAGE
13
ELECTRICAL CONNECTION
PAGE
14
BEFORE USING THE OVEN
PAGE
15
PROTECTING THE ENVIRONMENT
PAGE
15
PRECAUTIONS AND GENERAL RECOMMENDATIONS
PAGE
15
OVEN ACCESSORIES
PAGE
16
COOKING CHART
PAGE
17
CLEANING THE OVEN AND ACCESSORIES
PAGE
18
TROUBLESHOOTING GUIDE
PAGE
19
AFTER-SALES SERVICE
PAGE
20
DECLARATION OF CONFORMITY CE
PAGE
20
13
Technical information for the installer
•
After removing the oven from its packaging,
before making the connections place it on the
polystyrene foam base to protect it from
damage.
•
Do not attempt to lift the oven by the handle.
Lift at the sides as shown in the figure (see
arrow).
•
Check that the appliance has not been
damaged in transit.
•

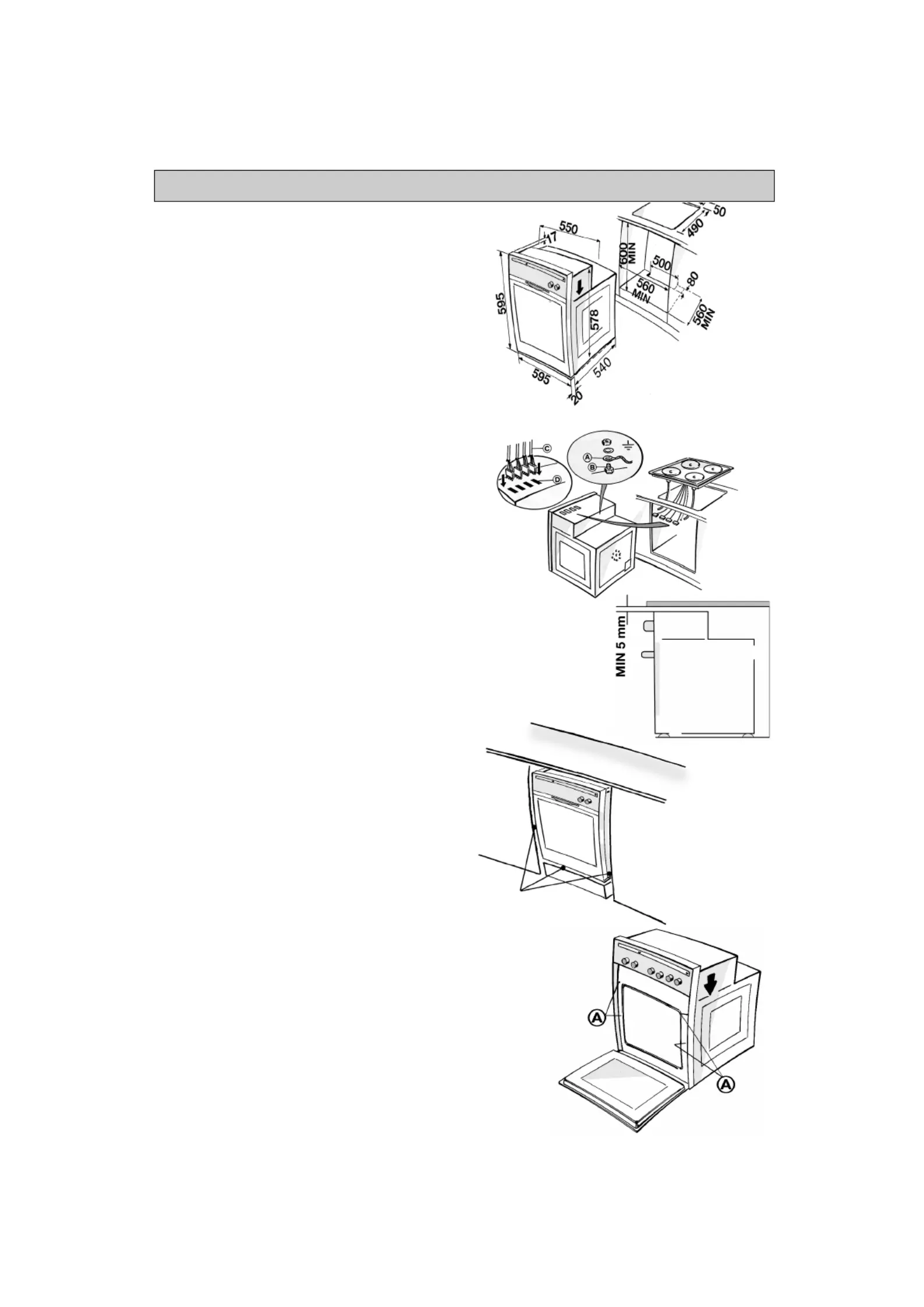

Oven dimensions and kitchen unit
dimensions are shown in the opposite figure.
•
Kitchen units in contact with the oven must
be heat resistant (80° C min).
•
Connect the earth wire (
A
) of the cooktop to
the oven (
B
) as illustrated.
•
Connect clamps (
C
) of the cooktop to the
oven junction block (
D
) situated in the upper
section, following the colour code indicated
on the plate.
•
Install the oven in the housing, lifting it at the
sides, taking care not to trap the wires of the
electrical supply cable.
•
For correct ventilation, follow the ventilation
opening directions shown in the figure (at
least 500 x 80 mm or an equivalent area).
Also provide for at least 5 mm clearance
between the top of the oven and the lower
edge of the worktop.This space must not be
obstructed by cross rails or other structural
elements.
•
During oven installation, care must be taken
to ensure that the sides are not touching the
front edges of the housing or adjacent
drawers and doors (see picture).
•
Carry out the electrical connections between
cooktop and oven (see chapter “Electrical
Connection”).
•
Secure the oven to the kitchen unit with
screws (
A
) as shown.
INSTALLATION
No Contacts
14

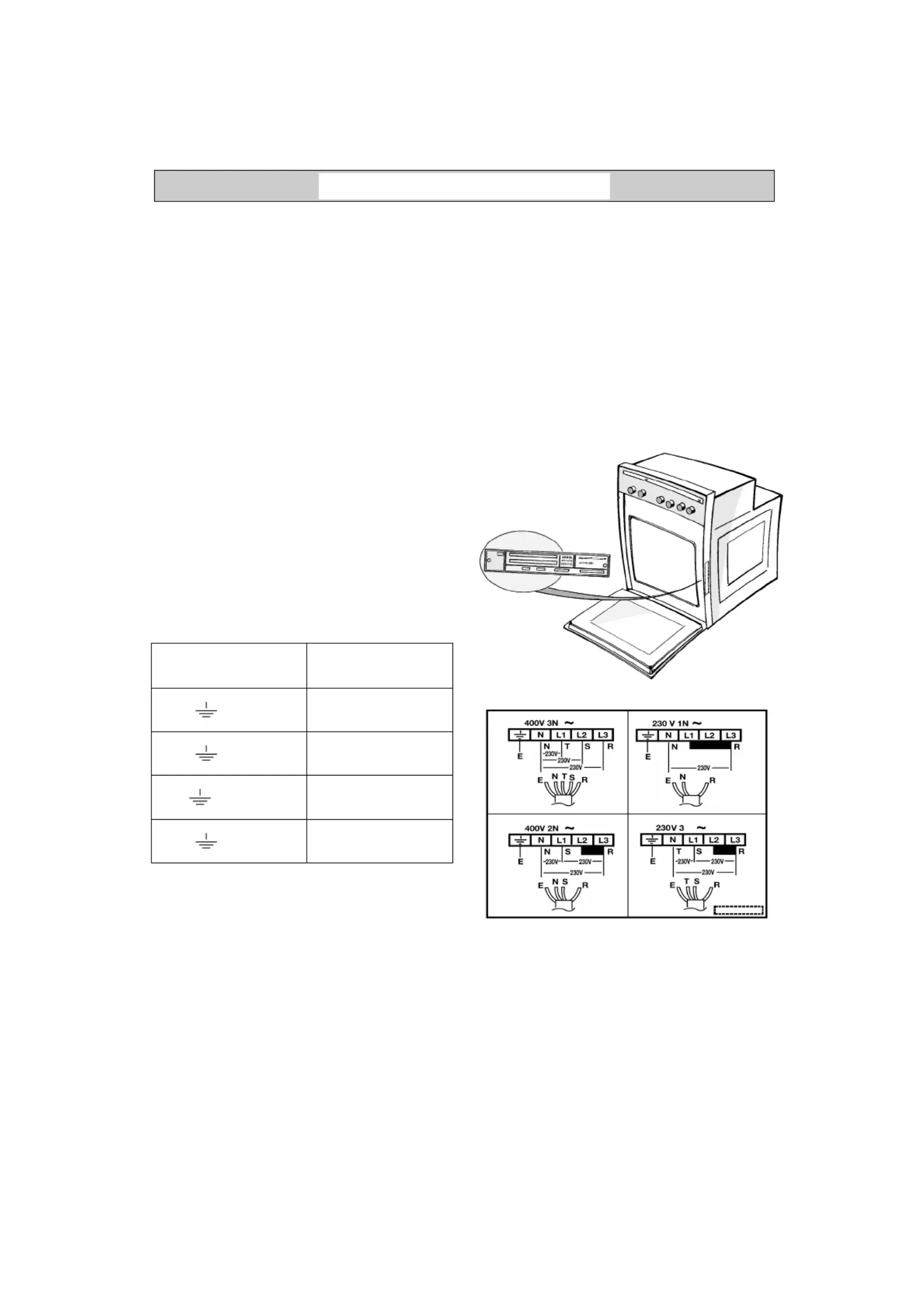

Interconnecting cooktop and oven
•
Make sure that the voltage shown on the
rating plate is the same as the power supply
voltage in your home. The rating plate is on
the front edge of the oven cavity (visible with
oven door open).
•
Use a type H05RR-F power cord (minimum
length 800 mm):
ELECTRICAL CONNECTION
Conductors X
number
Connection
1N+
~
H05 RR-F 3x4 mm²
2N+
~
H05 RR-F 4x2,5 mm²
3 +
~
H05 RR-F 4x2,5 mm²
3N+
~
H05 RR-F 5x1,5 mm²
•Warning: Do not connect to the power
supply before you have finished
connecting the oven and cooktop.
•Make sure the oven is installed and
connected to the electricity supply by a
qualified technician in accordance with
the manufacturer’s instructions and in
compliance with local regulations.
•The installer is responsible for the correct
electrical connection of the oven and the
observance of the relative safety
prescriptions.
•The oven must be connected to the
electricity supply by means of an all-pole
disconnect switch with minimum contact
gap of 3 mm.
•The appliances must be earthed by law.
•Do not use multiple plug adapters or
extension leads.
•After the oven has been installed, the
electrical components must be
inaccessible.
