MOUNTING KITS
User manual
M099A13
CHECKING THE CONTENTS OF THE PACKAGE
The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or
damaged, please contact your local iiyama dealer or regional iiyama offi ce.
■
Mount-Bracket (Bracket A : 7222118A0101) : 4pcs
■
L-Bracket (Bracket B : 7222119A0101) : 4pcs
■
Bracket Screw M4×6 : 16pcs
■
User Manual (this document)
For ProLite TF1615MC
Bracket A/B
Screw x 2 x 4
Bracket A/B
SPECIAL NOTES
Mount-Brackets, L-Brackets and screws are necessary to install an open frame monitor.
The Mount-Brackets and L-Brackets are designed to be mounted to speci c wall types and hardware, in accordance
with the installation instructions.
Using Mount-Brackets, L-Brackets or screws other than those speci ed in the installation instructions may damage
the monitor.

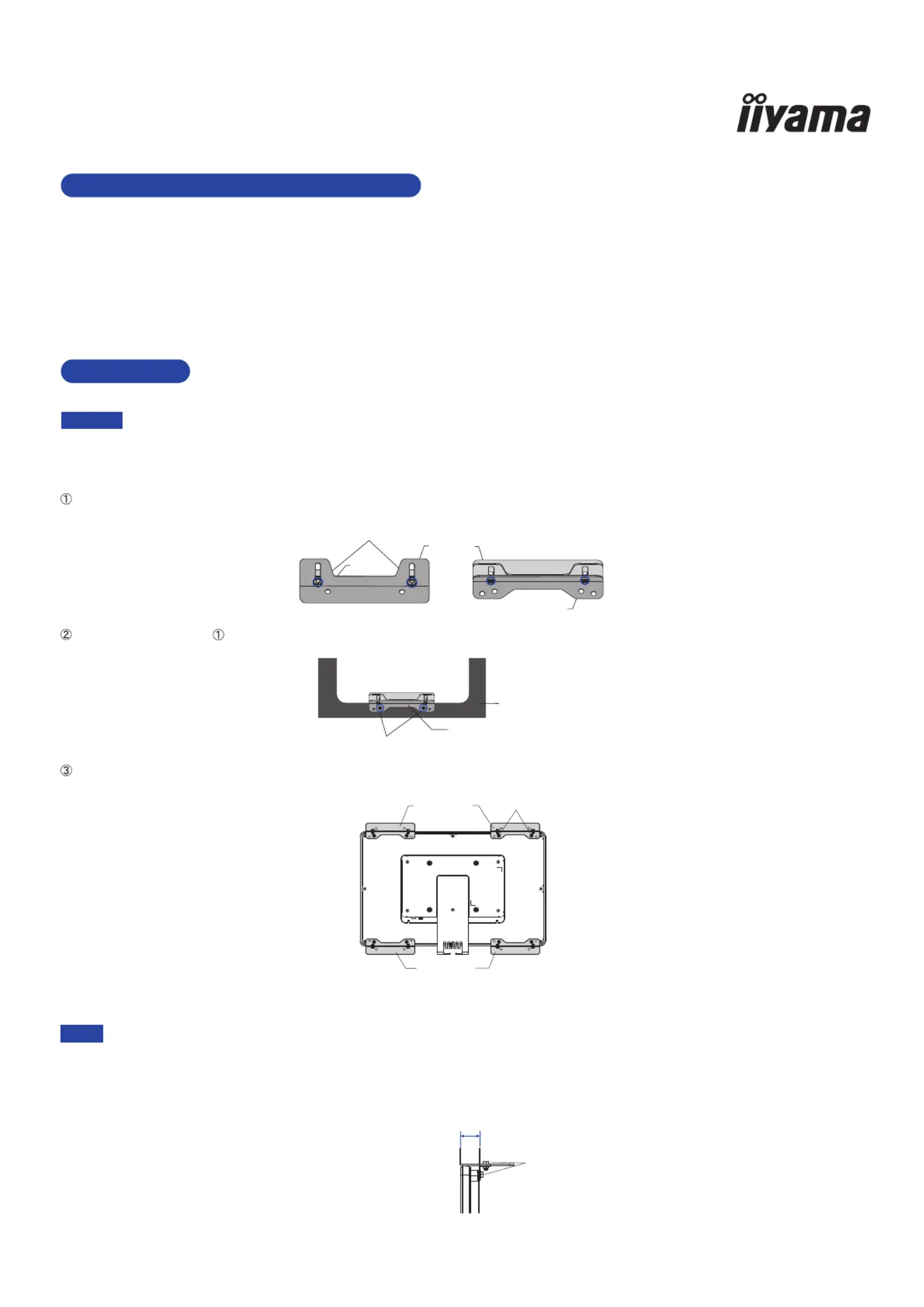

As shown in gure below, tighten Bracket A to B using the screws supplied.
( 4 pcs each, 8 pcs)Bracket A/B: Screws:
Attach the Bracket A/B( ) to the back of the recess, where the monitor is to be attached, and x it with screws.
(Customer’s screws: 8 pcs)
Attach the monitor from the front side of the recess and x with the screws.
( 8 pcs)Screws:
CAUTION
Screw x 2
Bracket B
Bracket A
Bracket A
NOTE
20.0mm
Front of the Monitor
Screw holes for
mounting the chassis
You will need a screwdriver to mount the Bracket A/B.
Brackets A/B and screws are necessary to install an open frame monitor. For details regarding the operating temperature and
humidity conditions, see speci cation of this User Manual.
The position of the L-bracket can be either 0 mm or 20.0 mm from the front of the monitor depending on which screw holes you
choose for mounting it.
Back of the recess
Screw
x 2
Bracket A/B
A
MOUNTING HOLES “A”
M4 THRED HOLES OR M4 CONCEALED
THREDED STUDS WITH NUTS.
397.5
208.0
60.0
60.0
R10 x4
259.5
245.0
●

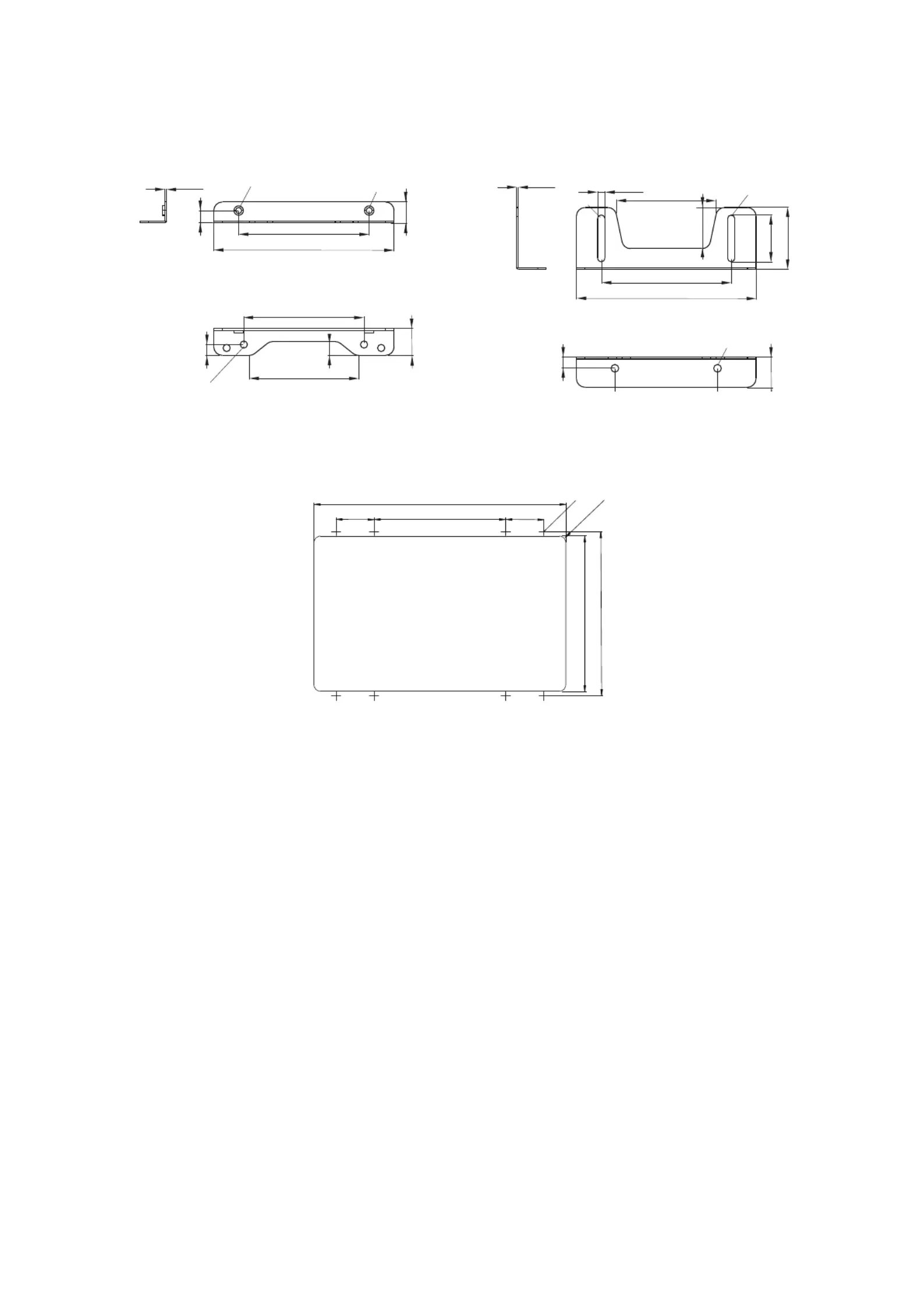

Bracket dimensions
Screw holes for
fixing the bracket
Screw holes for
mounting the chassis
Screw holes for
fixing the bracket
M4
Screw holes for
ti th it
1.0 mm
7.0mm
105.0 mm
76.0 mm
12.0mm
6.3mm
76.0 mm
15.6mm
8.0mm
63.5 mm
1.0 mm
4.2 mm
M4
58.1 mm
24.0mm
105.0 mm
76.0 mm
36.0mm
27.3mm
6.45mm
17.5mm
<Bracket A> <Bracket B>
<Mount size>
