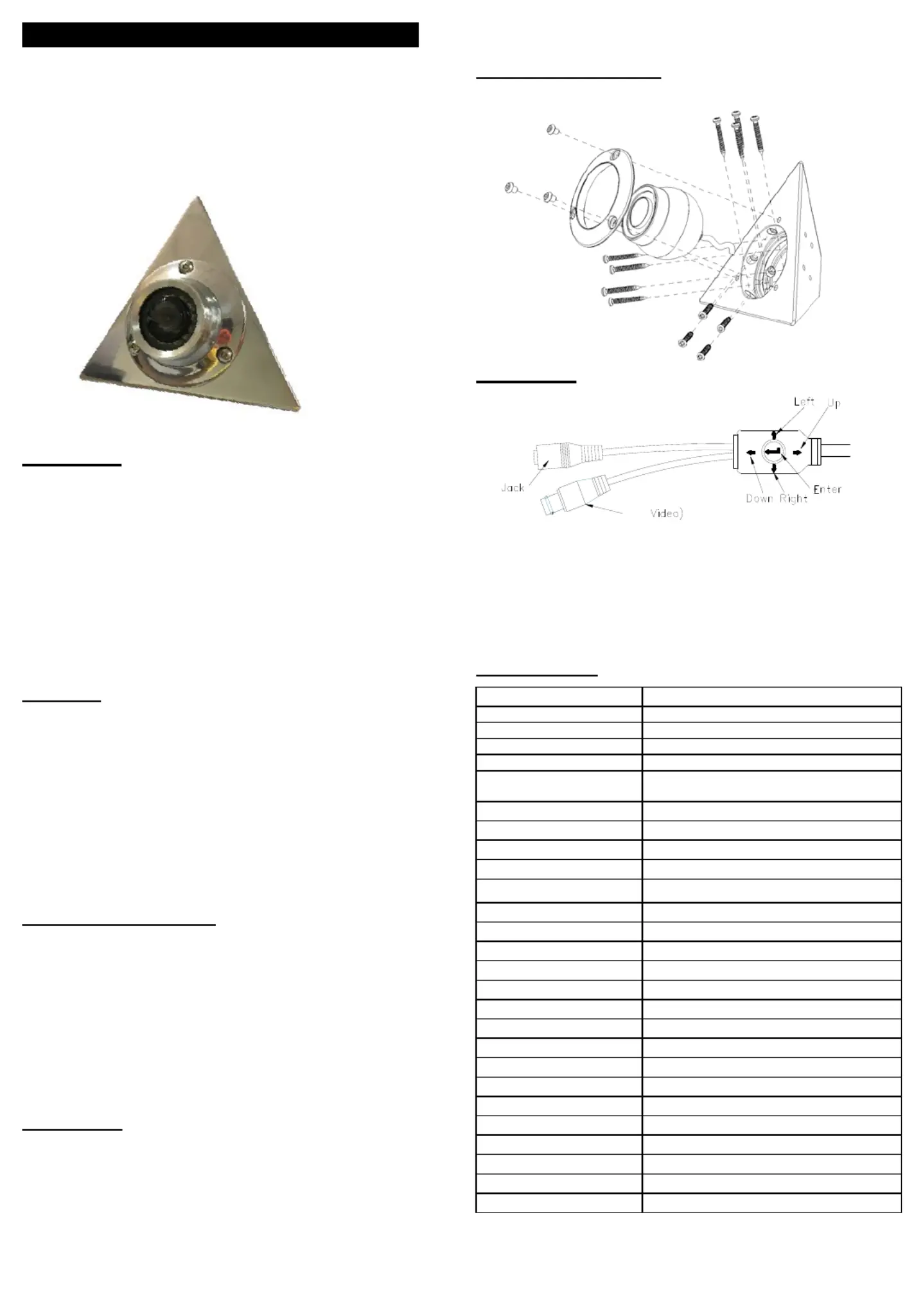

IR Day/Night Megapixel 4 in 1 HD Camera
Model：ICD-E11-EFN
High resolution, 2.0 Megapixel.1080P,
12VDC 12LEDs, NTSC
Description:
This is a high quality 4 in 1 HD (HDTVI,HDCVI,AHD,CVBS) Color
camera, using the latest CMOS technology, the camera can
produce high definition image with little distortion.
Analog High Definition is a high video definition standard, through
the coaxial cable, using the analog modulation technology to
transfer progressive-scan HD Video signal. 4 in 1 HD
(HDTVI,HDCVI,AHD,CVBS) system is same as traditional analog
system , using common 75-3 coaxial cable to carry out as far as
500 meters HD video without any video signal loss.
Cautions:
1.In order to protect the camera, please avoid placing or using
the camera under direct sunlight.
2.Please ensure that the input voltage range is within the
specifications.
3.Please do not place the camera in a location with a temperature
exceeding 50ºC.
4.Do not attempt to service the camera by yourself. Please refer
all services to qualified Dealers.
Installation procedu
res:
1.Loosen the lock screws on the bezel, remove the camera block to
the suitable position.
2. Attach the mounting bracket to the wall or ceiling, wherever you
want to install the camera. Locate a wall stud or ceiling joint and
secure the base by the supplied mounting screws.
3.
Connect the BNC+DC Jack to the monitor or DVR.
4.F
ix the lock scr
ew.
Packing list:
Camera 1
Instruction Manual 1
Mounting Screw 12
Hex-Key 1
Operation pr
ocedures:
Connection:
DC
BNC (
Up and hold 5 seconds: Switch to CVI
Down and hold 5 seconds: Switch to TVI
Left and hold 5 seconds: Switch to CVBS (Default)
Right and hold 5 seconds: Switch to AHD
Specifications:
Model
ICD-E11-EFN
Pick up Device 1/2.7” CMOS Sensor AR0237
TV System NTSC/PAL
Picture Elements 1920(H)*1080(V)
Effective pixels 2.0M pixels
Day-night mode
External control (default) / Auto / color /
black and white
Infrared Spectrum N/A
S/N Ratio More than 50 dB, (AGC Off)
Auto Gain Control Auto
White Balance Auto
Electronic Shutter
AUTO/ 1/50（1/60）-1/100,000sec
Back Light Compensation Auto
Infrared LED
12 LEDs
Infrared LED Range 10 m
Video output 1 Vp-p, 75Ωcomposite , BNC Jack p1-x1
Audio Output N/A
Mirror Available
Lens f2.1mm
Lens Mount M12XP0.5mm Thread
Pan Adjusting +/-180 Degree
Tilt Adjusting 0-60 Degree
Power Supply 12V DC ±10%
Power Consumption 130mA(led on)/65mA(led off)
Dimensions(L x W x H) 124.72 x108.58x62.55mm
Net Weight 350g
Weatherproof IP67
Operating Temperature -10°C to +50°C
*Specifications are subject to change without prior notice.
4-MAN-E11-EF ICD-N
