COOKER AND OVEN

Operating Instructions

English,2

KP900GX

Contents

Installation, 2-5

Room ventilation

Disposing of combustion fumes

Positioning and levelling

Electrical connection

Gas connection

Table of burner and nozzle specifications

Table of characteristics

Description of the appliance, 6

Overall view

Control panel

Start-up and use, 7-11

Using the hob

Setting the time

Using the oven

Cooking modes for Multi-function (1rst Oven)

Cooking modes for conventional-function (2nd Oven)

Practical cooking advice

Oven cooking advice table

Precautions and tips, 12

General safety

Disposal

Respecting and conserving the environment

Care and maintenance, 13

Switching the appliance off

Cleaning the appliance

Replacing the oven light bulb

Gas tap maintenance

Assistance

! Before operating your new appliance please read

this instruction booklet carefully. It contains

important information concerning the safe installation

and operation of the appliance.

! Please keep these operating instructions for future

reference. Make sure that the instructions are kept

with the appliance if it is sold, given away or moved.

! The appliance must be installed by a qualified

professional according to the instructions provided.

! Any necessary adjustment or maintenance must be

performed after the cooker has been disconnected

from the electricity supply.

Room ventilation

The appliance may only be installed in permanently-

ventilated rooms, in accordance with current national

legislation. The room in which the appliance is

installed must be ventilated adequately so as to

provide as much air as is needed by the normal gas

combustion process (the flow of air must not be

lower than 2 m3/h per kW of installed power).

The air inlets, protected by grilles, should have a

duct with an inner cross section of at least 100 cm2

and should be positioned so that they are not liable

to even partial obstruction (see figure A).

These inlets should be enlarged by 100% - with a

minimum of 200 cm2 - whenever the surface of the

hob is not equipped with a flame failure safety

device. When the flow of air is provided in an indirect

manner from adjacent rooms (see figure B), provided

that these are not communal parts of a building,

areas with increased fire hazards or bedrooms, the

inlets should be fitted with a ventilation duct leading

outside as described above.

Adjacent room Room requiring

ventilation

A B

Disposing of combustion fumes

The disposal of combustion fumes should be

guaranteed using a hood connected to a safe and

efficient natural suction chimney, or using an electric

fan that begins to operate automatically every time

the appliance is switched on (see figure).

Installation

Ventilation opening Increase in the gap between

for comburent air the door and the flooring

! After prolonged use of the appliance, it is advisable

to open a window or increase the speed of any fans

used.

! The liquefied petroleum gases are heavier than air

and collect by the floor, therefore all rooms containing

LPG cylinders must have openings leading outside so

that any leaked gas can escape easily.

LPG cylinders, therefore, whether partially or

completely full, must not be installed or stored in

rooms or storage areas that are below ground level

(cellars, etc.). Only the cylinder being used should be

stored in the room; this should also be kept well

away from sources of heat (ovens, chimneys,

stoves) that may cause the temperature of the

cylinder to rise above 50°C.

Positioning and levelling

! It is possible to install the appliance alongside

cupboards whose height does not exceed that of the

hob surface.

! Make sure that the wall in contact with the back of

the appliance is made from a non-flammable, heat-

resistant material (T 90°C).

To install the appliance correctly:

•Place it in the kitchen, the dining room or the bed-

sit (not in the bathroom).

•If the top of the hob is higher than the cupboards,

the appliance must be installed at least 600 mm

away from them.

•If the cooker is installed underneath a wall cabinet,

there must be a minimum distance of 420 mm

between this cabinet and the top of the hob.

This distance should be increased to 700 mm if the

wall cabinets are flammable (see figure).

Fumes channelled through straight a

chimney or a branched flue system

(reserved for cooking appliances)

Fumes channeled outside

•Do not position

blinds behind the

cooker or less than 200

mm away from its

sides.

•Any hoods must be

installed according to

the instructions listed in

the relevant operating

manual.

Levelling

If it is necessary to level the

appliance, screw the

adjustable feet into the places

provided on each corner of the

base of the cooker (see

figure).

The legs* fit into the slots on

the underside of the base of

the cooker.

HOOD

900

Min. mm.

420

Min.

min.

650

mm. with hood

min.

700

mm. without hood

mm.

420

Min. mm.

Gas connection

Connection to the gas network or to the gas cylinder

may be carried out using a flexible rubber or steel hose,

in accordance with current national legislation and after

making sure that the appliance is suited to the type of

gas with which it will be supplied (see the rating sticker

on the cover: if this is not the case see below). When

using liquid gas from a cylinder, install a pressure

regulator which complies with current national

regulations. To make connection easier, the gas supply

may be turned sideways*: reverse the position of the

hose holder with that of the cap and replace the gasket

that is supplied with the appliance.

! Check that the pressure of the gas supply is

consistent with the values indicated in the Table of

burner and nozzle specifications (see below). This

will ensure the safe operation and durability of your

appliance while maintaining efficient energy

consumption.

Gas connection using a flexible rubber hose

Make sure that the hose complies with current

national legislation. The internal diameter of the hose

must measure: 8 mm for liquid gas supply; 13 mm for

methane gas supply.

Once the connection has been performed, make sure

Electrical connection

WARNING – THIS APPLIANCE MUST BE EARTHED.

Electrical connection

Electric cookers come without a power supply cable. The

cooker is designed to operate on an electricity supply which

conforms to the electrical data shown on the Rating Plate. The

cooker can be connected to the mains only after removing

the back panel of the cooker itself with a screwdriver.

N.B.: the following installation procedure must be carried out

by a qualified electrician. The electrical installation must comply

with the IEE Regulations, Building & local By-Lays.

For the installation of the feeding cable carry out the following

operations:

lUsing a screwdriver, prise on the side tabs of the

terminal board cover (see fig. A);

lPull and open the junction blok lid

Important: the wires in the mains lead are coloured in

accordance with the following code:

Green & Yellow -Earth

Blue -Neutral

Brown -Live

As the colours of the wires in the mains lead may not

correspond with the coloured markings identifying the

terminals in your plug, proceed as follows:

Green & Yellow wire to terminal marked “E” or

or coloured

Green or Green & Yellow.

Brown wire to terminal marked “L” or coloured Red.

Blue wire to terminal marked “N” or coloured Black (see fig.

B).

lfix the feeding cable in the special cable stop and

close the cover.

N.B.: the power supply cable must have these minimum

requirements:

Type: H05RR-F

Section: 3x2.5 mm

Ensure that the mains cable is routed away from any brackets

affixed to the rear panel and is not trapped to the rear wall

when pushing the cooker into position between cabinets.

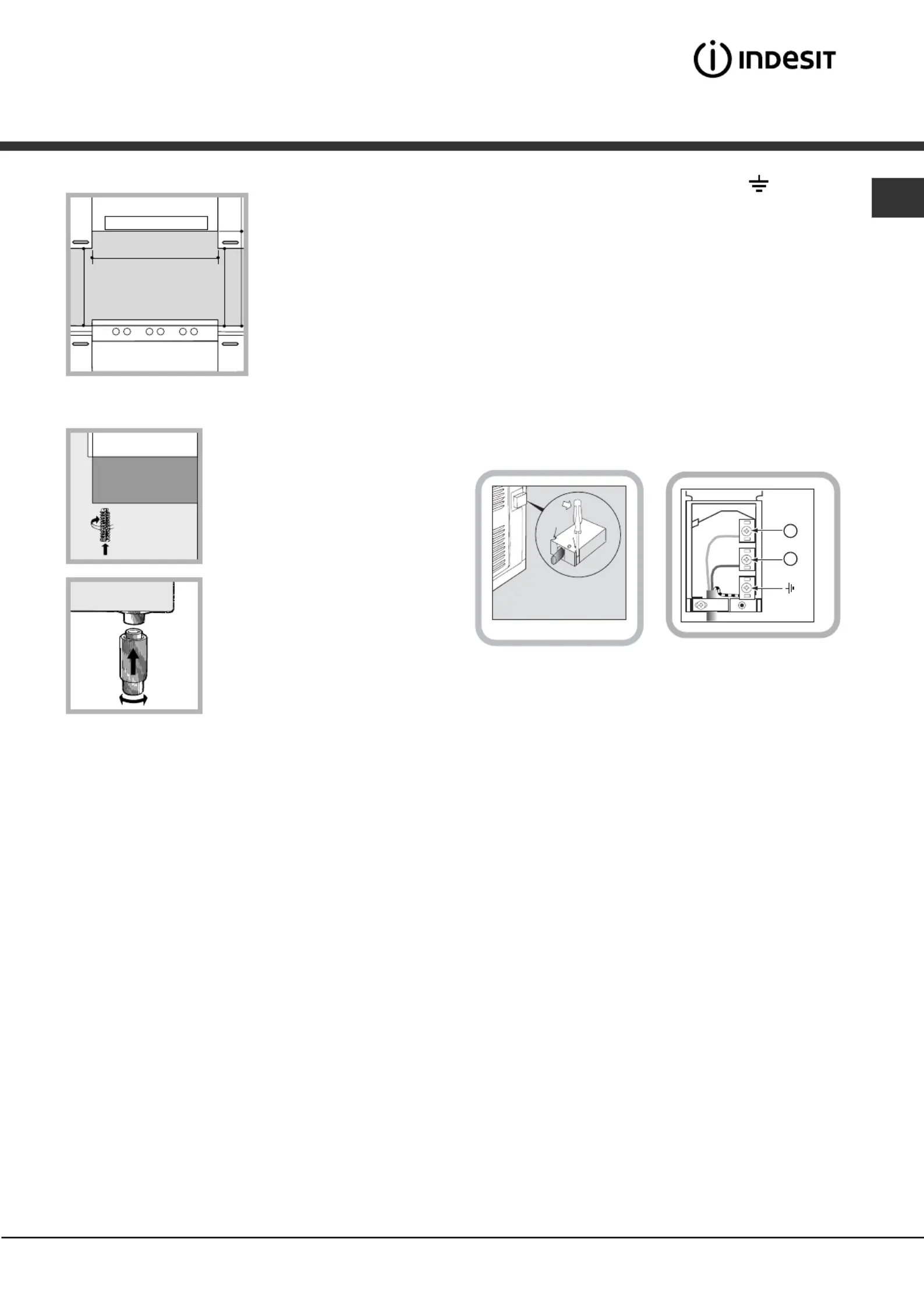

Fig. A

Fig. B

Produktspecifikationer

Varumärke:	Indesit
Kategori:	Ugn
Modell:	kp900gx
Produkttyp:	Fristående köksspis
Bredd:	900 mm
Djup:	600 mm
Höjd:	900 mm
Antal ugnar:	2
Självrengörande:	Nej
Produktens färg:	Rostfritt stål
Typ av spishäll:	Gas
Antal brännare / zoner matlagning:	5
Totalt ugn (er) invändig kapacitet:	90 l
Inkluderad ugn:	Ja
