Thank you for purchasing an Innity Kappa Perfect compo-
nent system. The Kappa Perfect6.1 has been engineered to provide
the most accurate sonic reproduction possible. Over the years, we
at Innity have listened to hundreds of automotive speakers and we
think these are the best. We hope you agree.
This manual includes information that will make your installation
as simple and trouble-free as possible. It also provides detailed tech-
nical information that will help an experienced installer optimize
speaker placement and crossover adjustment. Please study this
manual before you begin your installation. Remember to send in
your warranty registration card, and keep your sales receipt some-
where safe in case you need warranty service.
®
KA P PA SE R I E S
6.5" Component System
I N S T R U C T I O N S
6.1
IMPORTANT
Installation of automotive stereo compo-
nents can require extensive experience per-
forming a variety of mechanical and electri-
cal procedures. Although these instructions
explain how to install a Kappa Perfect6.1
component system in a general sense, they
do not show the exact installation method
for your particular car. If you feel you may
not have the necessary tools or experience,
ask your authorized Innity car-audio dealer
about professional installation options.
WARNING
Playing loud music in your automobile
can permanently damage your hearing as
well as hinder your ability to hear trac. We
recommend listening at low volume while
driving. Innity accepts no liability for hear-
ing loss, bodily injury or property damage
resulting from use or misuse of this product.
S PPEAKER LACEMENT
Figures 1–4 show possible speaker place-
ments in the order of most desirable to
least desirable. Kick-panel mounting will
provide the best staging and imaging in
most vehicles.
A NOTE A S PBOUT YSTEM ERFORMANCE
For the best performance possible, the
Kappa Perfect6.1 should be used with a
two-channel amplier with output power of
at least 35W RMS per channel. The passive
crossover contains impedance-compensating
circuitry and has been computer-optimized
for the attest possible frequency response
with the tweeter ush-mounted on axis
with the listener. The combined responses
of the speakers and passive crossover
constitute 4th-order Linquitz-Riley
acoustic
alignment and cannot be duplicated
with
any electronic crossover currently available
for car-audio use. Consequently, bi-amping
the Perfect6.1 with an electronic crossover
is not recommended.
T IWEETER NSTALLATION
TWEETER
on dash
WOOFER
in factory-
door location
TWEETER
on kick panel
WOOFER
in factory-
door location
TWEETER
and
WOOFER
on kick panel
WOOFER
in factory-
door location
TWEETER
in high/forward
location on door

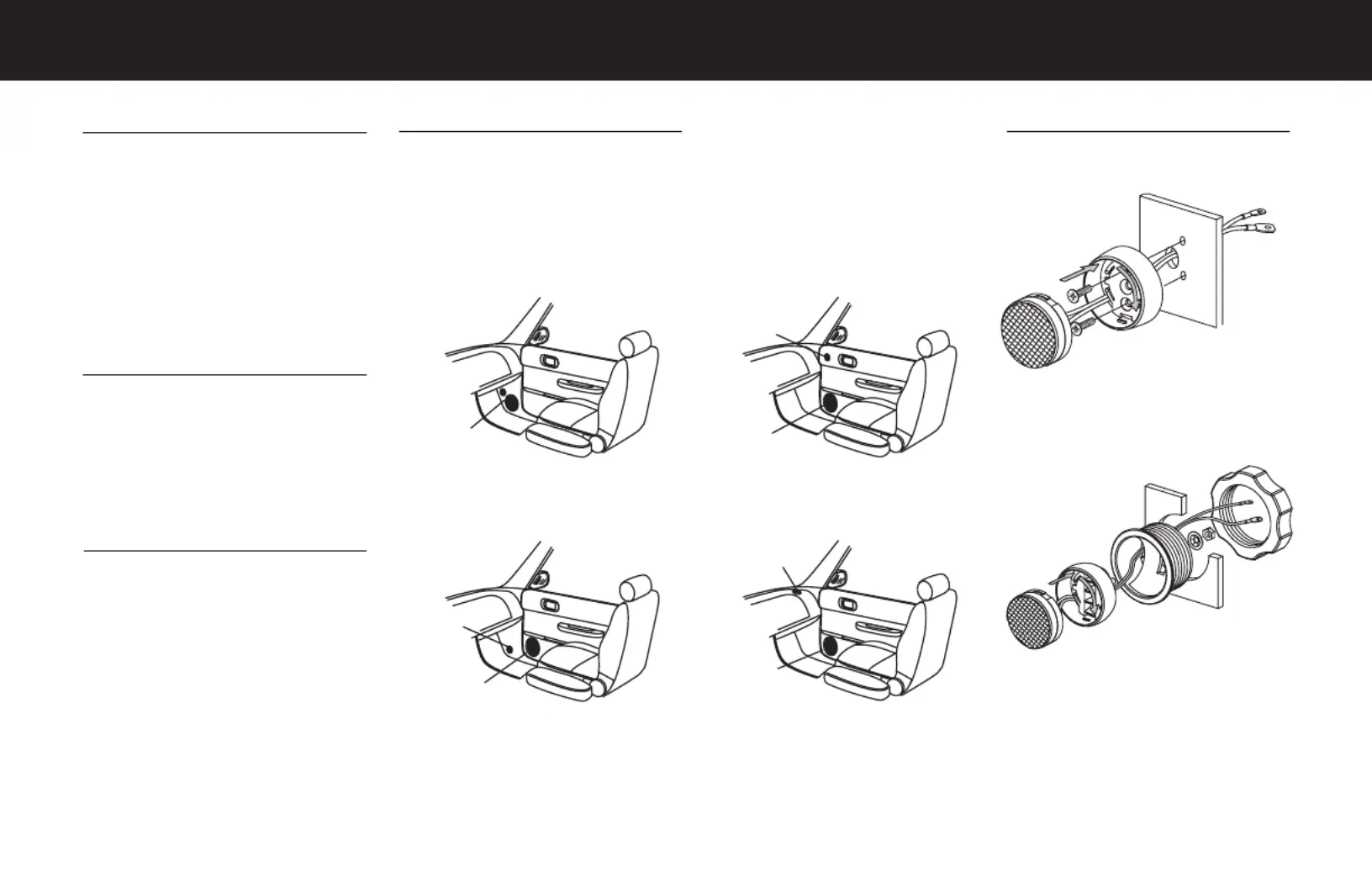

Figure 1.
Mounting the woofer and tweeter in
the kick panels
Figure 2.
Mounting the woofer in the door and
the tweeter in the kick panel
Figure 3.
Mounting the woofer and tweeter in
the doors
Figure 4.
Mounting the woofer in the door and
the tweeter in the dash
1
2
–
+
1
2
Figure 5.
Surface-mounting the tweeter
Figure 6.
Flush-mounting the tweeter
W IOOFER NSTALLATION

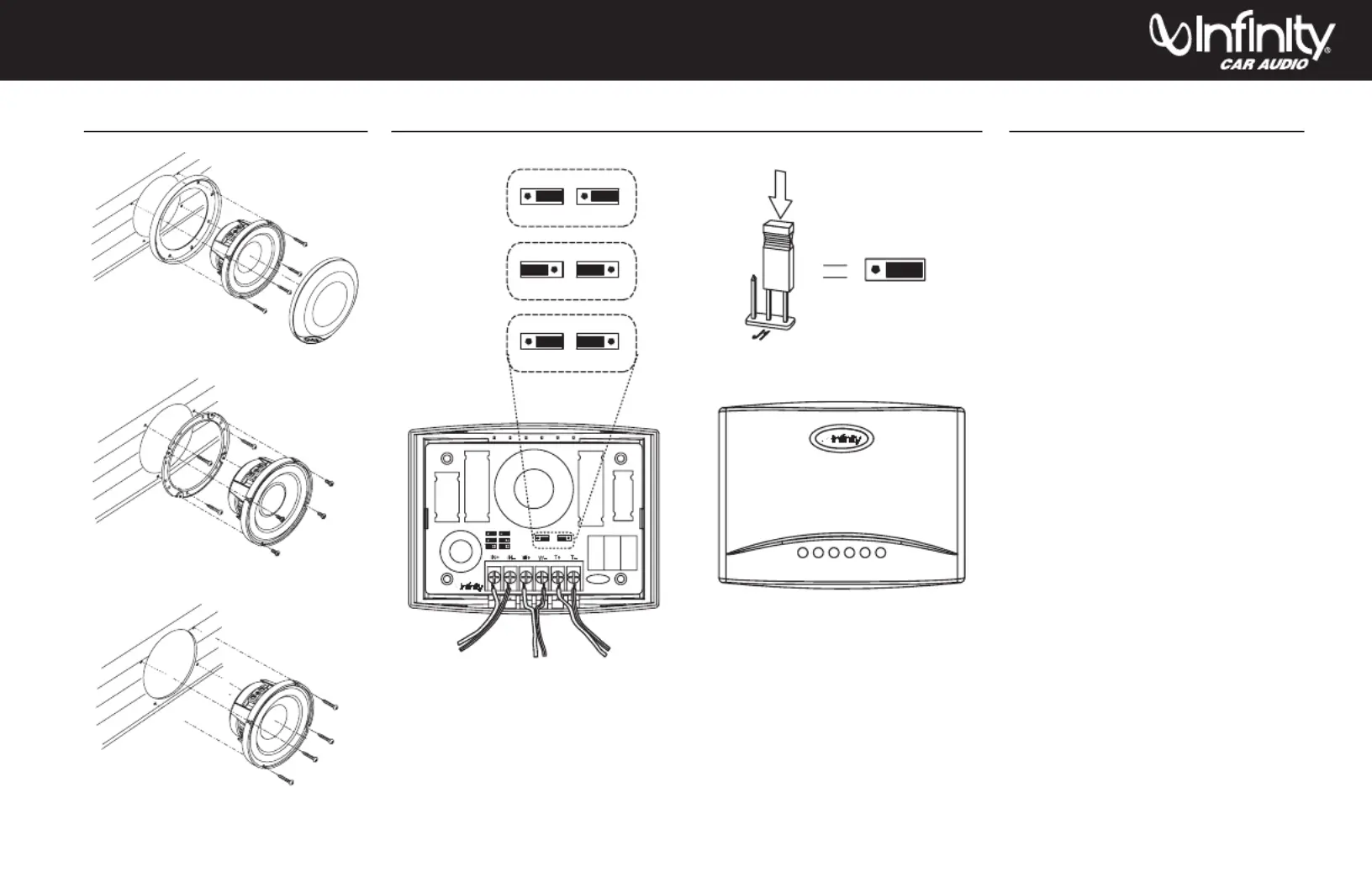

Figure 7.
Mounting the woofer where
there is no factory speaker location
Figure 8.
Mounting the woofer in
standard 5-1/4" holes (in many
Japanese and American automobiles)
Figure 9.
Mounting the woofer in
165mm holes (in many European
and American automobiles)
E C C ALECTRICAL ONNECTIONS AND ROSSOVER DJUSTMENTS
®
TWEETER LEVEL
–4dB
J1 J2
J1
J2
0dB
+5dB
KPX00
J1
J2
Tweeter level
+5dB
Tweeter level
0dB
(default)
To woofer
To tweeter
To amplier
speaker output
J1
J2
Tweeter level
–4dB
J1
J2
Figure 10.
Connecting the speakers and the amplier
to the crossover
J1
®
Figure 11.
Adjust the crossover using the jumpers
provided
SPECIFICATIONS
System
Frequency Response: 75Hz – 23kHz, ±3dB
Power Handling: 100W RMS, 400W Peak
Nominal Impedance: 4 Ohms
Sensitivity: 90dB
Crossover Frequency: 3.5kHz, 24dB/oct.
Linquitz-Riley Acoustic
Thiele and Small Parameters
Woofer Tweeter
Revc: 3.45 3.31
Levc: 0.37 0.02
Sd: 0.0113 0.0005
BL: 6.37 1.99
Vas: 11.43 0.0016
Cms: 630.36 44
Mms: 18.94 0.3064
Mmd: 18.25 0.3
Fs: 46.05 1370.65
Qms: 3.44 5.4
Qes: 0.465 2.19
Qts: 0.41 1.56
Top-Plate Thickness: 9/32" (7.115mm) na
Voice-Coil Length: 9/16" (14mm) na
Voice-Coil Diameter: 1-1/2" (38.1mm) 1" (25.4mm)
Xmax: 1/8" (3.44mm) na
Mounting Depth: 2-3/4" (70mm) 1" (25.4mm)
Cut-Out Diameter: 5-1/16" (129mm) 1-3/4"
(45mm)
