Regulatory models: W1100, W1102

IN1100, IN1102

010-1712-04

Declaration of Conformity

Manufacturer: InFocus Corporation 13190 SW 68th Parkway, Portland, Oregon

97223-8368 USA

We declare under our sole responsibility that this projector conform to the

following directives and norms:

EMC Directive 2004/108/EC

EMC: EN 55022

EN 55024

EN 61000-3-2

EN 61000-3-3

Low Voltage Directive 2006/95/EC

Safety: IEC 60950-1: 2005, MOD

Trademarks

DisplayLink is a trademark of DisplayLink Corporation.

Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple

Computer, Inc. IBM is a trademark or registered trademark of International Business

Machines, Inc. Microsoft, PowerPoint, and Windows are trademarks or registered

trademarks of Microsoft Corporation. Adobe and Acrobat are trademarks or

registered trademarks of Adobe Systems Incorporated. DLP® and the DLP logo are

registered trademarks of Texas Instruments and BrilliantColor™ is a trademark of

Texas Instruments. InFocus, In Focus, and INFOCUS (stylized) are either registered

trademarks or trademarks of InFocus Corporation in the United States and other

countries.

FCC Warning

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications.

Operation of the equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his

own expense.

Changes or modifications not expressly approved by InFocus Corporation may void

authority to operate the equipment.

EN 55022 Warning

This is a Class A product. In a domestic environment it may cause radio interference,

in which case the user may be required to take adequate measures. The typical use is

in a conference room, meeting room or auditorium.

Canada

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

Agency Approvals

UL, cUL

Other specific Country Approvals may apply. Please see product certification label.

This document applies to regulatory models W1100 and W1102.

Input ratings: 100-240Vac, 2.3-0.9A, 50-60Hz

InFocus reserves the right to alter product offerings and specifications at any time

without notice.

Table of Contents

Introduction 3

Positioning the projector 5

Projector and device connector guide 6

Connecting a computer source 9

Required computer connections

(DisplayLink or VESA) 9

Optional computer connections 9

Displaying an image 10

Adjusting the image 11

Connecting a video device 12

Video device connections 13

Composite video connection 13

S-video connection 13

VESA connection 13

Component video connection 13

Shutting down the projector 14

Troubleshooting your setup 14

Using the remote control 22

Using the audio 23

Using the keypad buttons 24

Optimizing computer images 25

Presentation features 25

Optimizing video images 26

Customizing the projector 26

Using the menus 27

Basic Picture menu 28

Advanced Picture menu 29

Setup menu 30

Status and Service menu 32

Maintenance 33

Cleaning the lens 33

Using the security lock 33

Replacing the projection lamp 34

Important Operating Considerations for Safety

• Place the projector in a horizontal position no greater than 15 degrees

off axis.

• Locate the projector in a well-ventilated area without any obstructions

to intake or exhaust vents. Do not place the projector on a tablecloth or

other soft covering that may block the vents.

• Locate the projector at least 4' (1.2 m) away from any heating or cooling

vents.

• Only genuine InFocus lamps are tested for use in this projector.

InFocus is not liable for the performance, safety or certification of any

other lamps. The use of other lamps violates the projector warranty and

voids all certification marks on this projector.

• Use only the power cord provided. A surge-protected power strip is

recommended.

• Refer to this guide for proper startup and shutdown procedures.

• Hg – Lamp contains mercury. Manage in accordance with local

disposal laws. See www.lamprecycle.org.

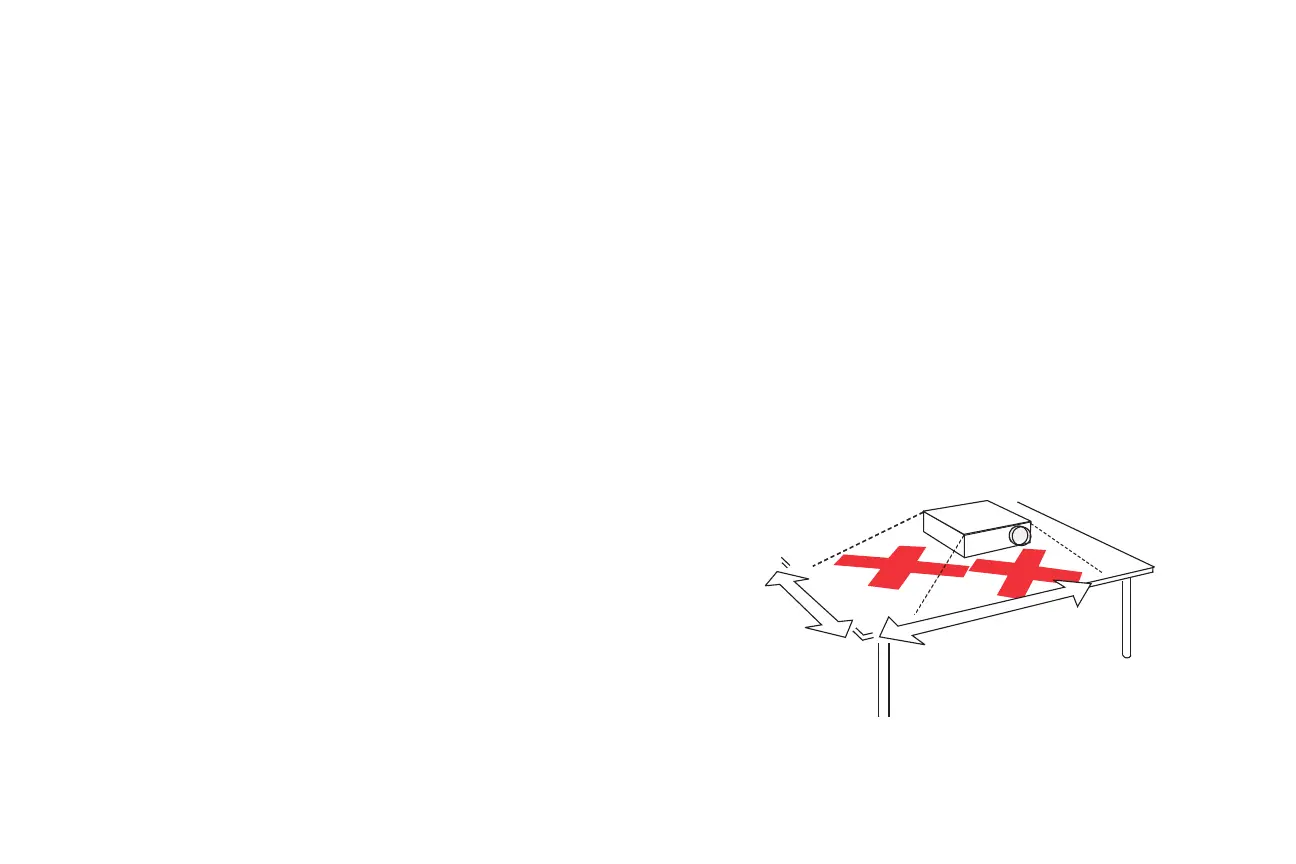

• In the unlikely event of a lamp rupture, particles may exit through the

projector side vents. When the projector is turned on, keep people,

food, and drinks out of the "keep out" area under and around the

projector, as indicated by the "X" areas below.

Follow these instructions to help ensure image quality and lamp life over

the life of the projector. Failure to follow these instructions may affect the

warranty. For complete details of the warranty, see the Warranty Booklet.

2’ / 0.6 m

3’ / 1 m

Produktspecifikationer

Varumärke:	InFocus
Kategori:	Beamer
Modell:	IN1100
Vikt:	1200 g
Strömförsörjning:	100 - 240 V, 50 - 60 Hz
Projektorns ljusstyrka:	2100 ANSI-lumen
Projektionsteknik:	DLP
Keystone-korrigering, vertikal:	-30 - 30 °
Matrisstorlek:	0.55 "
Ljuskällans livslängd:	3000 h
Typ av ljuskälla:	Lampa
Zoomförhållande:	1.1:1
Gränssnitt:	USB
Bildförhållande:	4:3, 5:4, 16:9
Analogt signalformatsystem:	NTSC, PAL, SECAM
Vikt inkl. förpackning:	3400 g
Strömförbrukning (vanlig):	164 W
Produktstorlek (BxDxH):	210.8 x 182.9 x 63.5 mm
Temperatur vid drift:	5 - 35 ° C
Ljuskällans livslängd (ekonomiläge):	4000 h
Anslutningsteknologi:	Kabel
Ljudnivå Lc IEC:	35 dB
Kontrastförhållande (medel):	1200:1
Förpackningsstorlek (B x D x H):	184.9 x 393.7 x 290.1 mm
Kvalitet på VGA (D-Sub) porten:	1
Uttag för mikrofon/linje in:	Ja
Vertikalt sökområde:	50 - 85 hz
Horisontellt sökområde:	31 - 92 kHz
Lampeffekt:	165 W
Antal S-Video-ingångar:	1
Ingående kompositvideo:	1
Komponentvideo in (YPbPr / YCbCr):	1
Projektorns naturliga upplösning:	XGA (1024x768)
Skärmavstånd:	1.19/11.89 m
Kompatibla skärmstorlekar:	0.55 - 6.13 "
Avståndsförskjutning:	1.95 - 2.15:1
