InFocus IN1110a Bruksanvisning
Läs gratis den bruksanvisning för InFocus IN1110a (36 sidor) i kategorin Beamer. Guiden har ansetts hjälpsam av 20 personer och har ett genomsnittsbetyg på 4.0 stjärnor baserat på 10.5 recensioner. Har du en fråga om InFocus IN1110a eller vill du ställa frågor till andra användare av produkten? Ställ en fråga
Sida 1/36
1
Declaration of Conformity
Manufacturer: InFocus Corporation 13190 SW 68th Parkway, Portland, Oregon 97223-8368
USA
We declare under our sole responsibility that this projector
conforms to the following
directives and norms:
EMC Directive 2004/108/EC
EMC: EN 55022
EN 55024
EN 61000-3-2
EN 61000-3-3
Low Voltage Directive 2006/95/EC
Safety: IEC 60950-1: 2005
Trademarks
Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple
Computer, Inc. IBM is a trademark or registered trademark of International Business
Machines, Inc. Microsoft, PowerPoint, and Windows are trademarks or registered trademarks
of Microsoft Corporation. Adobe and Acrobat are trademarks or registered trademarks of
Adobe Systems Incorporated. DLP® and the DLP logo are registered trademarks of Texas
Instruments and BrilliantColor™ is a trademark of Texas Instruments. InFocus, In Focus, and
INFOCUS (stylized) are either registered trademarks or trademarks of InFocus Corporation in
the United States and other countries.
FCC Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the
limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction, may cause harmful interference to radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an out
let on a circuit different from that to which the receiver is
connected.
--Consult the dealer or an experienced r
adio/TV technician for help.
Changes or modifications not expressly approved by
InFocus Corporation may void authority
to operate the equipment.
EN 55022 Warning
This is a Class B product. In a domestic environment it may cause radio interference, in which
case the user may be required to take adequate measures. The typical use is in a conference
room, meeting room or auditorium.
Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est con
forme à la norme NMB-003 du Canada.
Agency Approvals
UL, cUL
Other specific Country Approvals may apply
. Please see product certification label.
This document applies to regulator
y models IN1110 and IN1112.
Input ratings: 100-240Vac, 2.3-0.9A, 50-60Hz
InFocus reserves the right to alter pr
oduct offerings and specifications at any time without
notice.
2
Table of Contents
Introduction 3
Positioning the projector 5
Connecting a computer source 6
VESA connection 6
HDMI connection 6
Power connection 6
Optional computer connections 6
Displaying an image 7
Adjusting the image 8
Video device connections 9
Composite video connection 9
HDMI 1.3 connection 9
S-video connection 9
VESA connection 9
Component video connection 9
Shutting down the projector 10
Troubleshooting your setup 10
Using the remote control 18
Using the audio 19
Using the keypad buttons 20
Optimizing computer images 21
Presentation features 21
Optimizing video images 22
Customizing the projector 22
Using the menus 23
Basic menu 24
Advanced > Image menu 25
Advanced > Setup menu 26
Advanced > Status/Service menu 30
Maintenance 31
Cleaning the lens 31
Using the security lock 31
Replacing the projection lamp 32
Important Operating Considerations for Safety
• Place the projector in a horizontal position no
greater
than 15 degrees off axis.
• Locate the projector in a well-ventilated area without any obstructions to
intake or exhaust vents. Do
not place the projector on a tablecloth or other soft
covering that may block the vents.
• Locate the projector at least 4' (1.2 m) away from any h
eating or cooling vents.
• Only genuine InFocus lamps are tested for use in this projector.
InFocus is not
liable for the performance, safety or certification of any other lamps. The use
of other lamps violates the projector warranty and voids all certification marks
on this projector.
• Use only the power cord provided. A sur
ge-pro
tected power strip is
recommended.
• Refer to this guide for proper startup and shutdown procedures.
• Hg – Lamp contains mercury
. Manage in accordance with local disposal laws.
See www.lamprecycle.org.

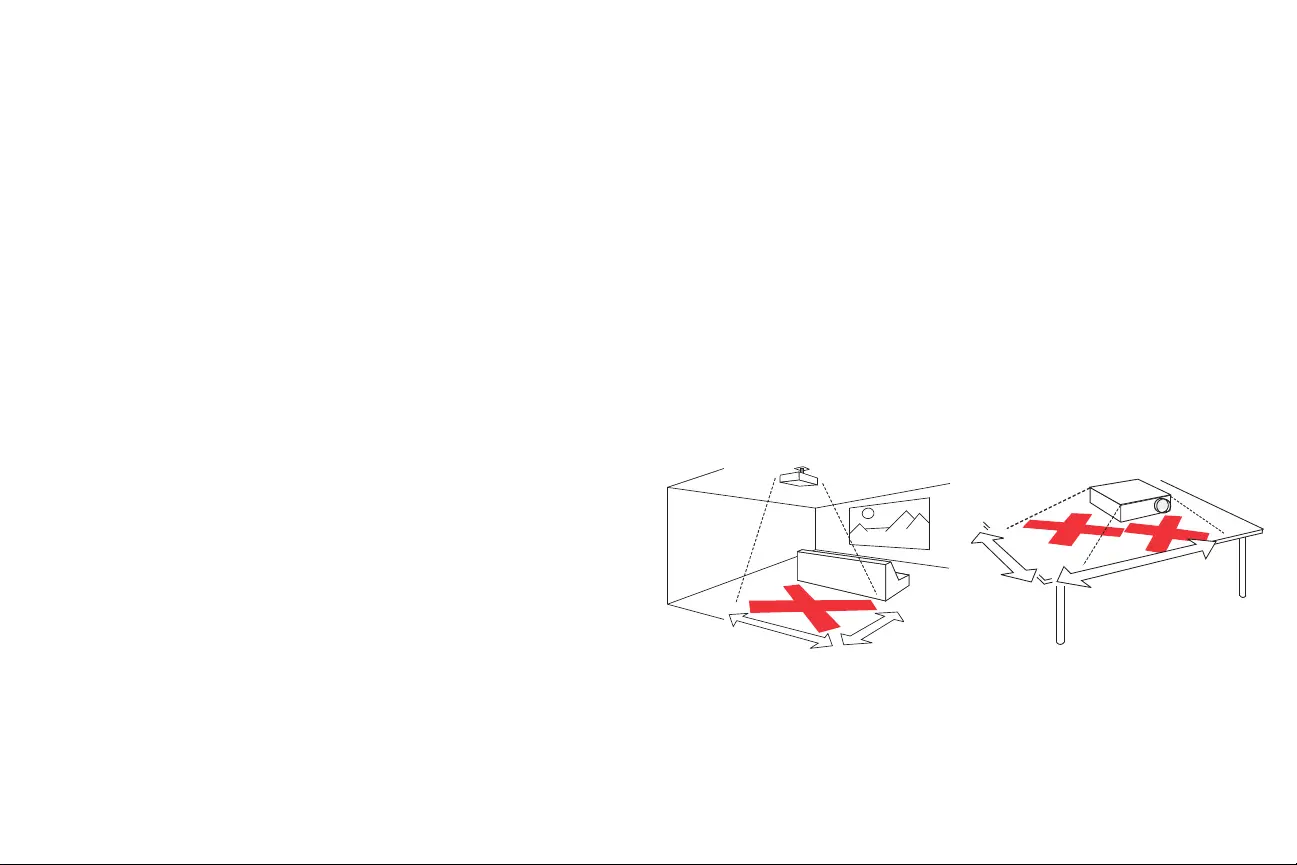

• In the unlikely event of a lamp rupture, particles
may exit through the p
rojector
side vents. When the projector is turned on, keep people, food, and drinks out
of the "keep out" area under and around the projector, as indicated by the "X"
areas below.
2’ / 0.6 m
3’ / 1 m
5
’ /1.5m
8
’
/2.4m
Follow these instructions to help ensure image quality and lamp life over the life of
the projector. Failure to follow these instructions may affect the warranty. For
complete details of the warranty, see the Warranty Booklet.
Produktspecifikationer
| Varumärke: | InFocus |
| Kategori: | Beamer |
| Modell: | IN1110a |
| Produkttyp: | Standard throw-projektor |
| Inbyggd display: | Nej |
| Vikt: | 1200 g |
| Bredd: | 213 mm |
| Djup: | 181 mm |
| Höjd: | 65 mm |
| Förpackningens bredd: | 185 mm |
| Placering: | Tak |
| Intern lagringskapacitet: | 2 GB |
| Wi-Fi: | Nej |
| Ljudformat som stöds: | AAC, ADPCM, MP1, MP2, MP3, OGG, PCM, WAV, WMA |
| Videoformat som stöds: | H.263, H.264, M-JPEG, MPEG1, MPEG4, RV, WMV, XVID |
| Videolägen som stöds: | 1080i, 1080p, 480i, 480p, 576i, 576p, 720p |
| Zoomkapacitet: | Ja |
| Projektorns ljusstyrka: | 2100 ANSI-lumen |
| Projektionsteknik: | DLP |
| Keystone-korrigering, vertikal: | ± 30 ° |
| Antal färger: | 16,78 miljoner färger |
| Antal HDMI-portar: | 1 |
| DVI-port: | Nej |
| Fokus: | Manuell |
| Ljuskällans livslängd: | 3000 h |
| Typ av ljuskälla: | Lampa |
| Inbyggda högtalare: | Ja |
| Antal inbyggda högtalare: | 1 |
| Lösenordsskydd: | Användare |
| Strömförbrukning (max): | 220 W |
| Certifiering: | FCC, cULus, WEEE, C-Tick, S-Mark, NOM, CE, Gost, CECP/CCC, CE/TUV-GS, KC Mark, SASO, PSB, SABS |
| Zoomförhållande: | 1.1:1 |
| Full HD: | Nej |
| Grafikupplösningar som stöds: | 1920 x 1200 (WUXGA) |
| USB-anslutning: | Mini-USB B, USB Type-A |
| Förinställda lägen: | Beige wall, Blackboard, Bright, Cinema, Custom, Presentation, Whiteboard |
| Horisontell synkronisering (min): | 31.4 kHz |
| Horisontell synkronisering (max): | 91.1 kHz |
| Vertikal synkronisering (min): | 23.5 kHz |
| Vertikal synkronisering (max): | 85 kHz |
| Fjärrkontroll ingår: | Ja |
| Produktens färg: | Svart |
| Analogt signalformatsystem: | NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM |
| Låddjup: | 290 mm |
| Vikt inkl. förpackning: | 3400 g |
| väska: | Ja |
| Inbyggd kortläsare: | Nej |
| Uteffekt (RMS): | 1 W |
| Windows-operativsystem som stöds: | Ja |
| Mac-operativsystem som stöds: | Ja |
| Strömförbrukning (vanlig): | 180 W |
| Temperatur vid drift: | 5 - 35 ° C |
| AC-inspänning: | 90 - 264 V |
| Ljuskällans livslängd (ekonomiläge): | 4000 h |
| PC-ljud in: | Ja |
| 3D kompatibilitet: | Ja |
| Kabel inkluderad: | AC, USB, VGA |
| OSD-språk: | PER, ARA, CHI (SIMPL), CHI (TR), DAN, DEU, DUT, ENG, ESP, FIN, FRE, ITA, KOR, NOR, POL, POR, RUS, SWE, TUR |
| Brännviddsintervall: | - mm |
| Nätverksansluten (Ethernet): | Nej |
| Strömingång: | Ja |
| PC-ljud ut: | Ja |
| Antal ljudutgångar vänster/höger: | 1 |
| Växelström Frekvens: | 50 - 60 hz |
| Bildkomprimeringsformat: | BMP, JPG |
| Strömkälla: | AC |
| Ljudnivå Lc IEC: | 33 dB |
| Antal USB 2.0 anslutningar: | 2 |
| Strömförbrukning i vänteläge: | 0.5 W |
| Kontrastförhållande (medel): | 2600:1 |
| Native bildförhållande: | 4:3 |
| Bluetooth: | Nej |
| Produktvikt (oz): | Ja |
| Typ av kabellåsanslutning: | Kensington |
| Medföljande programvara: | EZ WiFi |
| Positionering på marknaden: | Bärbar |
| Kvalitet på VGA (D-Sub) porten: | 1 |
| Lampeffekt: | 165 W |
| Ingående kompositvideo: | 1 |
| Altitud vid drift: | 0 - 2286 m |
| Som stöds bildformat: | 4:3, 5:4, 16:9, 16:10 |
| Minimikrav, processor: | Dual Core Intel Core i 1.6 GHz / Dual Core Intel Core i 1.4 GHz |
| Projektorns naturliga upplösning: | XGA (1024x768) |
| Skärmavstånd: | 1.2 - 12 m |
| Kompatibla skärmstorlekar: | 22 - 242 " |
| Avståndsförskjutning: | 1.95 - 2.15:1 |
| Ljudnivå (strömsparläge): | 29 dB |
| Lampans effekt (strömsparläge): | 132 W |
| Typ av zoom: | Manuell |
| Förskjutning: | 15 % |
| Projektorns ljusstyrka (strömsparläge): | 1550 ANSI-lumen |
| Dokument som stöds: | DOC, DOCX, PDF, PPT, PPTX, XLS, XLX |
