Photocontrol - K171H

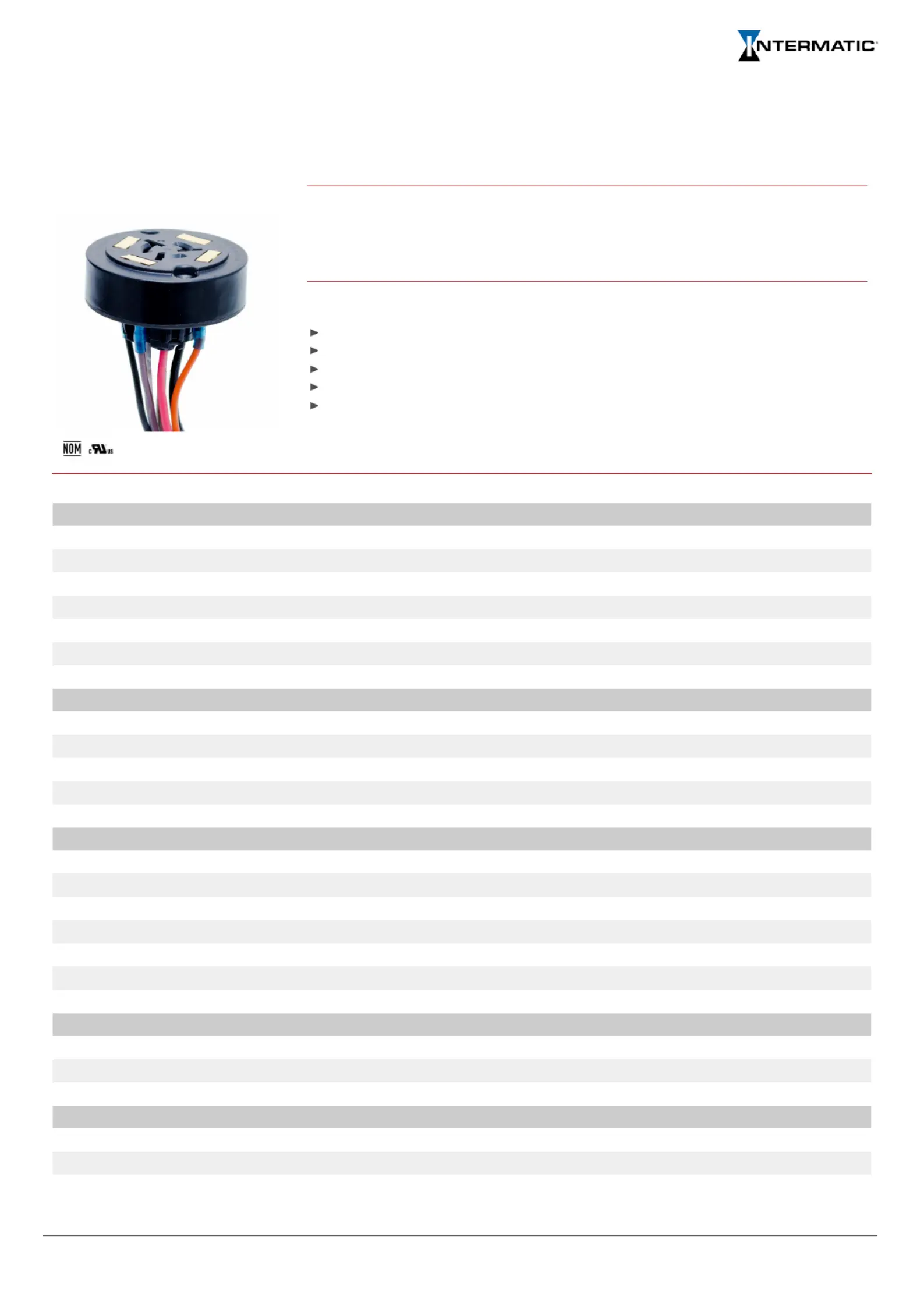

Photocontrol - Locking Type Receptacle, 7-Pin, C136.41 Compliant, 12" lead
Item K171H
PRODUCT DESCRIPTION
The K171H provides a receptacle for Locking Type photocontrols with dimming capabilities. The connector interface has a 3-
prong power connection that is backward compatible with standard photocontrol units. Also, it offers four contact pads per ANSI
C136.41 for dimming and additional control or sensor input.
FEATURES
NEMA receptacle with 3-prong power sockets
Two gold plated contact pads for dimming control signals
Two gold plated contact pads for extra control or sensor input signals
Integrated sealing gasket
Compliant to ANSI C136.41 specifications
TECHNICAL DATA
General
Model NumberK171H
DescriptionLocking Type Receptacle, 7-Pin, C136.41 Compliant, 12" lead
UPC Code078275148581
BrandIntermatic
Country of Origin (Intermatic)CHINA
Warranty Period1-Year limited
Dimensions
Product Height (in)1.5
Product Height (mm)38
Product Diameter (in)2.52
Product Diameter (mm)64
Material Specications
ColorBlack
Base MaterialUV Stabilized Polycarbonate (UL94-5 VA)
Power Contacts MaterialBrass/Phosphor Bronze
Gasket(Integrated) Thermal Elastomer
Wire Leads#14 AWG, 105°C, AWM1015, Power; #18 AWG, 105°C, AWM1015, Signal
Signal Contacts MaterialNickel/Gold Plated Bronze
Electrical Specications
Power Contacts Rating480 V max, 15 A max
Signal Contacts Rating30 VDC, 0.25 A max
Packaging
Shipping Weight (lbs)0.33
Unit Carton Dimensions (H x W x D) in2.63 x 3.22 x 3.22 in
1/
2
Technical specifications and other information are subject to change without notice. Images can vary from original.
© 10/02/2024
