Sida 1/4

T40000RT SERIES

POOL/SPA EQUIPMENT CONTROLS

INSTALLATION

OPERATION &

SERVICE MANUAL

CONTROL PANEL WITH TIME SWITCH FOR INDOOR/OUTDOOR USE

Suitable for Pool Equipment Control and for Direct Connection of Underwater Lights

ELECTRICAL RATINGS: See inside Enclosure Door

Many of today’s energy efficient pools and spas

utilize the advantages of a single electrical panel,

containing all the necessary controls for the safe,

efficient and automatic operation of the pool/spa

equipment. In addition, this Panel can also be

used to control any outdoor equipment, sign or

pump within its rated capacity.

The Transformers supplied in these panels are

specifically designed to supply 12 volts to under-

water pool/spa lights. A grounded shield between

the primary and secondary winding assures safe

operation and the built-in circuit protection will

disconnect power to the transformer in case of

overload. These transformers are suitable for direct

connection to underwater Pool and Spa lights.

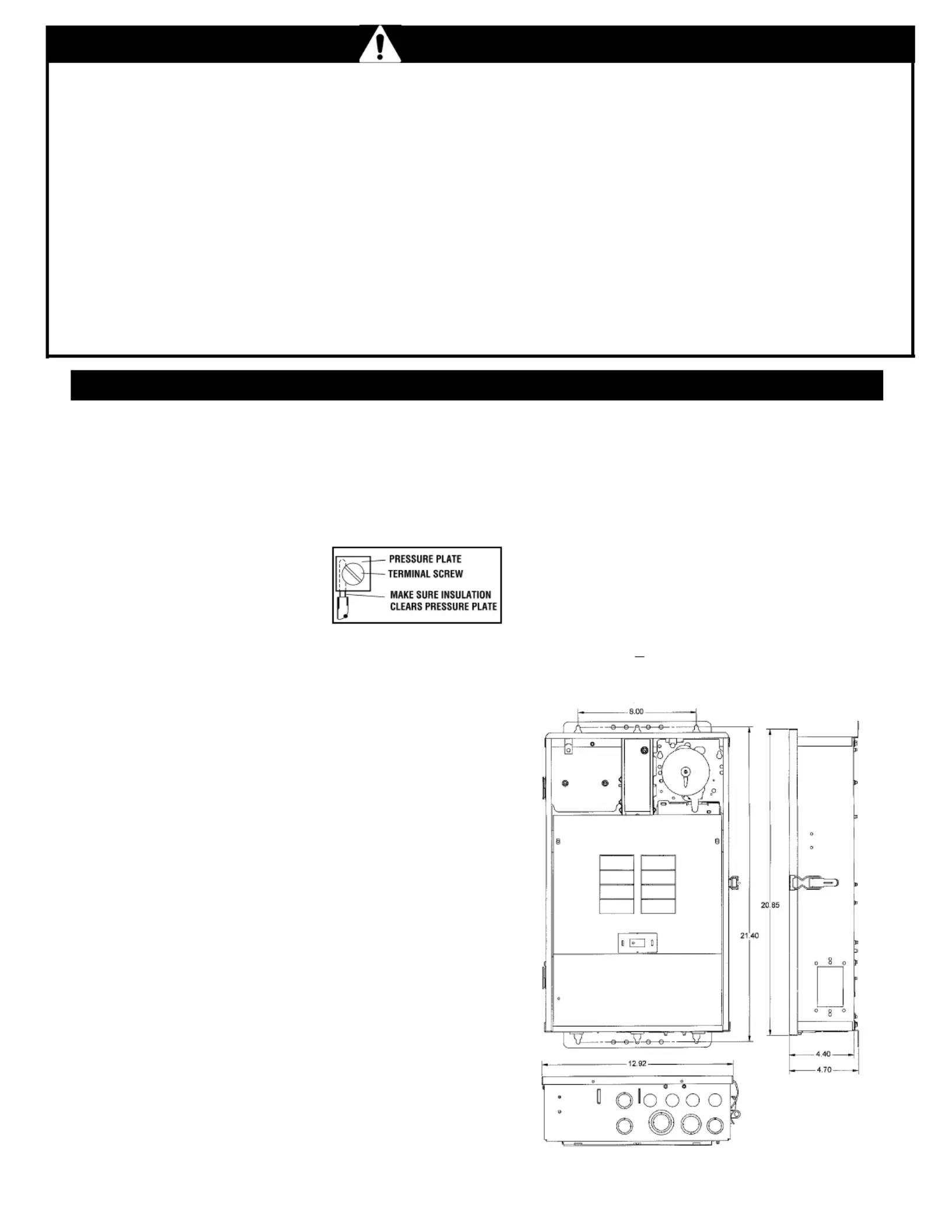

The all-weather enclosure may contain a heavy-

duty, industrial grade Time Switch, with

mounting provision for a second Intermatic

switching device. Also, it has provisions to install

a switch inside as well as a switch or GFCI

receptacle on the outside. The Time Switch can

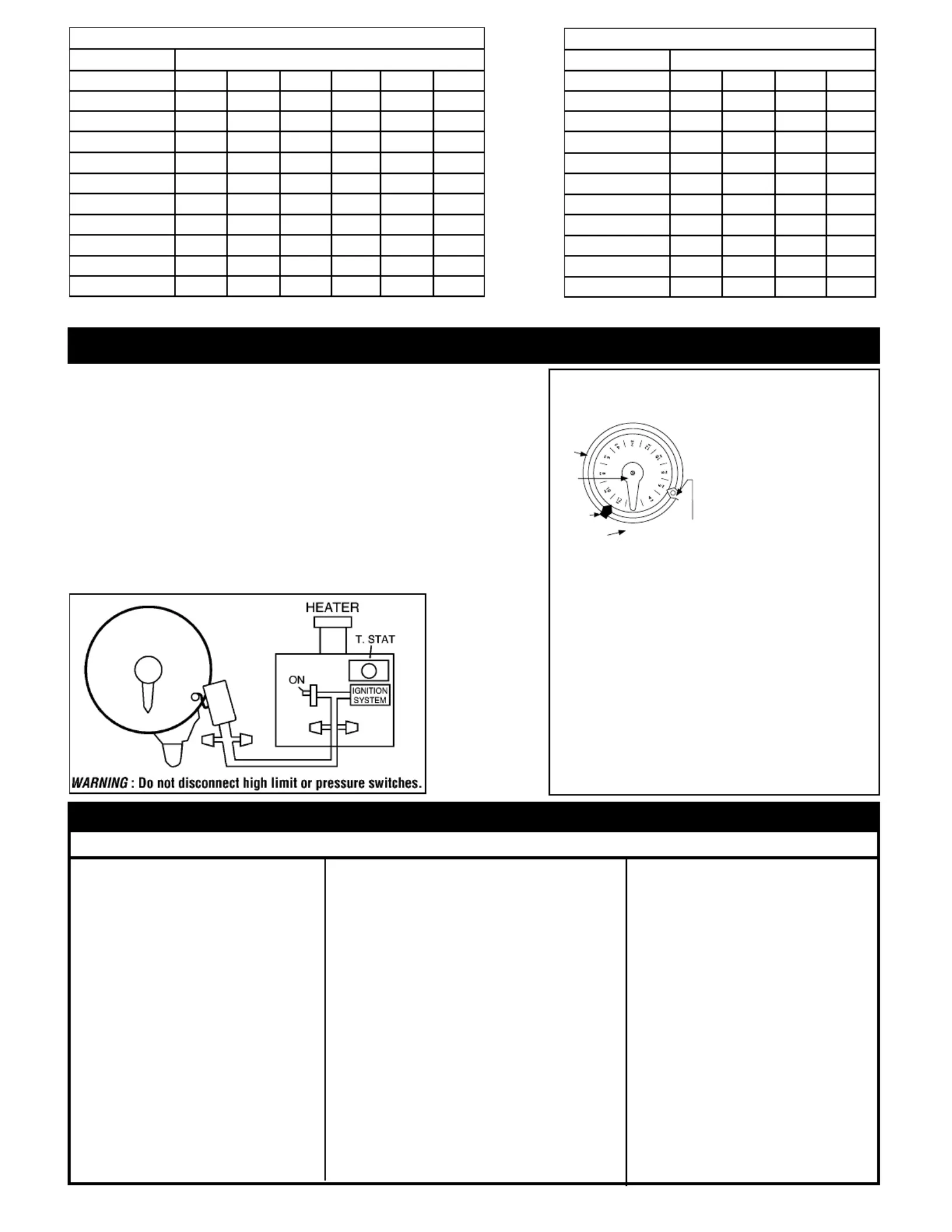

also accommodate an optional heater control

(fireman) switch.

The Control is designed to operate any pump,

within its rated capacity. However, if protection

to prevent dry start is required by the pump

manufacturer, it must be provided in addition

to this Control. Contact pump manufacturer

if not sure and/or for more details.

GENERAL INFORMATION

Transformer Input Secondary Output

Rating

60 Hz.

Lamp Watts* Volts

100W 120V. 1 Amp Max. 100 Max. 12, 13 or 14

300W 120V. 3 Amp Max. 300 Max. 12, 13 or 14

* Any combination of bulbs, any tap.

Risk of drowning!

Do not permit unsupervised children to use pool or spa.

Close supervision of children required at all times.

Risk of electric shock!

Test ground fault protection regularly. If it fails, do not use Pool or Spa. Contact

qualified service professional for help.

Do not use this control as a power disconnect, it could turn ON unexpectedly.

Disconnect electricity at the main Panel before servicing this control or the

equipment(s) connected to it.

DANGER

WARNING
