Model T8805M101C
PROGRAM TIME SWITCH MECHANISM
WITH 14-DAY “SKIPPER
®
” WHEEL
FOR UP TO 60 OPERATIONS PER DAY
SWITCH RATING: DOUBLE POLE SINGLE THROW
15 AMP., 1/2 H.P.125 VOLTS A.C.
PROGRAMMING INSTRUCTIONS:
1. For watering, push gold pin into slot on yellow TO SET FIRST ZONE:
dial at desired ON time. For each 12 minutes of additional watering
add one pin WITHOUT skipping a slot.
2. Leave one blank slot on yellow dial after ONTO CHANGE ZONES:
line (gold pin), and valve will automatically advance to next zone.
3. Repeat steps 1 and 2. REMEMBERTO SET ADDITIONAL ZONES:
to leave blank space between zones
4. Turn yellow dial CLOCKWISE, until correctTO SET TIME OF DAY:
line is at end of silver time pointer. Do NOT turn silver pointer.
5. Turn black skipper wheel COUNTER-CLOCKWISETO SKIP DAYS:
until todays day is in front of “14” arrow. Press pins DOWN on days
of NO watering. The skipper wheel must have all pins UP for daily
watering.
6. This switch can be used to turnPUT SELECTOR SWITCH IN AUTO:
the system ON or OFF for manual operation without affecting the set
program.
IMPORTANT NOTICE: Use the one silver pin that is located at Midnight
on the yellow dial, it advances the skipper wheel automatically. Do NOT
use multiple silver pins.
Follow The National Electrical Code and local code requirements when
installing this time switch.
CAUTION: Always disconnect power at main panel before servicing
this Switch or the equipment it controls.
INTERMATIC INCORPORATED
SPRING GROVE, ILLINOIS 60081-9698
158T10361

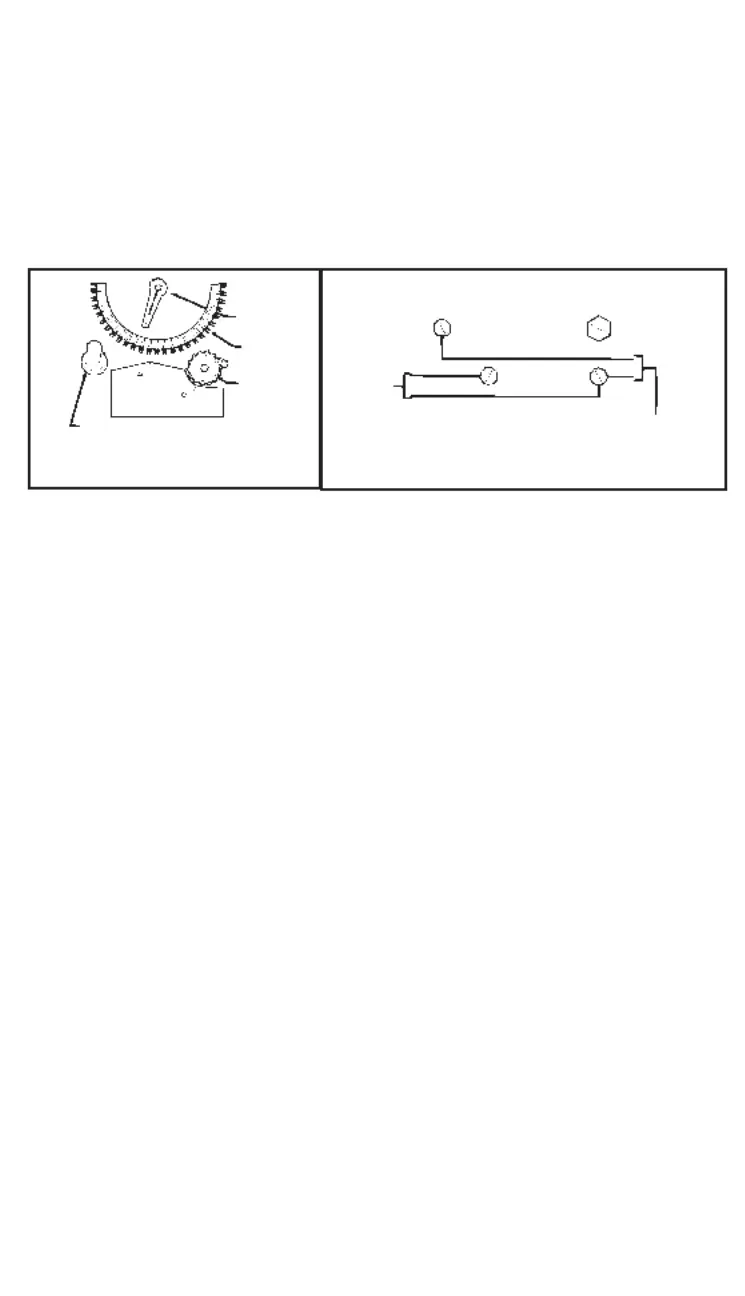

TIME
POINTER
DIAL
SKIPPER
AUTO
TIME
DAY
SELECTOR
SWITCH
FIGURE 1
WIRING DIAGRAM
GROUND TO GREEN
GROUND WIRE
120 VOLT
POWER
SUPPLY
NOT FOR DIRECT PUMP CONTROL
TO
SOLENOID
COMMONCLOCK
NEUTRAL
(WHITE)
LINE
(BLACK)
