MAINTENANCE

The lenses have anti-reective coating and

are dirt resistant. However, they are not

scratch-proof. Use only cleaning agents

intended for optics. Larger impurities should

be removed rst with compressed air or with

a clean soft brush.

WARNINGS

The lens is equipped with a rubber seals to

protect the interior from dust and moisture.

It is not, however, completely waterproof.

Do not submerge it in water or store it for

extended periods of time in humid places.

To achieve better water-tightness, use

of the front protective lter is recommended.

Protect the lens from shock, being dropped

and excessive vibration, and do not leave

the lens in direct sunlight as a focused light

beam may cause a re.

Do not expose the lens to high temperatures.

Do not look through the lens at the sun

or in its general direction, as that may cause

permanent eye damage.

info@irixlens.com

irixlens.com

The lens and its accessories should be kept

away from children and animals, as they

contain small elements that constitute

a chocking hazard.

Unsupervised dismantling of the lens may

lead to permanent damage and loss of

warranty.

In the case of any faulty operation,

it is strongly recommended that you contact

the authorized Irix service point.

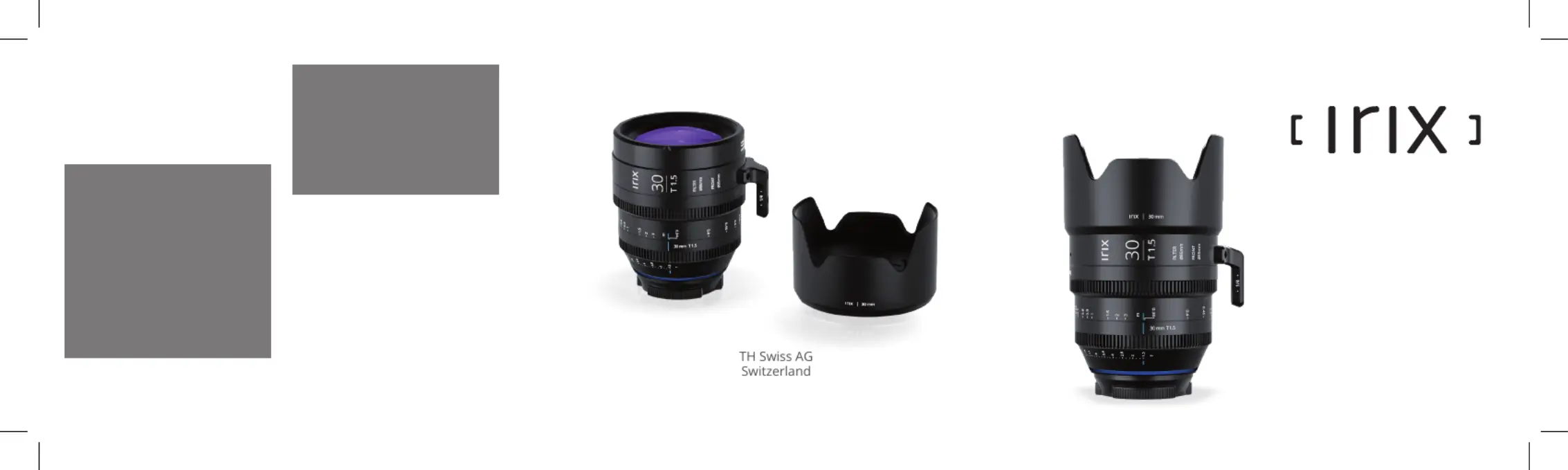

30mm T1.5

USER MANUAL

cine lens

*lens hood sold separately

Thank you for choosing our product. Your new

lens has been designed with both the eort

and experience of not only engineers, but also

of cinematographers. It has been created based

on the best available materials, technology

and solutions, thus making it the perfect tool

for both professionals and hobbyists.

The Irix Cine 30 mm T1.5 is a cinema standard

wide angle lens. It has been designed for full

frame cinema cameras with sensor diagonal

size up to 43.3 mm.

[3] LENS HOOD (sold separately)

Using the lens hood improves contrast and pro-

tects the front lens against dirt and mechanical

damage.

The lens hood has an easy to use magnetic

mount with a positioning system.

WARNINGS

Do not hold the lens by the lens hood, as this

may cause the lens hood to detach and cause

the lens to fall.

[4] LENS SUPPORT FOOT

The support foot is a standard feature of the

Irix Cine 30mm T1.5 lens.

The lens is equipped with a detachable foot for

supporting the lens when using follow focus

system on rods. Depending on the follow focus

conguration, the foot can be attached

at the bottom or top position of the lens.

WARNINGS

The foot is not suitable for mounting a camera

with the lens directly on a tripod.

Using it to attach the lens to the tripod may

lead to damage both the lens and a camera.

6] FOCUS RING

To focus on a given object, look at the image

in the viewnder or on the camera screen and

adjust it manually by rotating the focus ring.

You can also use the distance scale on the lens

body to estimate the distance to the chosen

object. The focus ring can be rotated by hand

or by using the follow focus system

in the range of 0.34m (13.39“) to innity.

[7] LENS MOUNT

Mounting the lens to the camera as described

in the camera’s user manual may dier with

various systems. The marker (dot) on the lens

body facilitates mounting the lens onto

the camera.

8] REAR LENS CAP

The rear lens cap protects the lens during

transport and should be put in place whenever

the lens is not attached to the camera.

9] APERTURE RING

The aperture ring allows for smooth adjust-

ment of the T number of the lens in the range

from T1.5 to T16. The ring can be rotated

by hand or by using the follow focus system.

– a lens without accessories

* for Canon EF - mount version without lens hood

and lens caps

[5] ADAPTING RING

FOR FOLLOW FOCUS SYSTEM

The lens is equipped with a unique rotating

adaptive ring for follow focus systems.

It provides an easier t for your focus gear,

to the focus ring from any angle. The ring can

be rotated 360° with increments of 15 degrees.

[1] FRONT LENS CAP

The front lens cap protects the front lens and

should always be put in place whenever the lens

is not being used.

[2] FRONT FILTER THREAD

The design of the lens allows the use of 86mm

screw-in lters and Irix Edge Magnetic Mount

System lters.

Screw the lter on clockwise as viewed from

the front lens. Before fully screwing on the

lter, make sure the lens does not come into

contact with the lter’s glass surface, as this

may cause damage to both components.

[10] TECHNICAL SPECIFICATION

Image coverage full frame (43.3 mm)

Focal length 30 mm

Aperture range (F) T1.5~16

Number of iris blades 11 (rounded shape)

Minimal focusing distance 0.34m (13.39”)

Focus ring

rotation angle 180°

gear pitch 0.8 M

number of teeth 119

distance scale metric/imperial

Aperture ring

rotation angle 75°

gear pitch 0.8 M

number of teeth 110

Viewing angle

(diagonal)

Full Frame 72.6°

Front lter thread 86 x 1.0 mm

Weather sealing

4 rubber o-ring or

3 rubber o-rings for

PL-mount

Front diameter 95 mm

Markings

laser engraved,

UV reactive

Dimensions

(L x D)

Canon EF – mount 107 x 97 mm

Weight

Canon EF – mount 1130g

[8]

[6]

[9]

[4]

[6]

[9]

[7]

[3]

[1]

[2] [5]

Produktspecifikationer

Varumärke:	Irix
Kategori:	Lins
Modell:	30mm T1.5
Vikt:	1136 g
Diameter:	95 mm
Fast brännvidd:	30 mm
Filterstorlek:	86 mm
Väderbeständig:	Ja
Linstyp:	Cinema-objektiv
Linsskydd ingår:	Ja
Komponent för:	MILC
Produktens färg:	Svart
Monteringssätt:	Magnetisk
Största bländarnummer:	16
Produktlängd:	99 mm
Minsta bländarnummer:	1.5
Närmsta fokusavstånd:	0.34 m
Antal diafragmablad:	11
Linsmonteringsgränssnitt:	PL-fäste
Kameramärken-kompatibilitet:	Universal
Internt fokus (IF):	Ja
