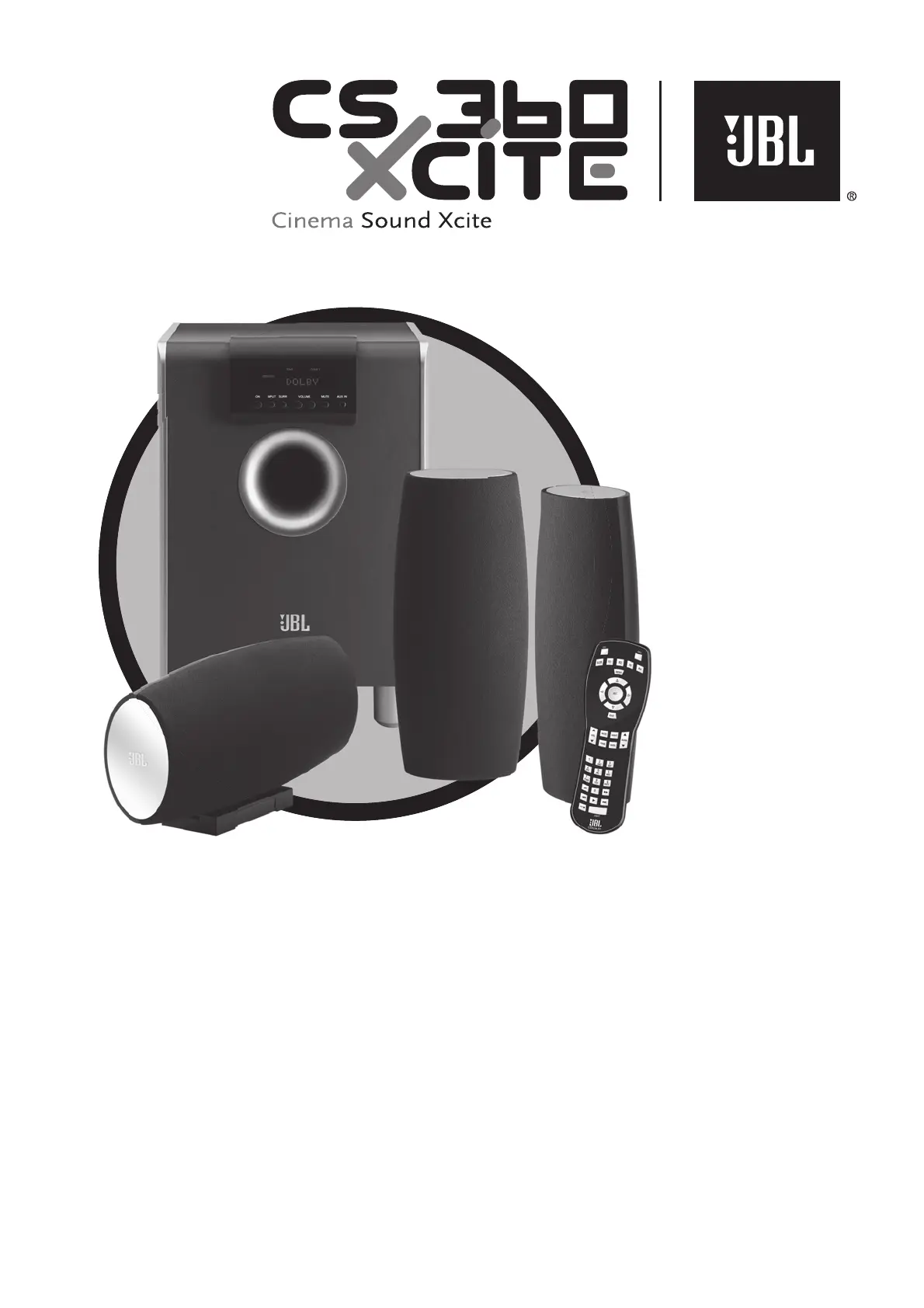

Owner’s manual

Thank you for choosing JBL. For over 60 years, JBL

has been involved in every aspect of music and film recording and

reproduction, from live performances to monitoring the recordings you

play in your home, car or office.

We’re confident that the JBL system you have chosen will provide

every note of enjoyment that you expected – and that when you

think about purchasing additional audio equipment for your home,

car or office, you will once again choose JBL.

JBL Consumer Products

12. Use only with the cart, stand, tripod,

bracket or table specified by the manufacturer

or sold with the apparatus. When a cart is

used, use caution when moving the cart/

apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or

when unused for long periods of time.

14. Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or plug

is damaged, liquid has been spilled or objects have fallen

into the apparatus, the apparatus has been exposed to

rain or moisture, does not operate normally,

or has been dropped.

15. Do not expose this apparatus to dripping

or splashing and ensure that no objects filled

with liquids, such as vases, are placed on the apparatus.

16. To completely disconnect this apparatus from the AC

Mains, disconnect the power supply cord plug from the AC

receptacle.

17. The mains plug of the power supply cord shall remain

readily operable.

18. Do not expose batteries to excessive heat such as

sunshine, fire or the like.

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators,

heat registers, stoves or other apparatus (including

amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with

one wider than the other. A grounding-type plug has two

blades and a third grounding prong. The wide blade or

the third prong is provided for your safety. If the provided

plug does not fit into your outlet, consult an electrician

for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or

pinched, particularly at plugs, convenience receptacles

and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the

manufacturer.

Declaration of Conformity

We, Harman Consumer Group International

2, route de Tours

72500 Chateau-du-Loir

France

declare in own responsibility that the products described in

this owner’s manual are in compliance with technical stand-

ards:

EN 61000-6-3:2001

EN 61000-6-1:2001

EN 55013:2001

EN 55020:2002

EN 61000-3-2:2000

EN 61000-3-3:1995+A1:2001

EN 60065:2002

Laurent Rault

Harman Consumer Group, Inc.

Château du Loir, France 07/08

WWW.JBL.COM

English

Important Note

Function of Automatic On/Off and Automatic Input Selector

The Xcite offers two unique user-convenience features:

Automatic Turn On/Turn Off and Automatic Input Selector.

The Automatic Turn-On feature will turn the Xcite on as

soon as a source connected to its inputs is switched on.

These functions work with any Input, Digital or Analog.

The Automatic Turn-On feature will turn the Xcite ON and

select the proper Input as soon as a Source connected to

its Digital Inputs is switched ON, or Source connected to

Analog Inputs starts playing.

The Automatic Turn-Off shuts the unit down five minutes

after a currently selected Digital Source is powered down,

or the device connected to its currently selected Analog

Input stops playing.

If a signal is present at any other Input when a currently

selected Digital device is turned Off, or when a currently

selected Analog device stops playing for more then 15

seconds, the Xcite system does NOT switch over to this

other Input, but turns OFF after five minutes

If any new signal is applied, which was not active at the

time when the signal of the currently selected Input is

removed, Xcite will switch to the Input where the new sig-

nal is detected.

The Automatic Turn-On can be disabled in the SETUP menu

The Automatic Source Selector can be disabled in the

SETUP menu

The Automatic Turn-Off cannot be disabled.

These functions are working regardless of how the current

Source is selected, automatically or manually.

Produktspecifikationer

Varumärke:	JBL
Kategori:	högtalare
Modell:	CS 360Xcite
Ljudutgångskanaler:	3.1 kanaler
Fjärrstyrd:	Ja
Subwoofertyp:	Aktiv subwoofer
Uteffekt (RMS):	160 W
Material, hölje:	MDF, Metal, Plastic
Subwoofer RMS-effekt:	70 W
Subwooferns frekvensomfång:	35 - 140 hz
Subwooferns högtalarelement, diameter (imperial):	6.5 "
Antal satellithögtalare:	2
Satellithögtalarens RMS-effekt:	30 W
Subwooferimpedans:	20000 Ω
Centrumhögtalare, styrka:	30 W
Subwoofer vikt:	11800 g
Satellithögtalarens disktanthögtalare, diameter:	0.5 "
Centrumhögtalare, vikt:	1450 g
Satellithögtalarens woofer-diameter (imperial):	3.5 "
Frekvensområde för satellithögtalare:	35 - 20000 hz
Frekvensområde (center):	35 - 20000 hz
Mitthögtalarens disktanthögtalare, diameter:	0.5 "
Mitthögtalarens woofer diameter (imperial):	3.5 "
