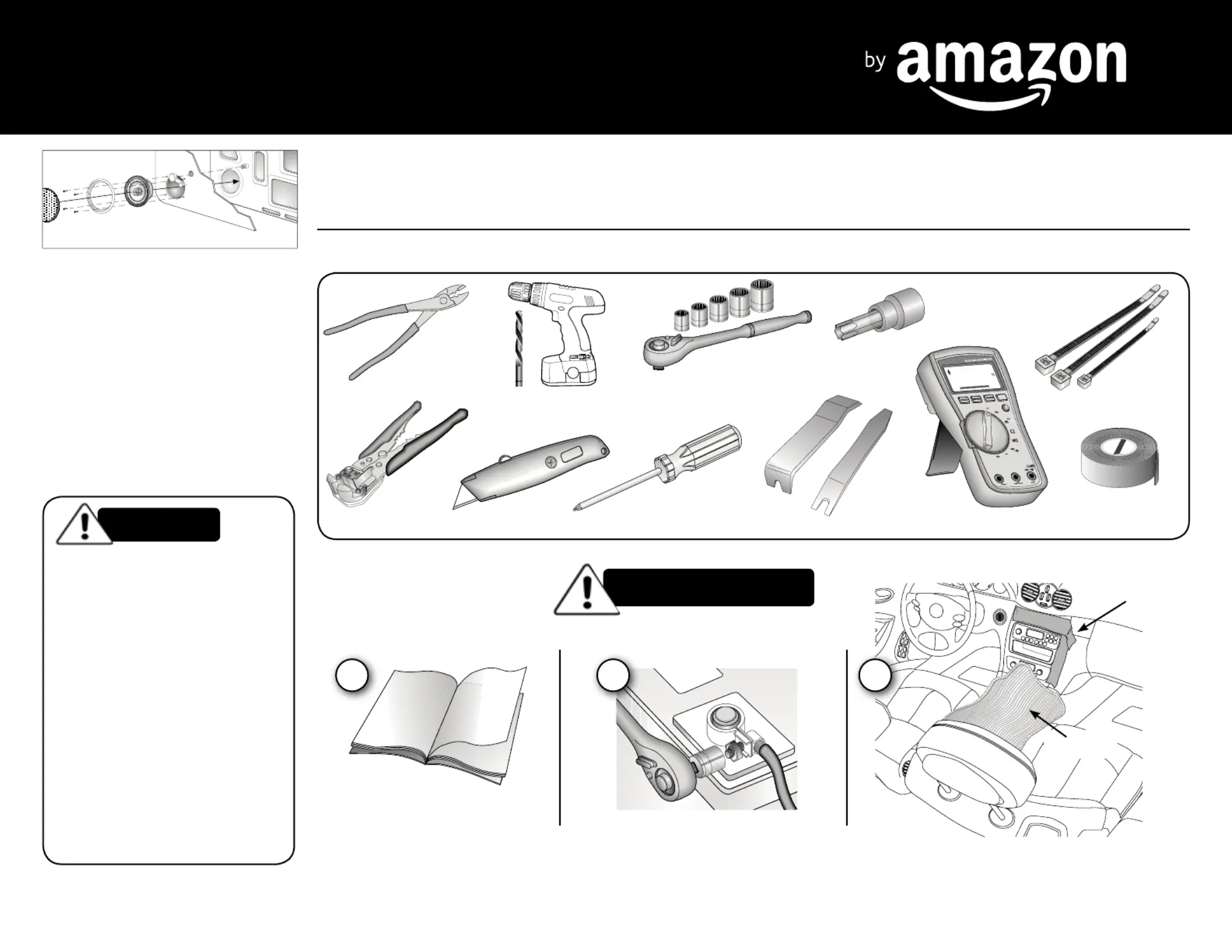

Page 1

S Ipeaker nstallation uide G

Car Electronics Resource Center

In This Guide: Installing car speakers

often requires removal of door, dash

or rear window shelf interior panels to

access the speaker mounting points.

Component speakers require the

additional steps of installing a sepa-

rate tweeter and passive crossover

network. Follow these easy installation

steps to ensure proper installation of

your speakers.

Phillips Screwdriver

or Allen Wrenches

Wire Cutters

(Crimpers)

Cordless Drill w/ Drill Bits

Digital Multimeter (DMM)

Tools and Supplies Needed:

Difﬁculty Level: Moderate to Difﬁcult Average Installation Time: 1-3 Hours

Wire Strippers

Before You Begin

Important

This content has not been veriﬁed by Amazon for

accuracy, completeness, or otherwise. Consult

your vehicle’s owner’s manual and the product’s

manual before attempting an installation. Contact

the product’s manufacturer or consult a Mobile

Electronics Certiﬁed Professional installer if you

are uncertain about how to properly install your

product. Amazon attempts to be as accurate

as possible; however, because of the number of

vehicles and products available to consumers,

it is not possible to provide detailed installation

steps that apply universally to all vehicles and

products. Amazon does not warrant that product

descriptions or other content of this site is

accurate, complete, reliable, current, or error-free.

Further, Amazon disclaims any warranties, express

or implied, as further set forth in the ‘Conditions

of Use’ for Amazon.com.

Read all instructions carefully Disconnect the negative battery cable Protect interior surfaces

Note: Accessories, such as oval-to-round speaker mounting adapters and speaker wire, may be required to complete the installa-

tion and are available for purchase on Amazon.com

1 2





























Electrical Tape

Blue Painter’s Tape

(protects dash surfaces)

Towel

(protects console)

Product Owner’s Manual

Installation Manual(s)

Zip Ties

Utility Knife

Sockets or Open

End Wrenches

Panel Removal Tools

Torx Socket

Car Electronics Resource Center

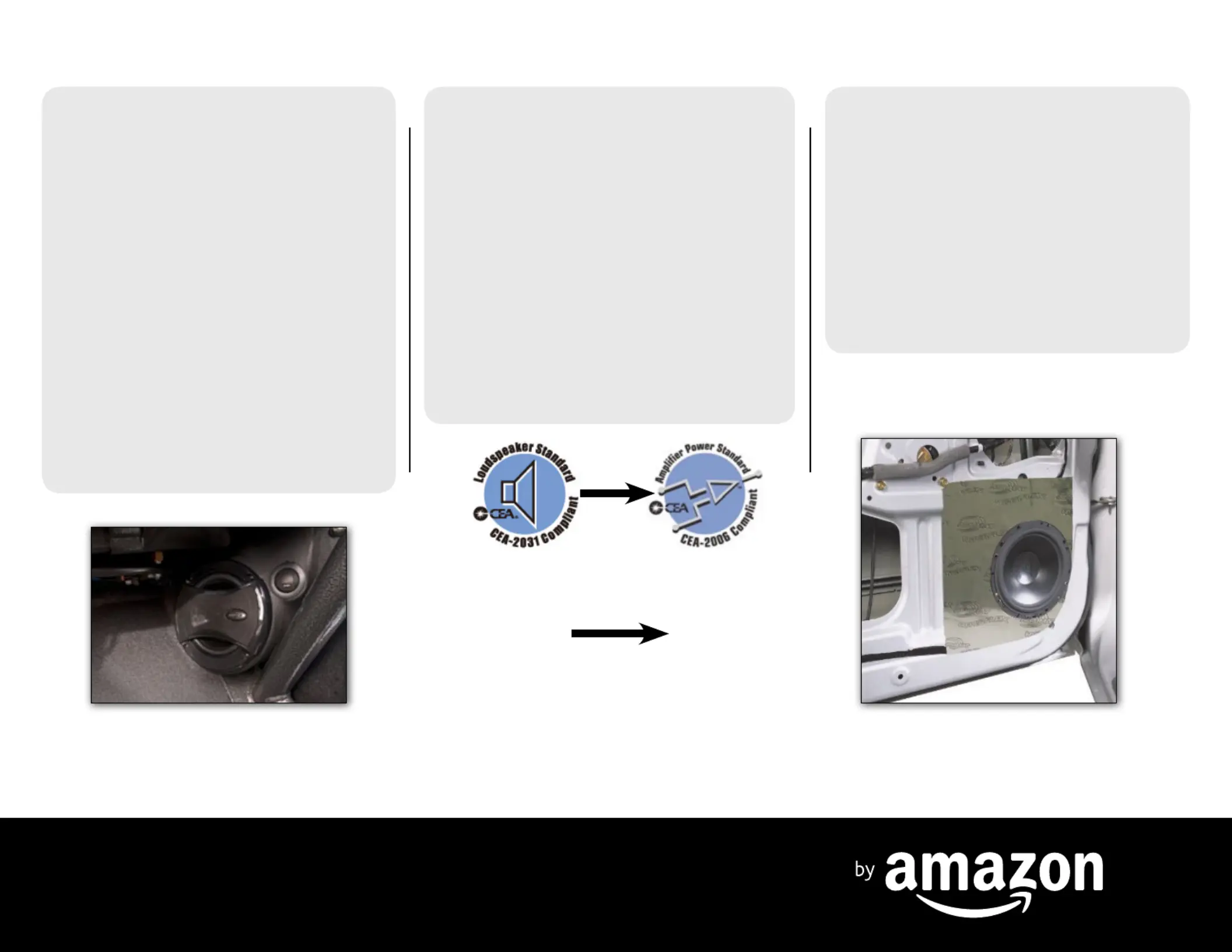

Page 2

S Ipeaker nstallation uide G

Coaxial or Component Speakers

Coaxial speakers combine a cone speaker for

midrange frequencies with a tweeter for high fre-

quencies in a single speaker chassis. Many coaxial

speakers use high quality materials and ﬁt directly

into factory locations, simplifying installation and

delivering upgraded sound quality.

Component speakers have separate midrange and

tweeter drivers providing the ﬂexibility to mount

tweeters at the listener’s ear level. Components

also have a passive crossover network that routes

appropriate frequencies to the midrange and

tweeter respectively, which improves power han-

dling of the speakers and optimizes sound produc-

tion. Consider component speakers when you are

in pursuit of the highest caliber music experience.

Match RMS Power Ratings

RMS power ratings represent a realistic expectation

of a product’s performance. To ensure quality sound

production, match the ampliﬁer’s RMS power output

with the speaker’s RMS power handling. Overpower-

ing speakers can overheat the speaker’s voice coils

causing premature failure. Under powering speakers

may cause sound distortion. As an example, if the

speakers are rated at 50 watts RMS, choose an am-

pliﬁer that provides between 40 to 60 watts RMS to

each speaker. A little more power (up to +25%) over

the speaker’s RMS power handling is okay, as it adds

‘headroom,’ or reserve power, to the audio system

when the music gets complex and/or loud.

Sound Deadening Treatment

Consider installing sound damping and vibration

control materials in the doors, trunk, rear shelf and

ﬂoor of the car. These adhesive sheet materials

install easily on metal and plastic to reduce the road

noise and vibration from interior panels to create a

quieter, more enjoyable listening environment. By

adding mass (weight) to the panel, any vibrations

are suppressed, transferring energy from the speak-

ers into great sound rather than annoying buzzing,

vibrating and rattling of interior panels.

Upgrading Speakers

Sound Deadening Reduces Vibrations and Rattles

from Sheet Metal and Plastic Panels

Component Speakers in a Kick Panel Location

Closely match CEA-2031 Speaker Power Handling

Wattage with CEA-2006 Amplier Output Power Wattage.

If CEA ratings are not available, always look for the ‘RMS’

ratings to guide product matching.

Ampliﬁer

RMS

Power

Output

Speaker

RMS

Power

Handling

Match

Produktspecifikationer

Varumärke:	JBL
Kategori:	högtalare
Modell:	GTO939
Diameter:	243 mm
Högtalare:	1
Modell:	Satelliter
Impedans:	3 Ω
Känslighet:	94 dB
Toppeffekt:	300 W
Märkeffekt:	200 W
Förstärkare ingår:	Nej
Monteringshöjd:	71 mm
diskanthögtalare:	Ja
Frekvensområde:	46 - 21000 hz
Separata komponenter:	Nej
Högtalartyp:	3-vägs
Övergångsfrekvens:	2500 hz
Driver Konmaterial:	Glasfiber
Passiv övergång:	Ja
Monteringshål diameter:	219 mm
