Sida 1/13

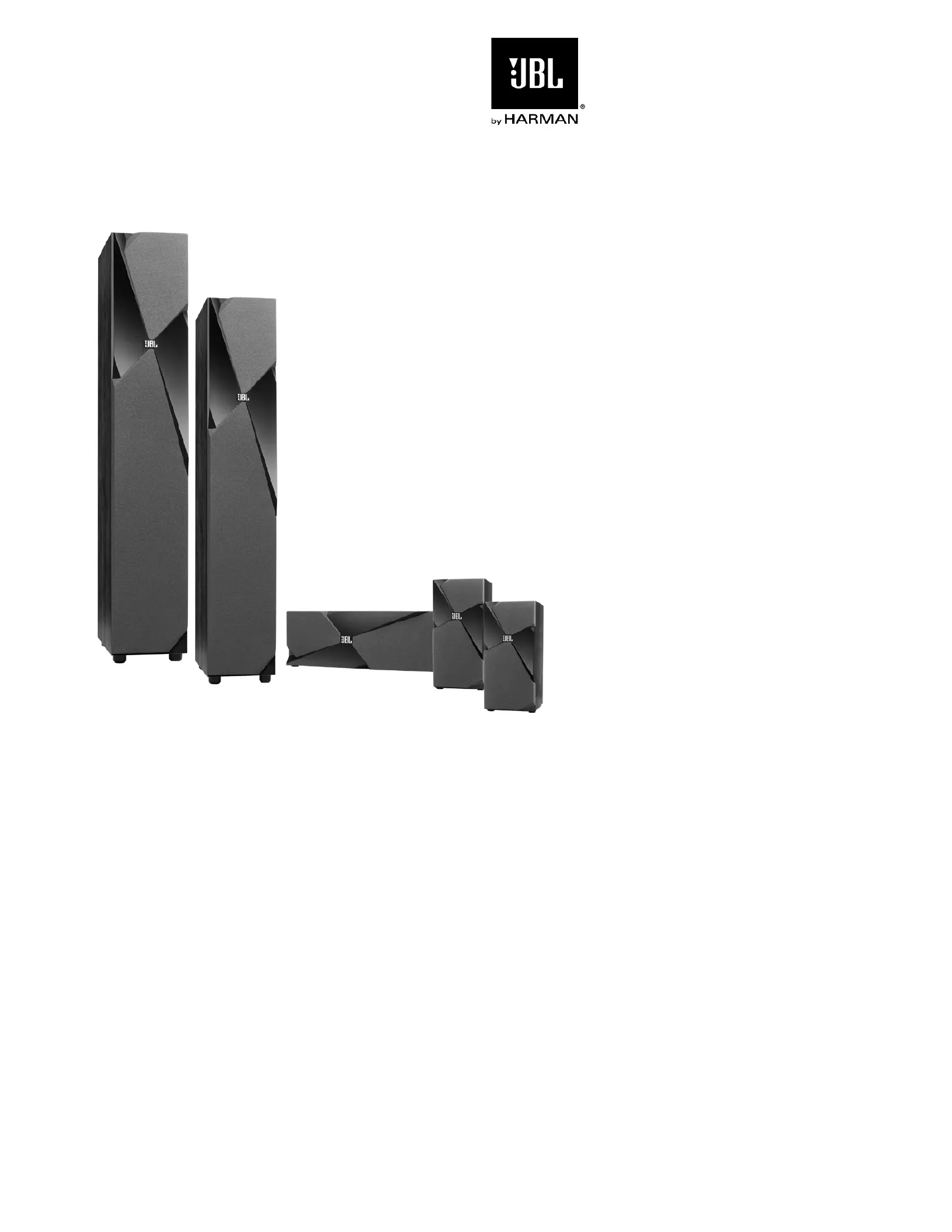

JBL

Studio 1 SerieS

User GUide

loudspeakers

www.jbl.com

For more than 60 years, JBL

engineers have been involved in every aspect of music and ﬁlm recording and

reproduction, from live performances to the recordings you play on the go and in your home, car or oﬃce.

We’re conﬁdent that the JBL system you have chosen will provide every note of enjoyment you expect – and that when

you think about purchasing additional audio equipment for your home, car or oﬃce, you will once again choose JBL

products.

Please take a moment to register your new product on our Web site, www.jbl.com. Registering enables us to keep you

posted on our latest advancements and helps us to understand our customers and build products that meet their

needs.

INCLUDED ITEMS

Each box contains one or two loudspeakers, depending on the model, as indicated below.

THANK YOU FOR CHOOSING THIS JBL

PRODUCT

Studio 190

One Studio 190 speaker

Studio 180

One Studio 180 speaker

Studio 130

Two Studio 130 speakers

Studio 120c

One Studio 120c speaker

Card with adhesive rubber feet

(Studio 130 – two cards,

Studio 120c – only one card)

www.jbl.com

ENGLISH

STUDIO 190/STUDIO 180 STUDIO 130  LEFT AND RIGHT CHANNELS/

For best results, place the speakers 6 – 10 feet (1.8m – 3m) apart. Angling the speakers toward the listening position can

improve the stereo imaging. The speakers will produce the most accurate stereo soundstage when the angle between

the listener and the speakers is between 40 and 60 degrees.

Generally, bass output will increase as the speaker is moved closer to a wall or corner.

For best performance, we recommend that you place the speakers at least 20 inches (51cm) away from the side walls.

Position

•

Studio 130 shelf speakers so that their tweeters are approximately at ear level. Peel the adhesive rubber feet

from the card and apply them to the bottoms of the speakers.

PLACEMENT

6 – 10 ft

(1.8m – 3m)

40° – 60°

>20 in

(>51cm)

Rubber

Feet

Produktspecifikationer

Varumärke:	JBL
Kategori:	högtalare
Modell:	STUDIO 130BK
Vikt:	4900 g
Bredd:	165 mm
Djup:	210 mm
Höjd:	349 mm
Material:	MDF
Impedans:	8 Ω
Ljudutgångskanaler:	2.0 kanaler
Högtalarplacering:	Bordsskiva/bokhylla
Antal förare:	2
Bashögtalare:	Ja
Känslighet:	87 dB
Förstärkare:	Nej
Produktens färg:	Svart
Uteffekt (RMS):	60 W
diskanthögtalare:	Ja
Equalizer:	Nej
Frekvensområde:	60 - 22000 hz
Anslutningsteknologi:	Kabel
Strömkälla av typen:	Stöds inte
Woofer diameter:	100 mm
Woofer diameter (imperial):	4 "
Högsta musikuteffekt (PMPO):	240 W
Disktanthögtalare diameter:	1 "
Övergångsfrekvens:	3000 hz
Magnetiskt skyddad:	Ja
Bindande stolpe:	Ja
