JENN-AIR
®
DETAILED PLANNING DIMENSIONS
1 of 2
IMPORTANT: Dimensional specifications are provided for planning purposes only.
Do not make any cutouts based on this information. Refer to the Installation Guide before
selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.
All Jenn-Air
®
appliances are appropriately UL, CUL or CSA approved. 8528AdZw715
48" PRO-STYLE
®
RANGETOP WITH GRIDDLE
JGCP548WP – 47
7
⁄8" x 14
5
⁄8" x 28
3
⁄8"

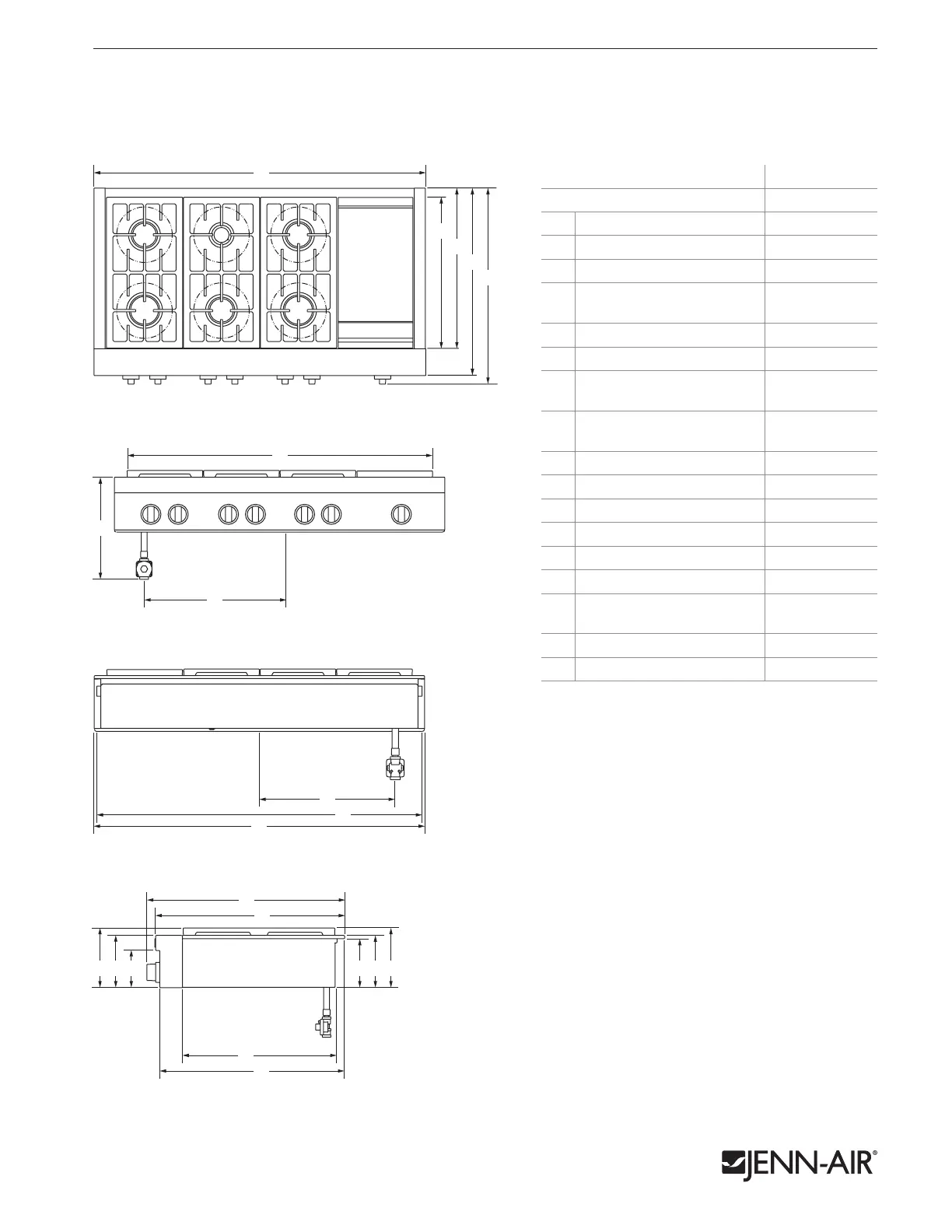

PRODUCT DIMENSIONS
FRONT VIEW
TOP VIEW
SIDE VIEW
MODEL # JGCP548WP
in cm
A
Overall width
47
7
⁄8 121.6
B
Depth of grates/griddle
21
3
⁄4 55.2
C
Depth without control panel
23
1
⁄4 59.0
D
Depth with control panel
overhang
27
1
⁄8 68.9
E
Depth with knobs
28
3
⁄8 72.0
F
Width of grates/griddle
44
1
⁄4 112.5
G
Center of rangetop to
center of gas inlet
19
5
⁄8 50.0
H
Height from gas inlet
to cooking surface
14
5
⁄8
37.1
I
Width of recessed rangetop
47
1
⁄4 119.9
J
Height including grates/griddle
8
1
⁄2 21.7
K
Height of control panel
7
1
⁄2 19.0
L
Height to bullnose
5
3
⁄8 13.5
M
Height of recessed rangetop
7 17.7
N
Height to cooking surface
7
3
⁄8 18.8
O
Height of recessed rangetop
with grates/griddle
8
1
⁄2 21.6
P
Depth of recessed rangetop
22
1
⁄8 56.3
Q
Depth with control panel
26
1
⁄2 67.3
A
B
C
D
E
E
D
M N OLKJ
P
Q
F
G
H
A
G
I
A
B
C
D
E
E
D
M N OLKJ
P
Q
F
G
H
A
G
I
A
B
C
D
E
E
D
M N OLKJ
P
Q
F
G
H
A
G
I
A
B
C
D
E
E
D
M N OLKJ
P
Q
F
G
H
A
G
I
BACK VIEW
JENN-AIR
®
DETAILED PLANNING DIMENSIONS
2 of 2
IMPORTANT: Dimensional specifications are provided for planning purposes only.
Do not make any cutouts based on this information. Refer to the Installation Guide before
selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.
All Jenn-Air
®
appliances are appropriately UL, CUL or CSA approved. 8528AdZw715

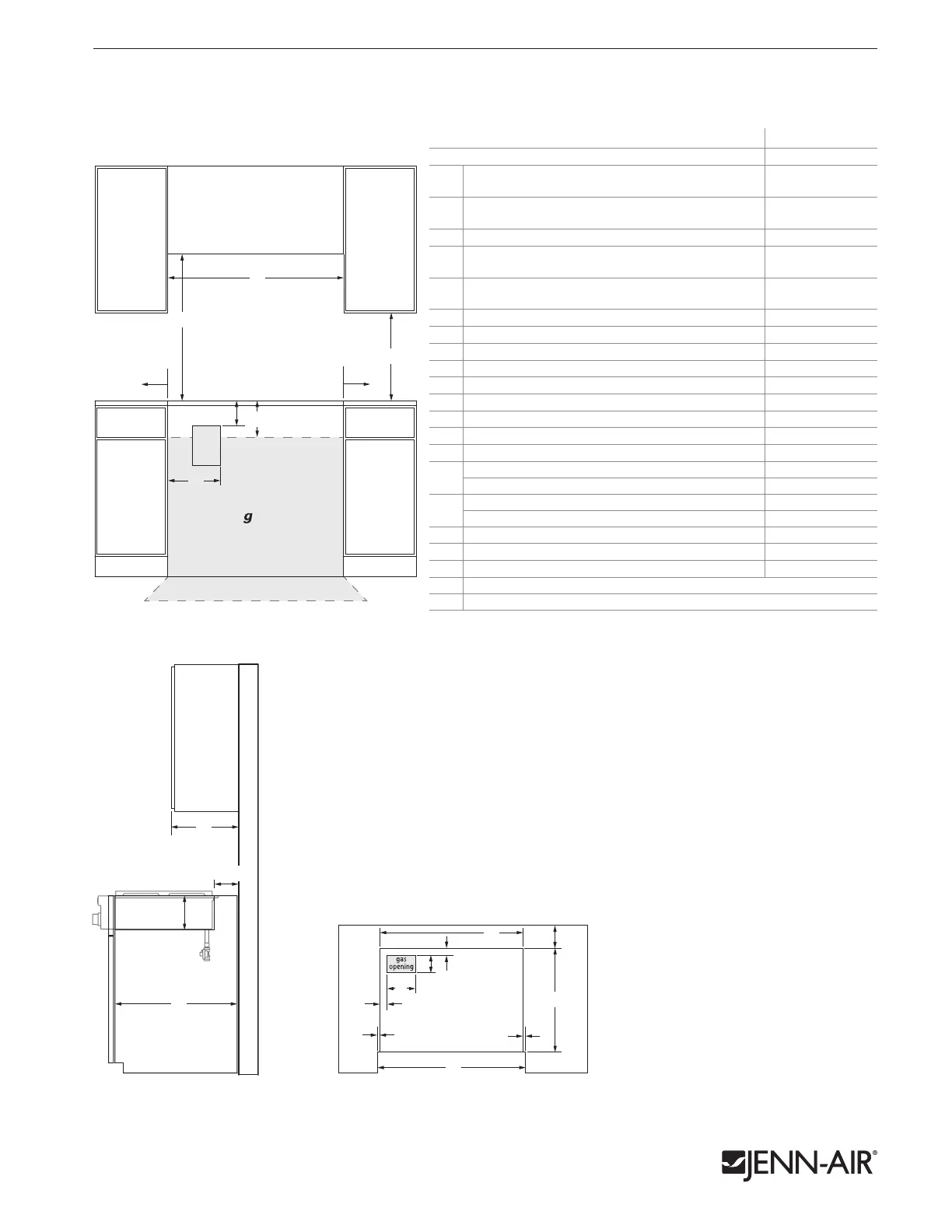

OPENING/CLEARANCE DIMENSIONS
MODEL # JGCP548WP
in cm
A
Width of combustible area above cooking
surface (min.)
48 121.9
B
Width from rangetop to fixed wall or other
combustible material (min.)
6 15.2
C
Width to inner edge of outlet (max.) 16 40.6
D*
Height to bottom of uncovered wood or metal
cabinet above cooking surface (min.)
42 106.7
E
Height to bottom of uncovered wood or metal
cabinet (min.)
18 45.7
F
Height to top edge of outlet (min.) 10 25.4
G
Height to gas supply line area 14 35.6
H
Depth of upper cabinet (recommended) 13 33.0
**I**
Depth from cutout to wall 1
3
⁄4 4.4
J
Depth of cabinet 24 61.0
K
Height from cabinet to countertop 7
1
⁄4 18.4
L
Width of cutout (countertop and cabinet) 47
3
⁄8 120.3
M
Width of gas opening 12
1
⁄2 31.7
N
Width from cutout to gas opening 2 5.1
O
Width of notch
5
⁄16 0.8
Zero clearance
1
⁄4 0.6
P
Width of cutout (countertop only) 48 121.9
Zero clearance 47
7
⁄8 121.6
Q
Depth of gas opening 6
7
⁄8 17.5
R
Depth from cutout to gas opening
3
⁄4 1.9
S
Depth of cutout (countertop and cabinet) 22
1
⁄4 56.5
e
Recommended electrical outlet location
g
Recommended gas supply line location
* Dimension can be reduced by 6" (15.2 cm) when bottom of wood or metal
cabinet is covered by not less than
1
⁄4" (0.6 cm) flame retardant millboard covered
with not less than No. 28 MSG sheet metal, 0.015" (0.4 mm) stainless steel,
0.024" (0.6 mm) aluminum or 0.020" (0.5 mm) copper.
If installing a hood above the rangetop, follow the hood instructions for
dimensional clearances above the cooking surface.
** If back wall is constructed of a combustible material and a backsplash is not
installed, a minimum clearance of dimension 4
3
⁄4" (12.1 cm) is required.
GAS REQUIREMENTS
Natural Gas
This rangetop is factory-set for use with natural gas.
LP Gas Conversion
Conversion must be done by a qualified service technician. To convert to LP gas,
use the LP gas conversion kit provided with the rangetop.
ELECTRICAL REQUIREMENTS
120 volt, 60 Hz, AC only, 15-amp fused, electrical circuit is required. A time-delay
fuse or dedicated circuit is recommended.
FRONT VIEW
SIDE VIEW
Side
Cabinet
D*
H
E
F
e
A
B
B
L
S
I**
O
K
J
I**
C
P
O
G
N
M
Q
R
Side
Cabinet
D*
H
E
F
e
A
B
B
L
S
I**
O
K
J
I**
C
P
O
G
N
M
Q
R
Side
Cabinet
D*
H
E
F
e
A
B
B
L
S
I**
O
K
J
I**
C
P
O
G
N
M
Q
R
TOP VIEW – CUTOUT
(solid platform not shown)
48" PRO-STYLE
®
RANGETOP WITH GRIDDLE
JGCP548WP – 47
7
⁄8" x 14
5
⁄8" x 28
3
⁄8"
