I N S T A L L A T I O N G U I D E
for the
SBX-T-TACDCG3/10TW1
SKU# 94722
2016-Up Toyota Tacoma Double Cab
• Installation requires appropriate tools and safety equipment.
Professional installation is recommended.
• If you prefer to perform your own installation, please read this
installation guide completely before beginning.
• Before cutting or drilling, check for potential obstacles behind
mounting surfaces.
• Mount this product securely to prevent damage or injury in
severe conditions.
INSTALLATION
DIFFICULTY:
ESTIMATED TIME:
1 HOUR
Enclosure Type: Sealed
Driver Type: 10TW3-D4
Nominal Impedance: 2 ohms
Continuous Power Handling: 400 watts (RMS method)
Continued on Next Page
15
OUT
OF
SBX-T-TACDCG3/10TW3 INSTR_SKU# 011600
IN CL U DE D H A R DWA R E
Continued on Next Page
Page 2 • JL Audio, Inc., 2024
BOM ID DescriptionQty SKU
1 2 151329 3/8” ID, 3/4” OD x 3/8” Long Aluminum Spacer
2 2 155079 L-Bracket
3 2 155078 M6 x 14mm Flanged Hex Head Screw
4 2 155077 M6 x 20mm Flanged Hex Head Screw
- 1 194157 Vibra-Tite 132 (not shown)
- 2 150249 Foam Tape (not shown)
SBX-T-TACDCG3/10TW3 INSTR_SKU# 011600
Page 3 • JL Audio, Inc., 2024 Continued on Next Page

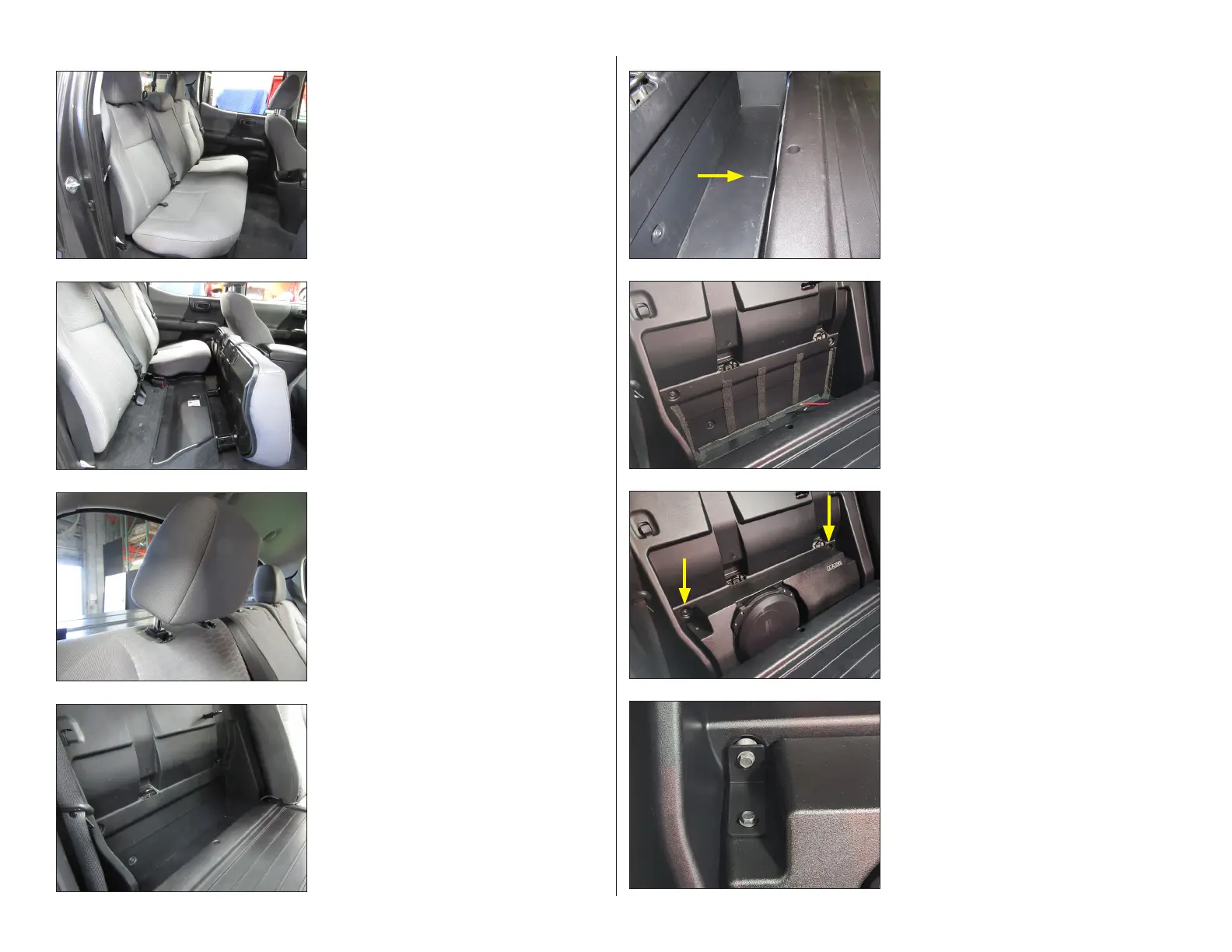

S T E P 8
Apply Vibra-Tite 132 to an M6 x 30mm Flanged
Hex Head Screw, pass it through the slot in
the L-Bracket, through a 3/8” Long Aluminum
Spacer, into the factory location, and hand
tighten. Apply Vibra-Tite 132 to an M6 x 14mm
Flanged Hex Head Screw, pass it through the
slot in the 3/8” Long Aluminum Spacer, into the
insert in the enclosure, and hand tighten.
Repeat the process for the opposite side.
S T E P 7
Connect the speaker cable and place the
enclosure into position, as shown.
Remove the factory bolt from the back of the
storage pocket on each side of the enclosure.
These will not be reinstalled.
S T E P 6
Peel the adhesive backing and place Foam
Tape strips into the storage pocket, as needed.
Route speaker cable to the inner side of the
storage pocket.
S T E P 5
Locate the small, plastic tab in the center of the
storage pocket floor. Using a razor knife,
carefully remove the tab.
S T E P 4
Fold the passenger side seat back down to
access the rear storage pocket, and empty the
pocket.
S T E P 3
Remove the two headrests on the passenger
side seat back.
S T E P 2
Fold the passenger side seat bottom forward.
S T E P 1
Empty the rear seat area.
SBX-T-TACDCG3/10TW3 INSTR_SKU# 011600
