Light Management 2-wire extension insert
Ref.-no..: 1220 NE
...1561.07...
Operating Instructions
2-wire extension insert
1. Warning
Caution: The installation and assembly of electrical equipment may
only be performed by a skilled electrician. Non-observance of the
installation instructions may cause re or other hazards. To prevent
electric shocks, disconnect the power supply before working on the
device (by cutting out the circuit breaker).
2. Function
‘2-wire’ extension insert for operating dimmers or switches from an
extension. The ‘2-wire’ extension insert permits the establishing of
installations with the functions of two-way wiring and cross connection with
minimum installation expenditure. The functionality of the ‘2-wire’ extension
insert depends upon the main unit used (dimmer, switch) and is described in
the Operating Instructions manual of the main centre.
3. Installation instructions

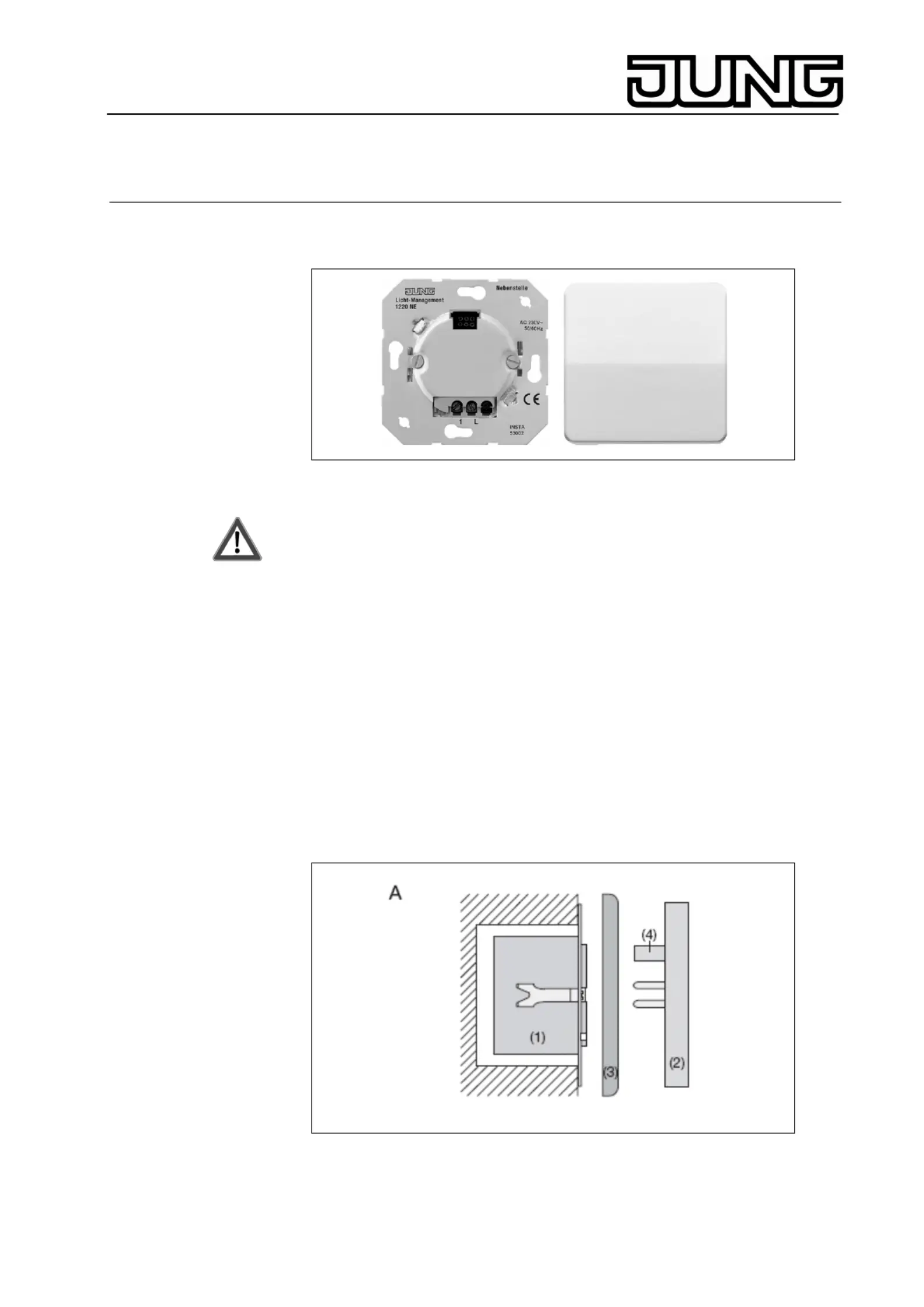

Install extension insert (1) in a connection box according to DIN 49073 (Fig.
A).
The connection terminals of the insert must be down. The extension insert
can only be used in combination with the short-stroke pushbutton. Plug
Stand: Mai-07 325 046 03
Light Management 2-wire extension insert
Ref.-no..: 1220 NE
...1561.07...
short-stroke pushbutton (2) onto the insert together with frame (3). Electrical
contacting is established through plug (4).

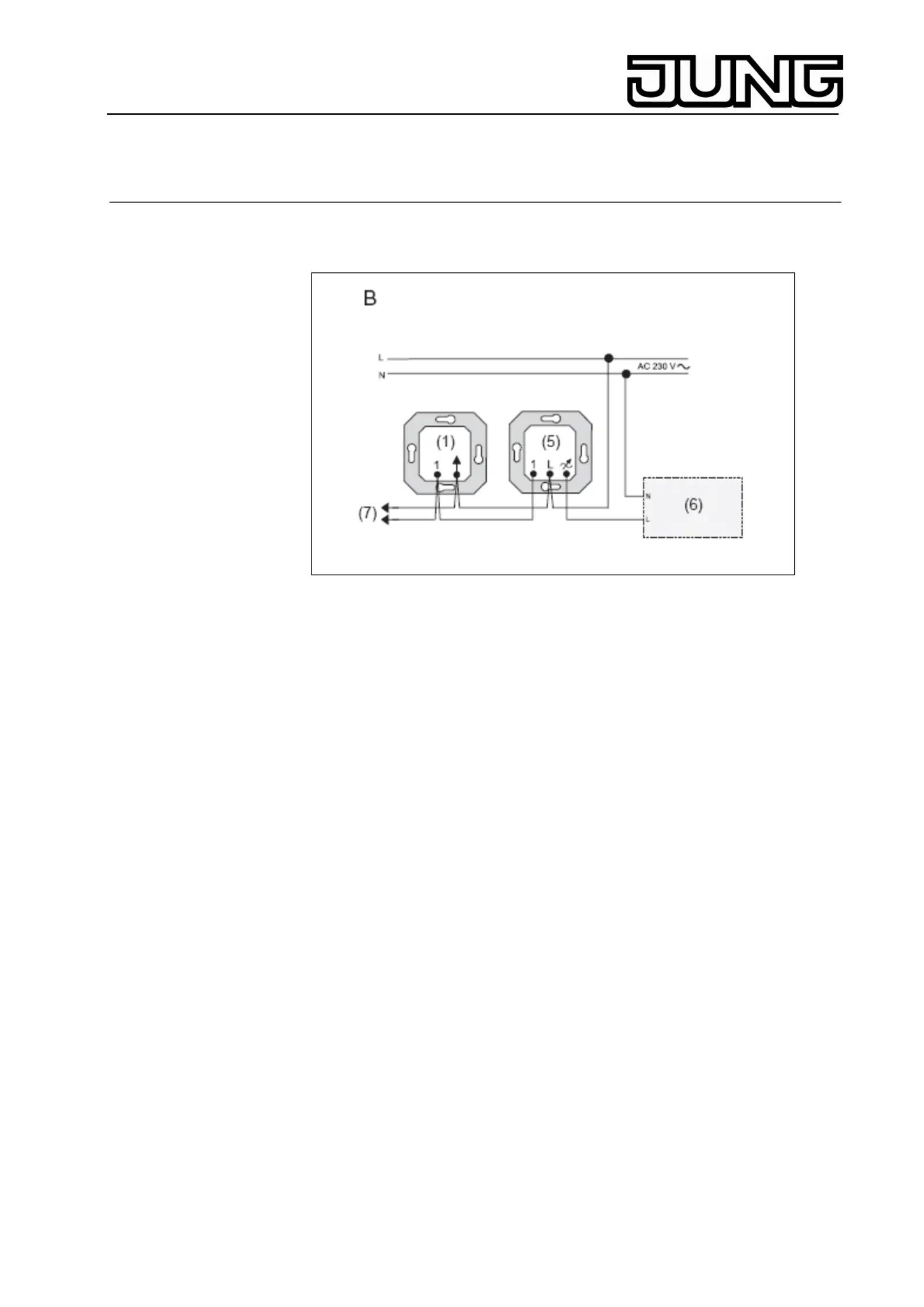

For the connection, refer to Fig. B.
(5) main unit
(6) Load
(1) ‘2-wire’ extension
(7) for further extensions
4. Technical data
Rated voltage : AC 230V~, 50 / 60 Hz
Connected to : main centre
Number of Extensions : unlimited
2
Light Management 2-wire extension insert
Ref.-no..: 1220 NE
...1561.07...
5. Guarantee
Our products are under guarantee within the scope of the statutory
provisions.
Please return the unit postage paid to our central service department
giving a brief description of the fault:
ALBRECHT JUNG GMBH & CO. KG
Service-Center
Kupferstr. 17-19
D-44532 Lünen
Service-Line: +(49) 23 55 . 80 65 51
Telefax: +(49) 23 55 . 80 61 65
E-Mail: mail.vka@jung.de
General equipment
Service-Line: +(49) 23 55 . 80 65 55
Telefax: +(49) 23 55 . 80 62 55
E-Mail: mail.vkm@jung.de
KNX equipment
Service-Line: +(49) 23 55 . 80 65 56
Telefax: +(49) 23 55 . 80 62 55
E-Mail: mail.vkm@jung.de
The -Sign is a free trade sign addressed exclusively to the
authorities and does not include any warranty of any properties.
3
