Push-button module 24VAC/DC
Light Management
Push-button module 24 V AC/DC, 1-gang
Art. No. ..5212 TSM
Push-button module 24 V AC/DC, 2-gang
Art. No. ..5224 TSM
Push-button module 24 V AC/DC, 3-gang
Art. No. ..5236 TSM
Push-button module 24 V AC/DC, 4-gang
Art. No. ..5248 TSM
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. During installation and cable routing, comply with the
regulations and standards which apply for SELV circuits.
Use only the enclosed plastic screws. Device fault possible due to electrostatic
discharge.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components

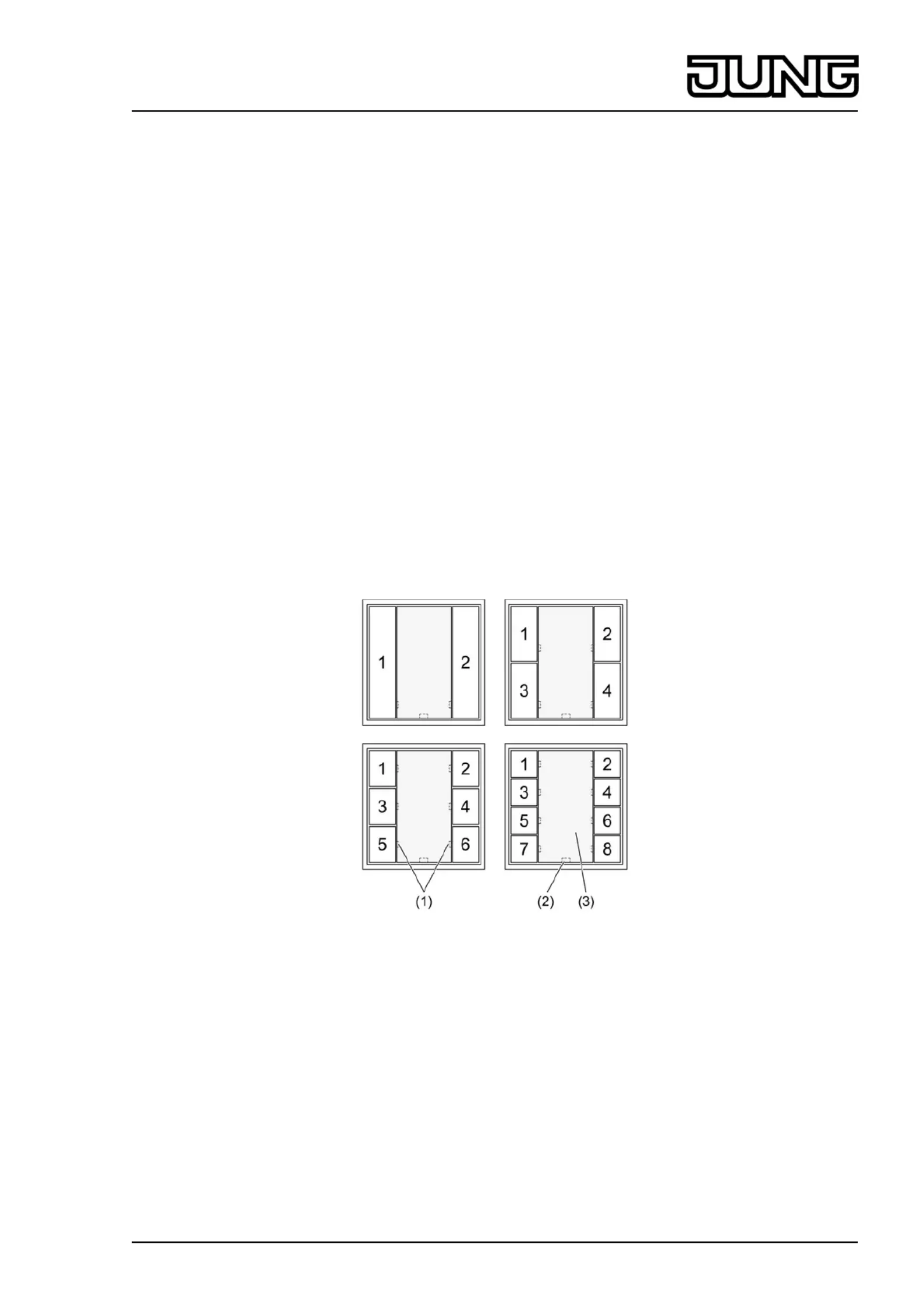

Figure 1: Button arrangement
(1) Status LED
(2) Operation LED
(3) Labelling field
3 Function
Intended use
- Connection to the Universal relay station, the Universal dimming station (see chapter 6.2.
Accessories) or other SELV control systems.
- Installation in appliance box according to DIN 49073.
1/6
32587903
J:0082587903
25.06.2013
Product characteristics
- Functions: switching, push-button control, dimming, blind control in conjunction with control
systems.
- Completion with keyset (see chapter 6.2. Accessories)
- Status LED per button, red
- Operation LED, in red, green or blue according to choice
- Labelling field
i When these push-button sensors are used with the PHC system supplied by PEHA, the
acknowledgment LED function cannot be guaranteed. Please contact our technical
support.
4 Operation
Operating a function or load
Operation depends on whether the push-button modules are connected to a dimming or relay
station and on the relay station settings.
- Single-button operation, e.g. relay station switching output:
Switching on or off takes place alternately when the button is pressed repeatedly.
- Two-button operation, e.g. dimming station load output:
Two buttons form a function pair: one button switches on or dims lighting brighter, the other
button switches it off or dims it darker.
5 Information for electrically skilled persons
5.1 Fitting and electrical connection
DANGER!
Electrical shock when live parts are touched.
Electrical shocks can be fatal.
Before working on the device, disconnect all the corresponding miniature
circuit breakers. Cover up live parts in the working environment.
Mounting and connecting the device

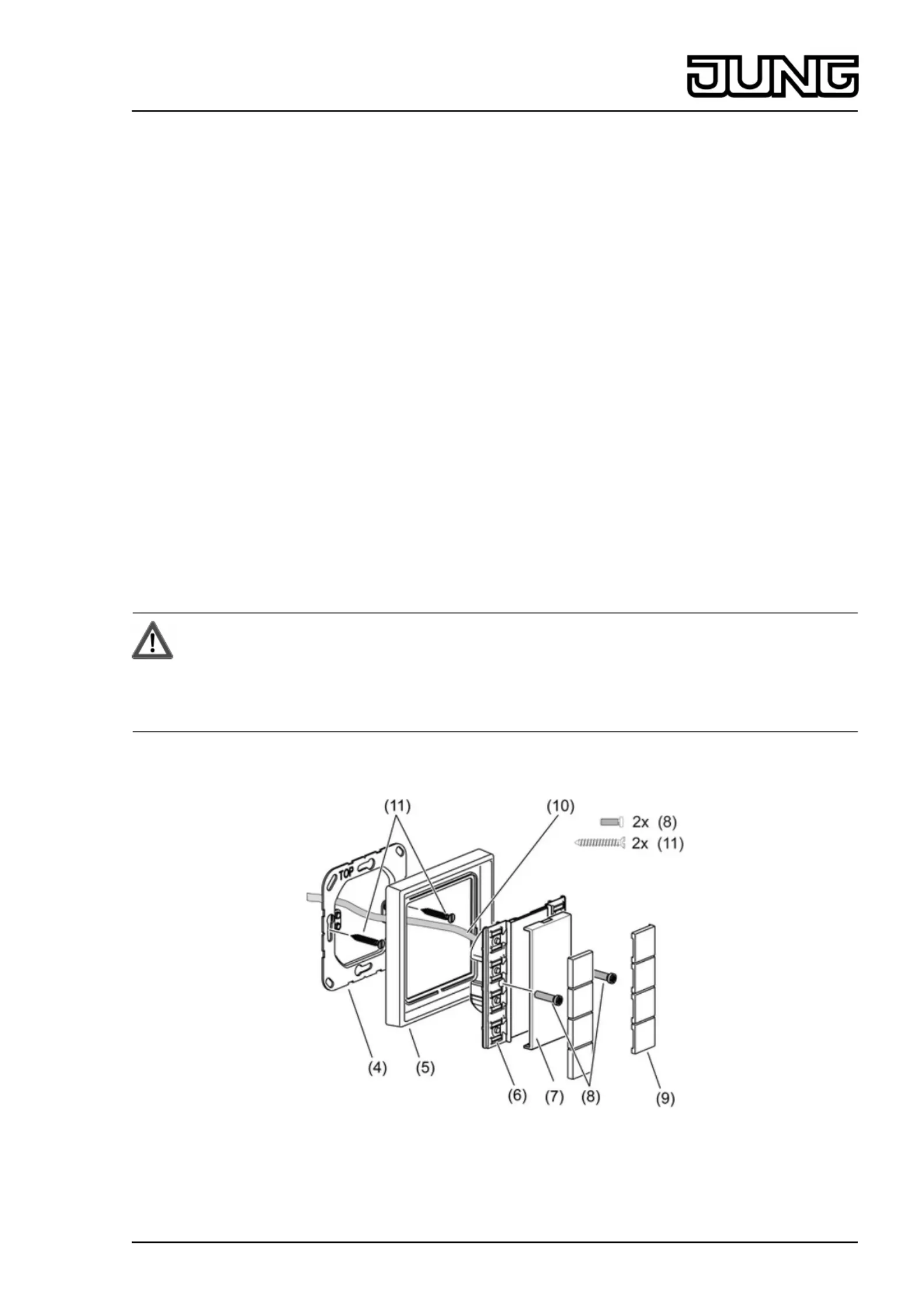

Figure 2: Example of 4-gang push-button module installation
(4) Supporting frame
(5) Frame
2/6
32587903
J:0082587903
25.06.2013
Light Management
Push-button module 24VAC/DC
(6) Push-button module
(7) Labelling panel cover
(8) Fastening screws, plastic
(9) Buttons
(10) Connection cable, max. 19-conductor
(11) Box screws
i Connect an operation LED in either red, green or blue according to choice.
o Mount supporting frame (4) in the right orientation on an appliance box. Note marking . TOP
Use only the enclosed box screws (11).
o Push frame (5) onto supporting frame.
i The terminals are not suitable for looping.
o Connect push-button module (6) to relay station or dimming station as shown in the
connection example (figure 3)(figure 4).
Figure 3: Connection example of channel 1 with status LED and blue operation LED
Figure 4: Wiring example for 4-gang push-button module
(12) Push-button: for the relay station, dimming station switching inputs E1...En
3/6
32587903
J:0082587903
25.06.2013
Light Management
Push-button module 24VAC/DC
