KD-G202/KD-G201

CD RECEIVER

CD-RECEIVER

RECEPTEUR CD

CD-RECEIVER

ENGLISH

DEUTSCH

NEDERLANDS

FRANÇAIS

For installation and connections, refer to the separate manual.

Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch.

Pour l’installation et les raccordements, se référer au manuel séparé.

Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de

desbetreffende handleiding.

INSTRUCTIONS

BEDIENUNGSANLEITUNG

MANUEL D’INSTRUCTIONS

GEBRUIKSAANWIJZING

• This unit is equipped with the display demonstration. To cancel it, see page 6.

• Dieses Gerät ist mit einer Demonstrationsfunktion für das Display ausgestattet. Auf

Seite 6 wird beschrieben, wie Sie diese Demonstrationsfunktion deaktivieren können.

• Cet appareil est équipé d’une fonction de démonstration des affichages. Pour l’annuler,

référez-vous à la page 6.

• Dit toestel heeft een display-demonstratiefunctie. Zie bladzijde 6 voor het annuleren van

deze functie.

KD-G202

KD-G201

KD-G202

KD-G201

Cover001AKD-G202_G201_f.p65 10/9/03, 11:23 AM3

ENGLISH

How to reset your unit

While holding SEL (select), press (standby/on attenuator) for more than 2 seconds.

This will reset the built-in microcomputer.

Notes:

• Your preset adjustments—such as preset channels or sound adjustments—will also be erased.

• If a CD is in the unit, it will eject when you reset the unit. Be careful not to drop the CD.

How to use the MODE button

If you press MODE, the unit goes into functions mode, then the number buttons work as different

function buttons.

Ex.: When number button 2 works as MO (monaural) button.

To use these buttons for original functions again after pressing MODE, wait for 5 seconds

without pressing any of these buttons until the functions mode is cleared.

• Pressing MODE again also clears the functions mode.

SEL (select)

(standby/on attenuator)

Time countdown indicator

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all

servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid

direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

EN02-04KD-G202201[E_EX_EU]f.p65 10/9/03, 11:23 AM2

ENGLISH

CONTENTS

Thank you for purchasing a JVC product. Please read all instructions carefully before operation,

to ensure your complete understanding and to obtain the best possible performance from the unit.

How to reset your unit ............................... 2

How to use the MODE button ................... 2

LOCATION OF THE BUTTONS ............ 4

Control panel ............................................. 4

BASIC OPERATIONS ....................... 5

Turning on the power ................................ 5

Canceling the display demonstration ........ 6

Setting the clock ........................................ 7

RADIO OPERATIONS ...................... 8

Listening to the radio ................................. 8

Storing stations in memory ....................... 10

Tuning in to a preset station ...................... 11

RDS OPERATIONS ......................... 12

What you can do with RDS ....................... 12

Other convenient RDS functions and

adjustments ............................................ 17

CD OPERATIONS ........................... 19

Playing a CD ............................................. 19

Locating a track or a particular portion

on a CD .................................................. 20

Selecting CD playback modes .................. 20

Prohibiting CD ejection ............................. 21

SOUND ADJUSTMENTS ................... 22

Selecting preset sound modes

(C-EQ: custom equalizer) ....................... 22

Adjusting the sound .................................. 23

OTHER MAIN FUNCTIONS ................ 24

Changing the general settings (PSM) ....... 24

Detaching the control panel ...................... 26

TROUBLESHOOTING ...................... 27

MAINTENANCE ............................. 28

Handling discs ........................................... 28

SPECIFICATIONS ........................... 29

BEFORE USE

For safety....

• Do not raise the volume level too much, as this will

block outside sounds, making driving dangerous.

• Stop the car before performing any complicated

operations.

Temperature inside the car....

If you have parked the car for a long time in hot or

cold weather, wait until the temperature in the car

becomes normal before operating the unit.

Note:

For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on

the unit’s chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.

KD-G202 and KD-G201 are equipped with the steering wheel remote control function.

If your car is equipped with the steering wheel remote controller, you can operate the unit using the

controller.

•See the Installation/Connection Manual (separate volume) for connection to utilize this function.

EN02-04KD-G202201[E_EX_EU]f.p65 10/9/03, 11:23 AM3

ENGLISH

LOCATION OF THE BUTTONS

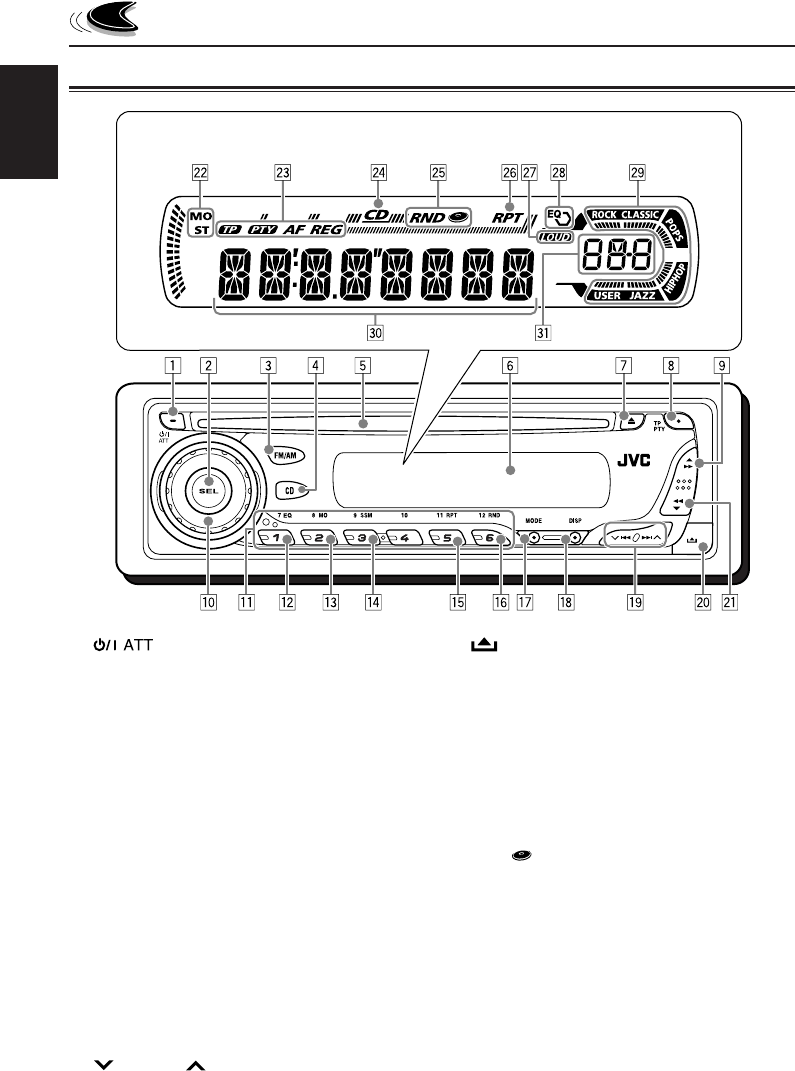

Control panel

1(standby/on attenuator) button

2SEL (select) button

3FM/AM button

4CD button

5Loading slot

6Display window

70 (eject) button

8TP PTY (traffic programme/programme type)

button

95 (up) button

¡ (fast-forward) button

pControl dial

qNumber buttons

wEQ (equalizer) button

eMO (monaural) button

rSSM (Strong-station Sequential Memory)

button

tRPT (repeat) button

yRND (random) button

uMODE button

iDISP (display) button

o 4/¢ buttons

; (control panel release) button

a∞ (down) button

1 (reverse) button

Display window

sTuner reception indicators

MO (monaural), ST (stereo)

dRDS indicators

TP, PTY, AF, REG

fCD indicator

gRND (random disc) indicator

hRPT (repeat) indicator

jLOUD (loudness) indicator

kEQ (equalizer) indicator

lSound mode (C-EQ: custom equalizer)

indicators

ROCK, CLASSIC, POPS, HIP HOP, JAZZ,

USER

/Main display

zSource display

Volume level indicator

Display window

EN02-04KD-G202201[E_EX_EU]f.p65 10/9/03, 11:23 AM4

ENGLISH

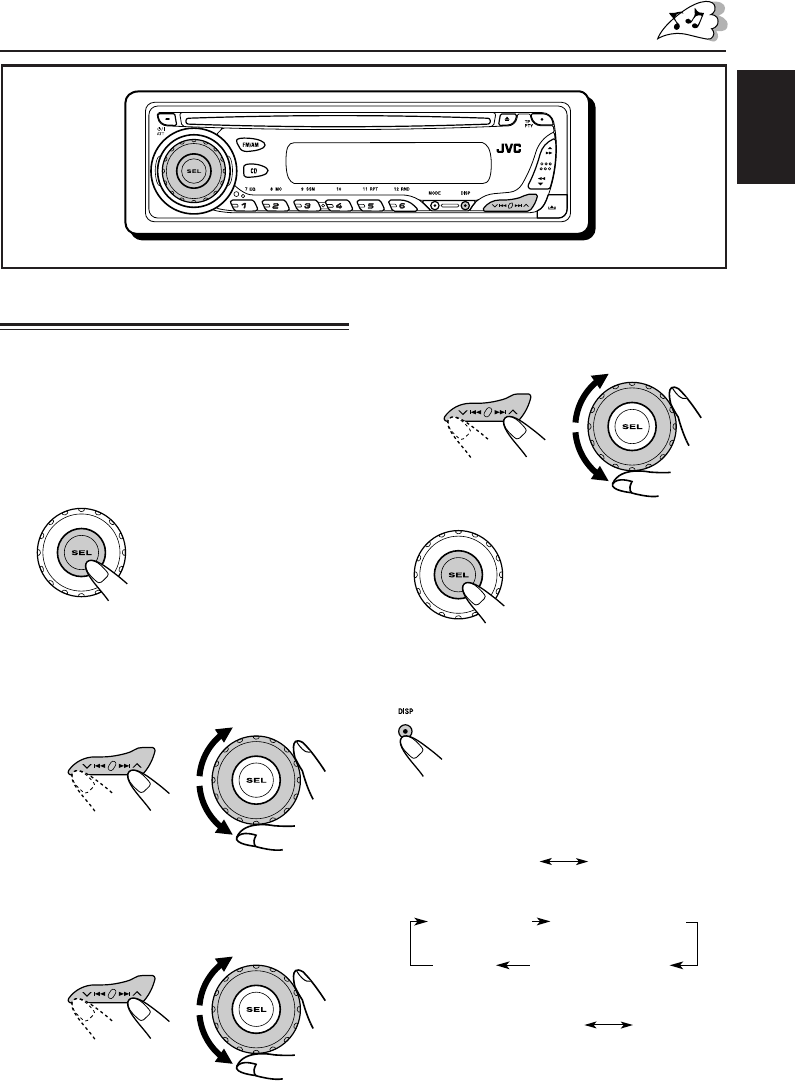

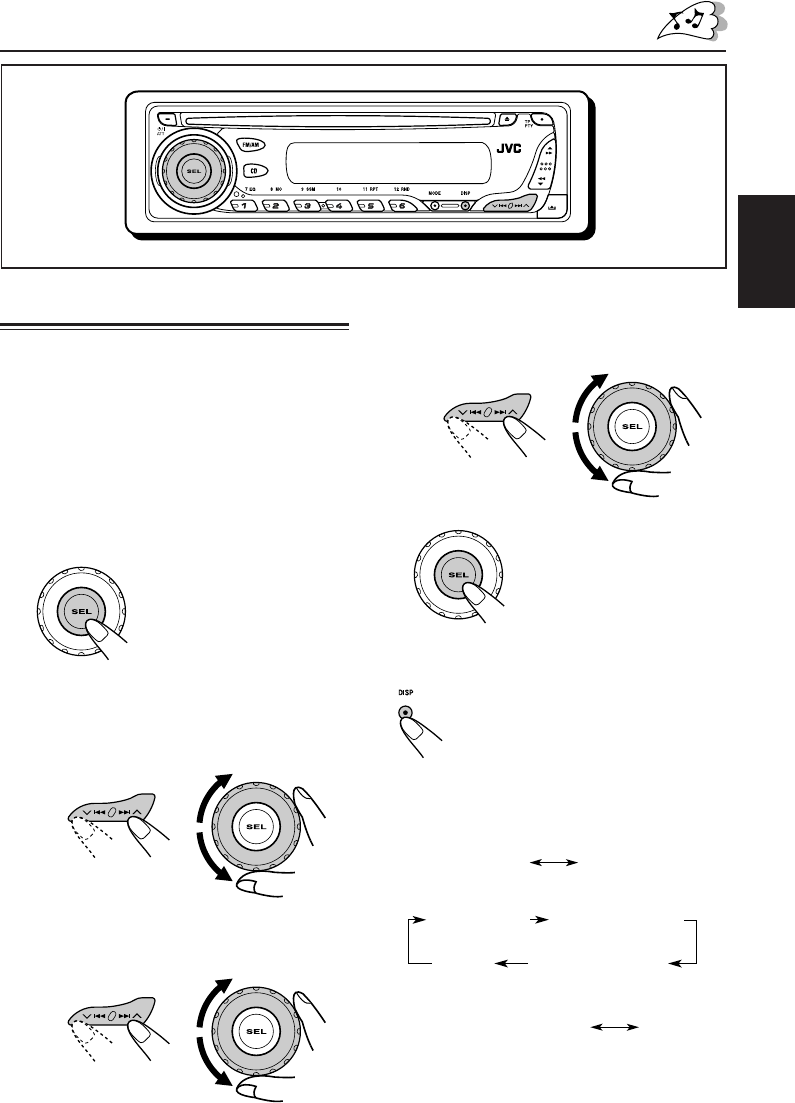

Setting the clock

You can also set the clock system to either

24 hours or 12 hours.

Press and hold SEL (select) for more

than 2 seconds so that one of the

PSM items appears on the display.

(PSM: see pages 24 and 25.)

Set the hour.

1Select “CLOCK H” (hour) if not shown on

the display.

2Adjust the hour.

Set the minute.

1Select “CLOCK M” (minute).

2Adjust the minute.

Set the clock system.

1Select “24H/12H.”

2Select “24H” or “12H.”

Finish the setting.

To check the current clock time or change the

display mode

Press DISP (display) repeatedly.

Each time you press the button, the

display changes as follows:

• During AM and FM non-RDS station

operation:

•During FM RDS Station operation:

•During CD operation:

•During power off:

The power turns on and the clock time is

shown for 5 seconds, then the power turns off.

Frequency Clock

ClockElapsed playing time

Station name Station frequency

Programme typeClock

EN05-07KD-G202201[E_EX_EU]f.p65 10/9/03, 11:22 AM7

ENGLISH

RADIO OPERATIONS

Listening to the radio

You can use either automatic searching or manual

searching to tune in to a particular station.

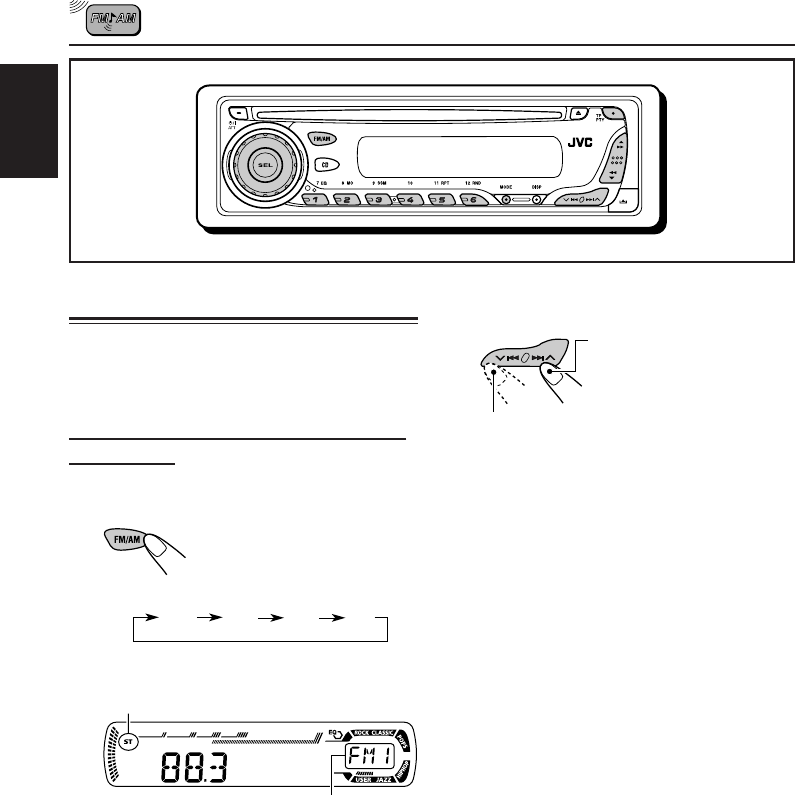

Searching for a station automatically:

Auto search

Select the band (FM1 – 3, AM).

Each time you press the

button, the band changes as

follows:

Note:

This receiver has three FM bands (FM1, FM2,

FM3). You can use any one of them to listen to

an FM broadcast.

Start searching for a station.

When a station is received, searching stops.

To stop searching before a station is

received, press the same button you have

pressed for searching.

To search for stations of lower frequencies

To search for stations of

higher frequencies

Selected band appears.

Lights up when receiving an FM stereo

broadcast with sufficient signal strength.

FM1 FM2 FM3 AM

EN08-11KD-G202201[E_EX_EU]f.p65 10/9/03, 11:22 AM8

ENGLISH

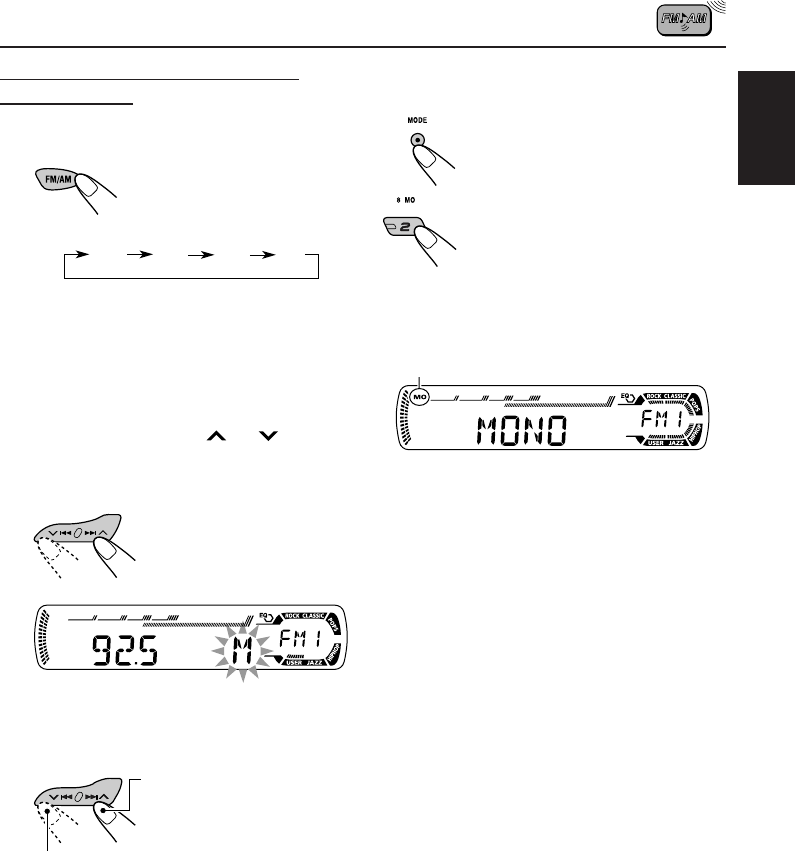

Searching for a station manually:

Manual search

Select the band (FM1 – 3, AM).

Each time you press the

button, the band changes as

follows:

Note:

This receiver has three FM bands (FM1, FM2,

FM3). You can use any one of them to listen to

an FM broadcast.

Press and hold ¢ or 4

until “M” (manual) starts flashing on

the display.

Tune in to a station you want while

“M” (manual) is still flashing.

• If you release your finger from the button,

the manual mode will automatically turns

off after 5 seconds.

• If you hold down the button, the frequency

keeps changing (in 50 kHz intervals for

FM and 9 kHz for AM—MW/LW) until you

release the button.

When an FM stereo broadcast is hard to

receive

1Press MODE to enter the

functions mode while listening

to an FM stereo broadcast.

2Press MO (monaural), while

“MODE” is still flashing on the

display, so that “MONO”

appears on the display.

Each time you press the button,

monaural mode turns on and off

alternately.

When the MO indicator is lit on the display, the

sound you hear becomes monaural but the

reception will be improved.

To tune in to stations of lower frequencies

To tune in to stations of

higher frequencies

MO (monaural) indicator

FM1 FM2 FM3 AM

EN08-11KD-G202201[E_EX_EU]f.p65 10/9/03, 11:22 AM9

ENGLISH

To tune in to stations of lower frequencies

To tune in to stations of

higher frequencies

Storing stations in memory

You can use one of the following two methods to

store broadcasting stations in memory.

• Automatic preset of FM stations: SSM (Strong-

station Sequential Memory)

• Manual preset of both FM and AM stations

FM station automatic preset: SSM

You can preset 6 local FM stations in each FM

band (FM1, FM2, and FM3).

Select the FM band (FM1 – 3) you

want to store FM stations into.

Each time you press the

button, the band changes as

follows:

Press MODE to enter the functions

mode.

Press and hold SSM for about

2 seconds.

“SSM” flashes, then disappears when

automatic preset is over.

FM1 FM2 FM3 AM

Local FM stations with the strongest signals are

searched and stored automatically in the band

number you have selected (FM1, FM2, or FM3).

These stations are preset in the number

buttons—No.1 (lowest frequency) to No.6

(highest frequency).

When automatic preset is over, the station stored

in number button 1 will be automatically tuned in.

Manual preset

You can preset up to 6 stations in each band

(FM1, FM2, FM3, and AM) manually.

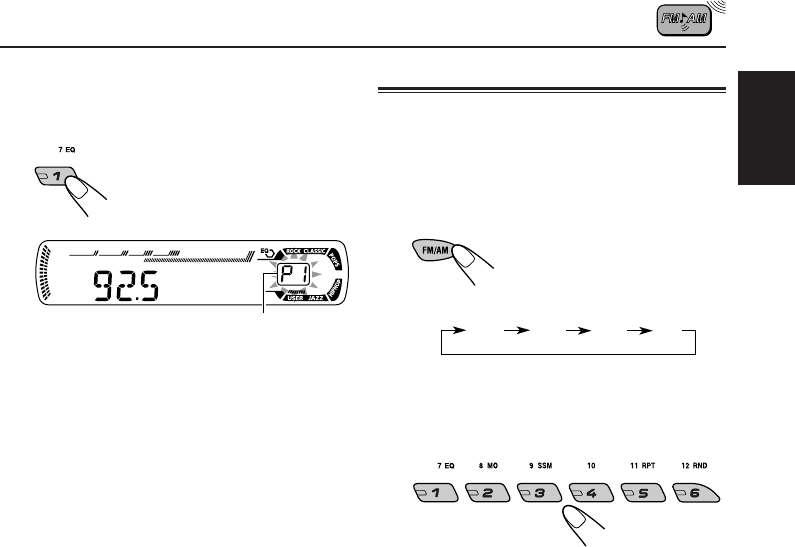

Ex.: Storing FM station of 92.5 MHz into the

preset number 1 of the FM1 band.

Select the band (FM1 – 3, AM) you

want to store stations into (in this

example, FM1).

Each time you press the

button, the band changes as

follows:

Tune in to a station (in this example,

of 92.5 MHz).

FM1 FM2 FM3 AM

EN08-11KD-G202201[E_EX_EU]f.p65 10/9/03, 11:22 AM10

ENGLISH

Press and hold the number button

(in this example, 1) for more than

2 seconds.

Repeat the above procedure to store

other stations into other preset

numbers.

Notes:

• A previously preset station is erased when a new

station is stored in the same preset number.

• Preset stations are erased when the power supply to

the memory circuit is interrupted (for example,

during battery replacement). If this occurs, preset

the stations again.

Tuning in to a preset station

You can easily tune in to a preset station.

Remember that you must store stations first. If

you have not stored them yet, see “Storing

stations in memory” on pages 10 and 11.

Select the band (FM1 – 3, AM).

Each time you press the

button, the band changes as

follows:

Select the number (1 – 6) for the

preset station you want.

Note:

You can also use the 5 (up) or ∞ (down) button on

the unit to select the next or previous preset stations.

Each time you press the 5 (up) or ∞ (down) button,

the next or previous preset station is tuned in.

Preset number flashes for a while.

FM1 FM2 FM3 AM

EN08-11KD-G202201[E_EX_EU]f.p65 10/9/03, 11:22 AM11

ENGLISH

RDS OPERATIONS

What you can do with RDS

RDS (Radio Data System) allows FM stations to

send an additional signal along with their regular

programme signals. For example, the stations

send their station names, as well as information

about what type of programme they broadcast,

such as sports or music, etc.

Another advantage of RDS function is called

“Enhanced Other Networks.” By using the

Enhanced Other Networks data sent from a

station, you can tune in to a different station of a

different network broadcasting your favorite

programme or traffic announcement while

listening to another programme or to another

source such as CD.

By receiving the RDS data, this unit can do the

following:

• Tracing the same programme automatically

(Network-Tracking Reception)

• Standby Reception of TA (Traffic

Announcement) or your favorite programme

• PTY (Programme Type) search

• Programme search

• And some other functions

Tracing the same programme

automatically (Network-Tracking

Reception)

When driving in an area where FM reception is

not good, the tuner built in this unit automatically

tunes in to another RDS station, broadcasting the

same programme with stronger signals. So, you

can continue to listen to the same programme in

its finest reception, no matter where you drive.

(See the illustration on page 18.)

Two types of the RDS data are used to make

Network-Tracking Reception work correctly

—PI (Programme Identification) and AF

(Alternative Frequency).

Without receiving these data correctly from the

RDS station you are listening to, Network-

Tracking Reception will not operate.

To use Network-Tracking Reception

You can select the different modes of network-

tracking reception to continue listening to the

same programme in its finest reception.

When shipped from the factory, “AF” is selected.

• AF: Network-Tracking Reception is

activated with Regionalization set to

“off.”

With this setting, the unit switches to

another station within the same

network when the received signals

from the current station become

weak. (In this mode, the programme

may differ from the one currently

received.)

The AF indicator lights up but the

REG indicator does not.

• AF REG: Network-Tracking Reception is

activated with Regionalization set to

“on.”

With this setting, the unit switches to

another station, within the same

network, broadcasting the same

programme when the received

signals from the current station

become weak.

Both the AF indicator and the REG

indicator light up.

• OFF: Network-Tracking Reception is

deactivated.

Neither the AF indicator nor the REG

indicator lights up.

AF indicator

REG indicator

EN12-18KD-G202201[E_EX_EU]f.p65 10/9/03, 11:22 AM12

ENGLISH

Press and hold SEL (select) for more

than 2 seconds so that one of the

PSM items appears on the display.

(PSM: see pages 24 and 25.)

Select “AF-REG” (alternative

frequency/regionalization reception)

if not shown on the display.

Select the desired mode—“AF,”

“AF REG,” or “OFF.”

Finish the setting.

Using TA Standby Reception

TA Standby Reception allows the unit to switch

temporarily to Traffic Announcement (TA) from

the current source (another FM station or CD).

• TA Standby Reception will not work if you are

listening to an AM station.

Press TP PTY to activate TA Standby Reception.

7When the current source is FM, the TP

indicator either lights up or flashes.

•If the TP indicator lights up, TA Standby

Reception is activated.

If a station starts broadcasting a traffic

announcement, “TRAFFIC” appears on the

display, and this unit automatically tunes in to

the station. The volume changes to the

preset TA volume level (see page 17) and the

traffic announcement can be heard.

•If the TP indicator flashes, TA Standby

Reception is not yet activated since the

station being received does not provide the

signals used for TA Standby Reception.

To activate TA Standby Reception, you need

to tune in to another station providing these

signals. Press ¢ or 4 to search

for such a station.

When a station providing these signals is

tuned in, the TP indicator stops flashing and

remains lit. Now TA Standby Reception is

activated.

7When the current source is other than FM,

the TP indicator lights up.

If a station starts broadcasting a traffic

announcement, “TRAFFIC” appears on the

display, and this unit automatically changes the

source and tunes in to the station.

To deactivate the TA Standby Reception,

press TP PTY again. The TP indicator

disappears.

EN12-18KD-G202201[E_EX_EU]f.p65 10/9/03, 11:22 AM13

ENGLISH

Using PTY Standby Reception

PTY Standby Reception allows the unit to switch

temporarily to your favorite programme (PTY:

Programme Type) from the current source

(another FM station or CD).

• PTY Standby Reception will not work if you are

listening to an AM station.

You can select your favorite programme type for

PTY Standby Reception.

When shipped from the factory, PTY Standby

Reception is turned off. (“OFF” is selected for

PTY Standby Reception.)

Press and hold SEL (select) for more

than 2 seconds so that one of the

PSM items appears on the display.

(PSM: see pages 24 and 25.)

Select “PTY STBY” (standby) if not

shown on the display.

Select one of the twenty-nine PTY

codes. (See page 18.)

Selected code name

appears on the display

and is stored into

memory.

Finish the setting.

7When the current source is FM, the PTY

indicator either lights up or flashes.

•If the PTY indicator lights up, PTY Standby

Reception is activated.

If a station starts broadcasting the selected

PTY programme, this unit automatically

tunes in to the station.

•If the PTY indicator flashes, PTY Standby

Reception is not yet activated since the

station being received does not provide the

signals used for PTY Standby Reception.

To activate PTY Standby Reception, you

need to tune in to another station providing

these signals. Press ¢ or 4 to

search for such a station.

When a station providing these signals is

tuned in, the PTY indicator stops flashing

and remains lit. Now PTY Standby Reception

is activated.

7When the current source is other than FM,

the PTY indicator lights up.

If a station starts broadcasting the selected

PTY programme, this unit automatically

changes the source and tunes in to the station.

To deactivate the PTY Standby Reception,

select “OFF” in step

on the left column. The

PTY indicator disappears.

EN12-18KD-G202201[E_EX_EU]f.p65 10/9/03, 11:22 AM14

ENGLISH

Searching your favorite programme

You can search any one of the PTY codes.

In addition, you can store your 6 favorite

programme types in the number buttons.

When shipped from the factory, the following

6 programme types have been stored in the

number buttons (1 to 6).

To store your favorite programme types, see

below.

To search your favorite programme type, see

page 16.

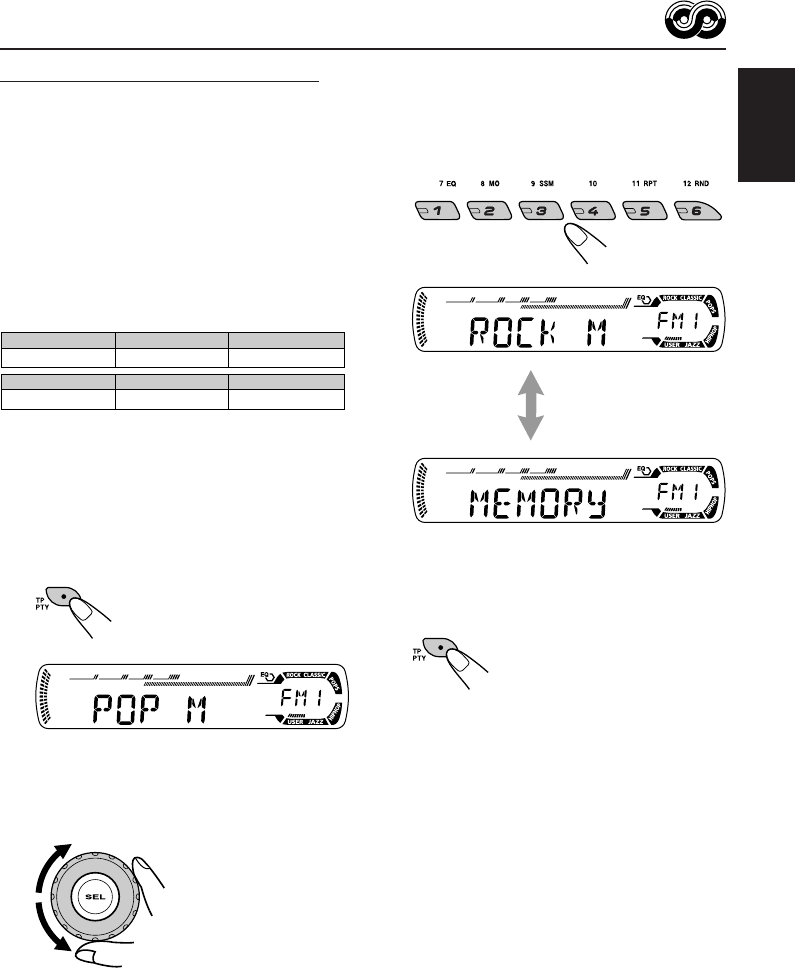

To store your favorite programme types

Press and hold TP PTY for more

than 2 seconds while listening to an

FM station.

Select one of the twenty-nine PTY

codes. (See page 18.)

Selected code name

appears on the display.

Press and hold the number button

for more than 2 seconds to store the

PTY code selected into the preset

number you want.

Press and hold TP PTY for more

than 2 seconds to exit from this

mode.

The last selected PTY code appears.

Selected PTY code and

“MEMORY” appear

alternately for a while.

POP M

123

ROCK M EASY M

456

CLASSICS AFFAIRS VARIED

EN12-18KD-G202201[E_EX_EU]f.p65 10/9/03, 11:22 AM15

ENGLISH

Press ¢ or 4 to start PTY

search for your favorite programme.

•If there is a station broadcasting a programme

of the same PTY code as you selected, that

station is tuned in.

•If there is no station broadcasting a

programme of the same PTY code as you

selected, the station will not change.

Note:

In some areas, the PTY search will not work correctly.

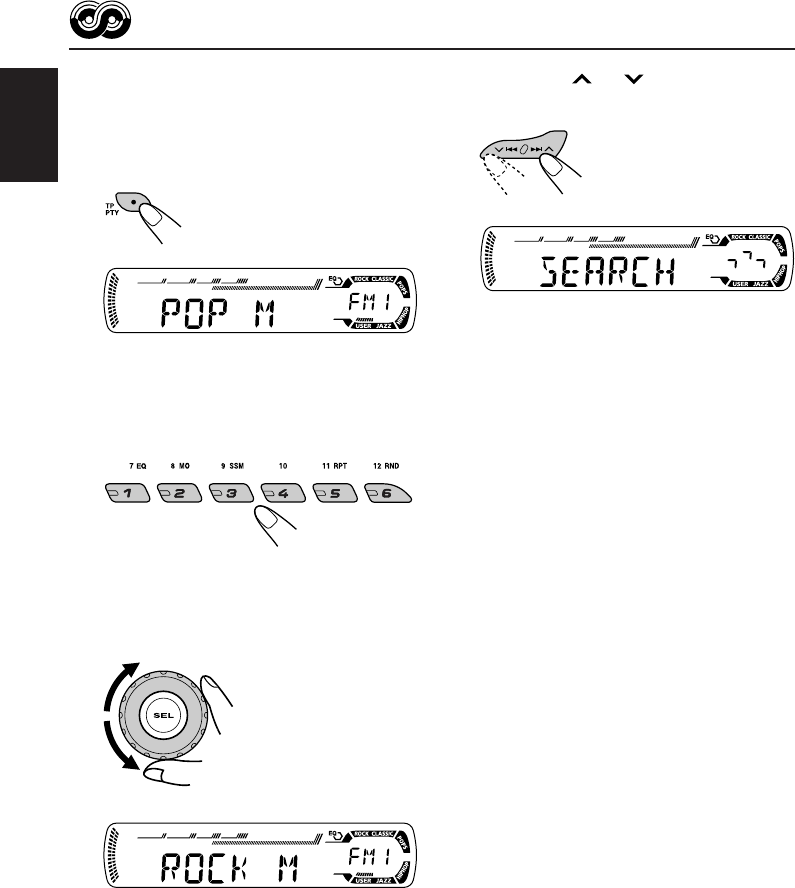

To search your favorite programme type

Press and hold TP PTY for more

than 2 seconds while listening to an

FM station.

To select one of your favorite

programme type

To select any one of the twenty-nine

PTY codes.

Ex.: When “ROCK M” is selected

The last selected PTY code appears.

EN12-18KD-G202201[E_EX_EU]f.p65 10/9/03, 11:22 AM16

ENGLISH

Setting the TA volume level

You can preset the volume level for TA Standby

Reception. When a traffic programme is received,

the volume level automatically changes to the

preset level.

•See also “Changing the general settings

(PSM)” on page 24.

1Press and hold SEL (select) for more than

2 seconds so that one of the PSM items

appears on the display.

2Press ¢ or 4 to select “TA VO L”

(volume).

3Turn the control dial to set to the desired

volume.

You can set it from “VOL 00” to “VOL 30” or

“VOL 50” (depending on the amplifier gain

control setting: see page 25).

4Press SEL (select) to finish the setting.

Automatic clock adjustment

When shipped from the factory, the clock built in

this unit is set to be readjusted automatically

using the CT (Clock Time) data in the RDS

signal.

If you do not want to use automatic clock

adjustment, follow the procedure below.

•See also “Changing the general settings

(PSM)” on page 24.

1Press and hold SEL (select) for more than

2 seconds so that one of the PSM items

appears on the display.

2Press ¢ or 4 to select “AUTO

ADJ” (adjustment).

3Turn the control dial counterclockwise to select

“OFF.”

Now automatic clock adjustment is canceled.

4Press SEL (select) to finish the setting.

To reactivate clock adjustment, repeat the

same procedure and select “ON” in step 3 by

turning the control dial clockwise.

Note:

You must stay tuned to the same station for more than

2 minutes after setting “AUTO ADJ” to “ON.”

Otherwise, the clock time will not be adjusted. (This is

because the unit takes up to 2 minutes to capture the

CT data in the RDS signal.)

Other convenient RDS

functions and adjustments

Automatic selection of the station

when using the number buttons

Usually when you press the number button, the

preset station is tuned in.

However, when the preset station is an RDS

station, something different will happen. If the

signals from that preset station are not sufficient

for good reception, this unit, using the AF data,

tunes in to another frequency broadcasting the

same programme as the original preset station is

broadcasting. (Programme search)

•The unit takes some time to tune in to another

station using programme search.

To activate programme search, follow the

procedure below.

•See also “Changing the general settings

(PSM)” on page 24.

1Press and hold SEL (select) for more than

2 seconds so that one of the PSM items

appears on the display.

2Press ¢ or 4 to select

“P(Programme)-SEARCH.”

3Turn the control dial clockwise to select “ON.”

Now programme search is activated.

4Press SEL (select) to finish the setting.

To cancel programme search, repeat the same

procedure and select “OFF” in step 3 by turning

the control dial counterclockwise.

EN12-18KD-G202201[E_EX_EU]f.p65 10/9/03, 11:22 AM17

ENGLISH

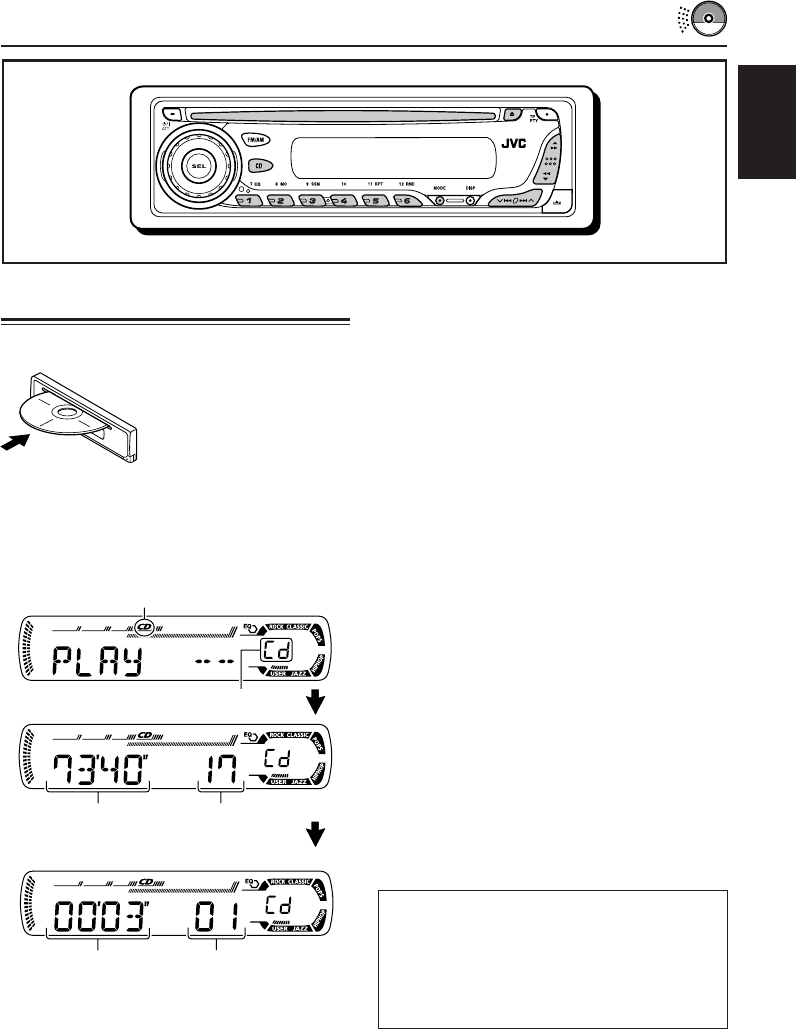

Playing a CD

Insert a CD into the loading slot.

The unit turns on, draws

the CD and starts

playback automatically.

Note on One-Touch Operation:

When a CD is already in the loading slot, pressing

CD turns on the unit and starts playback

automatically.

All tracks will be played repeatedly until you stop

playback.

CD OPERATIONS

Notes:

• When a CD is inserted upside down, “EJECT”

appears on the display and the CD automatically

ejects.

• If there is no CD in the loading slot, you cannot

select CD as the source. “NO DISC” appears on

the display.

To stop play and eject the CD

Press 0.

CD play stops and the CD automatically ejects

from the loading slot. The source changes to the

tuner (you will hear the last received station).

• If you change the source, CD play also stops

(without ejecting the CD).

Next time you select “CD” as the source, CD

play starts from where playback has been

stopped previously.

Notes:

• If the ejected CD is not removed for about 15 seconds,

the CD is automatically inserted again into the

loading slot to protect it from dust.

(CD play will not start this time.)

• You can eject the CD even when the unit is turned

off.

About mistracking:

Mistracking may result from driving on extremely

rough roads. This does not damage the unit and

the CD, but will be annoying.

We recommend that you stop CD play while driving

on such rough roads.

Elapsed playing time Current track

number

Total track number

of the inserted disc

Total playing time

of the inserted disc

Current source indication

CD indicator

EN19-21KD-G202201[E_EX_EU]f.p65 10/9/03, 11:22 AM19

ENGLISH

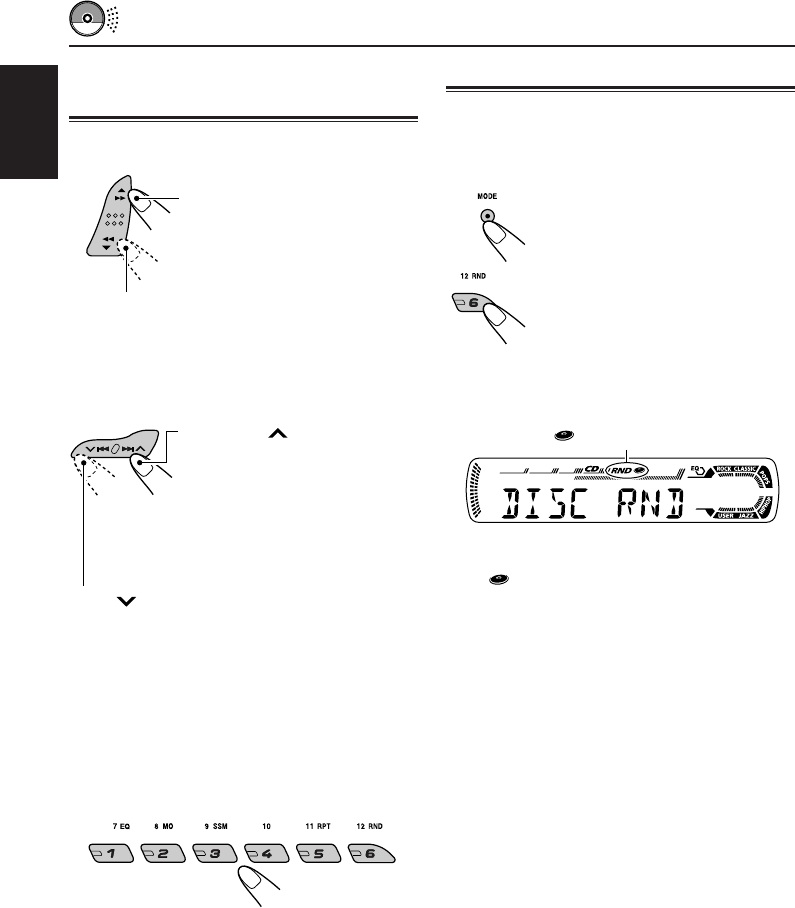

Selecting CD playback modes

To play back tracks at random

(Disc Random Play)

You can play back all tracks on the CD at random.

1Press MODE to enter the

functions mode while playing a

CD.

2Press RND (random), while

“MODE” is still flashing on the

display, so that “DISC RND”

appears on the display.

Each time you press the button,

disc random play mode turns on

and off alternately.

When disc random play is turned on, the

RND indicator lights up on the display. A

track randomly selected starts playing.

RND (random disc) indicator

Locating a track or a

particular portion on a CD

To fast-forward or reverse the track

To go to the next or previous tracks

To go to a particular track directly

Press the number button corresponding to the

track number to start its playback.

• To select a track number from 1 – 6:

Press 1 (7) – 6 (12) briefly.

• To select a track number from 7 – 12:

Press and hold 1 (7) – 6 (12) for more than one

second.

Press and hold ¡, while

playing a CD, to fast-forward the

track.

Press and hold 1, while playing a CD, to

reverse the track.

Press ¢ briefly, while

playing a CD, to go ahead to the

beginning of the next track.

Each time you press the button

consecutively, the beginning of

the next tracks is located and

played back.

Press 4 briefly, while playing a CD, to go

back to the beginning of the current track.

Each time you press the button consecutively,

the beginning of the previous tracks is located

and played back.

EN19-21KD-G202201[E_EX_EU]f.p65 10/9/03, 11:22 AM20

ENGLISH

Prohibiting CD ejection

You can prohibit CD ejection and can lock a CD

in the loading slot.

While pressing CD, press and hold 0 for

more than 2 seconds.

“EJECT” flashes on the display for about 5 seconds,

and the CD is locked and cannot be ejected.

To cancel the prohibition and unlock the

While pressing CD, press and hold 0 again for

more than 2 seconds.

“EJECT” appears on the display, and the CD

ejects from the loading slot.

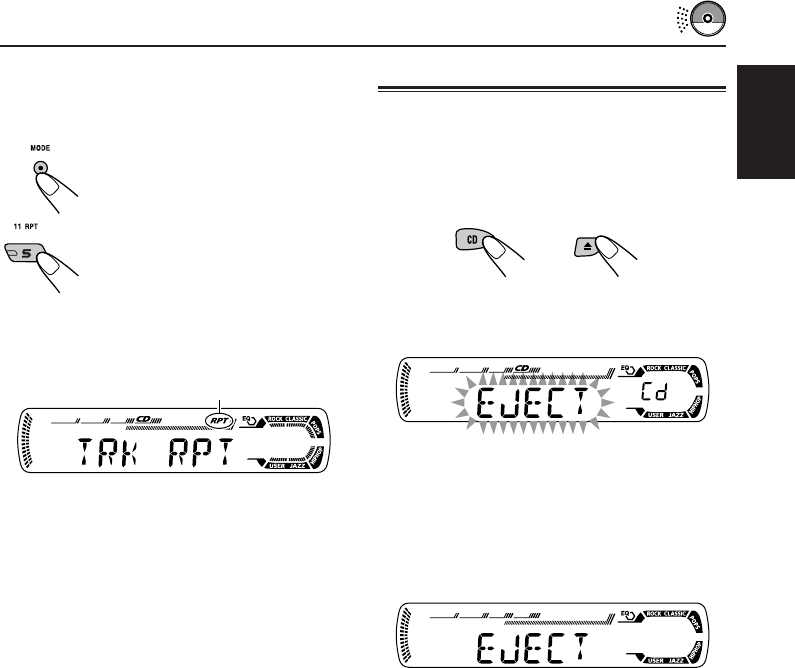

To play back tracks repeatedly

(Track Repeat Play)

You can play back the current track repeatedly.

1Press MODE to enter the

functions mode while playing a

CD.

2Press RPT (repeat), while

“MODE” is still flashing on the

display, so that “TRK RPT”

appears on the display.

Each time you press the button,

track repeat play mode turns on

and off alternately.

When track repeat play is turned on, the RPT

indicator lights up on the display. The current

track starts playing repeatedly.

RPT indicator

EN19-21KD-G202201[E_EX_EU]f.p65 10/9/03, 11:22 AM21

ENGLISH

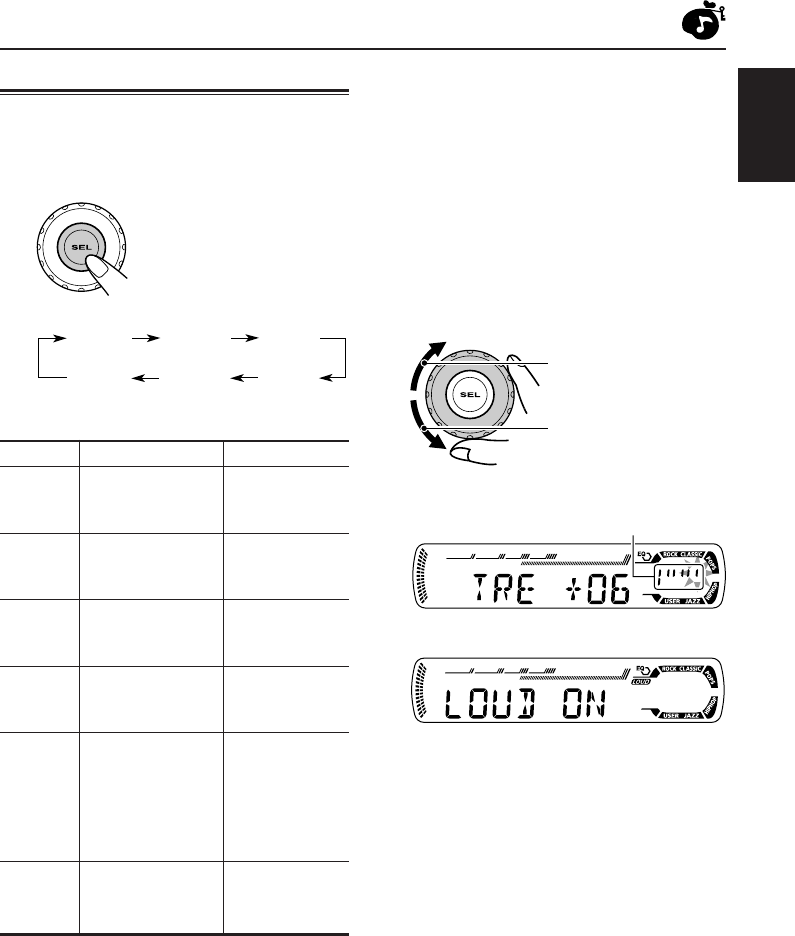

Adjusting the sound

You can adjust the sound characteristics to your

preference.

Select the item you want to adjust.

Each time you press the

button, the adjustable items

change as follows:

Indication To do: Range

BAS*1Adjust the bass. –06 (min.)

+06 (max.)

TRE*1Adjust the treble. –06 (min.)

+06 (max.)

FAD*2Adjust the front R06 (Rear only)

and rear speaker |

balance. F06 (Front only)

BAL Adjust the left L06 (Left only)

and right speaker |

balance. R06 (Right only)

LOUD*1Boost low and high

frequencies to LOUD ON

produce a well- |

balanced sound LOUD OFF

at low volume

level.

VOL*3Adjust the volume. 00 (min.)

30 or 50 (max.)*4

*1When you adjust the bass, treble, or loudness, the

adjustment you have made is stored for the

currently selected sound mode (C-EQ) including

“USER.”

*2If you are using a two-speaker system, set the fader

level to “00.”

*3Normally the control dial works as the volume

control. So you do not have to select “VOL” to

adjust the volume level.

*4Depending on the amplifier gain control setting.

(See page 25 for details.)

Adjust the setting.

Repeat steps

and

to adjust the

other items.

To reset each sound mode to the factory

settings, repeat the same procedure and

reassign the preset values listed in the table on

page 22.

To decrease the level

or turn off the loudness

To increase the level or

turn on the loudness

Indication pattern changes as

you adjust the bass or treble.

Ex. 1: When you adjust “TRE” (treble)

Ex. 2: When you turn on the loudness

VOL

(volume)

BAS

(bass)

TRE

(treble)

FAD

(fader)

BAL

(balance)

LOUD

(loudness)

EN22-23KD-G202201[E_EX_EU]f.p65 10/9/03, 11:22 AM23

ENGLISH

To select the dimmer mode—DIMMER

You can dim the display at night (according to

your preference).

When shipped from the factory, dimmer is

deactivated.

• OFF: Cancels the dimmer.

• ON: Activates the dimmer.

To select the telephone muting—TEL

This mode is used when a cellular phone system

is connected. Depending on the phone system

used, select either “MUTING 1” or “MUTING 2”

whichever mutes the sounds from this unit.

When shipped from the factory, this mode is

deactivated.

• MUTING 1: Select if this setting can mute the

sounds.

• MUTING 2: Select if this setting can mute the

sounds.

• OFF: Cancels the telephone muting.

To select the amplifier gain control

—AMP GAIN

You can change the maximum volume level of

this unit. When the maximum power of the

speakers is less than 50 W, select “LOW PWR”

to prevent them from being damaged.

When shipped from the factory, “HIGH PWR” is

selected.

• LOW PWR: You can adjust the volume level

from “VOL 00” to “VOL 30.”

Note:

If you change the setting from

“HIGH PWR” to “LOW PWR” while

listening at a volume level more than

30, the unit automatically changes the

volume level to “VOL 30.”

• HIGH PWR:You can adjust the volume level

from “VOL 00” to “VOL 50.”

PTY STBY PTY standby

TA VOL Traffic announcement

volume

P-SEARCH Programme search

DIMMER Dimmer mode

TEL Telephone muting

AMP GAIN Amplifier gain control

Indications Selectable values/items Factory-preset See

settings page

OFF

OFF MUTING 1

MUTING 2 25

OFFOFF ON 25

LOW PWR HIGH PWR HIGH PWR 25

VOL 00 — VOL 30 or 50*VOL 20

OFF ON OFF

OFF OFF

29 programme types

(see page 18) 14

*Depending on the amplifier gain control setting. (See below for details.)

EN24-26KD-G202201[E_EX_EU]f.p65 10/9/03, 11:21 AM25

ENGLISH

Detaching the control panel

You can detach the control panel when leaving

the car.

When detaching or attaching the control panel,

be careful not to damage the connectors on the

back of the control panel and on the panel

holder.

Detaching the control panel

Before detaching the control panel, be sure to

turn off the power.

Unlock the control panel.

Lift and pull the control panel out of

the unit.

Put the detached control panel into

the provided case.

Attaching the control panel

Insert the left side of the control

panel into the groove on the panel

holder.

Press the right side of the control

panel to fix it to the panel holder.

Note on cleaning the connectors:

If you frequently detach the control panel, the

connectors will deteriorate.

To minimize this possibility, periodically wipe the

connectors with a cotton swab or cloth moistened

with alcohol, being careful not to damage the

connectors.

Connectors

EN24-26KD-G202201[E_EX_EU]f.p65 10/9/03, 11:21 AM26

DEUTSCH

Rückstellen des Geräts

Während Sie SEL (Auswahl) gedrückt halten, drücken Sie (Bereitschaft/Netz/Dämpfer)

für mehr als 2 Sekunden.

Dadurch wird der eingebaute Microcomputer zurückgesetzt.

Hinweise:

• Ihre aktuellen Voreinstellungen—wie Festsender oder Klangeinstellungen—werden ebenfalls gelöscht.

• Wenn eine CD im Gerät ist, wird diese beim Rücksetzen des Geräts ausgeworfen. Achten Sie darauf, die

CD nicht fallenzulassen.

Verwenden der Taste MODE

Wenn die Taste MODE gedrückt wird, geht das Gerät in den Funktionsbetrieb und die Zifferntasten

dienen als verschiedene Funktionstasten.

Beispiel: Mit der Zifferntaste 2 kann nun in den MO (Monophon) geschaltet werden.

Wenn die Zifferntasten für etwa 5 Sekunden nach dem Drücken der Taste MODE nicht bedient

werden, wird der Funktionsbetrieb beendet und die Tasten können wieder als Zifferntasten

verwendet werden.

•Die Taste MODE nochmals drücken und der Funktionsbetrieb wird ebenfalls gelöscht.

SEL (Auswahl)

(Bereitschaft/Netz/Dämpfer)

Countdown-Zeitanzeige

WICHTIG FÜR LASER-PRODUKTE

1. LASER-PRODUKT DER KLASSE 1

2. ACHTUNG: Die obere Abdeckung nicht öffnen. Das Gerät enthält keine Teile, die vom Benutzer

gewartet werden können. Wartungen nur von qualifziertem Fachpersonal durchführen lassen.

3. ACHTUNG: Sichtbare und unsichtbare Laserstrahlung bei offenem Gerät und Defekt oder

Umgehen der Verriegelung. Setzen Sie sich dem Strahl nicht direkt aus.

4. ANBRINGEN DES ETIKETTS: WARNHINWEIS-ETIKETT, AUSSEN AM GERÄT ANGEBRACHT.

GE02-04KD-G202201[E_EX]f.p65 5/11/03, 9:54 AM2

DEUTSCH

Stellen der Uhr

Die Uhr kann so eingestellt werden, daß

entweder das 24-Stunden- oder das

12-Stunden-System angezeigt wird.

Drücken Sie die Taste SEL

(Auswahl), und halten Sie sie länger

als 2 Sekunden gedrückt, bis eines

der PSM-Elemente im Display

angezeigt wird. (PSM: siehe Seite 24

und 25).

Stellen Sie die Stunden ein.

1Wählen Sie „CLOCK H“ (Stunden),

sofern nicht bereits im Display angezeigt.

2Stellen Sie die Stunden ein.

Stellen Sie die Minuten ein.

1Wählen Sie „CLOCK M“ (Minuten).

2Stellen Sie die Minuten ein.

Stellen Sie das Uhrzeitsystem ein.

1Wählen Sie „24H/12H“.

2Wählen Sie „24H“ oder „12H“.

Bestätigen Sie die Einstellung.

So zeigen Sie die aktuelle Uhrzeit an oder

ändern die Anzeigebetriebsart

Drücken Sie die Taste DISP

(Display) wiederholt.

Wenn Sie diese Taste merhrfach

hintereinander drücken, ändert sich

die Anzeigebetriebsart wie folgt:

• Bei AM-Betrieb oder bei UKW-Sendern

ohne RDS:

•Beim Empfang von UKW RDS-Sendern:

•Während des CD-Betriebs:

•Bei ausgeschalteter Stromversorgung:

Die Stromversorgung wird eingeschaltet, und

die Uhrzeit wird 5 Sekunden lang angezeigt.

Anschließend wird die Stromversorgung

ausgeschaltet.

Frequenz Uhrzeit

UhrzeitVerstrichene Spielzeit

Sendername Senderfrequenz

ProgrammtypUhrzeit

GE05-07KD-G202201[E_EX]f.p65 5/11/03, 9:54 AM7

Produktspecifikationer

Varumärke:	JVC
Kategori:	bilradio
Modell:	kd-g201
Färg på produkten:	Black, Red
Vikt:	28800 g
Kraftkälla:	Benzine
Ljudtrycksnivå:	82 dB
Hantera egenskaper:	Vouwbaar
Rotationshastighet:	2800 RPM
Maximal gräsyta:	- m²
Maaibreedte:	460 mm
Antal klipphöjdspositioner:	Ja
Minsta klipphöjd:	25 mm
Maximal klipphöjd:	75 mm
Antal höjdpositioner:	7
Geluidsvermogensniveau:	93.1 dB
Motorvermogen:	4.1 hp
Bränsletankens kapacitet:	1.3 l
Cylinderkapacitet:	161 cm³
Gräsfångare:	Ja
Behållarens innehåll:	55 l
Innehåll i oljetanken:	0.35 l
Nivåindikering för gräsbehållare:	Ja
