Sida 1/8

User Manual

FMX2 TV Mount

Supporting your digital lifestyle

™

FULL MOTION FLAT PANEL TV MOUNT

English

3.2–20”

(8.2–51 cm)

±80°

+14°/-8°

130 lbs

(59 kg)

75 x 75

800 x 450

VESA

COMPLIANT

Introduction

Table of Contents

Table of Contents / Introduction . . . . . . . . . . . . . 2

Supplied Parts & Hardware . . . . . . . . . . . . . . . . . . 3

Setup - Step 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Setup - Step 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Setup - Steps 3 to 4 . . . . . . . . . . . . . . . . . . . . . . . 6

Setup - Steps 5 to 6 . . . . . . . . . . . . . . . . . . . . . . . 7

Other Kanto Products . . . . . . . . . . . . . . . . . . . . . . 8

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Thank you for choosing a Kanto full motion TV wall mount. The FMX2 is designed to mount ﬂ at panel televisions weighing up

to 130 lbs (59 kg), extend up to 20” (51 cm) from your wall, allows you to swivel left and right 80°, and tilt your TV +14°/-8°.

You

can also adjust the horizontal level ±5°.

Read these instructions fully before installation of this mount. If you do not understand these directions, or have any

doubts about the safety of the installation, please consult a qualiﬁ ed installation contractor to install this mount. Make

sure there are no defective or missing parts. Do not use defective parts. If there is hardware missing, or if you are

uncertain whether the part is defective call Kanto directly at 1-888-848-2643 or email support@kantoliving.com. This

product should not be mounted on steel stud walls or cinder block walls. Consult a qualiﬁ ed installation contractor if

you are unsure about the type of wall you may have

. Kanto cannot be liable for property damage or injury caused by

incorrect mounting, incorrect assembly, lifting or incorrect use of this product.

CAUTION

The wall you plan to afﬁ x the Kanto mount to must be able to support more than 5 times the weight of the

television and the wall mount combined. Do not use this product for any purpose other than to mount a ﬂ at panel

TV on a vertical surface as outlined in this manual. Improper installation may cause damage to your TV or serious

injury. This product should not be mounted to steel stud walls, cinder block or old concrete walls. Consult a qualiﬁ ed

installation contractor if you are unsure about the type of wall you may have.

CAUTION

The maximum loading weight is 130 lbs (59 kg). This wall mount is intended for use up to the maximum weight

restrictions indicated. Use with products heavier than the maximum weights indicated may result in instability causing

possible injury.

Visit our Website for the most recent version of this manual.

See installation video online at:

Regarder la video d’installation en ligne à:

Vea el vídeo de instalación online en:

www.kantomounts.com

Supporting your digital lifestyle

™

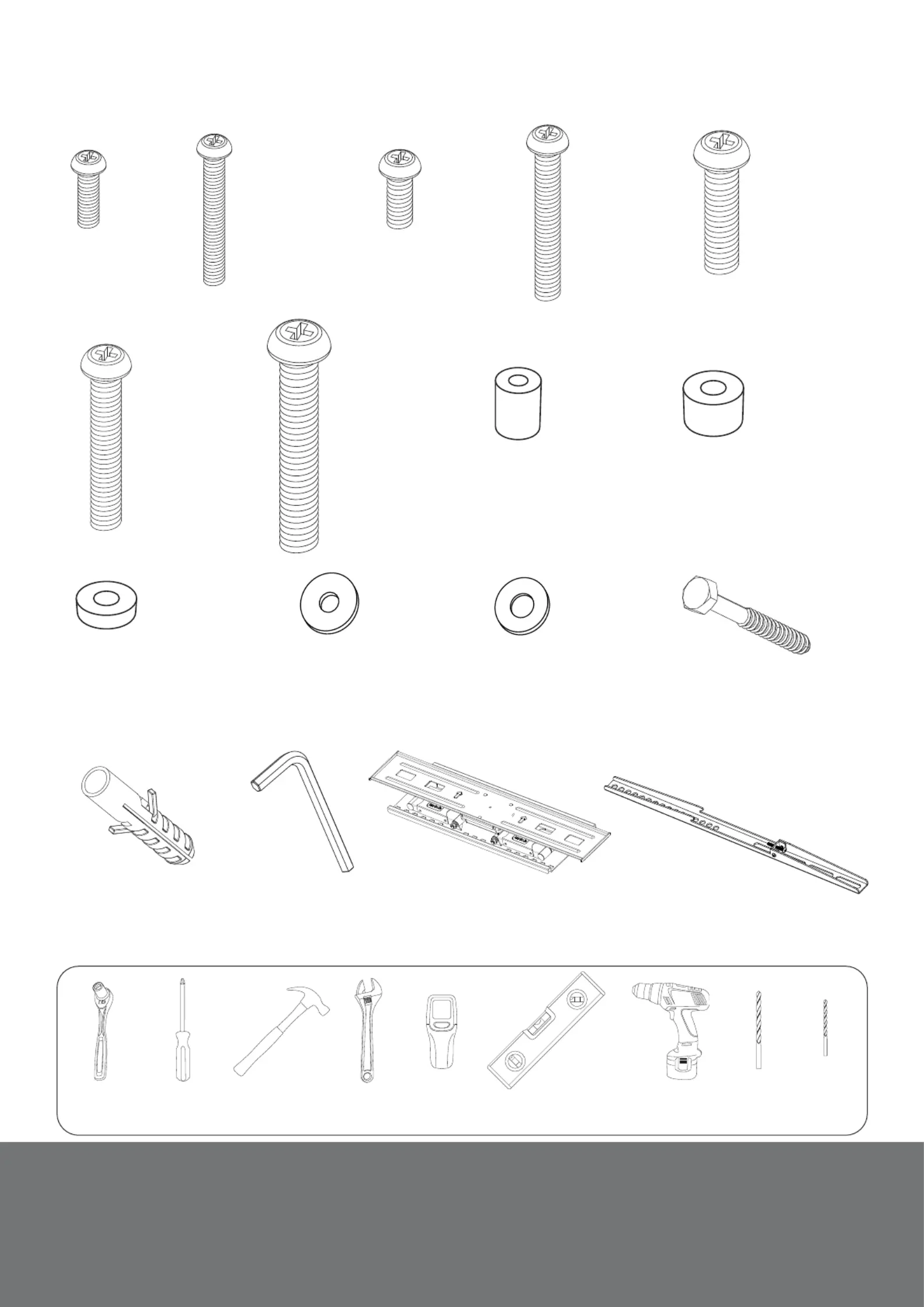

Supplied Parts and Hardware

Wall Plate

M: Lag Bolt

P: TV BracketN: Concrete Anchor

L: M8 Washer /

Lag Bolt Washer

x10

K: M5/M6 Washer

x6 x2

D: M6 x 35mm

Bolt

G: M8 x 50mm

Bolt

A: M5 x 12mm

Bolt

C: M6 x 12mm

Bolt

B: M5 x 30mm

Bolt

E: M8 x 20mm

Bolt

x4 x4 x4 x4

x4 x8

H: M5/M6

14mm Plastic Spacer

I: M5/M6/M8

10mm Plastic Spacer

O: Allen Key

J: M5/M6/M8

5mm Plastic Spacer

Required Tools

Socket

set

Phillips

Screwdriver

Hammer (for

concrete

installs)

Crescent

Wrench

Stud

Finder

Level Drill

3/8”

Masonry

Bit

7/32”

Wood

Bit

F: M8 x 35mm

Bolt

Produktspecifikationer

Varumärke:	Kanto
Kategori:	Platt panelstöd
Modell:	FMX2
Vikt:	13100 g
Bredd:	815 mm
Höjd:	450 mm
Förpackningens bredd:	950 mm
Certifiering:	CE
Förbättrad kabelhantering:	Ja
Maximal skärmstorlek:	80 "
Minsta skärmstorlek:	37 "
Avstånd till väggen (min):	82 mm
Lutningsvinkel:	15 - -5 °
Maxvikt:	59 kg
Justerbart djup:	Ja
Produktens färg:	Svart
bruksanvisning:	Ja
Lutningsjustering:	Ja
Monteringssats:	Ja
Förpackningstyp:	Låda
Låddjup:	335 mm
Vikt inkl. förpackning:	14100 g
Material, hölje:	Stål
Monteringssätt:	Vägg
Förpackningarnas innehåll:	Integrated cable management\nAdjustable horizontal leveling\nPaper wall template for marking pilot holes\nInstallation manual and all mounting hardware for wood stud and concrete installation
Gränsssnitt för panelmontering:	75 x 75, 800 x 450 mm
Antal displayer som stöds:	1
Monteringsgränssnitt kompatibilitet (min):	75 x 75 mm
Monteringsgränssnitt kompatibilitet (max):	800 x 450 mm
Vridningsvinkel:	80 °
Avstånd till väggen (max):	510 mm
Lämplig för datorbildskärm:	Ja
Färgdjup (max):	490 mm
Djup (min):	90 mm
