User instructions
Microscope camera
(eye piece camera)

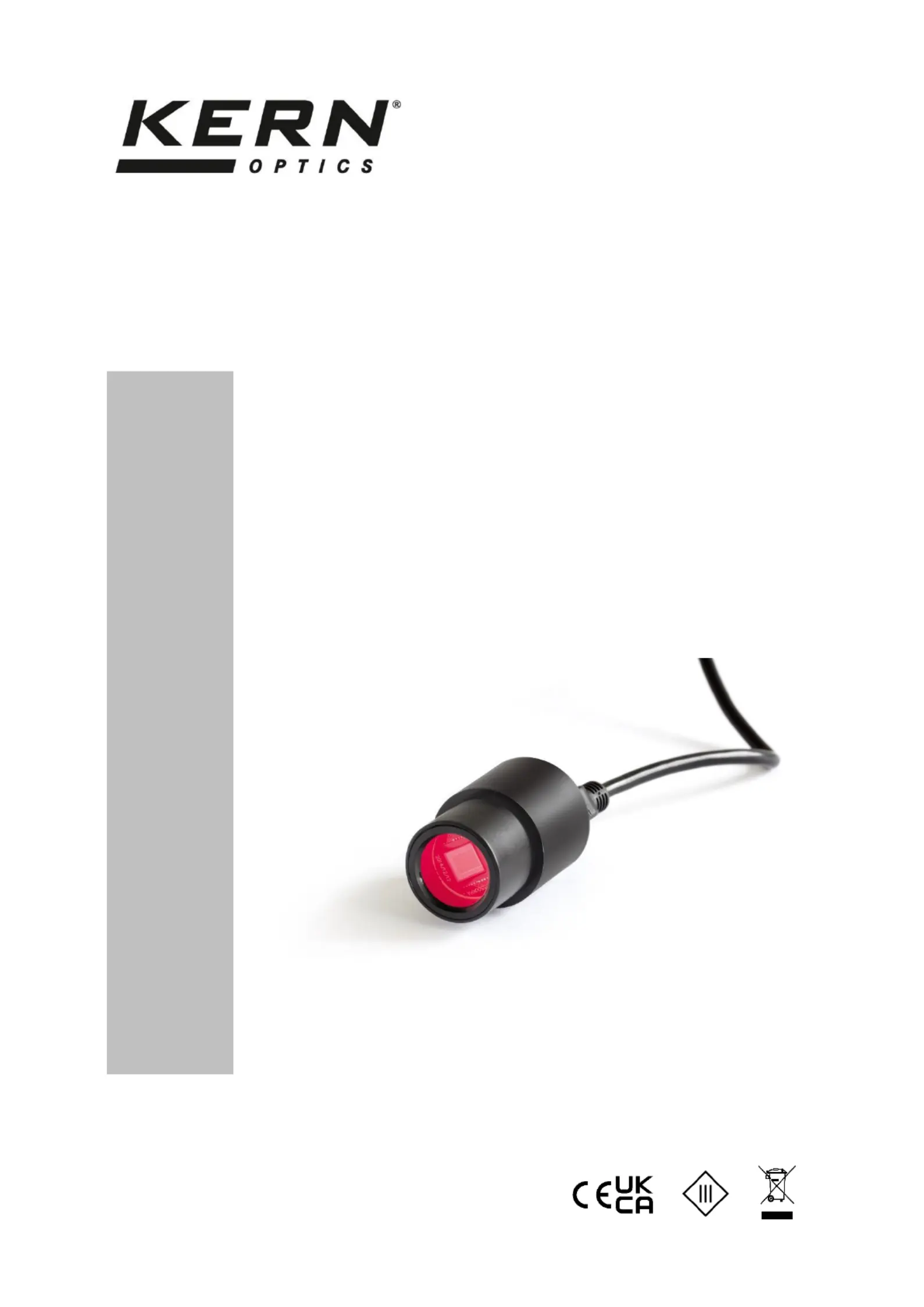

KERN - ODC 87, ODC- 88
ODC 874
ODC 881
Version 1.3
09/2023
2
ODC 87_88 BA- - -e-2313
KERN
ODC- 87, ODC- 88
Version 1.3 09 3 /202
User instructions
Microscope camera
Before use
You should device ensure that the is not exposed to direct sunlight, temperatures which
are too high or too low, vibrations, dust or a high level of humidity.
The ideal temperature range is between 0 and 40°C and a relative humidity of 85%
should not be exceeded.
Always make sure that you use an approved power cable. ages by Thus, possible dam
reason of the development of overheating (fire hazard) or an electric shock can be
prevented.
Do not open the housing and touch the internal component. There is the risk of
damaging them and affecting the functionality of the camera.
In order to carry out cleanings always disconnect the power cable from the camera.
Always keep the sensor clear from dust and do not touch it. Otherwise, there is the risk
of affecting the microscopic image. In case of non use always attach the protective -
covers.
Technical data
Model
KERN
Resolution
Interface
Sensor
Frame rate
Colour /
Monochrome
Supported operating
systems
ODC 874
3,1 MP US
B 2.0 1/2,7“CMOS
3 – 7,5 fps
Colour 8, Win, XP, Vista, 7, 10
ODC 881
5,1 MP US
B 3.0 1/2,8“CMOS 20 fps Colour Win, XP, Vista, 7, 8, 10
GB
ODC 87_88 BA- - -e-2313
3
Scope of delivery
-
Microscope camera
-
USB cable
-
Object micrometre for calibration
-
Software CD
Free download:
www.kern- > sohn.com DOWNLOADS > SOFTWARE > Microscope VIS Pro
-
Adjustment rings (Ø 30.0 + mm Ø 30.5 mm) for eyepiece adapter
Mounting
1. Remove the black cover at the bottom of the camera.
2. The round connecting piece, where the cover was attached, has a
standardised diameter (Ø 23.2 mm). Thus, the camera suites all
microscopes of which the eyepieces have this standard size.
3. For the mounting to the microscope one of the eyepieces needs to
be removed from the microscope tube and replaced by the
eyepiece camera.
Important:
For microscopes, that have a different eyepiece diameter (30.0
mm or 30.5 mm, mostly used for stereo microscopes), you need
to apply the appropriate adjustment ring in order to mount the
eyepiece camera correctly.
4. If necessary, adjust the microscope according to the trinocular
usage (with help of the trino toggle rod / trino toggle wheel).
PC connection
1. Establish USB connection via USB cable.
2. Installing the software with help of the CD.
3. -Both the supplied "Help" files and the software-internal "User
Guide" include all information and instructions about the operation
of the software or of digital microscopy.
